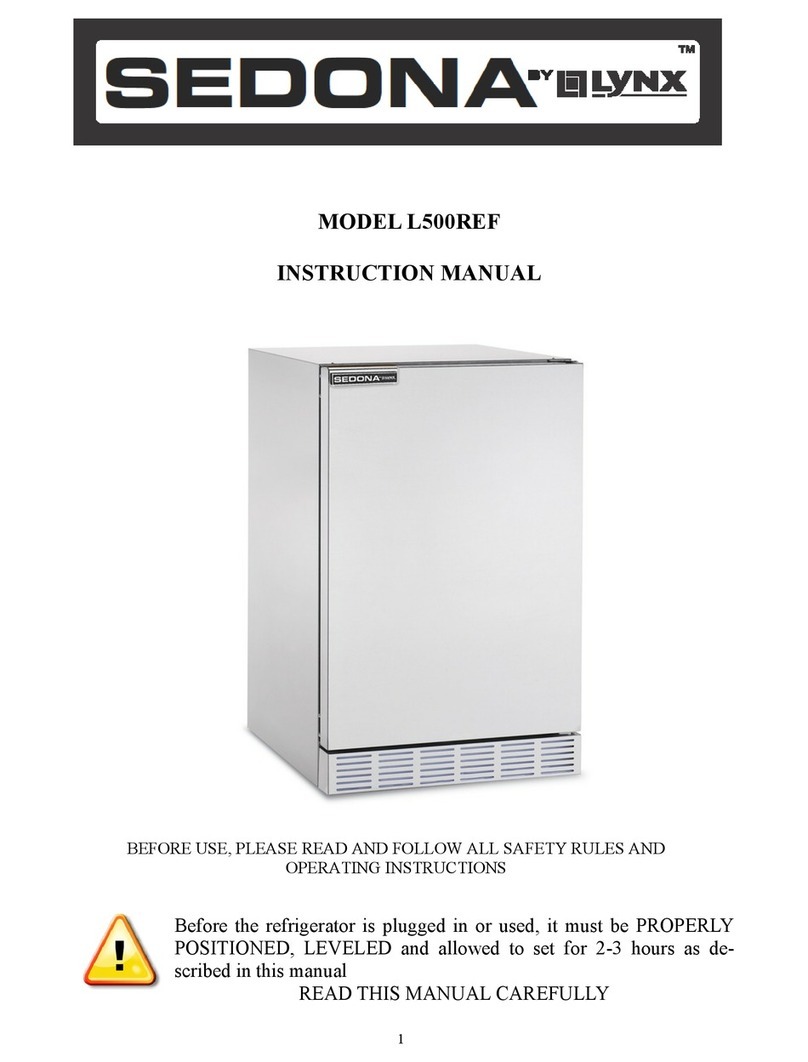

MODEL L500REF
INSTRUCTION MANUAL
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND
OPERATING INSTRUCTIONS
Before the refrigerator is plugged in or used, it must be PROPERLY
POSITIONED, LEVELED and allowed to set for 2-3 hours as de-
scribed in this manual
READ THIS MANUAL CAREFULLY

2
IMPORTANT SAFEGUARDS
Before the refrigerator is plugged in or used, it must be properly positioned and installed
as described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the refrigerator, follow basic precaution, including
the following:
* Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and
do not use an extension cord.
* It is recommended that a separate circuit, serving only your refrigerator be provided. Use recepta-
cles that cannot be turned off by a switch or pull chain.
* Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or explo-
sion. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance. The fumes can create a fire hazard or explosion.
* Before proceeding with cleaning and maintenance operations, make sure the power line of the unit
is disconnected.
* Do not connect or disconnect the electric plug when your hands are wet.
* Unplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can result
in electrical shock or death.
* Do not attempt to repair or replace any part of your refrigerator unless it is specifically recom
mended in this manual. All other servicing should be referred to a qualified technician.
* Use two or more people to move and install refrigerator. Failure to do so can result in back or other
injury.
* To ensure proper ventilation for your refrigerator, the front of the unit must be completely unob-
structed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°
C). This unit should be installed in an area protected from the direct elements, such as wind and
rain.
* The refrigerator should not be located directly next to ovens, grills or other sources of high heat.
* The refrigerator must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances is required.
* Do not kink or pinch the power supply cord of refrigerator.
* The fuse (or circuit breaker) size should be 15 amps.
* It is important for the refrigerator to be leveled in order to work properly. You may need to make
several adjustments to level it.
* All installation must be in accordance with local plumbing code requirements.
* Make certain that the pipes are not pinched or kinked or damaged during installations.
* Check for leaks after connection.
* Never allow children to operate, play with or crawl inside the refrigerator.
* Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may dam-
age or discolor the interior.
* Do not use this apparatus for other than its intended purpose.
DANGER
WARNING
Product certified under UL471
Part #33858
Rev. A 3/13

3
TABLE OF CONTENTS
IMPORTANT SAFEGUARDS___________________________________________________ 2
PARTS AND FEATURES ______________________________________________________ 4
IMPORTANT SAFETY INSTRUCTIONS___________________________________________ 5
INSTALLATION INSTRUCTIONS________________________________________________ 5
CUT-OUT DIMENSIONS _______________________________________________________ 6
ELECTRICAL CONNECTION ___________________________________________________ 7
EXTENSION CORD __________________________________________________________ 7
REVERSING THE DOOR SWING OF YOUR UNIT __________________________________ 7
OPERATING YOUR UNIT _____________________________________________________ 8
SETTING THE TEMPERATURE CONTROL ________________________________________ 8
CARE AND MAINTENANCE ____________________________________________________ 9
CLEANING YOUR UNIT ________________________________________________________ 9
POWER FAILURE _____________________________________________________________ 9
VACATION TIME ______________________________________________________________ 9
MOVING YOUR UNIT __________________________________________________________ 9
ENERGY SAVING TIPS ________________________________________________________ 9
ADJUSTABLE HINGE AND HANDLE KIT __________________________________________ 10
TROUBLESHOOTING GUIDE ___________________________________________________ 11
WIRING DIAGRAM ____________________________________________________________ 11
WARRANTY __________________________________________________________________ 12

4
Part
1 Light Lens Cover
2 Temperature Control Knob
3 Upper Shelves
4 Lower Shelf
5 Leveling Leg
6 Venting Grid (34046)
7 Bottom Hinge
8 Door (34045)
9 Door Bar
10 Can Dispenser
11 Condiment Bar
12 Top Hinge
PARTS & FEATURES

5
WARNING
* Read all instructions before using the refrigerator.
* DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
refrigerators are still dangerous. . . even if they will “just sit in the garage a few days.”
* Before you throw away your old refrigerator: Take off the doors. Leave the shelves in
place so that children may not easily climb inside.
* Never allow children to operate, play with, or crawl inside the refrigerator.
* Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard
or explosion.
* Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of
this or any other refrigerator. The fumes can create a fire hazard or explosion.
-Save these instructions-
INSTALLATION INSTRUCTIONS
Before Using Your Unit
* Remove the exterior and interior packing.
* Check to be sure you have all of the following parts:
* 2 Shelves
* 1 Glass Lid
* 1 Crisper
1 Instruction Manual
* Before connecting the unit to the power source, let it stand upright for approximately 2 hours. This
will reduce the possibility of a malfunction in the cooling system from handling during transporta-
tion.
* Clean the interior surface with lukewarm water using a soft cloth.
Installing Your Unit
* Follow the recommendations in this manual if the product is to be recessed or built-in.
* Place your unit on a floor that is strong enough to support the unit when it is fully loaded. To level
your unit, adjust the leveling legs at the bottom of the unit.
* Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct
sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Ex-
treme cold ambient temperatures may also cause the unit not to perform properly.
* Avoid locating the unit in moist areas.
* Plug the unit into an exclusive, properly installed, grounded wall outlet. Do not under any circum-
stances cut or remove the third (ground) prong from the power cord. Any questions concerning
power and/or grounding should be directed toward a certified electrician or an authorized Products
service center.
* After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before plac-
ing food in the refrigerator compartment.

6

7
WARNING
Improper use of the grounded plug can result in the
risk of electrical shock. If the power cord is damaged, have it re-
placed by and authorized service center.
Electrical Connection
This unit should be properly grounded for your safety. The power cord of this unit is equipped with a three-
prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord sup-
plied. For personal safety, this appliance must be properly grounded.
This unit requires a standard 115 Volt AC /60Hz GFCI protected electrical outlet with three-prong ground.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to
have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the unit and not left exposed or dangling to prevent accidental injury.
The unit should always be plugged into its own individual electrical outlet which has a voltage rating that
matches the rating label on the appliance. This provides the best performance and also prevent overloading
house wiring circuits that could cause a fire hazard from overheating. Never unplug the unit by pulling the
power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immedi-
ately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks
or abrasion damage along its length or at either end. When moving the unit, be careful not to damage the
power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do not
use an extension cord with this unit. However, if you must use an extension cord it is absolutely necessary
that it be a 3-wire grounding type appliance extension cord having a grounding type plug and outlet and
that the electrical rating of the cord be 220 volts and at least 15 amperes and rated for outdoor usage.
Reversing the Door Swing of Your Appliance
This refrigerator can be opened either from the left or right side. The default way of opening the
door is from the right side. If you want to open the door from the left side, please follow the instruct
ions below. Refer to Figures 1 and 2 on the following page.
NOTE: All the removed parts must be well kept for the reinstallation of the door
* Remove the three screws (5) that hold the lower door hinge (4), keep the hinge for later use.
* Remove the door from the upper pin , and keep the padded surface upwards to prevent
scratching.
* Remove the upper hinge cover (1), remove the two screws (2), hold the upper hinge(1),
save the hinge for later use.
* Remove the hole cover (7) and transfer it to the same location on the opposite side.

8
FIGURE 1 (Normal position) FIGURE 2 (Position after door reversal)
1 Top Hinge
2 Screw (3)
3 Door
4 Bottom Hinge
5 Screw (3)
6 Frame
7 Hole Cover
* Insert the lower door hinge in the right side, fix the lower right hinge by tightening all the
screws.
* Remove the pin cap from the right side of the upper frame of the door, and then transfer it to
the same location on the opposite side.
* Put the door on the Lower Door Hinge(5), keep the door level , and then fix the upper hinge(3)
to the body(4) by the screws
* Put on the upper hinge cover(1).
OPERATING YOUR UNIT
Setting the Temperature Control
* Your unit has only one control for regulating the temperature in the compartment. The temperature con-
trol is located on the top center of the compartment.
* The first time you turn the unit on, set the temperature control to “5”.
* The range of the temperature control is from position "OFF” to “5”. After 24 to 48 hours, adjust the tem-
perature control to the setting that best suits your needs. The setting of “3” should be appropriate for
normal use.
* To turn the appliance off, turn the temperature control to ”OFF”.
NOTE:
* Turning the temperature control to “OFF” position stops the cooling cycle but does not shut off the
power to the unit.
* If the unit is unplugged, has lost power, or is turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the unit will not start.

9
CARE AND MAINTENANCE
CAUTION:
Do not use boiling water because it may damage the plastic parts. In addition, never use a sharp or
metallic instrument to remove frost as it may damage the cooling system and will void the warranty.
We recommend using a plastic scraper.
Cleaning Your Unit
* Turn the temperature control to "OFF", unplug the unit, and remove the food, shelf, and tray.
* Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2
tablespoons of baking soda to a quart of water.
* Wash the shelf and tray with a mild detergent solution.
* The outside of the unit should be cleaned with mild detergent and warm water. A protective stainless
steel polish should then be applied in the direction of the grain.
* Wring excess water out of the sponge or cloth before cleaning the area of the controls, or any electrical
parts.
* Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a
clean soft cloth. A protective stainless steel polish should then be applied in the direction of the grain.
CAUTION:
Failure to unplug the unit could result in electrical shock or personal injury.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your unit if
you minimize the number of times the door is opened. If the power is going to be off for a longer period of
time, you need to take the proper steps to protect your food.
Vacation Time
* Short vacations: Leave the unit operating during vacations of less than three weeks.
* Long vacations: If the appliance will not be used for several months, remove all food and unplug the
power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door
open slightly: blocking it open if necessary.
Moving Your Unit
* Remove all the food.
* Securely tape down all loose items inside your unit.
* Turn the leveling legs up to the base to avoid damage.
* Tape the door shut.
* Be sure the unit stays secure in the upright position during transportation. Also protect the outside of
unit with a blanket, or similar item.
Energy Saving Tips
* The unit should be located in the coolest area of the room, away from heat producing appliances, and
out of the direct sunlight.
* Let hot foods cool to room temperature before placing in the unit. Overloading the unit forces the com-
pressor to run longer.
* Be sure to wrap foods properly, and wipe containers dry before placing them in the unit. This cuts
down on frost build-up inside the unit.
* Unit storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere
with cold air circulation, making the unit less efficient.
* Organize and label food to reduce door openings and extended searches. Remove as many items as
needed at one time, and close the door as soon as possible.

10
Adjustable Hinge and Handle Kit

11
PROBLEMS WITH YOUR REFRIGERATOR
You can solve many common unit problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before
calling the servicer.
PROBLEM POSSIBLE CAUSE
Unit does not operate. Not plugged in.
The circuit breaker tripped or a blown fuse.
The unit temperature control is set at “OFF” posi-
tion.
Turns on and off frequently. The temperature is hotter than normal.
A large amount of food has been added to the
unit.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The unit does not have the correct clearances.
Vibrations. Check to assure that the unit is level.
The unit seems to make too much noise. The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
unit.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The unit is not level.
The door will not close properly. The unit is not level.
The door was reversed and not properly in-
stalled.
The gasket is dirty or bent.
The shelves, bins, or baskets are out of position.

12
L I M I TE D W A RR AN T Y
Ma nu f act ure r warr ant s t o th e or igi nal pur chase r at th e or igi na l si te of de li ve r y
wi th pr oof of p ur c hase of ea ch ref r ig erato r tha t whe n subject to n or mal res i-
de nti al u se, i t i s fr ee f rom def ect s in wor k man sh ip an d m at eri al f o r t he peri -
od s spe ci f ie d below. T his wa rra nt y ex cl u de s ref r ig er a tors used in rent al or
co m mer cial app licat io ns. I t does not cover lab or r ela ted charg e s. Ther e wil l
be s hipping a nd ha nd li ng cha rge s fo r the de liver y of warr ant y pa rt( s ).
1 Y E AR W AR R A N T Y
Our obl ig a tion un de r t hi s wa rra nt y is li mit ed t o r ep air or replac em e nt , a t our
op tio n, of the pr oduc t dur ing the wa rra nt y pe riod. T h e ext e nt of any liab il ity of
Ma nu f act ure r, u nde r t his wa rra nt y is l im ite d t o rep ai r o r r ep la cem ent . The
warr ant y does not c ov er n orm al we ar of part s, dam age result in g f rom an y of
the f o ll ow in g : n eg lig ent u se or mi sus e of the pr odu ct , u se con t rar y to oper at-
in g i ns t ruc tions , or a lt era t io n by any pe rso n oth er t h at o ur fac tory servic e
ce nte r. Th e warr a nt y peri od is not e xt e nded by suc h repai r or re place men t.
W a r r a nt y c l a i m p r o c e d u r e: if y ou r eq ui re p ar t s f o r y ou r r e f ri ge ra t or , p l ea se
co nta ct our wa r ranty s er vi ce ce nte r f or fact o ry dire ct as sistanc e. O ur h our s of
op era tion ar e 6AM to 4 :30 P M PST . O ur p ho ne numb er is 1 - 888-289-59 69 a nd
ou r f a x nu mbe r i s 32 3 - 838- 17 78 . Dir ect a ll c orr esp on dence t o Lynx Prof e s-
si onal Gr il ls 5895 R i ck e nback er Rd, Comm erc e CA 9 00 40 , Att ent io n Cu sto mer
Ca re.
Pr odu ct r e pa ir a s pr o vide d un der t his wa rra nty is yo ur e xc lus i ve rem edy.
Ma nu f act ure r shall not be l ia bl e f or any inciden tal or con se q ue nti al d ama ge
f or bre ach of an y exp res s or imp l ie d war ran ty on it s pr o du cts . Ex ce pt to t he
exte nt pr ohibite d by app l ic ab l e la w, a ny impl ie d wa rra nty or merc han tab ilit y
or f i tness f or a par t icular p urp os e on th is p rod uc t to th e dura tion of t he ab ove
warr ant y. S ome s tates d o no t al lo w th e excl u si on or l im ita tion of inc id en t al o r
co nse que nt ial da mag es, o r al lo w lim it ati ons on ho w long an imp li ed wa r ranty
la sts , so the above limi tat io ns or e xc lu s io ns ma y not apply to you. T h is war -
ranty g ives yo u speci f ic l eg a l ri ght s, an d yo u may have o ther right s, which
va r y f r om st a te t o st at e .
