Saivod CT1750NF User manual

CT1750NF
GB Instruction for use
ES Instrucciones de uso
PT Instruções de utilização

WARNING!
In order to ensure a normal operation of your refrigerating appliance, which uses a
completely environmentally friendly refrigerant the R600a (flammable only under
certain conditions) you must observe the following rules:
Do not hinder the free circulation of the air around the appliance.
Do not use mechanical devices in order to accelerate the defrosting, others than the
ones recommended by the manufacturer.
Do not destroy the refrigerating circuit.
Do not use electric appliances inside the food keeping compartment, other than
those that might have been recommended by the manufacturer.
ADVERTENCIA
Con el fin de garantizar un funcionamiento normal de su frigorífico, que utiliza un
refrigerante totalmente respetuoso con el medio ambiente, el R600a (inflamable sólo
en ciertas condiciones), se deben observar las pautas siguientes:
No impedir la libre circulación del aire alrededor del electrodoméstico.
Para acelerar el deshielo no se deben utilizar dispositivos mecánicos que no sean
aquellos recomendados por el fabricante.
No destruir el circuito de refrigeración.
No utilizar aparatos eléctricos dentro del compartimento de aviso de alimentos que
no sean los que pudiera haber recomendado el fabricante.
AVISO!
Afim de assegurar um funcionamento normal do seu aparelho de refrigeração que
utiliza um refrigerador, o R600a, completamente amigo do ambiente (inflamável
apenas sob certas condições), deve observar as seguintes normas:
Não obstrua a livre circulação do ar ao redor do aparelho.
Não utilize dispositivos mecânicos que não os recomendados pelo fabricante para
acelerar o descongelamento.
Não destrua o circuito de refrigeração.
Não utilize aparelhos eléctricos que não aqueles que devem ter sido recomendados
pelo fabricante dentro do compartimento para guardar comida.

ES Índice
PT Índice
Princípios básicos de segurança /19
Requisitos eléctricos /20
Instruções para transporte /20
Instruções de instalação /20
Detalhes do frigorífico /21
Arrumação sugerida para os
alimentos no frigorífico /21
Controlo e ajuste da temperatura /21
Antes do funcionamento /22
Armazenar alimentos congelados /22
Congelar alimentos frescos /22
Fazer cubos de gelo /22
Descongelar /23
Substituição da lâmpada interior /23
Limpeza e cuidados /23
Recolocação das portas /24
Procedimentos correctos e incorrectos /24
Consumo de energia /25
Informação sobre os ruídos e vibrações /26
Resolução de problemas /26
Dados técnicos /27
Safety first /1
Electrical requirements /2
Transportation instructions /2
Installation instructions /2
Getting to know your appliance /3
Suggested arrangement of food in the
appliance /3
Temperature control and adjustment /4
Before operating /4
Storing frozen food /4
Freezing fresh food /4
Making ice cubes /4
Defrosting /5
Replacing the interior light bulb /5
Cleaning and care /5
Repositioning the door /6
Do’s and don’ts /6
Energy Consumption /7
Information concerning the noises /8
Troubleshooting /8
Thechnical data /9
La seguridad es lo primero /10
Requisitos eléctricos /11
Instrucciones de transporte /11
Instrucciones de instalación /11
Detalles del electrodoméstico /12
Disposición recomendada de los
alimentos en el frigorífico /12
Control y ajuste de la temperatura /12
Antes del uso /13
Almacenamiento de alimentos congelados /13
Congelación de alimentos frescos /13
Cubitos de hielo /14
Deshielo /14
Sustitución de la bombilla interior /14
Conservación y limpieza /15
Reposicionamiento de la puerta /15
Prácticas correctas e incorrectas /16
Consumo energético /17
Información referente al ruido
y las vibraciones /17
Resolución de problemas /18
Datos técnicos /18
GB Index

1

2
3
4
8
5
6
7
9
11
10
12

13
14

15

Congratulations on your choice of a SAIVOD
Quality Appliance, designed to give you many years of
service.
Safety first!
Do not connect your appliance to the electricity supply
until all packing and transit protectors have been
removed.
• Leave to stand for at least 12 hours before switching
on, to allow compressor oil to settle, if transported
horizontally.
• If you are discarding an old appliance with a lock or
latch fitted to the door, ensure that it is left in a safe
condition to prevent the entrapment of children.
• This appliance must only be used for its intended
purpose.
• Do not dispose of the appliance on a fire. Your
appliance contains non CFC substances in the
insulation which are flammable. We suggest you
contact your local authority for information on disposal
and available facilities.
• We do not recommend use of this appliance in an
unheated, cold room. (e.g. garage, conservatory,
annex, shed, out-house etc.)
To obtain the best possible performance and trouble
free operation from your appliance it is very important to
read these instructions carefully. Failure to observe
these instructions may invalidate your right to free
service during the guarantee period.
Please keep these instructions in a safe place for easy
reference.
GB Instruction for use
1
This appliance is not intended for use by person with reduced physical, sensory or mental
capabilities or lack of experience and knowledge unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

GB Instruction for use
Electrical requirements
Before inserting the plug into the wall socket make
sure that the voltage and the frequency shown in
the rating plate inside the appliance corresponds
to your electricity supply.
We recommend that this appliance is connected to
the mains supply via a suitably switched and fused
socket in a readily accessible position.
Warning! This appliance must be earthed.
Repairs to electrical equipment should only be
performed by a qualified technician. Incorrect
repairs carried out by an unqualified person are
carry risks that may have critical consequences for
the user of the appliance.
ATTENTION!
This appliance operates with R600a which is an
environmental friendly but flammable gas. During
the transportation and fixing of the product, care
must be taken not to damage the cooling system.
If the cooling system is damaged and there is a
gas leakage from the system, keep the product
away from open flame sources and ventilate the
room for a while.
WARNING - Do not use mechanical devices or
other means to accelerate the defrosting process,
others than those recommended by the
manufacturer.
WARNING - Do not damage the refrigerant circuit.
WARNING - Do not use electrical appliances
inside the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.
WARNING - If the supply cord is damaged, it must
be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
hazard.
Transportation instructions
1. The appliance should be transported only in an
upright position. The packing as supplied must be
intact during transportation.
2. If during the transport the appliance, has been
positioned horizontally, it must not be operated for
at least 12 hours, to allow the system to settle.
3. Failure to comply with the above instructions
could result in damage to the appliance, for which
the manufacturer will not be held liable.
4. The appliance must be protected against rain,
moisture and other atmospheric influences.
Important!
• Care must be taken while cleaning/carrying the
appliance not to touch the bottom of the
condenser metal wires at the back of the
appliance, as this could cause injury to fingers and
hands.
• Do not attempt to sit or stand on top of your
appliance as it is not designed for such use. You
could injure yourself or damage the appliance.
• Make sure that the mains cable is not caught
under the appliance during and after moving, as
this could damage the cable.
• Do not allow children to play with the appliance
or tamper with the controls.

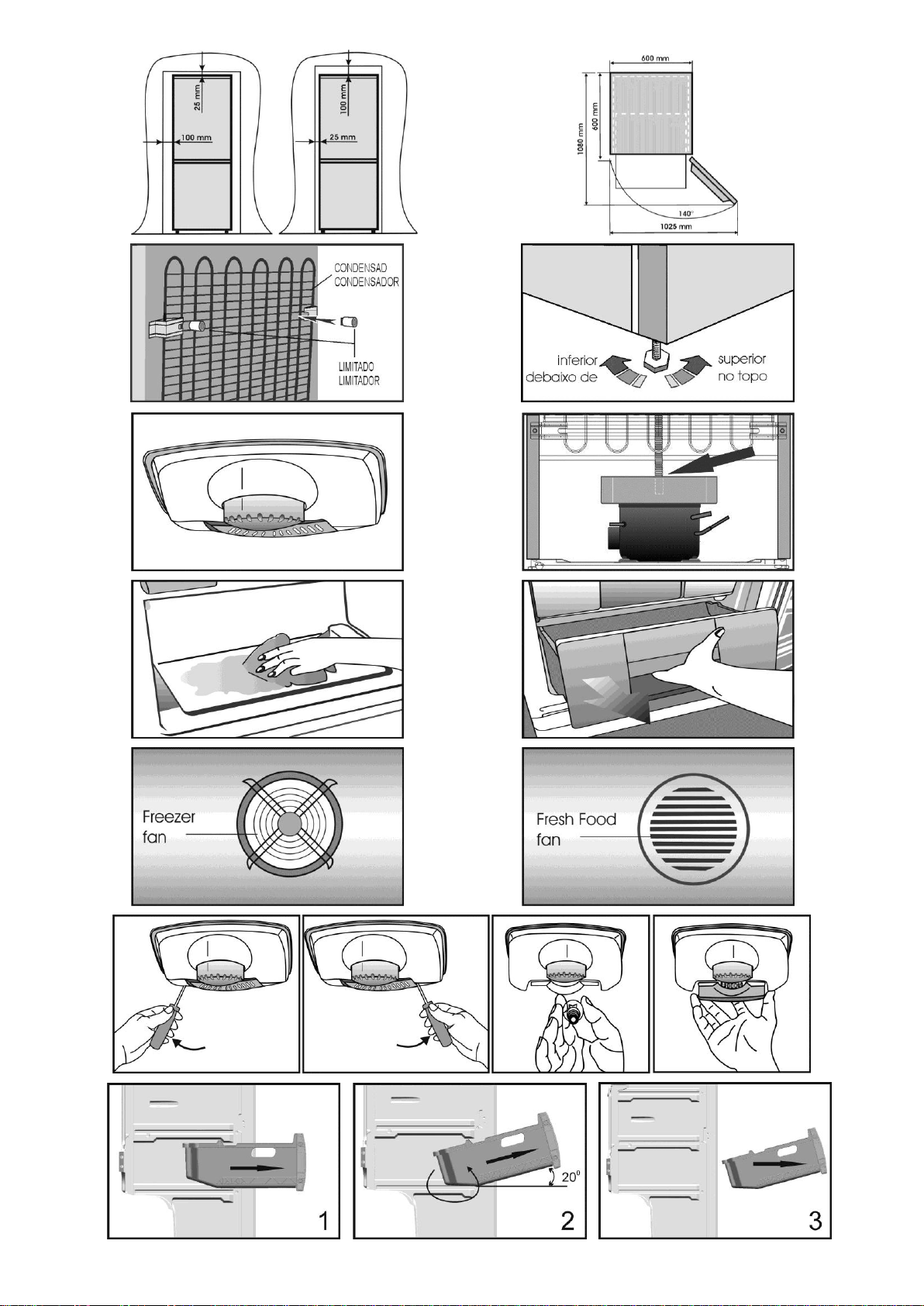

Installation instructions
1. Do not keep your appliance in a room where the
temperature is likely to fall below -15 degrees C (5
degrees F) at night and/or especially in winter.
2. Do not place the appliance near cookers or
radiators or in direct sunlight, as this will cause
extra strain on the appliance's functions. If
installed next to a source of heat or freezer,
maintain the following minimum side clearances:
From Cookers 30 mm
From Radiators 300 mm
From Freezers 25 mm
3. Make sure that sufficient room is provided
around the appliance to ensure free air circulation
(Item 2).
• Put the back airing lid to the back of your
refrigerator to set the distance between the
refrigerator and the wall (Item 3).
4. The appliance should be positioned on a
smooth surface. The two front feet can be
adjusted as required.To ensure that your
appliance is standing upright adjust the two front
feet by turning clockwise or anti-clockwise, until
firm contact is secured with the floor. Correct
adjustment of feet prevents excessive vibration
and noise (Item 4).
5. Refer to "Cleaning and Care" section to prepare
your appliance for use.
2

GB Instruction for use

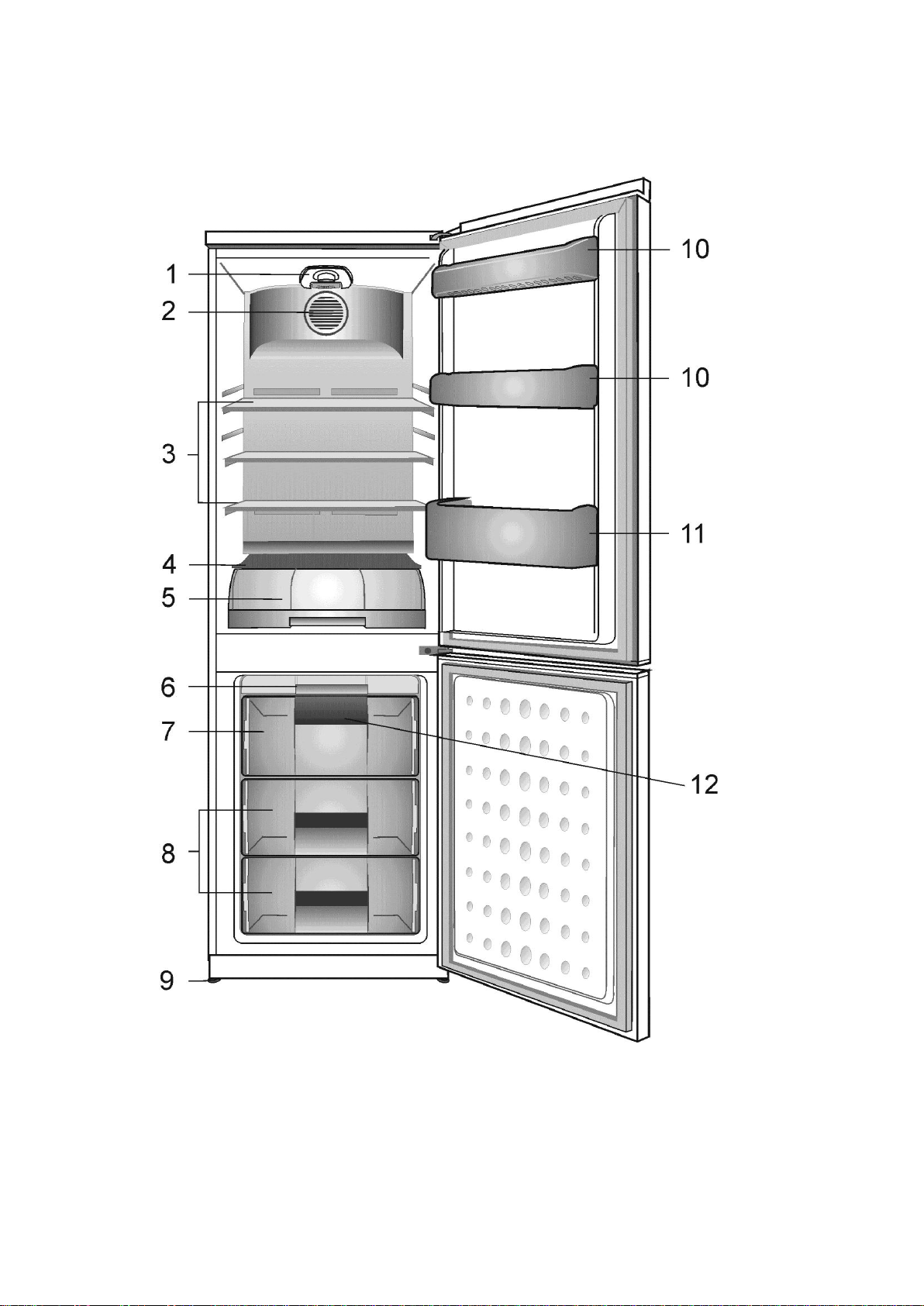

Getting to know your appliance
(Item 1)
1 - Setting knob and interior light
2 - Fresh Food fan
3 - Adjustable Cabinet shelves
4 - Crisper cover
5 - Fresh zone compartment/Crispers
6 - Ice tray support & ice tray
7 - Compartment for quickly freezing
8 - Compartments for frozen froods keeping
9 - Adjustable foot
10 - Shelf for jars
11 - Shelf for bottles
12 - Freezer fan
The fans has the purpose to provide the
circulation of the air in compartment. It is
connected in parallel with the motor-compressor.
When the motor-compressor is off, the fans will
also be off.
Suggested arrangement of food in the
appliance
Guidelines for obtaining optimum storage and
hygiene:
1. The fridge compartment is for the short-term
storage of fresh food and drinks.
2. The freezer compartment is rated
and suitable for the freezing and storage of
pre-frozen food.
The recommendation for storage as
stated on the food packaging should be observed
at all times.
3. Cooked dishes should be stored in airtight
containers.
4. Fresh wrapped produce can be kept on the
shelf.
5. Bottles can be kept in the door section.
6. To store raw meat, wrap in polythene bags
and place on the lowest shelf. Do not allow to
come into contact with cooked food, to avoid
contamination. For safety, only store raw meat for
two to three days.
7. For maximum efficiency, the removable
shelves should not be covered with paper or other
materials to allow free circulation of cool air.
8. Do not keep vegetable oil on door shelves.
Keep the food packed, wrapped or covered. Allow
hot food and beverages to cool before
refrigerating. Leftover canned food should not be
stored in the can.
9. Fizzy drinks should not be frozen and products
such as flavoured water ices should not be
consumed too cold.
10. Some fruit and vegetables suffer damage if
kept at temperatures near 0°C. Therefore wrap
pineapples, melons, cucumbers, tomatoes and
similar produce in polythene bags.
11. High-proof alcohol must be stored upright in
tightly closed containers. Never store products that
contain an inflammable propellant gas (e.g. cream
dispensers, spray cans, etc.) or explosive
substances. These are an explosion hazard.
12. To take out the baskets from the freezer
compartment please proceed as in item 12.
14. In order to transform the chill compartment
(used for easy perishable products - Item 1-point
6) into a vegetable box it is necessary to
assembly in the rear side of the bottom glass shelf
the ornament (Item 13) delivered as accessory
according to the picture Item 14 (point a-c),to
remove the front ormament of the glas shelf
according to picture (Item 13-point a). If the
ornament will be not assembled the compartment
(Item 1-point 6) will have biofresh functionality.
Temperature control and adjustment
Operating temperatures are controlled by the setting
knob (Item 5) located on the ceilingof fridge
compartment. Settings may be made from min, 1 ...
6, max, max being the coldestposition.
When the appliance is switched on for the first
time, the setting knob should be adjusted so that
after 24 hours, the average fridge temperature is
no higher than +5°C (+41°F). We recommend you
set the knob half way between the min and max
setting and monitor to obtain the desired
temperature i. e. towards max you will obtain a
colder fridge temperature and vice versa. Some
sections of the fridge may be cooler or warmer
(such as the salad crisper and the top part of the
cabinet) which is quite normal.
The normal storage temperature of the freezer
should be -18°C (0°F). Lower temperatures may
be obtained by adjusting setting knob towards max
position.
We recommend that you check the temperature
with an accurate thermometer to ensure that the
storage compartments are kept to the desired
temperature.
Remember you must take your reading very
quickly since the thermometer temperature will rise
very rapidly after you remove it from the freezer.
Please remember each time the door is opened
cold air escapes and the internal temperature
rises. Therefore never leave the door open and
ensure it is closed immediately after food is put in
or removed.
3

GB Instruction for use
Before operating
Final Check
Before you start using the appliance check that:
1. The feet have been adjusted for perfect
levelling.
2. The interior is dry and air can circulate freely at
the rear.
3. The interior is clean as recommended under
"Cleaning and care.”
4. The plug has been inserted into the wall socket
and the electricity is switched on. When the door
is open the interior light will come on.
And note that:
5. You will hear a noise as the compressor starts
up. The liquid and gases sealed within the
refrigeration system may also make some (noise),
whether the compressor is running or not. This is
quite normal.
6. Slight undulation of the top of the cabinet is
quite normal due to the manufacturing process
used; it is not a defect.
7. We recommend setting the knob midway and
monitor the temperature to ensure the appliance
maintains desired storage temperatures (See
section Temperature Control and Adjustment).
8. Do not load the appliance immediately it is
switched on. Wait until the correct storage
temperature has been reached. We recommend
checking the temperature with an accurate
thermometer (see; Temperature Control and
Adjustment).
Storing frozen food
Your freezer is suitable for the long-term storage
of commercially frozen foods and also can be
used to freeze and store fresh food.
If there is a power failure, do not open the door.
Frozen food should not be affected if the failure
lasts for less than 19 hrs. If the failure is longer,
then the food should be checked and either eaten
immediately or cooked and then re-frozen.
Freezing fresh food
Please observe the following instructions to obtain
the best results.
Do not freeze too large a quantity at any one time.
The quality of the food is best preserved when it is
frozen right through to the core as quickly as
possible.
Do not exceed the freezing capacity of your
appliance in 24 h.
Placing warm food into the freezer compartment
causes the refrigeration machine to operate
continously until the food is frozen solid. This can
temporarily lead to excessive cooling of the
refrigeration compartment.
When freezing fresh food, to reach the best
freezing capacity, put the setting knob to
maximum position 24h before placing it. After
freezing the knob can be set to the initial position.
Small quantities of food up to 1/2 kg. (1 lb) can be
frozen without adjusting the temperature control
knob.
Take special care not to mix already frozen food
and fresh food.
Making ice cubes
Fill the ice - cube tray 3/4 full with water and place
it in the freezer. Loosen frozen trays with a spoon
handle or a similar implement; never use sharp-
edged objects such as knives or forks.
4

GB Instruction for use
Defrosting
A) Fridge compartment
The fridge compartment defrosts automatically.
The defrost water runs to the drain tube via a
collection container at the back of the appliance.
Check that the tube is permanently placed with its
end in the collecting tray on the compressor to
prevent the water spilling on the electric installation
or on the floor (Item 6).
B) Freezer compartment
The NO FROST type defrost is compleetly
automatic. No intervention from your side is
requiered. The water is colected on the
compressor tray. Due the heat of the compressor
the water is evaporated.
Do not use pointed or sharp-edged objects,
such as knives or forks to remove the frost.
Never use hairdryers, electrical heaters or other
such electrical appliances for defrosting.
Sponge out the defrost water collected in the
bottom of the freezer compartment. After
defrosting, dry the interior thoroughly (Item 7 & 8).
Insert the plug into the wall socket and switch on
the electricity supply.
Warnings!
The fans inside the freezer and fresh food
compartments circulates cold air. Never insert any
object through the guard. Do not allow children to
play with the fresh food andfreezer fan.
Never store products that contain inflammable
propellant gas (eg dispensers, spray cans etc.) or
explosive substances.
Don’t cover the shelves with any protective
materials, which may obstruct air circulation.
Do not allow children to play with the appliance or
tamper with the controls.
Do not obstruct the fan guards to ensure that you
obtain the best possible performance from your
appliance. (Item 9 and Item 10)
Warning!
Your appliance is fitted with a circulating fan which
is essential for the performance of the refrigerator.
Please ensure the fans are not blocked (stopped)
or impaired by food or packaging. Blocking
(stopping) or impairing the fan can result in an
increase of the internal freezer temperature
(Thawing).
Replacing the interior light bulb
(Item 11)
In case that the light bulb is out of function it is
easily to replace. First make sure that the
refrigerator / freezer is disconnected from the
power supply by removing the plug. Take a flat
screwdriver and keep it carefully without force into
the left gap between lamp cover and internal
cabinet. Then press the handle of the screwdriver
carefully to the left side until you notice that the left
pin of the cover is disengaged . Repeat this
procedure on the right gap, however now press
the handle of the screwdriver carefully to the right
side. If both sides are loosened the cover can be
removed easily.
Ensure that bulb is screwed securely in the bulb
holder. Plug the appliance into the power supply. If
the light still fails, replace E14 screw-cap type 15
Watt (Max) bulb from your local electrical store
and then fit it. Carefully dispose of the burnt-out
light bulb immediately.
If you have changed the light bulb please fix the
cover again in it’s former position. Take care that
the cover snaps-in correctly.
Cleaning and care
1. We recommend that you switch off the
appliance at the socket outlet and pull out the
mains plug before cleaning.
2. Never use any sharp instruments or abrasive
substances, soap, household cleaner, detergent
or wax polish for cleaning.
3. Use luke warm water to clean the cabinet of
the appliance and wipe it dry.
4. Use a damp cloth wrung out in a solution of
one teaspoon of bicarbonate of soda to one pint of
water to clean the interior and wipe it dry.
5. Make sure that no water enters the
temperature control box.
6. If the appliance is not going to be used for a
long period of time, switch it off, remove all food,
clean it and leave the door ajar.
7. We recommend that you polish the metal parts
of the product (i.e. door exterior, cabinet sides)
with a silicone wax (car polish) to protect the high
quality paint finish.
8. Any dust that gathers on the condenser, which
is located at the back of the appliance, should be
removed once a year with a vacuum cleaner.
9. Check door seals regularly to ensure they
areclean and free from food particles.
5

GB Instruction for use
10. Never:
• Clean the appliance with unsuitable material; eg
petroleum based products.
• Subject it to high temperatures in any way,
• Scour, rub etc., with abrasive material.
11. Removal of dairy cover and door tray :
• To remove the dairy cover, first lift the cover up
by about an inch and pull it off from the side where
there is an opening on the cover.
• To remove a door tray, remove all the contents
and then simply push the door tray upwards from
the base.
12. Make sure that the special plastic container at
the back of the appliance which collects defrost
water is clean at all times. If you want to remove
the tray to clean it, follow the instructions below:
• Switch off at the socket outlet and pull out the
mains plug
• Gently uncrimp the stud on the compressor,
using a pair of pliers, so that the tray can be
removed
• Lift it up.
• Clean and wipe it dry
• Reassemble, reversing the sequence and
operations
13. To remove a drawer, pull it as far as possible,
tilt it upwards and then pull it out completely.
Repositioning the door
Proceed in numerical order (Item 15).
Do’s and don’ts
Do-Clean your appliance regularly.
Do-Keep raw meat and poultry below cooked
food and dairy products.
Do-Take off any unusable leaves on vegetables
and wipe off any soil.
Do-Leave lettuce, cabbage, parsley and
cauliflower on the stem.
Do-Wrap cheese firstly in greaseproof paper and
then in a polythene bag, excluding as much
air as possible. For best results, take out of
the fridge compartment an hour before
eating.
Do-Wrap raw meat and poultry loosely in
polythene or aluminium foil. This prevents
drying.
Do-Wrap fish and offal in polythene bags.
Do-Wrap food with a strong odour or which may
dry out, in polythene bags, or aluminium foil
or place in airtight container.
Do-Wrap bread well to keep it fresh.
Do-Chill white wines, beer, lager and mineral
water before serving.
Do-Check contents of the freezer every so often.
Do-Keep food for as short a time as possible
and adhere to "Best Before" and "Use by"
etc. dates.
Do-Store commercially frozen food in
accordance with the instructions given on the
packets.
Do-Always choose high quality fresh food and
be sure it is thoroughly clean before you
freeze it.
Do-Prepare fresh food for freezing in small
portions to ensure rapid freezing.
Do-Wrap all food in aluminium foil or freezer
quality polythene bags and make sure any
air is excluded.
Do-Wrap frozen food immediately after
purchasing and put it in to the freezer as
soon as possible.
6

Don’t-Store bananas in your fridge
compartment.
Don’t- Store melon in your fridge. It can be
chilled for short periods as long as it is
wrapped to prevent it flavouring other
food.
Don’t-Cover the shelves with any protective
materials which may obstruct air
circulation.
Don’t-Store poisonous or any dangerous
substances in your appliance. It has
been designed for the storage of edible
foodstuffs only.
Don’t-Consume food which has been
refrigerated for an excessive length of
time.
Don’t- Store cooked and fresh food together in
the same container. They should be
packaged and stored separately.
Don’t-Let defrosting food or food juices drip
onto food.
Don’t-Leave the door open for long periods, as
this will make the appliance more costly
to run and cause excessive ice
formation.
Don’t-Use sharp edged objects such as knives
or forks to remove the ice.
Don’t-Put hot food into the appliance. Let it
cool down first.
Don’t-Put liquid-filled bottles or sealed cans
containing carbonated liquids into the
freezer, as they may burst.
Don’t-Exceed the maximum freezing loads
when freezing fresh food.
Don’t-Give children ice-cream and water ices
direct from the freezer. The low
temperature may cause 'freezer burns'
on lips.
Don’t-Freeze fizzy drinks.
Don’t-Try to keep frozen food which has
thawed; it should be eaten within 24
hours or cooked and refrozen.
Don’t-Remove items from the freezer with wet
hands.
GB Instruction for use
Energy Consumption
Maximum frozen food storage volume is achieved
without using the middle and upper drawer
provided in the freezer compartment. Energy
consumption of your appliance is declared while
the freezer compartment is fully loaded without
using the middle and upper drawer.
Practical advice concerning the reduction of
the electricity consumption.
1. Make sure that the appliance is located in well-
ventilated areas, far from any source of heat
(cooker, radiator etc.). At the same time, the
location of the appliance must be done in such a
way that it prevents it to be under the direct
incidence of the sunbeams.
2. Make sure that the food purchased in
refrigerated/frozen condition is placed into the
appliance as soon as possible, especially during
summertime. It is recommended to use thermal
insulated bags to transport the food home.
3. We recommend the thawing of the packets
taken out from the freezer compartment be done
in the refrigerator compartment. For this purpose,
the packet which is going to be thawed will be
placed in a vessel so that the water resulting from
the thawing does not leak in the refrigerator
compartment. We recommend you to start the
thawing at least 24 hours before the use of the
frozen food.
4. We recommend reducing the number of door
openings to the minimum.
5. Do not keep the door of the appliance open
more than necessary and make sure that after
each opening the door is well closed.
7

GB Instruction for use
Troubleshooting
If the appliance does not operate when switched
on, check;
•That the plug is inserted properly in the socket
and that the power supply is on. (To check the
power supply to the socket, plug in another
appliance)
• Whether the fuse has blown/circuit breaker has
tripped/main distribution switch has been turned
off.
• That the temperature control has been set
correctly.
• That the new plug is wired correctly, if you have
changed the fitted, moulded plug.
If the appliance is still not operating at all after
above checks, contact the dealer from whom you
purchased the unit.
Please ensure that above checks have been
done, as a charge will be made if no fault is found.
8
Information concerning the noise
and the vibrations which might
appear during the operation of the
appliance
1. The operation noise can increase during the
operation.
- In order to keep the temperatures at the adjusted
temperatures, the compressor of the appliance
starts periodically. The noise produced by the
compressor becomes stronger when it starts and
a click can be heard when it stops.
- The performance and operation features of the
appliance can change according to the
modifications of the temperature of the ambient
environment. They must be considered as normal.
2. Noises like liquids flowing or as being sprayed
- These noises are caused by the flow of the
refrigerant in the circuit of the appliance and
comply with the operation principle of the
appliance.
3. Noise similar to wind blowing.
- It is generated by the fan (fans) with which your
appliance is endowed. These fans help to the
efficient cooling of the appliance. This noise is
normal, not a defect.
4. Other vibrations and noises.
- The level of noise and vibrations can be caused
by the type and the aspect of the floor on which
the appliance is placed. Make sure that the floor
does not have significant level distortions or if it
can yield to the weight of the appliance (it is
flexible).
- Another source of noise and vibrations is
represented by the objects placed on the
appliance. These objects must be removed from
the appliance
- The bottles and the vessels placed in the
refrigerator touching each other. In such cases
move the bottles and the vessels so that there is a
small distance between them.

Technical data
Brand
SAIVOD
Model
CT1750NF
Appliance type
FROST FREE REFRIGERATOR-FREEZER type I
Total gross volume (l.)
298
Total usable volume (l.)
266
Freezer usable volume (l.)
90
Refrigerator useful volume
176
Freezing capacity (kg/24 h)
4
Energy class (1)
A+
Power consumption (kWh/year) (2)
324
Autonomy (h)
19
Noise [dB(A) re 1 pW]
43
Ecological refrigerating agent R600a
(1) Energy class : A+++ . . . D (A+++ = more economical . . . D = less economical)
(2) The real power consumption depends on using conditions and appliance location.
GB Instruction for use
9
The symbol on the product or on packaging indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling
of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the environment and human health, which could
otherwise be otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local city office, you
household waste disposal service or the shop where you purchased the product.

Enhorabuena por haber elegido un electrodoméstico de
alta calidad de SAIVOD, diseñado para prestar servicio
durante muchos años.
La seguridad es lo primero
No conectar el frigorífico a la toma de corriente hasta
que no se hayan retirado todos los protectores de
embalaje y transporte.
• Si se transportó horizontalmente, dejar el frigorífico en
posición normal al menos 12 horas antes de conectarlo,
para que el aceite del compresor se asiente.
• Al deshacerse de un frigorífico antiguo con cerradura
o pestillo en la puerta, comprobar que queda en una
posición segura que impida que los niños puedan
quedar atrapados.
• Este frigorífico sólo se debe utilizar para las funciones
para las que se ha diseñado.
• No arrojar el frigorífico al fuego. Su aislamiento
contiene sustancias inflamables sin CFC. Es
recomendable ponerse en contacto con las autoridades
locales para obtener información sobre residuos y
centros de reciclaje.
• No se recomienda utilizar este frigorífico en lugares
fríos sin calefacción. (Por ejemplo, garajes,
invernaderos, cobertizos, cabañas, etc.)
Para conseguir un funcionamiento sin averías y el
mejor rendimiento posible del frigorífico, es muy
importante leer cuidadosamente estas instrucciones. El
incumplimiento de estas instrucciones puede invalidar
el derecho a obtener asistencia gratuita durante el
periodo de garantía.
Conservar estas instrucciones en lugar seguro y donde
puedan consultarse fácilmente.
10
ES Instrucciones de uso
Este aparato no ha sido diseñado para ser usado por personas con discapacidades
físicas, sensoriales o mentales; tampoco para personas sin experiencia o conocimiento
del aparato, a no ser que estén supervisadas o instruidas por alguien responsable de su
seguridad.
Los niños deben de estar controlados para que no jueguen con el aparato.

ES Instrucciones de uso
11
Requisitos eléctricos
Antes de conectar el enchufe a la toma de
corriente, se debe comprobar que el voltaje y la
frecuencia mostradas en la placa de
características del interior del frigorífico se
corresponden con los de la alimentación eléctrica.
Se recomienda conectar este frigorífico a la red de
suministro eléctrico mediante una toma de
corriente adecuada, con fusible e interruptor y en
una posición de fácil acceso.
Advertencia. Este frigorífico debe disponer de
toma de tierra.
Las reparaciones del equipo eléctrico sólo deben
ser realizadas por técnicos cualificados. Las
reparaciones incorrectas realizadas por personal
no cualificado comportan riesgos que pueden
acarrear graves consecuencias al usuario del
frigorífico.
¡ATENCIÓN!
Este electrodoméstico funciona con R600a, un
gas respetuoso con el medio ambiente pero
inflamable. Durante el transporte y la fijación del
electrodoméstico, es necesario tener cuidado para
no dañar el sistema de refrigeración. Si el sistema
de refrigeración sufre algún daño y se produce
una fuga de gases del sistema, mantenga el
producto alejado de fuentes de ignición y ventile el
recinto durante el tiempo adecuado.
ADVERTENCIA: Utilizar sólo los dispositivos
mecánicos o los medios recomendados por el
fabricante para acelerar el proceso de
desescarchado.
ADVERTENCIA: Evitar daños en el circuito de
refrigeración.
ADVERTENCIA: No utilizar aparatos eléctricos
dentro de los compartimentos para alimentos del
frigorífico, a menos que sean del tipo
recomendado por el fabricante.
ADVERTENCIA: Si el cable de alimentación
estuviera dañado, el fabricante, el servicio de
atención al cliente o una persona cualificada
deberán sustituirlo para evitar peligros.
Instrucciones de transporte
1. El frigorífico sólo se debe transportar en
posición vertical. El embalaje debe quedar intacto
tras el transporte.
2. Si el frigorífico ha estado colocado
horizontalmente durante el transporte, no ponerlo
en funcionamiento hasta después de pasadas al
menos 12 horas, para permitir que el sistema se
asiente.
3. El incumplimiento de estas instrucciones puede
provocar daños en el frigorífico y el
fabricante no se considerará responsable de los
mismos.
4. El frigorífico debe estar protegido de la lluvia, la
humedad y demás agentes atmosféricos.
¡Importante!
•Se debe poner especial cuidado al limpiar o
desplazar el frigorífico, para no tocar el extremo
inferior de las láminas metálicas del condensador,
que se encuentran en la parte trasera del aparato,
ya que pueden provocar heridas en dedos y
manos.
• No ponerse de pie ni sentarse en la parte
superior del frigorífico, ya que no está diseñado
para tal fin. Podría sufrir lesiones o causar daños
al electrodoméstico.
•Comprobar que el frigorífico no queda apoyado
sobre el cable principal durante ni después del
desplazamiento, ya que puede dañar el cable.
•No permitir a los niños jugar con el frigorífico ni
jugar con sus mandos.
Instrucciones de instalación
1. No tenga el aparato en estancias donde la
temperatura pueda descender por debajo de los -
15 °C (5 ºF) por la noche y/o especialmente en
invierno.
2. No colocar el frigorífico cerca de cocinas o
radiadores ni bajo la luz solar directa, ya que el
hacerlo puede provocar una mayor carga para las
funciones del frigorífico. Si se instala cerca de una
fuente de calor o de un congelador, mantener las
distancias laterales mínimas siguientes:
Con respecto a cocinas, 30 mm.
Con respecto a radiadores, 300 mm.
Con respecto a congeladores, 25 mm.
3. Comprobar que hay espacio suficiente en torno
al frigorífico para garantizar la circulación de aire
(figura 2).
• Poner la tapa de ventilación posterior en la parte
trasera delfrigorífico para comprobar la distancia
entre elfrigorífico y la pared (figura 3).
4. El frigorífico sólo se debe colocar sobre
superficies lisas. Los dos pies delanteros se
pueden ajustar si es necesario. Para garantizar la
verticalidad del frigorífico, ajustar los dos pies
delanteros girándolos a derecha o izquierda hasta
que el contacto con el suelo sea firme y seguro. El
ajuste correcto de los pies evita vibraciones o
ruidos excesivos (figura 4).
5. Consultar la sección "Conservación y limpieza"
para preparar el frigorífico para su utilización.

Detalles del electrodoméstico
(Figura 1)
1 - Mando de ajuste y luz interior
2 - Ventilador de alimentos frescos
3 - Estantes interiores ajustables
4 - Tapa del cajón de frutas y verduras
5 - Compartimento para hielo /Cajones de frutas
y verduras
6 - Soporte de bandeja de hielo y bandeja de
hielo
7 - Compartimiento de congelación rápida
8 - Compartimento de conservación de alimentos
congelados
9 - Pie ajustable
10 - Estante para botes
11 - Estante para botellas
12 - Ventilador del congelador
Los ventiladores tienen el propósito de hacer
circular el aire en su correspondiente
compartimento. Se conecta a la vez que el motor
compresor. Cuando el motor compresor esté
apagado, los ventiladores también lo estarán.
Disposición recomendada de los
alimentos en el frigorífico
Normas para conseguir el almacenamiento e
higiene óptimos:
1. El compartimento frigorífico está destinado al
almacenamiento de alimentos frescos y bebidas
por un periodo de tiempo breve.
2. El compartimento congelador está clasificado
como y es apto para congelar y
almacenar alimentos precongelados.
Se deben seguir siempre las recomendaciones
para el almacenamiento que figuran en
el envase de los alimentos.
3. Los platos preparados deben almacenarse en
recipientes herméticos.
4. Los productos frescos envueltos pueden
conservarse en el estante.
5. Las botellas se pueden conservar en la
sección de la puerta.
6. Para almacenar carne cruda, envuélvala en
bolsas de polietileno y colóquela en el estante
inferior. No permita que la carne cruda entre en
contacto con los alimentos cocinados, para evitar
contaminaciones. Por seguridad, no almacene
carne cruda durante periodos superiores a dos o
tres días.
ES Instrucciones de uso
12
7. No cubra los estantes extraíbles con papel u
otros materiales con el fin de permitir la libre
circulación del aire y obtener así el máximo
rendimiento.
8. No conserve aceite vegetal en los estantes de
la puerta. Conserve los alimentos empaquetados,
envueltos o cubiertos. Deje que los alimentos y
las bebidas calientes se enfríen antes de
introducirlos en el frigorífico. Los restos de
alimentos enlatados no se deben almacenar
dentro de sus latas.
9. No congele bebidas gaseosas. No consuma
demasiado fríos productos tales como los helados
de agua con sabores.
10. Algunas frutas y verduras se deterioran si se
almacenan a temperaturas cercanas a 0 °C. Por
lo tanto, las piñas, los melones, los pepinos, los
tomates y productos similares deben envolverse
en bolsas de polietileno.
11. Las bebidas alcohólicas de alta graduación se
deben almacenar en posición vertical en
recipientes bien cerrados. No almacene nunca
productos que contengan gases inflamables (por
ejemplo, botes de nata a presión, aerosoles, etc.)
ni sustancias explosivas. Existe peligro de
explosión.
12. Para extraer las cestas del compartimento
congelador, proceda como en el figura 12.
13. Para transformar el compartimento de
enfriamiento (usado para los productos fácilmente
perecederos - figura 1-punto 5) en un cajón de
frutas y verduras es necesario montar en la parte
trasera del estante de cristal inferior el ornamento
(figura 13) proporcionado como accesorio según
la imagen figura 14 (punto a-c), y para eliminar
el ornamento frontal del estante de vidrio de
acuerdo a la imagen (artículo 13 punto a).
Si no va a montar el ornamento, el compartimento
(figura 1 punto 5) tendrá funcionalidad biofresh.
Control y ajuste de la temperatura
El mando de ajuste (Figura 5), ubicado en el techo
del compartimento frigorífico, permite controlar las
temperaturas de funcionamiento. La temperatura
se puede ajustar entre los valores mín., 1 a 6 y
máx., siendo esta última la posición de mayorfrío.
Al encender el aparato por primera vez, es preciso
ajustar el mando de ajuste de manera que,
transcurridas 24 horas, la temperatura media del
frigorífico no supere los +5 °C (+41°F ).
