SeeEyes SC-1VDA User manual

0
VIDEO DISTRIBUTION AMPLIFIER
SC-1VDA
SC-10VDA
User's Manual
SC-1VDA
SC-10VDA

1
Precaution and Safety Guidelines
Please read this manual carefully and fully understand the portions of the
installation and operation instructions prior to installing and using the
product.
Should you have any part of them not understandable or if you have any
problem during your installation or in using it, please contact us.
Reproduction of this instruction or any part thereof without permission is
strictly prohibited.
You must read the precautions required for safe operation prior to using it
and operate it correctly.
Please understand that the contents of this operating instruction may
differ slightly due to functional improvement of a product and based on
the specification chosen by the user.
You can use this product easier and more conveniently if you use the
function of the product only after reading this operating instruction
carefully.

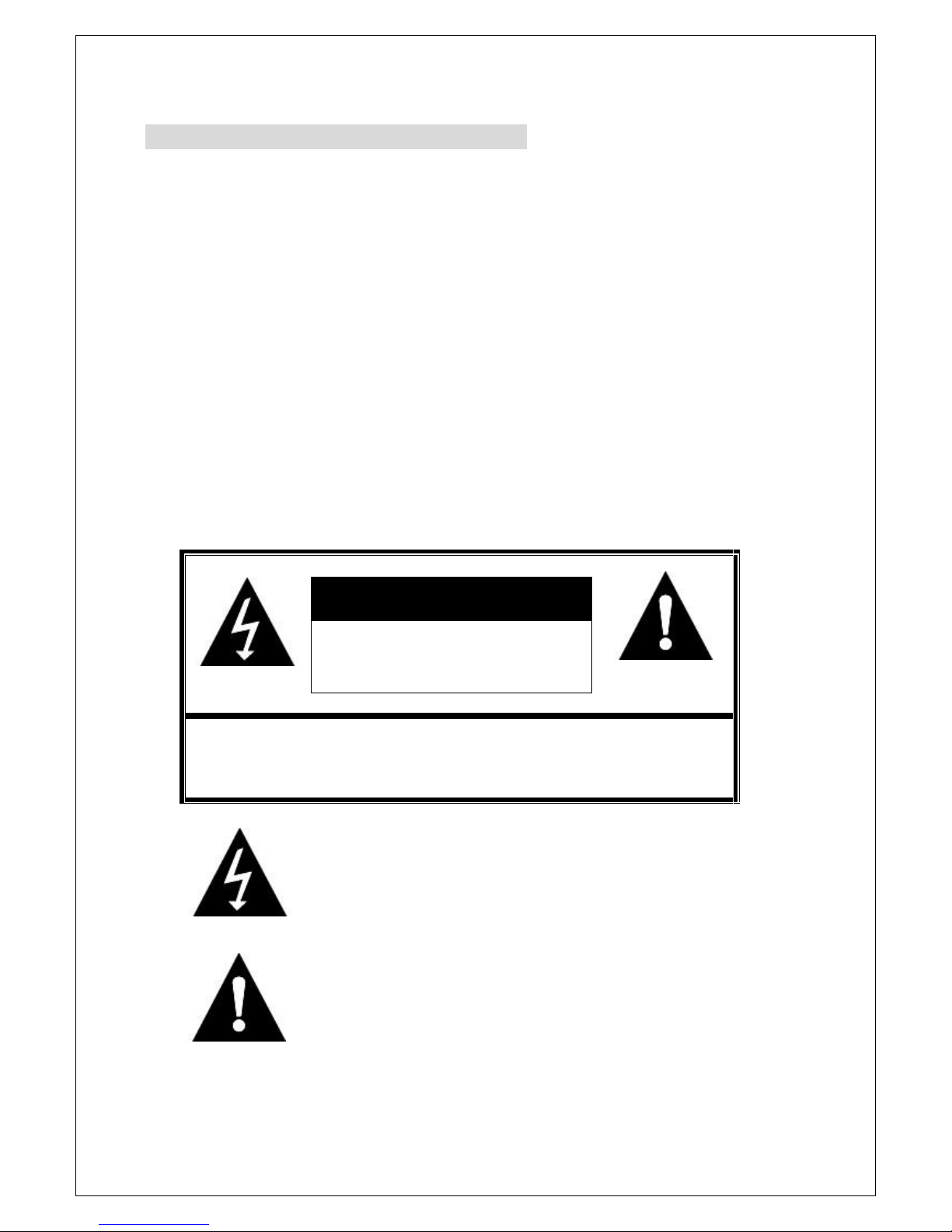

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION :
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol within an
equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous
voltage“ within the product’s enclosure that may be
of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
※WARNING: To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.

2
1. Introduction
1.1 Overview
The SC-1VDA / SC-10VDA are video distribution amplifier with one channel
and 10 channels respectively. Using these devices, you can split the video
signal or into two or more signals. They split stable and clear video signals
as they has 6dB video chips for each video input.
1.2 Features
1 input / 4 outputs (SC-1VDA), 10 inputs / 30 outputs (SC-10VDA)
No signal loss. It provides unity gain for video
No artifacts or other signal degradation
Built-in 6dB video chip
Durable aluminum case body with optimum shielding (SC-1VDA)
1.3 Specifications
Our HD-SDI transmission solutions are conformed with the SDI signals
standards of the SMPTE(Society of Motion Picture and Television
Engineers).
The SDI (Serial Digital Interface) signals transmission system is the
innovative transmission system with which it can transmit incompressible
video signals over one single cable. As the SDI signals are digital signals,
it is possible to transmit limitless distance without modification by
equalizing and re-clocking at each certain distance. Also, since the signals
are incompressible signals, there is no aging or delay of video signals
caused by the compression.
MODEL
SC-1VDA
SC-10VDA
Video IN / OUT
CVBS 1.0Vp-p, 75Ω
CVBS 1.0Vp-p, 75Ω
Power
DC 12V 1.5A
DC 5V 1A
Connect
Port
Video IN
1 IN
10 IN (1IN)
Video OUT
4 OUT
30 OUT (3 OUT)
Power IN
DC JACK
DC JACK
CONNECTOR
BNC-F
BNC-F
Temperature /
Humidity
-20℃~ +70℃/ 0 ~ 80%
-10℃~ +50℃/ 0 ~ 80%
Consumption Power
0.15W
1.5W
Case Body / Weight
Aluminum / 380g
STEEL / 4.77Kg
Dimension (mm)
75(W) ⅹ60(H) ⅹ25(D)
430(W)ⅹ44(H)ⅹ350(D)

3
1.4 Components
Please find enclosed the following components in the package
Main Unit
User’s Manual
Power Adapter
19” rack mount
wing(2 pcs) for
SC-10VDA
2. Installation and Precautions
2.1 Precautions on Use
The power switch must be turned off prior to installation of the device.
Please install in a place well-ventilated avoiding extremely hot, humid or
cold places.
Please do not place magnetic kinds near the device.
The optimum ambient temperature for the use of the device is 0℃~
40℃, and it needs to be careful when the device is used for both inside
and outside the building.
Giving a strong vibration or impact to the device could cause a
breakdown, therefore adequate precautions should be taken when
installing or using the Device.
Should be careful not to have the lines changed when connecting them.
When you connect the operating power line to the Camera, you should
confirm if the Camera uses AC or DC power, and for the case of DC power
then you should be careful not to have the polarity changed to the wrong
one (If you connect the AC Adapter to Transmitter, and connect the DC
Adapter to the Receiver, then it would cause a breakdown).
Please turn on the switch for power supply after confirming the insulation
condition of the control cable connected from the outside.

4
2.2 Connections
Note: Every output must be terminated with 75Ω at the last connected video
monitor.
2-2-1 SC-10VDA –Video Signal Connection
Please connect the SC-10VDA with camera, DVR, quads, etc. as below picture.
2-2-2 SC-10VDA - Appliance Connections
The SC-10VDA can be connected with DVR, Monitor, VCR, etc. through Output.

5
2-2-3 SC-1VDA
Please connect the SC-1VDA with camera, DVR, Monitor, etc. as below picture.

6
3. Warranty Certificate
This product has passed thorough quality control and test, and if
this gets broken during normal use, we provide 12 months
warranty service.
Model No.
Serial No.
Distributor
Date you purchased
Place you purchased
Warranty Period
One (1) year from the date of purchase
Purchaser
Name
Address
•Please check this warranty indication first.
•Please contact your distributor after checking out any defect in
the products.
•The standard for repairing, replacement or reimbursement
follows Customer.
•Warranty content any defect under normal use within the
warranty service period we give you free repair service
according to the warranty certificate.
•We charge you with the fee of parts and service despite of free
warranty service period. Any breakage made without care such
as:
- Breakage or trouble made by natural disaster.
- Breakage or trouble made by breaking the product guide
or manual.
- Breakage or trouble made by wrong power voltage or
frequency.
- When you want to reassemble for full system or replace
parts within warranty service period.
- When unauthorized person modified or made damage on
the product trying to repair it.
•Please note that we don’t support the breakage after warranty
service period is expired. If the customer wants to get it
repaired, we charge them with the fee.
•The specification is subject to change without prior notice for
quality improvement.

7
