Seeeyes Sc-mfm07hd User manual

Release Version 1.2

7ㄱ3ew2321

HYBRID Multi Format Portable Test Monitor

User's Guide

SC-MFM07HD

High Resolution 7inch LCD Monitor

EX-SDI1.0/2.0 TDM Input, HD-SDI Input (~3G) HDMI Input (~Full HD)

Support HD Analog Up to 4M Pixel (AHD, TVI, CVI)

Ultra-low power LED Backlight Monitor

Support HD Analog COAX (UP THE COAX) Remote Control (AHD, TVI, CVI)

Support EX/1.5G/3G-SDI Coax Remote Control

Support EX-SDI, HD-SDI VP Camera

Support Focus Meter & Video Level Meter

SC-MFM07HD

Features

Release Version 1.2

Precaution and Safety Guidelines

⚫Please always handle the unit with care. Otherwise, the LCD display panel can be damaged when

it gets any physical shock and/or you drop it to the ground. Please note that we may charge for

the replacement of the display panel even the unit is under warranty, when it is broken due to

any physical shock or user’s misuse.

⚫Avoid touching the screen. To clean the screen, wipe the screen with a clean, soft and dry towel

and be careful not to damage the LCD display panel.

⚫To reduce the risk of fire or electric shock, do not expose the LCD to rain or moisture.

⚫Please do not connect the power wire to the video input/output port. It may cause malfunction

when AC or DC power is inserted.

⚫Please use only the authorized battery charger included in the package. Otherwise, it may

cause fire or explosion when using an unauthorized battery charger. (When red LED flicks in

recharging, please request A/S)

⚫The built-in Li-Polymer battery (11.1V / 2200mA) is under six months warranty from the purchase

date. Please do not use it with another type of battery on this portable monitor as it may cause

fire or explosion.

⚫The battery can be damaged when a short circuit is created at the power connecting port or

when the polarity of the power cable is connected in reverse.

⚫When supplying power to the camera through the test monitor, please use the power harness

(DC jack) enclosed in the package. (we may charge you for the repairs if you cause a problem,

using another jack)

⚫When supply power to the camera, please connect first the power cable to the camera and then

turn on the unit. Otherwise, it may create a short circuit and the unit can be turned off

automatically in order to protect the battery. When a short circuit is produced, please turn off

the test monitor and then remove and re-insert the power harness (DC jack). Then turn the unit

on again.

⚫Please keep the unit inside of the carrying bag in order to protect the LCD screen from scratches

⚫Please do not put the products on anything electrical conductive (screwdrivers, coins, iron, etc.)

and not put them around water.

⚫If the product emits smoke, abnormal noise, or a strange odor, immediately turn it off and

contact your distributor.

⚫When the unit is not working properly, please contact your distributor. Please do not

disassemble the unit by yourself. (When unauthorized person modified or made damage on the

product trying to repair it, we may charge you with the fee.)

Release Version 1.2

1. Introduction

1-1. Overview

SC-MFM07HD is a multi-format test monitor (All in One) which supports Analog signals (AHD, TVI,

CVI, etc.) as well as digital signals (HD-SDI, EX-SDI, etc.) as well as can be used in various purposes

such as checking video signals and cabling status with built-in video signal level meter, adjusting

camera viewing angles and focus, supplying power to cameras, implementing PTZ control and UCC

function (Up The Coax) for camera OSD setting, and so on. In addition, TFT-LCD digital panel with

1280 x (RGB) x 800 resolution and LED back light are applied to this test monitor and it lasts up to 6

hours in continuous use as high-capacity batteries are built in it. This test monitor makes it available

for a sole installer to check every part of video surveillance system on their own and complete the

task for system installation and inspection easily and conveniently.

1-2. Features

•7inch Wide IPS LCD Panel

•LED Back Light

•Various Signal Input

-HD Input Source

•HDMI Full HD Input (~ 1080P 60Hz)

•HD-SDI Input

(720p/25/30/50/59.94/60, 1080i50/59.94/60, 1080p23.97/24/25/29.97/30/50/59.94/60Hz)

•EX1.0/EX2.0/TDM-SDI Input (720p25/30/50/60, 1080i50/60, 1080p24/25/30Hz)

-Analog HD Input Source

•AHD Input (720p 25/30, 1080p 25/30, 1536p 25/30, 1440p 25/30Hz)

•TVI Input (720p 25/30, 1080p 25/30, 1536p 25/30, 1440p 25/30Hz)

•CVI Input (720p 25/30, 1080p 25/30, 1536p 25/30, 1440p 25/30Hz)

-Analog Input Source

•CVBS Input (NTSC/PAL)

•Analog RGB Input (~ 1600*1200/60Hz)

•Application-specific Features

- Guideline to set camera viewing angles

(Useful for where the same viewing angles are required such as entrances, elevators, hallways,

etc.)

- RS-485 Communication PTZ control (Available to add additional protocols if required)

- COAX (UP THE COAX) Remote Control available for camera OSD menu settings

(Support PELCO-C PROTOCOL, A-CP, TVI UCC, CVI UCC)

(Support PELCO-D PROTOCOL, SDI Coax Communication)

- Support EX-SDI, HD-SDI VP

•EX1.0/EX2.0-SDI, 1.5G-SDI, 3G-SDI Level Meter, Focus Meter support

Release Version 1.2

•EX-SDI CRC Error Count function (Previous error values indicated even after the error reset)

•HD-SDI CRC Error Count function (Cleared error & increased error indicated)

•Other Features

- Power supply to camera (DC 12V / 500mA) (Exclusive cable provided)

※Power supply depends on the battery remains.

- Li-polymer high-capacity battery built-in. Lasting up to 7~8 hours when using the test monitor

continuously.

- Leather bag and neck strap for safety and convenience.

- HDMI Embedded audio signal speaker

- SDI Embedded audio signal speaker

- Audio line input / output

1-3. Applications

•Display video signals and adjust camera viewing angles.

•Check the status for PAN/TILT driver and speed dome camera control.

•Control the OSD menu of cameras which support COAX communication.

•Check EX-SDI, HD-SDI, HDMI, AHD, CVI, TVI, CVBS Signals.

•Check where to install EX-SDI, HD-SDI repeaters and receivers.

•Check DVR VGA output.

•Check and install PoC (Power over Coax) products or EX-SDI/HD-SDI cameras which have PoC

function built-in.

•Check audio lines.

Release Version 1.2

How to use it.

•To adjust camera viewing angles

•UXGA Video Input (1600x1200)

•HDMI Video Input (1920x1080P 60)

2. Components

Model

(SC-MFM07HD)

Leather Bag

& Neck Strap

Exclusive

Charger

Power

Harness

Cable

BNC

Cable

(1m)

Power

Input

Cable

User’s

Manual

Possible to check the video with

VGA output of DVR

(UXGA: ~1600 X 1200)

Possible to check the video with HDMI

output of DVR

(FULL HD: ~1920 X 1080P 60)

Adjusting the camera

angle at the elevator

Adjusting the camera

angle at the Parking lot

Release Version 1.2

3. Product Parts and Peripheral Devices Connection

3-1. Each Part Name and Function

3-1-1. Interface

MARKING

DESCRIPTION

①

DC12V

●Charge the built-in Li-polymer battery with the provided exclusive

charger

●Supply power to the camera (Max. DC 12V / 500mA) with power

harness. (Power supply depends on the battery remains)

②

RS-485

●PAN/TILT driver or Speed dome camera control

(RS-485 communication with 2 wires)

③

HDMI INPUT

●HDMI signal input (Full HD: ~1080P 60Hz)

④

HD-SDI INPUT

●EX/HD/3G-SDI input (HD-SDI: ~3G)

●SDI PoC (Power over Coax) Camera Test Port

(PoC function unavailable for non-PoC cameras. PoC function must be off

when using non-PoC cameras. Otherwise, it may cause malfunction)

⑤

VGA INPUT

●Analog RGB Input (~1600x1200)

⑥

ANALOG

TERM

●With loop through output: Hi-Z position

⑦

INPUT

●Analog HD (AHD/TVI/CVI) or CVBS video signal input

●COAX Communication: PAN/TILT driver or speed dome camera

control

⑧

AUDIO

INPUT

●Stereo audio input (Left/Right)

⑨

OUT

PUT

●Stereo audio output (Left/Right)

⑩

POWER

●Power Switch (On/Off)

①②③④⑤

⑥

⑦

⑧

⑨

⑩

Release Version 1.2

3-1-2. Button for Each Function

①EX-SDI, HD-SDI Level Meter

•SDI. LEVEL: To indicate video status for EX-SDI, HD-SDI Input signal (~100%)

※The percentage represents the amplitude / 100% = 800mV)

•Focus Meter : To indicate focus value for EX/HD/TDM Input signal

(real focus value/ideal focus value)

②Menu Buttons

Button

Camera Menu

Mode

RS-485 & COAX Mode

Angle Guide

Video Input

MODE

PTZ&OSD Mode Switch

Source Change

EXIT

PTZ&OSD Mode OUT

Angle Mode Out

Operate in OSD MODE

Menu ON

ESC

Menu OFF

Multi-way

Key

Up, Down,

Left, Right

Pan/Tilt/Zoom/Focus

Up, Down,

Left, Right

Enter Key

ENTER

Select Bar

Long: VP ON/OFF

※For HD Analog (AHD, TVI, CVI) mode switch, please check the specification of the

camera signal. (This may cause a black-and-white video screen or broken screen.)

Release Version 1.2

③Video Status

•Input Mode: 3G-SDI, HD-SDI, EX1.0/2.0-SDI, TDM, HDMI, AHD, CVI, TVI, VGA, CVBS

•Display Mode: 4:3, Full(16:10), 16:9, Zoom1, Zoom2

•Input resolutions: 1920x1080p60, NTSC, PAL

④PoC (Power over Coax) Function Status (Available in HD-SDI, EX-SDI Mode Only)

•It shows the status of PoC function in real time such as Link Check, Link OK, Power ON, Cable

Open, Short, etc.

⑤Battery Status

•From 100% to 0% to indicate the current battery status.

⑥CRC DATA ERROR Status

•EX-SDI signal input: XCRC indicated only (EX-SDI CRC Check Sum)

•HD-SDI signal input: CRC(Chroma CRC Check Sum) & YCRC (Y CRC Check Sum) indicated

※CRC Data: It is a cyclic redundancy checking code to increase the robustness of the interface

in the high-definition serial digital technology. It is normally used to confirm if there is any loss

of the high-definition serial data which is inputted by CRC Data Error count function.

⑦Input Mode Settings

• Select input signals such as CVBS, AHD, CVI, TVI, SDI, VGA, HDMI

(in case of selecting SDI mode, it detects automatically for EX1.0/2.0/1.5G/3G/TDM)

⑧Audio Volume Settings

•Adjust the volume for the speaker and audio out by using the left/right keys

※The volume for the speaker and audio output are adjusted equally.

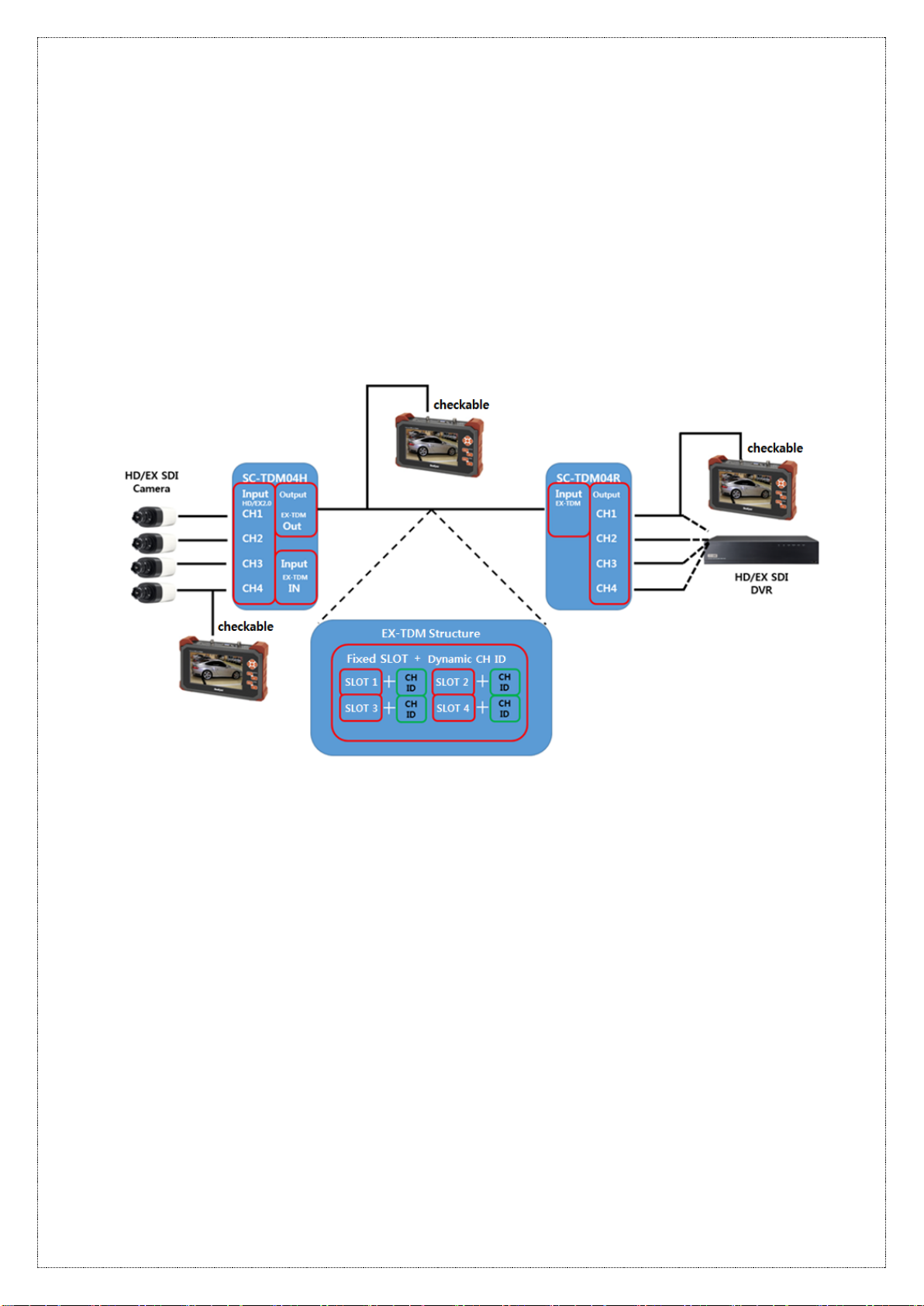

⑨EX-TDM Channel Selection

•After input EX-TDM signal, open TDM Slot channel selection window with pressing Up, Down

key and displays on LCD by selecting max. 8 channels of input signals.

3-2. Connection Diagram

※Power Supply to external device via DC-JACK: Exclusive power cable use only

Release Version 1.2

3-2-1. HD-SDI /EX-SDI Input

•Connect to HD/ EX-SDI camera (HD-SDI: 1.485Gbps~2.970Gbps, EX-SDI1.0: 270Mbps, EX-SDI2.0:

135Mbps).

3-2-2. HDMI Input

•Connect to HD DVR, HD splitter or other devices which support HDMI output.

(Input Resolutions: ~1080P 60Hz)

3-2-3. VGA Input

•Connect to DVR or PC (Computer) to check UXGA(~1600×1200/60Hz) output.

•Support UXGA in maximum and higher resolutions may not be displayed properly.

(It may not support it, depending on output characteristic per equipment)

3-2-4. ANALOG HD (AHD / TVI / CVI) Input

•Connect to AHD / TVI / CVI Camera.

AHD: 720p 25/30, 1080p 25/30, 1536p 25/30, 1440p 25/30

TVI: 720p 25/30,1080p 25/30, 1536p 25/30, 1440p 25/30

CVI: 720p 25/30, 1080p 25/30, 1536p 25/30, 1440p 25/30

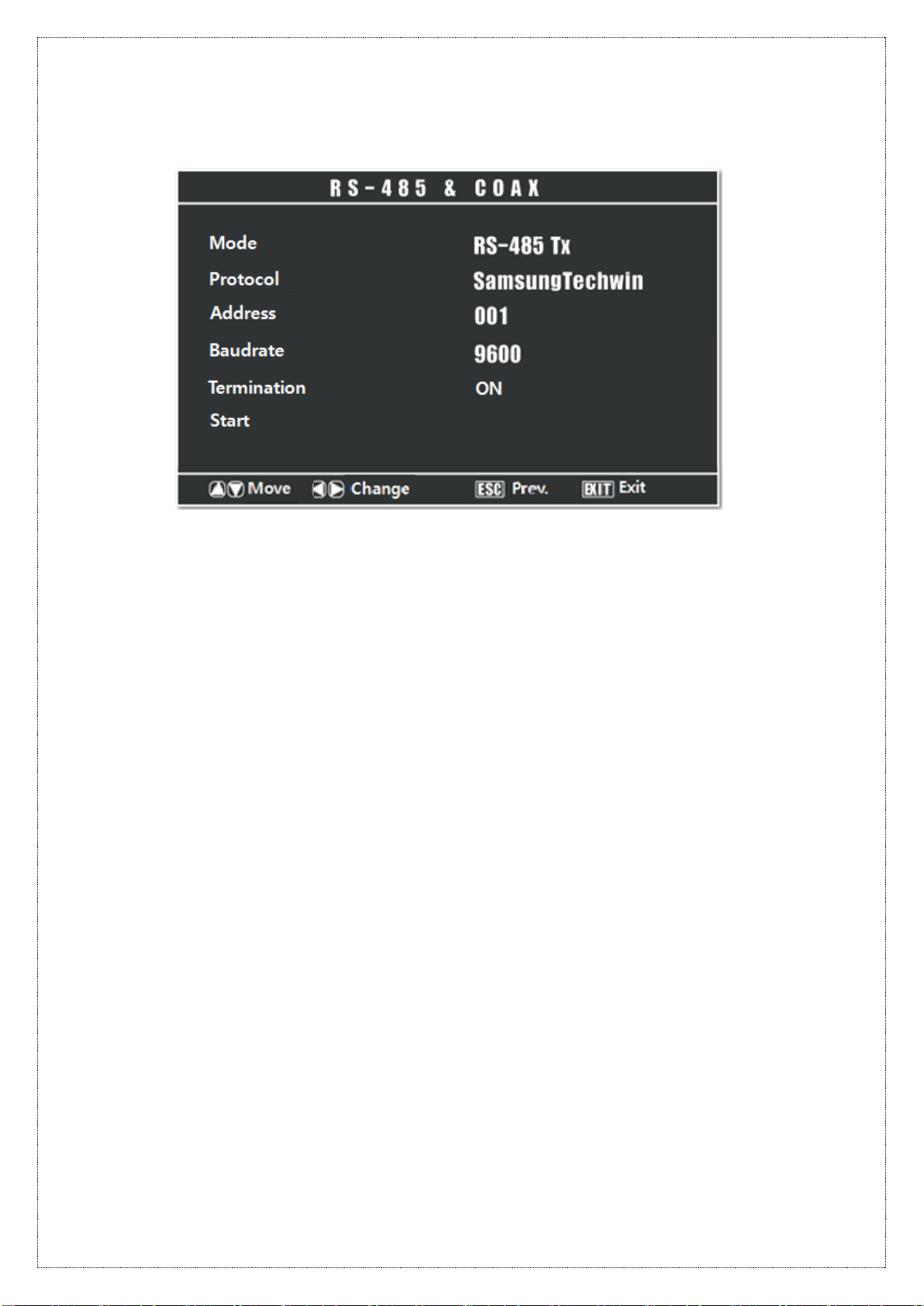

3-2-5. PTZ&OSD Control through RS-485 Communication & Protocol Analyzer

•Connect to PTZ receiver or speed dome camera and control PAN/TILT driver and speed dome

camera through RS-485 communication.

•Implement the protocol analyzer function to analyze PTZ command in RS-485 communication.

3-2-6. PTZ&OSD Control through COAX Communication

•Control PTZ or Camera OSD menu of Analog HD camera (AHD/TVI/CVI) or standard analog camera

(CVBS) through COAX communication.

•Control PTZ or Camera OSD menu of EX1.0/EX2.0/1.5G/3G-SDI camera through COAX

communication.

3-2-7. HD-SDI & EX-SDI PoC(Power over Coax) Function

•Supply power to HD-SDI / EX-SDI PoC camera with one coaxial cable for its operation without any

extra adapter.

- PoC function unavailable for non-PoC cameras. PoC function must be off when using non-PoC

cameras. Otherwise, it may cause malfunction)

-Connect HD-SDI PoC camera to HD-SDI Input BNC of the monitor⇒Press the ENTER key for

around 3 seconds⇒Select whether or not to implement Link Check function⇒Select power

supply (When it is linked properly)

⇒To stop operating this function, press the ENTER Key for around 3 seconds or press the EXIT

key. ※This function is available in SDI mode only.

3-2-8. EX-SDI/HD-SDI CRC Error Count Function

•Press the ENTER key one time after connecting EX-SDI camera to the test monitor⇒“XCRC: 000”

message shown on the bottom left of the LCD screen⇒CRC Data Error counted and indicated for

EX-SDI input signal. ※EX-SDI CRC Error count function indicates the indicated error value only.

(Not available for cleared error value)

Release Version 1.2

•Press the ENTER key one time after connecting HD-SDI camera to the test monitor⇒“CCRC: 000”,

“YCRC: 000” messages shown on the bottom left of the LCD screen for EX-SDI input signal and

CRC DATA Error value for the signal counted and indicated as well.

•Indicate CRC DATA Error value counted for HD-SDI input signal

•Press the ESC button to clear CRC DATA Error value.

3-2-9. EX-SDI TDM Function

•EX-SDI TDM is a new CCTV transmission technology by multiplexing EX-SDI 2.0 signal and

transmitting up to 8 channels by one (single) coaxial cable.

EX-SDI TDM basic connection diagram & SC-MFM07HD PREMIUM checking point

As above image, EX-SDI TDM is a multiple transmission system by 1 coax cable for HD/EX-SDI

camera signal and should set each channel’s ID for transmission.

SC-MFM07HD PREMIUM version is a test monitor which is checking (inspection) overall parts

of TDM transmission system as above image and it’s able to select and check each input

signal transmitting by TDM devices, and it’s also possible to control each connected camera

by UCC communication way.

Furthermore, it’s possible to check TDM input signal status by TDM error Count function.

Release Version 1.2

4. Menu Settings

4-1. MENU Mode

4-1-1. SELECT MENU (Based on SDI MODE)

- Once you press the MENU button, the main menu will be displayed as shown below.

- Press the direction buttons (Up: ▲/ Down: ▼/ Right: ▶/ Left: ◀) to move the submenu and the

menu mode will automatically become off if you do not press any buttons for a while.

4-1-1-1. PICTURE SET

•Contrast: To adjust the video contrast range. (0~100 steps)

•Brightness: To adjust the video brightness (0 ~ 100 steps)

•Hue: To adjust the video color. (0 ~ 100 steps)

•Saturation: To adjust the video chroma. (0 ~ 10 steps)

•Scale: To adjust the screen ratio (Full > 16 : 9 > Zoom1 > Zoom2 > 4 : 3)

Release Version 1.2

4-1-1-2. ANGLE VIEW

•When selecting the ANGLE MODE, indication lines with shape of square are shown on the screen.

•Once the SET KEY is pressed, the left line changes to a dotted line. Press the left/right keys (◀▶)

to set the standard position of the left line. Once you press the SET KEY once again, the right line

changes to a dotted line and set the standard position of the right line in the same way mentioned

above. (So do the upper and lower lines).

•Press the upper and lower keys (▲▼) to adjust the upper and lower sides.

•Press the EXIT key to exit the ANGLE MODE.

Indication Lines: To adjust the viewing angles at a specific area.

Release Version 1.2

4-1-1-3. RS-485 & COAX (PTZ / OSD Control)

•Mode:

- RS-485 TX: To control PTZ & camera OSD menu

- RS-485 RX: To receive PTZ control data (Hex value)

- Analyze: To analyze the received protocols and display the command and Hex value

- Coaxial: To control PTZ & camera OSD menu

•Protocol: To select the protocol of the equipment we may control

•Address: To modify the address of the equipment we may control

※In COAX mode, you can control the camera regardless of the address

•Baudrate: To adjust the baud rate (2400, 4800, 9600, 19200)

※In COAX mode, you can control the camera regardless of the baud rate

•Termination: To turn on/off RS-485 termination resistance.

•Start: To start controlling the device after setting all of the menus above.

Release Version 1.2

※Built-in Protocols: Other protocols are available upon request in case that the camera

manufacturers provide us with their protocols in advance.

Brand

Monitor OSD

Product Model

DONGYANG UNITECH

(OSD)

D-MAX

DSC-300S/270S/230S Series (High Speed PTZ Dome Camera)

DOH-240S Series (Speed PTZ Dome Camera)

DPC-200 (Mini PTZ Dome camera)

DRX-500, DRX-502A (CCTV PTZ receiver)

DONGYANG

DY-255RXC

FINE SYSTEM

FineSystem

CRR-1600i/s

INTER-M

VRX-2201

HONEYWELL(OSD)

Honeywell

HRX-2000, ScanDome-Ⅱ

LG MultiX(OSD)

LG MultiX

LPT-EP551PS/EI551PS/OS551HQ/OI551HQ/OI511HQ

LG LPT-A100L

LG LPT-A100

LPT-A100L

PANASONIC(OSD)

PanasonicC

CS600, CS650, CS564, CS85X,…

PANASONIC

PanasonicN

CS564CS854/A,…

PELCO(OSD)

Pelco-D

…

PELCO(OSD)

Pelco-P

…

Samsung

Electronics(OSD)

Samsung

SCC-641/3/07,…, SCC-64x Series

Samsung Techwin(OSD)

Techwin

SPD-xxxx Series

SUNGJIN

Sungjin

RECEIVER/MPU

SYSMANIA

Sysmania

ORX-1000

VICON

Vicon Stn

V1311RB,V1310RB, V1200R-LM, etc. receivers

VICON

Vicon Ext

Surveyor Dome Series

Ikegami

Ikegami35

PCS-35

Ikegami

Ikegami358

PCS-358

NEW BORN HIGHTECH

NEWBORN

TOKINA

TOKINA DMP

Ernitec(OSD)

ERNA

BDR-51x,BDR-55x,BDR-575,ICU

BOSCH

Bosch OSRD

Receiver/Drivers, G1, G2, G3, VEZ, and G4 Series AutoDomes

GSP Systems

CYBERSCAN1

Hitron

Fastrax II

Fastrax II (HID-2404)

Yujin Systems

Yujin Sys.

EPT-5000S/6000S

Dynacolor DSCP

Dyna. DSCP

dynacolor DH801, DH701 and DH600

Ladon

HANIL STM

MCU-1200N

MCU-1200N, 1400N, 1500N

LILIN_MLP2

LILIN_FastDome

LILIN Fast

AMERICAN DYNAMICS

AD SpdDome

※The protocols on brand names marked with ‘(OSD)’are available to controlling CAMERA OSD Menu.

Release Version 1.2

4-1-1-3-1. RS-485 TX

•To show the current setting status at the top of the screen.

•Press the MENU KEY to control the camera OSD menu and press EXIT KEY to exit this menu.

•Press the MODE KEY to set PTZ / OSD and press the SET KEY in PTZ mode to set PT/ZE.

→PT: Pan / Tilt implemented

→ZF: Zoom / Focus implemented

•Press ◀/▶/▲/▼ buttons following the OSD guidance on the screen.

※For some cameras, ENTER KEY needs to be pressed for a while to enter the OSD Menu.

※Cautions when using PELCO-D PROTOCOLS

•SC-MFM07HD has two different PELCO-D PROTOCOLS built-in, which are PELCO-D PROTOCOL and

PELCO-CNB. In case of PELCO-D PROTOCOL, it is possible to enter the camera OSD menu by Go

To PRESET Command when starting the Menu key. In case of PELCO-CNB PROTOCOL, it is

possible to enter the camera OSD menu by Go To PRESET Command when starting the Menu

key as well as by Run PRESET Command when starting ESC Key. The command to enter the

camera OSD menu depends on camera manufacturers, so that we have worked for PELCO-D

PROTOCOLS separately. Most of box and dome cameras have had this kind of symptom.

Release Version 1.2

4-1-1-3-2. RS-485 RX

•To show the current status of settings at the top of the screen.

•To check the connection status of RS-485 lines indicated by HEX value.

•To display the received data via RS-485 port up to 10 lines in BYTE (16 byte).

•When the data is more than 160 byte, it may be cleared out automatically. It is possible to clear it

out temporarily by using ESC and Set buttons.

•Press the EXIT button to go back to the previous menu.

4-1-1-3-3.Coaxial [UP THE COAX]

•To show the current status of setting at the top of the screen.

•Press MENU KEY to control the camera OSD menu and press the EXIT KEY to exit this menu.

•Press the MODE KEY to set PTZ / OSD and press the SET KEY in PTZ mode to set PT/ZF

→PT: Pan / Tilt implemented

→ZF: Zoom / Focus implemented

Release Version 1.2

•Press ◀/▶/▲/▼ buttons following the OSD guidance on the screen.

※For some cameras, ENTER KEY needs to be pressed for a while to enter the OSD Menu.

•For Coax, it is available to control cameras via coaxial cable without RS-485 data lines

•List of controllable models

Brand

Monitor

OSD

Controllable Models

Samsung Techwin

PELCO-C

All models supporting COAX communication (Winner 5)

PELCO

PELCO-C
