SEI NARITA User manual

For assistance with assembly contact:
Southern Enterprises Inc.
Customer Service 1-800-633-5096
[e-mail]
www.seidal.com
"NARITA"MEDIA CONSOLE FIREPLACE
FA930100TX-ESPRESSO
FA930200TX-GLAZED PINE
FA930300TX-MAHOGANY
Assembly Instructions

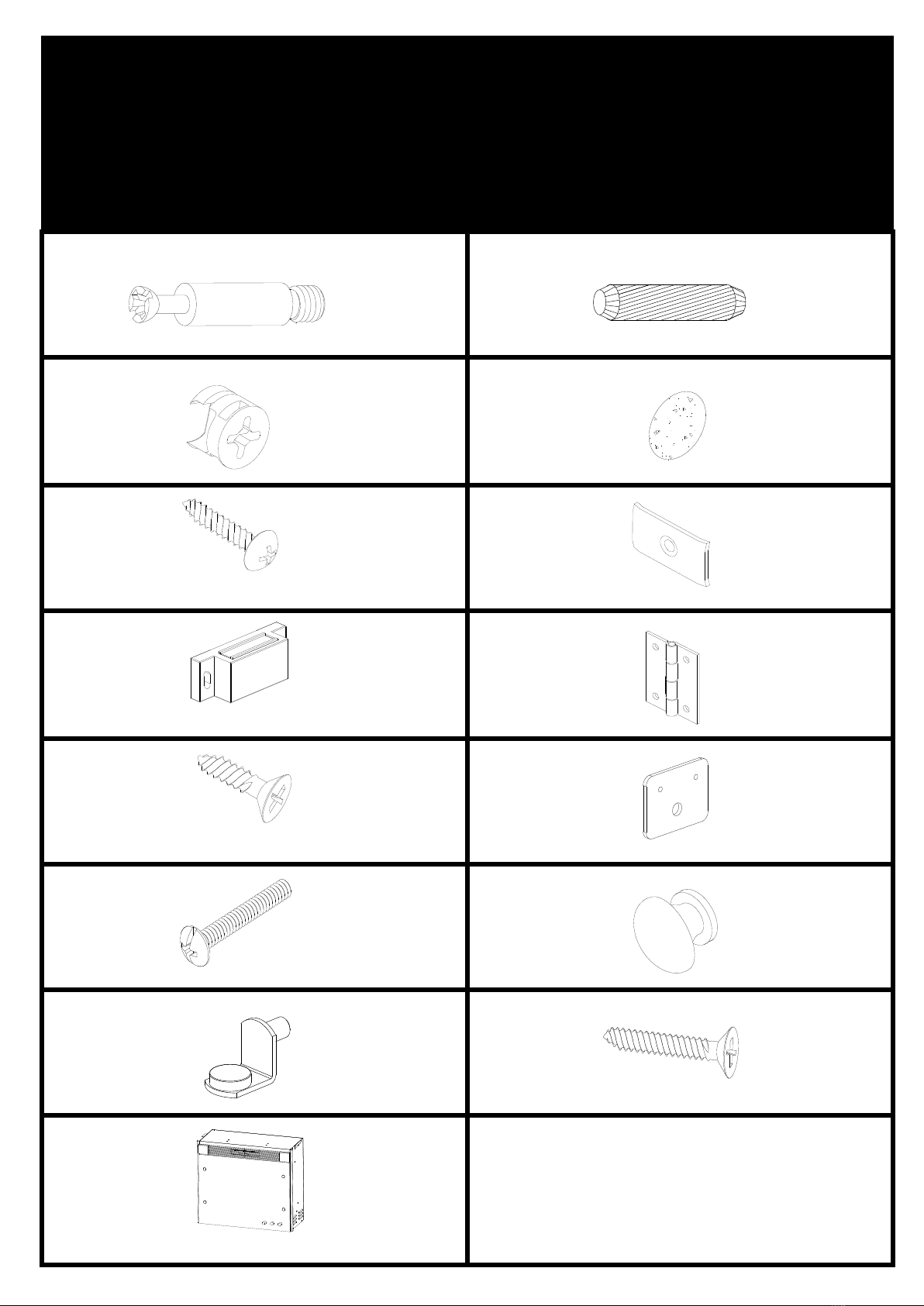

A Quantity
of 24
CAM BOLT
BQuantity
of 24
WOOD DOWEL
CQuantity
of 24
CAM LOCK
DQuantity
of 16
COVER
E Quantity
of 42
ROUND HEAD SCREW
F Quantity
of 4
SLICE OF IRON
G Quantity
Of 2
MAGNET LOCK
H Quantity
Of 4
HINGE
I Quantity
of 18
SHORT FLAT HEAD SCREW
J Quantity
Of 2
MAGNET PLATE
K Quantity
of 2
LONG BOLT
L Quantity
Of 2
KNOB
MQuantity
of 8
SHELF HOLDER
N Quantity
of 4
LONG FLAT HEAD SCREW
OQuantity
of 1
FIREBOX
SOLD IN A SEPARATE CARTON
"NARITA"MEDIA CONSOLE FIREPLACE
Parts List
Please review all parts and hardware before disposing of any packaging.
Call Customer Service if missing hardware. Do not return to store/retailer.
Using a screw that is too long will cause damage.
Before beginning assembly, separate each type of screw. Carefully study the
screw diagrams below. You may receive extra hardware with your unit.

(1) Quantity
of 2
VERTICAL PANEL (R&L)
(2) Quantity
of 1
MIDDLE FRONT PANEL
(3) Quantity
of 1
MIDDLE FIXED PANEL
(4) Quantity
of 1
BOTTOM FRAME
(5) Quantity
of 2
SIDE PANEL (R&L)
(6) Quantity
of 1
TOP PANEL
(7) Quantity
of 1
MIDDLE BACK PANEL
(8) Quantity
of 2
SIDE BACK PANEL
(9) Quantity
of 2
DOOR(R&L)
(10) Quantity
of 2
SHELF PANEL
(11) Quantity
of 1
WOOD HOLDER
(12) Quantity
of 1
CENTER SUPPORT
Care and Cleaning Instructions:
Before using, wipe with a clean, dry cloth.
Periodically apply furniture wax to renew
the finish . Avoid rubbing or scratching the
surface with rough or abrasive objects.
For replacement parts or questions, please
Call Customer Service at 1-800-633-5096
Do not return product to store, please call
Manufacturer for assistance, questions or
Parts.
Assembly Tool Required
No.2 Phillips Screwdriver (Not Included)
"NARITA"MEDIA CONSOLE FIREPLACE
Parts List
Please review all parts and hardware before disposing of any packaging.
Call Customer Service if missing hardware. Do not return to store/retailer.
Using a screw that is too long will cause damage.
Before beginning assembly, separate each type of screw. Carefully study the
screw diagrams below. You may receive extra hardware with your unit.

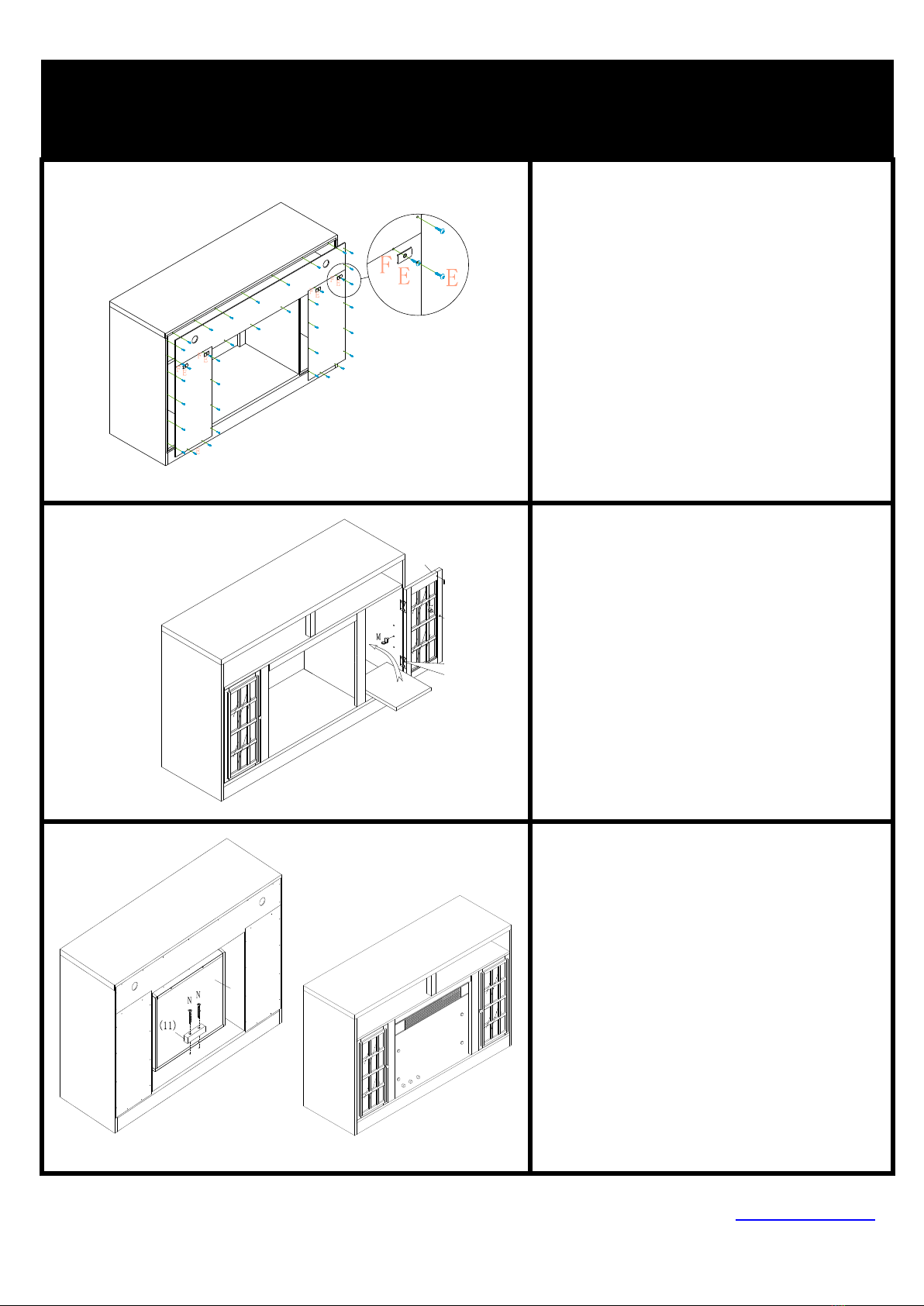

Figure 1
USE 4PCS ROUND HEAD SCREW TO SECURE
MAGNET LOCK (G) ON MIDDLE FIXED PANEL(3)
AS SHOWN.
INSERT 8PCS CAM-BOLTS (A) AND 12PCS WOOD
DOWELS (B) INTO PREDRILLED HOLES ON
INSIDES OF MIDDLE FIXED PANEL（3）， BOTTOM
FRAME（4）AND MIDDLE FRONT PANEL（2）， AND
FIT INTO CORRESPONDING HOLES ON ENDS OF
VERTICAL PANEL（R&L(1). INSERT 8PCS
CAM-LOCKS (A) INTO BIG HOLES ON INSIDE OF
VERTICAL PANEL（R&L(1), WITH SLOT FOR
SCREWDRIVER FACING OUTWARD. ROTATE
CAM-LOCKS (C) CLOCKWISE TO SECURE
CAM-BOLTS (A). PUSH COVERS (D) INTO
CAM-LOCKS (C). AS FIGURE 1 SHOWN.
Figure 2
INSERT 12PCS CAM-BOLTS(A) AND 8PCS
WOOD DOWELS(B) INTO PREDRILLED
HOLES ON INSIDE OF SIDE PANEL (R&L)
(5),AND FIT INTO CORRESPONDING
HOLES ON ENDS OF ASSEMBLED
UNIT,THEN INSERT 12PCS CAM-LOCK(C)
INTO BIG HOLES ON INSIDE OF
ASSEMBLED UNIT WITH SLOT FOR
SCREWDRIVER FACING OUTWARD.
ROTATE CAM-LOCKS (C) CLOCKWISE TO
SECURE CAM-BOLTS (A). PUSH COVERS
(D) INTO CAM-LOCKS (C).THEN USE LONG
FLAT HEAD SCREW(N) TIGHTEN MIDDLE
FRONT PANEL (2) AS FIGURE 2 SHOWN.
Figure 3
PUT THE TOP PANEL(6) ON THE UNIT,
INSERT 4PCS CAM-BOLTS(A) AND 4PCS
WOOD DOWEL(B) INTO PREDRILLED
HOLES OF SIDE TOP PANEL(6),AND FIT
INTO CORRESPONDING HOLES ON INSIDE
OF SIDE PANEL(R&L)(5),THEN INSERT
4PCS CAM-LOCK(C) INTO BIG HOLES ON
INSIDE OF SIDE PANEL(R&L)(5) WITH
SLOT FOR SCREWDRIVER FACING
OUTWARD ROTATE CAM-LOCKS(C)
CLOCKWISE TO SECURE CAM-LOCKS,AS
FIGURE 3 SHOWN.USE THE CENTER
SUPPORT(12) BEFORE PLACING ANY ITEM
WEIGHING OVER 50LBS ON THE TOP.JUST
INSERT CENTER SUPPORT(12) TO THE
POSITION AS SHOWN IN FIGURE
3 ,ADJUST THE RUBBER FOOT AT THE
BOTTOM OF SUPPORT TILL TIGHTING.
"NARITA"MEDIA CONSOLE FIREPLACE
Assembly Instructions
(6)
(5)L
(5)R
BB
B
(5)L
(5)R
(3)
(4)
N
(1)L
(1)R
(2)
(3)
(4)

E
E
E
E
E
E
E
E
E
(7)
(8)
(8)
E
Figure 4
USE 38PCS ROUND HEAD SCREW(E) AND
4PCS SLICE OF IRON(F) TO ASSEMLBE
MIDDLE BACK PANEL(7) AND SIED BACK
PANEL(8) TO THE UNIT,AS AS FIGURE 4
SHOWN.
Figure 5
ATTACH MAGNET PLATE (J) ON THE
DOOR(R&L) BY USING 2PCS SHORT FLAT
HEAD SCREW.
ATTACH KNOB(L) ON THE DOOR(R&L) BY
USING 2PCS LONG BOLTS (K).
USE 4PCS HINGE (H) AND 16PCS SHORT
FLAT HEAD SCREW (I) TO ASSEMBLED
DOOR(R&L).
INSERT 8PCS SHELF HOLDER (M) INTO
CORRESPONDING HOLES OF MIDDLE
FIXED PANEL(3) ,THEN PUT THE SHELF
PANEL ON IT ,AS FIGURE 5 SHOWN.
Figure 6
INSERT THE FIREBOX FROM THE BACK OF
FIREPLACE. MAKE SURE FIREBOX IS
PRESSED TIGHTLY AGAINST THE
ASSEMBLED UNIT. INSERT 2PCS FLAT
HEAD LONG SCREWS (N) THROUGH
PREDRILLED HOLES ON FIXED WOOD (11)
AND TIGHTEN INTO CORRESPONDING
HOLES ON BACK OF FIREBOX. AS FIGURE
6 SHOWN.
NOW YOUR NEW FIREPLACE IS REDADY
TO USE.
We'd love to hear from you! Email us photos of our products in your home at [email protected]
and we might feature it on our site or use it to model one of our inspirational photos.
"NARITA"MEDIA CONSOLE FIREPLACE
Assembly Instructions
O
(9)
(10)

Please immediately examine this product carefully. Any request for missing parts or damage replacement must
be received within 90 days of your receipt of the product. Replacement, if available, will be honored within this
time frame.Parts will not be available for items arriving fully assembled. We do not recommend modifying
product(s) and we are not responsible for any damages due to product modification(s). If damages or missing
parts are not reported within 90 days of your receipt, we are under no obligation to provide parts or replacement
merchandise.
Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am –4pm Mon-Fri Central
time if you have product issues or email us at [e-mail]. Please ask for customer service
representative for issues involving damages or replacement parts. Please ask for technical assistance
representative for any issues with product and assembly/construction.
Please contact the retailer that you purchased from for returns.
Customer Information
Name
Address
City/State/Zip Code
Phone Number
Please indicate where you purchased this item: Store/Website/Catalog
Please indicate color/size/style number:
Style No Parts Letter Parts Description Quantity Needed
Parts Replacement Form
Customer Service 1-800-633-5096
[e-mail]
Southern Enterprises, Inc.
600 Freeport Parkway, Suite 200
Coppell, Texas 75019

CAUTION
The top shelf is intended for a flat screen television with a maximum overall width of 46”and
supports up to 85lb.
The top shelf is NOT INTENDED for tube televisions.
Each center shelf should not be loaded with more than 20 lb. Each side shelf should not be loaded
with more than 15 lb.
DO NOT EXCEED RECOMMENDED LOAD. Use with products heavier than the
maximum sizes and weights indicated may result in instability causing possible injury.
This unit contains a permanent warning sticker located on under side of top shelf or inside drawer.
Do not allow children under 16 years to move the cart.
Model: FA930100TX/FA930200TX/FA930300TX
“NARITA”MEDIA CONSOLE FIREPLACE
Southern Enterprises, Inc
600 Freeport Parkway, Suite 200
Coppell, Texas, 75019
Manufacture Date:
