“CHELMSFORD” STORAGE CONSOLE
ESPRESSO FINISHING
Assembly Instructions

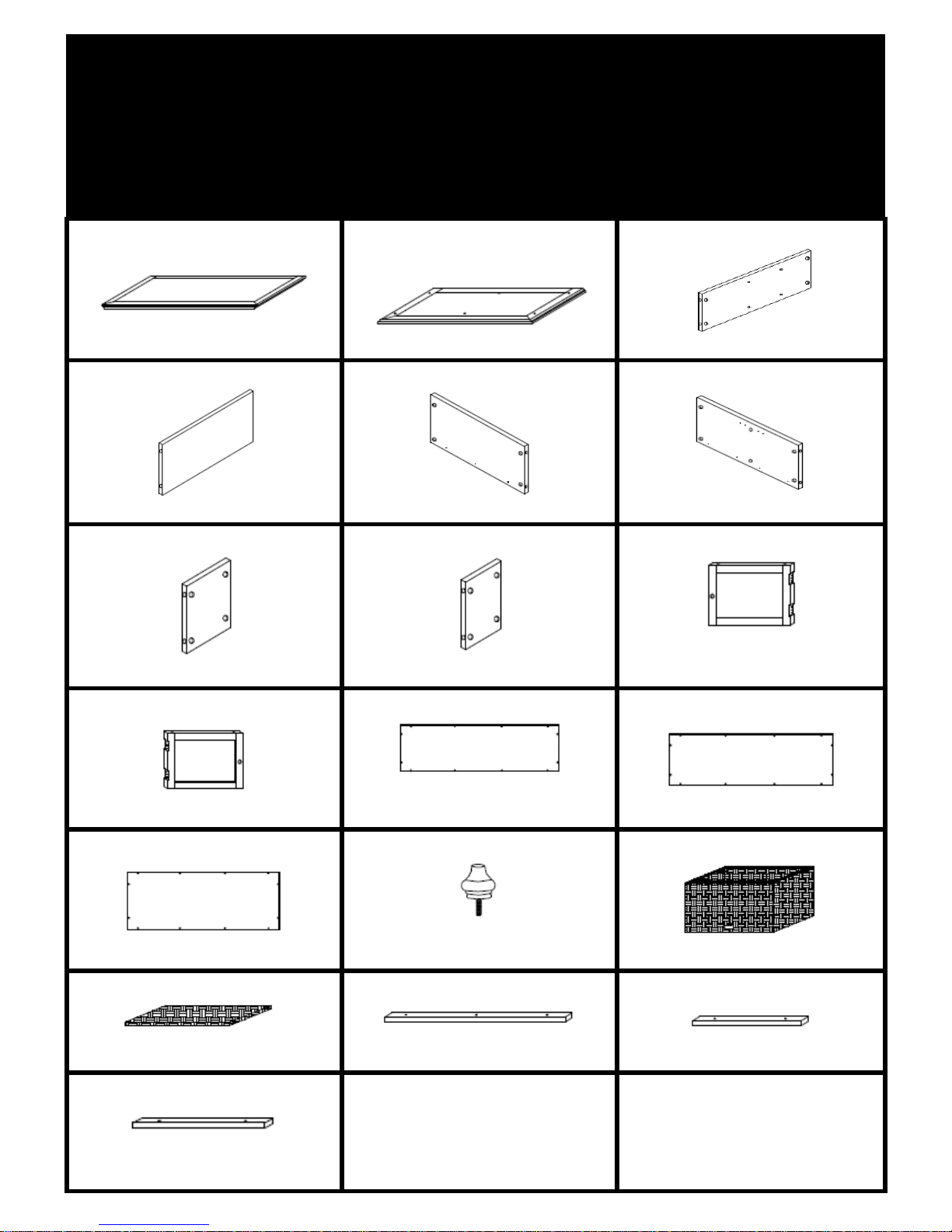

A Quantity of 1
TOP PANEL
B Quantity of 1
BOTTOM PANEL
C Quantity of 1
LEFT FACING PANEL
D Quantity of 1
RIGHT FACING PANEL
E Quantity of 1
UPPER CROSS - PANEL
F Quantity of 1
BOTTOM CROSS - PANEL
G Quantity of 1
BOTTOM STAND PANEL
H Quantity of 1
UPPER STAND PANEL
I Quantity of 1
LEFT DOOR
J Quantity of 1
RIGHT DOOR
K Quantity of 1
UPPER BACK PANEL
L Quantity of 1
MIDDLE BACK PANEL
M Quantity of 1
BOTTOM BACK PANEL
N Quantity of 4
FEET
O Quantity of 2
WICKER FRAME
P Quantity of 2
WICKER BOTTOM
Q Quantity of 1
LONG SUPPORT
R Quantity of 1
LEFT SHORT SUPPORT
S Quantity of 1
RIGHT SHORT SUPPORT
“CHELMSFORD” STORAGE CONSOLE
Parts List
Please review all parts and hardware before disposing of any packaging.
Call Customer Service if missing hardware. Do not return to store/retailer.
Using a screw that is too long will cause damage. Before beginning assembly,
separate each type of screw. Carefully study the screw diagrams below.
You may receive extra hardware with your unit.

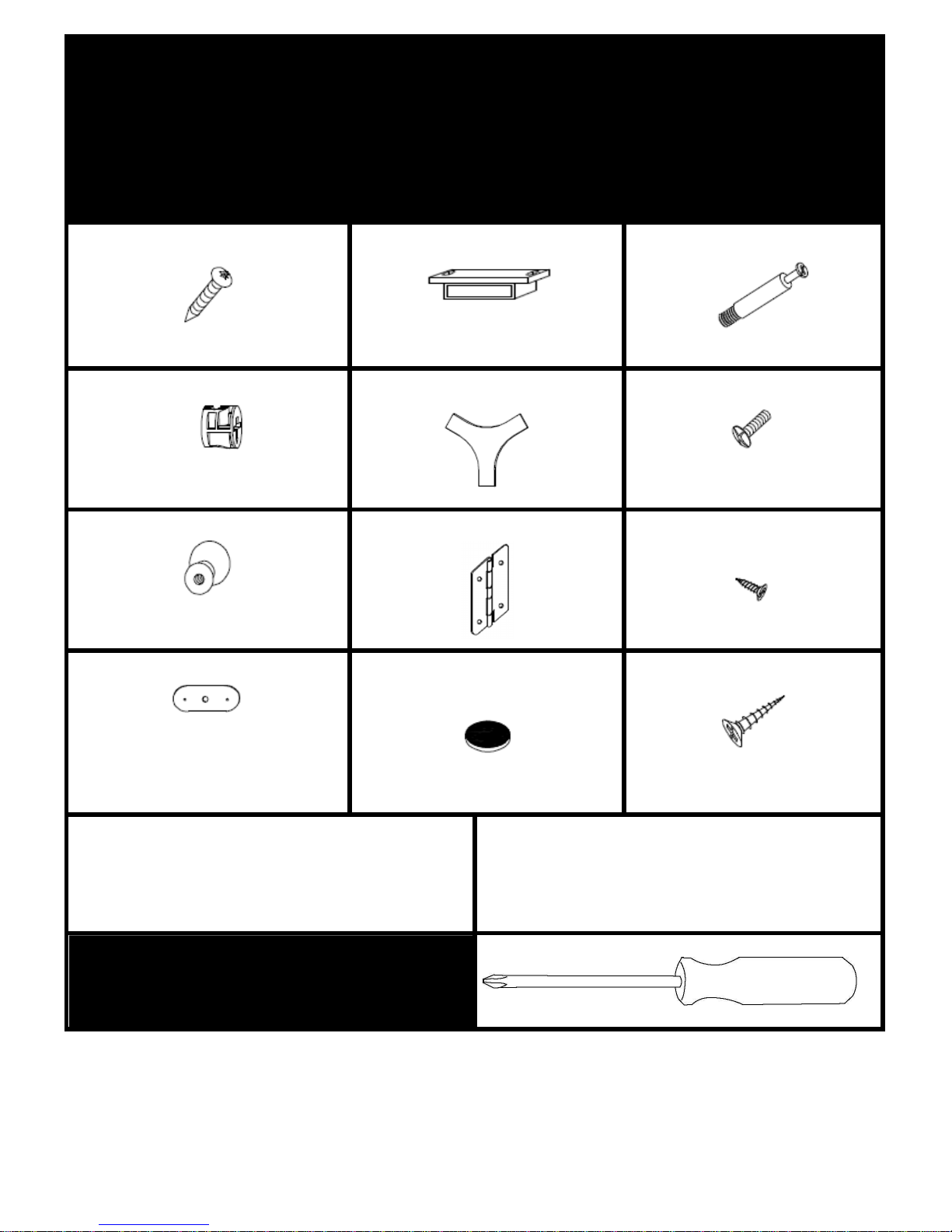

1 Quantity of 32
SCREWS
2 Quantity of 2
SMALL MAGNETS
3 Quantity of 24
CAM-BOLTS
4 Quantity of 24
CAM-LOCKS
5 Quantity of 1
CAM-TOOL
6 Quantity of 2
SCREWS
7 Quantity of 2
KNOBS
8 Quantity of 4
HINGE
9 Quantity of 18
SCREWS
10 Quantity of 2
FEMALE MAGNETS
11 Quantity of
1
COTTON MAT
12 Quantity of 7
SCREWS
C re nd Cle ning Instructions:
Before using, wipe with a clean, dry cloth.
Periodically apply furniture wax to renew
the finish . Avoid rubbing or scratching the
surface with rough or abrasive objects.
For replacement parts or questions, please
Call Customer Service at 1-800- 33-509
Do not return product to store, please call
Manufacturer for assistance, questions or
Parts.
Assembly Tool Required
No.2 Phillips Screwdriver (Not Included)
“CHELMSFORD” STORAGE CONSOLE
Parts List
Please review all parts and hardware before disposing of any packaging.
Call Customer Service if missing hardware. Do not return to store/retailer.
Using a screw that is too long will cause damage. Before beginning assembly,
separate each type of screw. Carefully study the screw diagrams below.
You may receive extra hardware with your unit.

Figure 1
PLEASE DO NOT OVER-TIGHTEN CAMBOLTS.
PLEASE STOP WHEN YOU FEEL TIGHT

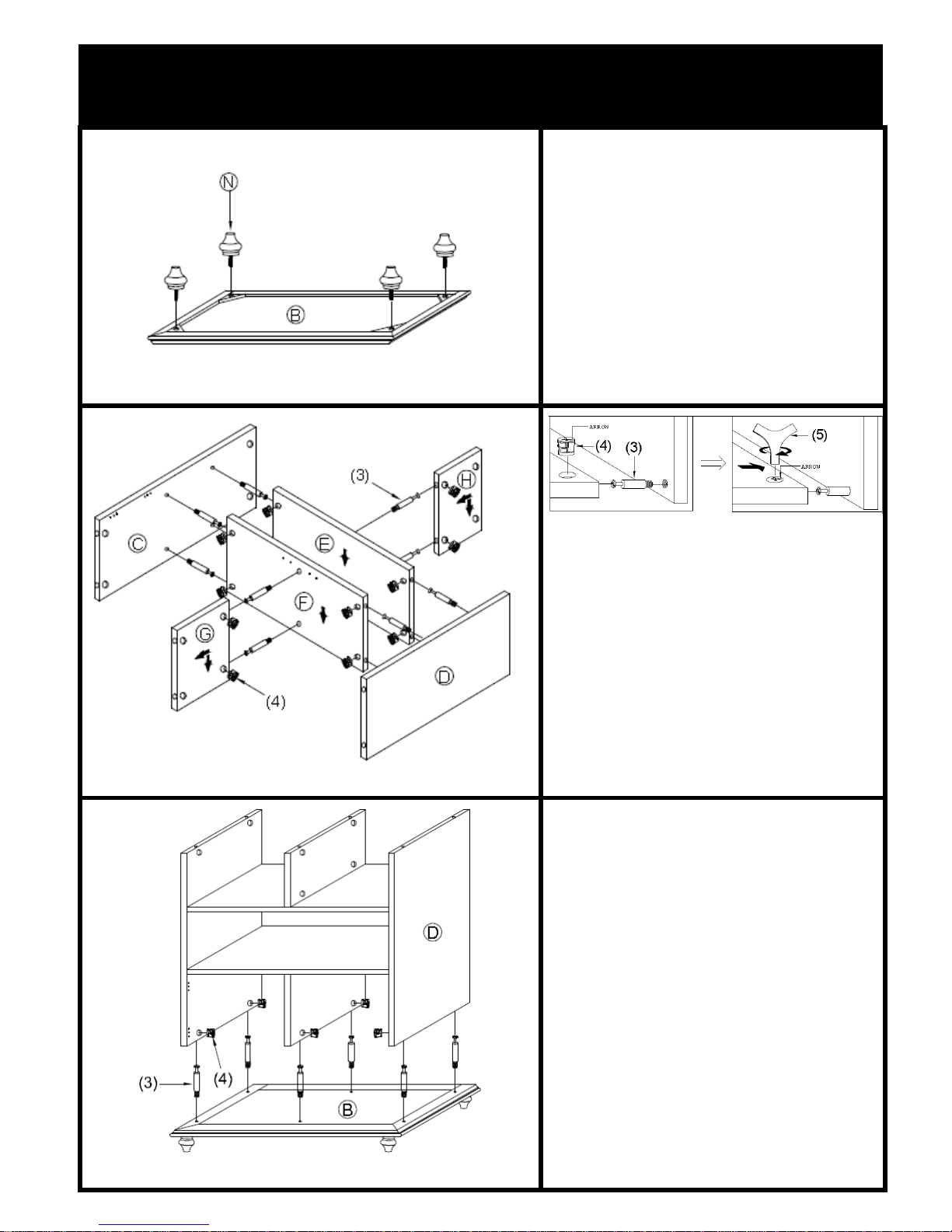

Assembly Instructions:
Wood may scratch easily. Be careful when
assembling.
Unpack and lay parts on clean, padded
surface like carpet or blanket.
Rotate the 4 feet (N) into holes in bottom
panel (B).
Figure 2
Rotate the 12 cam-bolts (3) into holes in
cross - panel (E/F) and facing panel (C/D).
Place the cam-bolts (3) into holes in panel
(E/F/H/G) and attach using cam-locks (4).
Figure 3
Rotate the 6 cam-bolts (3) into holes in
bottom panel (B).
Place the cam-bolts (3) into holes in panel
(C/D) and attach using cam-locks (4).
“CHELMSFORD” STORAGE CONSOLE
Assembly Instructions

Figure 4

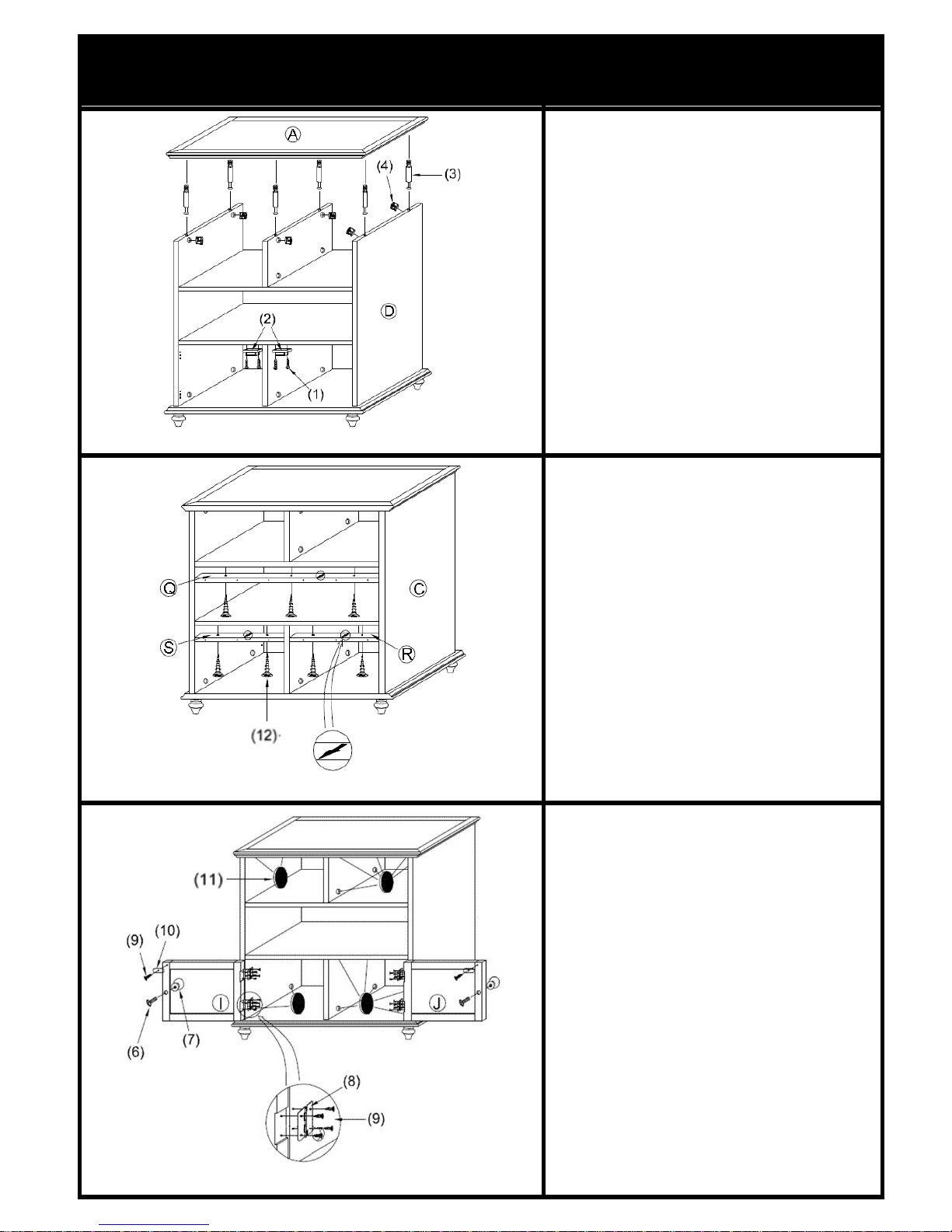

Rotate the 6 cam-bolts (3) into holes in
top panel (A).
Place the cam-bolts (3) into holes in
panel (C/D) and attach using cam-locks
(4).
Attach the 2 small magnets (2) to bottom
cross - panel (F) using 4 screws (1).
Figure 5
Attach the long support (Q) to upper
cross - panel (E) using 3 screws (13).
Attach the left short support (R) and right
short support (S) to bottom cross -panel
(F) using 4 screws (12).
Figure 6
Attach knobs (7) to doors (I/J) using
screws (6).
Attach female magnets (10) to doors (I/J)
using screws (9).
Attach hinges (8) to doors (I/J) and facing
panel (C/D) using screws (9).
Cover cam-locks (4) with cotton mats (11)
provided.
“CHELMSFORD” STORAGE CONSOLE
Assembly Instructions

Figure 7

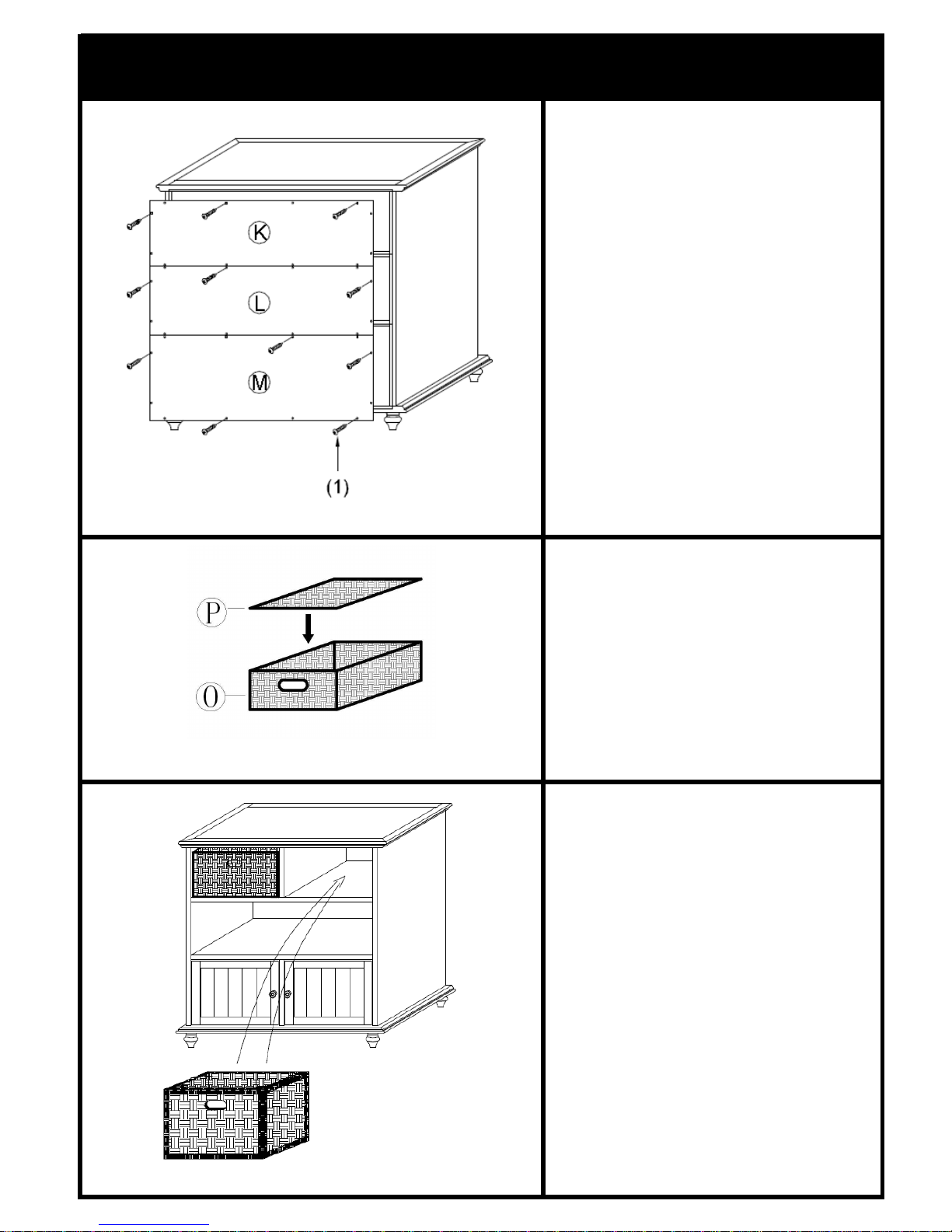

Attach the back panel(K/L/M) using
screws (1).
Figure 8
Attach the wicker bottom (P) to wicker
frame (O)
Figure 9
Insert wicker baskets.
“CHELMSFORD” STORAGE CONSOLE
A
ssembly Instructions
