Schweitzer Engineering Laboratories, Inc. SEL-3061 Data Sheet
Secure Cellular Connectivity
Key Features and Benefits
The SEL-3061 Cellular Router provides secure wireless connectivity to a variety of critical infrastructure devices
through the use of cellular networks. With a high data rate, the SEL-3061 serves as a communications backhaul for sys-
tems that need communications links to centralized locations. The router supports 4G LTE and 3G cellular technologies.
➤Multiple Carrier Support. Supports AT&T, Verizon, T-Mobile, Rogers, Bell, and Telus networks.
➤Strong Secure Communication. Offers as many as five concurrent IPsec VPN connections. X.509 certificates
ensure strong authentication with third-party validation.
➤User-Based Accounts with Centralized User-Based Authentication. Provides separate role-based authorization
levels for configuration, maintenance, and usage. Supports Remote Authentication Dial-In User Service
(RADIUS).
➤Syslog. Logs system events for alerts in a consistent fashion for both local and centralized collection.
➤Network Management. Supports SNMP reads and traps for versions v1, v2c, and v3.
➤Application Versatility. Serial and Ethernet ports enable communications with a variety of end devices.
➤Dual-Mode Operation. Gives flexibility of operating as a router or bridge.
➤Stateful Packet Inspection (SPI) Firewall and IP Defense. Dynamic packet filtering prevents unauthorized
traffic from entering your private network. Log all successful or blocked connections to the firewall. IP Defense
mitigates the effects of denial-of-service and brute force attacks.
➤Ruggedness. Provides utility-grade reliability. Designed and tested to relay standards for electromagnetic
compatibility and surge immunity. Operates reliably between –40° to +75°C (–40° to 167°F).
➤Resiliency. Enables the use of two antennas to increase performance.
SEL-3061 Cellular Router

SEL-3061 Data Sheet Schweitzer Engineering Laboratories, Inc.
2
Product Overview
Features
Secure Communication Over
Cellular Network
The SEL-3061 offers comprehensive security methods
that include VPN, IPsec, SPI firewall, and media access
control (MAC) address filtering to ensure the confidenti-
ality and integrity of data communications over a cellular
network. The SEL-3061 uses RADIUS and user account
privileges to grant access to the device.
Device Management
The SEL-3061 simplifies device monitoring and man-
agement via the web interface of the router including
over-the-air settings changes and firmware upgrades.
Ubiquitous Connectivity
The SEL-3061 supports 4G LTE and 3G cellular technol-
ogy and uses cellular networks to provide wireless con-
nectivity for a variety of critical infrastructure devices.
Reporting and Alarms
The SEL-3061 uses the Syslog format to log events. The
router maintains an internal record of as many as 30,000
event logs in nonvolatile memory that can be down-
loaded into a CSV file. The Syslog supports two Syslog
servers. Notifications and alarms can be triggered by the
events and sent by using either SNMP, email, or short
Figure 1 Product Overview
Device Status LEDs Link
Status
Signal
Strength
Pinhole Reset Button
Primary Antenna Diversity Antenna
Power and
Ground Terminals
Communications Ports
Alarm Contact
Terminals

Schweitzer Engineering Laboratories, Inc. SEL-3061 Data Sheet
3
message service (SMS) messages. The SEL-3061 has an
output alarm contact that pulses for major and minor
alarms.
The SEL-3061 supports SNMP to provide state informa-
tion and notifications (traps) for events that indicate the
device health and status. The SEL-3061 allows Manage-
ment Information Base (MIB) files in zip format to be
downloaded to provide information about data and traps
available via SNMP.
Application Examples
The SEL-3061 serves as the communications link for
field devices or backhaul communications device. For
electric utilities, the SEL-3061 provides connectivity to
devices such as recloser controls, motor-operated
switches, capacitor banks, voltage regulators, meters, and
other IEDs. The combination of serial and Ethernet ports
on the SEL-3061, along with secure tunneling, provides
application flexibility and makes installation easy with-
out sacrificing security.
SCADA
The SEL-3061 provides the communications link to
aggregate data from field devices and forwards it to
SCADA systems and HMIs. The SEL-3061 can be used
in data acquisition and slow-to-medium speed control
applications. SCADA includes analog and discrete I/O
monitoring and metering. The SCADA control includes
set-point changes of processes and operations of discrete
I/Os. Field devices connect directly to either the Ethernet
port or serial port on the SEL-3061. The SEL-3061 links
Figure 2 Application Overview
Cell Tower
Cellular Link
Wired Network Link
900 MHz/2.4 GHz Link
SEL-451
SEL-451
SEL-734B
SEL-651R
SEL-3530
SEL-3060
SEL-FLR
SEL-FLT
Utility Operation Center
Network
Management System
Operation
Management
SEL-3060
SEL-3060
SEL-3060
Wide-Area
Network
SEL-3061
SEL-3061
SEL-3061
SEL-735
SEL-3061
SEL-2431
SEL-3061
SEL-3061
SEL-3061
SEL-3530
Advanced Metering
Infrastructure Collector
SEL-3061SEL-3061

SEL-3061 Data Sheet Schweitzer Engineering Laboratories, Inc.
4
these devices to a SCADA system via cellular WAN con-
nections and allows the SCADA to poll each device by
using DNP3 over TCP/IP and Modbus TCP/IP.
Engineering Access
The SEL-3061 allows users to access IEDs to view and
modify settings and download oscillographic event
reports through VPNs.
Distributed Data Acquisition
Modern automation systems can be distributed over a
large geographical area. These automation systems mon-
itor and process input signals, execute logic, and enable
or disable outputs. In some instances, it is necessary to
perform data acquisition on the status or value of the
connected I/O. A distributed data acquisition system uses
an automation controller as the data concentrator and a
computer as the SCADA host. The system uses remote,
discrete, and analog I/Os. As shown in Figure 3, a single
SEL-3061 at each site both provides the connectivity
between these remote I/Os with the automation control-
ler and backhauls the collected data to the SCADA com-
puter.

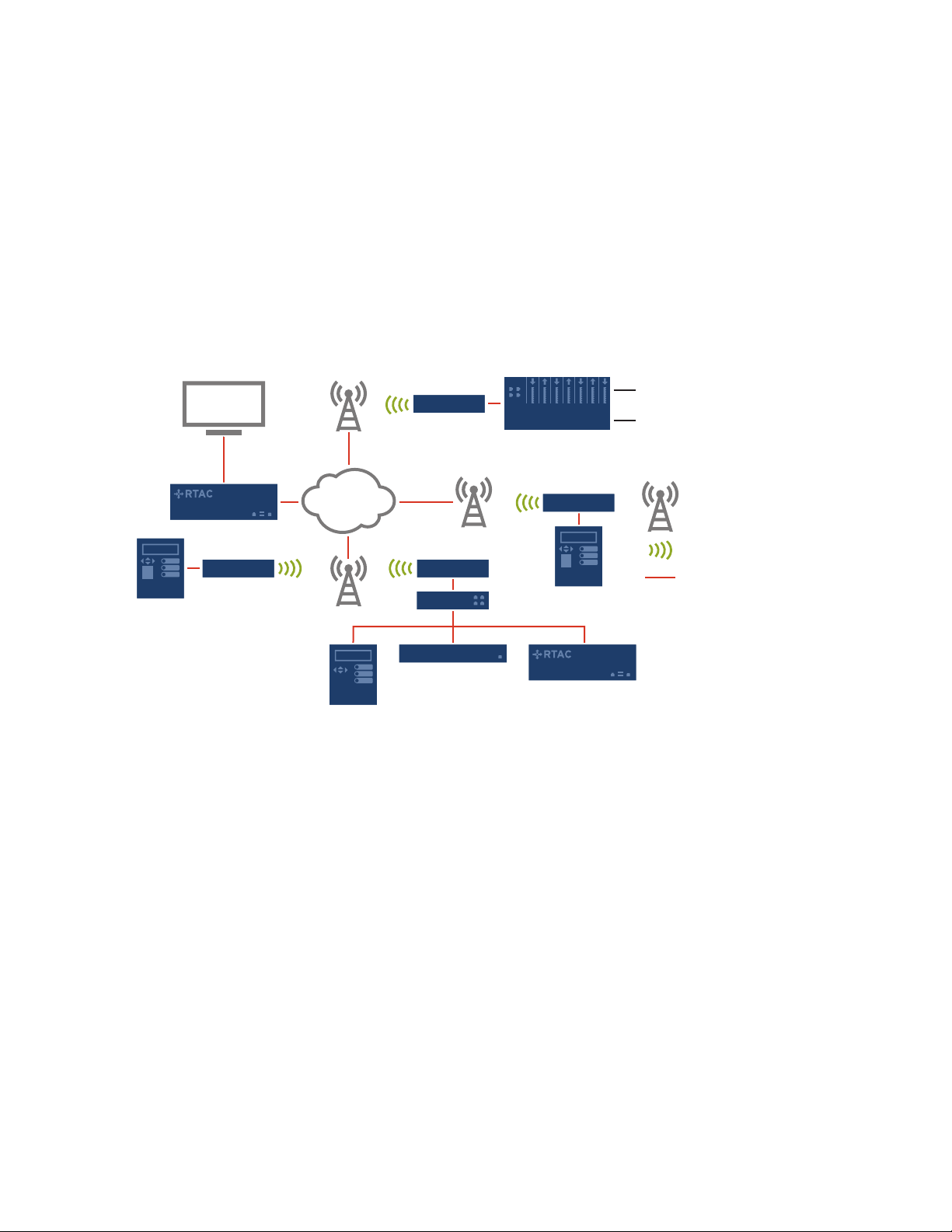

Figure 3 SCADA, Engineering Access, and Distributed Data Acquisition
Cell Tower
Wired Network Lin
k
Analog I/O
Discrete I/O
SEL-3530
SEL-3530
SEL-2411
SEL-735
SEL-2725
SEL-2240 Axion
SEL-2440 DPAC
Cellular Link
Wide-Area
Network
SCADA
SEL-3061 SEL-3061 SEL-735
SEL-3061
SEL-3061

Schweitzer Engineering Laboratories, Inc. SEL-3061 Data Sheet
5
Distribution Automation
The SEL-3061 provides cellular connectivity to remotely
monitor and control recloser controls and sectionalizers
for distribution power systems, as shown in Figure 4. In
cases where customers rely on communications schemes
for power restoration, the SEL-3061 provides the con-
nectivity. The main difference between the distribution
automation (DA) systems that use line-of-sight radios
and DA systems that use an SEL-3061 is that the
SEL-3061 and DA can be installed at any IED location
that has cellular coverage. The DA controller polls data
from each recloser control for monitoring and sends con-
trol signals through the WAN and the SEL-3061.
SEL-FLT/SEL-FL R Network Backhaul
The SEL-FLT and SEL-FLR Fault and Load Transmitter
and Receiver System provides wide-area load monitoring
and fault location from line-powered SEL-FLT devices.
The SEL-FLR collects load data and fault information
from the SEL-FLT devices and sends the collected data
to an Operation Management System (OMS) or Energy
Management System (EMS) via a WAN. The SEL-3061
provides the communications link between the OMS and
the SEL-FLR. When connected to the SEL-FLR the
SEL-3061 provides wireless connectivity for the
SEL-FLT/SEL-FLR networks, as illustrated in Figure 5.
Figure 4 Distribution Automation
SEL-351S
SEL-351S
SEL-3530
Recloser 3
Cell Tower
Cellular Link
Wired Network Link
SEL-3061
SEL-651R
SEL-651R
SEL-651R
Circuit Breaker 2
Recloser 1 Recloser 2
SEL-651R
SEL-3061
SEL-651R
Recloser 1 Recloser 2
Distribution Feeder
Wide-Area
Network
SEL-3061 SEL-3061
SEL-3061
SEL-3061SEL-3061
Circuit Breaker 1
DC Control Circuit
Figure 5 Backhaul Communication for Distribution Line Sensors
Ethernet
SEL
Backhaul
Distribution System
Utilities/EMS/OMS
SEL-FLR
SEL-FLT
SEL-3061 Wide-Area
Network
Load
Monitoring
Events

SEL-3061 Data Sheet Schweitzer Engineering Laboratories, Inc.
6
Distributed Generation
The SEL-3061 provides the connectivity to remotely
monitor and control relays, devices, and equipment at
distributed generation (DG) sites. In most applications,
an automation controller interfaces with devices located
inside the DG facility. The SEL-3061 can be connected
to the controller to provide backhaul connectivity for
devices located at the DG sites. The SEL-3061 is suitable
for monitoring and non-protection speed control of the
DG site.
Voltage Regulators
Voltage regulators installed outside the substation use the
SEL-3061 to report their status and receive control com-
mands from either a controller or the SCADA system.
Connect the voltage regulator to the SEL-3061 by using
either the serial or Ethernet interface.
Capacitor Bank Controls
The SEL-3061 provides communication for remote mon-
itoring and automated or manual control of capacitor
banks.
Pump Automation Controls
Monitor and control critical infrastructure, such as water
and wastewater pumps, by using the SEL-3061 to pro-
vide remote access to SEL-2411P Pump Automation
Controllers. During both routine operations and natural
disasters, the cellular network provides a reliable path
from a control center to the field. Use an Ethernet switch
to connect more than one controller to a single
SEL-3061.
Network Backhaul
A radio or Advanced Metering Infrastructure (AMI) net-
work usually has an access point that concentrates data
from remote endpoints. The access point is usually con-
nected to a WAN or another wireless network. The
SEL-3061 can be used as the link between the access
point and the WAN or the wireless network by providing
backhaul for these networks.

Schweitzer Engineering Laboratories, Inc. SEL-3061 Data Sheet
7
Configuration
The SEL-3061 offers an easy-to-use web-based user interface to change router configuration settings, visualize router
status, and manage reporting.
Accessories
The following accessories are available for use with the
SEL-3061.
Figure 6 SEL-3061 HTTPS Device Webpage
Table 1 Available Antennas
Part Number Description
235-0003 Low-profile 3 dBi Omnidirectional, 
698–960 MHz, 1710–2700 MHz, N Female
Connector
235-0242 Indoor Right-Angle Antenna, 698–960 MHz,
1710–2700 MHz, SMA Male Connector
Table 2 Optional Antenna Mounting Hardware
Part Number Description
915900497 Mounting bracket for two 235-0003 antennas

SEL-3061 Data Sheet Schweitzer Engineering Laboratories, Inc.
8
For more information on the SEL-3061 accessories and
antenna installation, refer to the SEL-3061 Instruction
Manual or the SEL Radio Accessories Guide.
Diagrams and Dimensions
Table 3 Signal Loss at 2155 MHz
Cable Type Characteristic
Impedance
3.05 m
(10 ft)
12.24 m
(50 ft)
30.48 m
(100 ft)
RG-8X
(SEL-C980 or
SEL-C964)
50 2.0 dB 10.1 dB Do Not
Use
LMR-400
(SEL-C966 or
SEL-C968)
50 0.6 dB 3.1 dB 6.2 dB
7/8" HELIAX
(SEL-C978)
50 Do Not
Use
0.97 dB 1.94 dB
Figure 7 SEL-3061 Front-Panel Diagram
Figure 8 SEL-3061 Rear-Panel Diagram

Schweitzer Engineering Laboratories, Inc. SEL-3061 Data Sheet
9
Figure 9 SEL-3061 Dimensions for Rack- and Panel-Mount Models
6.59
[167.4]
3.00
[76.2]
4.93
[125.2]
1.69
[42.9]
7.07
[179.6]
.06
[1.5]

SEL-3061 Data Sheet Schweitzer Engineering Laboratories, Inc.
10
Specifications
Compliance
Designed and manufactured under an ISO 9001 certified quality
management system
Networking
Network Management
HTTPS Web User Interface
Settings Import/Export
Virtual Private Networks
Maximum Concurrent
Sessions: 5
Security Protocol: IPsec
Key Exchange: IKEv1, IKEv2
Authentication: Passphrase
Nonaccelerated Encryption
Algorithms: AES, 3DES
Encryption Key Strength: 128-bit, 256-bit
Firewall Functions
Network Address
Translation: Port Forwarding (DNAT)
Network Address
Translation: Outbound NAT (SNAT)
Input Traffic Filtering
Output Traffic Filtering
Forward Traffic Filtering
Ethernet Protocols
Address Resolution Protocol (ARP)
Distributed Network Protocol 3 (DNP3)
Dynamic Host Configuration Protocol (DHCP) Client
Encapsulating Security Payload (ESP)
File Transfer Protocol (FTP)
Hypertext Transfer Protocol Secure (HTTPS)
Internet Control Message Protocol (ICMP)
Internet Key Exchange (IKEv1/v2)
Internet Protocol Security (IPsec) Protocol Suite
Internet Secure Association and Key Management Protocol (ISAKMP)
Modbus TCP/IP
Network Time Protocol (NTP) Client
Online Certificate Revocation Protocol (OCSP)
Remote Authentication Dial-In User Service (RADIUS)
Secure Shell version 2 (SSHv2) Client/Server
Simple Network Management Protocol (SNMP)
Spanning Tree Protocol (STP) Syslog
Transmission Control Protocol (TCP)
Transport Layer Security (TLS)
User Datagram Protocol (UDP)
Security
User-Based Accounts
Password Length: 8–4096 characters
Password Set: A–Z, a–z, 0–9, special characters
User Roles: Administrator, Engineer, Monitor
Syslog
Storage for 30,000 local Syslog messages
SNMP
Monitors diagnostics through SNMP v1, v2c, and v3 read operations
Sends notifications by using SNMP v1, v2c, and v3 traps
Supports as many as three active SNMP servers and SNMP trap servers
Firewall
Implementation: iptables
Cellular WAN
Frequency Band (MHz): 4G: 700 (B17)/850 (B5)/AWS1700 (B4)/
1900 (B2)/700 (B13)
3G/2G (AT&T and T-Mobile
Only): 850 (B5)/1900 (B2)
Technology: 4G, LTE
3G/2G fallback (AT&T and T-Mobile
Only)
Data Rate
As much as 100 Mbps downlink
As much as 50 Mbps uplink
Transmit Output Power
0.2 W (23 dBm), Class 3
General
Operating Temperature
–40to +75C (–40to +167F)
Storage Temperature
–40to +75C (–40to +167F)
Operating Environment
Pollution Degree: 2
Relative Humidity: 15%–93%, noncondensing
Maximum Altitude: 2000 m
Dimensions
Wall Mount: 151 mm x 104 mm x 44 mm
(5.96 in x 4.08 in x 1.73 in)
Alarm Output
Rated Operational Voltage: 24–250 Vdc
Contact Protection: 270 Vdc, MOV protected
Continuous Carry: 2 A
Pickup Time: 8 ms typical
Dropout Time: 8 ms typical
Communications Ports
Ethernet Port
Port: 1, rear
10/100BASE-T Copper (RJ45 Connector)
Rear Connectors: RJ45
Standard: IEEE 802.3
Serial Port
Port: 1 EIA-232
Rate: 300 bps, 600 bps, 1200 bps, 1800 bps,
2400 bps, 4800 bps, 9600 bps,
19200 bps, 38400 bps, and 57600 bps
Rear Connectors: 9-pin D-Subminiature

Schweitzer Engineering Laboratories, Inc. SEL-3061 Data Sheet
11
Power Supply
Input Voltage Range: 12–30 Vdc
Power Consumption: <5 W
Product Standards
Measuring Relays and
Protection Equipment: IEC 60255-26:2013
Note: Tests apply to the SEL-3061 only and not to data transfer over the
cellular WAN.
Type Tests
Environmental Tests
Vibration Resistance: IEC 60255-21-1:1988
Class 2 Endurance, 
Class 2 Response
IEC 60255-21-3:1993
Class 2
Shock Resistance: IEC 60255-21-2:1988
Class 1 Shock Withstand Bump, 
Class 2 Shock Response
Cold: IEC 60068-2-1:2007
–40°C, 16 hours
Damp Heat, Cyclic: IEC 60068-2-30:2005
25–55°C, 95% relative humidity,
6 cycles
Dry Heat: IEC 60068-2-2:2007
+75°C, 16 hours
Dielectric Strength and Impulse Tests
Dielectric (HiPot): IEC 60255-27:2013
IEEE C37.90-2005
Impulse: IEC 60255-5:2000
0.5 J, 5 kV
1.0 kV on Ethernet Ports
RFI and Interference Test
Electrostatic Discharge: IEC 61000-4-2:2009
Severity Level 4
8 kV contact discharge
15 kV air discharge
IEEE C37.90.3-2001
Severity Level 3
8 kV contact discharge
15 kV air discharge
Radiated RF Immunity: IEC 61000-4-3:2005+A1:2008+A2:2010
10 V/m
Fast Transient Burst
Immunity:
IEC 61000-4-4:2012
4 kV @ 5.0 kHz for power port
2 kV @ 5.0 kHz for communications
ports
Power Frequency Magnetic
Field:
IEC 61000-4-8:2009
1000 A/m for 3 seconds,
100 A/m for 1 minute
Interruptions and Voltage: IEC 61000-4-11:2004 +A1:2017
Variations on DC Input: IEC 61000-4-17:1999+A1:2001+
A2:2008
Power Port: IEC 61000-4-29:2000
Surge Withstand: IEC 61000-4-18:2005+A1:2010
Capability Immunity: 2.5 kV common-mode,
1 kV differential-mode
Conducted RF Immunity: IEC 61000-4-6:2013 10 Vrms
Surge Immunity: IEC 61000-4-5:2005
Zone B: 0.5; 1.0 kV; line-to-line
Zone B: 0.5; 1.0; 2.0 kV; line-to-earth
EMC Emissions
Radiated Emissions: CISPR 11:2009+A1:2010
CISPR 22:2008
ANSI C63.4:2015
47 CFR Part 15.107, 109
ICES-003, Issue 6
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
FCC Part 15, Class A; ICES-003
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct
the interference at his own expense.
FCC Section 15.21
User’s manual for an intentional or unintentional radiator shall caution
the user that changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.

12
© 2018–2019 by Schweitzer Engineering Laboratories, Inc. All rights reserved.
All brand or product names appearing in this document are the trademark or registered
trademark of their respective holders. No SEL trademarks may be used without written
permission. SEL products appearing in this document may be covered by U.S. and Foreign
patents.
Schweitzer Engineering Laboratories, Inc. reserves all rights and benefits afforded under
federal and international copyright and patent laws in its products, including without lim-
itation software, firmware, and documentation.
The information in this document is provided for informational use only and is subject to
change without notice. Schweitzer Engineering Laboratories, Inc. has approved only the
English language document.
This product is covered by the standard SEL 10-year warranty. For warranty details, visit
selinc.com or contact your customer service representative.
*PDS3061-01*
2350 NE Hopkins Court • Pullman, WA 99163-5603 U.S.A.
Tel: [phone] • Fax: [phone]
selinc.com • inf[email protected]
SEL-3061 Data Sheet Date Code 20191217
Technical Support
We appreciate your interest in SEL products and services. If you have questions or comments, please contact us at:
Schweitzer Engineering Laboratories, Inc.
2350 NE Hopkins Court
Pullman, WA 99163-5603 U.S.A.
Tel: [phone]
Fax: [phone]
Internet: selinc.com/support
Email: [email protected]
