Sencor SCH 470 User manual

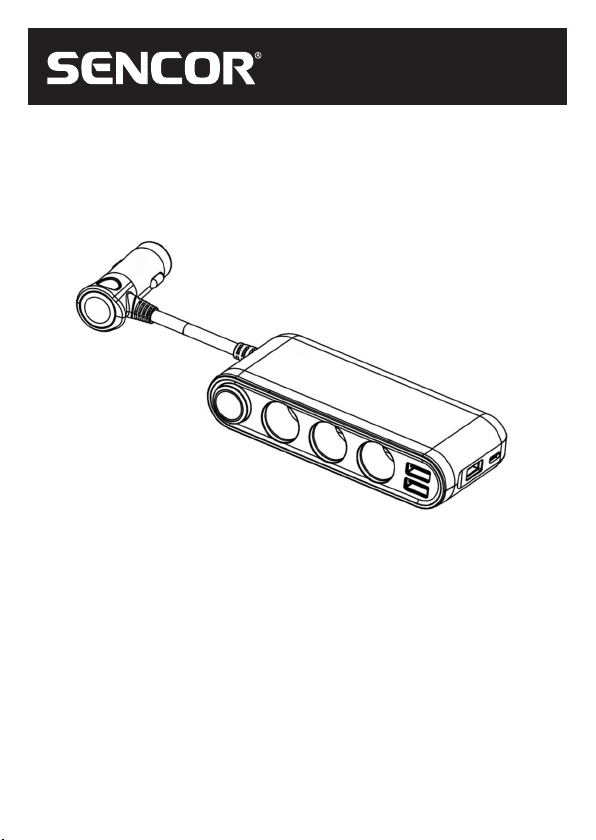

Car adapter
EN ■Usermanual
SCH 470
EN
2 EN
2021 06/2021
Package contents / Device description
1. Supply content
Car adapter
Two-sided adhesive tapes
User's manual

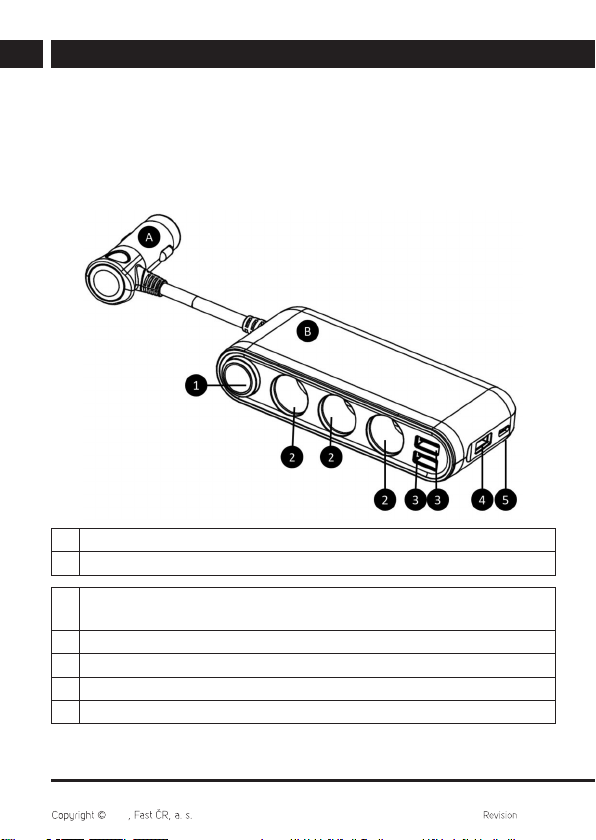

2. Device description
A Input from 12V - 24V car socket
B Outputs: 3x car socket; 3x USB-A; 1x USB-C
1 Mechanical on/off button with display (showing voltage in the car
on-board system)
2 12V - 24V car socket
3 USB-A supporting QC3.0 (fast charging) 5V / 3A, 9V / 2A, 12V/ 1.5A
4 USB-A supporting QC3.0 (fast charging) 5V / 3A, 9V / 2A, 12V/ 1.5A
5 USB-C - PD 5V / 3A, 9V / 2.22A, 12V / 1.67A
EN
EN 3
2021 06/2021
Putting into operation / USB sockets
3. Putting into operation
Before use, make sure that your car’s on-board voltage matches the product
specifications. Connect the device “A” part to your car socket. Attach the
device “B” part to a location in your car where it will not pose danger do
driving and will not become loose and cause injury to people in case of an
impact. Two-sided adhesive tapes to fix the device are included in package.
Press the on/off button to turn on the USB sockets and car adapters at the
rear of the “B” device. The display will show the on-board system voltage
level.
After each trip, always turn the device off with the on/off button. This will
prevent the battery from being drained when the engine is turned off.
4. USB sockets
The car adapter incorporates three USB type A sockets and one USB type C
socket - two of them are located on the top and two on the side.
Ports “3 and 4” - 5V / 3A, 9V / 2A, 12V / 1.5A supporting QC3.0 (fast
charging). If the device being charged supports the QC3.0 fast charging
feature, the charging voltage will be set automatically. If the device does
not support the QC3.0 fast charging feature, it will be charged in 5V / 3A
normal mode.
Ports “5” - PD 5V / 3A, 9V / 2.22A, 12V / 1.67A - the port is designed to
connect a mobile device supporting PD type charging and conforms to the
USB-C charging port parameter specifications.
Caution:
The ports located on the top side share the QC3.0 control circuit, which
means that this feature becomes unavailable if two fast charging devices are
used simultaneously. The charging is performed in the NORMAL 5V / 3A
mode. The same rule applies to the side as well as the top ports.
If you want to charge two QC3.0 devices, please use top and side USB port.
Always make sure that one top and side port is left free.
EN
4 EN
2021 06/2021
Car sockets / safety fuse
5. Car sockets
With this adapter, you can add up to three sockets
to your existing car socket. Before loading all car sockets simultaneously,
make sure that the total current drawn by all appliances (including those
connected in the USB sockets) does not exceed the technical specified
value.
6. Fuse
The fuse is located inside the device. If the specified value at the device
output is exceeded, the fuse will be cut off irreversibly and the device will
stop working. Disconnect all your peripherals from the device and wait until
the fuse temperature drops (about 30 minutes). Then you can fully use your
car adapter again.
EN
EN 5
2021 06/2021
Technical specifications
7. Technical specifications
Connections
3x USB-A QC output
1x USB-C PD output
3x 12V output
Specifications
3x USB-A QC 3.0 - 5V / 3A, 9V / 2A, 12V / 1.5A
1x USB-C PD 20W - 5V / 3A, 9V / 2.22A, 12V / 1.67A
DC 12V - 120W max. / DC 24V - 200W max.
Max. USB 1 + USB 2 current: 3.1A (simultaneously)
Max. USB 3 + USB C current: 3.1A (simultaneously)
Display
Battery voltage indicator (9V - 30V)
Warning indication (flashing display)
Others
10A resettable fuse
Short-circuit, overvoltage and overcurrent protection
On/Off Button
Power cord length: 70cm
EN
6 EN
2021 06/2021
INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING
MATERIALS
Dispose of used packaging material at a site designated for waste in your
municipality.
DISPOSING OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
This symbol on products or original documents means that used
electric or electronic products must not be added to ordinary
municipal waste. For proper disposal and recycling, take these
products to designated collection points. Or in some European Union
states or other European countries the products can be returned to
the local retailer when buying an equivalent new product. Disposing
of this product correctly helps save valuable natural resources and
prevents damage to the environment by improper waste disposal.
Ask your local authorities or collection facility for more details. In
accordance with national regulations penalties may be imposed for
the incorrect disposal of this type of waste.
For business entities in European Union states
If you want to dispose of electric or electronic devices, ask your
retailer or supplier for the necessary information.
Disposal in other countries outside the European Union
This symbol is valid in the European Union. If you wish to dispose
of this product, request the necessary information about the correct
disposal method from the local council or from your retailer.
This product meets all the basic requirements of the applicable EU
directives.
The text, design and technical specifications may be changed without prior
notice and we reserve the right to make these changes.
Manufacturer’s address: FAST ČR, a.s., U Sanitasu 1621, Říčany, Czech
Republic. The original version is in the Czech language.
