SEZER YVP 350 User manual

Page:1/16
VACUUM PUMP WITH OIL
HOW TO DO ITS BOOK
‘DO NOT OPERATE YOUR MACHINE BEFORE READING
HOW TO DO IT BOOK’
www.sezermac.com
Milking Technologies
YVP 350 - YVP 500 - YVP 750
YVP 1000 - YVP 1500 - YVP 2000

DESCRIPTION OF “HOW TO DO IT”BOOK
How to do it definition is one of the part of Sezer Tarım ve Sağım Teknolojileri
San. Tic. Ltd. Şti. and prepared. Main target of this book is providing to introduce
to the user and operate according to the rules specified on this book. Due to
these conditions, user has to save this book during machine life. Our firm is not
responsible for breakdowns, faults and troubles due to users are not operating this
machine with rules which specified in this book.
PREPARING TO DELIVERY
Machines and equipments must be guard against impacts and frictions.
During loading and transporting process fixing materials must be use.
During upload and unload process, suitable equipment must be use
CARRY WITH WOODEN BOX
CORRECT WRONG
Inspect damage during transportation and call transport company, authorized dealer
or Sezer Company.
Page:2/16

WHEN YOU NEED TO LIFT YOUR MACHINE BY HAND
Use auxiliaries absolutely.
Lift it from the main chassis with your auxiliaries.
DO NOT DO DEFINITELY
Do not lift it from oil container, belt, and pulley or power cable.
SHORT PERIOD STORAGE
Keep it against weather conditions, store clean ambiance. Keep away from rain,
snow, hyper heat, dust and mud.
INSTALLATION
Oil vacuum pumps deliver as ready to install. However, installation will be done by
authorized SEZER technician according to milking place conditions
CAUTION IMPORTANT
Operate this machine with a grounded plug which assembled authorized electric
technician.
USAGE PERIOD
10 Years.
NOISE RATE
Under 70Db.
STANDARDS
This machine has been produce according to TS 4798 standard of Turkey Norms
Institute and 98/37 AT Machine Security Directive and 73/23 AT Low Voltage
Directive of Ministry of Industry and Commercial.
Page:3/16

OIL CONTAINER
BELT-PULLEY SECURITY LID
VACUUM TANK
OIL CONTAINER
VACUUM TANK
VACUUM PUMP
ELECTRIC
ENGINE
SWITCH
EXHAUST
BELT-PULLEY SECURITY LID
VACUUM PUMP
ELECTRIC
ENGINE
CHASSIS
CHASSIS
SSYVP VACUUM PUMP COMPONENTS
SSYVP 500
SSYVP 1500
Page:4/16

Vacuum pumps tested following tests
-Vacuum capacity
-Vacuum stability
-Pulsation constant
Above mentioned rates prevent teat devastation and improve milk outputs and
more using period.
Page:5/16
YVP - 350 YVP - 500 YVP - 750 YVP - 1000 YVP - 1500 YVP - 2000
LENGTH (mm) 630 630 630 850 850 850
WIDTH (mm) 460 460 460 490 490 490
HEIGHT (mm) 880 880 880 890 890 890
WEIGHT (kg) 76 76 76 120 140 140
CHASSIS PAINT Stac White
Powder Paint
Stac White
Powder Paint
Stac White
Powder Paint
Stac White
Powder Paint
Stac White
Powder Paint
Stac White
Powder Paint
TANK CAPACITY (lt) 30 40 40 70 50 50
FLOW RATE (lt) 350 500 750 1200 1500 2000
ROTATE / MINUTE (R/D) 1050 1050 1200 1050 1200 1265
PALETTE and SIZES FİBER
110x55x5.9
FİBER
110x55x5.9
FİBER
130x70x5.9
FİBER
170x72x5.8
FİBER
250x72x5.8
FİBER
249x72x5.8
PULLEY DIAMETER and SIZE (mm) R 130<17<I R 125<13<I R 180<17<I R 180<17<II R 180<17<II R 180<17<II
BELT SIZE (mm) 380 V - 50 HZ 380 V - 50 HZ 380 V - 50 HZ 380 V - 50 HZ 380 V - 50 HZ 380 V - 50 HZ
POWER (HP/KW) 2 HP - 1 KW 3 HP - 22 KW 4 HP - 3 KW 4 HP - 3 KW 5.5 HP - 4 KW 5.5HP - 4 KW
ROTATE / MINUTE (R/M) 1500 1500 1500 1500 1500 1500
PULLEY DIAMETER and SIZE (mm) R 110<13<I R 100<13<I R 130<17<I R 140<17<II R 120<17<II R 160<17<II
ELECTRIC
MOTOR
PUMP
CHASSIS
TECHNICAL SIZES

MAIN PARTS OF THE MACHINE
VACUUM PUMP
This machine consist adjustable electric
motor-belt-pulley security lid
transmission system which mounted a
plate on the chassis and has nonstop
lubrication system.
VACUUM TANK:
IMPORTANT!
Do not use waste oil again!
Pump inlet-outlet connection:
YVP 500 1”
YVP 1000 1 ½”
YVP 1500 1 ½”
YVP 2000 1 ½”
Palette: Fiber
Produced sheet iron and covered
Cadm
volume for YVP 350 and 40 liter volume
for YVP 500, YVP 750 and 50 liter volume
for YVP 1000, YVP 1500 and YVP 2000
ium against corrosion. Has 30 liter
EXHAUST
Produced sheet iron and painted by static
powder pa
YVP 500 and two for YVP 1000, YVP
1500 and YVP 2000 connected serially.
Helps reduce noise rates and catch oil
particles and transfer them to the oil
collector.
int. Have one for YVP 350 ,
Page:6/16
YVP 750 1”
YVP 350 3/4”

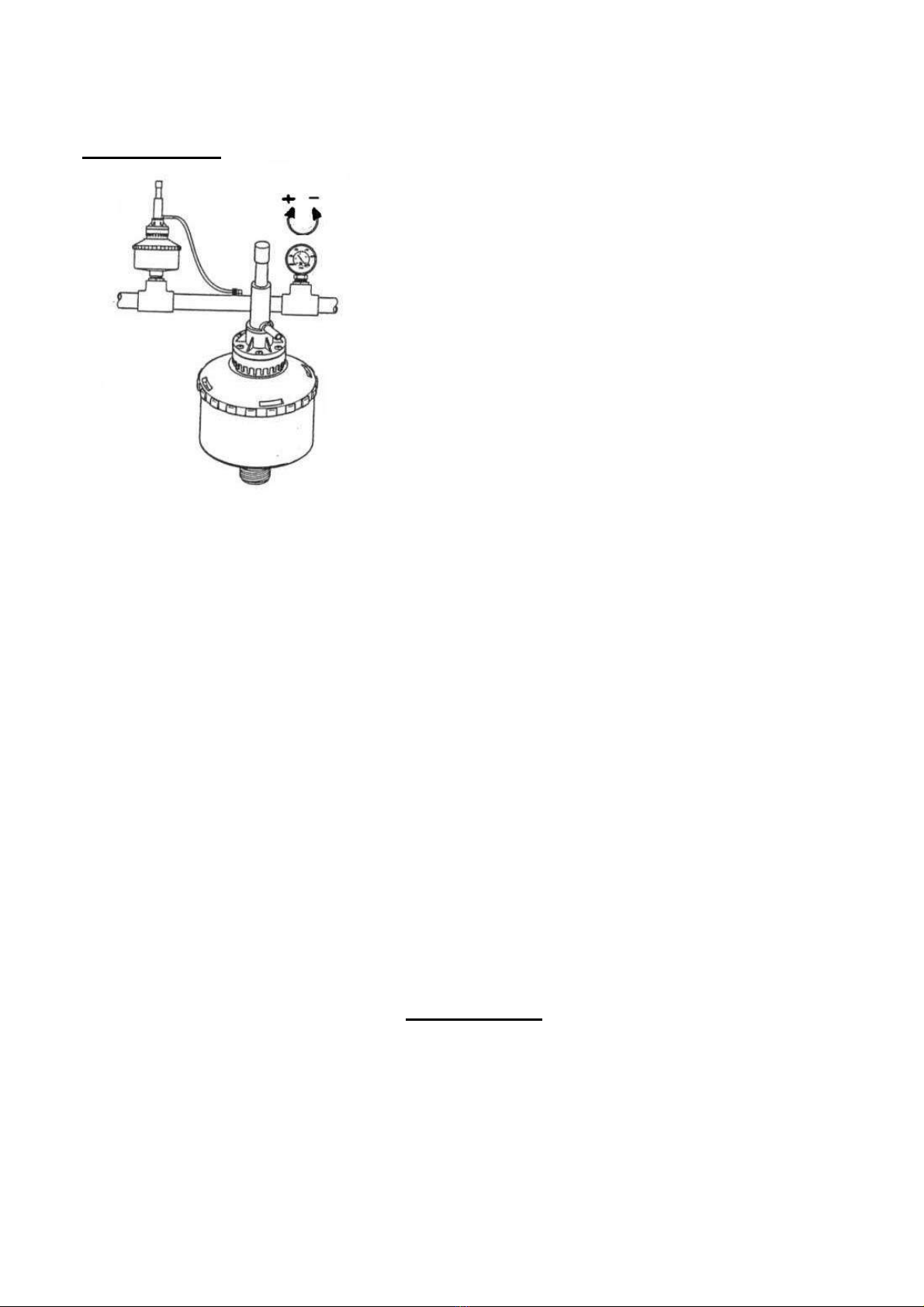

REGULATOR:
Provide vacuum stability. Turn the bolt nut
to clockwise for more vacuum and turn the
bolt nut to reverse clockwise for fewer
vacuums.
HYGIENE BEFORE MILKING
Milking area and milking equipment should be as much as clean and hygienic before
milking. Teat cleaning is an obligation! Clean teat with warm water with sponge or
clean fabric. Milking 23 drop milk to small container is necessary for some teat
disease pre-diagnose.
MILKING PROCESS WITH MACHINE
Bucket lid must be fit on bucket rim.
Check vacuum taps on the machine, they must be closed.
Set electric cable to plug (must be grounded) than push start button (green)
Milking process can be start when pointer on vacuum gauge reach blue area (44
kPa)
Fasten vacuum hose on milking bucket or vehicle to the tap of vacuum line (if
use milking bucket or vehicle)
Listen pulsators sound that working eurhythmics.
IMPORTANT!
Check milk level on the bucket after each milking process and empty if it is full.
The space on bucket must be enough to finish milking process.
Page:7/16

…IF MILKING BUCKET OR VEHICLE USE
Action figure of rubber liner must be same as figure-5 while machine and pulsators
working.
MILKING DURATION
Milking duration may change according to cow to cow and takes 47 minute’s
average. Finish of milking process may observe on milk claws or transparent milk
hoses. Milking process should be finished if there is no milk in milk hoses. Pull
down milk claw wing and remove milking cluster slowly. Pull down and up milk
claw wing a few times for removing remain milk in milk claw or hoses.
ATTENTION!
Do not leave milking area while milking process.
Start cleaning process after finished milking process.
Following points on vacuum pump and system must be controlled before milking
process.
Be sure that vacuum regulator sucks air.
Check system for vacuum leak.
Check vacuum gauge that pointer reach blue area. (44 kPa) Check exhaust if
pointer may not reach blue area.
AFTER EACH MILKING PROCESS
Check vacuum flowing valve under horizontal, cylindrical vacuum tank and
clean vacuum than search cause of happening if there is milk in.
Check vacuum pump spinning direction. Check valve is out of order if spinning
reverse. Change check valve.
Check oil container, fill in if necessary.
Contact service or authorized seller if pump over heat or exhaust throw away
over oil.
Page:8/16

CONTROLING BELTPULLEY SYSTEM
Remove Belt-pulley security lid protection cover and check belt tension.
Tension must me 15 mm maximum. Tight if loose. Do not tighten belt
extremely!
Adjust pulleys as illustrated figure-2 Pulleys must be same planar direction.
ATTANTION!
Do not operate pump before fasten belt-pulley security lid protection cover.
IMPORTANT!
Remove belt-pulley security lid protection cover for verifying motor spinning
direction for first operate if electric motor is three-phase. (380V) Remove belt and
operate pump, fasten belt-pulley security lid protection cover if motor spinning
direction is correct. Change two of three cables (three phase cables) place on plug
(DO NOT CHANGE GROUND CABLE PLACE!) if motor spinning direction is
not correct.
FIGURE - 2
Page:9/16

FILLING OIL TO THE OIL CONTAINER
.Remove oil collector.
.Fill oil “No 30” up to conic section on oil
container. Fill oil container lid if cleaned.
.Check oil container gasket and change if out of
order.
.Replace its place carefully.
IMPORTANT!
Do not use used oil again and empty oil in oil
collector.
CLEANING OIL CONTAINER
.Remove lubricator, check parts, and wash water
with detergent and clean only water.
.Check small holes on suck pipe and open them
if blocked.
.Check hoses and gaskets, change them if
necessary.
ADJUST LUBRICATION
.Adjust lubrication canal height with oil
adjusting nut on the middle of adjuster sledge.
.Extremely lubrication does not damage to pump
rather helpful.
.Oil consumption increase if lubrication canal
height shortens.
Page:10/16

FIND BREAKDOWN REASONS
BREAKDOWN
REASON
DO IT
Pump working
lower speed.
-Belt loose, belt not may not clutch
-Belt out of order
-Belt has oil particle
-Belt/Belts beaten
-Electric motor speed too low.
-Tighten
-Change
-Clean
-Change
-Check Voltage
Lower Pump
Capacity
-Pump wings beaten
-Low oil on the pump
-Change
-Call service or
authorized seller
-Adjust
Lubrication
There is no oil
action.
-Empty oil container
-lubrication hoses blocked or has hole
-Loose pump connections
-Broken Pump oil seals
-Fill in
-Clean/Change
-tighten
-Call service or
authorized seller
Page:11/16

Page:12/14
WARNINGS
BREAKDOWN
REASON
DO IT
Vacuum level do
not rise
Chassis wedge may move from settled
position
Vacuum leak on milking group
Vacuum leak on adapter at the vacuum line
Lost vacuum flowing valve under vacuum
tank
Vacuum leak at connection parts on
vacuum pump or vacuum line
Broken vacuum gauge
Broken vacuum pump
Set properly settled
position or take
new one if lost
Check hose
connection, change
adapter if it is
broken
Restore vacuum
leaks
Change new one.
High vacuum
level
Dirty, blocked or break vacuum regulator
Clean or change
new one
Unstable
Vacuum level
vacuum regulator working poorly
Clean, change new
one if necessary
Pulsator does not
work
Milk inside pulsator
Sledge may move from settled position
Clean and check
rubber liner
Set properly settled
position
Milk overflow
Broken milk stop
Change
Unclear vacuum
level
Milk or water inside vacuum tank
Milk stop does not work
Broken vacuum gauge
Stop pump, empty
vacuum tank, check
or change rubber
liner if there is milk
on vacuum tank
Change milk stop
ball or milk stop

INFORMATION ABOUT USAGE FAULTS
This machine designed, produced and equipped for high level security of user and
best performance. However, performance and security depend pretty much to user.
User should be as much closer as possible to the machine while using this device.
User should pay all attention to this business and do not falter to take additional
security precautions.
Working area should be clean and orderly.
NECESSARY THINGS FOR RELIABLE, PRODUCTIVE, DURABLE
WORKING WITH THIS MACHINE
Do not use this machine out of goal
Do not make alteration as out of goal and bounded functions (warranty may
remove)
Do not leave milking area while machine is working
Keep clean and dry machine after each milking process.
Keep machine as much away as possible from animal kicks.
Vacuum pump heat is normal; do not touch long time with naked hand.
Check rubber parts frequently, change beaten ones
Do not strike milk bucket, do not clean inside bucket with hard cleaning object.
Clean painted chassis parts with cloth or sponge. Do not use hard and abrasive
objects.
Use original Sezer Brand spare parts.
Page:13/16

CAUTION FOR ELECTRIC CONNECTION
Do not operate your machine without grounded plug.
Do not wash electric motor. Call authorized electrician if you have any breakdown
(electric motor has special warranty for its producer)
A well-match electric cable and plug has been used on your machine. Please call
nearest service, authorized dealer and use same electric cable, plug if you have any
breakdown on cable or plug.
Use authorized electrician if you can not reach service or authorized dealer.
Always start your machine while switch button on “RED” position
Machine do not start to work while switch button on “RED” position
Press “GREEN” switch button for operating.
Press “RED” button if electric interruption happened while milking.
Do not forget to press “RED” button after milking and cleaning process.
Stop your machine only using “RED button. Then take out plug from plug switch.
Additional cable must have ground wire if use.
Do not leave additional cable on the ground, wet area. Hang them on.
IMPORTANT!
Remove belt-pulley security lid protection cover for verifying motor spinning
direction for first operate if electric motor is three-phase. (380v) Remove belt and
operate pump, fasten belt-pulley security lid protection cover if motor spinning
direction is correct. If motor spinning direction is not correct, change two of three
cables (three phase cables) place on plug (Do not change ground cable place!)
SEZER MILKING MACHINES
Sırabademler Mah. Kümeevler No:14 Karacabey-Bursa Karayolu
Karacabey/Bursa/Türkiye Tel:[phone] Fax:[phone]
E-Mail:[email protected] Web: http://www.sezermac.com
Page:14/16

Page:15/16

Below is the information contained in the product, at least 2 (two) years
and/or as determined by the Ministry according to the detected value with
units-of-measure is covered by the warranty.
Manufacturer / Company
Title : SEZER Tarım ve Sağım Teknolojileri San. Tic. Ltd. Şti.
Center Address
Phone : [phone] (3Hat)
: 0 224 671 81 65
Fax
Of the goods
Genus :
Brand : SEZER
Origin : TURKEY
Model/Type :
Year Of Manufacture
Draw No
Label & Serial No
:
:
:
Delivery Date and Location :
The Warranty Period : 2 years
Maximum Repair Time : 20 Business day
Contact Details Of The Firm
Title : SEZER Tarım ve Sağım Teknolojileri San. Tic. Ltd. Şti.
Address : Sırabademler Mah. Karacabey Bursa Karayolu Kümeevler
No:14 Karacabey/Bursa/Türkiye
: 0 224 671 80 04 (3Hat)
: 0 224 671 81 65
Invoice Date and Number :
Please Contact The Company
Stamp/Signature
Dealer Stamp/Signature
Phone
Fax
: Sırabademler Mah. Karacabey Bursa Karayolu Kümeevler
No:14 Karacabey/Bursa/Türkiye
WARRANTY CERTIFICATE
