Shark NP320QUK User manual

NP320QUK
OWNER’S GUIDE
NP320QUK_40_IB_ENG_130927_3.indd 1 2013-10-03 1:31 PM

2
FREEPHONE: 0800 51 41 31
WARNING: To reduce the risk of
electric shock or injury, do not use outdoors
or on wet surfaces.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY:
GENERAL ELECTRICAL SAFETY:
1. Unplug from electrical outlet when not in use
and before servicing.
2. DO NOT use vacuum with a damaged cord or
plug. If the supply cord is damaged, it must be
replaced by a qualified electrician in order to
avoid a hazard. Incorrect re-assembly or repair
can cause a risk of electrical shock or injury to
persons when the appliance is used.
3. DO NOT pull or carry the vacuum by the cord.
4. DO NOT unplug by pulling on the cord; to
unplug, grasp the plug, not the cord.
5. DO NOT handle the plug or the appliance with
wet hands.
6. DO NOT run the vacuum over the power cord.
7. DO NOT use the cord as a handle.
8. DO NOT close a door on the cord.
9. DO NOT pull the cord around sharp
corners. The use of an extension cord is not
recommended.
10. DO NOT leave the appliance plugged in when
not in use.
11. Keep the cord away from heated surfaces.
12. Turn off all controls before plugging or
unplugging the vacuum cleaner.
13. Always turn off this appliance before attaching
or removing accessories.
WHEN USING AN ELECTRICAL
APPLIANCE, BASIC SAFETY PRECAUTIONS
SHOULD ALWAYS BE OBSERVED,
INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS BEFORE USING
YOUR SHARK®LIFT-AROUND™CANISTER
VAC.
IMPORTANT:
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning the use of the
appliance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.
IMPORTANT SAFETY INSTRUCTIONS
For Household Use Only
NP320QUK_40_IB_ENG_130927_3.indd 2 2013-10-03 1:31 PM

3
GENERAL USE:
1. Use only as described in this manual.
2. DO NOT put any objects into openings. DO
NOT use with any opening blocked; keep free of
dust, lint, hair, and anything that may reduce air
flow.
3. Keep your work area well lit.
4. DO NOT place the vacuum on unstable
surfaces such as chairs or tables.
5. DO NOT allow young children to operate
the vacuum or use as a toy. Close attention is
necessary when used by or near children.
6. DO NOT use the vacuum cleaner if the
appliance is not working as it should, has a
damaged plug or cord, if the unit has been
dropped, damaged, left outdoors or submerged
in water.
7. DO NOT use without dust cup and/or filters
in place.
HOSE ATTACHMENTS:
1. DO NOT use if air flow is restricted; if the air
paths, the hose, or the accessories become
blocked, turn the vacuum cleaner off. Remove
all obstructions before you turn on the
unit again.
2. Keep the end of the hose and accessory
openings away from face and body.
3. Keep cleaning tools and hose suction openings
away from hair, face, fingers, uncovered feet,
or loose clothing.
4. Only use manufacturer’s recommended
attachments.
GENERAL CLEANING:
1. DO NOT pick up large-sized objects.
2. DO NOT pick up hard or sharp objects such as
glass, nails, screws or coins that could damage
the vacuum cleaner.
3. DO NOT pick up smoking or burning objects
such as hot coals, cigarette butts, matches or
hot ash.
4. DO NOT pick up flammable or combustible
materials such as lighter fluid, gasoline, or
kerosene or use vacuum in areas where they
may be present.
5. DO NOT pick up toxic solutions such as
chlorine bleach, ammonia, or drain cleaner.
6. DO NOT use in an enclosed space where
vapors are present from paint, paint thinner,
moth-proofing substances, flammable dust or
other explosive or toxic materials.
7. DO NOT vacuum up any liquids.
8. DO NOT immerse the vacuum cleaner in water
or other liquids.
9. DO NOT use outdoors or on wet surfaces; use
only on dry surfaces.
10. Use extra care when cleaning on stairs.
DUST CUP/FILTERS/ACCESSORIES:
Before turning on the vacuum:
1. Make sure that all filters are thoroughly dry
after routine cleaning.
2. Make sure that the dust cup and all filters are in
place after routine maintenance.
3. Make sure accessories are free of blockages.
4. Only use filters and accessories provided by the
manufacturer. [Failure to do so will void the
warranty.]
SAVE THESE
INSTRUCTIONS
NP320QUK_40_IB_ENG_130927_3.indd 3 2013-10-03 1:31 PM

4
FREEPHONE: 0800 51 41 31
This manual covers model number:
NP320QUK 40
TECHNICAL SPECIFICATIONS
Voltage: 220-240V~, 50/60Hz
Watts: 550 W
This appliance complies with the WEEE-Directive 2002/96/EC on the disposal of electrical and electronic
equipment (WEEE).
This appliance complies with the European directives for electromagnetic compatibility (EMC) 2004/108/
EC and its revisions, as well as Low Voltage Directive (LVD) 2006/95/EC and its revisions.
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of
material sources. To return your used device, please use the return and collection systems
or contact the retailer where this product was purchased. They can take this product for
environmental safe recycling.
Not to be d ispose d
of with o ther
household waste.
NP320QUK_40_IB_ENG_130927_3.indd 4 2013-10-03 1:31 PM

5
Contents
Getting Started............................................................................6
How to Use ...................................................................................8
Maintenance ................................................................................10
Storing..........................................................................................12
Checking for Blockages...............................................................13
Resetting the Motor Thermostat ...............................................13
Ordering Replacement Parts ......................................................13
Troubleshooting Guide................................................................14
Thank you for
purchasing the
Shark®
Lift-Around™
Canister Vac.
NP320QUK_40_IB_ENG_130927_3.indd 5 2013-10-03 1:31 PM

6
FREEPHONE: 0800 51 41 31
Getting Started
Use the Shark®Lift-Around™Canister
Vac as a stand alone vacuum for spot-
cleaning small areas and large piles of debris,
or with the Flexible Hose and cleaning tools
for above-floor cleaning.
FIRST THING’S FIRST, YOU NEED TO KNOW
WHAT’S IN THE BOX YOU JUST OPENED:
ALift-Around™Canister Vac
BRemovable Tool Caddy
C Canister Caddy
D Power Brush
E Upholstery Brush
FCrevice Tool
GDusting Brush
HBare floor Nozzle
C
H
A
D
J
L
I
E
F
K
G
IFlexible Hose
J Floor Kit Handle
KTelescopic Tube
L Shoulder Strap
M Accessory Bag (not shown)
B
NP320QUK_40_IB_ENG_130927_3.indd 6 2013-10-03 1:31 PM

7
NOTE: Always turn the power off before attaching
or detaching accessories.
REMOVABLE TOOL CADDY (B)
Specially designed to hold the crevice tool, dusting
brush and upholstery brush for quick access to
tools when vacuuming and cleaning around the
house.
CANISTER CADDY (C)
Specially designed to hold the Shark®Lift-
Around™and convert it to a canister vacuum.
POWER BRUSH (D)
This small accessory has an air driven brushroll
for cleaning upholstery, pet hair and even auto
interiors.
UPHOLSTERY BRUSH (E)
This unique tool was engineered for fast and easy
removal of pet hair from upholstery.
CREVICE TOOL (F)
Reach deep into narrow spaces and clean between
cushions, under radiators and baseboards and in
hard to reach crevices and corners.
DUSTING BRUSH (G)
Dust shelves, lamp shades, window blinds, books,
furniture and other household items.
BARE FLOOR NOZZLE (H)
Powerful cleaning on bare floors.
FLEXIBLE HOSE (I)
With the right cleaning tool in place and the Flexible
Hose, you can extend your reach into hard-to-clean
areas.
NOTE: Use the Flexible Hose without any
accessories attached for large debris cleaning.
FLOOR KIT HANDLE (J)
Designed for easy manoeuvrability and effortless
swivel.
TELESCOPIC TUBE (K)
Extend and adjust your reach farther into hard-to-
clean areas.
SHOULDER STRAP (L)
Specialized design to make carrying the Canister
Vac with ease. The removable Shoulder Strap is
ergonomic and easily distributes weight across the
shoulder.
NP320QUK_40_IB_ENG_130927_3.indd 7 2013-10-03 1:31 PM

8
FREEPHONE: 0800 51 41 31
ASSEMBLING THE LIF T-AROUND™CANISTER
VAC

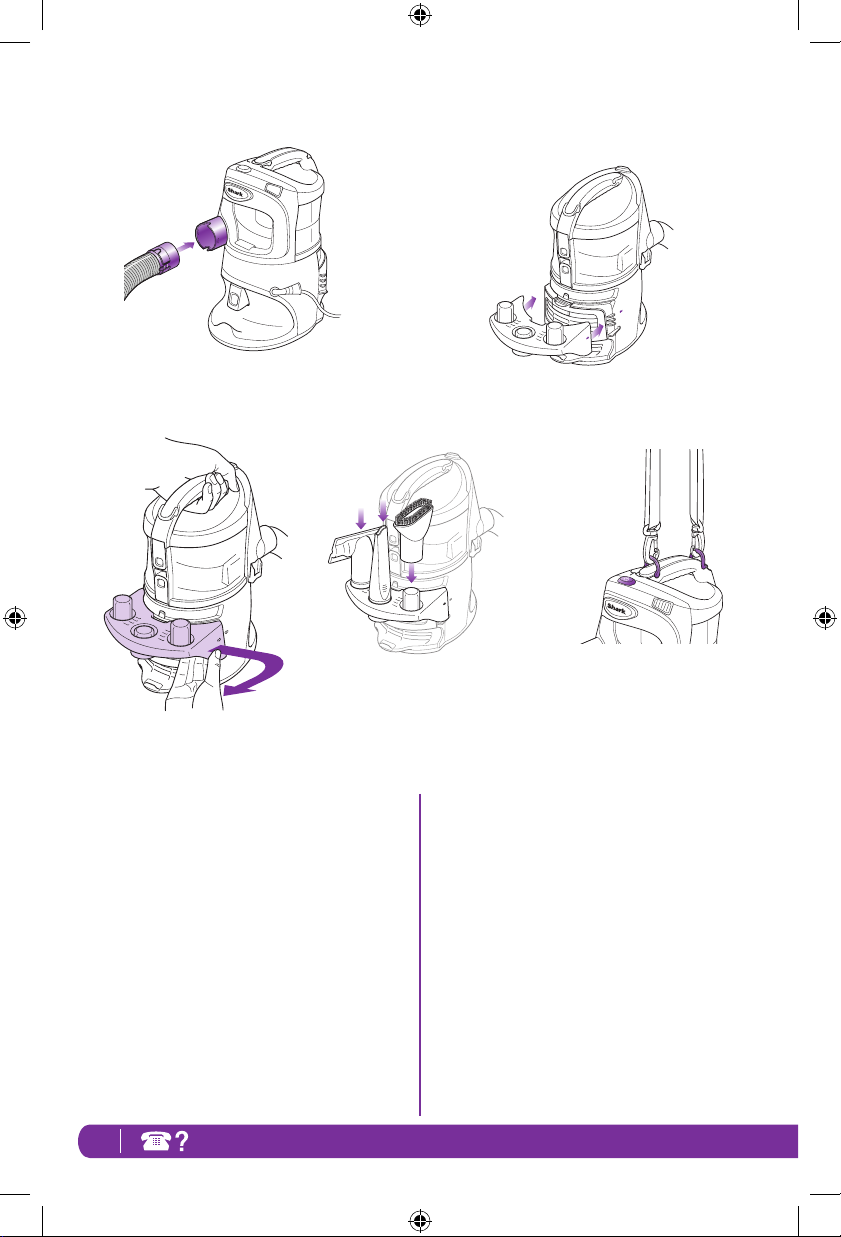

1Insert the end of the flexible hose into the
connector on the front of the Lift-Around™
Canister Vac. (fig. 1)
2Insert the removable tool caddy onto the back
of the Canister Vac. (fig. 2) To remove the tool
caddy, hold the vacuum by the handle, pull out
slightly from the right side and then remove it from
the Canister Vac. (fig. 3)
3Insert the crevice tool, dusting brush, upholstery
brush or power brush into the openings on the tool
caddy. (fig. 4)
4Attach the shoulder strap onto the hooks on the
handle of the Canister Vac. (fig. 5)
5Empty Dust Cup after cleaning and periodically
during cleaning when it appears full. (See
“Maintenance” section for instructions.)
How to Use

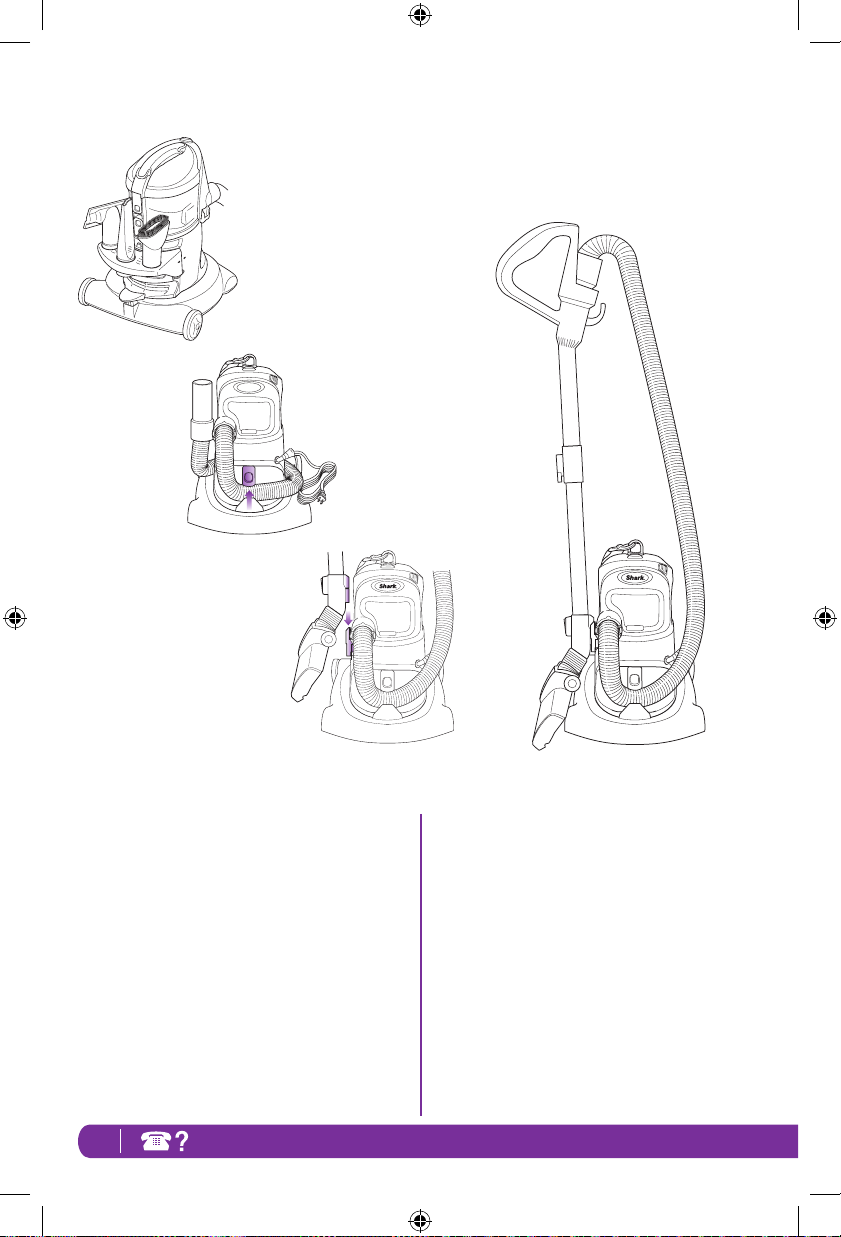

Fig. 1
Fig. 2
Fig. 4 Fig. 5
Power
Button
Align arrows to attach tool caddy
Pull out to remove tool caddy
Fig. 3
NP320QUK_40_IB_ENG_130927_3.indd 8 2013-10-03 1:31 PM

9
Fig. 9
FOR ADDED COMFORT OR FOR AN EXTENDED
REACH
9Attach the floor kit handle to the flexible hose.
Push it in until it is secure. (fig. 9)
10 Insert the telescopic tube into the end of the floor
kit handle. Push it in until it is secure. (fig. 9)
NOTE: All accessories may be used with the
flexible hose, the floor kit handle or the telescopic
tube.
11 Attach the desired accessory to the end of the
flexible hose, floor kit handle or telescopic tube by
pushing it in until it is tightly secured. (fig. 9)
12 While holding the Canister Vac by the handle,
press down on the power button to turn the
Canister Vac on and begin vacuuming. Press down
again to turn the vacuum off. (fig. 5)
USE IN CANISTER MODE
6Place the hose in the hose dock. (fig. 6)
7Place the unit over the caddy and press down until
it locks into place. (fig. 6, fig. 7)
8To release the vacuum from the caddy, press caddy
release button and lift the vacuum up. (fig. 8)
Fig. 8
Fig. 6
Hose
Dock
Caddy
Release
Fig. 7
NP320QUK_40_IB_ENG_130927_3.indd 9 2013-10-03 1:31 PM

10
FREEPHONE: 0800 51 41 31
Maintenance
For best results empty the Dust Cup
after each use; empty several times
during prolonged usage or when it
reaches the MAX fill line.
NEVER OVER-FILL THE DUST CUP.
CAUTION:
Unplug the vacuum;
failure to do so might
result in electric shock.
To reduce the risk of electric shock, unplug the unit before performing any cleaning, maintenance, or
troubleshooting checks.
Reassemble all parts securely before operating vacuum.
EMPTYING THE DUST CUP
The Dust Cup needs to be emptied each time you
vacuum and periodically during cleaning, when the
Dust Cup appears full.
1Press the dust cup release button and remove the
dust cup from the vacuum. (fig. 10)
2Option A: for Quick Empty:
Insert the Dust Cup deep inside a trash receptacle
to contain the dust and debris.
Press the bottom door release button to release
the trap door. Tap gently to empty contents.
(fig. 11)
Press the door shut again until it clicks.
3Option B: For Allergy Sufferers:
Wrap a trash bag around the Dust Cup leaving
space at the bottom for the door to swing open.
Locate the bottom door release button within the
trash bag and press to release as you shake the dust
cup to empty dust and debris. (fig. 12)
Press the door shut again until it clicks.
Note: Option B can also be performed outside of
the home to further minimize releasing dust back
into the air. Carry just the dust cup and trash bag
outside.
4Check to make sure the trap door is secure before
returning it to the Vacuum.
5To clean the upper compartment of the dust cup,
press the top door release button to open.
(fig. 13) Empty the contents over a trash
receptacle and push the door shut until it clicks
into place.
Fig. 10
Fi g . 11
Fig. 13
Bottom Door
Release
Fig. 12
Top Door
Release
Dust Cup
Release
NP320QUK_40_IB_ENG_130927_3.indd 10 2013-10-03 1:31 PM

11

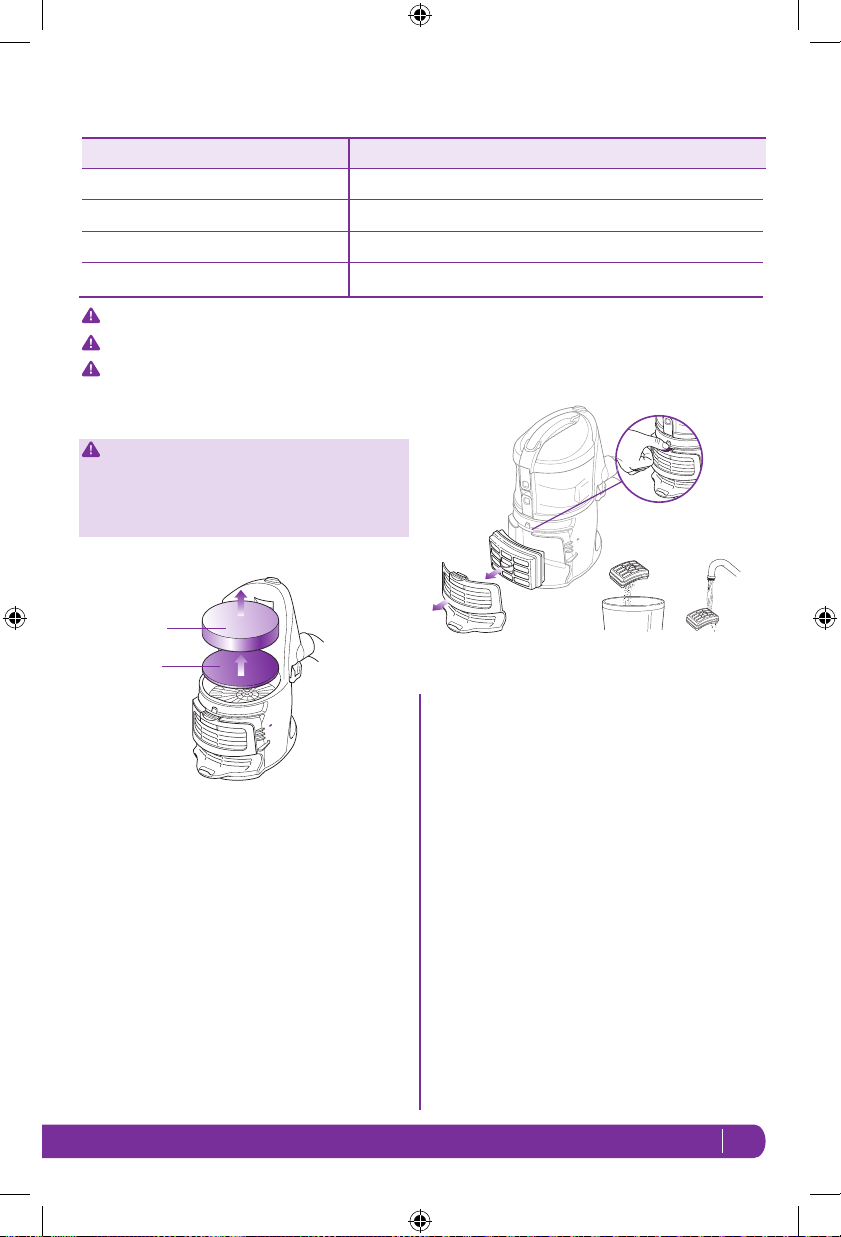

CLEANING THE POST-MOTOR HEPA FILTER
1 Remove the tool caddy from the unit.
2 Remove the filter cover from the vacuum by pulling
up on the tab and pulling the cover away from the
vacuum. (fig. 15)
3 Take out the HEPA filter by pulling it straight out.
4 Turn the filter over so that the dirty side is on
the bottom and vigorously tap it clean against a
garbage can to remove any dust. (fig. 16)
5 Wash the filter under the tap using lukewarm
water with the dirty side face down until the water
runs clear. (fig. 17)
6 Allow the filter to air dry for 24 hours. Do not use a
hair dryer or other heating methods to dry.
7 Once the HEPA filter is dry, replace it back into the
vacuum.
8 Replace the cover by inserting the two tabs into
the holes at the top and then swinging the cover
down until it clicks into place.
CLEANING THE PRE-MOTOR FILTERS
1 Remove the dust cup.
2 Remove the pre-motor filters out from the top of
the motor base. (fig. 14)
3 Rinse the filters thoroughly in lukewarm water until
the water runs clear.
4 Squeeze out excess water and let air-dry for at
least 24 hours before replacing. Do not use a hair
dryer or other heating methods to dry.
5 Place the felt filter in first, then the foam filter.
6 Replace the dust cup.
COMPONENT MAINTENANCE SCHEDULE
Rinse and air dry every month under normal use.
Empty each time you vacuum.
Pre-Motor Foam Filter
Dust Cup
Rinse and air dry every month under normal use. Pre-Motor Felt Filter
Clean once every 24 months under normal use.
Post-Motor HEPA Filter
1
2
3
4
IMPORTANT: Loss of Suction may occur if foam
filter is not cleaned every month. Rinse and allow to air
dry completely. Tap loose dirt from foam filter as needed
in between washing. Foam filter may appear dirty after
use - this is normal.
Post Motor
HEPA Filter
Fig. 15 Fig. 16
Pre-Motor
Foam Filter
Felt Filter
Fig. 14
Fig. 17
DO NOT operate the vacuum without ALL the filters in place.
DO NOT operate the vacuum with WET filters.
DO NOT put the filters in the washing machine or dishwasher.
NOTE: The material in the filters will discolor over time. This is
NORMAL and will not affect the performance of the filters.
NP320QUK_40_IB_ENG_130927_3.indd 11 2013-10-03 1:31 PM

12
FREEPHONE: 0800 51 41 31
Storing
Fig. 18
Fig. 19
STORE YOUR VACUUM SAFELY
1 Place the unit over the caddy and press down until
it locks into place.
2 Store the dusting brush, upholstery brush, the
crevice tool or the power brush on the mounts on
the removable tool caddy. (fig. 18)
3 Remove the telescopic tube from the flexible hose
and wrap the hose around the base of the vacuum
and hook the end of the hose into the hose dock.
(fig. 19) To release the flexible hose, press the
Hose Storage button.
OR
4 Insert the clip on the back of the bare floor nozzle
into the slot on the side of the vacuum. (fig. 20)
5 Store the telescopic tube attached to the bare floor
nozzle in the upright position with the flexible
hose attached and hook the flexible hose into the
hose dock. (fig. 21)
6 Wrap the attached cord strap around the power
cord when storing.
7 Store your vacuum cleaner with the telescopic tube
and the rest of the accessories safely in a cool dry
area where they will not be a hazard, will not get
damaged and will not cause damage to anyone or
anything.
NOTE: Empty dust cup after cleaning and prior
to storing. (See “Maintenance” section for
instructions.)
Fig. 20 Fig. 21
NP320QUK_40_IB_ENG_130927_3.indd 12 2013-10-03 1:31 PM

13
Your Shark®Lift-Around™ Canister Vac is
equipped with a protective Motor Thermostat. If the mo-
tor should overheat, the thermostat shuts off the power.
To reset the Motor Thermostat:
Press the Power Button to turn the vacuum off.
Unplug the vacuum.
Check for clogged hose or filter; unclog hose and replace
filter. Refer to Checking for Blockages.
Wait 45 minutes for vacuum to cool; then plug in the
vacuum.
Press the Power Button to restart the vacuum.
Note: If vacuum still does not start, call 0800 51 41 31..
Resetting the Motor Thermostat
Checking for Blockages
Blockages may cause your vacuum to overheat and
shut down. To prevent this from happening, check
potential blockage areas after heavy use or if you
detect a loss of suction or poor cleaning performance.
1 DUST CUP
Dust Cup may be full. Empty Dust Cup.
2 FILTERS (PRE-MOTOR AND POST MOTOR)
Ensure that both the Pre Motor Filters and the Post
Motor HEPA filter are clean.
3 ACCESSORIES
Check intake openings of all the accessories.

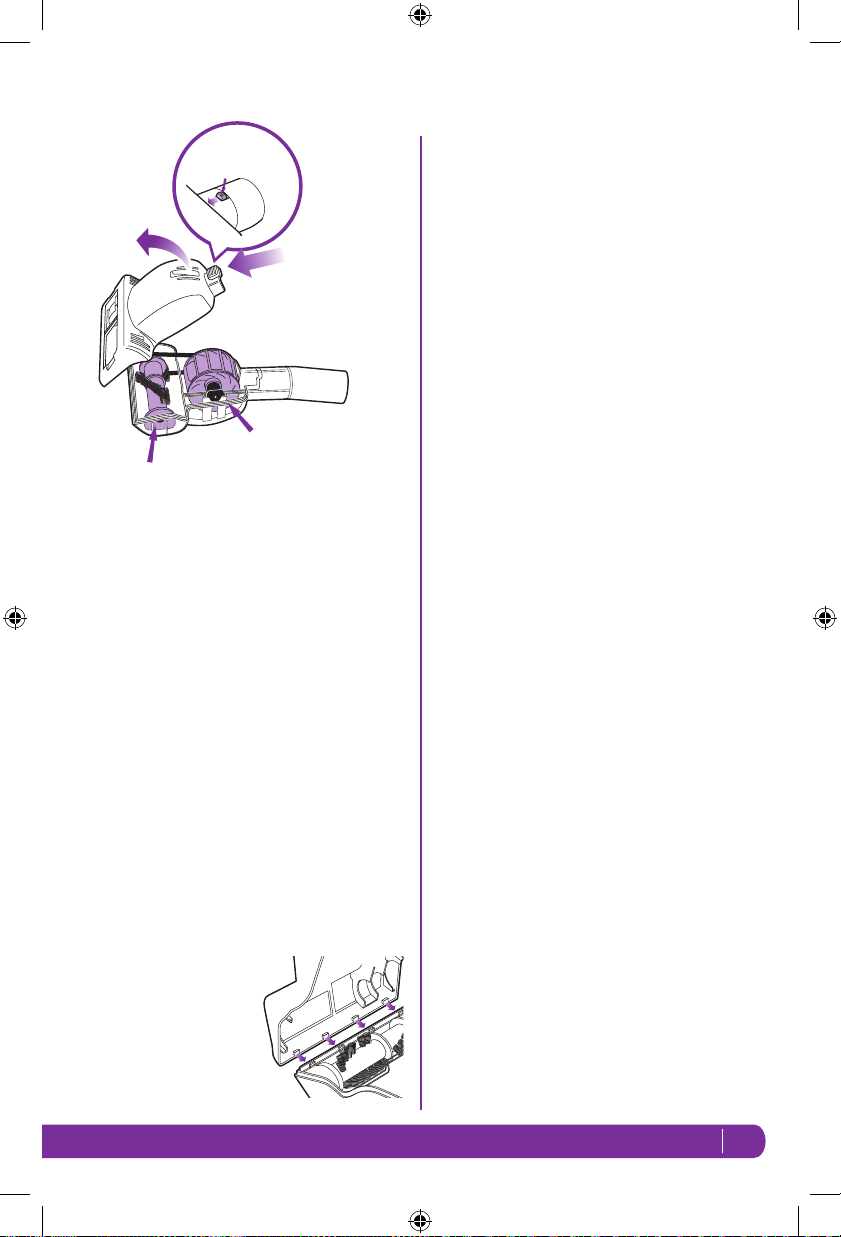

4 CLEANING THE POWER BRUSH
• Turn the Power Brush over, slide the locking latch
forward and tilt the cover upward to remove.
(fig. 22)
• Inspect the rotating bristle brush, turbine wheel
and air passage.
• Remove any blockage or debris and carefully,
without damaging the bristles or belt, cut any
build-up of hair or string wrapped around the
rotating bristle brush with scissors.
• To reassemble, first insert
the tabs on the front
edge of the cover into the
matching holes in the top
half of the Power Brush
and tilt the cover back
down pressing until it
clicks into place. (fig. 23)
Locking
Latch
Rotating
Bristle Brush
Turbine
Wheel
Fig. 22
Fig. 23
NP320QUK_40_IB_ENG_130927_3.indd 13 2013-10-03 1:31 PM

14
FREEPHONE: 0800 51 41 31
Troubleshooting Guide
PROBLEM POSSIBLE REASONS & SOLUTIONS
Vacuum is not
picking up dirt.
Check Filters to see if they need cleaning. Follow instructions for rinsing and
drying the Filters before re-inserting back into the Vacuum. (See “Maintenance”
sections for instructions.)
Dust Cup may be full; empty Dust Cup.
Check Hose, Hose connections and accessories for blockages; clear blockages if
required.
If Dust Cup is empty, and attachment inlets are clear, check for other blockages.
(See “Checking for Blockages” for instructions.)
Airflow is restricted. No
suction or light suction.
Check Filters to see if they need cleaning. Follow instructions for rinsing and
drying the Filters before re-inserting back into the Vacuum. (See “Maintenance”
sections for instructions.)
Dust Cup may be full; empty Dust Cup.
Check Hose and Hose connections for suction strength; clear blockages if
required.
If Dust Cup is empty, and attachment inlets are clear, check for other blockages.
(See “Checking for Blockages” for instructions.)
Vacuum turns off on its
own.
This vacuum cleaner is equipped with a motor protective thermostat. If for some
reason your vacuum overheats, the thermostat will automatically turn the unit off.
Should this occur, perform the following steps to restart the motor thermostat:
1. Press down on the Power Button to turn the Canister Vac off.
2. Unplug the vacuum.
3. Empty the Dust Cup and clean Filters. (See “Maintenance” sections for
instructions.)
4. Check for blockages in hose, accessories and inlet opening. (See “Checking for
Blockages” for instructions.)
5. Allow the unit to cool for a minimum of 45 minutes.
6. Plug in the vacuum.
7. Press the Power Button again to restart the vacuum.
Note: If vacuum still does not start, call 0800 51 41 31.
NOTE: This appliance has no serviceable parts. Please call 0800 51 41 31.
NP320QUK_40_IB_ENG_130927_3.indd 14 2013-10-03 1:31 PM

1515
Notes
NP320QUK_40_IB_ENG_130927_3.indd 15 2013-10-03 1:31 PM

For customer service please contact:
QVC
South Boundary Road
Knowsley, Liverpool
L70 2QA
Tel.: [phone]
Technical Details
Model number: NP320QUK 40
Input: 550W
Main unit voltage: 220-240V., 50/60 Hz.
COPYRIGHT© EURO-PRO OPERATING LLC 2013
PRINTED IN CHINA
NP320QUK.E.130927.3
Illustrations may differ from actual product.
Not to be d ispose d
of with o ther
household waste.
NP320QUK_40_IB_ENG_130927_3.indd 16 2013-10-03 1:31 PM
