Sharp 65BJ2K Technical manual

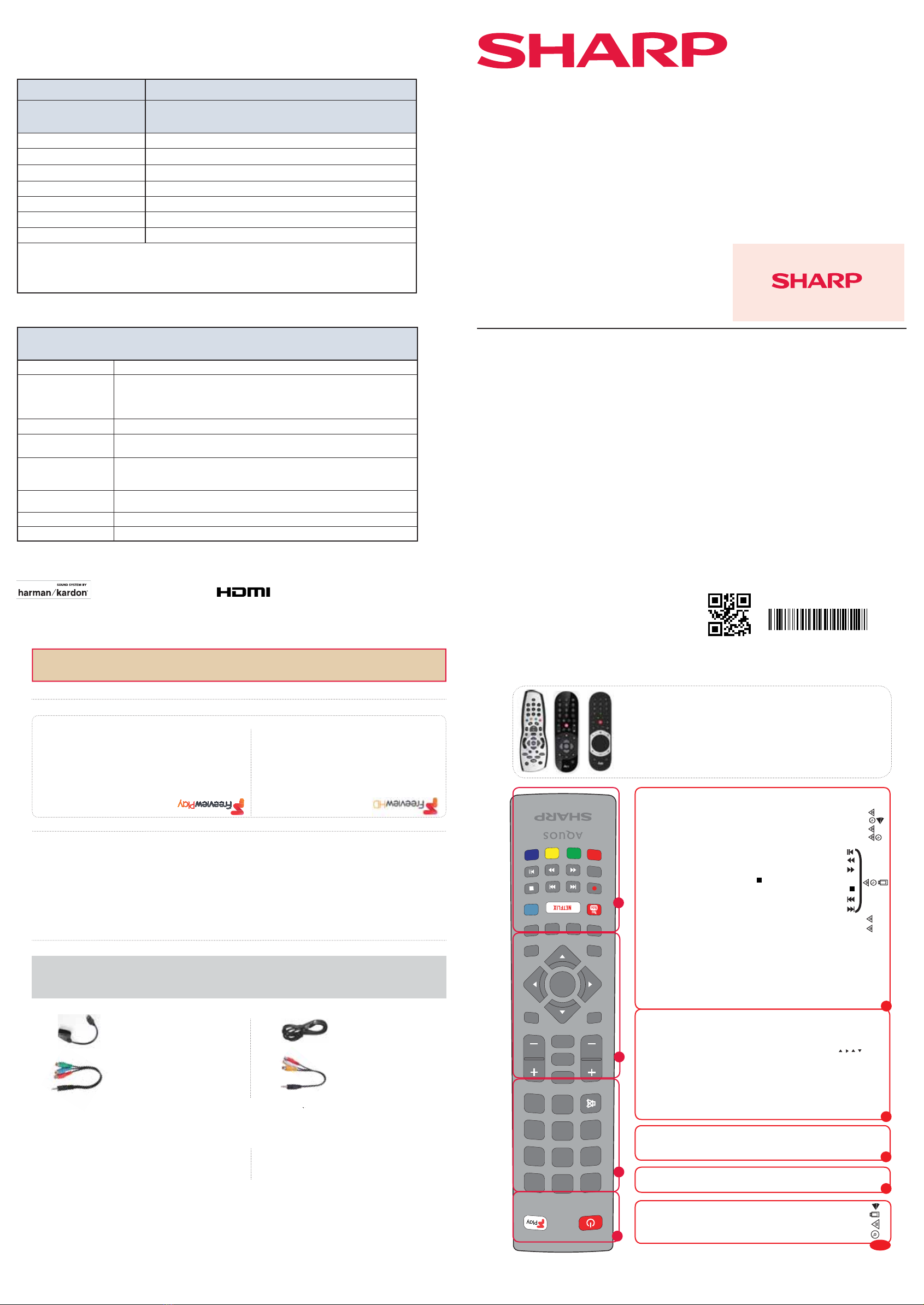

Quick Start Set Up Guide
For information on using the TV’s features, please refer to the Operating Instructions.
Quick & easy guide for setting up your TV
What is included in the box
Using the remote control
Setting up the TV for the rst time - including attaching the stand
Connecting other devices to the Television
Need help setting up or using your TV?
Please contact the UK & ROI Helpline*
Telephone UK 0330 024 0803 or ROI 01443 3323
Online support at: www.umc-uk.co.uk
Email support at: servic[email protected].uk
*Calls to 0330 numbers are charged at standard call rates and are included as part of any bundled minutes with your
phone provider.
Calls to the ROI number are charged at the local call rate.
The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.
Bank Holidays - 10am to 4pm
Closed Christmas and New Years day
Model Numbers
65BJ2K
65BJ3K
65BJ5K
Trademark Sharp
Model ID 65BJ2K
65BJ3K
65BJ5K
Energy eciency class A+
Visible screen size (diagonal) 164 cm / 65 inches
On-mode power consumption 118.0 W
Annual energy consumption *1 172 kWh
Standby power consumption *2 <0.50 W
O mode power consumption n/a
Screen resolution 3840 (H) x 2160 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4
hours per day for 365 days. The actual energy consumption will depend on how the television is used.
*2: When the TV is turned o with the remote control/standby button and no function is active.
Product che
65BJ2K
65BJ3K
65BJ5K
RF 75 ohm Antenna / Analog / DVB / Satellite
Inputs 3 x HDMI, 3 x USB, 1 x SD card reader,
1 x RJ45 LAN/Ethernet, 1 x Mini -SCART, 1 x Mini Component/YPbPr,
1 x Mini AV IN - Composite Video/CVBS and L/R Audio shared for Composite Video and
Component/YPbPr.
Sound Outputs 1 x Digital Optical Audio output, 1 x 3.5mm Headphone
Speaker*/ Amplier Watts
(RMS) 2 x 10 + 15W subwoofer
Voltage and power
consumption
AC 220V ~ 240V; 50Hz
118/155/180W (home mode/standard/max)
(<0.5W in Standby)
Dimensions including stand
(mm) 1462W x 902H x 280D
Net weight (Kgs) 21.0
Wall Mounting VESA 600 x 300 (mm)
*Built-in Harman Kardon speaker systems (Full-range speaker and tweeter).
Win a
Soundbar
Register your manufacturers guarantee
online within 14 days of purchase at
www.registertoday.co.uk/sharp
and enter into a prize draw to
SHA/QSW/0154
Harman Kardon is trademark of HARMAN International
Industries, Incorporated, registered in the United States
and/or other countries.
The terms HDMI, HDMI High-Denition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing Administrator, Inc.
Technical Specication
Please save your box/packaging as you will need this in the event of warranty/service repair or support. We are
unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your
item in the event of warranty/service repair is in it’s original box/packaging.
Sky Remote Code
If you wish to use your Sky remote to operate the TV’s basic
functions, you will need a Sky remote control (Revision 9 or later) and
you will need to program it with the code 2134. If you wish to use
your Sky Q remote to operate the TV’s basic functions, you will need
to program it with the code 4170.
Accessories
Included with this TV are the following accessories
What is included in the box
1 x Quick Start Guide
1 x Safety Leaflet 1 x Remote Control & 2 x AAA Batteries
1 x Stand installation pack
RF Cable
Additional Accessories
Should you wish to connect older/analogue devices to your television, you can purchase the necessary
cables either from your retailer or at www.umc-uk.co.uk/cables
Mini Composite/AV Cable
Required if you wish to
connect a device with
AV/Composite/CVBS output
to the TV’s Mini AV Input
Mini YPbPr Cable
Required if you wish to
connect a device with YPbPr/
Component output to the
TV’s Mini YPbPr Input
Connecting Component/YPbPr - you will need both the Mini YPbPr Cable and the Mini Composite/AV Cable.
The YPbPr cable will be used exclusively for video (red/green/blue) and the AV cable will be used for audio (Red/White while
Yellow stays unconnected).
Connecting Composite/AV - Mini Composite/AV Cable will be enough for both video and sound.
1 x Power Cable
Mini SCART
Required if you wish to
connect a device with SCART
to the TV’s Mini SCART input
REMOTE CONTROL
789
0
123
456
TV
GUIDE
VOL CH
SOURCE
SOUND
ON/OFF
TEXT
SUBTITLE
INFO
TV
BACK
FAV
APPS
GOTO
A-B
ANGLE
REPEAT
REC LIST
PVR/MEDIA
EXIT
MENU
OK
Freeview Play
1
4
2
3
STANDBY - Switch on the TV when in standby or vice versa.
FREEVIEW PLAY - Access the Freeview Play app.
NUMBER BUTTONS - 0–9 to select a TV channel directly.
MUTE - Mute the sound or vice versa.
TV GUIDE - Opens the 7 day TV guide (digital TV mode).
VOL (+/-) - To increase/decrease the sound level.
PICTURE - Scrolls through picture mode options.
SOUND- Scrolls through sound mode options.
SOURCE - To display the input/source menu.
CH (+/-) - To increase or decrease the channel being watched.
MENU - To display OSD menu.
EXIT - To exit all menus.
( / / / / OK) - Allows you to navigate the on-screen menus and adjust
the system settings to your preference.
BACK - To go back a previous step.
FAV - To display favourites menu.
INFO - Press once for now/next channel information.
- Press twice for information about the current programme.
TEXT - To enter/exit Text.
SUBTITLE - To switch the dialogue at the bottom of the screen (on/off).
TV - To switch to Digital Channels.
YOUTUBE - Access the Youtube App.
NETFLIX - Access the Netflix App.
APPS - Access the APPS menu.
RECORD - Access the USB record function.
REC LIST - Opens the list of previously recorded items.
GOTO - To go to a specific chapter.
A-B - Press once to set point, press a second time to return to point.
ANGLE - Select different angle of DVD.
REPEAT - To repeat playback.
- To restart the current chapter
- To advance forward to the next chapter
- To stop the playback/Eject Disc
(To EJECT the disc press/hold the button for 4 seconds)
- To play in fast rewind mode
- To play in fast forward mode
- To play/pause
Key
3
2
1
For models with integrated DVD players.
For models with PVR Function.
For models with USB Playback.
For models with 3D functions.
44
Microsoft PlayReady™
This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this
product is prohibited without the appropriate license(s) from Microsoft.
Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device
uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions
on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should not
aect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access
their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.
Online Manual
To launch the Online Manual, press the [MENU] button and then select:
Settings > About TV > Help Information > View Online Manual
w
Freeview Play brings together live TV viewing with ‘‘catch up’’ TV
services such as BBC iPlayer, ITV player, More4 and Demand 5. The
Freeview Play Explore app features a carousel of genres to select
from when searching for programmes, such as sport, comedy,
dramas and soaps, etc. Content is made up from recommendations
of the major broadcasters and offers an alternative means of
searching.
Note that to use the full functionality of Freeview Play your set must
be connected to the internet.
To receive Freeview channels, in particular Freeview HD
channels, you will need a Digital TV aerial and be in a good
Freeview coverage area.
You can check coverage for your postcode
at www.freeview.co.uk.
Please note that any Freeview HD channels found during
tuning will be placed in channel positions above 100. For
example, 101 (BBC1 HD) 102 (BBC2 HD) etc.
SHA-QSW-0154_65BJ5K.indd 1SHA-QSW-0154_65BJ5K.indd 1 13/02/2020 13:06:2313/02/2020 13:06:23

5 First time installation
Introduction
When the set first turns on, it enters the First Time Installation
mode. This can be restarted by restoring the set to default settings
in the ‘About TV’ Menu.
Languages
Select your preferred on-screen display language. This will change the language
in which the menus and associated information is displayed in. When set up has
been completed, to change this press the [MENU] button and then select Settings >
System Menu > Language
Country Selection
Select the correct flag for the country in which the set will be
used in. This will enable the set to correctly install the functions
applicable in the country of use.
Environment of Use
Home Mode: For normal use, by default it is set to a power saving mode
which reduces the energy used by up to 25% (by reducing the power to
the LED/LCD panel). This can be changed in the picture mode settings.
Network setup
You can connect the TV to your broadband router or wireless network in order
to take advantage of the Smart functions. If you connect the TV to your router
using an Ethernet cable (recommended) this step will be skipped.
Set Up Netflix
If you have a Netflix account, it can be set up on the television
here. Once set up and validated, the First Time Installation
returns to the next step.
Tune in Channels
Choose to install terrestrial channels now or later.
Support Advice
Information regarding support is displayed for a little while.
Tuning continues and a progress bar is shown with the number of
channels found indicated below.
If you are picking up signals from more than one transmitter, you
will be requested to select your primary and secondary regions.
1 2 3
5 6
789
Basic installation steps are shown below. These may vary slightly depending on model.
Default Source
Select the source which you use the most. If Digital TV (Freeview) is chosen,
then at the next step, the set will tune in and default to Digital TV (Freeview).
If one of the other sources is selected, then the set will not tune in at this
stage and default to that input. If it is required to tune the set in later, press
the [MENU] button and then select Settings>Channels
Note: In home mode,
the TV will switch off
automatically after 4
hours in the event that
no buttons are pressed on
the TV or remote control.
(You can change this
by pressing the [MENU]
button and then selecting
Settings>Time>Auto
Standby) 4
Setting up the TV set for the rst time
Connectivity
* The Ethernet/LAN port is used for Freeview HD services and smart functions.
Ethernet/LAN* Network connection
Digital Audio Digital Optical Audio Output
USB 2.0 2 x USB port 2.0
HDMI 1 HDMI input
HDMI 2 HDMI input (ARC)
YPbPr HD input (YPbPr)
AV IN Audio/Video input
Mini SCART Mini SCART input
SAT IN Satellite input
RF in RF / TV aerial input
HDMI 3 HDMI input
USB 2.0 USB port 2.0
CI card in Common interface module
SD SD card input
Earphones Earphone input
AI
M
L
BJ
N
C
D
E
F
G
K
O
H
EARPHONE
ARC
ABCDEFGHIJ
L
K
M
N
O
Fitting the stand
For the stand installation, there is
one type of screw provided as shown
below.
To complete the stand installation you
will require a cross head screw driver.
Place the TV set on a flat and
clean surface with the panel facing
downwards to avoid damage.
1
12
4 x
3
4
1
2
3
Used for attaching the stand
to the TV set (g.2)
4 x
TV panel must be facing downwards.
Place the TV set on a flat and clean surface
with the panel facing downwards to avoid
damage.
When the stand feet are installed correctly the
stand feet will be longest at the front of the TV
and shortest at the back with the feet pointing
away from each other.
When the stand/feet are in the correct
position, secure the feet to the underside of
the TV set using 4 screws provided.
L
R
Connecting your set
1) Connect the TV to your power socket.
2) If you wish to use the TV to receive Freeview/Saorview channels, connect the RF input
from the TV to your outdoor Digital TV aerial. If you do not wish to receive Freeview/
Saorview, skip this step.
23Button Layout
Insert the batteries supplied into the remote
control and press the standby button to power
on the TV.
Remote Control: Installing Batteries
Back/Shortest
Front/Longest
To obtain a copy of your Operating Instructions, please go to: www.umc-uk.co.uk/instruction-manuals/sharp
Register your manufacturers
guarantee online within
14 days of purchase at
www.registertoday.co.uk/sharp
and enter into a prize draw to
win a Sharp Soundbar
Terms and conditions apply. Online registration only.
Wall Mounting the TV
Image for illustration only.
1. Remove the four screws that are supplied
in the wall mounting holes.
2. The wall mount can now be easily
attached to the mounting holes on
the rear of the TV.
3. Install the wall mounting bracket to the
television as advised by the bracket
manufacturer.
The picture shows the use of spacers, which
are not applicable to all sets/installations.
Volume up and menu right
Volume down and menu left
Programme/Channel up and menu up
Programme/Channel down and menu down
Displays Menu/OSD
Displays the input source menu
Standby Power On/Off
1
2
3
4
5
6
7
6
5
7
4
3
2
1
STANDBY
4 Remote Control
SHA-QSW-0154_65BJ5K.indd 2SHA-QSW-0154_65BJ5K.indd 2 13/02/2020 13:06:3013/02/2020 13:06:30
