Sharp SJ-FJ676V User manual

REFRIGERATOR - FREEZER
OPERATION MANUAL
CONTENTS
WARNING• . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
CAUTION• . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
INSTALLATION• . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
DESCRIPTION• . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
OPERATION• . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
STORING FOOD• . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
CARE AND CLEANING• . . . . . . . . . . . . . . . . . . . . . . 12
BEFORE YOU CALL FOR SERVICE• . . . . . . . . . . . 13
SPECIFICATION• . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
WARRANTY• . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
MODEL
SJ-FJ676V
(B493).indb1(B493).indb1 2013/09/179:56:322013/09/179:56:32

2
Household use only
Thank you very much for buying this SHARP product. Before using your SHARP refrigerator,
please read this operation manual to ensure that you gain the maximum benefit from it.
This refrigerator is for household only, with ambient temperature between +5°C and +43°C.•
The refrigerator should not be subjected to temperatures of -10°C or below for a long period of
time.
This refrigerator contains flammable refrigerant (R600a:■
isobutane) and insulation blowing gas (cyclopentane).
Observe the following rules to prevent ignition and
explosion.
The refrigeration system behind and inside the•
refrigerator contains refrigerant. Do not allow any sharp
objects to come into contact with the refrigeration
system.
Do not use mechanical devices or other means to•
accelerate the defrosting process. (This refrigerator has
adopted automatic defrosting system.)
Do not use electric appliances inside the refrigerator.•
Use only the specified parts for the refrigerator•
compartment light.
Do not block the openings on the circumference of the•
refrigerator.
Do not use flammable sprays, such as spray paint near•
the refrigerator. It may cause explosion or fire.
If the refrigeration system should get punctured, do not•
touch the wall outlet and do not use open flames. Open
the window and air out the room. Then ask a service
agent approved by SHARP for servicing.
This refrigerator should be disposed appropriately.•
Take the refrigerator to a recycling plant for flammable
refrigerant and insulation blowing gases.
Do not store highly volatile and flammable materials such■
as ether, petrol, propane gas, aerosol cans, adhesive
agents and pure alcohol etc.
These materials are liable to explode.
Dust deposited on the power plug may cause fire. Wipe it■
off carefully.
Do not attempt to change or modify this refrigerator. This■
may result in fire, electric shock or injury.
Ensure that the refrigerator presents no danger to children■
while being stored for disposal. (e.g. remove the magnetic
door seals to prevent child entrapment.)
WARNING
Attention about Power supply:■
Do not use an extension cord or adapter plug.•
Make sure that the power cord has not been damaged•
during installation or moving. If the power plug or cord
is loose, do not insert the power plug. There is a risk of
electric shock or fire.
Disconnect from the mains electricity supply by removing•
the mains plug from the electricity supply socket. Do
not remove by pulling the mains lead. This may cause
electric shock or fire.
Should the flexible supply cord be damaged, it must be•
replaced by a service agent approved by SHARP as a
special cord is required.
Do not touch the compressor unit or its peripheral parts,■
as they become extremely hot during operation and the
metal edges may cause injury.
Do not touch foods or metal containers in the freezer■
compartment with your wet hands. This may cause
frostbite.
Do not place bottled and canned drinks in the freezer as■
they may crack when frozen.
In case of gas leak, ventilate the area by opening a■
window, etc. Do not touch the refrigerator or the power
outlet.
Do not place objects containing liquid or unsteady objects■
on top of refrigerator.
This appliance can be used by children aged from 8 years■
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be
made by children without supervision.
CAUTION
(B493).indb2(B493).indb2 2013/09/179:57:332013/09/179:57:33

3
WARNING
Do not install the refrigerator in a damp or wet location■
as this may cause damage to the insulation and a
leakage. Condensation may also build on the outer
cabinet and cause rust.
1Keep adequate ventilation space around the refrigerator.
The figure shows the minimum•
required space for installing
the refrigerator.
The amount of space around
the refrigerator affects
the amount of power
consumption.
Insufficient spacing will•
decrease cooling efficiency
and increase energy
consumption.
This may reduce the life of the unit and void warranty.
If using the refrigerator in the smaller space dimension•
than the below figure, it may cause the temperature
rise in the unit, loud noise and failure.
The space between the rear of the refrigerator and the•
wall should be 60mm or more and less than 75mm.
If the space is wider than 75mm, you may get injured
by touching compressor and its peripheral parts which
are extremely hot during the operation.
2Use the two front adjustable feet, to ensure that the
refrigerator is positioned firmly and flat on the floor.
Before using your refrigerator
Clean the inside parts with a cloth soaked in warm water.
If soapy water is used, wipe it off thoroughly with water.
INSTALLATION
3When right and left doors are not properly aligned, adjust
using the adjustable feet.
NOTE
Position your refrigerator so that the plug is accessible.•
Keep your refrigerator out of direct sunlight.•
Do not place next to heat generating appliance.•
Do not place directly on the ground. Provide suitable stand.•
If the mains power is switched on when the door is open, the•
door alarm will sound. Close the door to stop the alarm.
Adjustable foot
When the left door is
raised.
When the right door is
raised.
Lower the foot
at right side.
Lower the foot
at left side.
(Until the adjustable foot on the
other side is slightly off-ground.)
4Remove the 4 screws of the cabinet lower part, and
then set the foot cover (supplied inside the refrigerator
compartment) with removed 4 screws.
Screw
(4 screws)
Screw
Foot cover
5Connect the power plug to a 230/240 volt. 10 amp.
power point.
1180 mm
1500 mm
Overall space
required in use
Free standing type
90mm
or more
60mm
or more
60mm
or more
(B493).indb3(B493).indb3 2013/09/179:57:332013/09/179:57:33

4
Door pockets1. (3 pcs.)
Refrigerator shelves2. (2 pcs.)
Shelf3.
Bottle pocket (left)4.
Vegetable crisper5.
The cover of the Vegetable crisper
opens as the case is pulled.
Freezer cases (small)6. (3 pcs.)
Freezer cases (large)7. (2 pcs.)
Casters8. (4 pcs.)
Adjustable feet9. (2 pcs.)
Foot cover10.
Hybrid cooling panel11.
The panel is cooled from the rear, thus indirectly cools
the refrigerator compartment. In this way, food is
refrigerated gently, without exposing it to cold air flow.
Light12.
Utility pockets13. (2 pcs.)
Egg tray14.
Fruit case15.
Bottle pocket (right)16.
To store large-size bottles, move the
partition all the way back.
Fresh case17.
Ice cube maker18. (2 pcs.)
Do not over fill the tray;•
otherwise the ice cubes will be joined
together when frozen.
When the ice cubes are made,•
turn the lever clockwise to empty the
ice into the Ice storage box.
Ice storage box19. (2 pcs.)
To prevent damage to the Ice storage box, do not make
ice in the Ice storage box or pour oil into it.
Magnetic door seals20. (4 pcs.)
Touch control panel21.
Deodorising unit
Deodorising catalyst is installed on the routes of cold air.
No operation and cleaning are required.
NOTE
Deodorising unit cannot remove all of the odours thoroughly.•
Wrap the food with strong odours.
If you wish to store large items within
your freezer
You may remove any of the items numbered 6,7,18,19.
Partition
DESCRIPTION
21
15
16
5
20 20
20 20
22
7 7
6
1
2
1
3
4
6
88
99
10
1112 12
13
1
14
13
17
18
19
Lever
Ice storage box
How to remove
To remove the partition, pull it to
the front with pushing the claw.
Partition
Push
How to set
Insert the four projections into
the upper parts.
Claw
(B493).indb4(B493).indb4 2013/09/179:57:342013/09/179:57:34

5

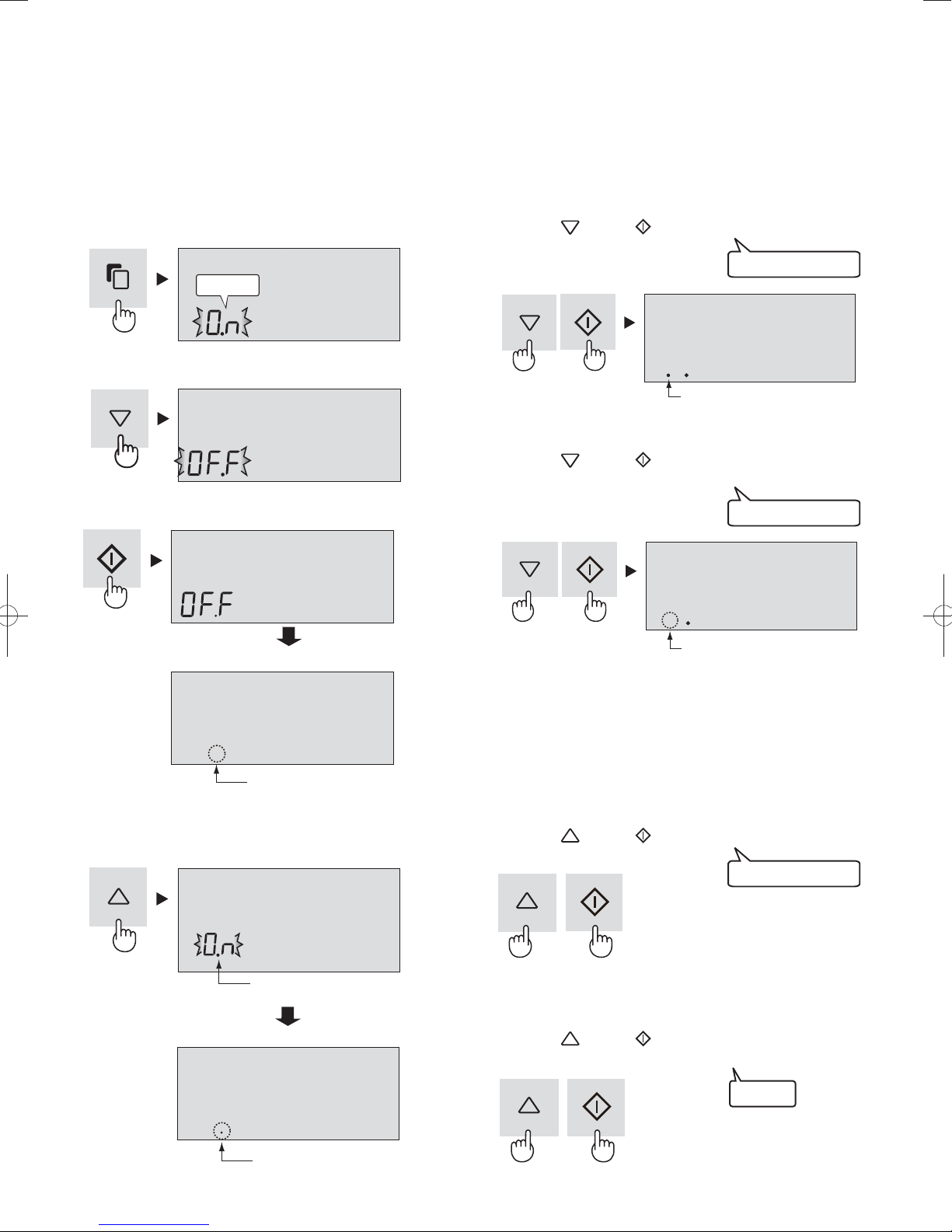

Touch control panel
To operate, touch the keys.
To light the control panel
Press (Enter) key.
Normally, only the (Enter) key is displayed.
The panel will light and show the current setting.•
After setting the features, when there is no operation•
for 1 minute, the display will automatically return to
the standby display.
Thus if there is no operation for another 1 minute, the
display will be turned off.
<Standby display>
(Enter) key
Finalize the setting.
/ key
Press to select feature ON/OFF or
temperature setting.
Select key
Press to select feature icon and door
alarm signal.
Sound OFF indication
This indication shows
sound “OFF”.
Door alarm indication
This indication shows door
alarm “ON”.
Feature icons Icons of features in operation are colored. Controlling temperature icons
Energy saving Vacation mode Refrigerator compartment
Express Freezing Child lock
Temperature increase sign Freezer compartment
At the time of re-power distribution
When there is a power failure during the operation of•
Express freezing, the operation is stopped.
The other settings will show similarly as before having the•
power failure.
Keys
Every time you open the door
Control panel will light up to show the current setting.
Operation is not accepted while the refrigerator door is•
opened.
(B493).indb5(B493).indb5 2013/09/179:57:352013/09/179:57:35

6
OPERATION
Energy Saving
Use this feature when you want to switch the appliance to
energy-saving operation.
To start operation
1Select “Energy saving” icon.
(The icon is green.)
2Select “ON”.
3Finalize the setting.
To cancel operation
It is the same method as starting operation.
Select “OFF” in step 2.
NOTE
While this feature is operating, the inside temperature of the•
refrigerator and freezer compartment will be higher than the
preset temperature by about 1°C(refrigerator) and about
2°C(freezer). This is the guide under the condition of the
preset temperature 3°C(refrigerator) and -18°C(freezer).
The display of preset temperature will not be changed.
The efficiency of power saving depends on the usage•
environment (controlling temperature, ambient temperature,
frequency of opening or closing the door, amount of food).
Cancel this feature when you feel the beverages are not•
cooled enough or ice making takes time.
Tips for saving energy
Keep the ventilation space as much as possible around■
the refrigerator.
Keep your refrigerator out of direct sunlight, and do not■
place next to heat generating appliance.
Open your refrigerator door as briefly as possible.■
Hot foods should be cooled before storing.■
Place the food evenly on the shelves to allow the■
cooling air to circulate efficiently.
Flashing
(B493).indb6(B493).indb6 2013/09/179:57:352013/09/179:57:35

7
Vacation mode
Use this feature when going on a trip or leaving the house
for a long time.
To start operation
1Select “Vacation mode” icon.
2Select “ON”.
3Finalize the setting.
To cancel operation
It is the same method as starting operation.
Select “OFF” in step 2.
NOTE
The temperature inside the refrigerator compartment will be•
adjusted to about 10°C.
Food storage period in the refrigerator compartment becomes•
approx.1/2-1/3 of normal operation. Please utilize only when
there is no perishable food.
Temperature of refrigerator compartment cannot be modified.•
(“10°C” is indicated on the display.)
Express Freezing
High-quality frozen foods can be made using this feature
and is convenient for home-freezing.
To start operation
1Select “Express freezing” icon.
2Select “ON”.
3Finalize the setting.
To cancel operation
It is the same method as starting operation.
Select “OFF” in step 2.
NOTE
Express Freezing ends automatically in about 2 hours.•
(The icon will disappear.)
Large foods cannot be frozen in a single operation.•
Express Freezing may require more than 2 hours in the case•
operation overlaps with defrosting as operation is started after
defrosting is completed.
Avoid opening the door as much as possible during operation•
of this feature.
Flashing
Flashing
(B493).indb7(B493).indb7 2013/09/179:57:362013/09/179:57:36

8
Child Lock
Key operation of the control panel will be locked. Use this
feature to prevent the panel from being used unintentionally
by children or someone.
To start operation
1Select “Child lock” icon.
2Select “ON”.
3Finalize the setting.
To cancel operation
It is the same method as starting operation.
Select “OFF” in step 2.
Temperature Increase sign
While this feature is operating, it will indicate the rise of
inside temperature caused by power failure or some other
malfunction.
To start operation
1Select “Temperature incrase sign” icon.
(The icon is orange.)
2Select “ON”.
3Finalize the setting.
Indication of temperature increase
If the inside temperature becomes as follows, temperature•
increase will be indicated.
Refrigerator : more than 10°C
Freezer: more than -10°C
Check the quality of food before you eat.•
Indication
Icons will blink.•
Handle indicator (orange) will blink every 30 seconds.•
How to cancel the indicator blink
Press the key while the icons are blinking.
To cancel operation
It is the same method as starting operation.
Select “OFF” in step 2.
Flashing Flashing
Blink slowly
(B493).indb8(B493).indb8 2013/09/179:57:372013/09/179:57:37

9
Advanced Setting of Freezer / Refrigerator compartment
The temperature of freezer compartment and refrigerator compartment can be adjusted in steps of 0.5 °C by following steps
1to 3below.
Refrigerator compartment
Select
1. icon.
Press
2. key continuously for 3 seconds or more.
The current preset temperature on the display will be changed to 3.0 °C.
(The display will be indicated like right figure.)
Adjust the temperature in the same way as steps
3. 2to 3above.
Follow steps 1to 2again if you want to adjust the temperature in steps of 1°C.
Freezer compartment
Select
1. icon.
Press
2. key continuously for 3 seconds or more.
The current preset temperature on the display will be changed to -18.0 °C.
(The display will be indicated alternately like right figure.)
Adjust the temperature in the same way as steps
3. 2to 3above.
Follow steps 1to 2again if you want to adjust the temperature in steps of 1°C.
Controlling Temperature
The refrigerator controls its temperature automatically. However, if needed, adjust the temperature as follows.
Refrigerator compartment
Adjustable between 0°C and 6°C in steps of 1°C.
1Select icon.
The display shows the current preset temperature.
2Set the temperature.
[ : increase, : decrease ]
3Finalize the setting.
Freezer compartment
Adjustable between -13°C and -21°C in steps of 1°C.
1Select icon.
The display shows the current preset temperature.
2Set the temperature.
[ : increase, : decrease ]
3Finalize the setting.
Beep beep beep
Flashing Flashing
Beep beep beep
(B493).indb9(B493).indb9 2013/09/179:57:382013/09/179:57:38

10
Door Alarm
At first, door alarm is set “ON”.•
When the refrigerator door is left open, the door alarm will•
sound.
The door alarm will sound in 1 minute after opening the•
door and again after 1 minute (once in each case).
If the door is left open for approx. 3 minutes, the alarm will•
sound continuously.
To cancel operation
1Select the door alarm indication like the below figure.
2Select “OFF”.
3Finalize the setting.
To start operation
It is the same method as canceling operation.
Select “ON” in step 2.
At standby display
The indication will disappear.
Door alarm indication
It shows Door alarm “ON”.
At standby display
Sound ON/OFF
At first, the sound is set “ON”.•
Use this feature when you want to switch the sound of key•
operation and the ending sound of Ice tray cleaning to “ON”
or “OFF”.
To set sound “OFF”
Press the key and key simultaneously and
continuously for 3 seconds or more.
To set sound “ON”
Press the key and key simultaneously and
continuously for 3 seconds or more again.
It shows the sound “OFF”.
The indication will disappear.
Lighting ON/OFF
Use this feature when you want to switch the lighting of•
control panel when opening the door to “ON” or “OFF”.
To set “OFF”
Press the key and key simultaneously and
continuously for 3 seconds or more.
The display will be turned off.
To set “ON”
Press the key and key simultaneously and
continuously for 3 seconds or more again.
Beep beep beep
Beep
Flashing
Beep beep beep
Beep beep beep
(B493).indb10(B493).indb10 2013/09/179:57:412013/09/179:57:41

11
STORING FOOD
IN
OUT
Refrigeration reduces the rate of food spoilage.
To maximise the shelf life of perishable food products,
ensure that the food is of the freshest possible quality.
The following is a general guide to help promote longer food
storage.
Fruit / Vegetables
To minimize moisture loss, fruit and vegetables should be
loosely enclosed in a plastic material (e.g. wrap, bags) and
place in the vegetable crisper and fruit case.
If you store a lot of vegetables, dew may form. This has no
effect on the operation or the performance. Use a dry cloth
to remove the dew.
Dairy Products & Eggs
Most dairy products have a use by date on the outer•
packaging which informs the recommended temperature
and shelf life of the product.
Eggs should be stored in the Egg tray.•
Meats / Fish / Poultry
Place on a plate or dish and cover with paper or plastic•
wrap.
For larger cuts of meat, fish, or poultry, place to the rear of•
the shelves.
Ensure all cooked food is wrapped securely or placed in an•
airtight container.
NOTE
Evenly place the food on the shelves•
to allow the cooling air to circulate
efficiently.
Hot foods should be cooled before•
storing. Storing hot foods increases the
temperature in the unit and increases the
risk of food spoilage.
Do not block the outlet and inlet of the•
cool air circulating circuit with foods
or containers; otherwise the foods will
not be evenly cooled throughout the
refrigerator.
Keep the door securely closed.•
Do not place food directly in front of cold air
outlet. This may lead to the food freezing.
For best freezing
Quality of foods should be fresh.•
Freeze small quantities of food at a time to freeze them•
quickly.
Food should be properly sealed, sealed tightly or covered.•
Evenly place the food in the freezer.•
Label bags or containers to keep an inventory of frozen•
food.
Vegetables are improper●
in this case. They may
be frozen.
Fruits Dairy products
Small foods
Eggs etc.
Bottles etc.
(Big size)
Meat, Fish, Poultry etc.
Vegetables
Small foods
Juice etc.
Bottles etc.
Frozen foods
(Small size)
Frozen foods
(Big size)
(B493).indb11(B493).indb11 2013/09/179:57:432013/09/179:57:43

12
WARNING
Unplug the refrigerator first to prevent electric shock.■
Do not splash water directly on the outer cabinet or■
the interior. This may lead to rusting and deterioration
of the electrical insulation.
IMPORTANT
To prevent cracking on inside surfaces and plastic
components, follow these tips.
Wipe any food oils adhered to plastic components.•
Some household chemicals may cause damage, so use•
only diluted washing-up liquid (soapy water).
If undiluted detergent is used or soapy water is not wiped•
off thoroughly, cracking of plastic parts can result.
Wipe any spills from the refrigerator immediately as acid•
or alkaline in the food can cause cracking and staining of
plastic parts.
1Remove the accessories e.g. shelves from the cabinet
and door. Wash them in warm soapy dishwashing water;
rinse in clean water and dry.
2Clean the inside with a cloth soaked in warm soapy
dishwashing water. Then, use cold water to wipe off
soapy water.
3Wipe the exterior with a soft cloth each time it is soiled.
4Clean the Magnetic door seal with a toothbrush and
warm soapy dishwashing water.
5Wipe the control panel with the dry cloth.
NOTE
Do not use hot water, household cleaning powders, creams or•
spray-on cleaning products, or any other cleaning products such
as mineral turpentine, methylated spirits, thinners, petrol etc.
These may damage your refrigerator and may void any warranty.
If the power supply is disconnected, please wait for at least•
5 minutes before re-connecting power.
The glass shelves weigh approximately 3 kg each. Hold firmly•
when removing from the cabinet or carrying.
Do not drop objects inside the refrigerator or strike the inner•
wall. This may cause the inner surface to crack.
Defrosting
Defrosting is fully automatic due to a unique energy saving
system.
When the compartment light is blown
Contact the service agent approved by SHARP to request a
replacement compartment light. The compartment light is not
to be removed other than by qualified service personnel.
When transporting
Wipe up water in the evaporating pan. Before wiping up•
the water, wait more than 1 hour after pulling out the plug
because refrigeration cycle equipment is extremely hot.
(The evaporating pan is located on the rear of the product.)
The casters allow the refrigerator to•
move back and forth.
Carry the refrigerator by holding the handles located on the•
rear and bottom.
Switching off your refrigerator
If the refrigerator needs to be switched off for an extended
period, the following steps should be taken to reduce the
growth of mould:
Remove all food.1.
Remove the power plug from the power point.2.
Clean and dry the interior thoroughly.3.
Ensure that all the doors are wedged open slightly for air4.
circulation.
CARE AND CLEANING
Casters
Evaporating pan
(B493).indb12(B493).indb12 2013/09/179:57:432013/09/179:57:43

13
Before you call for service, check the following points.
Problem Solution
The outside of the cabinet is hot
when touched.
This is normal. The hot pipe is in the cabinet in order to prevent condensation
generation.
When there is refrigerator noise. It is normal for the refrigerator to produce the following sounds.
Loud noise produced by the compressor when operation starts•
--- Sound becomes quieter after a while.
Loud noise produced once a day by the compressor•
--- Operating sound produced immediately after automatic defrost operation.
Sound of flowing fluid (gurgling sound, fizzing sound)•
--- Sound of refrigerant flowing in pipes (sound may become louder from time to time).
Cracking or crunching sound, squeaking sound•
--- Sound produced by expansion and contraction of inner walls and internal parts
during cooling.
Frosting or condensation
generation occurs inside or
outside the refrigerator.
This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry
cloth for wiping condensation.
When the ambient humidity is high.•
When the door is frequently opened and closed.•
When food containing plenty of moisture is stored. (Wrapping is required.)•
The foods in the refrigerator
compartment freeze.
Is the refrigerator operated for a long time with refrigerator temp. control set at 0°C?•
Is the refrigerator operated for a long time with freezer temp. control set at -21°C?•
Low ambient temperature may cause food to freeze even if refrigerator temp. control•
is set to 6°C.
Noticeable odours. Wrapping is required for food with strong odours.•
The control panel does not
work.
This may occur in one of the following cases.
The panel or your finger is soiled with dripping, oil and etc.•
When you touch the panel with gloved hand, adhesive bandage on your finger, nail or•
objects.
Sticker or tape is affixed on the keys.•
Touch position is slightly off from the keys.•
Operate time is not enough for the keys to work.•
If you still require service contact your SHARP Approved Service Centre.
SHARP Approved Service Centre locations can be found in the Support area of our website:
Australia : http://www.sharp.net.au
New Zealand : http://www.sharp.net.nz
BEFORE YOU CALL FOR SERVICE
(B493).indb13(B493).indb13 2013/09/179:57:442013/09/179:57:44

14
SPECIFICATION
Rated voltage (V~)
Rated frequency (Hz)
Rated current (A)
Rated input of heating systems (W)
Defrosting input (W)
Refrigerant
Charge (g)
Rated storage volume (L)
Rated gross volume (L)
Climate class
Insulation blowing gas
Group (AS / NZS 4474.1)
Net weight (kg)
Outer dimensions
(mm)
220 - 240
SJ-FJ676V
50
1.3 - 1.4
180 - 210
180 - 210
R600a
T
77
Cyclo pentane
5B
595
676
118
1830
892
766
Height
Width
Depth
(B493).indb14(B493).indb14 2013/09/179:57:442013/09/179:57:44

15
(B493).indb15(B493).indb15 2013/09/179:57:452013/09/179:57:45

TINS-B493CBRZ 13KK TH 1
Printed in Thailand
SHARP CORPORATION OF AUSTRALIA PTY.LTD.
A. B. N. 40 003 039 405
1 HUNTINGWOOD DRIVE, HUNTINGWOOD, N.S.W. 2148
P.O.BOX 6827, BLACKTOWN. N.S.W. 2148
SHARP CORPORATION OF NEW ZEALAND LIMITED
59 HUGO JOHNSTON DRIVE P.O. BOX 12244, PENROSE, AUCKLAND
(B493).indb16(B493).indb16 2013/09/179:57:472013/09/179:57:47
