shelolab SMO5CR-2 User manual

Installation and
Operation Manual
SMO5CR-2
Clean Room Oven 220 – 240 Voltage

2 | Page

3 | Page
SHEL LAB Clean Room Oven 220 - 240 Voltage
Installation and Operation Manual
Part Number (Manual): 4861580
Revision: November 10, 2017
This oven requires permanent connect wiring (also known as hardwiring. It does not connect to a
wall power source using a plug-in power cord.
These units are TÜV listed as high performance ovens for professional, industrial, or educational
use where the preparation or testing of materials is done at an ambient air pressure range of 22.14
– 31.3 inHg (75 – 106 kPa), with no flammable, volatile, or combustible materials being heated.
These units have been tested to the following requirements:
CAN/CSA C22.2 No. 61010-1:2012
CAN/CSA C22.2 No. 61010-2-010:2004 Reaffirmed: 2014-07
UL 61010-1:2012-05
UL 61010A-2-010:2002-03
EN 61010-1:2010
EN 61010-2-010:2014
Supplemented by: UL 61010-2-010:2015

4 | Page
TABLE OF CONTENTS
INTRODUCTION........................................................................................................................................... 5
General Safety Considerations.................................................................................................................5
Engineering Improvements .......................................................................................................................6
Contacting Assistance...............................................................................................................................6
Temperature Reference Sensor Device ...................................................................................................6
RECEIVING YOUR OVEN............................................................................................................................7
Inspecting the Shipment............................................................................................................................7
Recording Data Plate Information.............................................................................................................7
Orientation................................................................................................................................................. 8
INSTALLATION............................................................................................................................................9
Required Ambient Conditions ................................................................................................................... 9
Selecting a Location..................................................................................................................................9
Power Source Requirements..................................................................................................................10
Power Feed Wiring..................................................................................................................................10
Lifting and Handling ................................................................................................................................11
Leveling...................................................................................................................................................11
Install the Oven .......................................................................................................................................11
Initial Cleaning.........................................................................................................................................11
Shelving Installation ................................................................................................................................12
GRAPHIC SYMBOLS.................................................................................................................................13

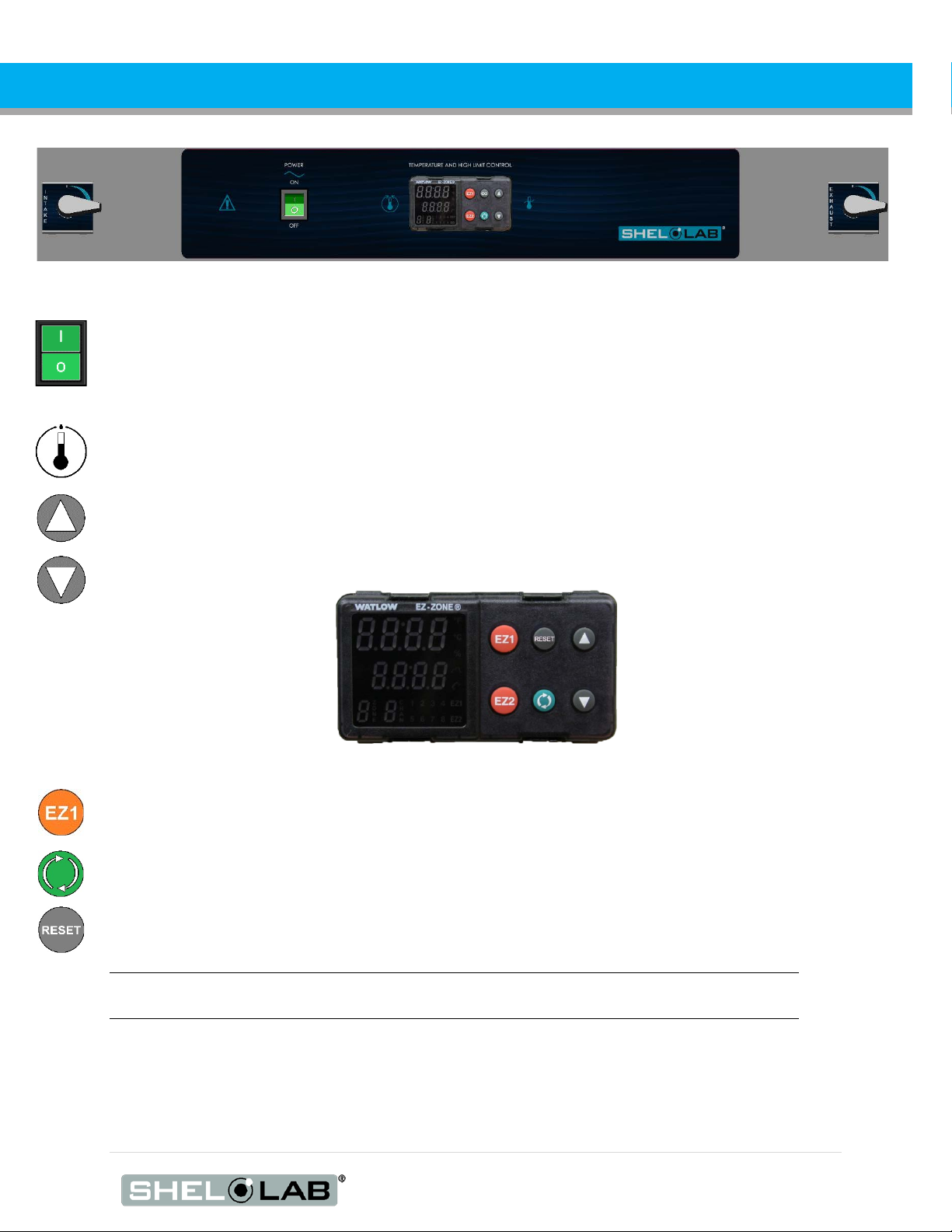

CONTROL PANEL OVERVIEW.................................................................................................................15
OPERATION...............................................................................................................................................17
Operating Precautions ............................................................................................................................17
Theory of Operations ..............................................................................................................................18
Preparing the Oven for Use ....................................................................................................................20
Set the Over Temperature Limit..............................................................................................................21
Set the Temperature Controller Set Point...............................................................................................21
HEPA Filter Burn-In.................................................................................................................................22
Temperature Accuracy Verification.........................................................................................................24
Closed Vents...........................................................................................................................................26
Over Temperature Limit Active ...............................................................................................................26
Programmed Operations.........................................................................................................................27
Positive Venting of Exhaust ....................................................................................................................27
Purge Port ...............................................................................................................................................28
USER MAINTENANCE...............................................................................................................................29
Cleaning and Disinfecting .......................................................................................................................29
Electrical Components ............................................................................................................................30
Door Gaskets and Chamber Integrity......................................................................................................30
HEPA Filter Lifespan...............................................................................................................................30
Replacing the HEPA Filter Assembly......................................................................................................31
Calibrate the Temperature display..........................................................................................................33
UNIT SPECIFICATIONS.............................................................................................................................37
Weight .....................................................................................................................................................37
Dimensions..............................................................................................................................................37
Capacity ..................................................................................................................................................37
Shelf Capacity by Weight........................................................................................................................37
Temperature............................................................................................................................................38
Airflow Performance................................................................................................................................38
Power ......................................................................................................................................................38
REPLACEMENT PARTS............................................................................................................................39

5 | Page
INTRODUCTION
Thank you for purchasing a Sheldon Manufacturing Clean Room Oven. We know that in today’s
competitive marketplace, customers have many choices when it comes to constant temperature
equipment. We appreciate you choosing ours. Our continued reputation as a leading laboratory
product manufacturer rests with your satisfaction. Sheldon Manufacturing, Inc. stands behind our
products, and we will be here if you need us.
These ovens are intended for professional, industrial, and educational clean room applications
requiring horizontal shelf space airflows. The ovens are not designed for use at hazardous or
household locations.
Before you use your oven read this entire manual carefully to understand how to install, operate,
and maintain the oven in a safe manner. Keep this manual available for use by all oven operators.
Ensure that all operators are given appropriate training before the oven begins service.
GENERAL SAFETY CONSIDERATIONS
Note: Failure to follow the guidelines and instructions in this manual may create a protection
impairment by disabling or interfering with the unit’s safety features. This can result in injury
or death.
Your oven and its recommended accessories have been designed and tested to meet strict safety
requirements. For continued safe operation of your oven, always follow basic safety precautions
including:
•Follow all local or regional ordinances in your area regarding the use of this unit. If you
have any questions about local regulations, please contact the appropriate agency.
•Use only approved accessories. Do not modify system components. Any alterations or
modifications to your oven may be dangerous and will void your warranty.
•Always hardwire the unit’s power feed to a single phase, earth grounded electrical source
that conforms to national and local electrical codes. If the unit is not grounded, parts such
as, knobs and controls may conduct electricity and cause serious injury.
•Avoid damaging the power feed. Do not bend it excessively, step on it, place heavy objects
on it. A damaged power feed can easily become a shock or fire hazard. Never use a power
feed after it has been damaged.
•Do not position the equipment in such a manner as to make it difficult to disconnect or
uncouple the power feed.
•Do not attempt to move the unit while in operation or before the unit has cooled.

6 | Page
INTRODUCTION
ENGINEERING IMPROVEMENTS
Sheldon Manufacturing continually improves all of its products. As a result, engineering changes
and improvements are made from time to time. Therefore, some changes, modifications, and
improvements may not be covered in this manual. If your unit’s operating characteristics or
appearance differs from those described in this manual, please contact your Shel Lab dealer or
customer service representative for assistance.
CONTACTING ASSISTANCE
Phone hours for Sheldon Technical Support are 6 am – 4:30 pm Pacific Coast Time (west coast of
the United States, UTC -8). Please have the following information ready when calling or emailing
Technical Support: the model number and the serial number (see page 7).
EMAIL: [e-mail]
PHONE: [phone] extension 4, or [phone]
FAX: [phone]
Sheldon Manufacturing, INC.
P.O. Box 627
Cornelius, OR 97113
TEMPERATURE REFERENCE SENSOR DEVICE
The oven does not come with a temperature reference device. A reference sensor device must be
purchased separately for performing accuracy verifications and calibrations of the oven
temperature display.
The reference device must be accurate to at least 2°C, and should be regularly calibrated,
preferably by a third party.
For best results, use a digital device with wired-connected temperature sensing probe. For
example: a wire thermocouple probe that can be introduced into the oven chamber, leaving the
device outside. Readings taken from outside the unit avoid chamber door openings during
verifications and calibrations, and eliminate subsequent waits for the chamber temperature to re-
stabilize before proceeding.
Select a probe suitable for the application temperature you will be calibrating or verifying the display
accuracy at.
Alcohol thermometers are insufficient for conducting accurate verifications and calibrations. Do not use a
mercury thermometer. Never place a mercury thermometer in the oven chamber.

7 | Page
RECEIVING YOUR OVEN
Before leaving our factory, all Clean Room Ovens are packaged in high-quality shipping materials
to provide protection from transportation-related damage. When an oven leaves our factory, safe
delivery becomes the responsibility of the carrier. Damage sustained during transit is not
covered by the oven’s warranty. When you receive your High Performance Oven, inspect it for
concealed loss or damage to its interior and exterior. If you find any damage to the oven follow the
carrier’s procedure for claiming damage or loss.
INSPECTING THE SHIPMENT
Carefully inspect the shipping carton for damage. Report any damage to the carrier service that
delivered the oven. If the carton is not damaged, open the carton and remove the contents. The
unit should come with an Installation and Operation Manual, warranty card, a Certificate of
Compliance, and the Programming Guide – Watlow EZ-Zone Heating Profiles.
Verify that the correct number of shelves, shelf slides, and leveling feet have been included (see
the following table for quantities).
Included accessories
Shelves (2) Shelf Slides (4) Leveling Feet (4)
Carefully check all packaging before discarding. Save the shipping carton until you are certain that
the unit and its accessories function properly.
RECORDING DATA PLATE INFORMATION
Locate the data plate on the back of the oven next to the power inlet. The data plate contains the
oven model number and serial number. Enter this information below for future reference.
Date Plate Information
Model Number
Serial Number

8 | Page
RECEIVING
ORIENTATION
Back Panel
Fuse
Holders
External Power
Outlet
Nitrogen Gas
Inlet
Permanent Connect Wire Braid
14 gauge, 6 inches (15 cm)
Intake Vent
Exhaust Vent
Control Panel
Power Switch
Intake Vent Valve
Control
Exhaust Vent Valve
Control
Outer Door
Gasket
Chamber Ceiling
Liner
Right Wall
Chamber Liner
HEPA Filter
Assembly
Left Wall
Chamber Liner
Door Latch
Door Latch
Chamber Gasket
Figure
1: Orientation Photo
Note: The external
power outlet type
varies by country and
voltage.

9 | Page
INSTALLATION
Installation of an SMO5CR-2 requires permanent connect wiring (commonly known as hardwiring),
and must be performed by a qualified electrical technician. All other installation steps can be
performed by the end user.
REQUIRED AMBIENT CONDITIONS
This oven is intended for use indoors, at room temperatures between 15°C and 40°C (59°F and
104°F), at no greater than 80% Relative Humidity (at 25°C / 77°F). Allow a minimum of 6 inches
(152mm) between the oven and any walls or partitions, and 24 inches (610mm) of vertical
headspace clearance above the top of the oven for unobstructed airflow and cooling. If the oven
exhaust will be vented from the workspace through a duct or other channeling, 12 inches (305mm)
of vertical clearance will suffice. Make sure the intake and exhaust vent remain unobstructed. Do
not place objects on top of oven, aside from the power exhaust accessory described in the manual.
Operating the unit outside of these conditions may adversely affect the oven temperature
range and stability. For conditions outside of those listed above, please contact your distributor or
Sheldon Sales to explore other ovens suited to your laboratory or production environment.
SELECTING A LOCATION
When selecting a location to install the oven, consider all conditions that can affect temperature
performance. For example:
•Ovens, autoclaves, and any device that produces significant radiant heat
•Heating and cooling ducts, or other sources of fast moving air currents
•High-traffic areas
•Direct sunlight

10 | Page
INSTALLATION
POWER SOURCE REQUIREMENTS
When selecting a location for the oven, check that each of the following requirements are satisfied:
•The oven must be positioned so that all operators have access to the power feed
disconnect in case of emergencies.
oThe Disconnect must be in close proximity to the equipment and within easy reach
of the operator.
oThe Disconnect must be marked as the disconnecting device for the equipment.
•The power source must be single (1) phase and protective earth grounded.
•The power source must match the voltage and ampere requirements listed on the oven
data plate. This oven is intended for 220 - 240 volt, 50/60 Hz applications at 12 Amps.
•The power source for the oven must conform to all national and local electrical codes.
•Supplied voltage must not vary more than 10% from the data plate rating. Damage to
the oven may result if supplied voltage varies more than 10%. A separate circuit is
recommended to prevent possible loss of product due to overloading or failure of other
equipment on the same circuit.
•A switch or circuit-breaker must be used in the building installation. The required
circuit-breaker is 20 Amps
Fuses: The oven is provided with (2) two 20 amp fuses. These are located in holders adjacent to
the power feed braid on the back power panel of the unit. The fuses protect against overcurrent
conditions related to the operation of the oven. If one fuse blows, the oven will shut down. For safe
operation, the cause of a blown fuse should be determined prior to replacing it.
The oven is also provide with a pair (2) of 2 amp fuses installed adjacent to the external power
outlet. Please see the Orientation photo on page 8. The fuses protect against overcurrent
conditions related to the operation of the outlet and an attached power exhaust blower. If one fuse
blows, the outlet will depower. The cause of a blown fuse should be determined prior to replacing it.
POWER FEED WIRING
The oven comes provided with an integral 6 inch (15 cm) wire braid of two 14 gauge high-
temperature (300°C) hot wires and a 14 gauge earth ground. See the Orientation Picture on page
8.
The wires for power source connection should be Green/Yellow – Earth; Black – Hot; Red – Hot.
The oven must be earth grounded using the protective conductor terminal (green with yellow
stripe wire. Do not remove the protective conductor (earth connection). Removing the protective
conductor will negate the oven’s protections against potentially dangerous electric shocks and
create a possible fire hazard.

11 | Page
INSTALLATION
LIFTING AND HANDLING
The oven is heavy. Use appropriate lifting devices that are sufficiently rated for these loads. Follow
these guidelines when lifting the oven:
•Lift the oven only from its bottom surface.
•Doors, handles, and knobs are not adequate for lifting or stabilization.
•Restrain the oven completely while lifting or transporting so it cannot tip.
•Remove all moving parts, such as shelves and trays, and secure the door in the closed
position during transfers to prevent shifting and damage.
LEVELING
The oven must be level and stable for safe operation. Each Clean Room Oven ships with four
leveling feet. Insert one leveling foot into each of the four holes in the bottom corners of the oven.
Stand the oven upright. Then, adjust the foot at each corner until the oven stands level and solid
without rocking. To raise a foot, turn it in a counterclockwise direction; to lower a foot, turn it in a
clockwise direction.
Note: To prevent damage when moving the oven, turn each of the four leveling feet completely
clockwise.
INSTALL THE OVEN
Install the unit in a workspace location that meets the criteria discussed in the previous entries of
the Installation section. After wiring the oven to its power source, only energize the unit for brief
periods as necessary to test the wiring power feed and source.
INITIAL CLEANING
The unit was cleaned at the factory, but not sterilized. Additionally, it may have been exposed to
contaminants en route during shipping. See the Cleaning and Disinfecting topic in the User
Maintenance section (page 29) for more information on how to clean and disinfect the oven
chamber.
Remove all wrappings and coverings from shelving prior to cleaning and installation.

12 | Page
INSTALLATION
SHELVING INSTALLATION
The horizontal airflow within the chamber moves from the HEPA filter housing on the right-hand
side of the chamber, to the large holes on the left side. Place the shelves so they do not obstruct
the duct holes on the left in order to maximize airflow across the shelf space.
1. Install shelf slide hangers on opposites of the oven by inserting the slider’s tabs into the
chamber’s mounting slots, then pushing down gently to secure the slider.
2. Hang the shelf from the two installed sliders.
Figure
2: Installed Sliding Shelf

13 | Page
GRAPHIC SYMBOLS
The oven is provided with multiple graphic symbols on its external and internal surfaces. The
symbols identify hazards and the functions of the adjustable components, as well as important
notes found in the user manual.
Symbol Definition
Indicates that you should consult your user manual for further instructions.
Indique que l'opérateur doit consulter le manuel d'utilisation pour y trouver les instructions
complémentaires.
Indicates Adjustable Temperature
Indique température réglable
Indicates AC Power
Repère le courant alternative
Indicates I/ON and O/OFF
I repère de la position MARCHE de l'interrupteur d'alimentation
O repère de la position ARRÊT de l'interrupteur d'alimentation
Indicates protective earth ground
Repère terre électrique
Indicates UP and DOWN respectively
Touches de déplacements respectifs vers le HAUT et le BA
Indicates a Potential Shock Hazard
Signale danger électrique
Indicates the unit should be recycled (Not disposed of in land-fill)
Indique l’appareil doit être recyclé (Ne pas jeter dans une décharge)
Indicates: Caution hot surface
Indique: Avertissement symbole de surface chaude

14 | Page
GRAPHIC SYMBOLS

15 | Page
CONTROL PANEL OVERVIEW
Figure 3: Control Panel
Power Switch
The green, light up power switch controls all power to the oven. It must be in the illuminated I (ON)
position before any systems or components are operational.
Temperature, Profile, and OTL Controller
The temperature controller for the oven is labeled TEMPERATURE AND HIGH LIMIT CONTROL
and consists of a Watlow EZ-Zone Controller. The controlller is provided with a digital display and
Up and Down arrow keys. The keys are used to change the oven temperature set point, perform
calibrations, and program heating profiles. The arrow keys also control the operations of the Over
Temperature Limit system (OTL).
Figure 4: Temperature Controller
The EZ1 button is used to quick launch Profile 1 or abort any running heating profile (see the
Programmed Operations section on page 27). The EZ2 button does not have a function in the
SMO5CR-2.
The green advance button is used to scroll forward through menus and parameters lists.
The reset button is used to scroll the display back to a previous page or menu while programing
heating profiles. Pressing the reset button repeatedly returns the display to the home page.
Note: On some older Watlow Controllers the Reset button may be labeled with an infinite ∞symbol
rather than RESET.
A small flashing “2” toward the center bottom of the display indicates when the controller is
powering the oven’s heating elements. A small flashing “1” indicates internal communications
functions within the controller.

16 | Page
CONTROL PANEL OVERVIEW
Vent Valves
The SMO5CR-2 comes provided with two vent valve controls on its front control panel. These open
or close the intake and exhaust valves located on the top of the unit.

17 | Page
OPERATION
Safe operation of the oven is dependent on the actions and behavior of the oven operators.
Operating personnel must read and understand the Operating Precautions in this section prior to
operating the oven. The operators must follow these instructions to prevent injuries and to
safeguard their health, environment, and the materials being treated in the oven, as well as to
prevent damage to the oven. Failure to adhere to the Safety Guidelines and Operating Cautions,
deliberately or through error, is a hazardous behavior on the part of the operator.
Le fonctionnement sûr du four dépend des actions et du comportement des opérateurs du four. Le
personnel d'exploitation doit lire et comprendre les consignes de sécurité et les précautions
d'utilisation de cette section avant d'utiliser le four. Les opérateurs doivent suivre ces instructions
pour prévenir les blessures et protéger leur santé, leur environnement et les matériaux traités dans
le four, ainsi que pour éviter d'endommager le four. Le non-respect des consignes de sécurité et
des précautions d'utilisation, délibérément ou par erreur, est un comportement dangereux de la part
de l'opérateur.
OPERATING PRECAUTIONS
•Do not use this oven in unsafe improper applications that produce flammable or
combustible gasses, vapors, liquids, or fuel-air mixtures in quantities that can become
potentially explosive.
•Outgassed byproducts may be hazardous to or noxious for operating personnel. Exhaust
should be vented to a location outside the workspace in a safe manner in accordance with
all applicable laws, ordinances, and regulations. Do not operate the oven in an unsafe area
with noxious fumes.
•Do not use this oven for applications heating hazardous fibers or dust. These items can
become airborne and come into contact with hot surfaces.
•Individual ovens are not rated to be explosion proof. Follow all building certification
requirements and laws for Class I, II, or III locations as defined by the US National Electric
Code.
•The bottom surface of the chamber should not be used as a work surface. It runs hotter
than the shelf temperatures. Never place samples or product on the oven chamber floor.
•Do not place sealed or filled containers in the oven. These may burst open when heated.
•Do not place alcohol or mercury thermometers in the oven. These devices may rupture
under heat or other improper uses.
•Do not move the oven until it has finished cooling.
Warning: The vent dampers may be hot to the touch. These areas are marked with Hot Surface labels.
Proper PPE should be employed to minimize risk to burn.
Avertissement: Les clapets d'aération peuvent être chauds au toucher. Ces zones sont marqués avec des
étiquettes de Surface chaude. Les EPI approprié devraient être employée pour réduire au minimum le
risque de brûler.

18 | Page
OPERATION
THEORY OF OPERATIONS
To achieve the oven’s stated operation specs, the vents must be fully closed. Operating the oven
with the vents open impacts the oven chamber temperature uniformity and stability. This may or
may not speed drying rates, depending on the nature of your samples or product. During normal
operations the vents are intended to be opened only while the product or samples are cooling.
Running the oven with an active power exhaust blower attached to the exhaust vent will reduce the
oven chamber temperature.
Heating
The oven runs in either manual mode or an automatic heating profile. The oven comes from the
factory set to run in manual mode. When powered and running in manual mode, the SMO oven
chamber heats to and then indefinitely maintains the temperature set point shown on the home
page of the controller. The manual mode set point can be adjusted by the end-user using the Up
and Down temperature buttons. The oven will not heat if the temperature set point is set below its
operational temperature range.
When the oven is powered, the chamber air temperature cannot go below the ambient room
temperature plus the internal waste heat of the oven. Waste heat is generated primarily by the
operation of the air-circulating blower fan motor and the resulting air compression in the duct
spaces. In practice the temperature floor is ambient +15°C.
The oven heater controller (a Watlow EZ digital controller) stores the user-selected temperature set
point, along with any user-programed heating profiles. The controller monitors the oven chamber air
temperature using a solid-state probe located in the airstream on the right wall of the chamber.
When the processor detects that the chamber temperature has dropped below the current
temperature set point, it pulses power to a heating element in a recirculation air duct located above
the oven chamber.
The controller employs proportional-integral-derivative analytical feedback-loop functions when
measuring and controlling the chamber air temperature levels. PID-controlled heating pulse
intensities and lengths are proportional to the difference between the measured chamber
temperature and the current set point. The frequency of pulses are derived from the rate of change
in the difference. The integral function slows the rate of pulses when the temperature nears the set
point to avoid overshooting.
SMO ovens rely on natural heat radiation for cooling. The oven depends on the operation of its
blower fan to circulate air and maintain temperature uniformity and stability in the chamber.
The heating rates given in unit specification section of this manual are for a 25°C environment. The
ambient temperature of the workspace around the oven will affect heating and cooling.

19 | Page
OPERATION
Heating Profiles
The Watlow controller can store up to four heating profiles, each with ten steps. Please see the
Programed Operations section on page 27, and the Watlow EZ-Zone Profile Programing Guide
for more details. A profile can be launched whenever the unit is running in manual mode. Heating
profiles should allow adequate time for the oven chamber to heat to the first temperature in the
profile, prior to continuing to the second step of the profile.
Airflow and Applications
During normal operations an internal blower fan motor pulls air out of the oven chamber through
perforations on the left chamber wall. The captured air is pulled up and blown across a heating
element in the recirculation duct immediately above the chamber, then forced down through a duct
on the right side of the chamber. The air exits the duct through the HEPA filter mounted on the right
chamber wall. Upon leaving the filter, the heated air blows horizontally across the shelf space,
helping to create temperature uniformity and enhance drying. After crossing the shelves, the air
enters a duct on the left side of the chamber, and is then pulled back into the heater space above
the oven chamber.
If either or both the intake and exhaust vents are opened, air will exit through the open exhaust vent
on the top right of the unit. Lost air will be replaced through the intake vent. The rate of atmosphere
exchange depends on several variable factors. These include: ambient conditions, position of the
vent valves, the volume of material in the oven chamber, and if a power exhaust unit is connected
to the exhaust vent.
A gas in port is located on the back of the unit. This port can be connected to a nitrogen (N2) source
or other inert gas source for purging the oven chamber during baking applications.
Over Temperature Limit
The Watlow controller contains a backup temperature control system with independent circuitry.
This system connects to a redundant temperature sensor probe inside the oven chamber. The over
temperature heating cutoff system is intended to be set 5°C above your application or process
temperature set point. In the event the oven chamber temperature exceeds the over temperature
limit setting, the backup system will depower the heating element. This provides redundant heating
control the event of a failure of the primary circuitry or the main temperature sensor probe.

20 | Page
OPERATION
PREPARING THE OVEN FOR USE
Preform the following steps to prepare the oven for use after installing it in a new workspace environment.
Note that it will take approximately 13 hours to run the bur-in procedure for the HEPA filter.
Optional: If you will be performing a temperature display accuracy verification as part of your set up,
Sheldon Manufacturing recommends introducing the temperature probe of your temperature reference
device into the oven chamber now, prior to powering the oven. Please see the procedure (page 24) for
probe placement instructions. Placing the probe now offers significant times savings during the
procedure. The probe must be rated for the temperature you will be running the oven at during the burn-in
(see page 20).
1. Open the intake and the exhaust vents on the oven to prepare for the initial burn-in
procedure.
2. Place the Power Switch in the ON position. The Temperature Display will
illuminate, then show the controller home page.
3. Set up the oven for use by carrying out the following procedures found in this
manual’s Operation section:
a. Set the Over Temperature Limit to 325°C (page 21)
Set to the control’s maximum setting in order to prevent it from
interfering with the next three procedures.
b. HEPA Filter Burn-In (page 22)
Set the Temperature Controller Set Point to 125°C to start running the
Burn-In procedure manually (page 21).
– Or –
Program a heating profile to automatically run the Burn-In. See pages 23
and 27, as well as the Programing Guide – Watlow EZ-Zone Controller
Heating Profiles, which came with the oven.
c. Optional: Perform a Temperature Display Accuracy Verification (page. 24)
d. Set the Temperature Controller Set Point on the home page to your
application temperature, if you will be running the oven in its manual mode
(page 21). Otherwise, program a heating profile (page 27).
e. Set the Over Temperature Limit (page. 21)
This time set the control to 5°C above your application manual mode
temperature or the highest temperature of your heating profile. This
prepares the oven for normal use.
f. Load the oven with your product or samples.
End of procedure
Home Page
Chamber Air
T
emperature in Red
Set Point in Green
