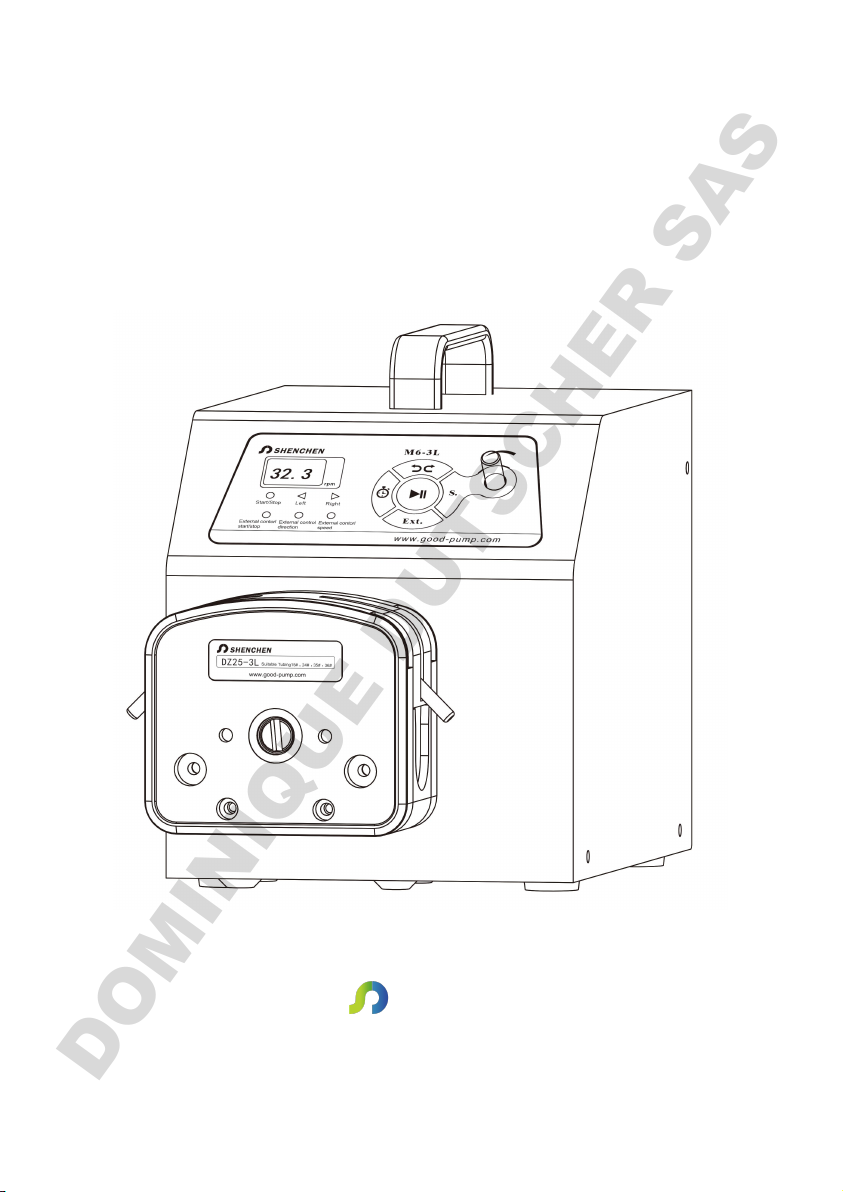

Shenchen Precision Pump M6 Series User manual

Shenchen Precision Pump
Manual of M6 Series
Baoding Shenchen Precision Pump Co., Ltd.
DOMINIQUE DUTSCHER SAS

Note:
Please read the instruction before operating the product.
Warning:
Tubing may have crack due to wear. It results in the overflow of fluid from
tubing. In that time human body and instruments may be hurt. Must check
usually and change tubing in time.
Please connect directly the power line to the wall socket, and avoid using the
extension electric line.
If power line or plug have wear and other damage, please unplug it.
If following situations happened, please turn off the pump, take off the power
plug.
1. Fluid splash on the pump.
2. You think the pump need to maintain or repair.
The user’s power socket must have ground wire, and have reliable grounding.
Note: The foot switch and other external control plugs must be installed and
removed in the power-off state to prevent the external control interface from
being burned.
DOMINIQUE DUTSCHER SAS

Catalog
1. M6 Series Product Instruction...................................................- 1 -
2. M6 Product Appearance............................................................ - 1 -
3. M6 Series Product Keypad Instruction..................................... - 2 -
4. M6 Series External Control Instruction.................................... - 4 -
5. M6 Series Technical Specifications.......................................... - 7 -
6. M6 Series Main Functions and Features...................................- 8 -
7. M6 Series Dimension Drawing................................................. - 8 -
8. Maintenance............................................................................ - 10 -
9. Warranty and After Sales Service............................................- 11 -
DOMINIQUE DUTSCHER SAS

Shenchen Pump M6 series
-1-
1. M6 Series Product Instruction
M6 series pump speed range is 0.1-600 rpm, flow rate range is 0.211~12000 ml/min.
Adjust speed manually or automatically through analog interface. Memory function,
storing the running parameters automatically. Timing test function, timing range:
0.5~999 seconds, convenient for calibration. It can support 7 different external
control modes.
2. M6 Product Appearance

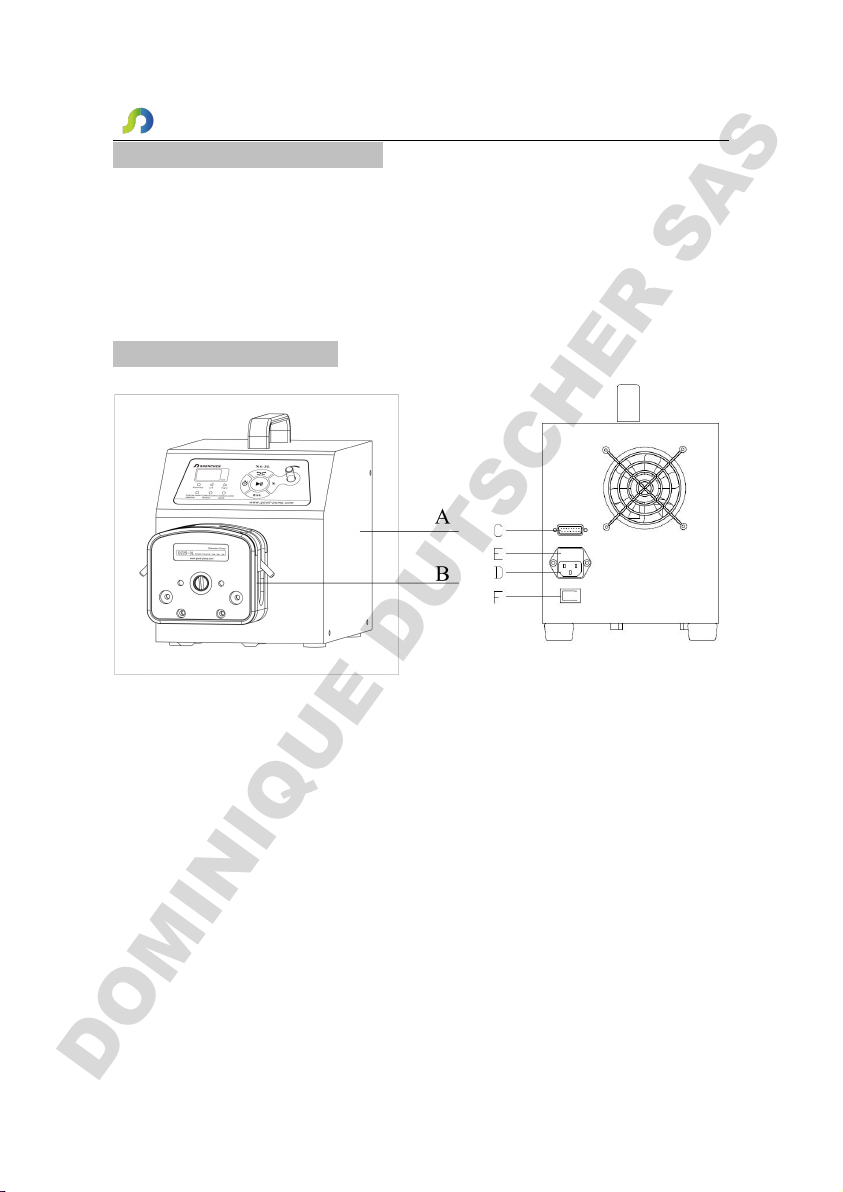

A- Drive
B- Pump head
C- External control interface
D- Power socket
E- Internal fuse
F- Power switch
DOMINIQUE DUTSCHER SAS

Shenchen Pump M6 series
-2-

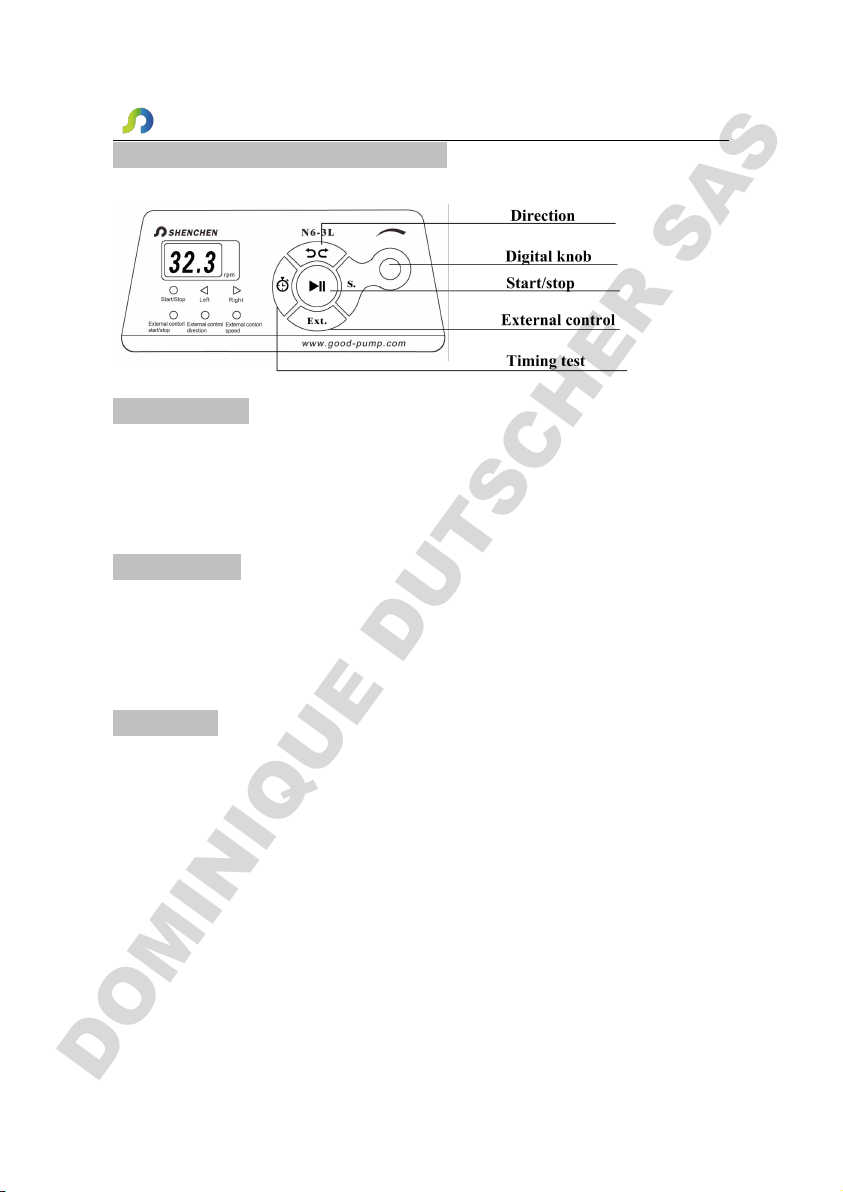

3. M6 Series Product Keypad Instruction
Start /stop button
Control the pump start and stop, press each time, the pump change working status
once. When the pump is running, the start/stop indicator is light on. When the pump
is stop, the start/stop indicator is light off.
Direction button
Control the pump working direction, press each time, the pump change working
direction once. When the pump is running left, the left indicator is light on. When the
pump is running right, the right indicator is light on.
Digital knob
①Turn it to adjust the motor speed.
②When the pump is stop, press this button, enter RS485 address setting interface,
the LED display start twinkle, now turn the knob to change address, press the knob
again to confirm and escape from this setting.
③In internal control mode, keep press this button, the pump running with full
speed, LED display ‘FULL’. Release the button, pump back to normal speed.
DOMINIQUE DUTSCHER SAS

Shenchen Pump M6 series
-3-
External control button
The external control mode button is enable only when the pump stop working. It
used for changing external control mode, total 7 different modes.
In internal control mode, the external control mode indicators all light off.
①Only external control start/stop mode: the external control start/stop indicator
light on, external control direction and speed indicators light off.
②Only external control direction mode: the external control direction indicator
light on, external control start/stop and speed indicators light off.
③Only external control speed mode: the external control speed indicator light on,
external control start/stop and direction indicators light off.
④External control start/stop and direction mode: the external control start/stop and
direction indicator light on, external control speed indicator light off.
⑤External control start/stop and speed mode: the external control start/stop and
speed indicator light on, external control direction indicator light off.
⑥External control direction and speed mode: the external control direction and
speed indicator light on, external control start/stop indicator light off.
⑦External control start/stop, direction and speed mode: the external control
start/stop, direction and speed indicators all light on.
Note: When external control indicator light on, the relative internal control
buttons can not be used.
Timing test button
Timing test button only working when the pump is in internal control mode and
when the pump is stop running. Keep press Timing test button more than 3 seconds
then enter the setting timing interface, turn the digital knob to adjust the time, time
range is 0.5s to 999s, when finish setting, press the timing button again, back to
motor speed display.In stop status, press the Timing test button, the pump will run
with current speed and the set test time, will stop automatically. This function usually
used for calibration or flow rate test. ( If press the star/stop button during the test, the
DOMINIQUE DUTSCHER SAS

Shenchen Pump M6 series
-4-
pump will stop running. Press the Timing test button again, the pump will
re-clock. )
In external control speed mode, press the Timing test button to switch external
control speed analog signal 0-5V, 0-10V, 4-20mA. ( Analog signal distinguished
according to different flashing frequency of external control speed control indicator:
0-5V always on, 0-10V flashes once every 1 second, 4-20mA flashes once every 0.3
seconds. )
4. M6 Series External Control Instruction
The 15 pin connector on the back of pump is for external control, the wiring
definition as below:
①Pin 1, 0-5V: Positive pole of external control motor speed signal, 0-5V terminal.
②Pin 2, WK-RUN/STOP: External control start/stop input port ( Passive signal:
Motor running in normal closed status, motor stop running in normal open status. )
③Pin 3, WK-DIRECT: External control motor running direction signal input port.
( Passive signal: Motor running in clockwise direction in normal closed status, motor
DOMINIQUE DUTSCHER SAS

Shenchen Pump M6 series
-5-
running in anticlockwise direction in normal open status. )
④Pin 9, WK-SPEED-: Connect with external control speed signal negative pole.
⑤Pin 10, 0-10V: Connect with external control speed signal positive pole, 0-10V
terminal.
⑥Pin 11, 4-20mA: Connect with external control motor speed signal positive pole,
4-20mA terminal.
⑦Pin 15, GND: Ground wire.
Note: 1. External control start/stop, direction signal all is passive signal.
2. The external control plug must be connected or disconnected when the power is
off to prevent the external control board from being burned.
DB15 external control port regular wire sequence as below:
RS232 Communication Pin Definition
①Pin 6, 232-T: The host computer sends data port, connect to DB-9 connector
Pin 3.
②Pin 7, 232-R: The host computer sends data port, connect to DB-9 connector
DOMINIQUE DUTSCHER SAS

Shenchen Pump M6 series
-6-
Pin 2.
③Pin 15. GND: Ground wire, connect to DB-9 connector Pin 5.
RS485 Communication Pin Definition
1Pin 4, 485-B-: 485 communication signal port, connect with 485 converter
B-.
2Pin 5, 485-A+: 485 communication signal port, connect with 485
converter A+.
Isolated External Control Pin Definition
1Pin 12, Active WK-RUN/STOP: Isolated external control start/stop signal
input port ( Active signal: 5-24V).
2Pin 13, Active WK-DIRECT: Isolated external control direction signal
input port ( Active signal: 5-24V).
3Pin 14, Active -GND: Isolated external control signal input ground wire.
Isolated External Control Wiring Diagram
Note: M6 series pump can connect with foot pedal or handling dispenser, please
contact with us if needed.
DOMINIQUE DUTSCHER SAS

Shenchen Pump M6 series
-7-
5. M6 Series Technical Specifications
Flow rate
accuracy
<±0.5%
Display
3 digital LED
Control
Mechanical
keypad
External control
Passive switch signal
Speed range
0.1-600rpm
Speed control
Rotary encoded knob
Speed
resolution
0.1rpm(0-100rpm)
1rpm(100-600rpm)
External speed
control signal
0-5V, 0-10V, 4-20mA
for option
Timing test
range
0.5-999s
Power supply
AC 220V±10%
50Hz/60Hz(standard)
AC 110V±10%
50Hz/60Hz(optional)
Condition
Temperature
0-40℃
Communication
RS232, Shenchen-N232
protocol,
RS485,Modbus protocol
IP rate
IP31
Relative
humidity
<80%
Power
consumption
M6-3L
<80W
M6-6L
<180W
M6-12L
<300W
Flow rate
range
M6-3L
0.211-3600ml/min
M6-6L
0.3-6000ml/min
M6-12L
0.00069-12L/min
DOMINIQUE DUTSCHER SAS

Shenchen Pump M6 series
-8-
6. M6 Series Main Functions and Features
Digital knob control speed manually or automatically through external
control interface.
Timing function, easy for calibration or test the flow rate.
Full speed for fast filling and emptying.
Support RS232 communication with Shenchen-N232 protocol.
RS485 communication with MODBUS protocol for optional.
Big torque, big flow rate, big suction and head distance.
Memory function, storing the running parameters automatically.
Good performance and low price.
7. M6 Series Dimension Drawing
( Unit: mm)

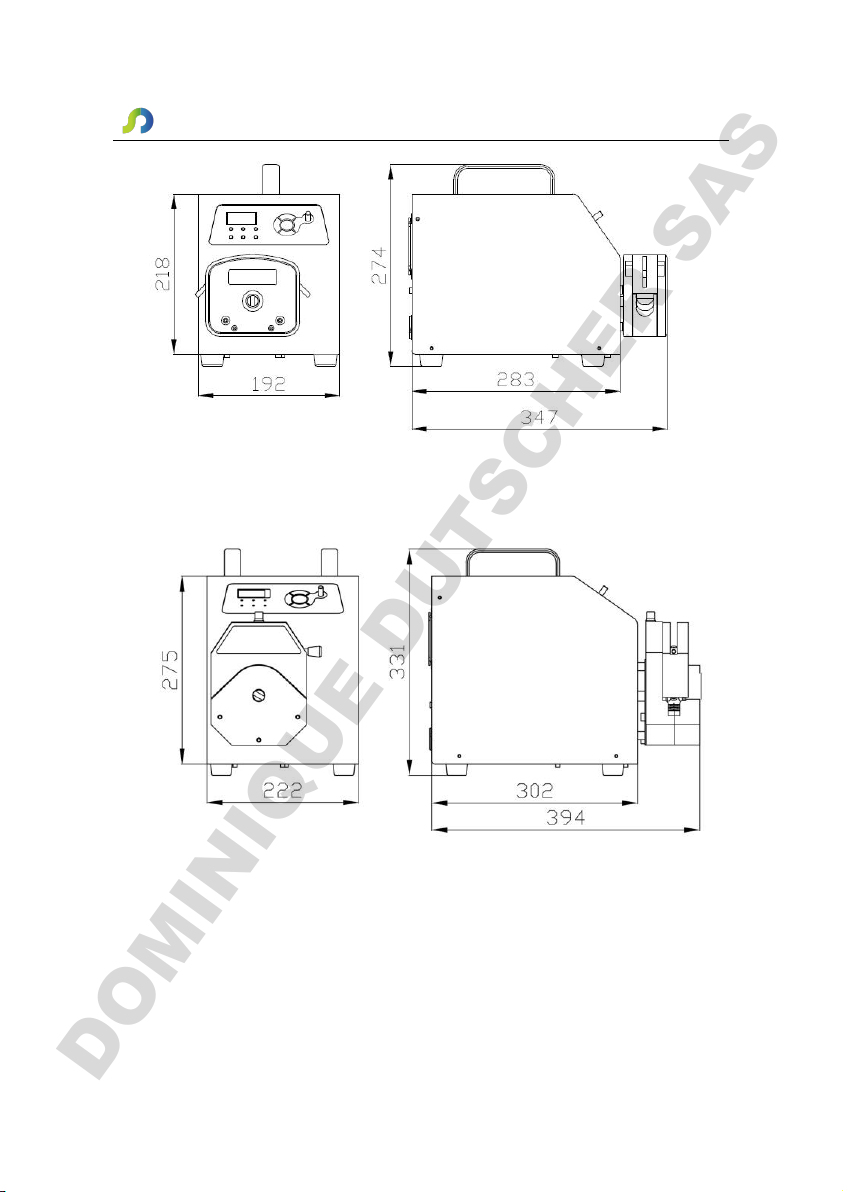

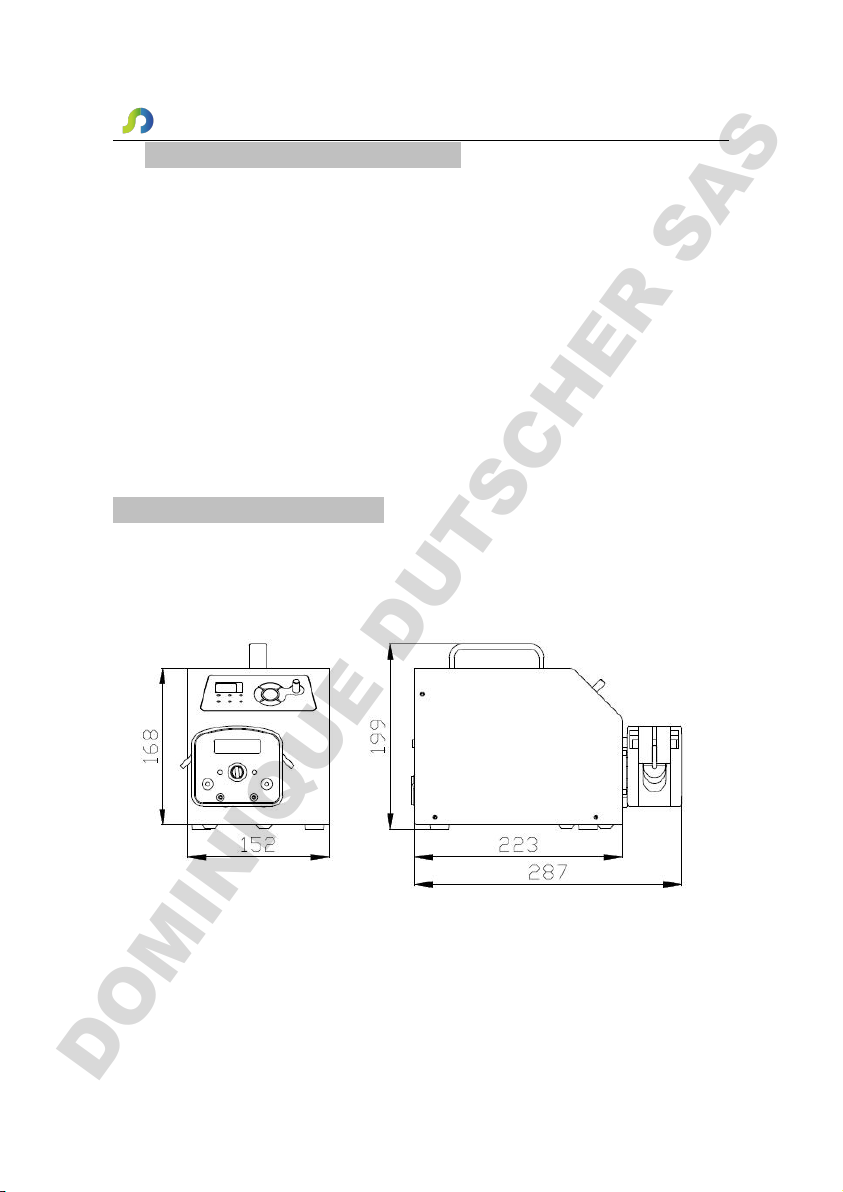

M6-3L Dimension Drawing:
M6-6L Dimension Drawing:
DOMINIQUE DUTSCHER SAS

Shenchen Pump M6 series
-9-
M6-12L Dimension Drawing:
DOMINIQUE DUTSCHER SAS

Shenchen Pump M6 series
- 10 -
8. Maintenance
When the pump is not working, loosen the tubing, avoid the tubing get plastic
deformation because of long time pressure.
The pump drive and pump head do not resist strong corrosive liquids, please
pay attention to this when use the pump.
Keep the pump head rollers clean and dry. If the rollers is not clean, it will
increase the tubing wearing, shorten the tubing life and make the rollers
damage very soon.
If there is liquid drop on the rollers, clean it as soon as possible.
DOMINIQUE DUTSCHER SAS

Shenchen Pump M6 series
- 11 -
9. Warranty and After Sales Service
We support three years warranty (do not include tubing). During the warranty, the
pump is damaged by wrong operation or man-made sabotage, our company do not
responsible for warranty. If the product out of warranty, we only charge cost for the
replacement parts and shipping cost.
DOMINIQUE DUTSCHER SAS

Shenchen Pump M6 series
- 12 -
DOMINIQUE DUTSCHER SAS

MADE IN CHINA
Baoding Shenchen Precision Pump Co., Ltd.
Address: No.103, Building 2, Zhidian Industrial Park, FuXing East Road 999,
Baoding, China. 071000
Tel: [phone]
Fax: [phone]
Website: www.good-pump.com
Email: [email protected]
