Shenchen Precision Pump V6-12L Series User manual

Shenchen Peristaltic Pump
Manual of V6-12L Series

Important Information
➢Please read the manual carefully before operating the product.
Warning
➢Tubing may have cracks due to wear. It results in the overflow of
fluid from tubing. In that time human body and instruments may be
damaged. Therefor user must check frequently and change tubing
in time.
➢Connect the power line directly to the wall socket and avoid using as
extension electric cable.
➢If the power line or plug have wear and other damage, please hold
the plug to unplug it, do not hold the line.
➢If following situations happens, please turn off the electric power
and unplug the plug, holding the plug and not the line.
1. Fluid splash on the pump.
2. You think the pump needs to be maintained or amended.
➢The users power socket must have ground wire, and have reliable
grounding.

Catalogue
V6-12L Series Product Introduction:.................................. - 1 -
V6-12L Series Product Appearance................................... - 1 -
V6-12LSeries Keyboard Instruction................................... - 2 -
V6-12L Series Operation Interface Structure:.................... - 3 -
V6-12L Series Operation Interface Instruction................... - 3 -
V6-12L Series Technical Specification............................. - 16 -
V6-12L Series Function and Features............................. - 16 -
External Control Interface Instruction：........................... - 18 -
Product Dimension (mm):................................................ - 22 -
Maintenance..................................................................... - 23 -
Warranty and After Service.............................................. - 24 -

Shenchen Peristaltic Pump V6-12L Series
- 1 -
V6-12L Series Product Introduction
4.3-inch color touch screen control; dynamic display of working status; flow
data, set parameters and system settings displays in the same screen.
Intelligent calibration and online micro adjusting function; three measurement
modes; fixed volume measurement, fixed time and volume, timed start and
stop.
It can load YZ35 pump head. It is the ideal choice for industrial production
and equipment supporting.

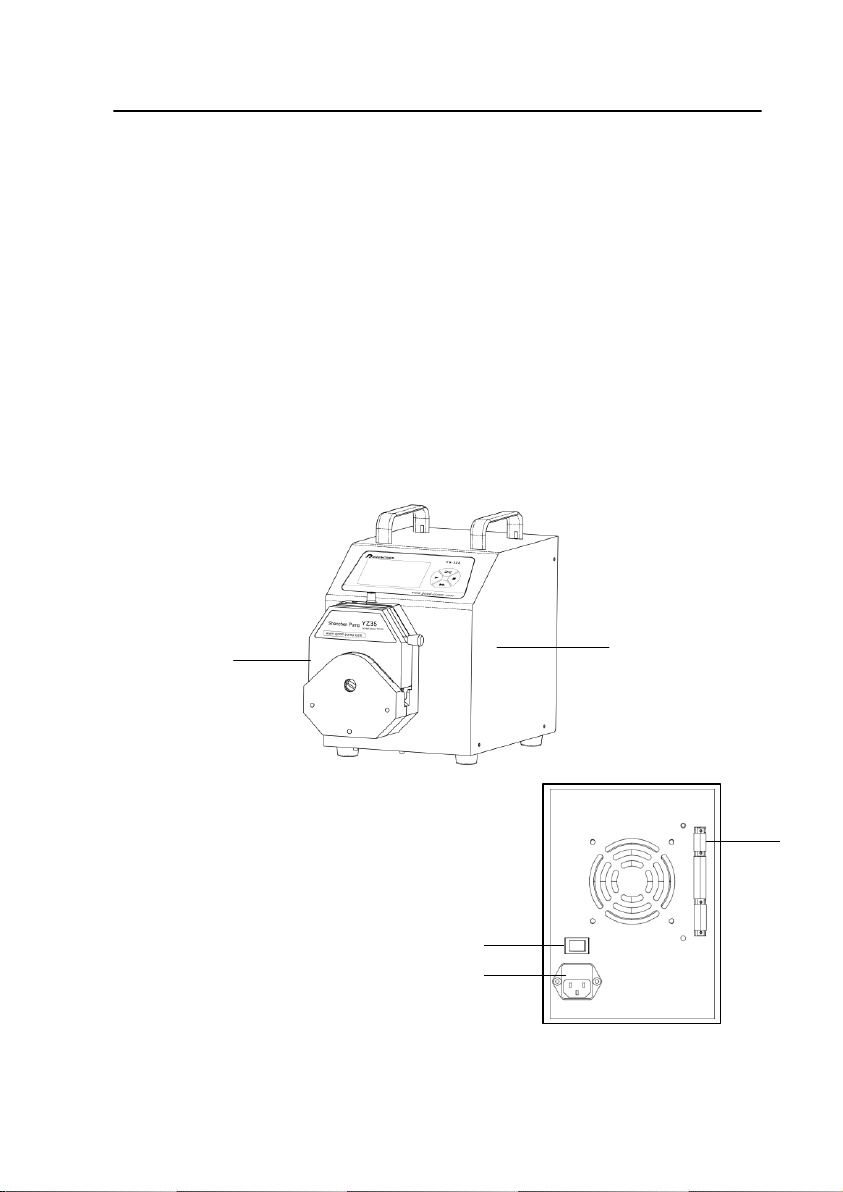

V6-12L Series Product Appearance
AB
A - Pump Head
B - Drive
C - Power Switch
D - Power Port
E - External Control Input Port
C
D
E

Shenchen Peristaltic Pump V6-12L Series
- 2 -

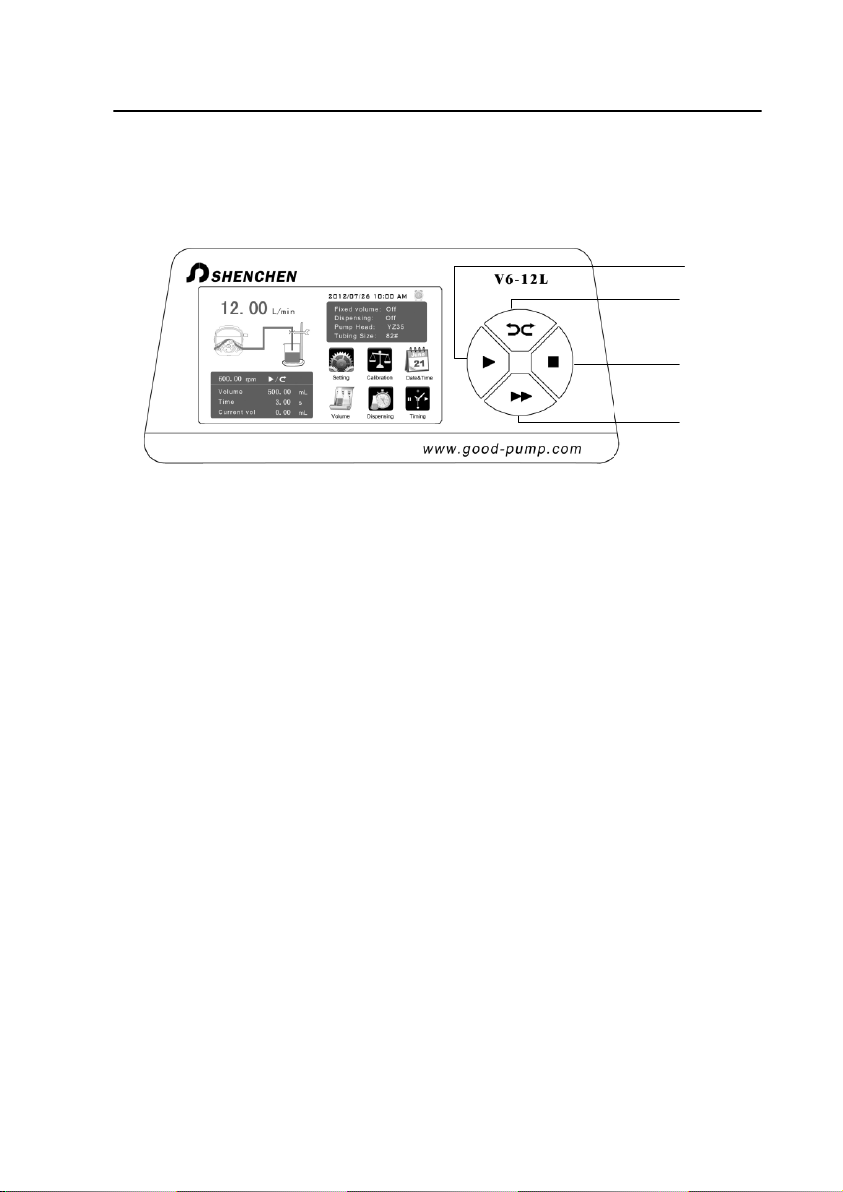

V6-12L Series Keyboard Instruction
Stop button
Full
CW/CCW
Start
Stop Button: Press stop button, stop working. Forbidden buttons can be
used on the main interface.
Full Speed Button: When in stopped state or transferring state, press this
button, the pump will run with highest speed. This button can be used for
washing the tube or filling liquid fast.
CW/CCW Button: Press this button, the motor will change running direction.
When the is pump working with fixed volume measurement function or fixed
time and volume function, this button does not work.
Start Button: Press this button, the motor starts running. When fixed volume
measurement function or fixed time and volume function turn on, press this
button, the pump will start work with the function.

Shenchen Peristaltic Pump V6-12L Series
- 3 -
V6-12L Series Operation Interface Structure
V6-12L Series Operation Interface Instruction
1. Boot Interface
After powering on the system, you enter the welcome interface where you
choose system language, Chinese/English. If you do not choose, it will enter
the English main interface automatically after 2.5 seconds.
2. Main Interface
Main Interface composition as below:
Volume 0.00 ml
Time 0.00 s
Current 0.00 ml
Fixed volume Off
Dispensing Off
Pump Head YZ35x
Tubing Size 82#
/F
KJI
G H
Setting Calibration Date&Time
Volume TimingDispensing
12.00 L/min
600.00 rpm
2013-11-15 8:45:05 AM
C B A DE

Shenchen Peristaltic Pump V6-12L Series
- 4 -
Speed/Flow Rate Display: In flow rate mode, the current set flow rate is
displayed, the motor speed is displayed in the C frame.
In rotating speed mode, the current set speed is displayed, the flow rate is
displayed in the C frame. Click A to change the flow rate or speed. When
fixed time and volume function turn on, A is forbidden, and it is not allowed to
change the flow rate or speed.
Real-time Dynamic Display: Display the current running state.
Real-time Parameter Display: Display the current running state and set up
parameters. When fixed volume measurement is turned on, it display the
fixed volume measurement parameter; when fixed time and volume function
is turned on, it display the fixed time and volume parameter. When these two
functions are turned off, all displayed parameters are 0.
Set Parameter Display: Display the fixed volume measurement, fixed time
and volume state information, the model of pump head and tube size.
Date and Time Display: Display the current data and time, you can change
it in the system setting. When it display an alarm clock on the right side, it
means the timer start and stop function is turned on.
System Setting Button: Click this button to set up other parameters.
Flow Calibration Button: Click this button to enter the flow rate calibration
interface.
Date & Time Button: Click this button to enter the set up of the current date
and time interface.
Fixed Volume Measurement Button: Click this button to enter the fixed
volume measurement interface.
Fixed Time and Volume Button: Click this button to enter fixed time and
volume interface.
Timer Start and Stop Button: Click this button to enter timer start and stop
interface.

Shenchen Peristaltic Pump V6-12L Series
- 5 -
3. Numeric Keypad Input Interface
Numeric keypad input interface as below:
Flow mL/min
800.00
7 8 9 Unit
4
1
5
2
6
3
.
0
ESC
ENT
Input information
display Input data display Display unit
Unit：Unit switch
Clr：Clear input
Input digital area
Backspace
Return
Confirm
Input Information Display: The information displayed is the current
operation object.
Input Data Display: Display the current input data, range is 0.01-9999.
Unit Display: Display input units when input flow rate or volume.
Input Digital Area: Numeric keypad.
Unit/Clr Button: When you input flow rate or volume, this button is Unit
button, where you can choose different units. When it is Clr, you can clear
the current input data.
Backspace Button: Delete an input digital.
ESC Button: Cancel the current input, back to prev. interface.
ENT Button: Confirm the current input.

Shenchen Peristaltic Pump V6-12L Series
- 6 -
4. The Basic Configuration Interface:
The basic configuration interface:
Max:17.00 ml/sec
Min:28.33 ul/sec
YZ1515x
Pump Head Reference Flow Rate
25#
Tubing Size
OK Cancel
Flow Rate Rotation Speed
Click the pump head and tubing size to choose the pump head and tubing.
Reference flow rate display the max. and min. flow rate with the current
pump head and tubing.
Click the flow rate mode or rotating speed mode button to choose the
working mode. When you choose flow rate mode, the flow rate is adjustable,
the speed will change with the flow rate. When you choose rotating speed
mode, the speed is adjustable, the flow rate will change with the rotating
speed. Click the confirm button back to the main interface.
5. Back Suction Angle Interface:
The back suction angle interface as below:
Click the Setting button in the main interface, then click Suck-Back button to

Shenchen Peristaltic Pump V6-12L Series
- 7 -
enter the back suction angle setting interface. Click angle button, enter
suck-back angle then click ENT. This can set all suck-back angle when
motor stop running, except dispensing is ON.

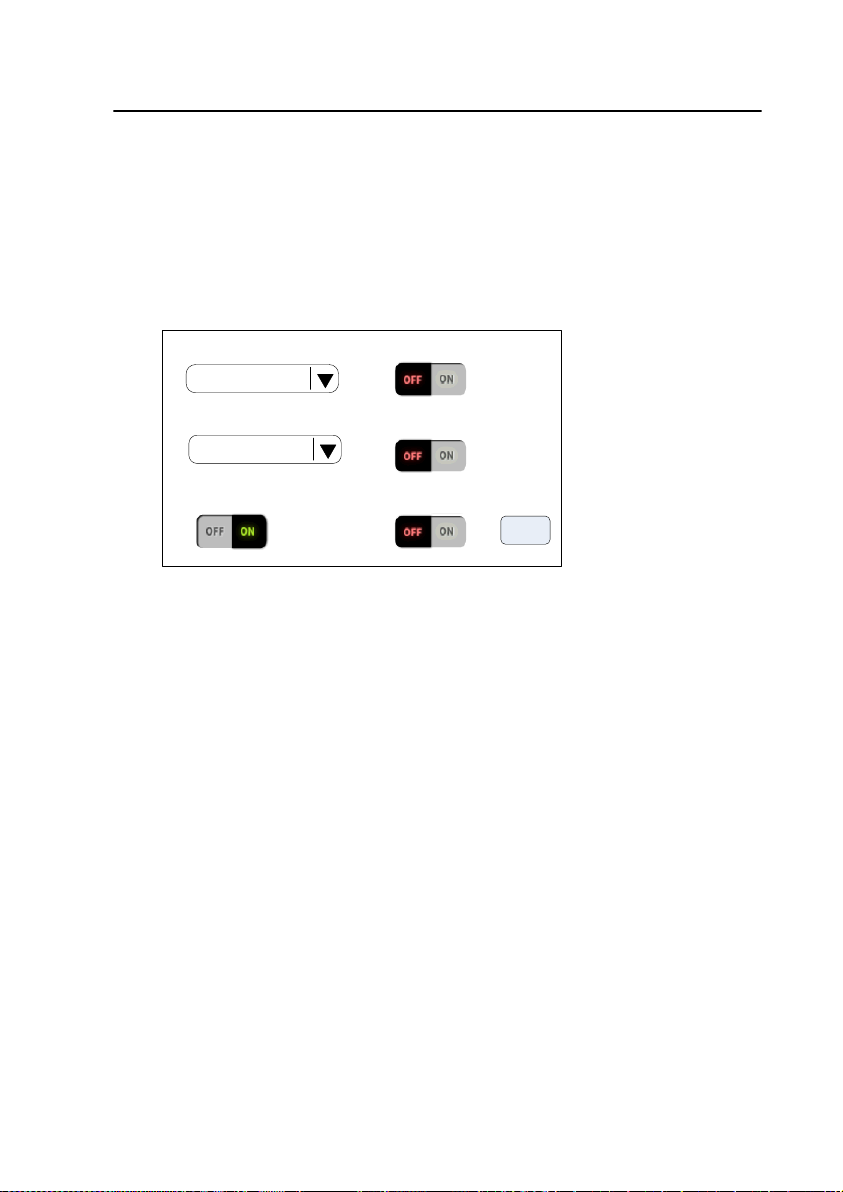

6. External Setting Interface:
External Setting Interface as below:
0-5V
Analog signal selection
OK
Foot switch setting
Ext.Speed
Pulse
External control signal Ext.Start/Stop
Ext.CW/CCW
Click Setting button in the main interface, then click External control to
enter External Control Settings interface.
A. According to the external port speed analog input signal to select
signal, 0-5V, 0-10V, 4-20mA analog signal three kinds of optional
analog signal.
voltage range and the motor speed is linear.
B. External control and commutation of the motor start-stop signal is
divided into two kinds: level mode and pulse mode.
Specific interface, see details in describes external control
interface.
C. Various independent external control mode setting switch work only
when the corresponding external control function is turned on.

Shenchen Peristaltic Pump V6-12L Series
- 8 -

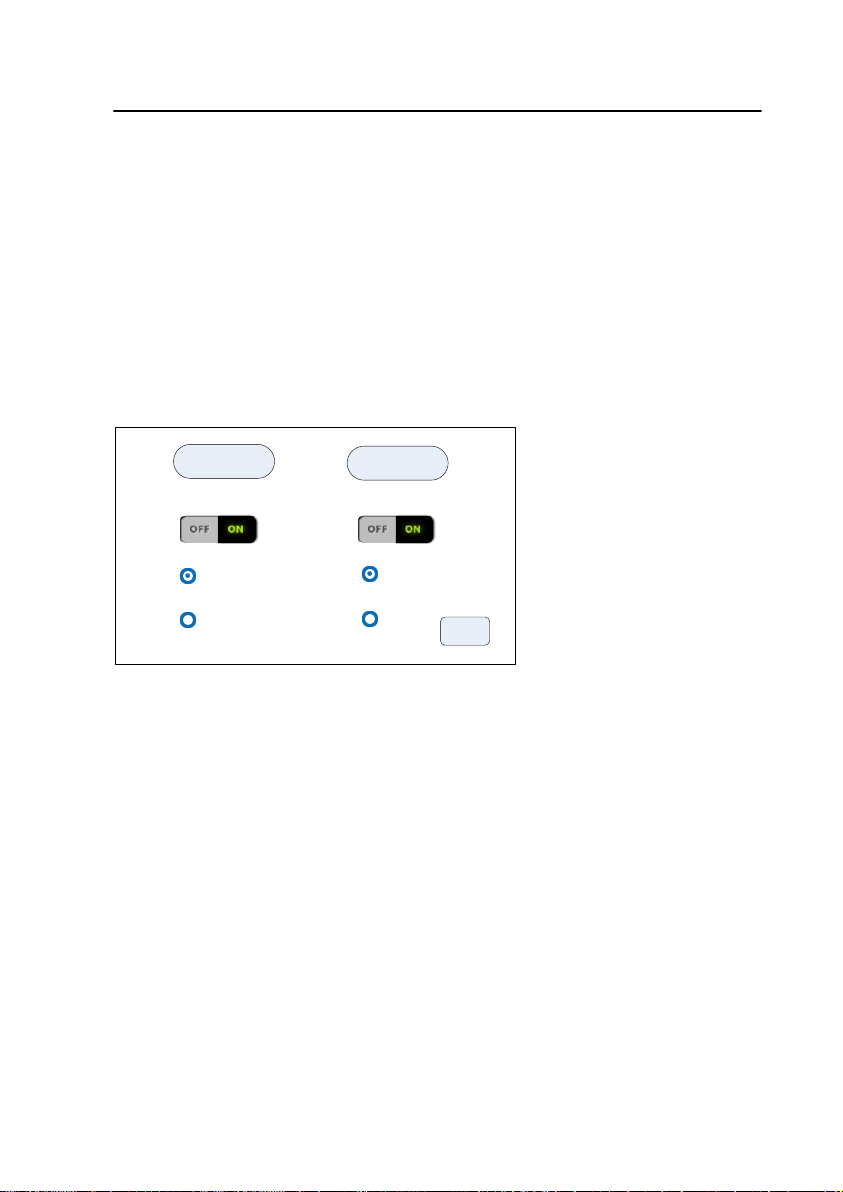

7. Communication Setting Interface
Communication Setting Interface as below:
9600
Set baud rate
OK
Slave No.
RS485
RS232/RS485 ON/OFF
01
Click Setting button in the main interface, then click Communication button
to enter Communications Settings interface.
This pump support MODBUS--RTU Mode. Please select baud rates and
communication interface (RS485/RS232). Click Slave No. button to enter
peristaltic pump address No. (range:1-32), select communication enable is
ON. Then this pump can be communication with master, receiving master
signal.
NOTE: Peristaltic pump only under communication control when in the main
interface, it is out of communication control when in another interface.
8. Flow Rate Calibration Interface
Flow Rate Calibration Interface as below:
10.00
1.00
0.0000ml +0.0000ml
Test
Volume
Run Time
Actual Vol. Volume adjust
ml
s
1.00
CAL
Cancel
Add
Dec
Esc
FixedVolume

Shenchen Peristaltic Pump V6-12L Series
- 9 -
The top left corner displays the function, when fixed volume measurement is
turned on, it displays fixed volume; when fixed time and volume turn on, it
displays fixed time and volume. Others display transferring mode.
If fixed time and volume turn on, the target volume and running time is set up
parameter, unable to amend. Other modes, the running time is 60s, you can
click the run time button to amend the running time.
Before the pump working, need to calibrate the flow rate to ensure the
transferring or dispensing accuracy.
Process as below:
A. Confirm the running time, if fixed time and volume function, the running
time is set up time, unable to change.
B. Click Start button to test, countdown display the run time, it will stop
automatically, and display numerical keyboard, input the actual volume,
then it will ask whether continue test (suggest more than 3 times), choose
Yes, the pump will test again, choose No, back to the calibration
interface.
C. After clicking the Start button, while the is pump running, you can click
the Stop button to stop the test.
D. After finishing the tests, the actual volume area display the average data,
click the CAL button, the calibration is finished. Now the request flow rate
or volume is close to theoretical data.
E. If request higher accuracy, you can click Add and Dec button to micro
adjust the flow rate, to reach high accuracy transferring and dispensing.
F. Click Cancel button, cancel the test data, the actual volume return to 0.
Online Micro Adjust Volume Process:
Flow Rate Transferring Mode: If the actual flow rate is bigger or smaller
than the set flow rate, you can micro adjust the flow rate online without
affecting the product line.

Shenchen Peristaltic Pump V6-12L Series
- 10 -
Fixed Time and Volume Mode: If the dispensing volume is bigger or smaller
than the set volume, you can micro adjust the volume online, there is no
need to stop the pump.
Fixed Volume Measurement Mode: Do not support online micro adjust
function.
1. Click the Calibration button from the main interface, enter the flow
rate calibration interface.
2. Now only the Add, Dec and Esc button is usable, other buttons are
forbidden.
3. Click Add or Decbutton to adjust the flow rate or volume.
9. Date & Time Interface:
Setting Date & Time Interface as below:
Back
12-hour
24-hour
Set Date
Set Time
2012-3-15
8:45:35 AM
Thursday
Click the System Setting button from the main interface, click Date and
Time button, enter date and time setting interface. The date and time will
display on the top right corner of main interface.
Click Set Date button, come out the Set year numeric keypad, the range of
the year is 1970-2099. After set up the year, then set the month and date.
Click Set Time button, come out the numeric keypad, set the hour, minute
and second.

Shenchen Peristaltic Pump V6-12L Series
- 11 -
10. Fixed Volume Measurement Interface:
Fixed Volume Measurement Interface as below:
Fixed volume function turned on,flow rate is 800.00mL/min
Finished need 0.75 minutes.
Fixed volume Volume
OK
600.00 mL
After turning on this function, the peristaltic pump will measure the volume
automatically, when the volume reach set up volume, the pump will stop
working automatically. The flow rate can be changed during the pump
working.
Click the Fixed Volume button, set ON to turn on this function. Click Set
Volume, to input volume, the unit can be mL or L, range is 0.01mL to 9999L.
The prompting frame display the needed time to finish the volume with set up
flow rate. The maximum time is 9999min, when more than 9999min, the
system will warn.
11. Dispensing Interface:
Dispensing Interface as below:
Fixed time and volume function turned off,flow rate is
600.00mL/min speedis 206.89 rpm
Dispensing Volume
OK
10.00 mL
Suct-Back
0.00 Run time
1.00 s
After turning on this function, the peristaltic pump will transfer a fixed volume

Shenchen Peristaltic Pump V6-12L Series
- 12 -
within a set time. This function can be used for one-time liquid dispensing.
Click the Start button again, start dispensing again.
Click Dispensing button, set ON to turn on this function. Click Set Volume to
input the volume, unit is mL. Click Suck-back angle,input the suck-back
angle, range is 0-360°. Click Run time, input working time. The prompting
frame display the flow rate and motor speed with the set parameters.
12. Timer Start and Stop Interface：
Timer Start and Stop Interface as below:
OK
StartTime OverTime
08:30:00 AM 05:30:00 PM
01:30:00 PM
Once
Custom
Once
Custom
This function can set the start and stop time. When the current time meet
the set time, the pump will start or stop automatically.
When fixed volume measurement or fixed time and volume function turn on,
the timer stop function is forbidden.

Shenchen Peristaltic Pump V6-12L Series
- 13 -
Main Functions Operation Process
1. Flow Rate Transferring Function
Boot into
the main
interface
If fixed volume
or dispensing
function turn on
Turn off fixed
volume or disp-
ensing function
YES
Click the setting button,
choose pump head and
tubing size, choose
working mode: Flow rate
Click the flow rate
display area,
input flow rate
Click the Calibra-
tion button, cali-
brate the flow rate
Back to the main inter-
face after finish the
calibration, click the
start key
During the pump working,
you can enter the calibr-
ation interface to micro
adjust the flow rate, impr-
ove the flow rate accuracy
Click here input flow rate
Display the
rotating speed
with thecurrent
flow rate
Display the
running state
and direction
NO
Note: Flow rate calibration process please refer the flow rate
calibration interface instruction.
2. Fixed Volume Measurement Function
Boot into the
main interface
Click the setting button,
choose pump head and
tubing size, choose
working mode: Flow rate
Back to the main
interface after finish
the calibration, click
the start key
The pump display the current flow
volume and running time, when the
flow volume reach set up value, the
pump will stop automatically. Click
the start key, start the volume
measurement again
Click the Volume button,
turn on the fixed volume
function, the volume range
is 0.01mL-9999L
The flow rate can be
changed during the pump
working, the measurement
accuracy will be lower
after change the flow rate
Click the flow rate
display area in main
interface, input flow
rate
Click the Calibration
button,the default
calibration time is 60s,
you can change it
before calibration
Display the
dynamic
working state
Display the
current rotating
speed and state
The set up volume
The current
running time
The volume has
been transferred
Click here input flow rate
Note: Flow rate calibration process please refer the flow rate calibration
interface instruction.

Shenchen Peristaltic Pump V6-12L Series
- 14 -
3. Dispensing
Boot into
the main
interface
Click the setting button,
choose pump head and
tubing size, choose
working mode: Flow rate
Click the Calibration
button, calibrate the set up
volume, the process refer
to the calibration interface
instruction
Back to the main inter-
face after finish
calibration, click start
key start working
The pump display the current
volume and countdown time,
when the time is out, the pump
stop working automatically,
click the start key, start next
dispensing
Click Dispensing button,
turn on the Dispensing
function, set the
parameters
The flow rate can be
adjust during the pump
working, improve the
accuracy
Display the
dynamic
working state
Display the
current rotating
speed and state
The set up volume
The current
countdown time
The volume has
been transferred
Note: Flow rate calibration process please refer the flow rate calibration
interface instruction.
4. Timer Start and Stop Function
Boot into
the main
interface
Click the setting
button, choose pump
head and tubing size,
choose working mode:
Flow rate mode During the pump working,
you also can set the start and
stop time. When fixed
volume or dispensing
function is turn on, the timer
stop function is forbidden
Click Timing button,
set the start time and
over time, set the
repeat times
On the top right corner of the
main interface, means the timer
start and stop function is turn
on, when reach the set up time,
the pump will start or stop
automatically
The timer start and stop
function is turn on
Under the flow rate transferring mode, set the pump start at 8:30 a.m. from
Monday to Friday, stop at 5:30 p.m., the process as below:

Shenchen Peristaltic Pump V6-12L Series
- 15 -
01:30:00 PM
Start time
Switch for the timer start
Over time
Switch for the timer stop
Timer stop repeat date
The current time
OK
StartTime OverTime
08:30:00 AM 05:30:00 PM
01:30:00 PM
Once
Custom
Once
Custom
Timer start repeat date
Click Start Time, set the start time is 8:30 a.m., turn the button to ON.
Click Custom, come out the repeat date window, as below:
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
OK
Timer stop setting process is same with the timer start.

Shenchen Peristaltic Pump V6-12L Series
- 16 -
V6-12L Series Technical Specification
Speed
range
0.1-600rpm
Power supply
AC220V±10%，50Hz/60Hz (standard)
AC110V±10%，50Hz/60Hz (optional)
Power
consumption
<300W
Speed
resolution
0.01rpm/min
Temperature
0-40℃
Flow rate
resolution
0.01ml
Relative humidity
<80%
Operation
mode
Touch screen and
membrane
keypad
Dimensions
(L*W*H)
302*222*275mm
Display
4.3 inch true color
display screen
Weight
13.54Kg
External
control
TTL level
Protection rating
IP31
V6-12L Series Function and Features
➢4.3 inch color touch screen control with dynamic display of working
status, the flow volume and motor speed display in the same
screen.
➢Intelligent calibration function where you can calibrate the flow rate
and dispensing volume to ensure the flow accuracy, suitable for
high accuracy transferring liquid.
➢On-line micro adjusting function lets you adjust the flow rate during
production progress, to avoid filling errors because of tubing fatigue
and decreased elasticity.
➢Accurate angle control technology, reach high precision dispensing
and measurement.
➢Fixed volume measurement function: After turning on this function,
the peristaltic pump will measure the liquid volume automatically, it
will stop automatically after the volume reaches the set value.

Shenchen Peristaltic Pump V6-12L Series
- 17 -
During this process, the volume can be changed. It is suitable for
laboratory liquid dosing and chemical reaction process.
➢Fixed time and volume function: After turning on this function, the
peristaltic pump will transfer a fixed volume within a set time. It is
suitable for liquid dispensing in laboratory and industrial production.
➢Timed start and stop function: Can set the pump start and stop time
freely to reach automation control.
➢Load-shedding memory function, stores the running parameters in
time, safe and reliable.
➢Fast fluid-filling function, that can wash the tubing and fill fluid in the
tubing.
➢High torque and low power loss, it can load several pump heads or
multichannel pump head to meet different application requests.
➢External control of start and stop, which is convenient for equipment
support.
➢304 stainless steel housing, resist corrosion, no rust.
