Shenzhen Chang Guang technology CG100-III User manual

CG100 Programmer III
Users manual
Hardware type：
CG100-III
BDM+4
Reading carefully before working on.

Catalogue
I. CG100 useser manual------------------------------------------------4
Ii Hardware equipment introduction------------------------------5
1) USB wiring、12V Adaptor、12P wiring------------------------5
2) Main board-----------------------------------------------------------6
3) BDM+4 Adaptor--------------------------------------------------7
4) CANA Adaptor--------------------------------------------------8
5) KEYA Adaptor---------------------------------------------------8
6) ATMEGA Adaptor board------------------------------------------9
7) ATMEGA Adaptor-------------------------------------------------10
II.Softerware drive diagram--------------------------------------------12
III.Difference between basic version and full version---------------------20
IIII. Function and operatin instance explain--------------------------22
1) 9S adjust table---------------------------------------------------22
2) ATMEL adjust table---------------------------------------------29
3) airbag repair-------------------------------------------------------36
4) ECU repair--------------------------------------------------------42
5) Body computer--------------------------------------------------51
6) General programmer-------------------------------------------60
7) auto power amplifier-------------------------------------------61
8) systerm reset----------------------------------------------------69
9) other function----------------------------------------------------70

10)MB91 adjust table-------------------------------------------------79
11)M35080-----------------------------------------------------------87
12)Anise chip---------------------------------------------------------92
IIV. Be attention--------------------------------------------------------104
IIIV.manufacturer------------------------------------------------------105
CG100 User manual
Dear all valuable customer,Before using our
products, its very pleased to appreciate to your support
and trust on our products. next ,we’d like to explain the
function and using of CG100 for you. and then it could
be helping you to solve any question when you re
working on . CG100 divided two parts.Hardware
equipment and software driver. Hardware equipment is
including USB line ,Power supply, main machine, BDM
adapter, ATMEGA board, CAN board, welding
line ,providing freely repair in full long term time, in
case of using stable for all customer. Software driver
need to download in our website, which should be
according to the model of BDM adapter in your hand.
What’s more ,software driver freely upgrade for all
CG100 user.

The main machine of CG100 also divided two
parts basic function version and full function BMW
version,what difference is one with ‘ECU repair’ and
another without. its essential function of connecting
between them which not replaced .one side in the main
machine to connect USB line and power supply , Other
side ,connecting BDM adapter, the data readed out from
BDM adapter can be converting ,displaying on the
software, which can write and save.
II、Hardware equipment introduction
1．USB wiring、adaptor、12P wiring

Its very essential not be replaced 12V adpator and
USB wiring can be working normally when connect the
computer software driver and electrify, But you should
be more attention to check the Interface if is loose or not
after you working on it in long time；12P Welding line is
consists of 12 piece line,and Each line has a
corresponding number connecting BDM adapter and
debug computer.You need to weld according to the
wiring diagram in the software driver , otherwise will

appear as can't find the error of the chip
2．Main board
The main machine of CG100 also divided two parts
basic function version and full function BMW
version,what difference is one volkswagen, BMW,
Bentley with ‘ECU repair’and another without. its
essential function of connecting between them which not
replaced .one side in the main machine to connect USB
line and power supply , Other side ,connecting BDM
adapter, the data readed out from BDM adapter can be
converting ,displaying on the software, which can write

and save
3．BDM+4 Adaptor
As you known,it’s very popular for BDM+4 adapter
in the mainstream market.divided BDM+3 and BDM+4
function same ,but version difference.the version of
BDM+4 is advanced than BDM+3, which its will be
much more convenient between the speed of reading and
accuracy of writing the data.It also support much of the
model of car and CPU. At present ,its our mainly
introduce BDM+4 to our customer. Which there are no
new version come out .BDM adapter mainly use to the
chip of RENESAS、INFINEON、ST、MOTOROLA、
ATMEL NEC.it both can be working smoothly to meet
customer’s demand either Instrument air bags or Body
computer auto power amplifier.

4．CAN Adapter
CAN board.It only can be used when you open the”
ECU repair ”or full function version,the function and
user method is the same as the BDM adapter and
ATMEGA board. the three almost same.bu t, its not
completely different between the chip and places of
Appli cation .better to refer to equipment detailed
parameters, in case of mistake abnormally .
5．KEY Adapter

KEY adapter support all kinds of cars key to be matched
for users with full version of CG100 ，providing freely
KEY adaptor，which can be match CAS3 CAS3+ CAS4
CAS4+ calculate ISN code，analysi CAS data right or
6.ATMEGA Adaptor board
ATMEGA board mainly use to the chip instrument of
ATMEGA，it s same function and using method as BDM
adapter. we suggest the customer better to find standby

chip to test before using, In case of original data
damaged .
7.ATMEGA adapter
ATMEGA Adapter function
35080:M35080DQ080.M35080DQ160.M35080.3/6.M35080
V6/VP(5seconds to finish era and directly tune number of
kilometers）
ATMEGA parallel:
MEGA8L.MEGA48.MEGA88.MEGA16.MEGA32.MEGA169(
Can finish erase ATMEGA8L used in second time)
24 series：
24C01 24C01A 24C01B 24C02 24C02B 24C04 24C08 24C16
24C32 24C64 24C128 24C256 24LC01A 24LC02 24LC04

25 series：
25010 25020 25040 25080 25160 25320 25640 25128 25256
93 series:
93A86 93C46 93C56 93C57 93C66 93C76 93C86 93CS56
93CS66 93LC46 93LC56 93LC66 93LC76 93LC86 93S56
95 series：
95010 95020 95040 95080 95160 95320 95640 95128 95256
X series：
X5043
Parallel FLASH:
AMD:AM29BL802D(can remove Faw DLXMT34 anti-theft）
Note:ATMEGA adapter not include promotion
price,need to buy sperately if you need or not.
III. Software driver diagram

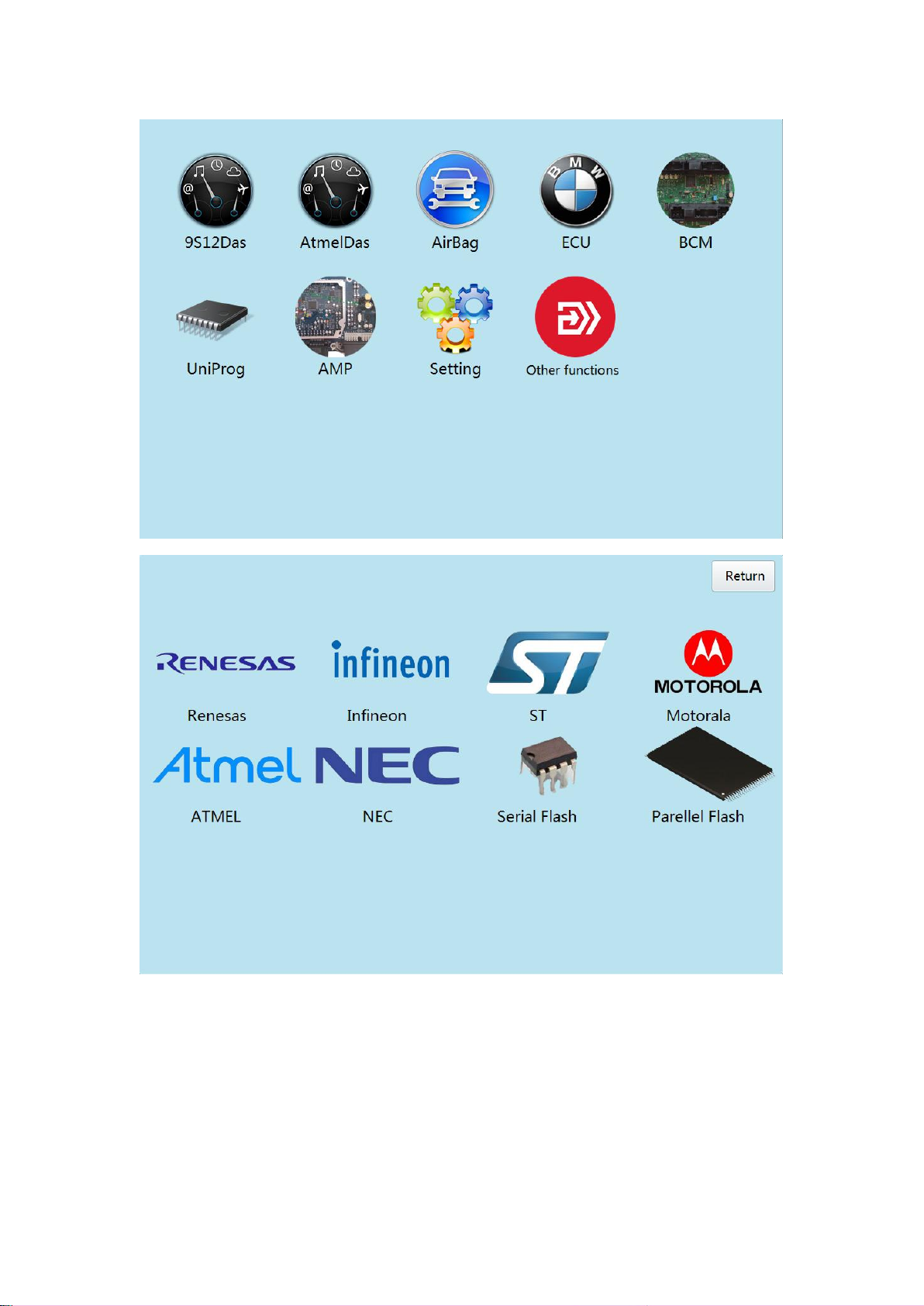

1．CG100 interface

2．Information showed
3．CG100-III

4．MB91 adjust table

5．M35080
6．Anise chip

7.BMW CAS1&CAS2
8.BMW CAS3

9.BMW CAS4

10.Land rover key
IIII.distinction between basic version and
full version
1.distinction function:“V.W、 BMW、 Bentley of ECU repair”and
“BMWCAS1&2、 BMW CAS3、 BMW CAS4、 Land rover key of
CG100 starter”
2.software showed：
Standard version ：

Full version ：

Note：if u bought basic version before，then want to
upgrade into full version later.its OK .it will be
provided hardware testing in advance .pls contact
directly with technical support from manufacturer .
