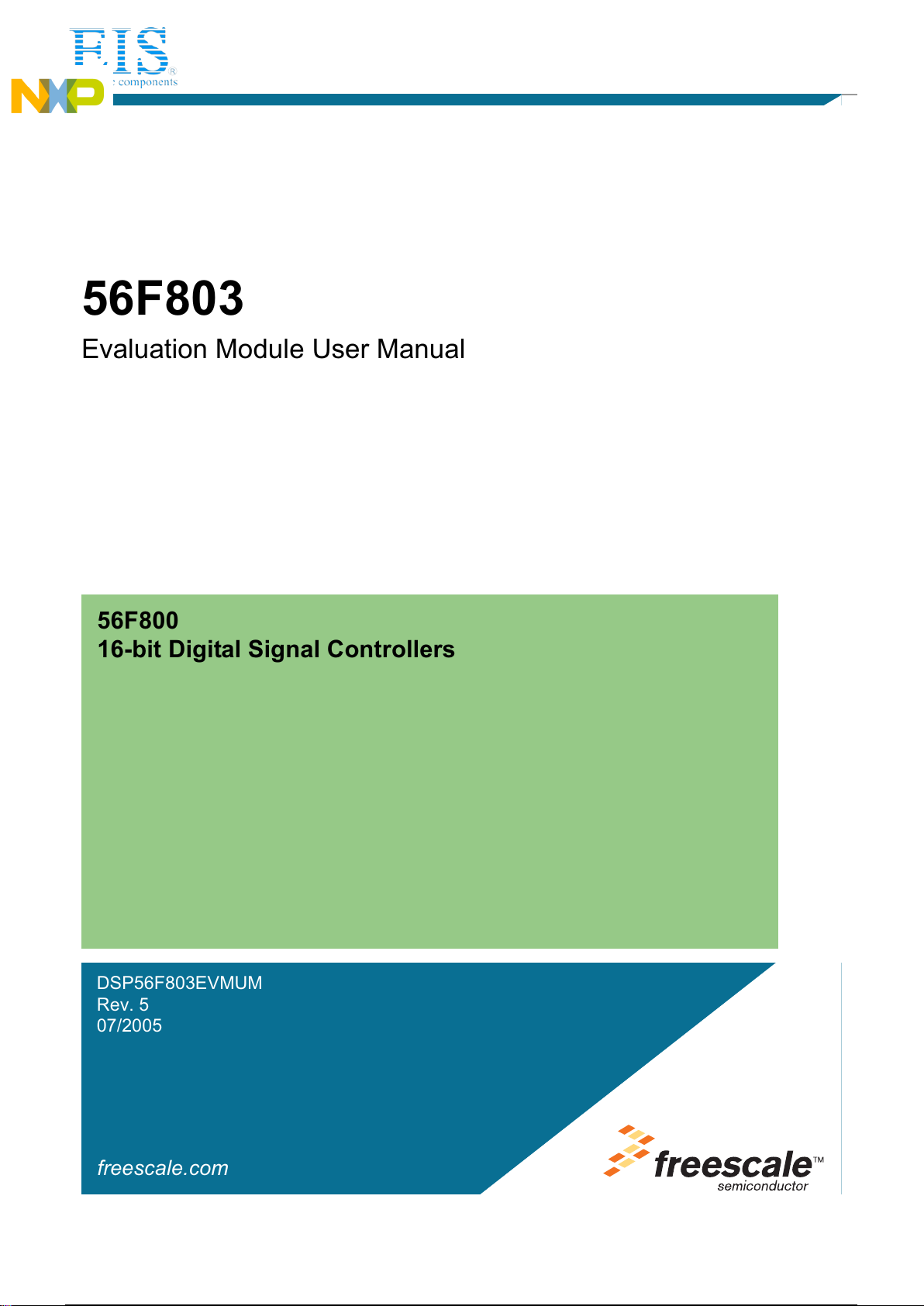

56F800
16-bit Digital Signal Controllers
freescale.com
56F803
Evaluation Module User Manual
DSP56F803EVMUM
Rev. 5
07/2005
2 / 69
2 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
3 / 69
3 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com

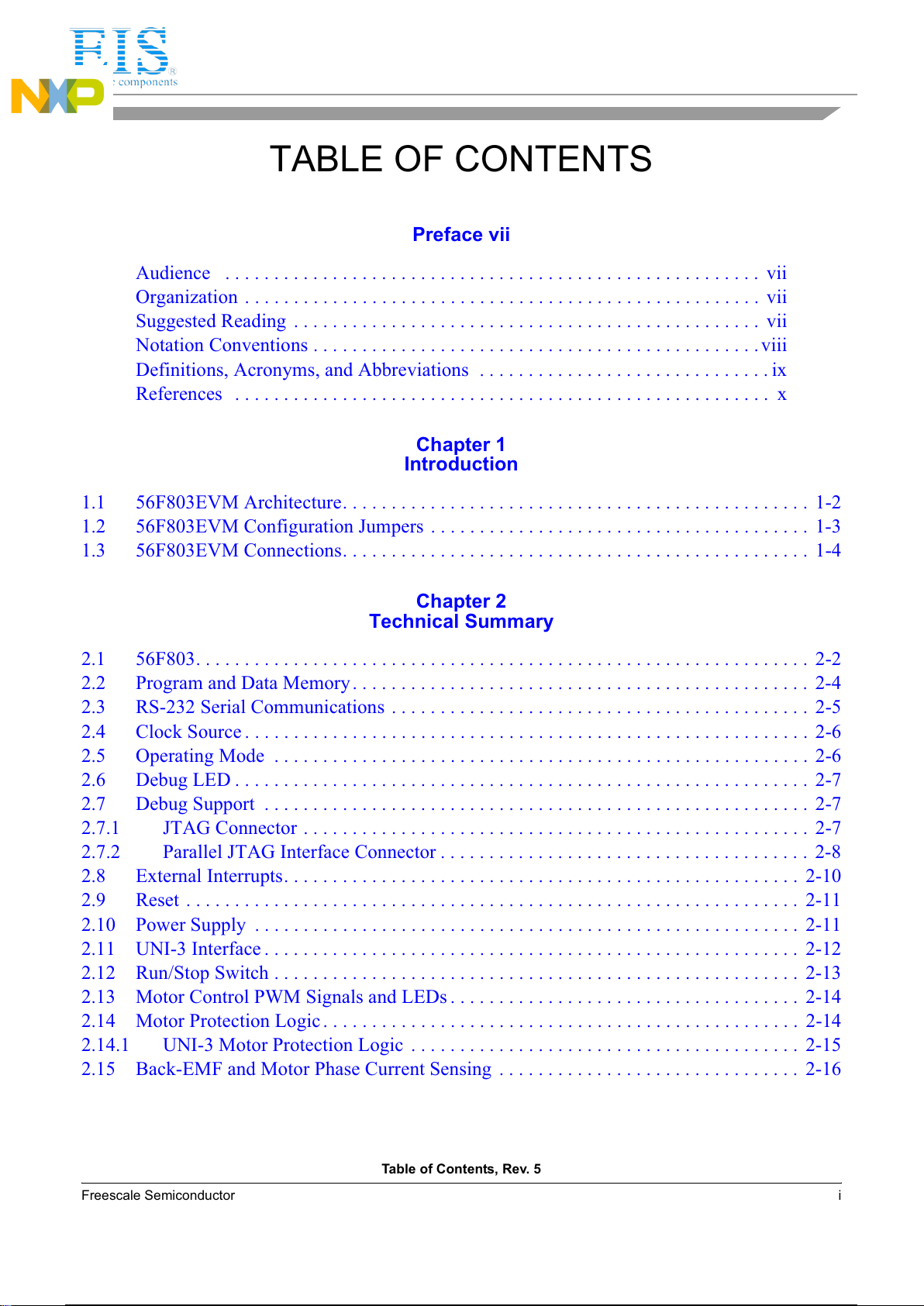

TABLE OF CONTENTS
Table of Contents, Rev. 5
Freescale Semiconductor i
Preface vii
Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Suggested Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Notation Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Definitions, Acronyms, and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Chapter 1
Introduction
1.1 56F803EVM Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1.2 56F803EVM Configuration Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
1.3 56F803EVM Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Chapter 2
Technical Summary
2.1 56F803. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2.2 Program and Data Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
2.3 RS-232 Serial Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
2.4 Clock Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2.5 Operating Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2.6 Debug LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
2.7 Debug Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
2.7.1 JTAG Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
2.7.2 Parallel JTAG Interface Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
2.8 External Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
2.9 Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
2.10 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
2.11 UNI-3 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
2.12 Run/Stop Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
2.13 Motor Control PWM Signals and LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
2.14 Motor Protection Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
2.14.1 UNI-3 Motor Protection Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
2.15 Back-EMF and Motor Phase Current Sensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
4 / 69
4 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
DSP56F803EVM User Manual, Rev. 5
ii Freescale Semiconductor

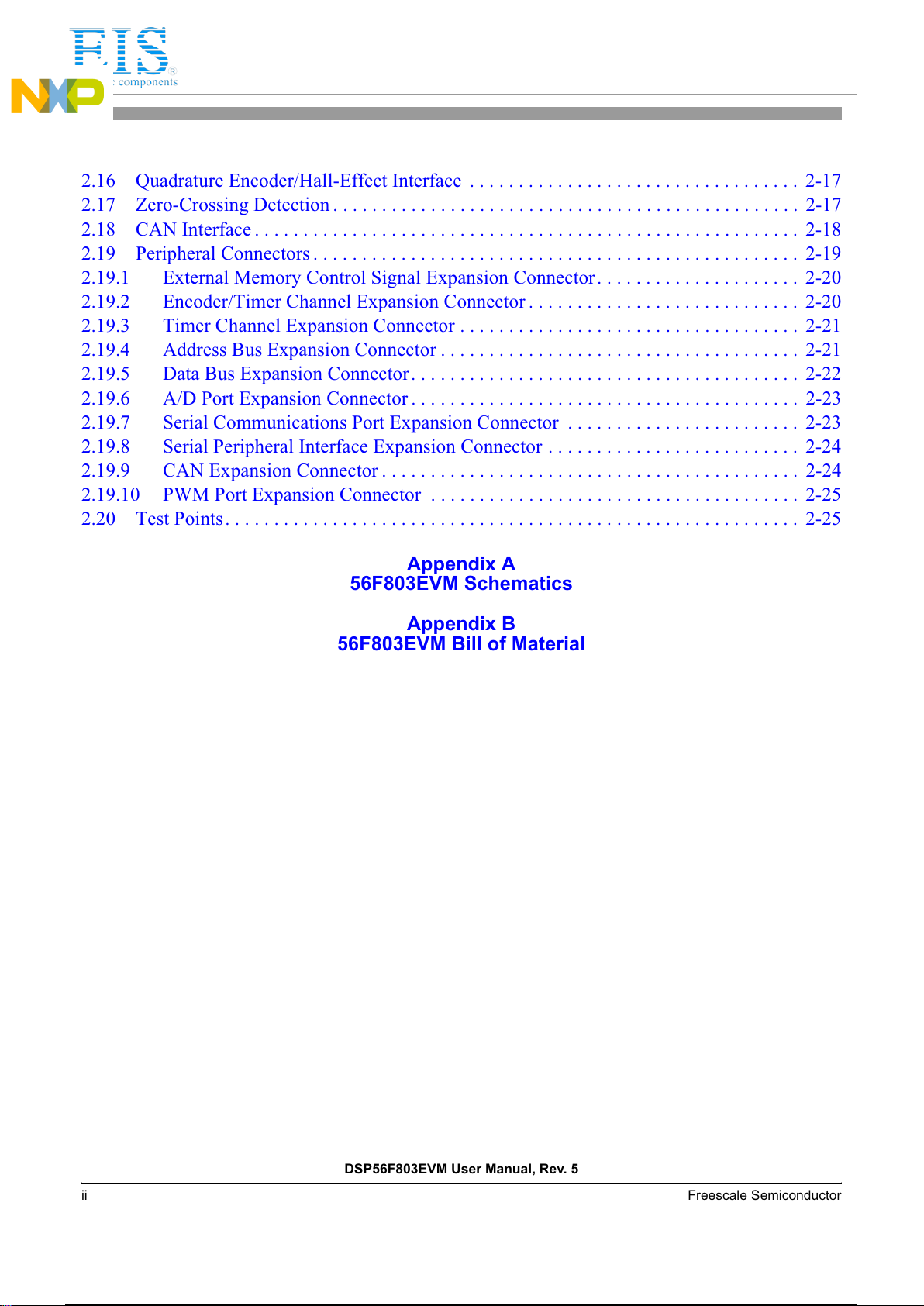

2.16 Quadrature Encoder/Hall-Effect Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
2.17 Zero-Crossing Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
2.18 CAN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
2.19 Peripheral Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
2.19.1 External Memory Control Signal Expansion Connector . . . . . . . . . . . . . . . . . . . . . 2-20
2.19.2 Encoder/Timer Channel Expansion Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
2.19.3 Timer Channel Expansion Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
2.19.4 Address Bus Expansion Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
2.19.5 Data Bus Expansion Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
2.19.6 A/D Port Expansion Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23
2.19.7 Serial Communications Port Expansion Connector . . . . . . . . . . . . . . . . . . . . . . . . 2-23
2.19.8 Serial Peripheral Interface Expansion Connector . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
2.19.9 CAN Expansion Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
2.19.10 PWM Port Expansion Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25
2.20 Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25
Appendix A
56F803EVM Schematics
Appendix B
56F803EVM Bill of Material
5 / 69
5 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com

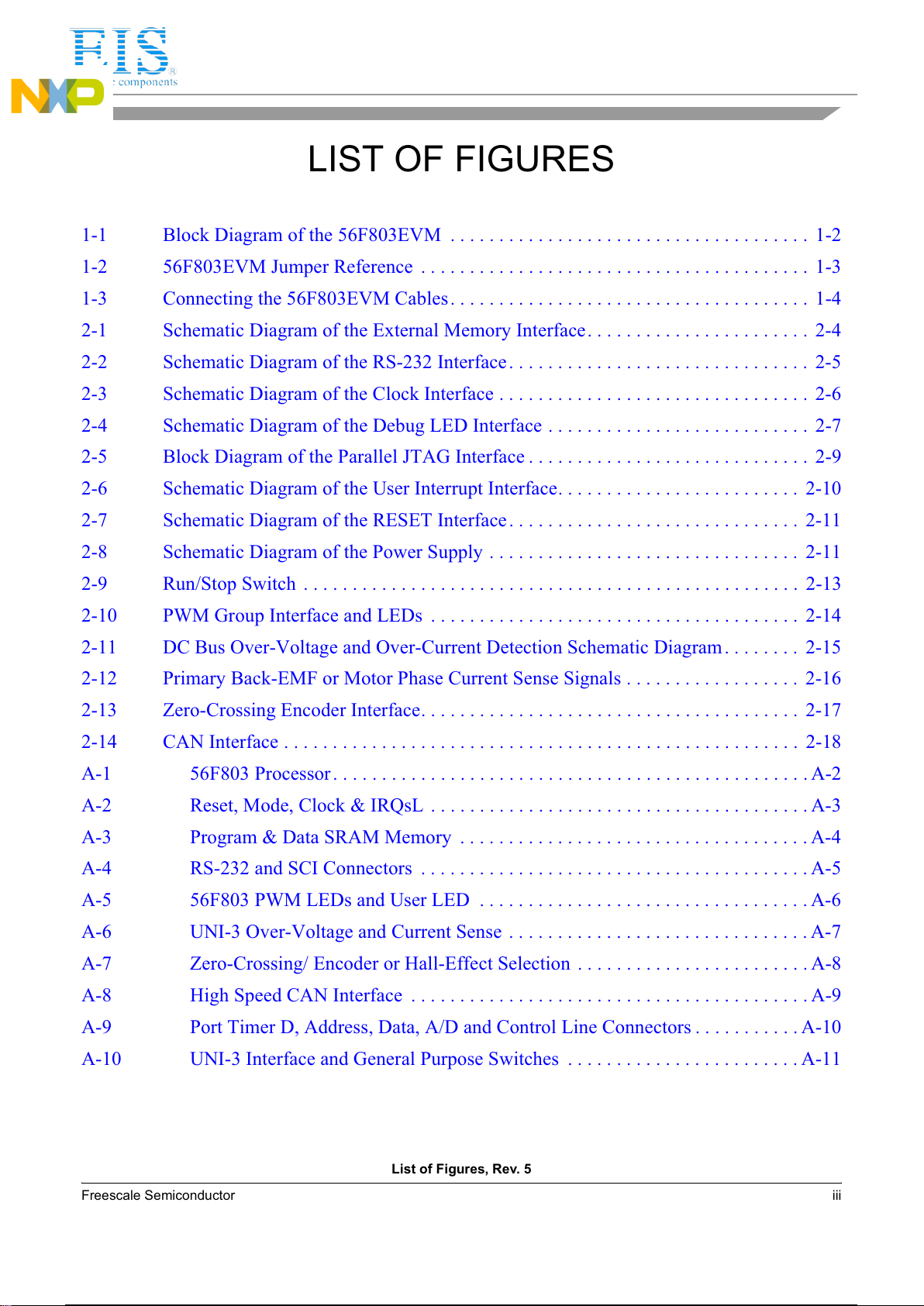

LIST OF FIGURES
List of Figures, Rev. 5
Freescale Semiconductor iii

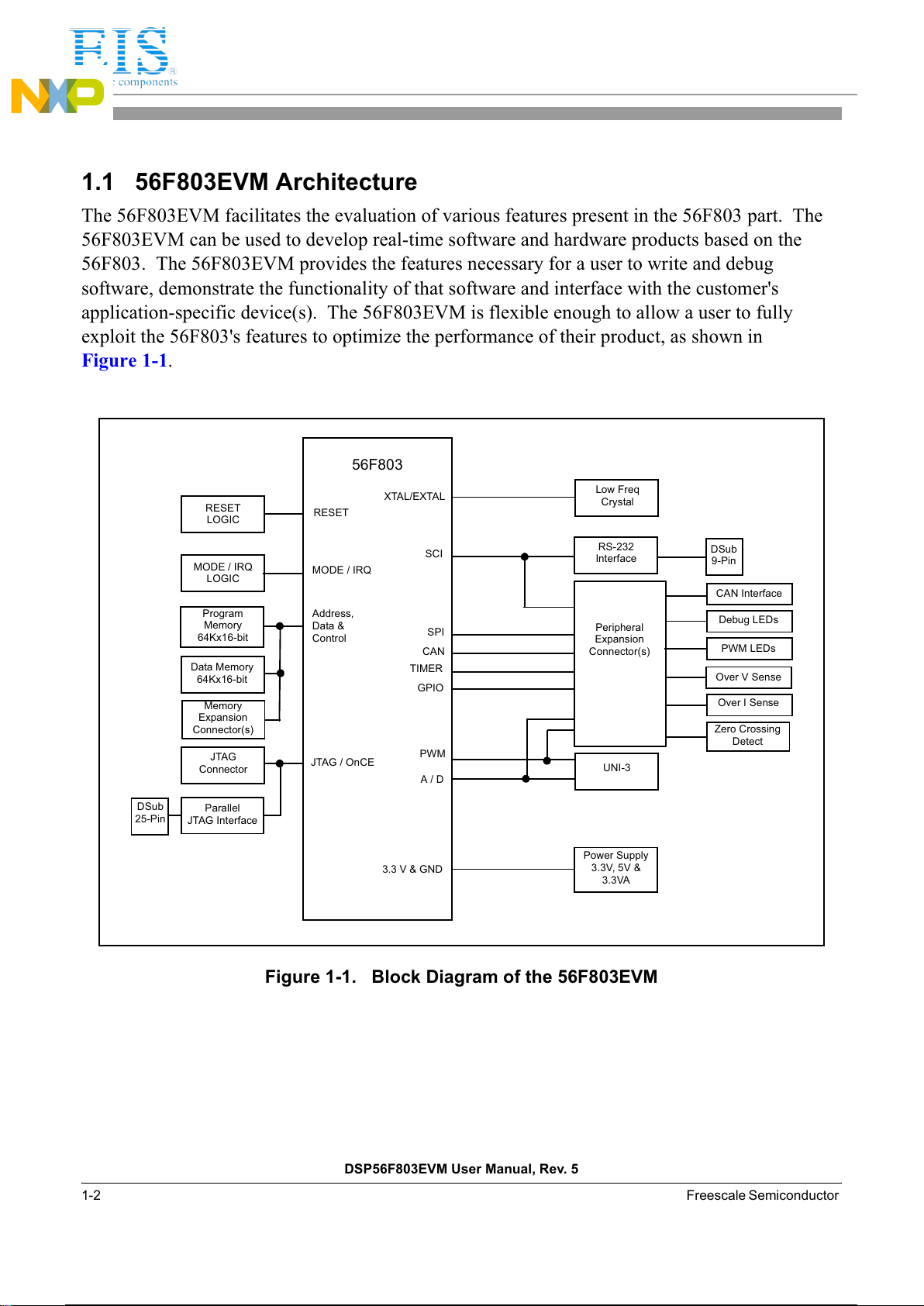

1-1 Block Diagram of the 56F803EVM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

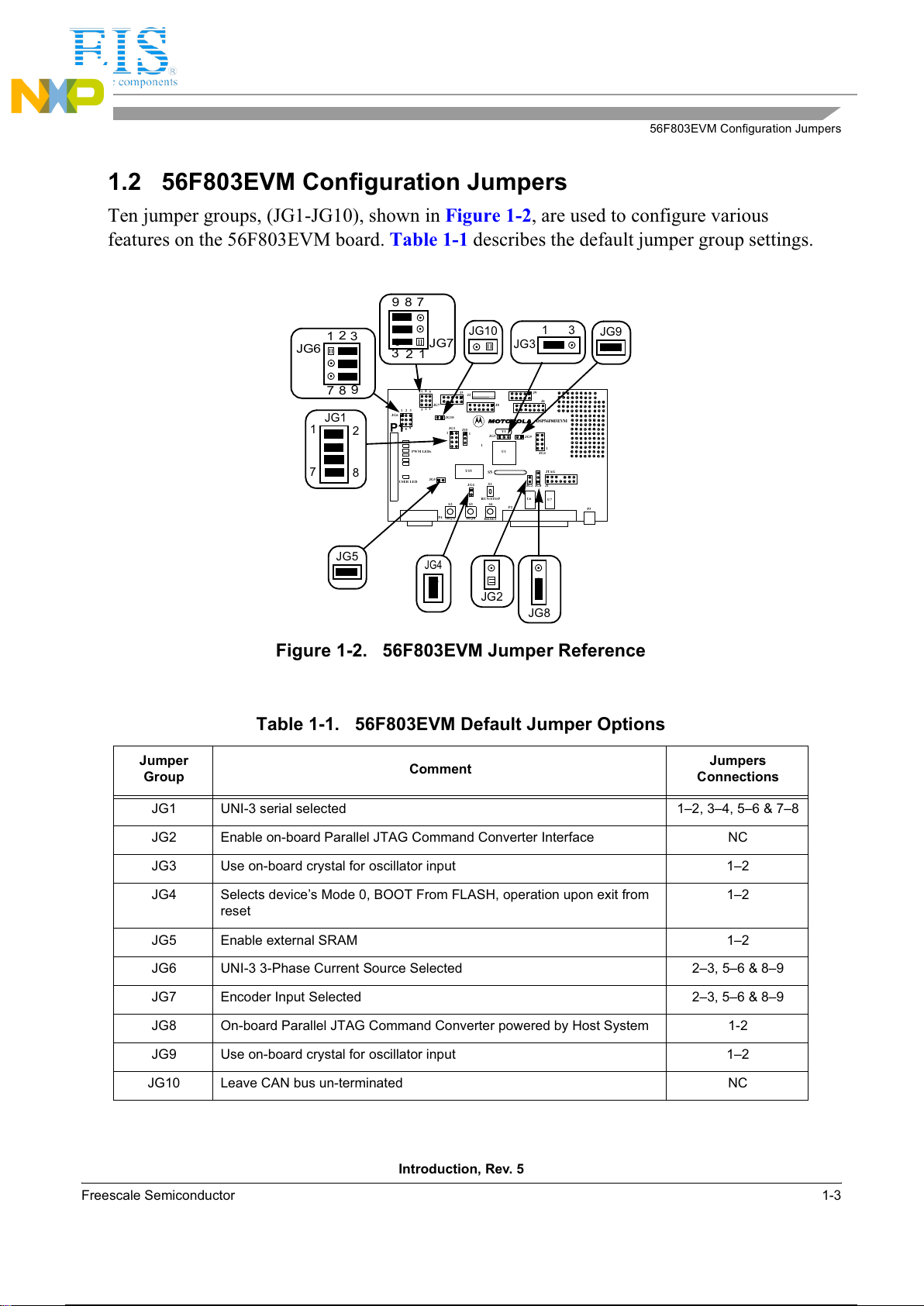

1-2 56F803EVM Jumper Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
1-3 Connecting the 56F803EVM Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
2-1 Schematic Diagram of the External Memory Interface. . . . . . . . . . . . . . . . . . . . . . . 2-4
2-2 Schematic Diagram of the RS-232 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
2-3 Schematic Diagram of the Clock Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2-4 Schematic Diagram of the Debug LED Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
2-5 Block Diagram of the Parallel JTAG Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
2-6 Schematic Diagram of the User Interrupt Interface. . . . . . . . . . . . . . . . . . . . . . . . . 2-10
2-7 Schematic Diagram of the RESET Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
2-8 Schematic Diagram of the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
2-9 Run/Stop Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
2-10 PWM Group Interface and LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
2-11 DC Bus Over-Voltage and Over-Current Detection Schematic Diagram . . . . . . . . 2-15
2-12 Primary Back-EMF or Motor Phase Current Sense Signals . . . . . . . . . . . . . . . . . . 2-16
2-13 Zero-Crossing Encoder Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
2-14 CAN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
A-1 56F803 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
A-2 Reset, Mode, Clock & IRQsL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
A-3 Program & Data SRAM Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4
A-4 RS-232 and SCI Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5
A-5 56F803 PWM LEDs and User LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6
A-6 UNI-3 Over-Voltage and Current Sense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7
A-7 Zero-Crossing/ Encoder or Hall-Effect Selection . . . . . . . . . . . . . . . . . . . . . . . . A-8
A-8 High Speed CAN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9
A-9 Port Timer D, Address, Data, A/D and Control Line Connectors . . . . . . . . . . . A-10
A-10 UNI-3 Interface and General Purpose Switches . . . . . . . . . . . . . . . . . . . . . . . . A-11
6 / 69
6 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
DSP56F803EVM User Manual, Rev. 5
iv Freescale Semiconductor

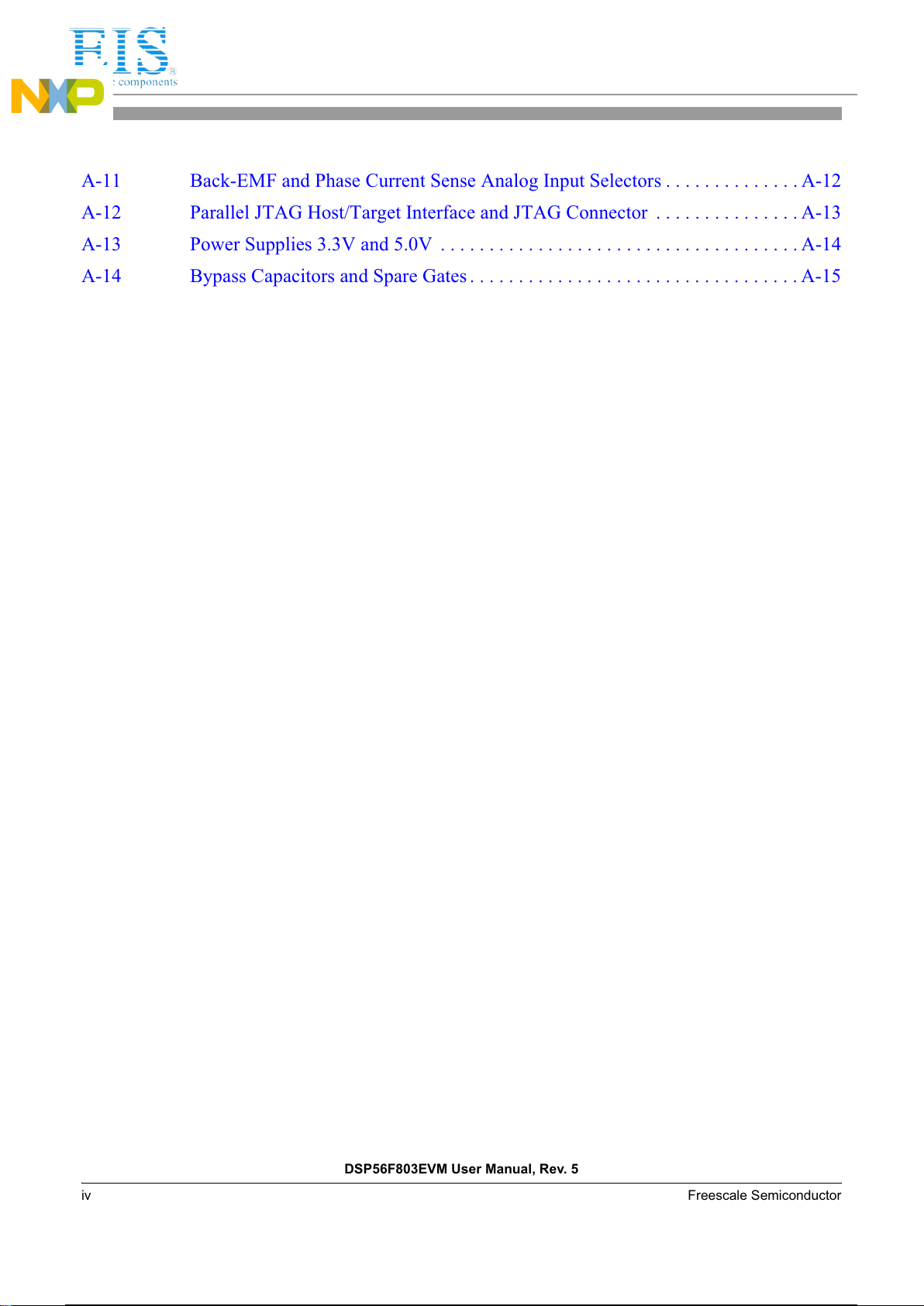

A-11 Back-EMF and Phase Current Sense Analog Input Selectors . . . . . . . . . . . . . . A-12
A-12 Parallel JTAG Host/Target Interface and JTAG Connector . . . . . . . . . . . . . . . A-13
A-13 Power Supplies 3.3V and 5.0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-14
A-14 Bypass Capacitors and Spare Gates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-15
7 / 69
7 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com

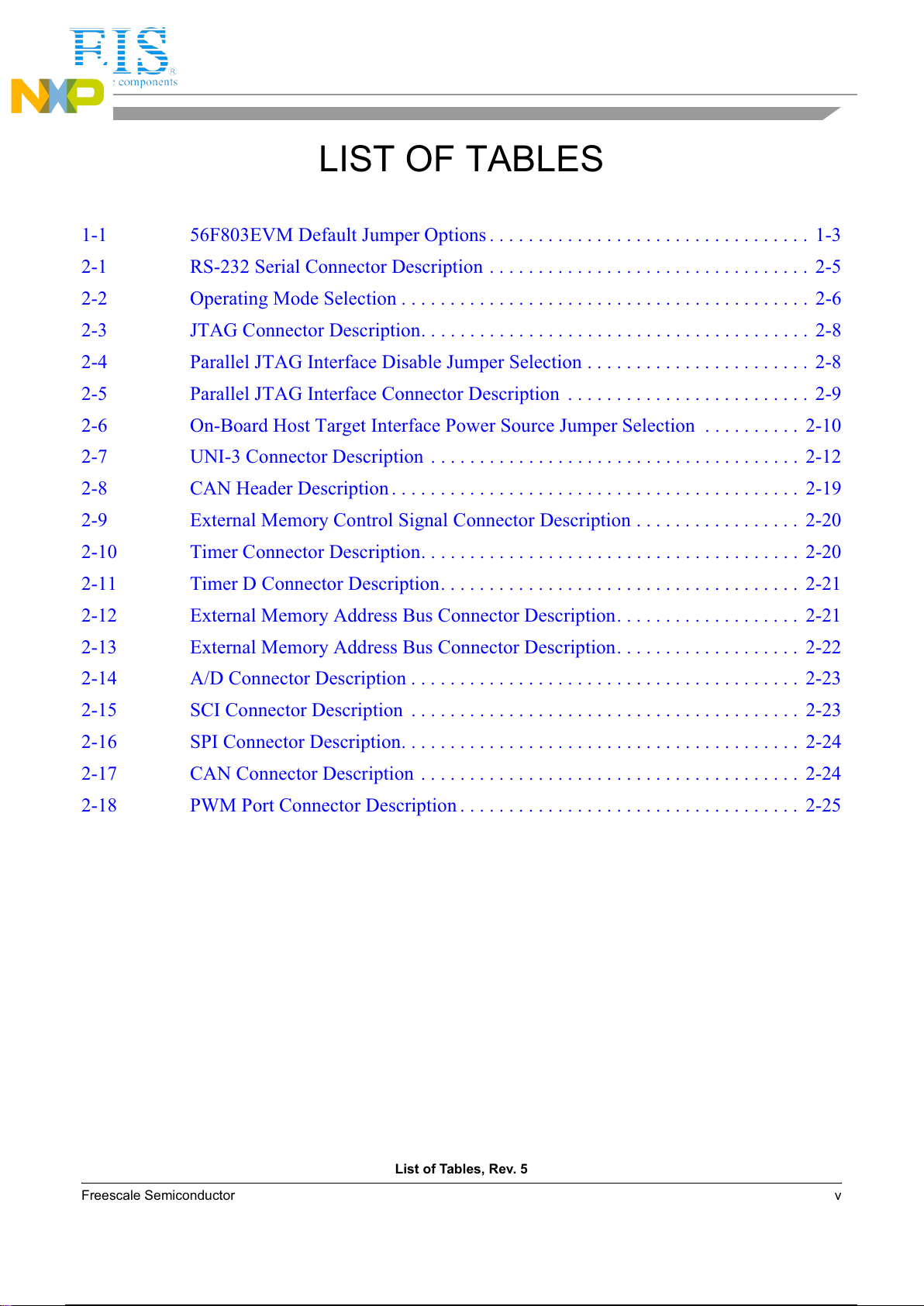

LIST OF TABLES
List of Tables, Rev. 5
Freescale Semiconductor v
1-1 56F803EVM Default Jumper Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2-1 RS-232 Serial Connector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
2-2 Operating Mode Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2-3 JTAG Connector Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
2-4 Parallel JTAG Interface Disable Jumper Selection . . . . . . . . . . . . . . . . . . . . . . . 2-8
2-5 Parallel JTAG Interface Connector Description . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
2-6 On-Board Host Target Interface Power Source Jumper Selection . . . . . . . . . . 2-10
2-7 UNI-3 Connector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
2-8 CAN Header Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
2-9 External Memory Control Signal Connector Description . . . . . . . . . . . . . . . . . 2-20
2-10 Timer Connector Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
2-11 Timer D Connector Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
2-12 External Memory Address Bus Connector Description. . . . . . . . . . . . . . . . . . . 2-21
2-13 External Memory Address Bus Connector Description. . . . . . . . . . . . . . . . . . . 2-22
2-14 A/D Connector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23
2-15 SCI Connector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23
2-16 SPI Connector Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
2-17 CAN Connector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
2-18 PWM Port Connector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25
8 / 69
8 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
DSP56F803EVM User Manual, Rev. 5
vi Freescale Semiconductor
9 / 69
9 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
Preface, Rev. 5
Freescale Semiconductor vii

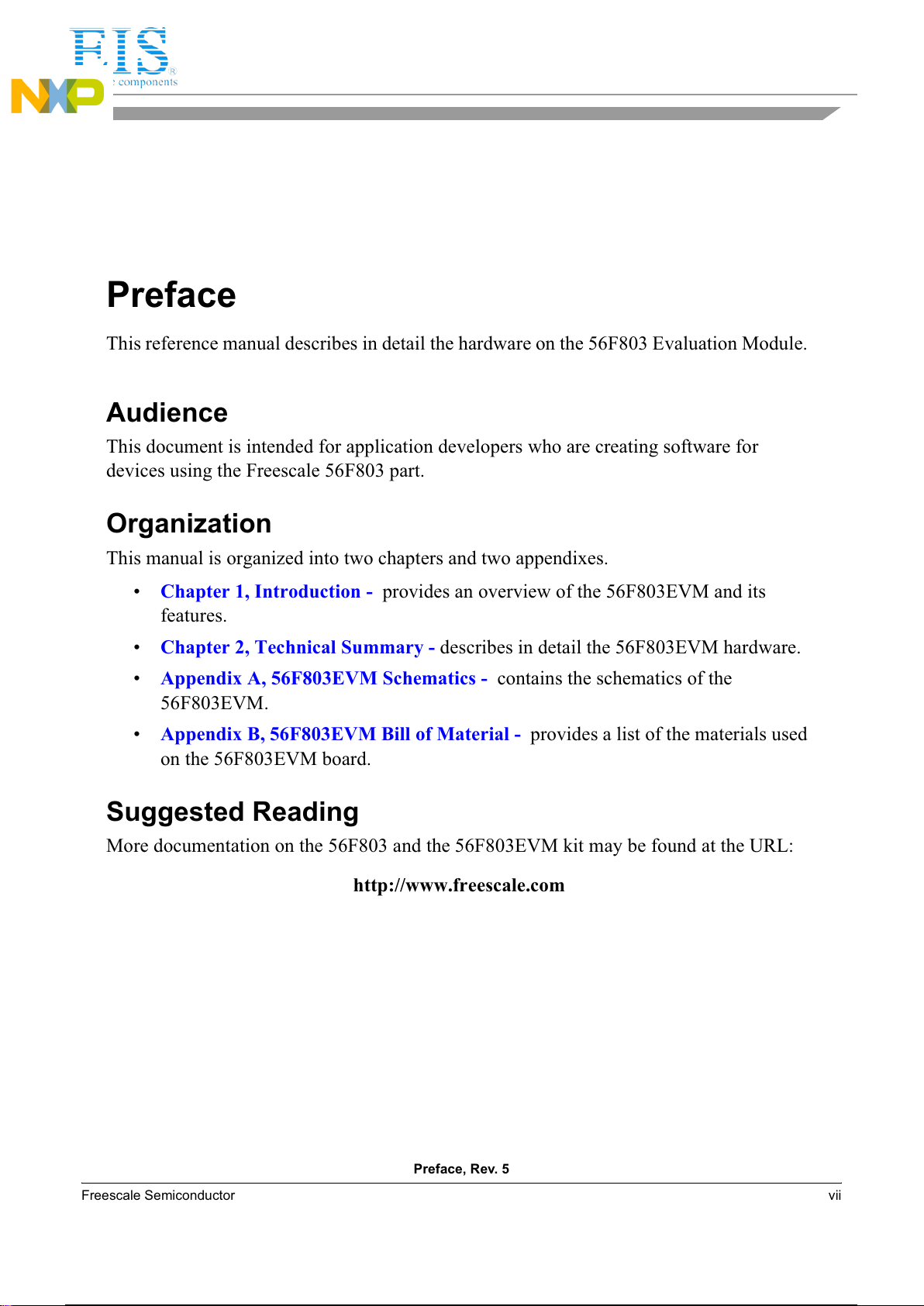

Preface
This reference manual describes in detail the hardware on the 56F803 Evaluation Module.
Audience
This document is intended for application developers who are creating software for
devices using the Freescale 56F803 part.
Organization
This manual is organized into two chapters and two appendixes.
•Chapter 1, Introduction - provides an overview of the 56F803EVM and its
features.
•Chapter 2, Technical Summary - describes in detail the 56F803EVM hardware.
•Appendix A, 56F803EVM Schematics - contains the schematics of the
56F803EVM.
•Appendix B, 56F803EVM Bill of Material - provides a list of the materials used
on the 56F803EVM board.
Suggested Reading
More documentation on the 56F803 and the 56F803EVM kit may be found at the URL:
http://www.freescale.com
10 / 69
10 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
DSP56F801EVM User Manual, Rev. 5
viii Freescale Semiconductor

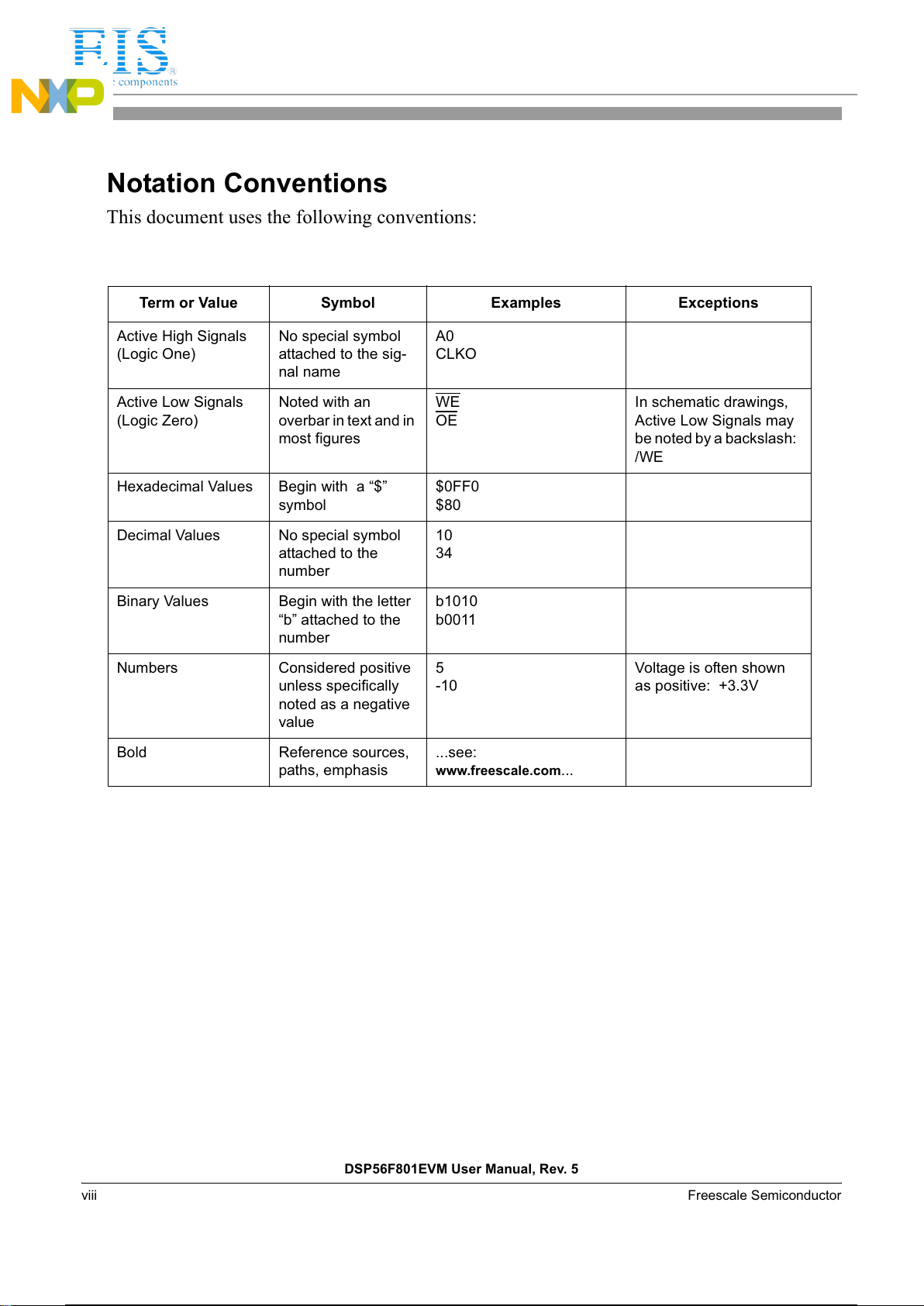

Notation Conventions
This document uses the following conventions:
Term or Value Symbol Examples Exceptions
Active High Signals
(Logic One)
No special symbol
attached to the sig-
nal name
A0
CLKO
Active Low Signals
(Logic Zero)
Noted with an
overbar in text and in
most figures
WE
OE
In schematic drawings,
Active Low Signals may
be noted by a backslash:
/WE
Hexadecimal Values Begin with a “$”
symbol
$0FF0
$80
Decimal Values No special symbol
attached to the
number
10
34
Binary Values Begin with the letter
“b” attached to the
number
b1010
b0011
Numbers Considered positive
unless specifically
noted as a negative
value
5
-10
Voltage is often shown
as positive: +3.3V
Bold Reference sources,
paths, emphasis
...see:
www.freescale.com ...
11 / 69
11 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
Preface, Rev. 5
Freescale Semiconductor ix
Definitions, Acronyms, and Abbreviations
Definitions, acronyms and abbreviations for terms used in this document are defined below for
reference.
A/D Analog-to-Digital
CAN Controller Area Network; serial communications peripheral and method
CiA CAN in Automation, an international CAN user’s group that coordinates
standards for CAN communications protocols
EVM Evaluation Module
GPIO General Purpose Input and Output Port
IC Integrated Circuit
JTAG Joint Test Action Group, a bus protocol/interface used for test and debug
LQFP Low-profile Quad Flat Pack
MPIO Multi Purpose Input and Output Port; shares package pins with other
peripherals on the chip and can function as a GPIO
OnCE
TM
On-Chip Emulation, a debug bus and port created by Freescale to enable
designers to create a low-cost hardware interface for a professional
quality debug environment
PCB Printed Circuit Board
PLL Phase Locked Loop
PWM Pulse Width Modulation
RAM Random Access Memory
ROM Read Only Memory
SCI Serial Communications Interface
SPI Serial Peripheral Interface Port
SRAM Static Random Access Memory
UART
Universal Asynchronous Receiver/Transmitter
12 / 69
12 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
DSP56F801EVM User Manual, Rev. 5
xFreescale Semiconductor
References
The following sources were referenced to produce this manual:
[1] DSP56800 Family Manual, Freescale Semiconductor, DSP56800FM
[2] DSP56F801/803/805/807 User’s Manual, Freescale Semiconductor,
DSP56F801-7UM
[3] 56F803 Technical Data, Freescale Semiconductor, DSP56F803
[4] CiA Draft Recommendation DR-303-1, Cabling and Connector Pin Assignment,
Version 1.0, CAN in Automation
[5] CAN Specification 2.0B, BOSCH or CAN in Automation
13 / 69
13 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
Introduction, Rev. 5
Freescale Semiconductor 1-1
Chapter 1
Introduction
The 56F803EVM is used to demonstrate the abilities of the 56F803 and to provide a hardware
tool allowing the development of applications that use the 56F803.
The 56F803EVM is an evaluation module board that includes a 56F803 part, peripheral
expansion connectors, external memory, RS-232 interface and a CAN interface. The expansion
connectors are for signal monitoring and user feature expandability.
The 56F803EVM is designed for the following purposes:
• Allowing new users to become familiar with the features of the 56800 architecture. The
tools and examples provided with the 56F803EVM facilitate evaluation of the feature set
and the benefits of the family.
• Serving as a platform for real-time software development. The tool suite enables the user
to develop and simulate routines, download the software to on-chip or on-board RAM, run
it, and debug it using a debugger via the JTAG/OnCE
TM
port. The breakpoint features of
the OnCE port enable the user to easily specify complex break conditions and to execute
user-developed software at full-speed, until the break conditions are satisfied. The ability
to examine and modify all user accessible registers, memory and peripherals through the
OnCE port greatly facilitates the task of the developer.
• Serving as a platform for hardware development. The hardware platform enables the user
to connect external hardware peripherals. The on-board peripherals can be disabled,
providing the user with the ability to reassign any and all of the controller’s peripherals.
The OnCE port's unobtrusive design means that all of the memory on the board and on the
chip are available to the user.
14 / 69
14 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
DSP56F803EVM User Manual, Rev. 5
1-2 Freescale Semiconductor 
1.1 56F803EVM Architecture
The 56F803EVM facilitates the evaluation of various features present in the 56F803 part. The
56F803EVM can be used to develop real-time software and hardware products based on the
56F803. The 56F803EVM provides the features necessary for a user to write and debug
software, demonstrate the functionality of that software and interface with the customer's
application-specific device(s). The 56F803EVM is flexible enough to allow a user to fully
exploit the 56F803's features to optimize the performance of their product, as shown in
Figure 1-1.
Figure 1-1. Block Diagram of the 56F803EVM
56F803
RESET
MODE / IRQ
Address,
Data &
Control
JTAG / OnCE
XTAL/EXTAL
SCI
SPI
CAN
TIMER
GPIO
PWM
A / D
3.3 V & GND
Peripheral
Expansion
Connector(s)
RESET
LOGIC
MODE / IRQ
LOGIC
Program
Memory
64Kx16-bit
Memory
Expansion
Connector(s)
JTAG
Connector
Parallel
JTAG Interface
DSub
25-Pin
Data Memory
64Kx16-bit
DSub
9-Pin
CAN Interface
Debug LEDs
PWM LEDs
Over V Sense
Over I Sense
Zero Crossing
Detect
UNI-3
RS-232
Interface
Low Freq
Crystal
Power Supply
3.3V, 5V &
3.3VA
15 / 69
15 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
56F803EVM Configuration Jumpers
Introduction, Rev. 5
Freescale Semiconductor 1-3
1.2 56F803EVM Configuration Jumpers
Ten jumper groups, (JG1-JG10), shown in Figure 1-2, are used to configure various
features on the 56F803EVM board. Table 1-1 describes the default jumper group settings.
Figure 1-2. 56F803EVM Jumper Reference
Table 1-1. 56F803EVM Default Jumper Options
Jumper
Group Comment Jumpers Connections
JG1 UNI-3 serial selected 1–2, 3–4, 5–6 & 7–8
JG2 Enable on-board Parallel JTAG Command Converter Interface NC
JG3 Use on-board crystal for oscillator input 1–2
JG4 Selects device’s Mode 0, BOOT From FLASH, operation upon exit from
reset
1–2
JG5 Enable external SRAM 1–2
JG6 UNI-3 3-Phase Current Source Selected 2–3, 5–6 & 8–9
JG7 Encoder Input Selected 2–3, 5–6 & 8–9
JG8 On-board Parallel JTAG Command Converter powered by Host System 1-2
JG9 Use on-board crystal for oscillator input 1–2
JG10 Leave CAN bus un-terminated NC
JG5
DSP56F803EVM
JG1
1
J9
JTAG
JG6
1
P4
S/N
LED3
P2
Y1
U1
U15
S3
S2 S4
S1
P3
P1
2
7
3
89
JG7
1
32
J2
J10
1
JG5
JG4 JG2
U6 U7
JG4
1
IRQBIRQA
RUN/STOP
RESET
12
78
JG1
312 JG7
3
12
JG6
89
7
1
JG3
3
JG2
JG3
789
J1
J3
J8
J4
PWM LEDs
USER LED
8
97
1
JG8
JG8
JG10
JG9
JG10 JG9
JG4
16 / 69
16 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
DSP56F803EVM User Manual, Rev. 5
1-4 Freescale Semiconductor 
1.3 56F803EVM Connections
An interconnection diagram is shown in Figure 1-3 for connecting the PC and the external +12V
DC power supply to the 56F803EVM board.
Figure 1-3. Connecting the 56F803EVM Cables
Perform the following steps to connect the 56F803EVM cables:
1. Connect the parallel extension cable to the Parallel port of the host computer.
2. Connect the other end of the parallel extension cable to P2, shown in Figure 1-3, on the
56F803EVM board. This provides the connection which allows the host computer to
control the board.
3. Make sure that the external +12V DC, 4.0A power supply is not plugged into a +120V AC
power source.
4. Connect the 2.1mm output power plug from the external power supply into P3, shown in
Figure 1-3, on the 56F803EVM board.
5. Apply power to the external power supply. The green Power-On LED will illuminate
when power is correctly applied.
PC-compatible
Cable
Computer
Parallel Extension
56F803EVM
External
+12V
Power
P2
P3
Connect cable
to Parallel/Printer port
with 2.1mm,
receptacle
connector
17 / 69
17 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
Technical Summary, Rev. 5
Freescale Semiconductor 2-1
Chapter 2
Technical Summary
The 56F803EVM is designed as a versatile controller development card for developing real-time
software and hardware products to support a new generation of applications in digital and
wireless messaging, servo and motor control, digital answering machines, feature phones,
modems, and digital cameras. The power of the 16-bit 56F803 controller, combined with the
on-board 64K u16-bit external program Static RAM (SRAM), 64K u16-bit external data
SRAM, CAN interface, Hall-Effect/Quadrature Encoder interface, motor zero crossing logic,
motor bus over-current logic, motor bus over-voltage logic and parallel JTAG interface, makes
the 56F803EVM ideal for developing and implementing many motor controlling algorithms, as
well as for learning the architecture and instruction set of the 56F803 processor.
The main features of the 56F803EVM include:
• 56F803 16-bit +3.3V controller operating at 80MHz [U1]
• External fast Static RAM (FSRAM) memory [U2], configured as:
— 64Ku16-bit of Program memory with 0 wait states at 70MHz
— 64Ku16-bit of Data memory with 0 wait states at 70MHz
• 8.00MHz crystal oscillator for device frequency generation [Y1]
• Optional external oscillator frequency input connector [JG3 and JG9]
• Joint Test Action Group (JTAG) port interface connector for an external debug Host
Target Interface [J1]
• On-board Parallel JTAG Host Target Interface, with a connector for a PC printer port
cable [P2]
• RS-232 interface for easy connection to a host processor [U3 and P4]
• CAN interface for high speed, 1.0Mbps, communications [U15 and J3]
• CAN bypass and bus termination [J13 and JG10]
• Connector to allow the user to connect his own SCI / GPIO-compatible peripheral [J12]
• Connector to allow the user to connect his own SPI / MPIO-compatible peripheral [J6]
• Connector to allow the user to connect his own PWM / GPIO-compatible peripheral [J4]
• Connector to allow the user to connect his own CAN physical layer peripheral [J5]
• Connector to allow the user to connect his own Timer / MPIO-compatible peripheral [J10]
18 / 69
18 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
DSP56F803EVM User Manual, Rev. 5
2-2 Freescale Semiconductor 
• Connector to allow the user to connect to the device’s A/D Port [J9]
• 56F803’s external memory expansion connectors [J7, J8 and J11]
• On-board power regulation from an external +12V DC-supplied power input [P3]
• Light Emitting Diode (LED) power indicator [LED1]
• Six on-board PWM monitoring LEDs [LED2-LED7]
• On-board real-time user debugging LED [LED8]
• UNI-3 Motor interface [P1]
— Encoder/Hall-Effect interface
— Over-Voltage sensing [U14]
— Over-Current sensing [U14]
— DC Bus Voltage sensing [U13]
— DC Bus Current sensing [U13]
— Back-EMF sensing
— Temperature sensing
— Zero Crossing detection
— Pulse Width Modulation
— Power Factor Correction (PFC) sensing
• Manual RESET push-button [S4]
• Manual interrupt push-button for IRQA [S2]
• Manual interrupt push-button for IRQB [S3]
• General purpose toggle switch for RUN/STOP control(AN7) [S1]
2.1 56F803
The 56F803EVM uses a Freescale DSP56F803BU80 part, designated as U1 on the board and in
the schematics. This part will operate at a maximum speed of 80MHz. A full description of the
56F803, including functionality and user information, is provided in the following documents:
• 56F803 Technical Data, (DSP56F803):Provides features list and specifications including
signal descriptions, DC power requirements, AC timing requirements and available
packaging.
19 / 69
19 / 69

Distributor of NXP Semiconductors: Excellent Integrated System Limited
Datasheet of DSP56F803EVM - KIT EVALUATION FOR DSP56F803
Contact us: [email protected] Website: www.integrated-circuit.com
56F803
Technical Summary, Rev. 5
Freescale Semiconductor 2-3
•DSP56F801/803/805/807 User’s Manual, (DSP56F801-7UM): Provides an overview
description of the controller and detailed information about the on-chip components
including the memory and I/O maps, peripheral functionality, and control/status register
descriptions for each subsystem.
•DSP56800 Family Manual, (DSP56800FM): Provides a detailed description of the core
processor including internal status and control registers and a detailed description of the
family instruction set.
These manuals contain detailed information about chip functionality and operation and can be
found at this URL:
http://www.freescale.com
20 / 69
20 / 69
