Shenzhen Shunxun Electronics SP148E-HD4K2K User manual

Operating Instructions
1

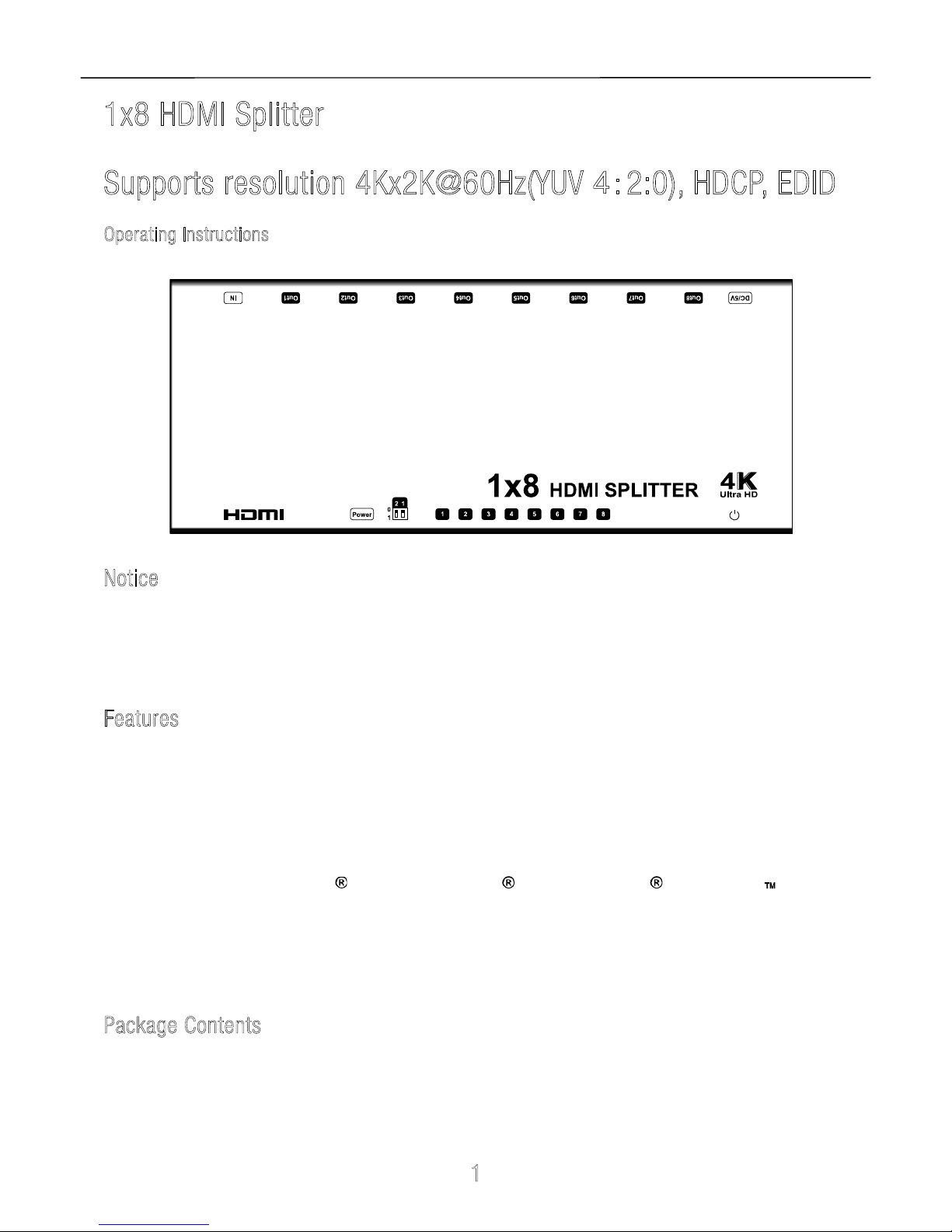

1x8HDMISplitter
Supportsresolution4Kx2K@60Hz(YUV4:2:0), HDCP,EDID
OperatingInstructions
Notice
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute the warranty of any kind, express or implied.
Features
Simultaneously displays an UItra Hi-Def source on up to eight UItra HD displays.
Supports resolutions up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0 ) and 1080p Full HD.
Supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default 1080p output, default
4Kx2K output.
Supports 36 bit Deep Color.
Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio .
Supports HDMI input/output cable 10 to 15 meters at 1080p/8-bit resolution.
HDCP Compliant.
Support 3D.
Package Contents
1x HDMI Splitter
1x 5V/1A DC Adapter
1x User Manual

Operating Instructions
2
SPECIFICATIONS
Operating Temperature Range -5 to +35 (℃+23 to +95 )℉
Operating Humidity Range 5 to 90%RH (No Condensation)
Bandwidth frequency 10.2Gbps
Input ports 1xHDMI(female)
Output ports 8xHDMI outputs(female)
Resolution outputs up to 4Kx2K(3840x2160@60Hz YUV 4:2:0)
Dimensions(LxWxH) 270x110x27.5mm
Power consumption 3W(MAX)
Transmission Distance 15m(Maximum)over standard HDMI cable/26AWG
Net Weight 840g

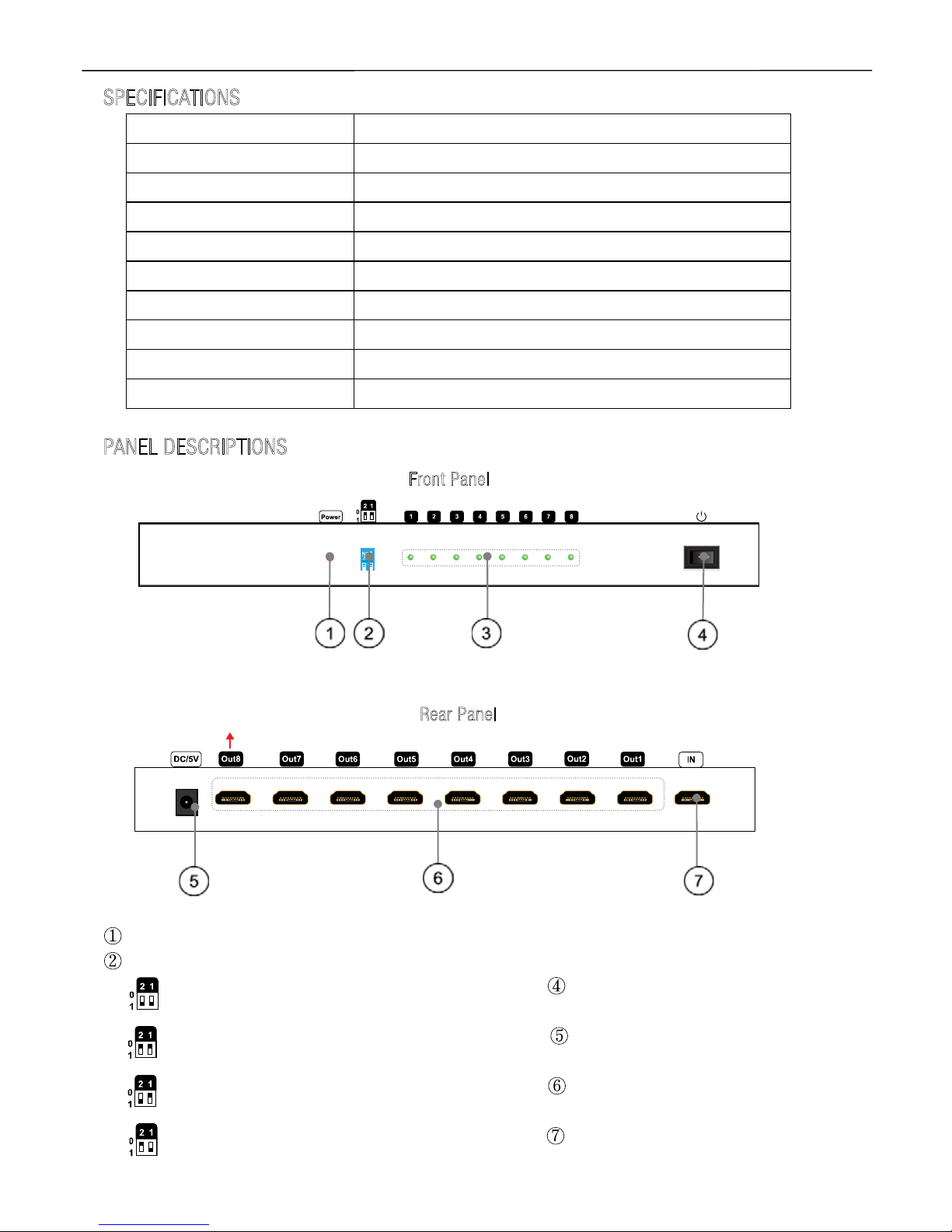

PANELDESCRIPTIONS
FrontPanel
Rear Panel
Power input indicator
DIP switch for EDID choosing ③Indicator of HDMI output
11: Mixed EDID, The power switch
00: Copy EDID, Power input
10: Default 1080p output, HDMI output
01: Default 4Kx2K output, HDMI input
prior port

Operating Instructions
3
10: Default 1080p output: output a default 1080p source, in this case all outputs will display 1080p if they
support resolution 1080p and above.
a. When output 8 is connected to the display, all other displays connected to the other 7 outputs will follow
the Resolution of output 8.
01: Default 4Kx2K output: output a default 4Kx2K source, in this case all outputs will display 4Kx2K if they
support resolution 4Kx2K and above.
11: Mixed EDID: always follow the lowest resolution of the displays connected to the 8 outputs, in order to
support all displays show the source.
EDID Introduction:
00: Copy EDID: output 8 is prior port
b. When output 8 is disconnected, all other 7 displays will output 1080p only.
Please restart the splitter when change EDID mode!
Connecting and operating
1) Connect the HDMI input source to input port of HDMI splitter.
2) Connect the HDMI splitter output ports to the displays.
4K TV1
8VTK47VTK46VTK45VTK4
4VTK43VTK42VTK4
HD
FullHD
UltraHD
HD
FullHD
UltraHD
HD
FullHD
UltraHD
HD
FullHD
UltraHD
HD
FullHD
UltraHD
HD
FullHD
UltraHD
HD
FullHD
UltraHD
HD
FullHD
UltraHD
3) Power on splitter, source and displays.

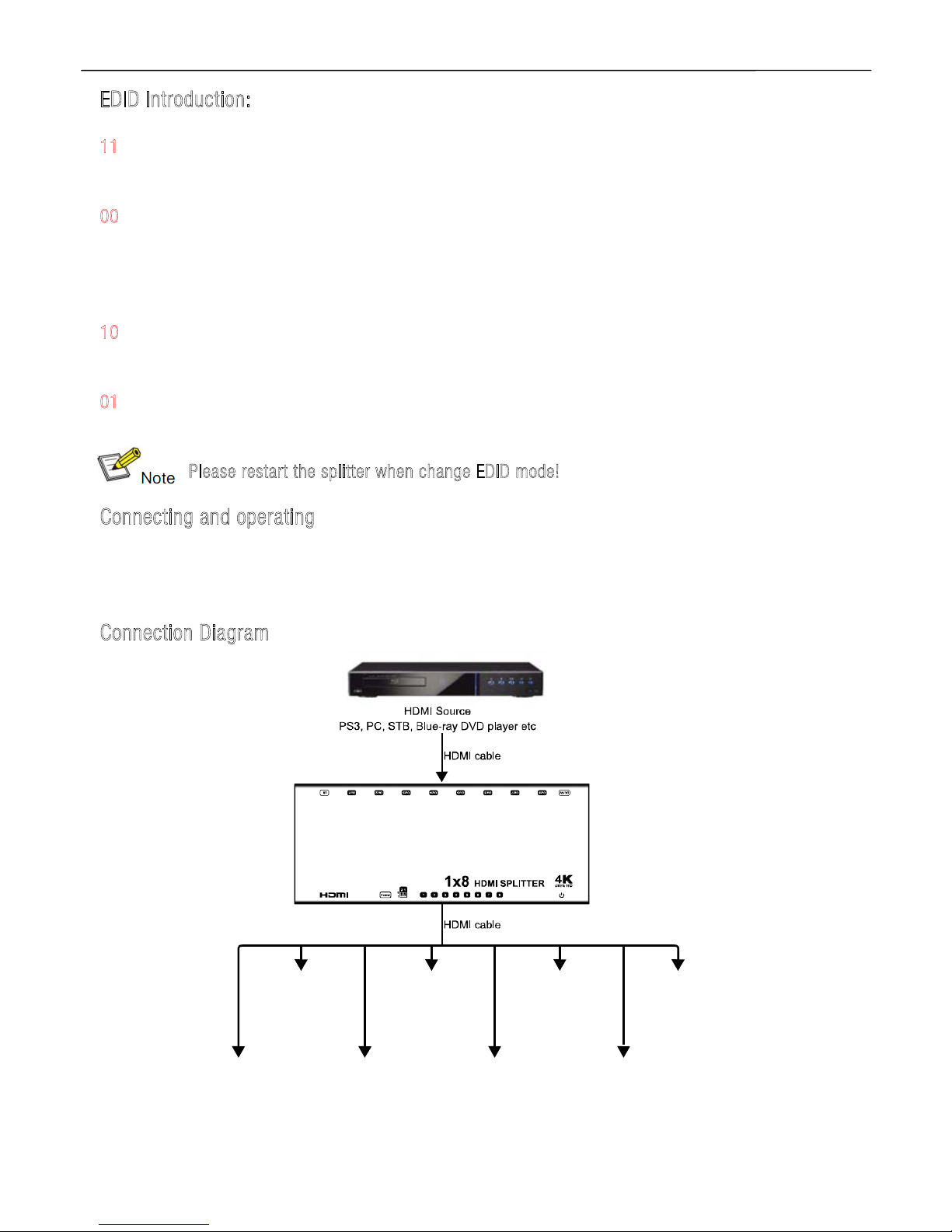

ConnectionDiagram

Operating Instructions
4
Safety information
Safeguards
Toreducetheriskof electric shock, do not
exposethisproduct to rainormoisture
PRODUCTSERVICE
1) Damagerequiring service:The unit should be serviced by qualied service personnel if:
(a)The DC power supply cord or AC adaptor has been damaged;
(b)Objects or liquids have gotten into the unit;
(c)The unit has been exposed to rain;
(d)The unit does not operate normally or exhibits a marked change in performance;
(e)The unit has been dropped or the cabinet damaged.
Servicing Personnel:Do not attempt to service the unit beyond that described in these operating
instructions. Refer all other servicing to authorized servicing personnel.
2) Replacement parts: When parts need replacing ensure the servicer uses parts specied by the
manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes
may result in re, electric shock, or other hazards.
3) Safety check:After repairs or service, ask the servicer to perform safety checks to conrm that the unit
is in proper working condition.
WARRANTY
If your product does not work properly because of a defect in materials or workmanship, our Company
(referred to as "the warrantor" ) will , for the length of the period indicated as below,
(Parts(2)Years ,Labor(90) Days)which starts with the date of original purchase ("Limited Warranty
period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new
of a refurbished product. The decision to repair or replace will be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product during
the warranty period. This Limited Warranty is extended only to the original purchaser and only covers
product purchased as new. A purchase receipt or other proof of original purchase date is required for
Limited Warranty service.
Mail-InService
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original
carton. Include a letter detailing the complaint and provide a day time phone and/or email address where
you can be reached.
LIMITEDWARRANTY LIMITSAND EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES
NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER
damages which occurred in shipment, or failures which are caused by products not supplied by
warrantor,or failures which result from accidents,misuse,abuse,neglect, mishandling, misapplication,
alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modication, or service by anyone other than a Factory
Service center or other Authorized Servicer, or damage that is attributable to acts of God.
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY
COVERAGE".THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRNTY. (As
examples, this excludes damages for lost time, cost of having someone remove or re-install an installed
unit if applicable, travel to and from the service, loss of or damage to media or images, data or other
recorded content. The items listed are not exclusive, but are for illustration only.
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR
RESPONSIBILITY.
