SHG Aquatix User manual
Operating manual
Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-
UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
1
Table of contents
1General information ______________________________________________________________________ 2
1.1 Purpose _____________________________________________________________________________ 2
2Safety instructions_______________________________________________________________________ 4
2.1 Markings and symbols in this operating instructions_________________________________ 4
2.2 Qualifications of personnel___________________________________________________________ 4
2.3 Hazards in the event of non-compliance with the safety instructions _________________ 4
2.4 Safety regulations for owner/operator _______________________________________________ 4
2.5 Safety instructions relevant for maintenance, inspection and assembly work_________ 6
2.6 Unauthorized modes of operation ____________________________________________________ 6
3Technical data____________________________________________________________________________ 7
3.1 Equipment and weight _______________________________________________________________ 7
3.2 Draining pump _______________________________________________________________________ 7
3.3 Pump performance___________________________________________________________________ 7
3.4 Capacity-head table draining pump ___________________________________________________ 7
3.5 Dirt tank ____________________________________________________________________________ 8
3.6 Operating panel _____________________________________________________________________ 8
4Operating the wet vacuum cleaner ________________________________________________________ 9
4.1 Before starting______________________________________________________________________ 9
4.2 Picking up liquids ___________________________________________________________________10
4.3 Operation __________________________________________________________________________10
4.4 After finishing work ________________________________________________________________11
4.5 Maintenance/cleaning of the draining pump _________________________________________11
5Accessories _____________________________________________________________________________ 13
6Service and Maintenance ________________________________________________________________ 14
6.1 Maintenance rate __________________________________________________________________14
6.2 Motor ______________________________________________________________________________14
6.3 Emptying the dirt tank _____________________________________________________________14
6.4 Replacing filter element ____________________________________________________________15
7Troubleshooting _________________________________________________________________________ 16
8Further information _____________________________________________________________________ 17
8.1 Recycling the wet vacuum cleaner __________________________________________________17
8.2 Guarantee __________________________________________________________________________17
8.3 Tests and approvals ________________________________________________________________17
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
2
1General information
1.1 Purpose
The wet vacuum cleaner Aquatix is suitable for sucking up non-flammable, non-
hazardous liquids including sludge, stones and other solids and suspended solids.
1.1.1 Marking of the wet vacuum cleaner Aquatix

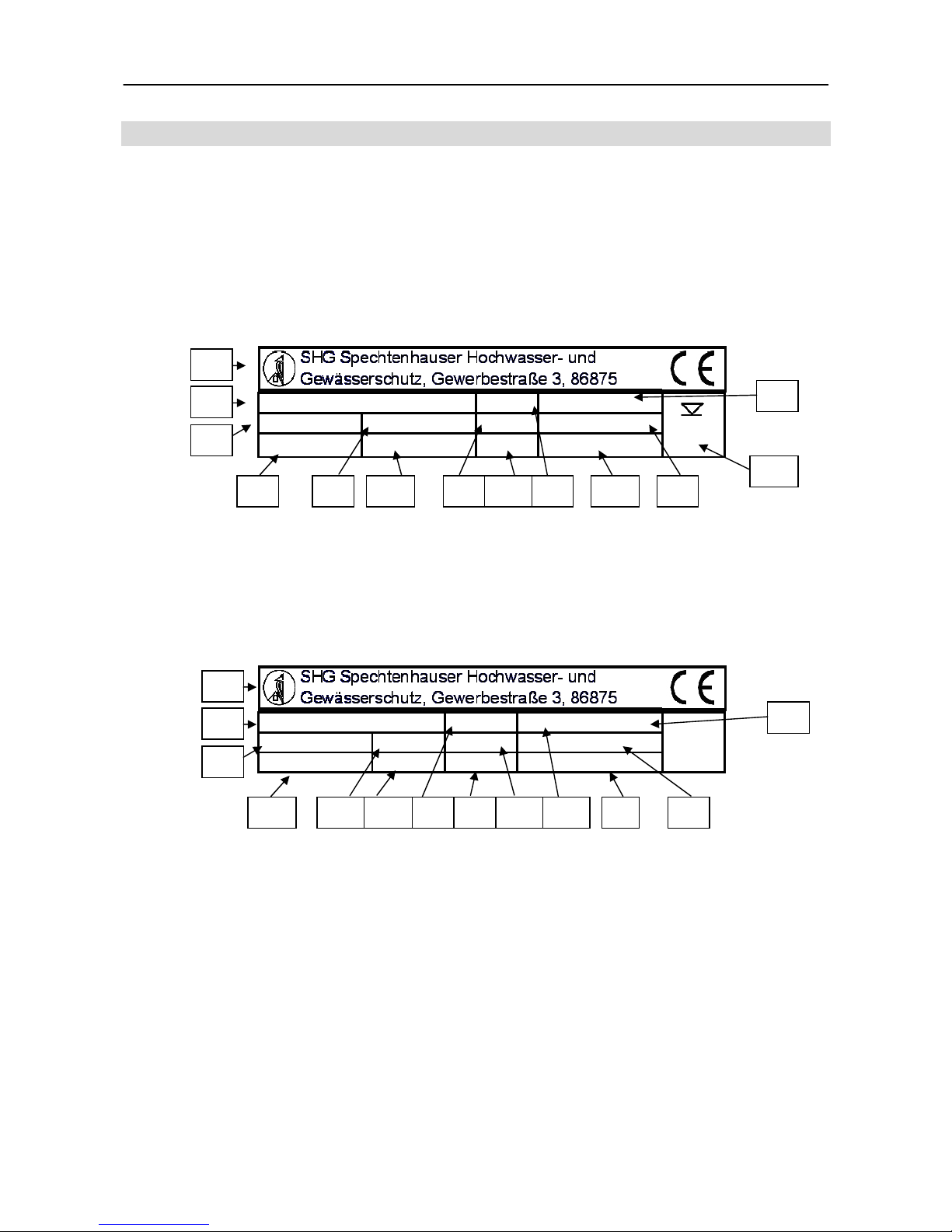

Each wet vacuum cleaner and each draining pump is marked by a type plate.
The type plate of the draining pump contains the following information:
Aquatix Pumpe 2010 AQP-XXX
5m
P1: 1,8kW 230V 50Hz Hmax 13,5m
IP 68 2800 U/min 8,5A Qmax 400l
1: Manufacturer 5: Electrical input 9: Operating voltage
2: Type designation 6: Frequency 10:Nominal current
3: Year of manufacture 7: Max. head 11:Max. capacity
4: Serial number 8: Protection class 12:Nominal rotation speed
13:Max. immersion depth
The type plate of the Aquatix contains the following information:
Aquatix 2010 Aquatix-Nr.: XXX
P1s: 1,2kW 5,5A 230V Sauger: IPX4
P1
p
: 1,8kW 8,5A 50Hz Pumpe: IP68
1: Manufacturer 5: Electrical input suction device 9: Operating voltage
2: Type designation 6: Frequency 10:Nominal current suction device
3: Year of manufacture 7: Protection class suction device 11:Nominal current pump
4: Serial number 8: Protection class pump 12;Electrical input pump
1.1.2 Application
The professional wet vacuum cleaner Aquatix is designed for clear water, sewage
and waste water including sludge, stones and other solids and suspended solids.
The Aquatix must not be used in explosive areas.
10
1
2
3
4
5
6 78 9 1112
13
9
1
2
10
4
5
6 712 10 811 3
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
3
1.1.3 Description
Suction head
(upper section)
Dirt tank
Water vacuuming
nozzle
Suction tube
Suction hose

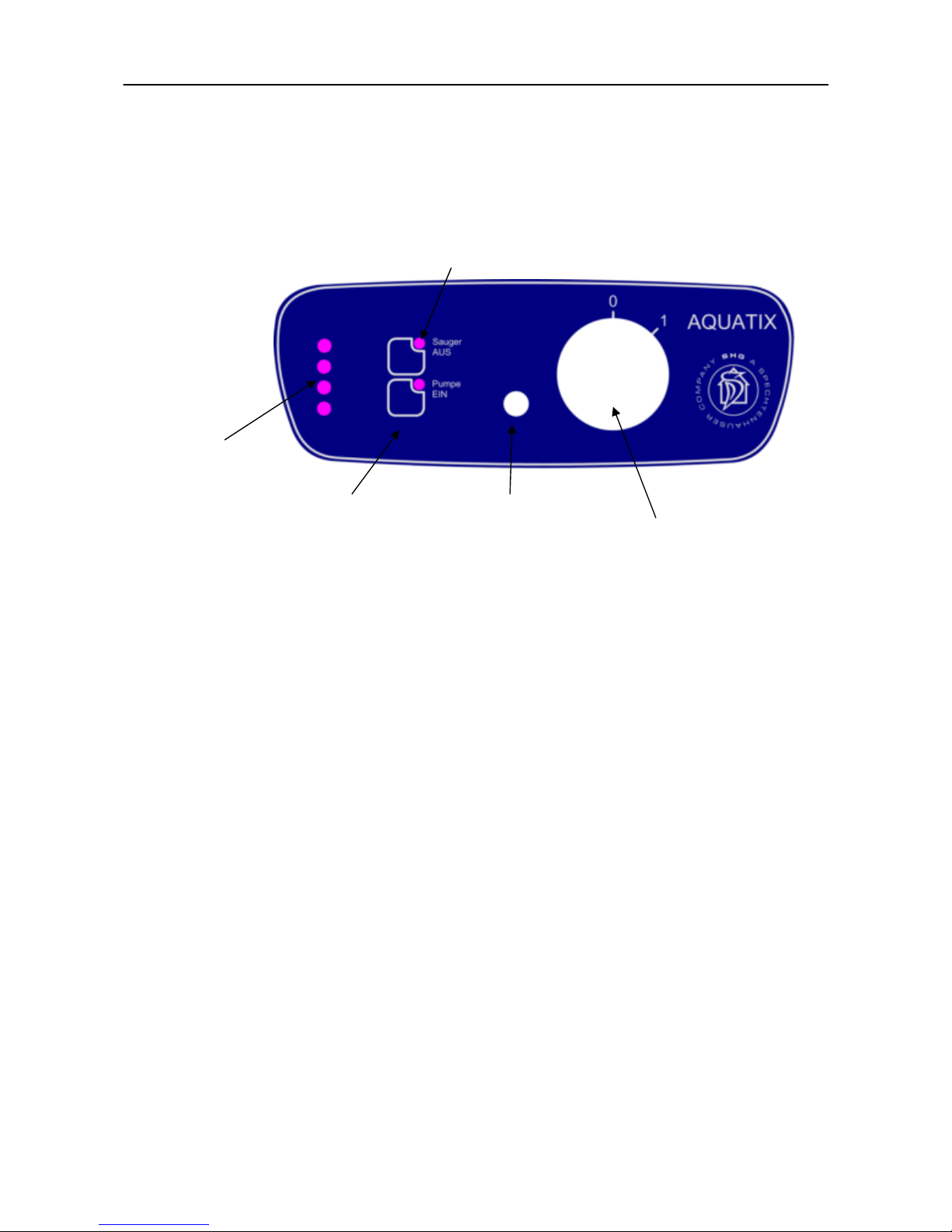

Operating panel
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
4
2Safety instructions
(General safety instructions as per VDMA 24292)
This operation manual gives basic instructions that should be followed carefully
during installation, operation and maintenance. It is essential that this manual is
carefully read by the responsible personnel/operator before assembly and com-
missioning. It is always to be kept available at the installation/usage site of the
pump.
2.1 Markings and symbols in this operating instructions
Safety instructions given in the operating manual, the non-observance of which
could cause danger to life have been specifically highlighted with the general dan-
ger symbol.
The presence of dangerous voltage is identified with the safety symbol.
Other safety points in these instructions, the non-observance of which may en-
danger machinery or its operation, are marked as follows.
Symbols directly on the pump itself, e.g.
•Direction of rotation
•Type plate
must be carefully observed and must be maintained in a legible condition.
2.2 Qualifications of personnel
An authorized (certified) electrician and mechanic shall carry out all work. Scope
of responsibility and supervision of the personnel must be exactly defined by the
operator. If the staff does not have the necessary knowledge, they must be
trained and instructed, which may be performed by the manufacturer or supplier
on behalf of the operator, moreover, the operator is to make sure that the con-
tents of the operating manual are fully understood by the personnel.
2.3 Hazards in the event of non-compliance with the safety instructions
Non-compliance with the safety instructions may produce a risk to the personnel
as well as to the environment and the machine and results in a loss of any right
to claim damages or compensation. For example, non-compliance may involve the
following hazards:
•Failure of important functions of the pump
•Failure of specified procedures of maintenance and repair
•Exposure of people to electrical, mechanical and chemical hazards
•Endangering the environment owing to hazardous substances being released
2.4 Safety regulations for owner/operator
All safety instructions contained in this manual, all relevant national and local
health and safety codes and any other service and safety instructions issued by
the owner shall be complied with.
Always follow these safety instructions before using the wet vacuum cleaner:
1. For your own safety
Only allow the wet vacuum cleaner to be used by persons who have been
trained in its use and who have been explicitly authorized to use it.
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
5
Despite its simple handling the wet vacuum cleaner is not suitable for chil-
dren.
The use of the wet vacuum cleaner is subject to valid national regulations.
Besides the operating instructions and the binding accident prevention regu-
lations valid in the country of use, observe recognized regulations for safety
and proper use. Do not use any unsafe work techniques.
2. Transport
Before transporting the dirt tank, close all the locks. Do not tilt the cleaner
if there is liquid in the dirt tank. Only use the intended carrying handles to
transport the cleaner. Do not use a crane hook to lift the cleaner.
3. Storage
Store the appliance in a dry place, protected from frost.
4. Purpose and intended use
The vacuum cleaner described in this operating manual is suitable for com-
mercial and fire brigade use.
The following materials should not be picked up by the vacuum cleaner:
-hazardous dust
-hot materials (burning cigarettes, hot ash, etc.)
-flammable, explosive, aggressive liquids (e.g. petrol, solvents, acids, alka-
lis, etc.)
-flammable, explosive dust (e.g. magnesium or aluminum dust, etc.)
-hot liquids (Temperature T>50°C)
5. Precautions and safety regulations when using the vacuum cleaner
Before start-up:
Inspect power cord regularly to detect signs of damage, e.g. cracks or age-
ing.
If the power cord is damaged, it must be replaced by Spechtenhauser service
or an electrician to avoid danger before use of the vacuum cleaner is contin-
ued.
Use only the type of power cord specified in the operating manual.
Do not damage the power cord (e.g. by moving over it or pulling or crushing
it). Disconnect the power cord by pulling the plug only (do not pull or tug the
power cord).
Inspect the vacuum cleaner to ensure that it is in proper condition. Plugs
and couplings in power cords must at least have splash protection.
Never use the vacuum cleaner if the filter element is damaged.
6. Picking up liquids
If foam develops or liquid emerges, stop work immediately and empty the dirt
tank.
7. Electrical components
Check the rated voltage of the vacuum cleaner before connecting it to the
mains supply system. Ensure that the voltage shown on the type plate cor-
responds to the voltage of the local mains power supply.
If you are using an extension cord, use only those specified by the manufac-
turer or higher quality ones.
It is recommended that the vacuum cleaner should be connected via a resid-
ual current circuit breaker. This stops the supply of electricity if the leakage
current to earth exceeds 30 mA for 30 ms or it has an earth tester circuit.
The protection class of all plug connections is IP68.
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
6
When using an extension lead, check the minimum cross-sec-tions of the ca-
ble:
Cable length m Cross section
< 16A < 25A
up to20m Ø 1,5mm² Ø 2,5mm²
20 to 50m Ø 2,5mm² Ø 4,0mm²
Arrange the electrical parts (sockets, plugs and couplings) and lay down the
extension lead so that the protection class is maintained.
Never spray water on to the upper section of the vacuum cleaner. Danger for
persons, risk or short-circuiting.
Observe the latest edition of the IEC regulations.
8. Accessories and spare parts
Only use the cleaner with original accessories and spare parts. Using spare
parts and accessories authorized by the manufacturer is in interest of safe-
ty. Use of other parts may exempt the manufacturer from any warranty or
compensation claims.
9. Maintenance, cleaning and repair
Only carry out maintenance work described in the operating instructions.
Always pull out the mains plug before cleaning and maintenance of the vacu-
um cleaner.
2.5 Safety instructions relevant for maintenance, inspection and assembly work
It shall be the user’s responsibility to ensure that all maintenance, inspection
and assembly work is performed by authorized and qualified personnel who have
adequately familiarized themselves with the subject matter by studying this
manual in detail.
Any work on the machine shall only be performed when it is at stand-still, it is
being imperative that the procedure for shutting down the machine described in
this manual be followed. Wet vacuum cleaners which convey hazardous media
must be decontaminated
All waste emissions such as used oil must be appropriately disposed of, oil spills
must be cleaned up and emissions to the environment must be reported. On
completion of work all safety and protective facilities must be reinstalled and
made operative again.
Any modification may be made to the pump only after consultation with the man-
ufacturer. Using spare parts and accessories authorized by the manufacturer is
in interest of safety. Use of other parts may exempt the manufacturer from any
warranty or compensation claims.
2.6 Unauthorized modes of operation
The reliability of the wet vacuum cleaner delivered will be only guaranteed if it is
used in the manner intended, in accordance with this manual. The limit values
specified in the data sheet must under no circumstances be exceeded. These in-
stallation and operation instructions do not supersede or exclude generally valid
regulation and standards.
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
7
3Technical data
3.1 Equipment and weight
Aquatix
Operating voltage: 230 V
Frequency: 50 Hz
Fuse: 16 A
Power consumption: 1,2 kW
Weight: 44 kg
Volume flow (air): 3600 l/min
Sound pressure level (EN 60704-1) 64 dB
Dimensions LxWxH: 550 x 500 x 870 mm
3.2 Draining pump
Type: Two-channel impeller sewage pump
Operating voltage 230 V
Power consumption P1: 1,8 kW
Protection class: IP68
Max. head: 14m
Max. solid size: 50 mm
Pump housing: Stainless steel
Impeller: Cast iron

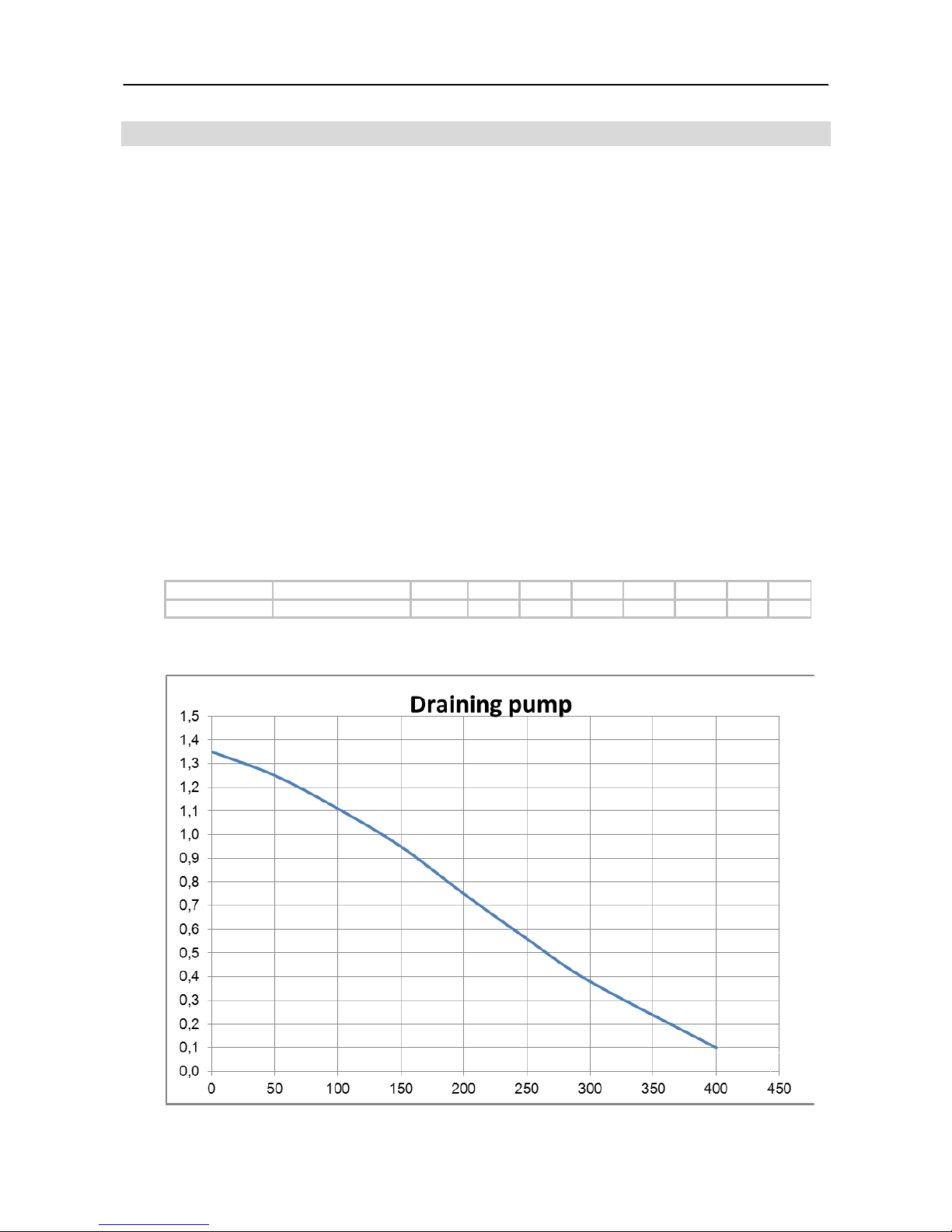

3.3 Pump performance
Head H [bar] 0,1 0,2 0,4 0,6 0,8 1,0 1,2 1,4
Draining pump Capacity [l/min] 400 360 290 240 190 135 70 0
3.4 Capacity-head table draining pump
bar
l/min
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
8
3.5 Dirt tank
Material: PE-HD
Volume 80 l
Outlet: C-Storz
3.6 Operating panel
1. Motor protection switch:
Protects the draining pump against overload e.g. in case of blockages. If the
motor protection switch trips reset the switch by pushing. If the motor pro-
tection switch trips again check if there is a blockage in the pump. (see sec-
tion 4.5).
2. Turn switch: Wet vacuum cleaner ON/OFF:
Set the switch to position "1". The vacuum cleaner motor starts.
3. Push button: Pump ON:
Manual operation of the draining pump, e.g. for emptying of the dirt tank
4. Dirt tank level indicator:
Indicates the current liquid level inside the dirt tank
5. Push button: Vacuum cleaner OFF:
For short-term stop of the suction operation, e.g. in case of a blocked suc-
tion tube
Turn switch: Wet
vacuum cleaner
ON/OFF (2)
Dirt tank level
indicator (4)
Push button:
Pump ON (3) Motor protection
switch of draining
pump (1)
Push button:
Vacuum cleaner OFF (5)
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
9
4Operating the wet vacuum cleaner
Caution:
The wet vacuum cleaner may only be operated in compliance with the instruc-
tions and information of this operating manual.
Note:
The operating voltage shown on the type plate must correspond to the voltage of
the mains power supply.
Danger from electric shock:
Bring electrical plug connections to a flood-proof area to protect them from wa-
ter. Watch out for rising water levels in flood areas!
Caution:
For outdoor use, the provisions of EN 60 335-2-41 must be observed.
Danger from electric shock:
The wet vacuum cleaner may only be operated over FI-secured (residual current
circuit breaker) safety sockets.
Caution:
The wet vacuum cleaner is no able to suck foam, as foam can’t be measured by
the automatic level control system.
4.1 Before starting
For safe working on and with the wet vacuum cleaner, the wearing of safety
shoes and safety gloves is recommended, in order to prevent injury from crush-
ing or cutting.
Caution:
Always transport the wet vacuum cleaner with the handles and wheels provided
for this purpose only.
Each time when using the wet vacuum cleaner, also ensure the following points:
1. The mains plug should not yet be inserted into a socket.
2. Open the retaining clamps, disconnect
the plug-and-socket connections and re-
move upper section of the cleaner.
3. Take the accessories out of the dirt tank
and the packaging.
4. Fit the upper section of the cleaner,
close the retaining clamps and connect
the plug-and-socket connections.
5. Ensure that the retaining clamps fit
properly.
On delivery some of the accessories are lying in the tank and must be removed
before the wet vacuum cleaner is used for the first time. The mains plug should
not yet be inserted into a socket.
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
10
4.2 Picking up liquids
The wet vacuum cleaner Aquatix is only designed for picking up liquids.
Caution:
Do not pick up flammable liquids.
Before picking up liquids check the floater for proper operation (See section
Fehler! Verweisquelle konnte nicht gefunden werden..)
If foam appears, stop work immediately and empty the tank. To reduce the
amount of foam, use foam killer.
4.3 Operation
1. Mount the suction hose on the inlet side of the wet vacuum cleaner.
2. Ensure that the cleaner is switched off.
3. Mount a dimensionally stable spiral pressure hose with matching coupling (C-
or B-Storz) to the outlet side of the pump. A suitable fire hose can now be
connected to this spiral hose. Lay this at a suitable drain or collection tank.
The end of the pressure hose must be adequately secured against impact.
The fire hose should be laid without kinks where possible to achieve an opti-
mum pumping power. It is strongly recommended that you use the optional
dimensionally stable spiral pressure hose for the first 3 m.
Danger:
Ensure that the pressure hose end is adequately secured and fixed. Other-
wise, there is the risk of the hose end being hit when switching on the wet
vacuum cleaner.
4. Insert the power cord into a properly installed and fused socket with earth-
ing contact.
Danger from electric shock:
The wet vacuum cleaner may only be operated over FI-secured (residual cur-
rent circuit breaker) safety sockets.
5. Switching on the vacuum cleaner. Turn the ON/OFF switch to position “1”.
The vacuum cleaner motor starts.
6. The vacuum cleaner is ready for picking up liquids.
7. The emptying of the dirt tank is carried out automatically. (see section 3.7
and 6.3).
8. In case of a soiled stainless steel filter element, clean the filter element
manually (see section 6.4).
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
11
4.4 After finishing work
1. Turn the switch to position „0“ for switching off the vacuum cleaner.
2. Pull the mains plug out of the socket.
3. Wind up the power cable and hang it on the handle.
4. Empty the dirt tank and clean the vacuum cleaner.
5. Store the upper section of the cleaner separately so that the filter element
can dry. In case of strongly soiled liquids clean the draining pump separately
(see section Fehler! Verweisquelle konnte nicht gefunden werden.).
6. Store the cleaner in a dry room where it is protected from unauthorized use.
4.5 Maintenance/cleaning of the draining pump
Caution:
Always pull out the mains plug before cleaning and maintenance of the drain-
ing pump. All maintenance, inspection and assembly work must be performed
by authorized and qualified personnel who have adequately familiarized them-
selves with the subject matter by studying this manual in detail.
1. Make sure that the mains plug is pulled out of the socket.
2. Disconnect both plug-and-socket connections
and remove the upper section of the cleaner
from the dirt tank.
3. Unscrew both hose clamps and open the
elastic connection between pump and pres-
sure line.
4. Unscrew the power plug of the pump.
5. Open the cable feedthrough of the pump
power cable at the dirt tank.
6. Pull the power cable inside the dirt tank.
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
12
7. Lift the pump out of the dirt tank. Ensure that the elastic connector re-
mains on the outlet of the pump.
8. Remove the intake nozzle from the pump by
unscrewing the three screws.
9. Place the pump upright.

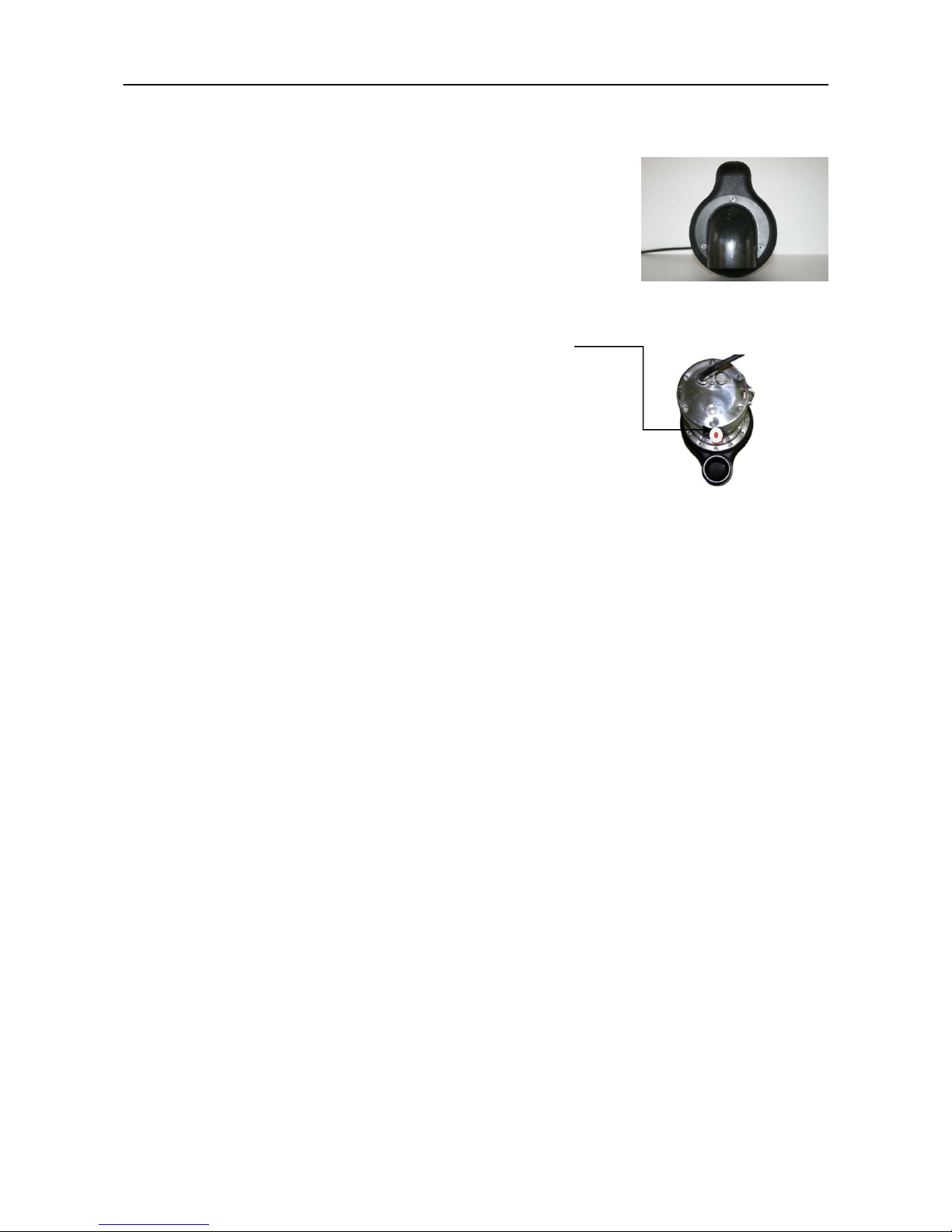

10. Remove each second screw from the stainless steel housing, starting
with the marked screw on the image.
11. Remove the motor from the spiral hous-
ing. Removing of the impeller from the
motor is not permitted.
12. Clean the spiral housing and the impeller
and check the impeller for free move-
ment.
13. Place the motor over the spiral housing (see image) and screw the motor
to the spiral housing.
14. Installation of the pump is carried out in the reverse order of dismount-
ing.
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
13
5Accessories
Standard accessories included in delivery:
•4m suction hose
•1m suction tube
•Water vacuuming nozzle
•Crevice nozzle
Optional accessories:
•Accessory pack with 5 m PVC spiral hose, gate valve and blank cap
•PVC spiral hoses for optimum capacity
•Gate valve with C-Storz couplings
•4 tire equipment with parking break
•Safety switches: portable residual current devices (PRCD)
Storing of the standard accessories in the dirt tank:
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
14
6Service and Maintenance
It shall be the user’s responsibility to ensure that all maintenance, inspection and assembly work
is performed by authorized and qualified personnel who have adequately familiarized themselves
with the subject matter by studying this manual in detail.
Any work on the machine shall only be performed when it is at stand-still, it is being imperative
that the procedure for shutting down the machine described in this manual is to be followed.
Pumps and pump units which convey hazardous media must be decontaminated. All waste emis-
sions such as used oil must be appropriately disposed of, oil spills must be cleaned up and emis-
sions to the environment must be reported. On completion of work all safety and protective facili-
ties must be reinstalled and made operative again.
6.1 Maintenance rate
The wet vacuum cleaner is to be cleaned and checked for damages after each
use.
Danger from electric shock:
Only carry out work on the wet vacuum cleaner when it is disconnected from the
network by removing the network plug from the power supply. Prevent accidental
restart of the wet vacuum cleaner by taking appropriate measures.
6.2 Motor
With all wet vacuum cleaners, opening of the engine is not permitted. Repairs
and maintenance on the motor may only be carried out by Spechtenhauser Cus-
tomer Service or at the plant. In case of infringement, all claims for warranty
and damages are lost.
6.3 Emptying the dirt tank
1. Switch off the vacuum cleaner and pull the mains plug out of the socket.
2. Disconnect both plug-and-socket connections between upper section and
dirt tank of the vacuum cleaner.
3. Remove suction and pressure hose from the vacuum cleaner.
4. Remove the upper section of the cleaner from the dirt tank.
5. Open the retaining clamps and remove the intermediate ring from the tank.
6. Tip out the collected dirt.
7. Dispose of the dirt in accordance with legal regulations.
After emptying the tank: clean the rim of the tank and the seals in the in-
termediate ring and the upper section of the cleaner before refitting them.
If the seal or groove is dirty or damaged, the suction performance will be re-
duced.
Before reinserting the suction hose: clean the inlet fitting and hose collar
8. Clean the dirt tank and the pump and dry wet machine parts.
9. Place the upper section on the dirt tank only in dry condition.
10.Connect both plug-and-socket connections properly.
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
15

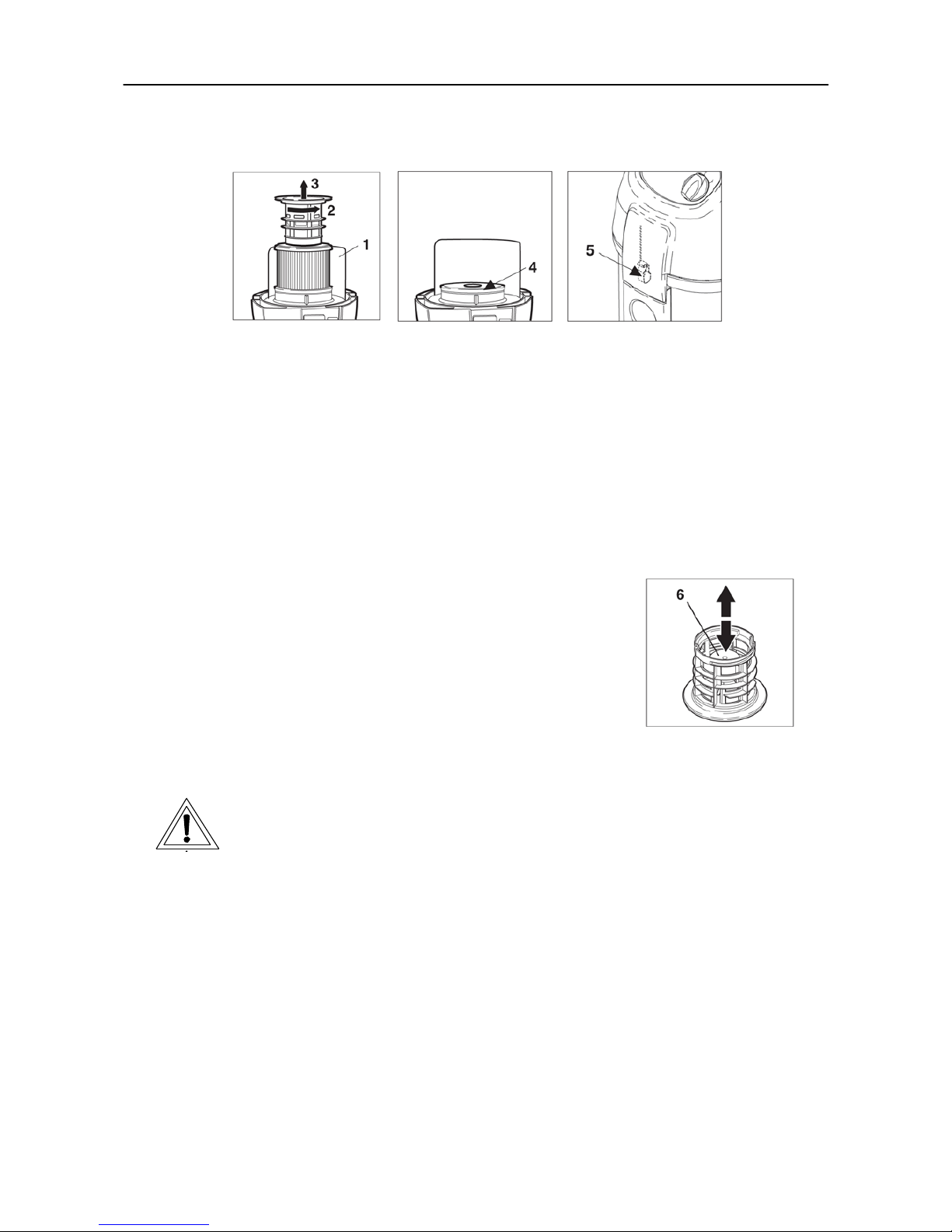

6.4 Replacing filter element
1. Open the retaining clamps and remove the upper section of the cleaner from
the dirt tank. Lay the upper section of the cleaner down with the filter ele-
ment facing upwards. Do not place the upper section of the cleaner on the
guard (1) and do not damage the filter element.
2. Turn the filter holder anti-clockwise (2) and remove it (3).
3. Carefully remove the filter element.
4. Clean the filter seal (4). Check it for damage and replace if necessary.
5. Check antistatic clamp (5) for damage and replace if necessary.
6. Check the floater (6) for proper operation:
When you turn the filter holder, the floater
should move back and forth easily.
7. Fit the (new) filter element.
8. Fit the filter holder and turn it clockwise to
secure it.
9. Dispose of the used filter element in accord-
ance with legal regulations.
Caution:
Never use the wet vacuum cleaner without a filter.
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
16
7Troubleshooting
Malfunctions; causes and rectification
Fault Cause Remedy
Motor does not start Fuse of the mains socket has
blown.
Connect mains fuse.
Overload protection switch
has tripped.
Switch off the wet vacuum clean-
er and allow it to cool for approx.
5 minutes. If the cleaner cannot
be started again, contact the
Spechtenhauser service depart-
ment.
Self-acting carbon brush is
worn.
Have carbon brushes changed by
Spechtenhauser service
Reduced suction power Suction head to high. Reduce suction head.
Clogged suction hose/nozzle Clean suction hose/nozzle
Filter element is clogged. See section 6.4
Voltage fluctuations. Impedance of power supply is
too high.
Connect the cleaner to another
socket closer to the fuse box.
Voltage fluctuations over 7%
should not occur if the impedance
at the transfer point is ≤0.15
Ω.
In all further questions, please contact our customer service department.
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
17
8Further information
8.1 Recycling the wet vacuum cleaner
Make the old cleaner unusable immediately.
•Unplug the cleaner and cut the power cord.
Do not discard of electrical appliances with household waste.
As specified in European Directive 2002/96/EC on old electrical and electronic
appliances, used electrical goods must be collected separately and recycled eco-
logically.
Contact your local authorities or your nearest dealer for further information.
8.2 Guarantee
Our general conditions of business are applicable with regard to the guarantee.
Subject to change as a result of technical advances
8.3 Tests and approvals
Electrical tests must be performed in accordance with the provisions of safety
regulations (VBG4) and to DIN VDE 0701 Part 1 and Part 3. In accordance with
DIN VDE 0702 these tests must be performed at regular intervals and after re-
pairs and modifications.
The wet vacuum cleaner has been approved in accordance with IEC/EN 60335-2-
69.
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
18
EG-Konformitätserklärung
Declaration of EC-Conformity
Attestation de Conformité CE
Hiermit erklären wir, dass alle Exemplare unserer Geräte
Herewith we declare that all our devices
Nous attestons par la présente, que tous nos produits
Aquatix
den wesentlichen Schutzanforderungen folgender EG-Richtlinien entsprechen:
comply with the following provisions applying to:
correspondent aux principales directives CE suivantes:
EG-Maschinenrichtlinie 2006/42/EG
EG-Niederspannungsrichtlinie 2006/95/EG
Angewandte harmonisierte Normen, insbesondere:
Applied harmonized standards in particular:
Principales normes harmonisées:
2006/42/EG 2006/95/EG
EN 13857 EN 60335-1
EN 809 EN 60335-2-41
EN 12100-1/2-A1
Bei einer nicht mit uns abgestimmten Änderung des Gerätes verliert diese Erklärung ihre Gültigkeit.
By altering the device without approval the declaration would invalidate.
Toute modification de la machine, effectuée sans notre accord, annule la validité de la présente déclaration.
86875 Waal, 20.03.2012
SHG Spechtenhauser Hochwasser- und Gewässerschutz GmbH
Jochen Wagner
Geschäftsführer
Name des Bevollmächtigten der
technischen Unterlagen nach
MRL 2006/42/EG:
SHG Spechtenhauser Hochwasser-
und Gewässerschutz GmbH
Gewerbestraße 3
86872 Waal, Germany
Operating manual: Professional wet vacuum cleaner Aquatix
SHG SPECHTENHAUSER HOCHWASSER-UND GEWÄSSERSCHUTZ GMBH
Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de
Fax: +49 (0)8246.9695-25 20.07.11 [0]
19
Other manuals for Aquatix
1
Table of contents
Other SHG Vacuum Cleaner manuals
