IMPORTANT!! PLEASE READ ENTIRE INSTRUCTION SHEET BEFORE ASSEMBLY!!

TO EXPEDITE ANY FUTURE WARRANTY CLAIMS, PLEASE KEEP INSTRUCTION SHEET, WARRANTY CARD AND RECEIPT

DLV01091

* NOTE: PARTS SHOWN ON PARTS LIST ARE NOT TO SCALE

PARTS LIST DESCRIPTION ORDER PART # QTY

TABLE LEG

1/4" X 25 MM BOLT 8

HW0037

HW0105

BOLT COVER

HEX BOLT DRIVER 1

HW0006

1/4" X 35 MM BOLT 4

HW0142

ØØ.20 X 6 5 X 2.0 MM

WASHER 4

HW0594

FC0010

FOOT CAP

FACTORY ASSEMBLY

LEG CONNECTOR

BRACKET

Fig.2

Ø.6 5 X 1.0 MM

WASHER 8

HW0004

Fig.1

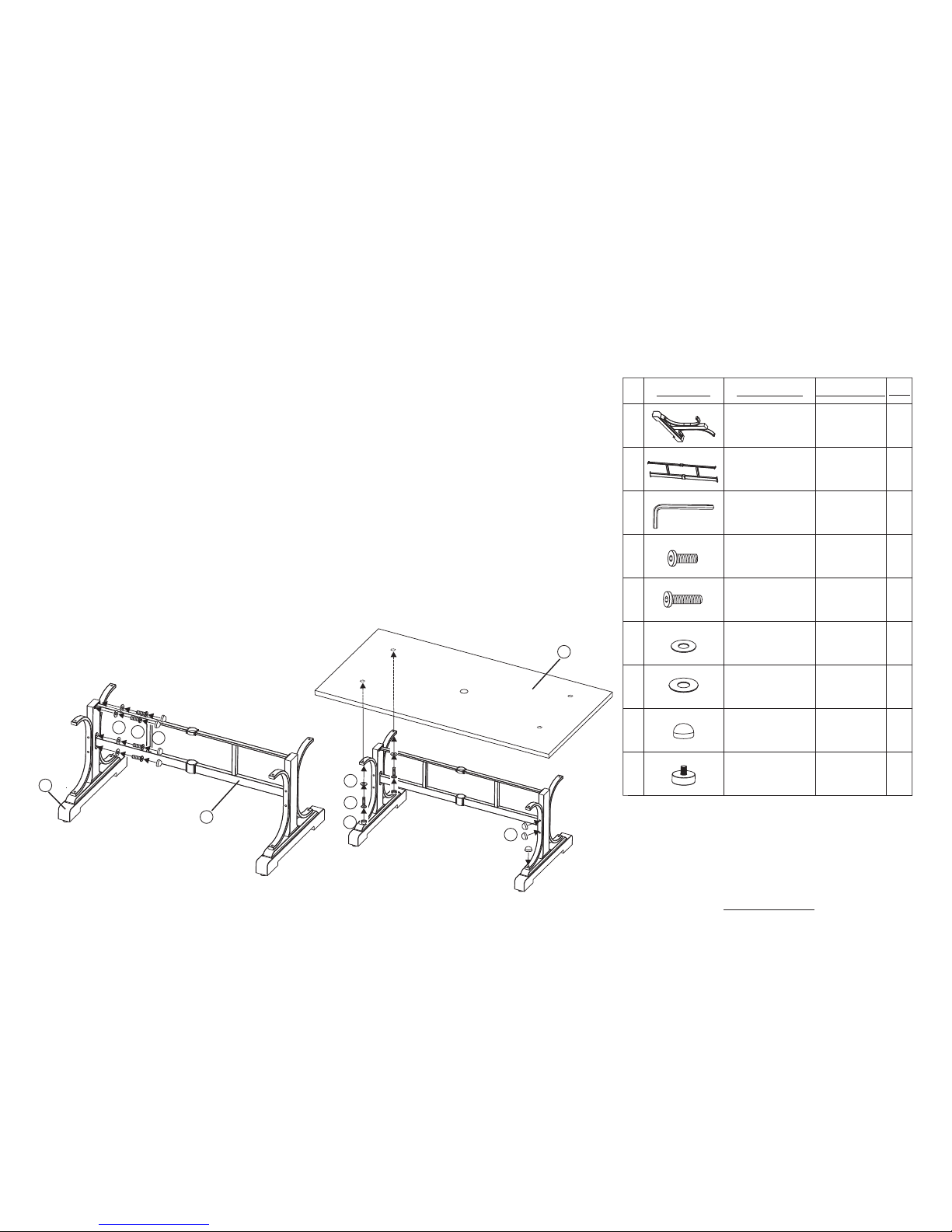

Step 1:

Do not attempt assembly if any parts are missing or damaged.

Step 2: F Hand

tighten only.

Step 4:

Do not over tighten.

Remove all protective materials and set parts on a flat, non-abrasive surface. Identify parts packed in carton against the

parts list.

Attach the leg connector bracket to a table leg by using four 1/4"x25 mm bolts and washers as shown in .

Repeat for the oppose side.

1/4"x mm s

After making any necessary adjustments to the alignment of the table legs and the table top, use the hex bolt driver to

tighten all bolts. Each bolt must be tightened a few revolutions at a time, alternating between bolt connections. Repeat

until all bolts are tight. Over tightening may strip bolts. Cover all bolts with covers. Your table

is now ready for use.

ig 1

Step 3:

Fig.2. Do not tighten completely.

With the help of another person, carefully place the table top onto the table base

. After making any necessary adjustments to the alignment of the table top and the table base, use four

35 bolt and washers as shown in Repeat on the other side. (Note:

holes do not go through to the top of the table. Holes shown for illustration purposes only.)

(

)

This product does not include the

tabletop

IMPORTANT NOTE: Damage to welds or frames resulting from over tightened bolts or improper assembly is not

covered under our warranty. Please read all instructions carefully before assembly. If you have any questions regarding

your assembly, call our Customer Service Center at 1-800-416-3511.

AT52653

AT52654

ACOV103

Page 1

CARE AND MAINTENANCE

SPECIAL WARNINGS!!!

LIMITED 7 YEAR WARRANTY

FRAMES

NATURAL STONE

UMBRELLA USAGE WARNING!

Frames.

Finishes.

Fabrics.

Straps and/or wicker.

Umbrellas

Table tops

Warranty limitations:

Warranty exclusions:

Some states do not allow exclusion or limitation of incidental or consequential damages, so that limitation above may not apply

to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Cleaning

Maintenance

- Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water and

dry thoroughly.

- Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. To thoroughly drain

frames, remove foot caps and tilt the frames, if necessary, to remove all water. This is critical. Water allowed to accumulate inside the

frames and then exposed to sub-freezing temperatures can cause damage to the frame tubing. Such damage is not covered under

warranty. Always clean, drain and dry thoroughly before storing for the winter. For best results, always store or cover your furniture

when not in use. We recommend commercially available outdoor furniture covers. Any small nicks or scratches can be covered with

a light application of touch-up paint.

** When cleaning or moving large or heavy items, always have two people work together. Never drag furniture.

To ensure the lasting beauty of your stone tabletop, please refer to the special stone care label that is attached to the underside of your

stone tabletop. Detailed care and maintenance instructions are also available by visiting our website at

or by calling our Customer Service Center at 800-416-3511.

If you will be using an umbrella with your table, make sure the plastic umbrella ring is inserted into the hole in the center of the table.

Place the umbrella through the opening and into an umbrella stand made of cast iron, wrought iron, steel plate or blow molded plastic

filled with 20-50 lbs or 9-22 kgs of sand or water. If your table is 72" or 182 cm or larger, we recommend a weight of at least 50 lbs or

22 kgs or more. NEVER USE AN UMBRELLA WITH A TABLE WITHOUT USING AN UMBRELLA BASE OR RING AS

DESCRIBED ABOVE. ALWAYS REMOVE YOUR UMBRELLA FROM THE TABLE WHEN NOT IN USE. NEVER USE AN

UMBRELLA DURING STORMS OR WINDY CONDITIONS.

Frame construction is warranted against defects in material and workmanship for seven years from purchase date.

Damage to frames or welds resulting from improper assembly or exposure to water and/or sub-freezing temperatures is not

covered.

Paint finishes are warranted against peeling, cracking and blistering for one year from purchase date provided the

unit has not been scratched or abraded. Chips and scratches resulting from normal wear and tear are not covered.

Fabric and cushions (if applicable) are warranted against separation at the seams for one year from purchase date.

Fading and/or discoloration resulting from exposure to the elements, oils, spills, fluids, chemicals, or any other cause is not

covered.

Straps and/or wicker weave (if applicable) are warranted against separation and tearing for one year

from purchase date. Fading and/or discoloration resulting from exposure to the elements, oils, spills, fluids, chemicals, or any

other cause is not covered.

. Umbrellas (if applicable) are warranted against defects in material and workmanship only for one year from

purchase date. Umbrella bases (if applicable) are not covered under any circumstance.

. Natural stone tabletops only are warranted against defects in materials or workmanship only for one year from

purchase date. All other table tops (including without limitation glass and faux stone) are not covered under any circumstances.

This warranty is subject to the limitations set forth above. In addition, this warranty is made to the original

purchaser only, and is effective only when item(s) is purchased from one of our authorized dealers. This warranty is not transferable.

For warranty replacements based on warranty claims submitted within the first year of purchase, we will pay shipping and handling

charges within the continental North America. After the first year, shipping and handling charges are your responsibility. We will not

be responsible for charges associated with shipments outside the continental North America at any time or for any reason.

This warranty is subject to the exclusions as set forth above. In addition, the following are excluded from

coverage under this warranty: any item used for commercial, contract or any other non-residential purpose; clearance items, display

models or items purchased "as is"; freight damage; items subject to misuse, abuse, neglect or lack of proper care and maintenance

(including without limitation as provided in any "care and maintenance guide"); normal wear and tear; damage caused by acts of

nature, acts of force majeure, vandalism, fire or other casualty, or improper assembly; hardware against corrosion or rusting;

purchased or replacement parts; and all plastic parts. Also excluded are loss of use or time; inconvenience; money; travel; packaging;

or incidental, special or consequential damages of any kind. Replacement of defective items as provided herein shall constitute your

sole and exclusive remedy for items which are not as warranted. In no event shall our responsibility exceed the purchase price of the

items found to be other than as warranted. This warranty is the exclusive statement of your rights with respect to the defects in the

items you have purchased and supersedes any other express warranty or statement, written or oral, made in connection with the

purchase and sale of such items. When used herein, the term "item" when used in the singular, refers to the specific item found to be

defective, and not to the entire set of which the item is a part.

www.agio-usa.com/stonecare

STOP PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE

ASSEMBLY. MAKE SURE YOU HAVE ALL THE PARTS AND

HARDWARE AS IDENTIFIED ON THE PARTS LIST.

CALL OUR CUSTOMER SERVICE CENTER AT 1-800-416-3511

BETWEEN 9:00AM AND 5:00PM (EASTERN TIME) MONDAY

THROUGH FRIDAY (CLOSED HOLIDAYS).

OR, VISIT OUR WEBSITE AT: www.shianco.com

TO EXPEDITE ANY FUTURE WARRANTY CLAIMS, RETAIN THE

INSTRUCTION SHEET, WARRANTY CARD AND RECEIPT FOR

FUTURE USE. YOU ARE ENCOURAGED TO REGISTER YOUR

PURCHASE ON OUR WEBSITE AT www.shianco.com

MISSING PARTS? DAMAGED PARTS? DON'T GO BACK TO THE

RETAILER. WE CAN HELP YOU FASTER

FOR ADDITIONAL ONLINE VIDEO SUPPORT ON ASSEMBLY,

TROUBLESHOOTING, AND CARE AND MAINTENANCE OF YOUR

SHIANCO OUTDOOR FURNITURE, PLEASE VISIT OUR WEBSITE AT:

www.shianco.com/support

SKU # 272-4299

TACOMA 42"X80" TILE DINING TABLE - BASE

Customer Service 1-800-416-3511

IMPORTANT CARE INFORMATION: To prolong the life and beauty of

your natural slate-top table clean and seal it with a natural stone sealer a minimum

of once per year. Failure to do so will result in weather damage such as fading,

staining or other discoloring. It is also recommended that your natural slate-top

table be covered when not in use. For further questions and information please

visit our website at www.agio-usa.com/stonecare or call our customer service

center at .1-800-416-3511

PATIO FURNITURE & ACCESSORIES

ASSEMBLY INSTRUCTIONS

IMPORTANT

SEAT DESIGNS MAY

VARY BUT THE ASSEMBLY

IS THE SAME

NOTE: MAKE SURE ARROWS ON

BOTH THE "U" BAR AND

SWIVEL BASE ASSEMBLY

ARE POINTING IN THE

SAME DIRECTION.

Step 1:

Do not attempt

to assemble the chair if any parts re damaged or missing.

IMPORTANT NOTE: WE RECOMMEND TWO PEOPLE WORK TOGETHER

TO ASSEMBLE THE CHAIR.

Step 2:

Step 3:

Step 4:

Step 5: Do not

over tighten.

Step 6:

Identify all parts packed in carton against the parts list. Remove all protective

materials. Place parts on a non-abrasive surface to avoid scratching. If you

are missing any parts or are unsure how to proceed with assembly, please call

our Customer Service Center immediately at 1-800-416-3511.

Position the swivel base on a flat, solid surface. Make sure the swivel plate is

positioned all the way into the base. It may have vibrated out during shipment.

The two sets of holes in the swivel plate should be facing away from you.

Note the arrows on both the swivel plate and the "U" bar portion of the chair

frame. Position the chair frame onto the swivel plate so that the two pairs of

holes in the "U" bar are exactly aligned with the two pairs of holes in the

swivel plate and the arrows on both the "U" bar and swivel plate are pointing

in the same direction. Proper positioning of the chair frame on the swivel

plate/swivel base assembly, and proper alignment of the holes in the "U" bar

with the holes in the swivel plate are critical to the safe, well balanced

swiveling motion of the chair.

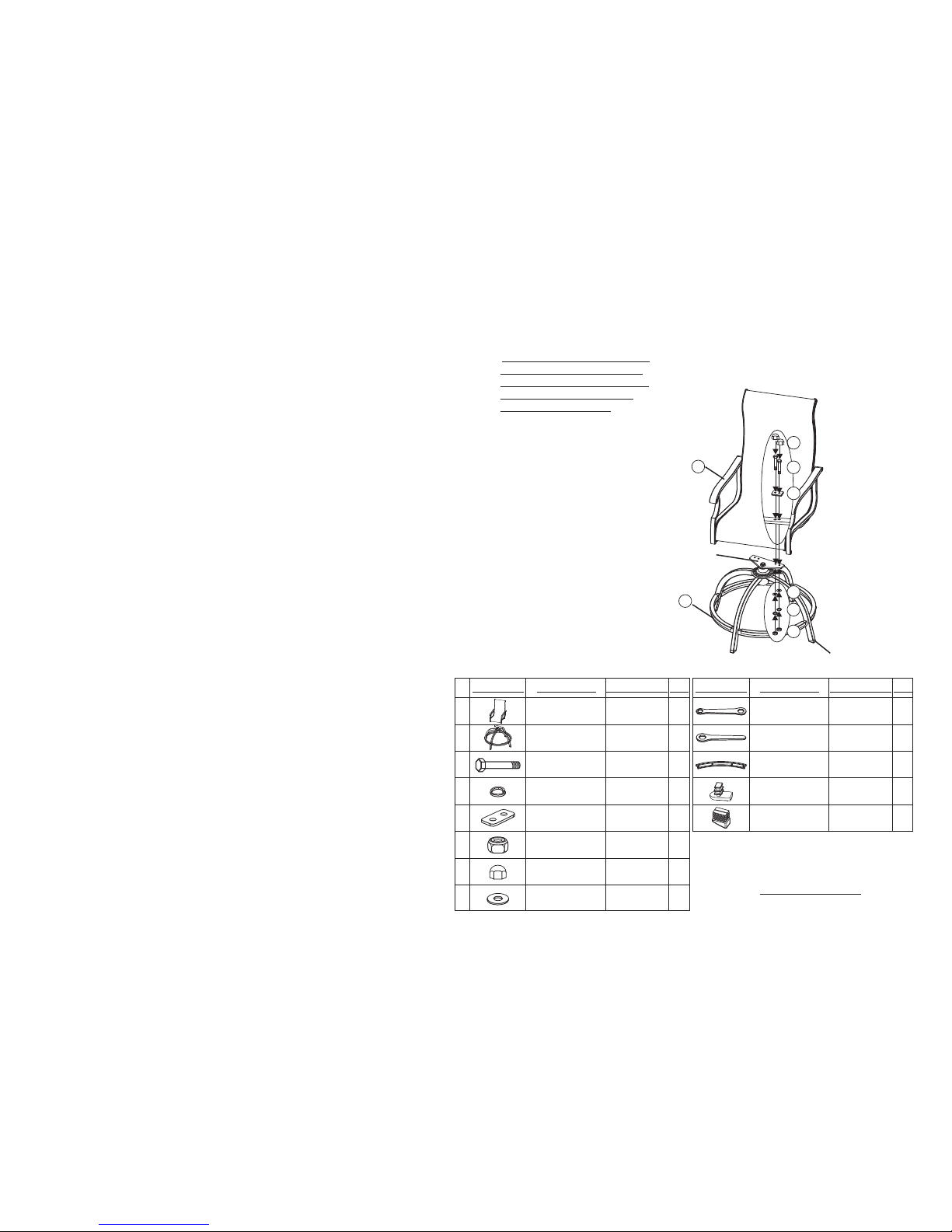

Carefully examine the diagram. Attach a metal plate to four (4) bolts and

guide the bolts through the top of one set of holes in the "U" bar (located

under the chair frame) and into the pair of holes in the swivel plate. From

beneath the swivel plate, add a washer, then a spring washer, then a nut to

the end each bolt. Hand tighten 3-4 revolutions only. Repeat procedure for

the pair of holes on the opposite side. Again, hand tighten nuts 3-4

revolutions only. Do not tighten nuts completely.

At this time tighten all nuts and bolts with the hex wrenches provided.

Over tightening may strip the bolts and cause damage to the

swivel plate, making the chair unsafe. Cover bolts with bolt covers.

Your chair should now be ready for use. If you do not feel that your chair is

swivelling properly, double-check your assembly procedure, especially step 4.

If you have any questions, please call our Customer Service Center at

1-800-416-3511

IMPORTANT NOTE: Damage to welds or frames resulting from over tightened

bolts or improper assembly is not covered under our warranty. Please read

all instructions carefully before assembly. If you have any questions regarding

your assembly, call our Customer Service Center at 1-800-416-3511.

Page 2

IMPORTANT!! PLEASE READ ENTIRE INSTRUCTION SHEET BEFORE ASSEMBLY!!

TO EXPEDITE ANY FUTURE WARRANTY CLAIMS, PLEASE KEEP INSTRUCTION SHEET, WARRANTY CARD AND RECEIPT

SWIVEL PLATE

ADV07511

* NOTE: PARTS SHOWN ON PARTS LIST ARE NOT TO SCALE

FOOT CAP

HW0686

SLING TUBE CAP

FACTORY ASSEMBLY

SWIVEL BASE

FOOTREST COVER

FACTORY ASSEMBLY G0155

FOOT CAP

FACTORY ASSEMBLY

HEX WRENCH-1 HW0008 1

HEX WRENCH-2 HW0007 1

QTY

PARTS LIST DESCRIPTION ORDER PART #

BOLT COVER HW0028 4

QTY

5/16" X 43 MM

BOLT

Ø8.0 X 2.3 MM

SPRING WASHER HW0003

5/16" NUT HW0015

METAL PLATE

CHAIR FRAME

PARTS LIST DESCRIPTION ORDER PART #

HW0450

Ø85X15MM

WASHER

.. HW0005

FC0082

FC0831

AS0075

AS0076

ACOV118

Page 1

CARE AND MAINTENANCE

LIMITED WARRANTY

FRAMES

FABRICS (CUSHIONS/SLINGS)

STRAPS

Frames.

Finishes.

Fabrics.

Straps and/or wicker.

Umbrellas

Table tops

Warranty limitations:

Warranty exclusions:

Some states do not allow exclusion or limitation of incidental or consequential damages, so that limitation above may not apply

to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Cleaning

Maintenance

Cleaning -

Maintenance

Cleaning -

Maintenance -

- Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water and

dry thoroughly.

- Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. To thoroughly drain

frames, remove foot caps and tilt the frames, if necessary, to remove all water. This is critical. Water allowed to accumulate inside the

frames and then exposed to sub-freezing temperatures can cause damage to the frame tubing. Such damage is not covered under

warranty. Always clean, drain and dry thoroughly before storing for the winter. For best results, always store or cover your furniture

when not in use. We recommend commercially available outdoor furniture covers. Any small nicks or scratches can be covered with a

light application of touch-up paint.

** When cleaning or moving large or heavy items, always have two people work together. Never drag furniture.

Wipe minor spills immediately. Clean with mild soap, warm clean water and soft cloth. Do not use abrasive materials,

cleansers or bleach products. Although fabric has been treated to resist stains, occasional use of commercially available fabric cleaners

may be necessary. Follow manufacturer's instructions.

- The best way to maintain the beauty of cushions and slings is to store them in a dry area and out of the elements when

not in use or cover with commercially available outdoor furniture covers.

Wash frequently with mild soap, warm water and a soft cloth. Rinse thoroughly with warm, clean water. Do not use

abrasive materials, cleansers or bleach products.

Periodic application of commercially available vinyl cleaners and vinyl protectors will enhance the look and prolong the

life of straps. If your strap chair has cushions, make sure any vinyl protectors applied are completely dry before placing cushion back

on the chair.

Frame construction is warranted against defects in material and workmanship for seven years from purchase date.

Damage to frames or welds resulting from improper assembly or exposure to water and/or sub-freezing temperatures is not

covered.

Paint finishes are warranted against peeling, cracking and blistering for one year from purchase date provided the unit

has not been scratched or abraded. Chips and scratches resulting from normal wear and tear are not covered.
