Shire Forget - Me - Not Arbour User manual

Thank you and congratulations on the purchase of your Shire Garden Building. We believe that this
product will give you many years of excellent service. This is a natural product manufactured to a high
standard therefore if you have any queries or experience any difficulties then please contact our
customer service hotline on 01945 46 89 10 or 01945 46 89 11 or 01945 46 89 12. Normal office hours:
8.30am to 5.00pm Monday to Friday. Answer phone all other times.
Preparation of Base
We recommend that the base onto which your building will stand should be at least 75mm larger in
each direction than the total floor size of the building.
Actual floor area of the building: 1250 x 665mm
Total height clearance: 2245mm
The chosen position in your garden for the siting of the building should be excavated to a depth of 75mm
to allow a base of sand, on to which paving slabs can be evenly laid - THEY MUST BE LEVEL AND
FIRM.
Treatment/Care of your Garden Building
Tools Required
Posidrive screwdriver (electric is best)
Drill, 6 & 3mm drill bits
Sandpaper (to smooth any rough edges)
Tape measure
Step ladder
Pencil
IMPORTANT!
PLEASE READ PRIOR TO ASSEMBLY OF THE BUILDING
WE RECOMMEND THAT PROTECTIVE GLOVES
BE WORN THROUGHOUT
Wood is a natural product and is therefore prone
to changes in appearance, including some
warping, movement and splitting, particularly
during unusual climatic conditions (long hot or
wet spells of weather). As a natural occurrence
this is not covered by a guarantee.
PLEASE NOTE
BUILT AROUND OUR REPUTATION
©
Treat with a suitable decorative wood finish immediately. We recommend that all timber pieces be
treated again prior to assembly and again within 3 months of assembly. We further recommend that
all pieces are treated again at least annually or as frequently as the instructions on the product used
recommends.
We wouldsuggest that all wall panels be treated in an upside-down position to allow the finish/treatment
to ingress into the tongue and groove jointing.
We would also remind you that you would rarely (if ever) be able to re-treat the underside of the floor
following assembly. We strongly recommend that the underside of the floor is treated an absolute
minimum of twice (not including pre-treatment).
Garden buildings are not waterproof, therefore on assembling building we recommend using a
silicon based sealant between wall panels and between wall panels and floor.
Assembly of
Forget - Me - Not Arbour
Mimosa arbour
EVERY PRECAUTION IS TAKEN TO ENSURE THAT YOUR
BUILDINGHASNOELEMENTINCORRECTLY PLACED OR POS-
SIBLY HAZARDOUS, HOWEVER PRIOR TO USE PLEASE
CHECK ALL SURFACES FOR THE FOLLOWING:
1 RAISED GRAIN,SPLINTERS: sanddown timberto smooth finish.
2 NAIL/SCREW/PIN HEADS PROUD: tap home to be flush with
surface of timber.
3 DAMAGED SCREW HEADS: RESULTING IN SHARP SPLIN-
TERS OF METAL: replace.
4 SHARP ENDS OF NAILS/ SCREWS/PINS PROTRUDING
THROUGH THE PANEL: remove and reposition.
5 ENSURE ALLPARTS ARE SECURED AGAINSTREASONABLE
FORCE: remove and refit.
6 ENSURE THERE ARE NO LOOSE PARTS: remove and
refit/discard.
16/12/13

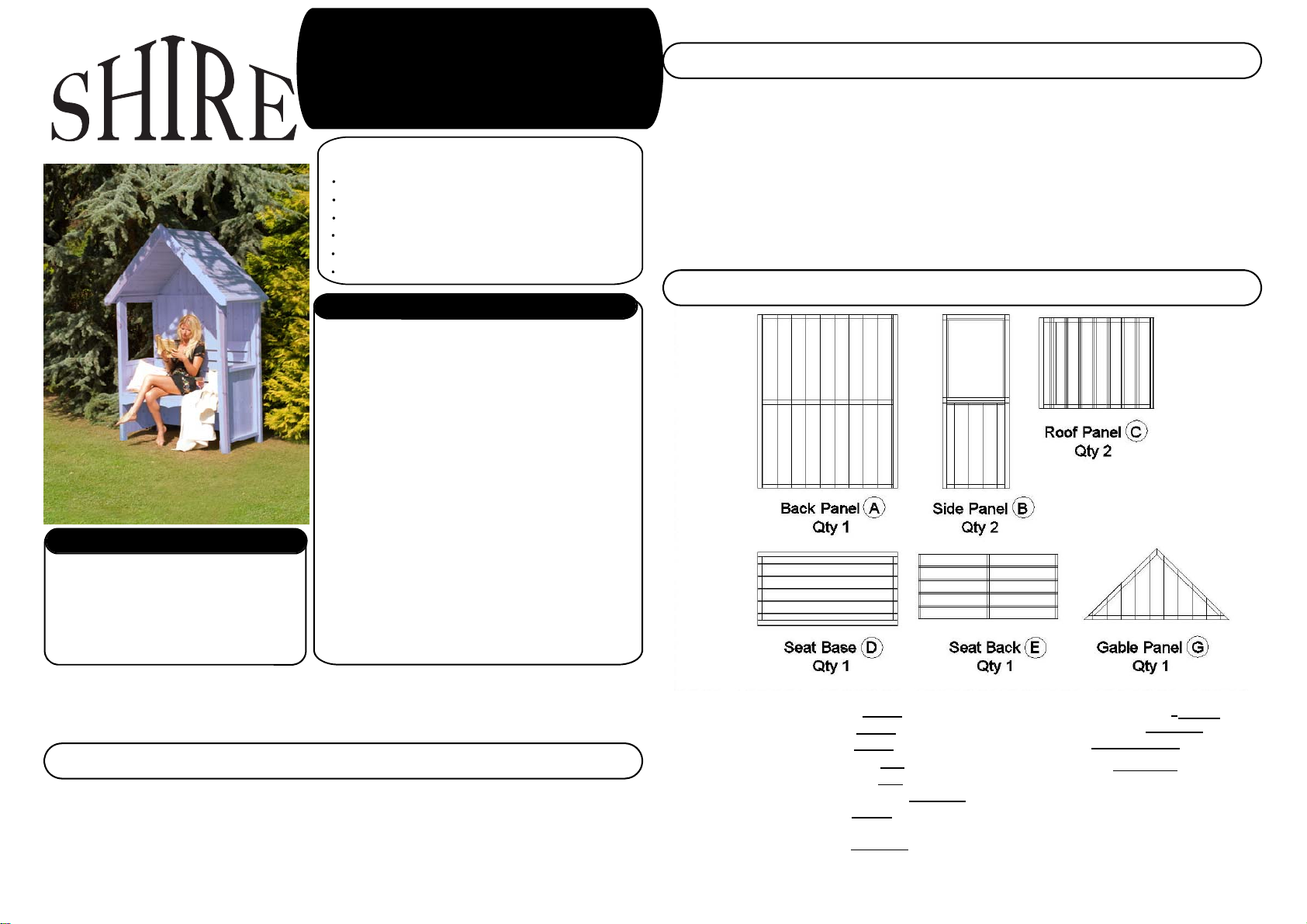

Parts List
QTY DESCRIPTION
1 Back Panel - 1418 x 1120 mm PP120 A
2 Side Panels - 1418 x 538 mm PP121 B
2 Roof Panels - 924 x 722 mm RP112 C
1 Seat Base Panel - 602 x1120 mm SP1 D
1 Seat Back Panel - 524 x 1120 mm SP2 E
1 Gable Panel - 581 x 1160 mm GP104 G
4 Cornerposts-58x58 x1500 mm (Bevelled) 58S-1500 F
2 Seat Supports-Sides 34x34 x 590 mm 34R-590 H
1 SeatSupport-Back34x34x1052mm 34R-1052 I
J
K
L
M
N
PLEASE LAY OUT PARTS AND CHECK OFF AGAINST
CHECK LIST BELOW:
1 Roof Framework44x44x722 mm 44R-722
2 RoofCapping12x170x722mm 70R-722
2 Fascia Boards 86FC- 1058
1 Fascia Diamond 95FC-1120
1Seat Fascia Board
45 x 60 mm Screws
5 x 40 mm Screws
6 x 25 mm Screws
14 x 40 mm Nails

Assembly of Building -
PLEASE READ INSTRUCTIONS PRIOR TOASSEMBLY
A - Wall Assembly - Step One
A - Wall Assembly - Step Two
ASSEMBLE ON LEVEL SURFACE
A - Wall Assembly - Step Three
A - Wall Assembly - Step Four

B - Gable Assembly
C - Seat Assembly - Step One
C - Seat Assembly - Step Two
C - Seat Assembly - Step Three

D - Roof Assembly - Step One
D - Roof Assembly - Step Two
D - Roof Assembly - Step Three
D - Roof Assembly - Step Four

F - Seat Back Assembly - Step One
F - Seat Back Assembly - Step Two
1 Check and ensure that no raised grain or splinters
are evident on timber components. Sand down
any raised grain or splinters using fine grade
sandpaper.
2 Check that all screw, nail and pin heads are
properly tapped home and are not proud of the
timber surface.
3 Check and ensure that no screws, nails or pins
protrude through any panel.
4 Check and ensure that all parts are properly
secured against reasonable force.
COMPLETION CHECKLIST
