T.MT5310.86B (DVB-T/T2+C)-SPECIFICATION
1. GENERAL DESCRIPTION
T.MT5310.86B is a digital and analog TV control board, which is suitable for Pan Europe and UK
market. It can support more than 26 inch LED panels which resolution is up to 1920×1080.
T.MT5310.86B can receive and decode both Free-To-Air DTV and CA DVB-T/T2/C program. It can
decrypt programs encrypted by Irdeto, Viaccess, Conax with built-in CI(optional).
T.MT5310.86B’s USB slot can be used for Software upgrade, multimedia playback, PVR and
time-shift.
2. FUNCTION LAYOUT
The picture is for a reference only, the actual item is the standard.
The optional connectors and terminals are marked with “*”.

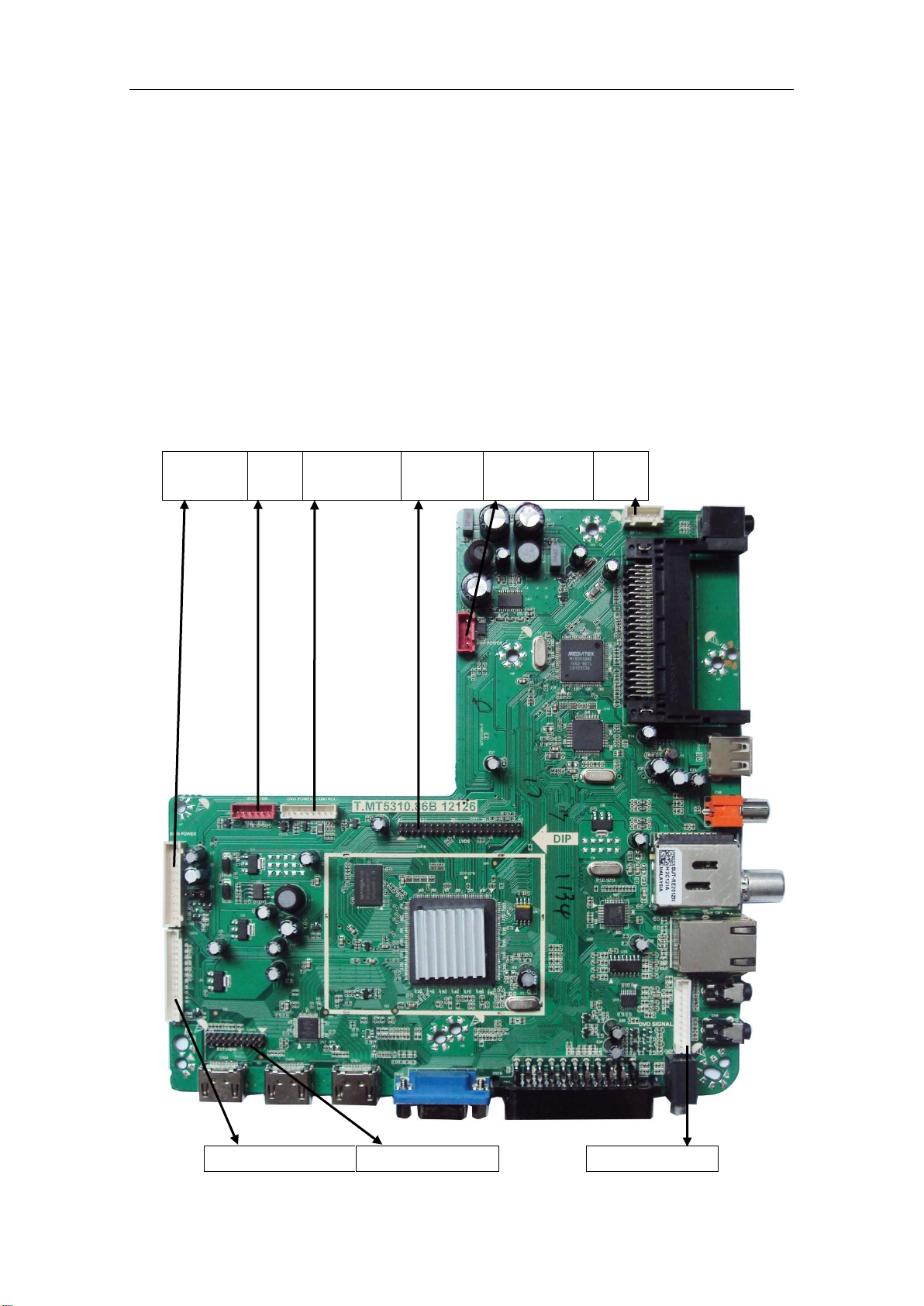

TOP VIEW OF T.MT5310.86B
CN4: Main
Power Supply
CN3:
Inverter
*CN19: DVD
Power & Control
CN11: LVDS
Interface
CN16: Amplifier
Power Supply
CN17:
Speaker
CN10: IR & Key Interface
*CN25: External HDMI In
*CN20: DVD Signal In
第 3 页，共 80 页

T.MT5310.86B (DVB-T/T2+C)-SPECIFICATION

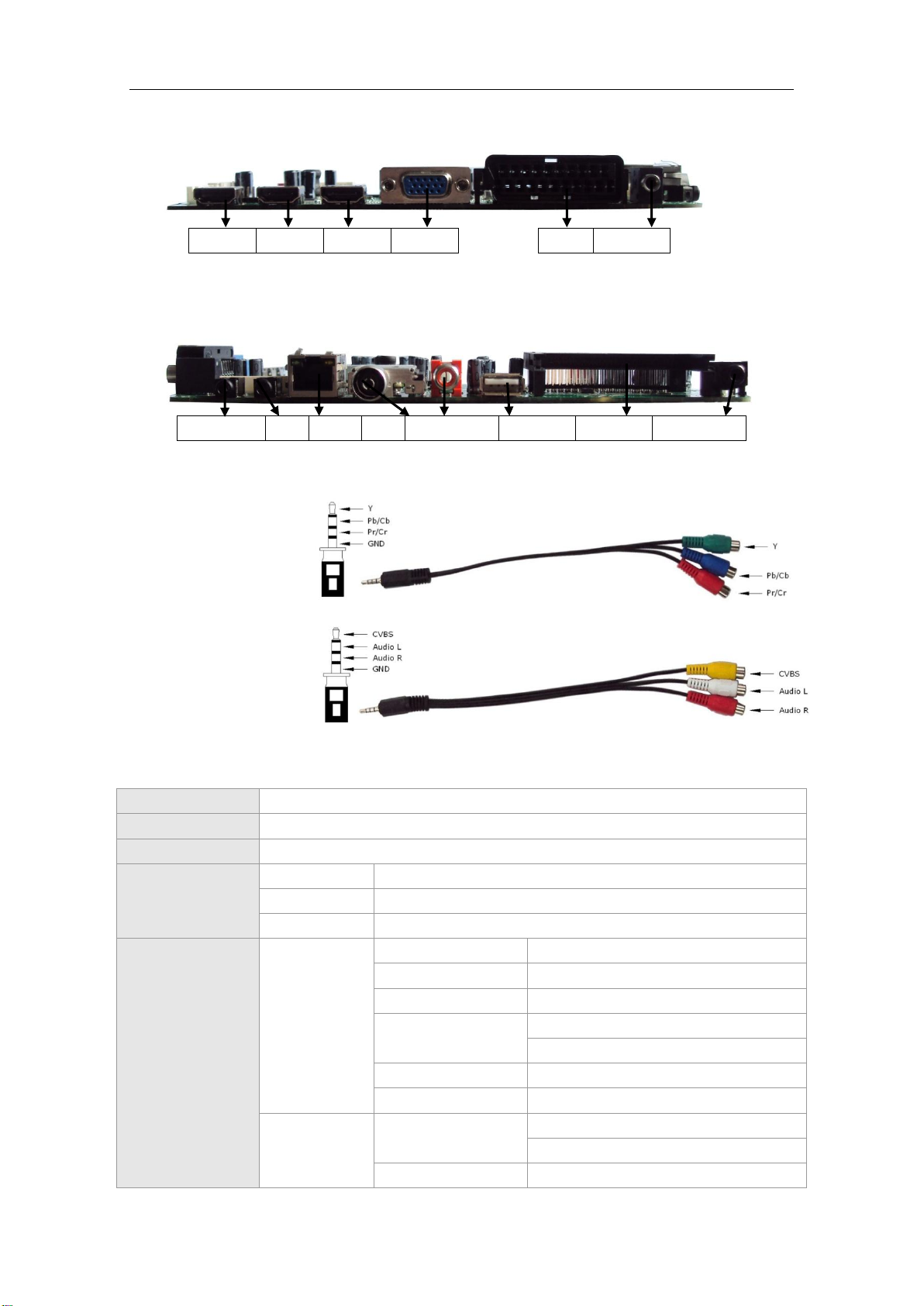

FRONT VIEW OF T.MT5310.86B
Note: HDMI1 and external HDMI can’t coexist with each other.
SIDE VIEW OF T.MT5310.86B
REQUIREMENT OF WIRE HARNESS (optional)
COMPONENT In
AV IN
3. FEATURES
CHIPSET
MT5310+ MT8295+CXD2820
MARKET AREA
Pan Europe, UK
OSD LANGUAGE
English, French, German, Italian, Spanish, Portuguese (optional)
PANEL
Panel Type
LED
Interface
Dual/Single LVDS Interface
Max Resolution
1920×1080
TV INPUT
ATV
Receiving Range
48.25MHz ~ 863.25MHz
Input Impedance
75Ω
Video System
PAL, SECAM
Sound System
BG, DK, I, L/L’
NICAM/A2
TELETEXT
1000Pages
Max Storage Channels
1500CH (ATV & DTV)
DTV
Receiving Range
VHF (174MHz ~ 230MHz)
UHF (474MHz ~ 862MHz)
Input Impedance
75Ω
HDMI1 In
HDMI2 In
HDMI3 In
PC-RGB In
SCART
PC Audio In
Component In
AV In
Lan In
RF In
Coaxial Out
USB Slot In
CI Slot In
Earphone Out
第 4 页，共 80 页

T.MT5310.86B (DVB-T/T2+C)-SPECIFICATION
Channel Bandwidth
7MHz/8MHz
Modulation
DVB-T
QPSK,16QAM,64QAM
DVB-C
16QAM,32QAM,64QAM,128QAM,256QAM
DVB-T2
QPSK,16QAM,64QAM,256QAM
Video System
MPEG-2 MP@ML, MPEG-2 MP@HL,H.264
Sound System
MPEG-1 layer 1/2,MPEG-2 layer 2,
DD,DD+
Basic Functions
EPG, Subtitle, LCN,
TELETEXT (Europe), MHEG-5(UK)
Common Interface
Built-In
Max Storage Channels
1500CH (ATV & DTV)
VIDEO INPUT
PC-RGB
Format
Up to 1920×1080@60Hz
CVBS
Video System
PAL/NTSC/SECAM
Video Level
1.0 VP-P±5%
Component
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
HDMI
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
SCART
CVBS & RGB
AUDIO INPUT
PC Audio
Earphone Input
0.2 ~ 2.0 VRMS
CVBS &
Component
Audio
L/R RCA Input
0.2 ~ 2.0 VRMS
AUDIO OUTPUT
Frequency
Response
100Hz~15KHz @±3dB (1KHz reference signal)
Max Output
Power
2×9W(8Ω) THD+N<10%@1KHz
(Power Supply: 24V, Audio Input: 0.5VRMS)
POWER
Requirement
24V/12V/5V/5VSB
To Panel
5V, 12V
Management
Standby Power Consumption < 0.3W(Board Only)
COMB FILTER
3D
DEINTERLACE
3D
KEY FUNCTION
MENU, CH+, CH-, VOL+, VOL-, INPUT, POWER
EXPANDABLE
FUNCTION
DVD, External HDMI
Note: Licenses involved in specifications above are supposed to be obtained by customers themselves.
USB MULTIMEDIA PLAYBACK FORMAT
Media
File Ext.
Codec
Remark
Video
Audio
Meida
.avi
Xvid，MPEG-1，MPEG-2，
MPEG-4 SP/ASP，H.264，
MJPEG
MP3，MPEG-1，MPEG-2
AAC/AAC-LC，MPEG-4
AAC-LC/HE-AAC，
PCM/ADPCM，AC3
Max Solution:1920x1080(for
MJPEG, Max Solution：640x480)，
Frame Rate：30 Frame/Sec，
Bit Rate：16Mbit/s
.mov
MPEG-4 SP/ASP，H.264，
MJPEG
MPEG-2 AAC/AAC-LC，
MPEG-4
第 5 页，共 80 页

T.MT5310.86B (DVB-T/T2+C)-SPECIFICATION
Media
File Ext.
Codec
Remark
Video
Audio
AAC-LC/HE-AAC，AC3
.mpg/.mpeg
MPEG-1，MPEG-2，
MPEG-4 SP/ASP
MP3，MPEG-1，AC3
Max Solution：1920x1080，
Frame Rate：30 Frame/Sec，
Bit Rate：16Mbit/s
.mp4/.m4v
Xvid，MPEG-4 SP/ASP，
H.264
MP3，MPEG-1，MPEG-2
AAC/AAC-LC，MPEG-4
AAC-LC/HE-AAC，AC3
.mkv
MPEG-1，MPEG-2，
MPEG-4 SP/ASP，H.264
.ts/.tp/.trp
MPEG-1，MPEG-2，H.264
.vob
MPEG-2，MPEG-4 SP/ASP
MPEG-1，AC3
Music
.mp3
--
MP3
Max Bit Rate：320kbps，
Max Sampling Rate：48khz
.m4a
--
MPEG-4：
AAC-LC/HE-AAC
.wma
--
WMA
.wav
--
WAV
.mp2
--
MPEG-1
Max Bit Rate：640kbps，
Max Sampling Rate：48khz
.jpg/.jpeg
Baseline
Min Resolution：4*4，
Max Resolution：17000*10000
Progressive
Min Resolution：4*4，
Max Resolution：4000*4000
.bmp
BMP
Min Resolution：2*2，
Max Resolution：4000*4000
.png
PNG
Min Resolution：2*2，
Max Resolution：2000*2000
Text
.txt
Ansi, Unicode, Unicode Big Endian
File system：FAT16, FAT32, NTFS(Just for Media).
PVR function: Recording standby, Timeshift, EPG recording reservation.
Note: Licenses involved in specifications above are supposed to be obtained by customers themselves.
SUBSTITUTABLE PRIMARY MATERIALS
The table is for reference only, the actual item is the standard.
NAME
TYPE
BRAND
BACKUP TYPE
BACKUP
BRAND
TUNER(DVB-T/T2+C)
SUT-RE201ZN
SONY
--
--
DDR
NT5CB64M16DP-CF
(1G bits)
Nanya
H5TQ1G63DFR-H9C
Hynix
K4B1G1646G-BCH9
Samsung
FLASH
MX25L6406EM2I-12G
(64M bits)
Macronix
GD25Q64BSIG
GIGA
AMPLIFIER
TPA3124D2PWPR
TI
--
--
第 6 页，共 80 页

T.MT5310.86B (DVB-T/T2+C)-SPECIFICATION
14
11
3
4
6
5
2
7
9
8
10
12
13
1
NO. Description
Ver.V1.1
HDMI1
HDMI2
HDMI3
VGA IN
PC AUDIO IN
SCART
YPBPR IN
AV OR YPBPR L/RIN
RJ45
RF IN
COAX OUT
USB IN
CI SLOT
EARPHOUE OUT
4. PCB DIMENSIONS
The size of T.MT5310.86B is 188.5mm(L)*194.5mm(W)*22mm.
第 7 页，共 80 页

T.MT5310.86B (DVB-T/T2+C)-SPECIFICATION

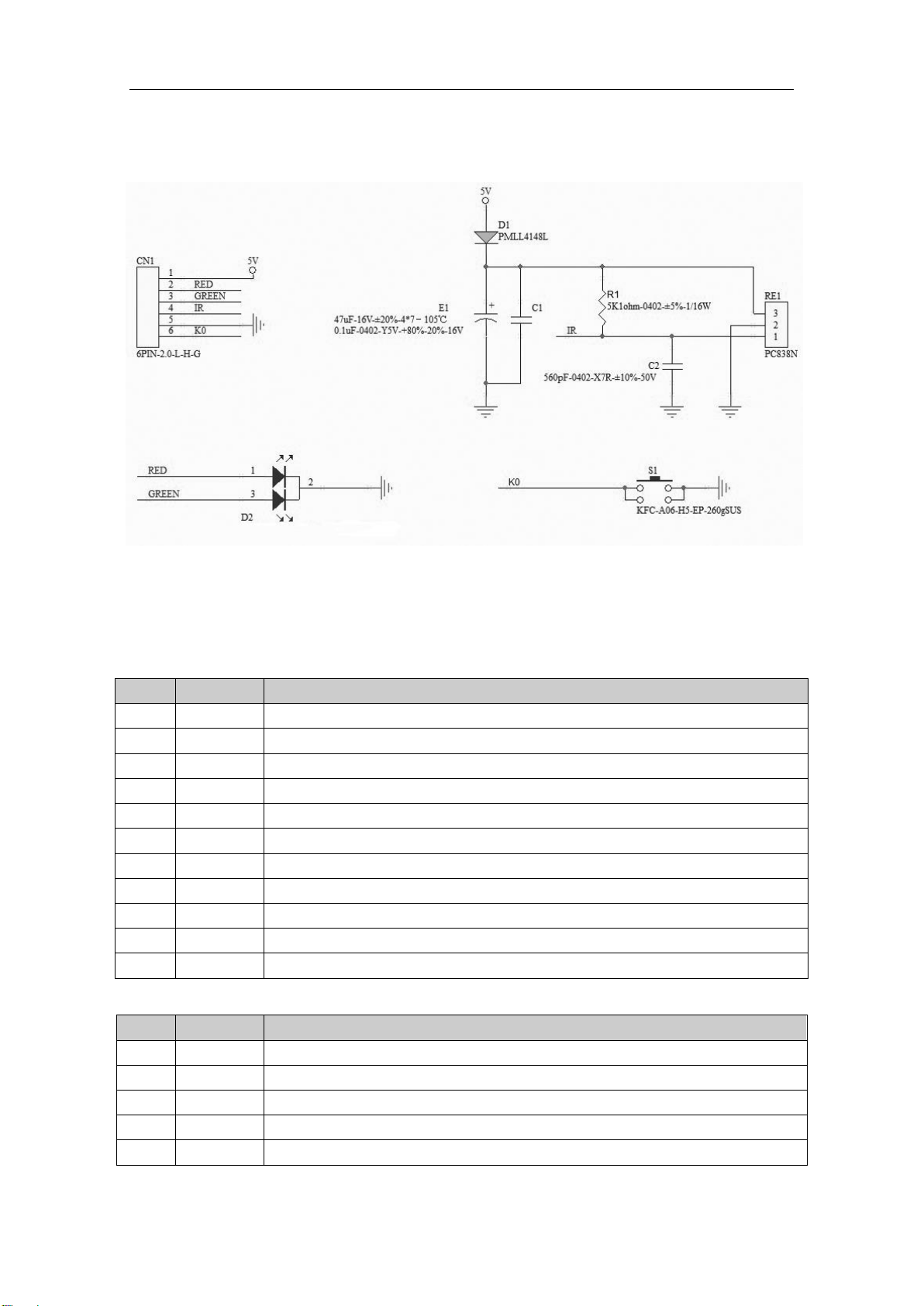

5. SCHEMATICS OF IR & KEY BOARD
6. INTERFACE DEFINITION
The optional connectors are marked with “*”.
◆CN4 (10PIN/2.54): MAIN POWER SUPPLY CONNECTOR
NO.
SYMBOL
DESCRIPTION
1
5VSB
+5V Power Supply When Standby
2
PWON
Power On/Off
3
GND
Ground
4
GND
5
P5V
+5V Power Supply for Panel
6
P5V
7
5V
+5V DC Power Supply
8
5V
9
GND
Ground
10
12V
+12V DC Power Supply
◆CN3(6PIN/2.0): INVERTER CONNECTOR
NO.
SYMBOL
DESCRIPTION
1
12V
+12V DC Power Supply
2
12V
3
BLO
Back-Light ON/OFF Control for Panel
第 8 页，共 80 页

T.MT5310.86B (DVB-T/T2+C)-SPECIFICATION
NO.
SYMBOL
DESCRIPTION
4
ADJ
Brightness Adjustment for Panel (DC)
5
GND
Ground
6
GND
◆*CN19(8PIN/2.0): DVD POWER & CONTROL CONNECTOR
NO.
SYMBOL
DESCRIPTION
MAX CURRENT
1
D5V
+5V DC Power Supply for DVD
1200 mA
2
D5V
3
GND
Ground
--
4
GND
5
D12
+12V DC Power Supply for DVD
1000 mA
6
DIR
IR Data Transfer to DVD
--
7
DAT/RX
Data Receiver/Serial Data Receiver
--
8
STB/TX
DVD Standby Control/Serial Data Transmitter
--
◆CN11(2×20PIN/2.0): LVDS INTERFACE CONNECTOR
Note: PIN31~40 are optional. The connector or each PIN can refer to the panel specification.
NO.
SYMBOL
DESCRIPTION
1
VCC-Panel
Power Supply for Panel
2
VCC-Panel
3
VCC-Panel
4
GND
Ground
5
GND
6
GND
7
RXO0-
LVDS ODD 0- Signal
8
RXO0+
LVDS ODD 0+ Signal
9
RXO1-
LVDS ODD 1- Signal
10
RXO1+
LVDS ODD 1+ Signal
11
RXO2-
LVDS ODD 2- Signal
12
RXO2+
LVDS ODD 2+ Signal
13
GND
Ground
14
GND
15
RXOC-
LVDS ODD Clock- Signal
16
RXOC+
LVDS ODD Clock+ Signal
17
RXO3-
LVDS ODD 3- Signal
18
RXO3+
LVDS ODD 3+ Signal
19
RXE0-
LVDS EVEN 0- Signal
20
RXE0+
LVDS EVEN 0+ Signal
21
RXE1-
LVDS EVEN 1- Signal
22
RXE1+
LVDS EVEN 1+ Signal
23
RXE2-
LVDS EVEN 2- Signal
24
RXE2+
LVDS EVEN 2+ Signal
第 9 页，共 80 页

T.MT5310.86B (DVB-T/T2+C)-SPECIFICATION
25
GND
Ground
26
GND
27
RXEC-
LVDS EVEN Clock- Signal
28
RXEC+
LVDS EVEN Clock+ Signal
29
RXE3-
LVDS EVEN 3- Signal
30
RXE3+
LVDS EVEN 3+ Signal
*31
GND
Ground
*32
GND
*33
CON1
Logic Level Control (Default For High Level)
*34
NC
No Connection
*35
VSEL1
I2C SCL
*36
VSEL2
I2C SDA
*37
RXO4-
LVDS ODD4- Signal
*38
RXO4+
LVDS ODD4+ Signal
*39
RXE4-
LVDS EVEN 4- Signal
*40
RXE4+
LVDS EVEN 4+ Signal
◆CN16(4PIN/2.54): AMPLIFIER POWER SUPPLY CONNECTOR
NO.
SYMBOL
DESCRIPTION
1
24V
+24V DC Power Supply
2
24V
3
GND
Ground
4
GND
◆CN17(4PIN/2.54): SPEAKER CONNECTOR
NO.
SYMBOL
DESCRIPTION
1
LO
Audio Left Channel Output
2
GND
Ground
3
GND
4
RO
Audio Right Channel Output
◆CN10(14PIN/2.0): IR & KEY BOARD CONNECTOR
NO.
SYMBOL
DESCRIPTION
1
5V
+5V DC Power Supply
2
RED
Red Indicator
3
GRN
Green Indicator
4
IR
IR Receiver
5
GND
Ground
6
K0
Key0
7
K1
Key1
8
K2
Key2
9
K3
Key3
10
K4
Key4
第 10 页，共 80 页

T.MT5310.86B (DVB-T/T2+C)-SPECIFICATION
NO.
SYMBOL
DESCRIPTION
11
K5
Key5
12
K6
Key6
13
K7
Key7(Reserved)
14
GND
Ground
◆*CN25(2x10PIN/2.0): EXTERNAL HDMI CONNECTOR
NO.
SYMBOL
DESCRIPTION
1
HDMI_RX2+
HDMI 2+ Signal
2
HDMI_RX2-
HDMI 2- Signal
3
HDMI_RX1+
HDMI 1+ Signal
4
HDMI_RX1-
HDMI 1- Signal
5
HDMI_RX0+
HDMI 0+ Signal
6
HDMI_RX0-
HDMI 0- Signal
7
HDMI_RXC+
HDMI Clock+ Signal
8
HDMI_RXC-
HDMI Clock- Signal
9
HDMI_SCL
HDMI DDC I2C SCL
10
HDMI_SDA
HDMI DDC I2C SDA
11
GND
Ground
12
GND
13
POW_SINK
HDMI 5V
14
HPD_CON
Hot Plug Detect
15
GND
Ground
16
GND
17
CEC
CEC Signal
18
+5V
+5V DC Power Supply
19
M_SCL
Main I2C SCL
20
M_SDA
Main I2C SDA
◆*CN20(11PIN/2.0): DVD SIGNAL INPUT CONNECTOR
NO.
SYMBOL
DESCRIPTION
1
NC
No Connection
2
GND
Ground
3
DRI
DVD Audio Right Channel Input
4
GND
Ground
5
DLI
DVD Audio Left Channel Input
6
DPB
DVD Component-Pb Input
7
GND
Ground
8
DPR
DVD Component-Pr Input
9
GND
Ground
10
DY
DVD Component-Y Input
11
GND
Ground
第 11 页，共 80 页

B.AML8726.3B-SPECIFICATION
1. GENERAL DESCRIPTION
B.AML8726.3B is a board which can be used as Android Box Control Board, as well as Android TV
Combo Board. It is suitable for global markets.
B.AML8726.3B can support HTML5, Adobe Flash 10.1 or above and Network media player.
2. FUNCTION LAYOUT
The pictures in this specification are only for your reference. If any discrepancy found between certain
picture and product, please look the actual product
The optional connectors and terminals are marked with “*”.

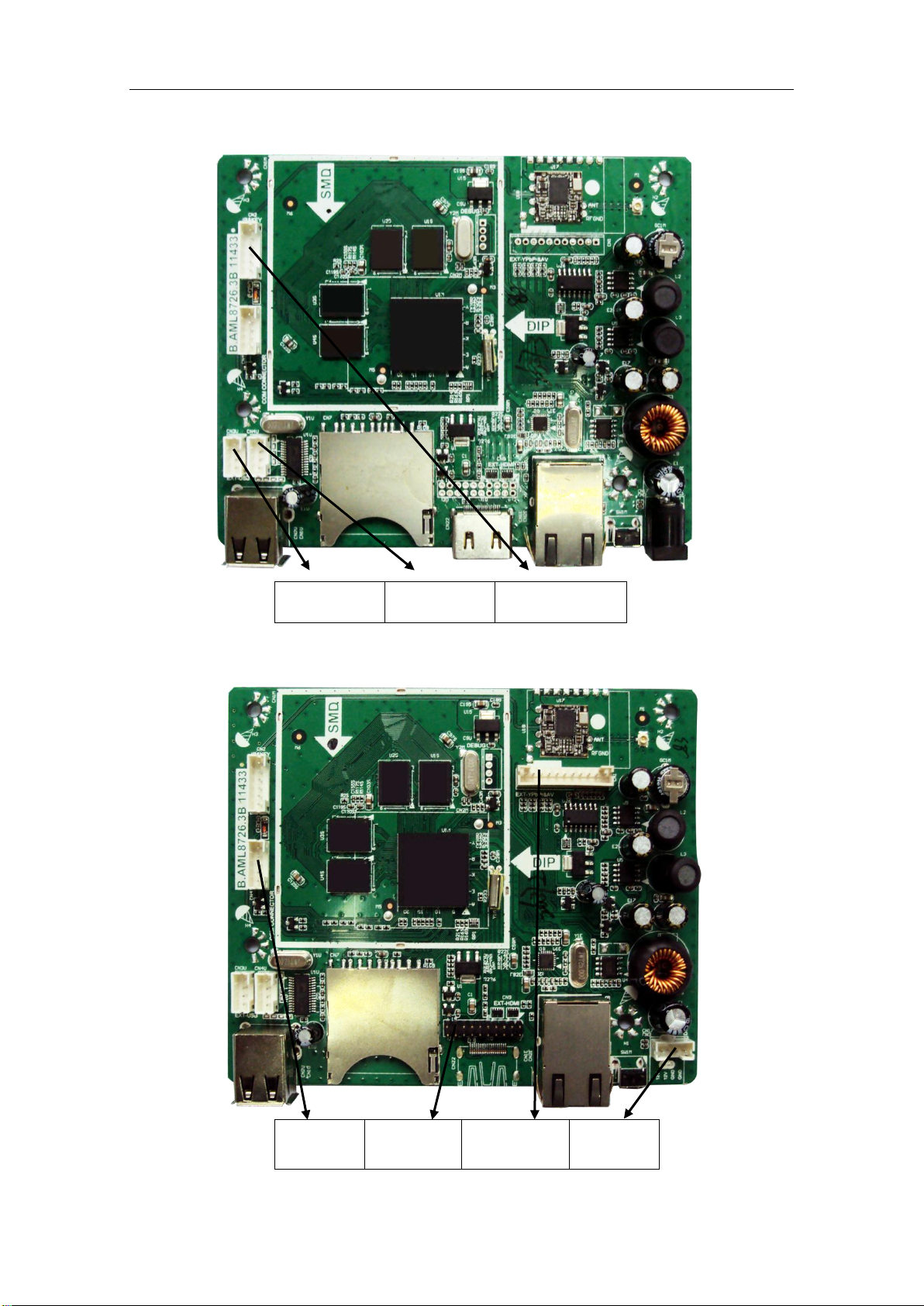

FRONT VIEW OF B.AML8726.3B (Set Top Box board)
USB1 In
USB2 In
SD Card In
*HDMI
Out
RJ45 In
Recovery Key
*DC In
FRONT VIEW OF B.AML8726.3B (Intelligent TV COMBO solutions)
USB1 In
USB2 In
SD Card In
RJ45 In
Recovery Key
第 12 页，共 80 页

B.AML8726.3B-SPECIFICATION

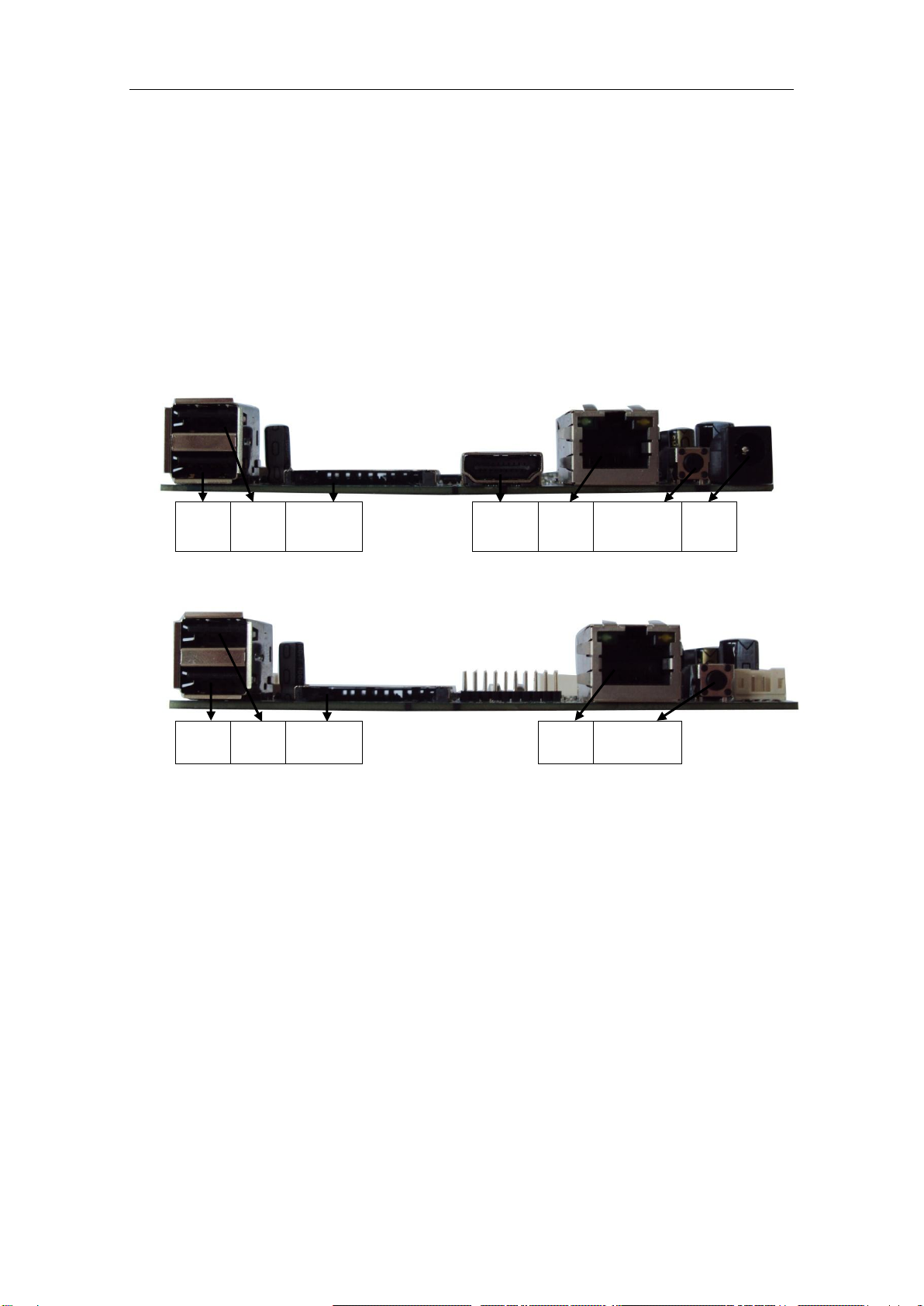

TOP VIEW OF B.AML8726.3B (Set Top Box board)
*External USB2 In
*External USB1 In
CN2: IR & Key Interface
TOP VIEW OF B.AML8726.3B (Intelligent TV COMBO solutions)
*CN4: TV
Communication
*CN9: External
HDMI Out
*CN1: External
YPbPr & AV Out
*CN3: DC
Power Supply
第 13 页，共 80 页

B.AML8726.3B-SPECIFICATION
3. FEATURES INTRODUCTION
Feature
OS
Android 2.3
OSD
Multi-language
External Storage
USB storage, SD card (FAT, FAT32, NTFS)
System Upgrading
By u-disk or SD card or online(TODO)
Local Media Playback
Video/Audio/Picture
Internet Media Playback
Over Internet, Video/Audio/Picture
HARDWARE PLATFORM
CHIPSET
AML8726-M
CPU
Cortex A9 up to 1.0GHz
RAM
512M Byte DDR2
Flash Memory
4G Byte for System and Application Software
GPU
Mali 400, OpenGL ES1.1 2.0
Terminal
HDMI
V1.3, 720P/1080P
USB
V2.0, Default 2 ports
SD Card
1 slot
Connection
Wi-Fi
802.11 b/g/n, Built-in module optional, Need ANT
Ethernet
10Mbps, 100Mbps Base-T
Bluetooth
TODO
Interaction
Infra-red
Remote
NEC protocol default, RCMM optional
Mouse
USB interface
Keyboard
USB interface
Touchpad
USB interface
MISC
Indication
Status LED
USB Camera
TODO
DLNA
Need 3rd party application
PPPOE
TODO
第 14 页，共 80 页

B.AML8726.3B-SPECIFICATION
3
4
6
5
2
7
1
NO. Description
Update Key
SD CARD
USB1 IN
USB2 IN
HDMI OUT
RJ45
DC IN
1 2 3 4 5 6
7
Ver.V1.2
USB MULTIMEDIA PLAYBACK FORMAT
Video decoding
Multiple stream audio decoding
Subtitle
H.264 HP/MP/BP L4.1
LPCM
SMI
JPG/JPEG
DivX®/Xvid
DTS®–HD MA
ASS / SSA
BMP
VC-1 SP/MP/AP L3
AAC/AAC+
SRT
GIF
MPEG 1/2/4
WMA
SUB
PNG
RMVB 7/8/9/
MP3, MPEG Audio
SUB and IDX
--
H.263
AC3®
--
--
M-JPEG
Vorbis
--
--
Real Audio
--
--
ELECTRICAL CHARACTERISTICS & REQUIREMENTS
Power Supply
Mode
Symbol
Voltage Range
Max Current
Ripple
Voltage@25℃
12V (Ext. Adapter)
12V
12V±0.6V
1200mA
120mVP-P
Note：The Max Current refers to the situation in which only two USB terminals are used.
4. PCB DIMENSIONS
The size of B.AML8726.3B is 122mm(L)*100mm(W)*21mm(H).
第 15 页，共 80 页

B.AML8726.3B-SPECIFICATION
5. SCHEMATIC OF IR & KEY BOARD
6. INTERFACE DEFINITION
The optional connectors are marked with “*”.
◆*CN1 (11PIN/2.0): EXTERNAL AV OUTPUT CONNECTOR
NO.
SYMBOL
DESCRIPTION
1
CVBS
CVBS Output
2
GND
GND
3
R
Audio right channel Output
4
GND
Ground
5
L
Audio left channel Output
6
PB
Component-Pb Output
7
GND
Ground
8
PR
Component-Pr Output
9
GND
Ground
10
Y
Component-Y Output
11
GND
Ground
◆CN2(6PIN/2.0): IR & KEY BOARD CONNECTOR
NO.
SYMBOL
DESCRIPTION
1
5V
+5V DC Power Supply
2
RED
Red Indicator or control
3
GRN
Green Indicator or control
4
IR
IR Receiver
5
GND
Ground
第 16 页，共 80 页

B.AML8726.3B-SPECIFICATION
NO.
SYMBOL
DESCRIPTION
6
K0
Power Key
◆*CN3(4PIN/2.0): DC POWER SUPPLY CONNECTOR
NO.
SYMBOL
DESCRIPTION
1
12V
+12V DC Power Supply
2
12V
3
GND
Ground
4
GND
◆*CN4(5PIN/2.0): TV COMMUNICATION CONNECTOR
NO.
SYMBOL
DESCRIPTION
1
COM1
Communication1
2
COM2
Communication2
3
DIR
IR Data Transfer
4
GND
Ground
5
UKEY
Upgrade
◆*CN9 (2×10PIN/2.0): EXTERNAL HDMI CONNECTOR
NO.
SYMBOL
DESCRIPTION
1
HDMI_RX2+
HDMI 2+ Signal
2
HDMI_RX2-
HDMI 2- Signal
3
HDMI_RX1+
HDMI 1+ Signal
4
HDMI_RX1-
HDMI 1- Signal
5
HDMI_RX0+
HDMI 0+ Signal
6
HDMI_RX0-
HDMI 0- Signal
7
HDMI_RXC+
HDMI Clock+ Signal
8
HDMI_RXC-
HDMI Clock- Signal
9
HDMI_SCL
HDMI DDC I2C SCL
10
HDMI_SDA
HDMI DDC I2C SDA
11
GND
Ground
12
GND
13
POW_SINK
HDMI 5V
14
HPD_CON
Hot Plug Detect
15
GND
Ground
16
GND
17
CEC
CEC Signal
18
NC
Not Connected
19
NC
Not Connected
20
NC
Not Connected
第 17 页，共 80 页

B.AML8726.3B-SPECIFICATION
◆*CN3U、CN4U(4PIN/2.0) EXTERNAL USB2 & USB1 IN CONNECTOR
NO.
SYMBOL
DESCRIPTION
1
GND
Ground
2
DP
USB Data+
3
DM
USB Data-
4
5V
USB 5V
7. CONFIGURATION & GENERAL PRECAUTIONS
Relative humidity: ≤ 80%.
Storage temperature: -10~60°C.
Operation temperature: 0~40°C.
Protect the board from static electricity in case of damage to the IC.
Keep the board away from conductor when it is working.
Don’t push or pull the connectors when the board is working.
Don’t press , distort or disassemble the board.
Clean the board with soft dry cloth when it’s dirty.
第 18 页，共 80 页

B.AML8726.3B-SPECIFICATION
APPENDIX:
HOW TO CONNECT B.AML8726.3X TO CVT TV BOARD

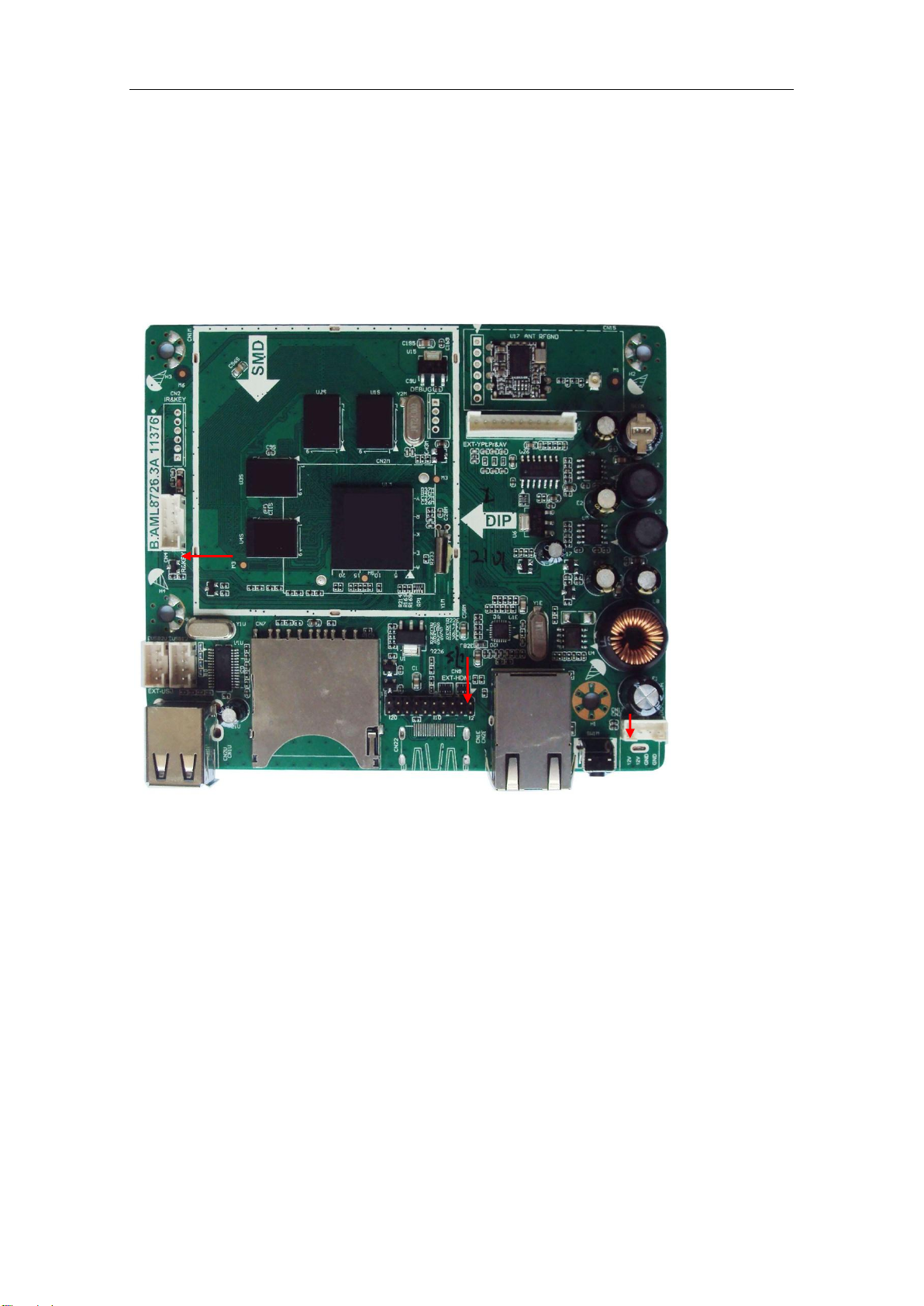

CN3、CN4、CN9 are used when B.AML8726.3X is connected to TV board, as it
shows in picture below.
（Using B.AML8726.3A as an example, the connection method is fit for all
8726.3X series.）
Note：
1、CN3 inputs the controlled voltage 12V±5%, current 1200mA (Only two USB),
Ripple Voltage less than 120mV.
2、CN9 outputs HDMI signal to TV board. If YPbPr is used, CN1(11Pin/2.0)
outputs YPbPr signal to TV board.
3、Connector CN4 has 5 pin in total, as follows:
3.1、Pin No.1 connects to „STB‟of DVD connector in TV board.
3.2、Pin No.2 connects to „DAT‟of DVD connector in TV board.
3.3、Pin No.3 connects to „DIR‟of DVD connector in TV board.
3.4、Pin No.4 connects to „GND‟of DVD connector in TV board.
3.5、Pin No.5 is empty. (Reserved for extension)
CN4: Connector to TV board
No.1
CN9: HDMI Signal output
No.1
CN3: 12V supply
No.1
第 19 页，共 80 页

1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
D D
C C
B B
A A
PANEL_EN Q4
MMBT3904(f≥350MHz)
R21
10Kohm-0402-±5%-1/16W
R28
10Kohm-0402-±5%-1/16W
C37
0.22uF-0402-Y5V-+80%-20%-16
Q1
WPM34 07 -3/TR
R22
220Kohm-0402-±5%-1/16W
GND
+5Vpanel
PVCC
+12V
GND
C38
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
PVCC VCC-Panel
GND
C1
1uF-0603-Y5V-+80%-20%-10V
R1
51 0ohm-04 02 -±5%-1/16W
Q3
MMBT3904(f≥350MHz)
R2
1Kohm-0402-±5%-1 /16W
GND
BL_ADJ R26
10Kohm-0402-±5%-1/16W
M_5V
C2
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
ADJ
GND
+12V
C40
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
ADJ
BL_ON
+12V
+12V
GND
GND
PW_ON
R30
4K7ohm-0402-±5%-1/16W
R31
10Kohm-0402-±5%-1/16W
Q7
MMBT3904(f≥350MHz)
R33
4K7ohm-0402-±5%-1/16W
GND
POW_EN
R29
510ohm-0402-±5%-1/16W
Q5
3CG3906M
R32
NC/47Kohm-0402-±5%-1 /16W
Q6
NC/PMBT3904
GND
+5Vpanel
1
2
3
4
5
6
7
8
9
10
CN4
10PIN-2.54-D-H-G
PW_ON
5V_STB
M_5V
GND
+12V
GND
M_5V
+5Vpanel
GND
C42
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
GND
M_5V
5V_STB
C44
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
GND
1
2
3
4
5
6
CN3
6PIN-2.0-D-H- -G
C41
0.1uF-0 40 2-Y5V-+80%-2 0%-1 6V
GND
R7
1Koh m-04 02 -±5%-1/16W
Q2
MMBT3904(f≥350MHz)
R24
33ohm-0402-±5%-1/16W
GND
BL_EN
R25
NC/2Kohm-0402-±5%-1/16W
R4
510ohm-0402-±5%-1/16W R5
10Kohm-0402-±5%-1/16W
C39
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
5V_STB
GND
R6
NC/1Kohm-0402-±5%-1/16W
M_5V
BL_ON
R2 7
NC/7K5ohm-0402-±5%-1/16W
GND
R3
NC/10Kohm-0402-±5%-1 /16W
5V 1
PVCC 2
12V 3
CN5
3PIN-2.54+
C43
0.1uF-0 40 2-Y5V-+80%-2 0%-1 6V
R8
NC/0ohm-0402-±5%-1/16W
+E9
100uF-16V-±2 0%-5×11-105
1.15V
M_3.3 V
C23
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
C24
10uF-0805-Y5V-+80%-20%-10V
L2
120ohm-0603-±25%
VDD3V3
+
E3
470uF-10V-±2 0%-6.3×11-105 -
BS 1
IN
2SW 3
GND
4
FB 5
COMP
6
EN
7
NC 8
U5
AIC2857FGR8TR
C15
NC/100pF-0402-NPO-±5%-50V
C14
0.01uF-0402-X7R-±10%-50VR17
2K2ohm-0402-±5%-1/16W
C9
0.01uF-0402-X7R-±10%-50V
R13
3K3ohm-0402-±1%-1/16W
R15
15Kohm-0402-±1%-1/16W
C8
0.01uF-0402-X7R-±10%-50V
M_5V
GND
GND
GND
C10
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
C12
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
L1
CH8010U-220K-045-G
R11
100Kohm-0402-±5%-1/16W
C13
10uF-0805-Y5V-+80%-20%-10V
1.15V
M_3.3V
GND
+
E2
100uF-16V-±2 0%-5×11-105
VI
3VO 2
ADJ
1
VO 4
U9
LC1117CLTR33
GND
C22
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
M_5V
12
E10
100uF-16V-±2 0%-5×11-105
DDRV
C5
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
12
E1
100uF-16V-±2 0%-5×11-105
GND
R9 1Koh m-04 02 -±1%-1/16W
R10
240ohm-0402-±1%-1/16W
C11
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
C6
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
GND
GND
C7
10uF-0805-X5R-±10 %-6.3V
VI
3VO 2
ADJ
1
VO 4
U3
LC1117CLTRAD
DDRV
GND
D4
M7(FormosaMS)
M_5V
C4
0.1uF-0 40 2-Y5V-+80%-2 0%-1 6V
D3
M7(FormosaMS)
DVDD3V3_ MII
C17
0.1uF-0 40 2-Y5V-+80%-2 0%-1 6V
C18
NC/10uF-0805-Y5V-+80%-20%-10V
DVDD3V3_MII
VI
3VO 2
ADJ
1
VO 4
U8
LC1117CLTR33
GND
C16
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
M_5V
12
E5
100uF-16V-±2 0%-5×11-105
R16
33ohm-0402-±5%-1/16W
+
E4
470uF-10V-±2 0%-6.3×11-105 -
VI
3VO 2
ADJ
1
VO 4
U6
LC1117CLTR33
C21
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
+3V3_STB
C19
0.1uF-0402-Y5 V-+80%-2 0%-1 6V
5V_STB
GND
+3V3_STB
+E7
100uF-16V-±2 0%-5×11-105
+E6
100uF-16V-±2 0%-5×11-105
12
E11
100uF-16V-±2 0%-5×11-105
ADAC_PWR
+
E8
470uF-10V-±2 0%-6.3×11-105 -
R52
NC/4K7ohm-0402-±5%-1/16W
GND
MT5310JHYU
NC/0ohm-0402-±5%-1/16W
PI03V30STB01
CO03V30STB
PI1015V01
CO1015V
PIC101
PIC102
COC1
PIC201
PIC202
COC2
PIC401
PIC402
COC4
PIC501
PIC502
COC5
PIC601
PIC602
COC6
PIC701
PIC702
COC7
PIC801PIC802
COC8
PIC901 PIC902
COC9
PIC1001
PIC1002
COC10
PIC1101
PIC1102
COC11
PIC1201
PIC1202
COC12
PIC1301
PIC1302
COC13
PIC1401
PIC1402
COC14
PIC1501
PIC1502
COC15
PIC1601
PIC1602
COC16
PIC1701
PIC1702
COC17
PIC1801
PIC1802
COC18
PIC1901
PIC1902
COC19
PIC2101
PIC2102
COC21
PIC2201
PIC2202
COC22
PIC2301
PIC2302
COC23
PIC2401
PIC2402
COC24
PIC3701
PIC3702
COC37
PIC3801
PIC3802
COC38
PIC3901
PIC3902
COC39
PIC4001
PIC4002
COC40
PIC4101
PIC4102
COC41
PIC4201
PIC4202
COC42
PIC4301
PIC4302
COC43
PIC4401
PIC4402
COC44
PICN301
PICN302
PICN303
PICN304
PICN305
PICN306
COCN3
PICN401
PICN402
PICN403
PICN404
PICN405
PICN406
PICN407
PICN408
PICN409
PICN4010
COCN4
PICN501
PICN502
PICN503
COCN5
PID30A PID30K
COD3
PID40A PID40K
COD4
PIDDRV01
CODDRV
PIDVDD3V30MII01
CODVDD3V30MII
PIE101
PIE102
COE1
PIE201
PIE202
COE2
PIE301
PIE302
COE3
PIE401
PIE402
COE4
PIE501
PIE502
COE5
PIE601
PIE602
COE6
PIE701
PIE702
COE7
PIE801
PIE802
COE8
PIE901
PIE902
COE9
PIE1001
PIE1002
COE10
PIE1101
PIE1102
COE11
PIL101 PIL102
COL1
PIL201 PIL202
COL2
PIM0303V01
COM0303V
PIMT5310JHYU01 PIMT5310JHYU02
COMT5310JHYU
PIQ10D
PIQ10G
PIQ10S
COQ1
PIQ20B
PIQ20C
PIQ20E
COQ2
PIQ30B
PIQ30C
PIQ30E
COQ3
PIQ40B
PIQ40C
PIQ40E
COQ4
PIQ50B
PIQ50CPIQ50E
COQ5
PIQ60B
PIQ60C
PIQ60E
COQ6
PIQ70B
PIQ70C
PIQ70E
COQ7
PIR101
PIR102
COR1
PIR201 PIR202
COR2
PIR301
PIR302
COR3
PIR401 PIR402
COR4
PIR501
PIR502
COR5
PIR601
PIR602
COR6
PIR701
PIR702
COR7
PIR801
PIR802
COR8
PIR901
PIR902
COR9
PIR1001
PIR1002
COR10
PIR1101
PIR1102
COR11
PIR1301PIR1302
COR13
PIR1501
PIR1502
COR15
PIR1601 PIR1602
COR16
PIR1701
PIR1702
COR17
PIR2101
PIR2102
COR21
PIR2201 PIR2202
COR22
PIR2401 PIR2402
COR24
PIR2501
PIR2502
COR25
PIR2601 PIR2602
COR26
PIR2701
PIR2702
COR27
PIR2801 PIR2802
COR28
PIR2901 PIR2902
COR29
PIR3001
PIR3002
COR30
PIR3101 PIR3102
COR31
PIR3201 PIR3202
COR32
PIR3301 PIR3302
COR33
PIR5201
PIR5202
COR52
PIU301
PIU302 PIU303
PIU304
COU3
PIU501
PIU502 PIU503
PIU504
PIU505
PIU506
PIU507
PIU508
COU5
PIU601
PIU602PIU603
PIU604
COU6
PIU801
PIU802PIU803
PIU804
COU8
PIU901
PIU902PIU903
PIU904
COU9
PI03V30STB01
PIC2101 PIE1101
PIU602
PIU604
PICN405
PICN406
PICN501
NL05Vpanel
PIC4001
PICN301
PICN302
PICN4010
PICN503
PIE701
NL012V
PI1015V01
PIC1201 PIC1301
PIE301
PIL102
PIR1301
PIC1901
PIC4401
PICN401
PIE901
PIR501 PIR601
PIR2902
PIR3001
PIU603
NL5V0STB
PIE401
PIR1601
NLADAC0PWR
PIC101 PIC201
PICN304
PIR202
NLADJ
PIR2601
NLBL0ADJ
PIR302
PIR401
NLBL0EN
PIC3901
PICN303
PIR2402
PIR2502
NLBL0ON
PIC601 PIC701
PIDDRV01
PIE101 PIR902
PIU302
PIU304
PIC1701 PIC1801
PIDVDD3V30MII01
PIE501
PIU802
PIU804
PIC102 PIC202
PIC402 PIC502 PIC602 PIC702
PIC802
PIC1001
PIC1102
PIC1202 PIC1302
PIC1502
PIC1602 PIC1702 PIC1802 PIC1902 PIC2102
PIC2202 PIC2302 PIC2402
PIC3802
PIC3902
PIC4002
PIC4102 PIC4202 PIC4302
PIC4402
PICN305
PICN306
PICN403
PICN404
PICN409
PIE102
PIE202
PIE302
PIE402
PIE502
PIE602
PIE702
PIE802
PIE902
PIE1002
PIE1102
PIMT5310JHYU01 PIMT5310JHYU02
PIQ20E
PIQ30E
PIQ40E
PIQ60E
PIQ70E
PIR301
PIR1001
PIR1502
PIR1702
PIR2501
PIR2701
PIR5202
PIU504
PIU601PIU801
PIU901
NLGND
PIC2301 PIC2401 PIE1001
PIL201
PIM0303V01
PIU902
PIU904
PIC401
PIC1002
PIC1601
PIC2201
PIC4201 PIC4301
PICN407
PICN408
PID30A
PIE201
PIE801
PIR101
PIR701
PIR1102
PIU502
PIU803
PIU903
NLM05V
PIC501
PID40K PIU303
PIC801
PIU508
PIC901
PIU501
PIC902
PIL101 PIU503
PIC1101
PIR901
PIR1002
PIU301
PIC1401
PIC1501
PIU506
PIC1402
PIR1701
PIC3702 PIQ10G
PIR2201
PID30K PID40A
PIQ20B PIR402
PIR502
PIR2702
PIQ20C
PIR602 PIR702
PIR2401
PIQ30B PIR2602
PIQ30C
PIR102
PIR201
PIQ40B PIR2802
PIQ40C
PIR2102
PIR2202
PIQ50B
PIR802
PIR3102
PIQ50E PIR2901
PIQ60B PIR3202
PIQ70B PIR3302
PIQ70C
PIR3002
PIR3101
PIR3201
PIR1101
PIU507
PIR1302
PIR1501
PIU505
PIR2801
NLPANEL0EN
PIR3301
NLPOW0EN
PIC3701
PICN502
PIQ10S
PIR2101
NLPVCC
PIC4101
PICN402
PIQ50C
PIQ60C
PIR801
NLPW0ON
PIC3801 PIE601
PIQ10D
PIR5201
PIL202 PIR1602
第 20 页，共 80 页
