ShoreStation SSV40120 User manual

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 1 REV B 03/13/2009
SSV40120 & SSV40120 DW
SSV40120 Hoist Alum SS V-Frame
6243601 Big Wheel - Lift ShoreStation
69426 Hardware Box - SSV40120 Hoist
63401 Lower Frame Bundle - V40120
63402 Platform Bundle - V40120
6942801 Winch Bundle - Hoist V20/V40
65021 Winch Tube Bundle - V40120
62927 Leg Bundle - V40120
HA0024 Motor Stop Bundle Alum 5” V-Frame
HA0053 Bunk Poly V30/V40108 / V30/40120
69595 Lit Packet, V40120/DW
SSV40120 DW Hoist Alum SS V-Frame
6243601 Big Wheel - Lift ShoreStation
69426 Hardware Box - SSV40120 Hoist
63401 Lower Frame Bundle - V40120
63402 Platform Bundle - V40120
6942801 Winch Bundle - Hoist V20/V40
65021 Winch Tube Bundle - V40120
67227 Leg Bundle - V40120 DW
HA0024 Motor Stop Bundle Alum 5” V-Frame
HA0053 Bunk Poly V30/V40108 / V30/40120
69595 Lit Packet, V40120/DW

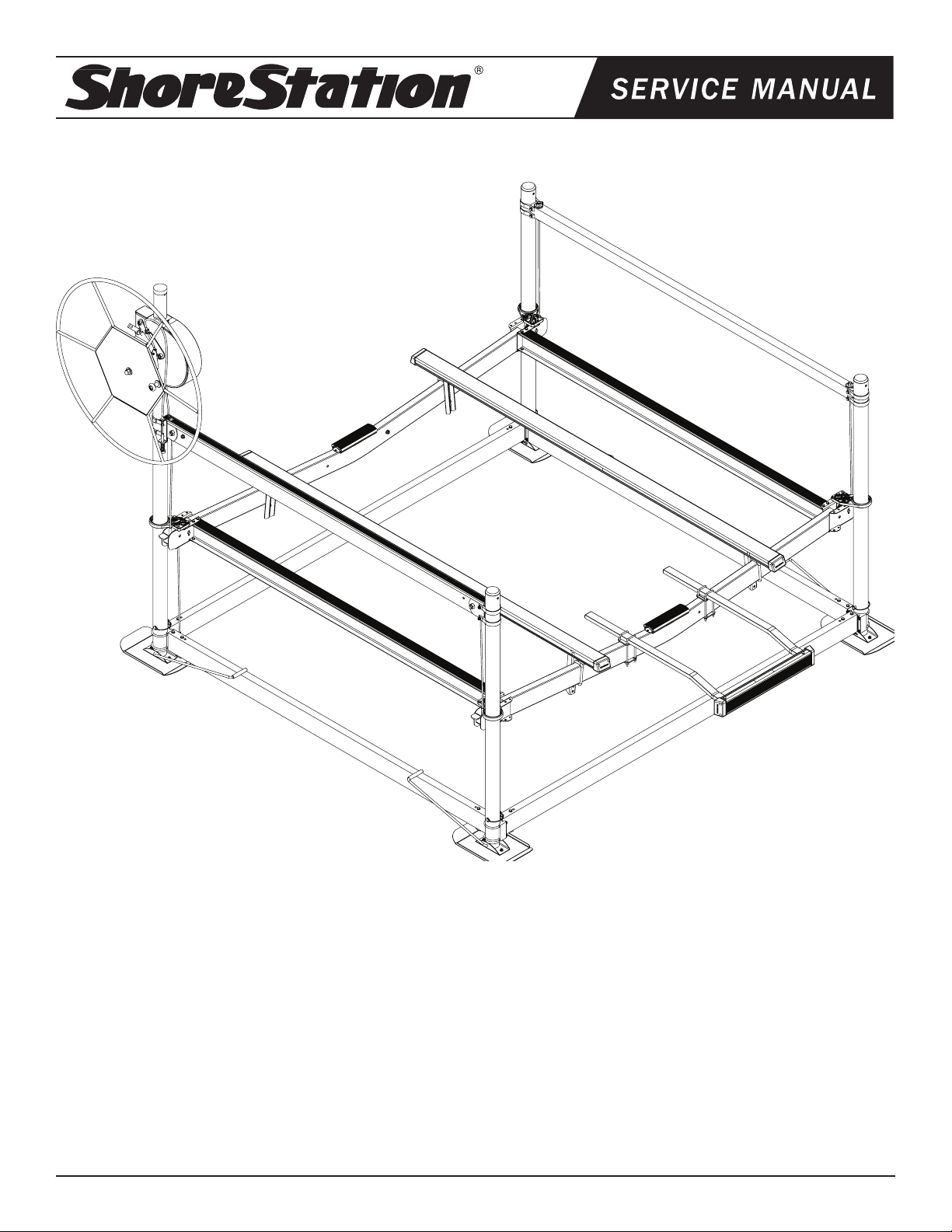

SSV40120 Shown in Drawing

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 2 REV B 03/13/2009

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 3 REV B 03/13/2009

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 4 REV B 03/13/2009

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 5 REV B 03/13/2009

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 6 REV B 03/13/2009

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 7 REV B 03/13/2009
Winch Post Guide Post
Lower Frame Assembly

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 8 REV B 03/13/2009
Platform Assembly

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 9 REV B 03/13/2009

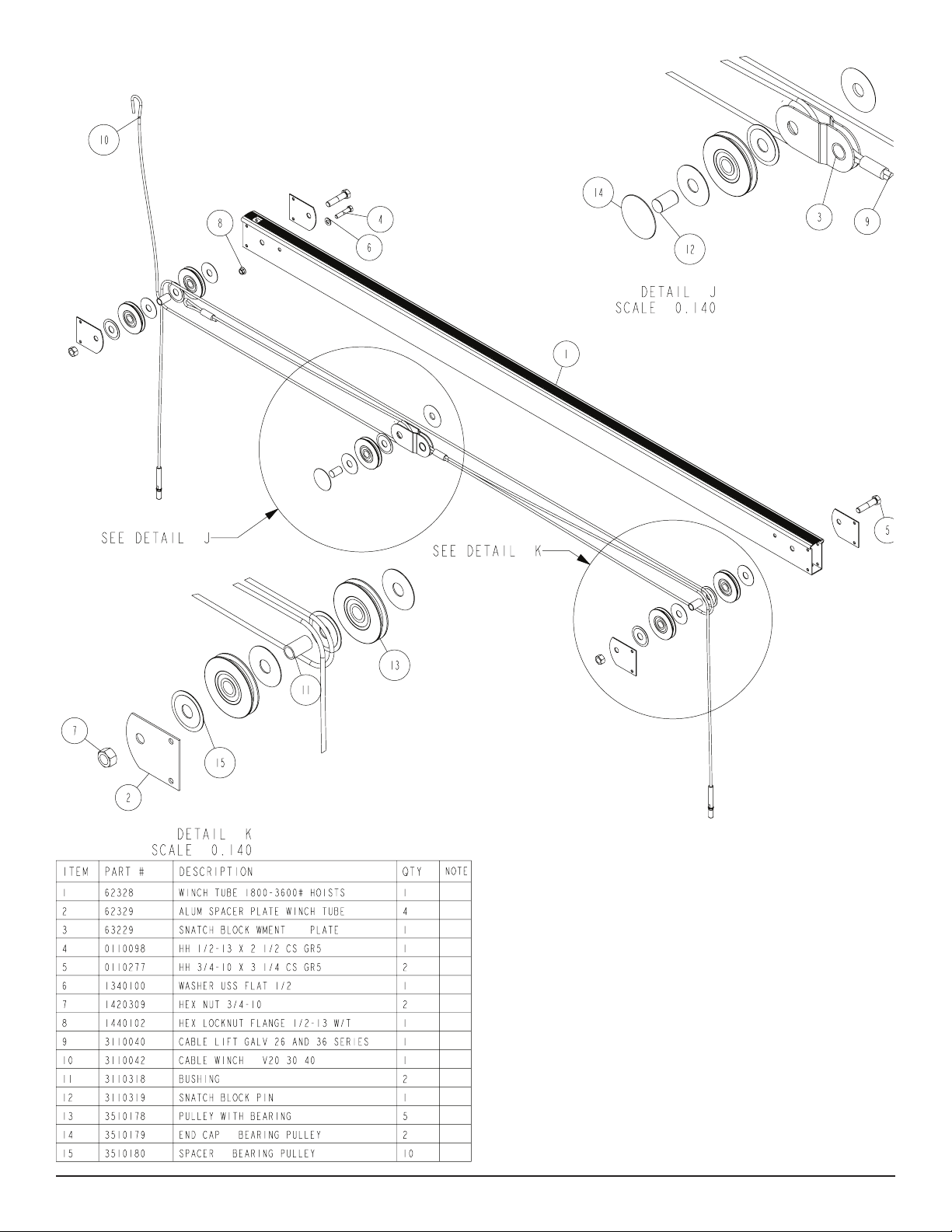

Winch Tube Assembly
WINCH TUBE SERVICE INSTRUCTIONS
The winch tube assembly was pre-assembled at the factory.
It is important that the internal parts and cable routings are
assembled properly in order for the winch tube assembly to
function properly. It also requires special tools during the as-
sembly process. It is therefore recommended that you con-
tact your local dealer should you ever have issues with the
winch tube assembly.

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 10 REV B 03/13/2009
Winch Assembly

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 11 REV B 03/13/2009
Wheel Assembly

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 12 REV B 03/13/2009

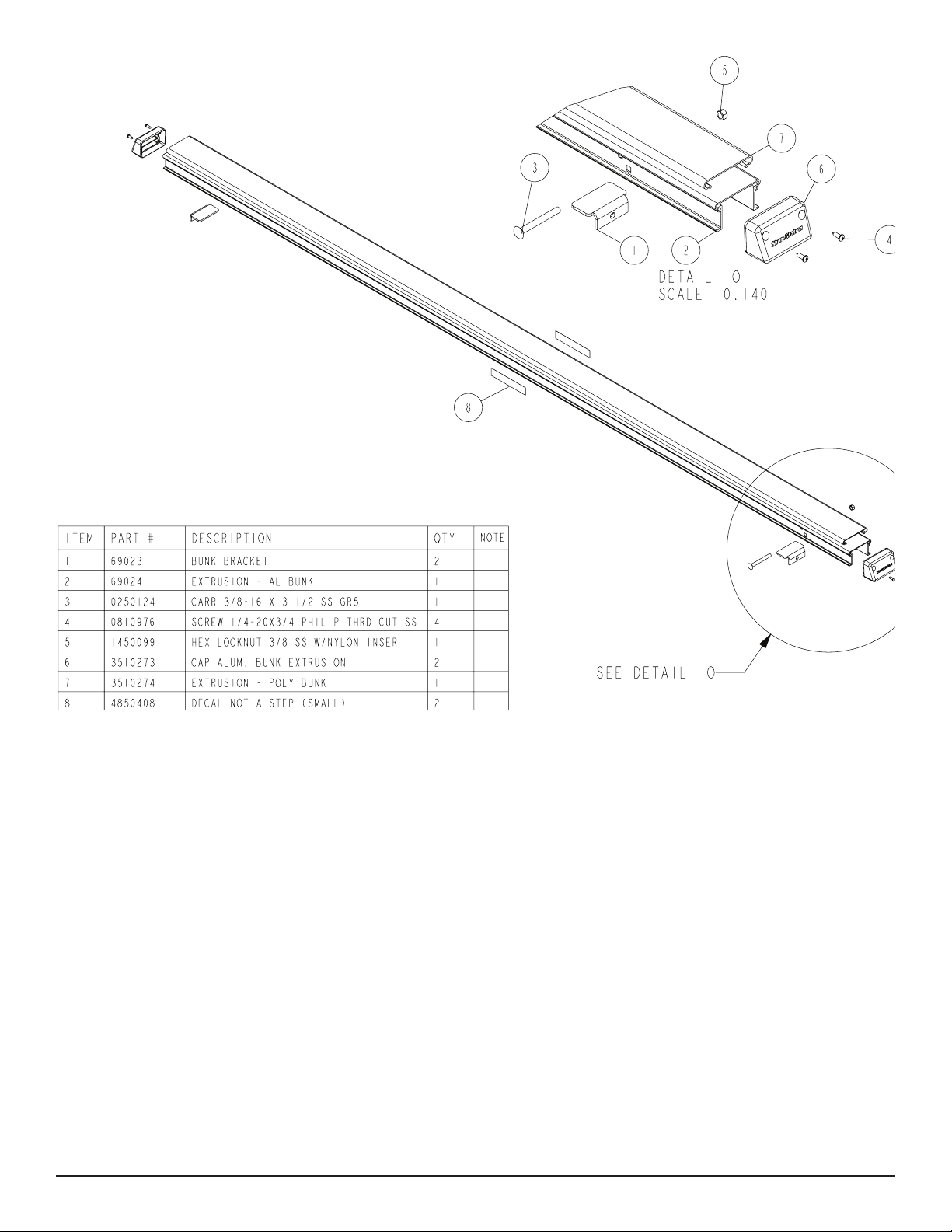

Bunk Assembly

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 13 REV B 03/13/2009

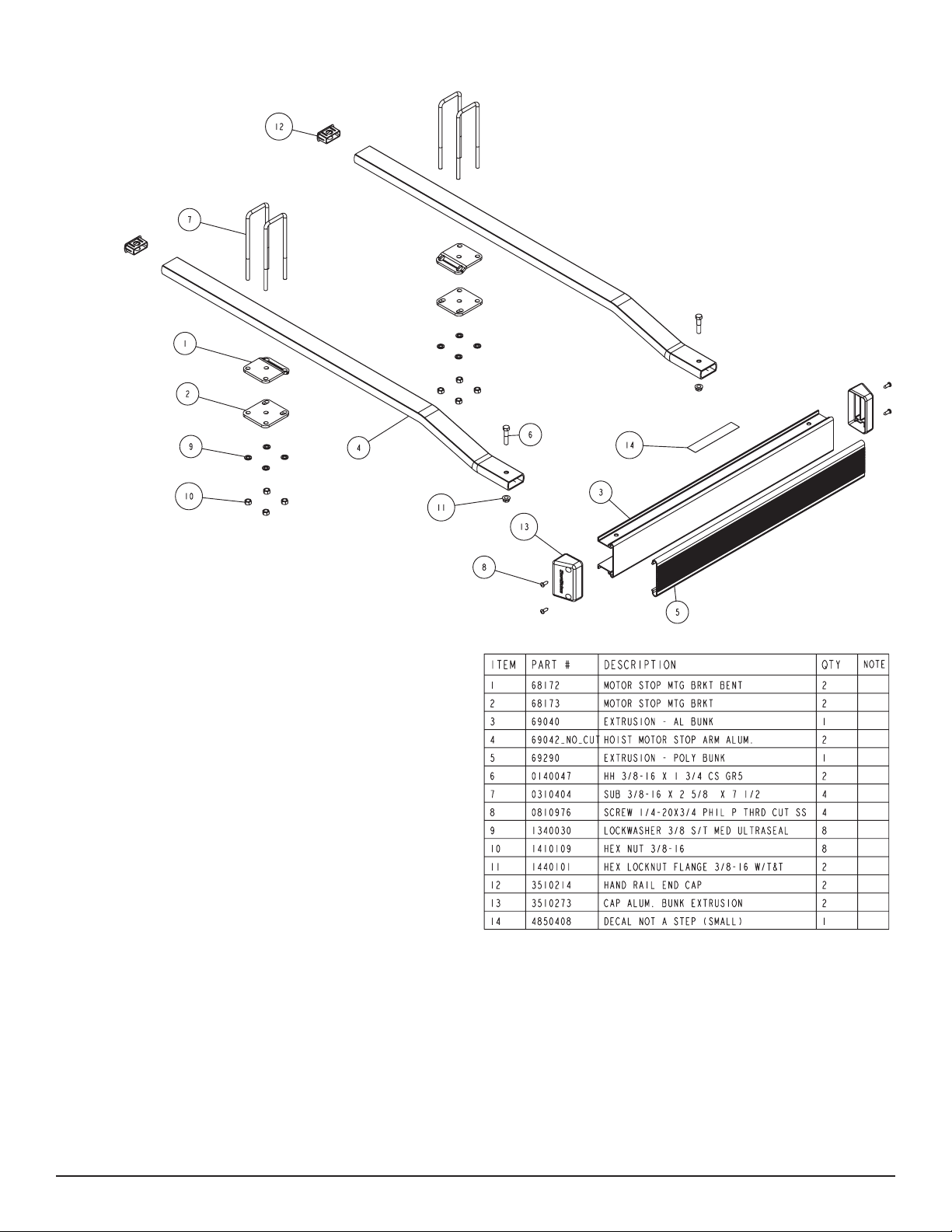

Motor Stop Assembly
Adjustment
Position the hoist motor stop assembly on the hoist so it
is centered side to side on the hoist platform. Changing
the motor stop location front to rear is accomplished by
sliding the straight portion of the motor stop arm through
the U-bolts. This allows you to change the motor stop
location to best position your boat on the hoist. Once the
assembly is in the proper position, tighten the nuts on the
U-bolts.

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 14 REV B 03/13/2009
DW Leg Assembly (Optional)
The deep water version of this boat hoist is assembled using
the same assembly instructions as the standard hoist. The
only items that are different between the two hoists are the
length of the upright corner posts and the adjustable legs in-
side them as identied in the drawings for deep water legs.
The water depth where your hoist is going to be installed will
determine whether you should use the deep water version
of this hoist.
The deep water version of this hoist can be used in deeper
water depths because of the additional length of the exten-
sion legs. Listed below is the amount of adjustment the vari-
ous legs have.
• A standard leg shipped with the hoist has 20” of
adjustment.
• The deep water legs have 55” of adjustment.

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 15 REV B 03/13/2009

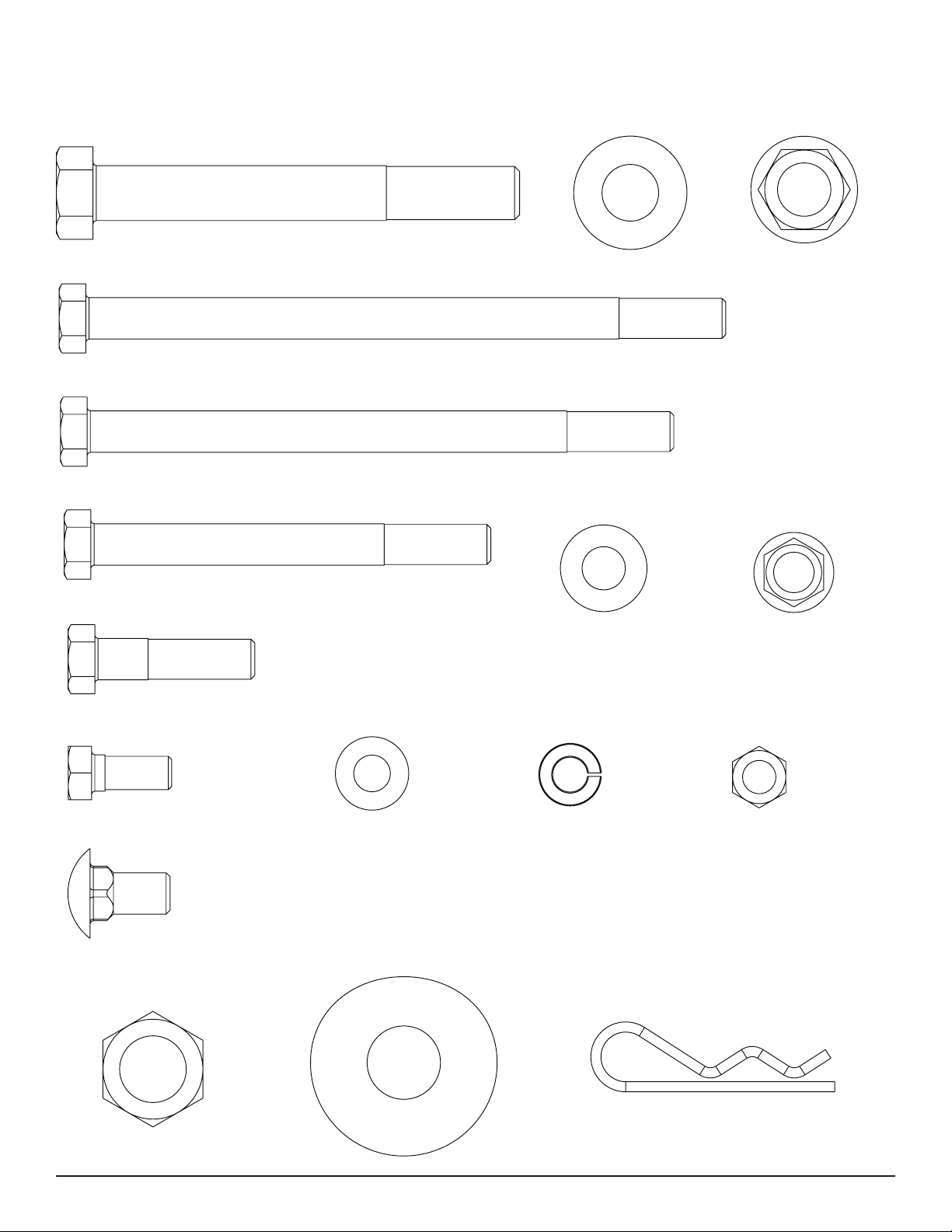

1/2” x 4”HH Bolt Qty: 1 (0110114)
3/8” x 6”HH Bolt Qty: 4 (0110068)
3/8” x 5-1/2”HH Bolt Qty: 12 (0110066)
3/8” x 3-3/4”HH Bolt Qty: 8 (0110059)
3/8” x 1-1/2”HH Bolt Qty: 13 (0140045)
5/16”x 3/4”HH Bolt
Qty: 16 (0140022)
3/8” x 3/4”Carriage Bolt
Qty: 8 (0210100)
5/8” Brass Hex Nut
Qty: 10 (1410362)
5/8”Flat Washer
Qty: 6 (1340105)
#7 Hitch Pin Clip
Qty: 4 (1540300)
5/16”Flat Washer
Qty: 16 (1310085)
5/16”Lock Washer
Qty: 16 (1310025)
5/16”Hex Nut
Qty: 16 (1410069)
3/8” Flat Washer
Qty: 37 (1340095)
3/8”Flange Lock Nut
Qty: 45 (1440101)
1/2” Flange Lock Nut
Qty: 1 (1440102)
1/2” Flat Washer
Qty: 1 (1340100)
0160054 Pre-Packaged Hardware Bag

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003773
Page 32 REV B 03/13/2009
SSV40120 Decal Placement
4810700
SS Big Wheel
Embossed
Decal
4850351
Warning
UP/DOWN
Spin Wheel
Decal
4811312
Clamp Arrow Decal
4811312
Clamp Arrow
Decal
4811319
Adjustable
Gauge Decal
4811319
Adjustable
Gauge Decal
4850363
Safety
Instruction
Decal
4850408
Not A Step Decal
4850224
Caution Inspect
Cable Decal
4850359
Caution
Arrow - Raise
Clockwise
Decal
4850206
Lube Tu be
Decal
4811504
Weight Capacity
Decal
4811504 Maximum Load Decal
4850351 Spinning Wheel Danger Decal
4811312 Clamp Arrow Decal
4811319 Adj. Gauge Decal
4850363 Safety Decal
4850408 Not A Step Decal
4850206 Lube Tube Decal
4850359 Directional Arrow Decal
4850224 Inspect Cable Caution Decal
4810700 Big Wheel Decal
