ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ

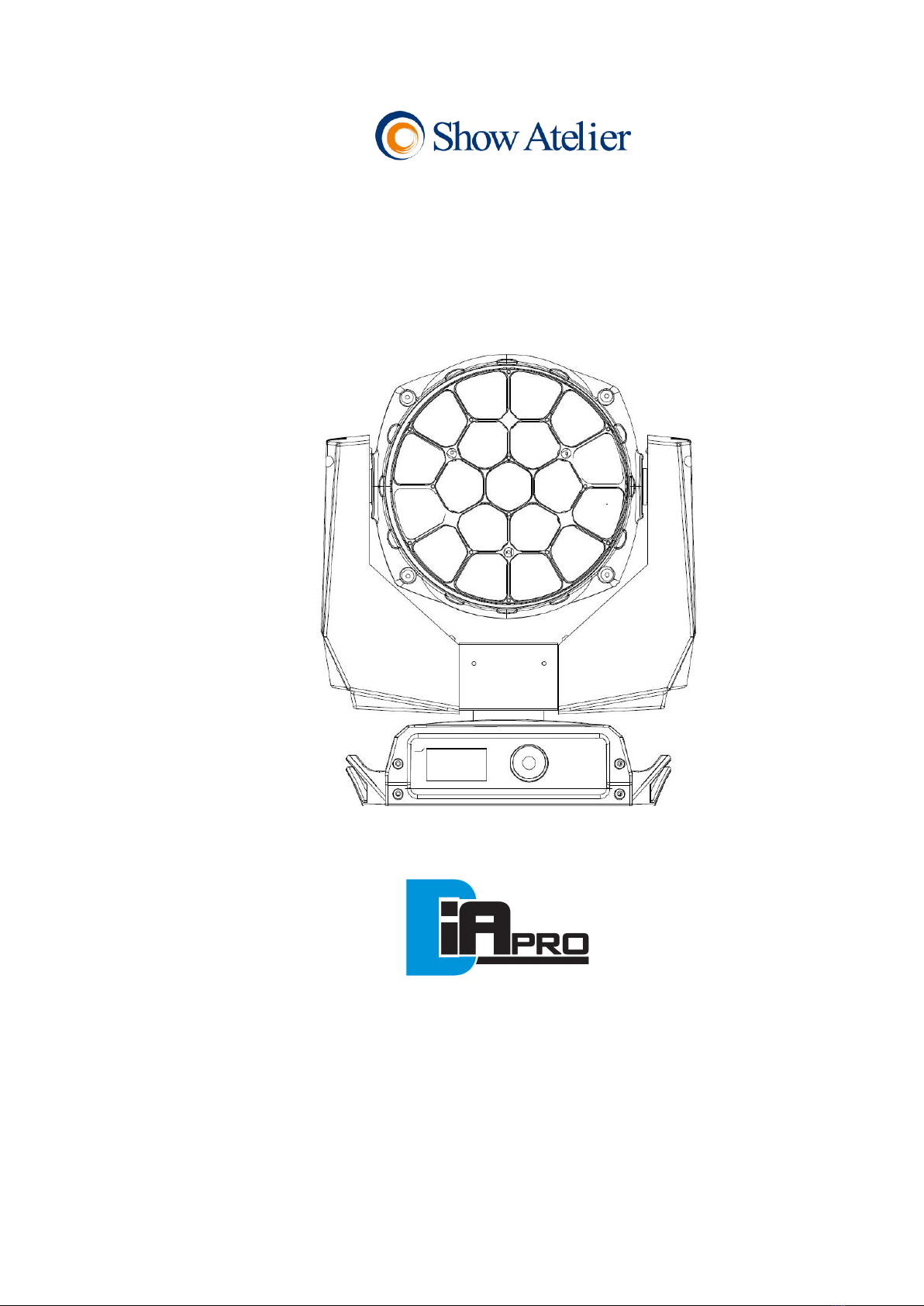

DIAPro ColorWash Magic
KEEPTHIS MANUAL FOR FUTURE NEEDS

2
1. Introduction…………………………..………………………………………3
2. General Guidelines…………….……………………………………………3
3. Safety Instructions…………………………………………………………..4
4. Installation Instructions……………………………………………………..6
5. Cleaning and Maintenance…………………………………………………5
6. Technical Parameters…………………..………………………………….. 7
7. Menu Function………………………………………………………………..8
8. Circuit Schematics…………………………………………………………..10
9. DMX Channels………………………………………………………………..10
10. DMX Channels……………………………………………………....……....11

3
Thank you for your patronage. We are confident that our excellent products and
service can satisfy you. For your own safety, please read this user manual carefully
before installing the device.
In order to install, operate, and maintain the lighting safety correctly. We suggest that
the installation and operation should be done by the verified technician and follow the
instruction strictly.
CAUTION!
Keep this device away from rain and moisture!
CAUTION!
Unplug mains lead before opening the housing!
Every person involved with the installation, operation and maintenance of this device
has to:
-be qualified
-follow carefully the instructions of this manual
INTRODUCTION:
Thank you for having chosen this professional moving head.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the carton box you should find:
1. One power cable
2. One 3pin DMX cable
3. Two C omega clamps
4. One English user manual
（Flight case, Safety ropes and Clamps are optional, please contact your dealer）
Please check carefully that there is no damage caused by transportation. Should
there be any questions, please consult your dealer and don’t install this device.
GENERAL GUIDELINES
This device is a lighting effect for a professional use on stages, TV, in discotheques,
theaters, etc., The device was designed for indoor use only.
This fixture is only allowed to be operated with the max alternating current which
stated in the technical specifications in the last page of this manual.
Lighting effects are not designed for permanent operation. Consistent operation
breaks may ensure that the device will serve you for a long time without defects.
Do not shake the device. Avoid brute force when installing or operating the device.
While choosing the installation-spot, please make sure that the device is not exposed
to extreme heat, moisture or dust. Please don’t project the beam onto combustible
substances. The minimum distance between light-output from the projector and the
illuminated surface must be more than 0,5 meter.

4
If you use the quick lock cam in hanging up the fixture, please make sure the quick
lock fasteners turned in the quick lock holes correctly.
Operate the device only after having familiarized with its functions. Do not permit
operation by persons not qualified for operating the device. Most damages are the
result of unprofessional operation.
Please use the original packaging if the device is to be transported.
For safety reasons, please be aware that all modifications on the device are
forbidden. If this device will be operated in any way different to the one described in
this manual, the product may suffer damages and the guarantee becomes void.
Furthermore, any other operation may lead to short-circuit, burns, electric shock,
lamp explosion, crash, etc.
SAFETY INSTRUCTIONS
CAUTION!
Be careful with your operations. With a dangerous voltage you can
suffer a dangerous electric shock when touching wires!
This device has left the factory in perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the
safety instructions and warning notes written in this user manual.
1. In order to guarantee the product’s life, please don’t put it in the damp places or
even the environment over 60degress.
2. Always mount this unit in safe and stable matter.
The qualified professionals are allowed to carry out the lamp installation, operation
and maintenance, but they must guarantee to operate in strict accordance with the
instructions referred to.
3. Using lamp, the change rate of power voltage should be within±10%, if the voltage
is too high, it will shorten the light’s life; if it’s not enough, the lamp will be dark.
4. Please restart it after turning off light for 20 minutes until full-cooling. Frequent
switching will reduce the life span of lamps and bulbs; intermittent using will improve
the life of bulbs and lamps.
▲Important:
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems.
If the device has been exposed to temperature changes due to environmental
changes, do not switch it on immediately. The arising condensation could damage
the device. Leave the device switched off until it has reached room temperatures.
This device falls under protection-classⅠ. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person.
Make sure that the available voltage is not higher than stated at the end of this
manual.

5
Make sure the power cord is never crimped or damaged by sharp edges. If this would
be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power
cord.
During initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, it should decrease gradually.
Please don’t project the beam onto combustible substances.
If the external flexible cable or cord of this luminaire is damaged, it shall be
exclusively replaced by the manufacturer or his service agent or a similar qualified
person in order to avoid a hazard.
CAUTION!
Never touch the device during operation!
The housing may heat up!
CCAUTION!
NNever look directly into the light source,
A As sensitive persons may suffer an epileptic shock.
Please be aware that damages caused by manual modifications to be the device are not
subject to warranty. Keep away from children and non-professionals.
CLEANING AND MAINTENANCE
1. To reduce the risk of electrical shock or fire, do not expose this unit to rain or
moisture.
2. Do not spill water or other liquids into or on to your unit.
3. During long periods of non-use, disconnect the unit’s main power.
4. It should be installed in a well-ventilated place, at a distance of 50 centimeters or
more with the walls. At the same time, please check if the fan and ventilation holes
are unobstructed.
The following points have to be considered during the inspection
1) All screws for installing the devices or parts of the device have to be tightly
connected and must not be corroded.
2) There must not be any deformations on the housing. Fixations and installations
spots(ceiling, suspension, trussing).
3) Mechanically moved parts must not show any traces of wearing and must not
rotate with unbalances.
4) The electric power supply cables must not show any damage, material fatigue or
sediments. Further instructions depending on the installation spot and usage have
to be adhered by a skilled installer and any safety problems have to be removed.

6
CAUTION!
Disconnect from mains before starting maintenance operation!
In order to make the lights in good condition and extend the life time, we suggest a
regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakness of the lights
due to accumulation of dust.
2) Clean the fan each week.
3) To make sure the smooth gobo rotation, we suggest adding proper lube to the
wheel each three month, avoiding the excessive lube splashes during the gobo
rotating,
4) A detailed electric check by approved electrical engineer each three month, make
sure that the circuit contacts are in good condition, prevent the poor contact of
circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth.
Never use alcohol or solvents.
There are no serviceable parts inside the device except for the lamp. Please refer to
the instructions under “Installation instructions”.

7
TECHNICAL PARAMETERS
POWER SUPPLY
Voltage:110-240V 50/60 Hz
LIGHT SOURCE
19x15w RGBW 4in1 Osram Ostar Leds
Dedicated channel for color temperature setting: 2500K-8000K adjustable
Average life: 50,000 h
OPTICS
Special Pods: 5cm x19pcs, convey the light output of each led to the quadrangle lens, internal
light dissipation is decreased, color mixing and the light output are enhanced.
19pcs in total with 4 different shapes:
1 sexangle,6 pentagons 6 quadrangles and 6 opposite quadrangles.
Zoom angle:4-60°
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting.
EFFECTS SLECTION
Uniform wash: no dark spot in the middle benefit from its perfect optic and Invisible front grid.
Mid-air parallel beam, when the beam is zoomed down to 4°,the wash light turns into a “beam”
fixture.
Spectacular graphic effects, Rotation version bring a new never-seen bore feature, the front
lens may be rotated with “vortex”and “kaleidoscope” effects.
Variable Built-in Dynamic effects: Each leds can be controlled individually, shape speed,shape
offset, shape fade and background select are available.
CONTROL AND PROGRAMMING
21/35/78/96/92/DMX 512 control channels
Display: LCD display with 5 operating buttons
Pan/Tilt Resolution: 16 bit
DMX signal connection: 3pin and 5pin in&out
Power connection: Powercon in&out
Cooling:
High efficiency die-cast aluminium, forced ventilation.
MOVING BODY
6 stepper motors,1 for rotation, 3 for zooming, and 2 for XY,
operating with microsteps, totally microprocessor controlle
Movement by means of 2 stepper motors, controlled by microprocessor.
Automatic re-position of pan and tilt after accidental movement not controlled by control unit.
Travel: PAN = 540° ,TILT = 210°
WEIGHT
15KG

8
MENU FUNCTION
A001
┳
Set Up
┳
Dmx Address
━
Setting Address
┃
┃
┃
┃
┃
┣
Control Mode
┳
Dmx
━
OK
┃
┃
┃
┃
┃
┣
Automatic
┳
AutoA
┃
┃
┃
┃
┃
┃
┃
┗
AutOB
┃
┃
┃
┃
┃
┗
Mast
┳
MastA
┃
┃
┃
┃
┃
┗
MastB
┃
┃
┃
┗
Channel Mode
┳
Stndard
┃
┃
┃
┣
Shape
┃
┃
┃
┣
Extended
┃
┃
┃
┣
Extended RGBW
┃
┃
┃
┗
Full
┃
┣
Option
┳
Pan/Tilt
┳
Invert Pan ON/OFF
┃
┃
┃
┃
┃
┣
Invert Tilt ON/OFF
┃
┃
┃
┃
┃
┗
Swap P/T ON/OFF
┃
┃
┃
┣
Display
━
Display Flip ON/OFF
┃
┃
┃
┗
Setting
━
Default Preset
┃
┣
Information
┳
Fixture hours
┳
Fixture Used time:
┃
┃
┃
┃
┃
┣
Reset? NO
┃
┃
┃
┃
┃
┗
YES
┃
┃
┃
┗
System version
━
VXXX
┃

9
┃
┣
Manual Control
┳
Reset All
┳
NO
┃
┃
┃
┃
┃
┗
YES
┃
┃
┃
┃
┃
┗
Channel
━
Red 000
┃
Red Fine 000
┃
Green 000
┃
Green Fine 000
┃
Blue 000
┃
Blue Fine 000
┃
White 000
┃
White Fine 000
┃
Linear CTO 000
┃
MacroColour 000
┃
Strobe 000
┃
Dimmer 000
┃
Dimmer Fine 000
┃
Pan 000
┃
Pan Fine 000
┃
Tilt 000
┃
Tilt Fine 000
┃
Function 000
┃
Reset 000
┃
Zoom 000
┃
┣
Test
┳
Pan/Tilt
┃
┃
┃
┣
Colour
┃
┃
┃
┣
Zoom
┃
┃
┃
┗
All
┃
┗
Advanced
┳
Adjust Pan
━
+-XXX
(need password 988)
┃
┗
Adjust Tilt
━
+-XXX

10

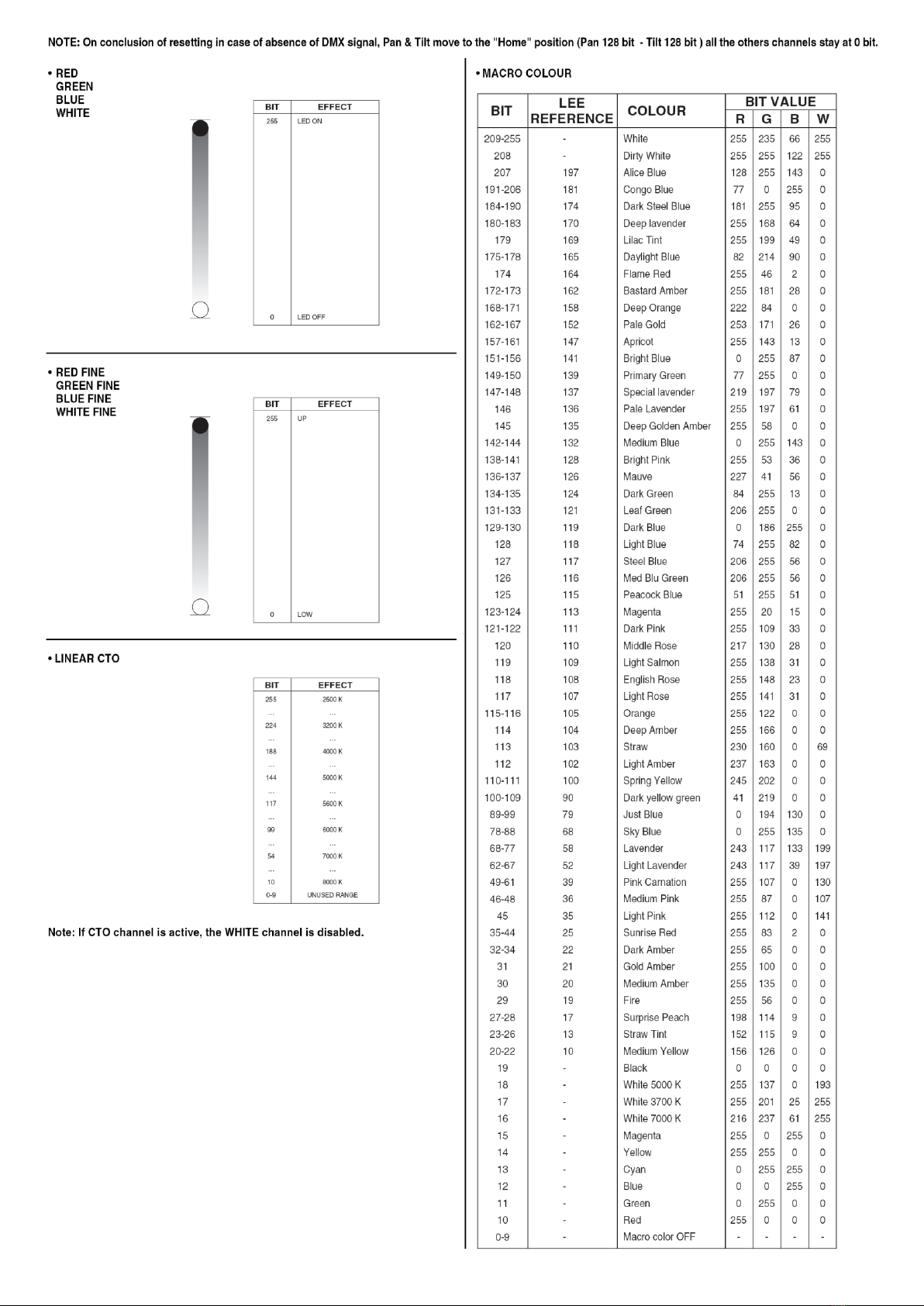

STANDARD
SHAPE
EXTENDED
EXTENDED RGBW
FULL
Ch
Mode
Ch
Mode
Ch
Mode
Ch
Mode
Ch
Mode
1
Red
1
Red
1
Red
1
Red
1
Red
2
Red fine
2
Red fine
2
Red fine
2
Red fine
2
Red fine
3
Green
3
Green
3
Green
3
Green
3
Green
4
Green fine
4
Green fine
4
Green fine
4
Green fine
4
Green fine
5
Blue
5
Blue
5
Blue
5
Blue
5
Blue
6
Blue fine
6
Blue fine
6
Blue fine
6
Blue fine
6
Blue fine
7
White
7
White
7
White
7
White
7
White
8
White fine
8
White fine
8
White fine
8
White fine
8
White fine
9
Linear CTO
9
Linear CTO
9
Linear CTO
9
Linear CTO
9
Linear CTO
10
Macro color
10
Macro color
10
Macro color
10
Macro color
10
Macro color
11
Strobe
11
Strobe
11
Strobe
11
Strobe
11
Strobe
12
Dimmer
12
Dimmer
12
Dimmer
12
Dimmer
12
Dimmer
13
Dimmer fine
13
Dimmer fine
13
Dimmer fine
13
Dimmer fine
13
Dimmer fine
14
Pan
14
Pan
14
Pan
14
Pan
14
Pan
15
Pan fine
15
Pan fine
15
Pan fine
15
Pan fine
15
Pan fine
16
Tilt
16
Tilt
16
Tilt
16
Tilt
16
Tilt
17
Tilt fine
17
Tilt fine
17
Tilt fine
17
Tilt fine
17
Tilt fine
18
Function
18
Function
18
Function
18
Function
18
Function
19
Reset
19
Reset
19
Reset
19
Reset
19
Reset
20
Zoom
20
Zoom
20
Zoom
20
Zoom
20
Zoom
21
Shape selection
21
Red Led 1
21
Red Led 1
21
Shape selection
22
Shape speed
22
Green Led 1
22
Green Led 1
22
Shape speed
23
Shape fade
23
Blue Led 1
23
Blue Led 1
23
Shape fade
24
Shape R
......
Red Led...
24
White Led 1
24
Shape R
25
Shape G
75
Red Led 19
25
Red Led 2
25
Shape G
26
Shape B
76
Green Led 19
26
Green Led 2
26
Shape B
27
Shape W
77
Blue Led 19
27
Blue Led 2
27
Shape W
28
Shape Dimmer
28
White Led 2
28
Shape Dimmer
29
Background Dimmer
…
Red Led…
29
Background Dimmer
30
Shape transition
…
Green Led….
30
Shape transition
31
Shape offset
….
Blue Led….
31
Shape offset
32
Foreground strobe
….
White Led….
32
Foreground strobe
33
Background strobe
93
Red Led 19
33
Background strobe
34
Background select
94
Green Led 19
34
Background select
95
Blue Led 19
…
Red Led 1
96
White Led 19
…
Green Led 1
….
Blue Led 1
89
Red Led 19
90
Green Led 19
91
Blue Led 19
L10 EASY

11
STANDARD
SHAPE
EXTENDED
EXTENDED RGBW
FULL
Ch
Mode
Ch
Mode
Ch
Mode
Ch
Mode
Ch
Mode
1
Red
1
Red
1
Red
1
Red
1
Red
2
Red fine
2
Red fine
2
Red fine
2
Red fine
2
Red fine
3
Green
3
Green
3
Green
3
Green
3
Green
4
Green fine
4
Green fine
4
Green fine
4
Green fine
4
Green fine
5
Blue
5
Blue
5
Blue
5
Blue
5
Blue
6
Blue fine
6
Blue fine
6
Blue fine
6
Blue fine
6
Blue fine
7
White
7
White
7
White
7
White
7
White
8
White fine
8
White fine
8
White fine
8
White fine
8
White fine
9
Linear CTO
9
Linear CTO
9
Linear CTO
9
Linear CTO
9
Linear CTO
10
Macro color
10
Macro color
10
Macro color
10
Macro color
10
Macro color
11
Strobe
11
Strobe
11
Strobe
11
Strobe
11
Strobe
12
Dimmer
12
Dimmer
12
Dimmer
12
Dimmer
12
Dimmer
13
Dimmer fine
13
Dimmer fine
13
Dimmer fine
13
Dimmer fine
13
Dimmer fine
14
Pan
14
Pan
14
Pan
14
Pan
14
Pan
15
Pan fine
15
Pan fine
15
Pan fine
15
Pan fine
15
Pan fine
16
Tilt
16
Tilt
16
Tilt
16
Tilt
16
Tilt
17
Tilt fine
17
Tilt fine
17
Tilt fine
17
Tilt fine
17
Tilt fine
18
Function
18
Function
18
Function
18
Function
18
Function
19
Reset
19
Reset
19
Reset
19
Reset
19
Reset
20
Zoom Rotation
20
Zoom
20
Zoom
20
Zoom
20
Zoom
21
Zoom
21
Zoom Rotation
21
Zoom Rotation
21
Zoom Rotation
21
Zoom Rotation
22
Shape selection
22
Red Led 1
22
Red Led 1
22
Shape selection
23
Shape speed
23
Green Led 1
23
Green Led 1
23
Shape speed
24
Shape fade
24
Blue Led 1
24
Blue Led 1
24
Shape fade
25
Shape R
......
Red Led...
25
White Led 1
25
Shape R
26
Shape G
76
Red Led 19
....
Red Led...
26
Shape G
27
Shape B
77
Green Led 19
....
Green Led....
27
Shape B
28
Shape W
78
Blue Led 19
....
Blue Led....
28
Shape W
29
Shape Dimmer
....
White Led....
29
Shape Dimmer
30
Background Dimmer
90
Red Led 18
30
Background Dimmer
31
Shape transition
91
Green Led 18
31
Shape transition
32
Shape offset
92
Blue Led 18
32
Shape offset
33
Foreground strobe
93
White Led 18
33
Foreground strobe
34
Background strobe
94
Red Led 19
34
Background strobe
35
Background select
95
Green Led 19
35
Background select
96
Blue Led 19
....
Red Led 1
....
Green Led 1
....
Blue Led 1
90
Red Led 19
91
Green Led 19
92
Blue Led 19
L10 ROTATION

12

13

14

15
SHAPE SPEED - SHAPE OFFSET - SHAPE FADE - BACKGROUND SELECT
Shape
Selection
Shape
Slot
Macro Name
On L10
Description
Random
Colors 1
Shape speed
Shape offset
Shape fade
Background
0-7
macro OFF
Yes
Static effects.
The ring or
rings used by the
macro are
turned-on with the
foreground
colour
Na
Na
Na
Na
Na
8
1
Pixel 1
Yes
Na
Na
Na
0=snapeffect
1-255Fade
effect
0-7=Wash
8-15=Bgrings
16-255 wash
9
2
Ring 1
Yes
10
3
Ring 2
Yes
11
4
Ring 3
No
12
5
Pixel 1+rignt1
Yes
13
6
Pixel 1+ring2
Yes
14
7
Pixel 1+Ring 3
Yes
15
8
Single ring
(Ramp -/+)
Yes
Yes
0-63 = Radius size,
static.
64-158 = max to min
speed,Closing effect
159-160 = STOP
161-255 = min to max
speed,
Opening effect
0-9 →
continuous
10-255 →
random
Distribution of
flash
from 2 to 20
fixtures
0=snapeffect
1-255Fade
effect
0-7=Wash
8-15=Bgrings
16-255 wash
16
9
Single ring
(Ramp -/+)
Yes
Yes
17
10
Open/Close 1
Yes
Yes
0-63 = Radius size,
static.
64-158 = max to min
speed,Closing effect
159-160 = STOP
161-255 = min to max
speed,
Opening effect
18
11
Open/Close 1
Yes
Yes
19
12
Random pixels 1
Yes
Yes
0-63 = STOP
64-158 = max to min
speed,
Instant-on + fadeout.
159-160 = STOP.
161-255 = min to max
speed,
FadeIn + FadeOut.
0-255 →select
random
distribution
from 2 up to 20
fixtures
0=snapeffect
1-255Fade
effect
0-7=Wash
8-15=Bgrings
16-255 wash
20
13
Random pixels 2
Yes
Yes
0-255
Select pixel
density
21
14
Rainbow 1
(Variable speed)
Yes
Na
0-63 = Angle 0-360°,
static.
64-158 = max to min
speed,
c.cw rotation
0-63 = Angle 0-360°,
static.
64-158 = max to min
speed,
0=snapeffect
1-255Fade
effect
0=snapeffect
1-255Fade
effect
0-7=Wash
8-15=Bgrings
16-255 wash
22
15
Rainbow 2
(Fixed speed
withvariable
color offset)
Yes
Na
0-63 = STOP
64-158 = c.cw rotation
159-160 = STOP
161-255 = cw rotation
The value 64-158 or
161-255
change the rainbow
angle offset
(the orange starting
angle).
Na
0=snapeffect
1-255Fade
effect
0-7=Wash
8-15=Bgrings
16-255 wash 8
-
1
5
w
a
h
23
16
Fan
Yes
Na
0-63 = angle offset,
0-360°
64-158 = max to min
speed,
c.cw rotation
159-160 = STOP
161-255 = min to max
speed,
cw rotationt
0-255 →angle
offset from 0 to
360°
0=snapeffect
1-255Fade
effect
0-7=Wash
8-15=Bgrings
16-255 wash
24
17
Bar 1
Yes
25
18
Half moon
Yes
26
19
Triangle
Yes
27
20
Segment 1
Yes
28
21
Arc 1
Yes
29
22
Arc 2
Yes

16
Shape
Selection
Shape
Slot
Macro Name
On L10
Description
Random
Colors 1
Shape speed
Shape
offset
Shape fade
Background
30
23
Bar 2 (Variable
size)
Yes
Na
0-63 = STOP,
indexed speed
64-158 = max to min
speed,
c.cw rotation.
159-160 = STOP.
161-255 = min to
max speed cc
rotation.
0-255 →select
shape width
0 = Snap effect
1-255 = Fade
effect
0-7 = wash
8-15 = Bkgnd
rings
selection
16-254 = wash
255 = Mirror effet
with bkgnd color
31
24
Random
explosion
Yes
Yes
0-255 →select
random
distribution
0 = Snap effect
1-255 = Fade
effect
32
25
Segment 2
Yes
Na
0-255 →
select
shape width
33
26
x Bump
No
0-255 →
select
macro offset
0 = Snap effect
34
27
No
35
28
Bumping
Selection
Yes
36
29
Ramp by 6
Yes
0-255 →
select
shape width
0 = Snap effect
1-255 select
the wake
Of the faded
macro
37
30
Ramp by 4
Yes
38
31
Left/Right
scrolling bar
Yes
39
32
Left/Right
scrolling bar
Yes
40
33
Bar 3
No
0-255 →
select
macro offset
0 = Snap effect
1-255 = Fade
effect
41
34
Vertical arc 1
No
42
35
Vertical arc 2
Yes
43
36
Horizontal arc 1
No
44
37
Horizontal arc 2
Yes
45
38
Mirrored pixel
Yes
0-255 →
select
shape width
0 = Snap effect
1-255 select
the wake
Of the faded
macro
46
39
Pixel animation 1
Yes
47
40
Pixel animation 2
Yes
48
41
Pixel animation 3
Yes
49
42
Pixel animation 4
Yes
50
43
Pixel animation 5
Yes
51
44
Semi arc (Ramp
- /+)
yes
52
45
Bumping arc
section
Yes
0-255 →
select
shape width
0 = Snap effect
1-255 = Fade
effect
53
46
Pixel animation 6
Yes
54
47
Vertical ramp by
2
Yes
0-255 →
select
shape width
0 = Snap effect
1-255 select
the wake
Of the faded
macro
55
48
Following pixel
by 2
Yes
56
49
Syncopation
Yes
0-255 →
select
macro width
0 = Snap effect
1-255 = Fade
effect
57
50
Bumping 1
Yes
58
51
Bumping 2
Yes
59
52
Bumping 3
Yes
60
53
Vertical pixel
scrolling
Yes
0-255 →
select
macro width
0 = Snap effect
1-255 select
the wake
Of the faded
macro
61
54
Vertical pixel
scrolling
Yes
0-255 →select
random
distribution
0 = Snap effect
1-255 = Fade
effect
62
55
Random central
section
Yes
Yes
63
56
Random ring 2
Yes
64
57
Random ring 3
No
65
58
Random ring 1+3
Yes(*2)
66
59
Random ring 2+3
Yes(*2)

17
EASY&ROTATION
LEDreference numberforpixelmapping
TILT:channel16@200bit

18
REMARK
The product has perfect performance and intergrity packing. All users should be
strictly comply with the warning and operating instructions as stated. Or we aren’t in
charge of any result by misusing.
Any damage resulting by misuse is not within the Company’s warranty. Any fault or
problem caused by neglecting the manual is also not in the charge of dealers.
Errors and omissions for every information given in this manual excepted. All
information is subject to change without prior notice
