Show Tec Spectral Revo UV IP65 User manual

Spectral Revo UV IP65
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Product code: 43641
USER MANUAL
ENGLISH
V1

1
Spectral Revo UV IP65
Product code: 43641
Preface
Thank you for purchasing this Showtec product.
The purpose of this user manual is to provide instructions for the correct and safe use of this product.
Keep the user manual for future reference as it is an integral part of the product. The user manual shall be
stored at an easily accessible location.
This user manual contains information concerning:
●Safety instructions
●Intended and non-intended use of the device
●Installation and operation of the device
●Maintenance procedures
●Troubleshooting
●Transport, storage and disposal of the device
Non-observance of the instructions in this user manual may result in serious injuries and damage of
property.
©2020 Showtec. All rights reserved.
No part of this document may be copied, published or otherwise reproduced without the prior written
consent of Highlite International.
Design and product specifications are subject to change without prior notice.
For the latest version of this document, please visit our website www.highlite.com or contact us at
[e-mail].
Highlite International and its authorized service providers are not liable for any injury, damage, direct or
indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or
reliance on the information contained in this document.

2
Spectral Revo UV IP65
Product code: 43641
Table of contents
1. Introduction..........................................................................................................................................................4
Before Using the Product ..................................................................................................................................4
Intended Use .......................................................................................................................................................4
Product Lifespan.................................................................................................................................................4
LEDs Lifespan .......................................................................................................................................................4
Text Conventions ................................................................................................................................................4
Symbols and Signal Words................................................................................................................................5
Symbols on the Information Label ..................................................................................................................5
2. Safety ....................................................................................................................................................................6
Warnings and Safety Instructions ....................................................................................................................6
Requirements for the User.................................................................................................................................8
3. Description of the Device...................................................................................................................................9
Front View ............................................................................................................................................................9
Back View ............................................................................................................................................................9
Product Specifications ....................................................................................................................................10

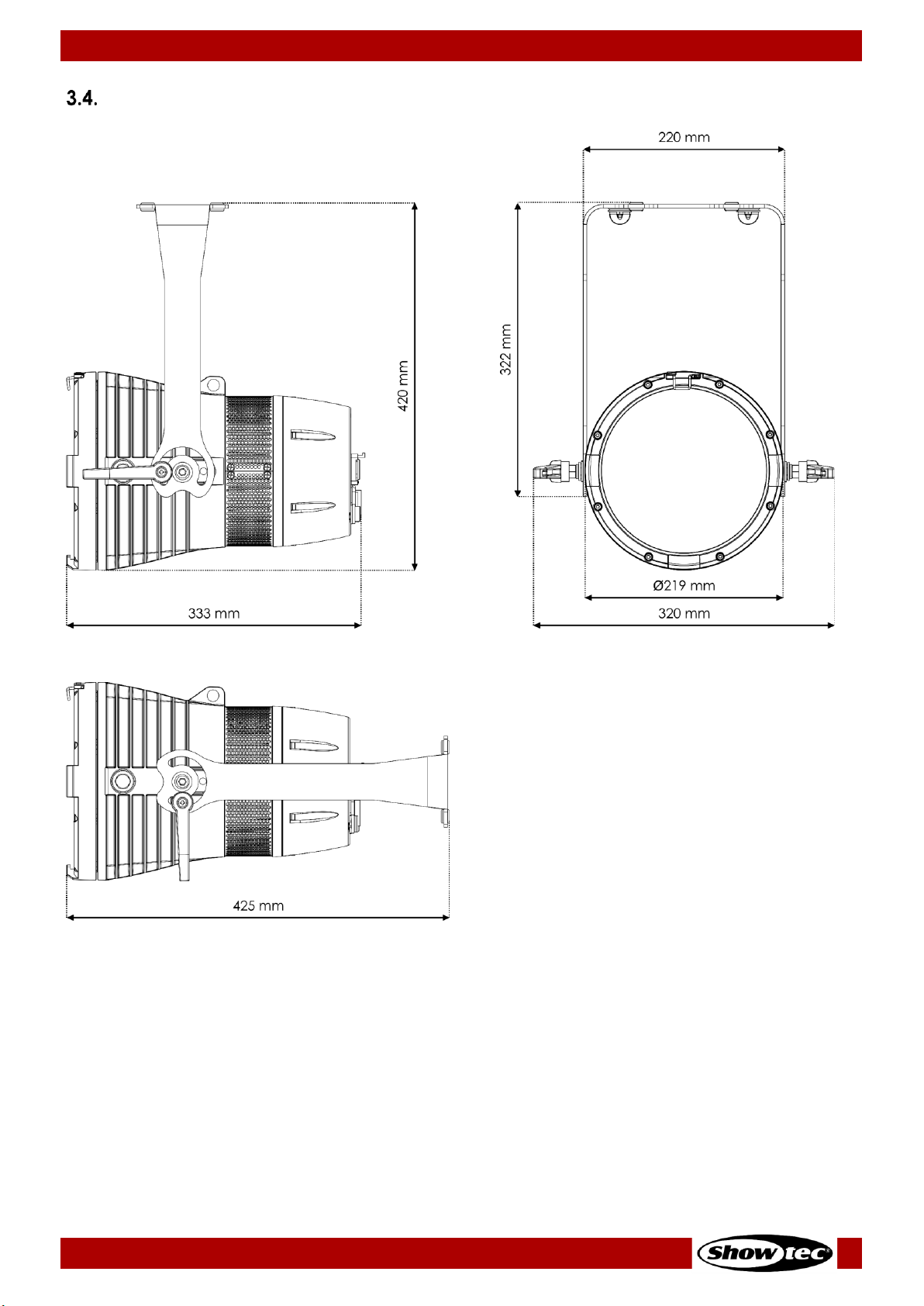

Dimensions.........................................................................................................................................................11
4. Installation ..........................................................................................................................................................12
Safety Instructions for Installation ..................................................................................................................12
Personal Protective Equipment .....................................................................................................................12
Installation Site Requirements ........................................................................................................................12

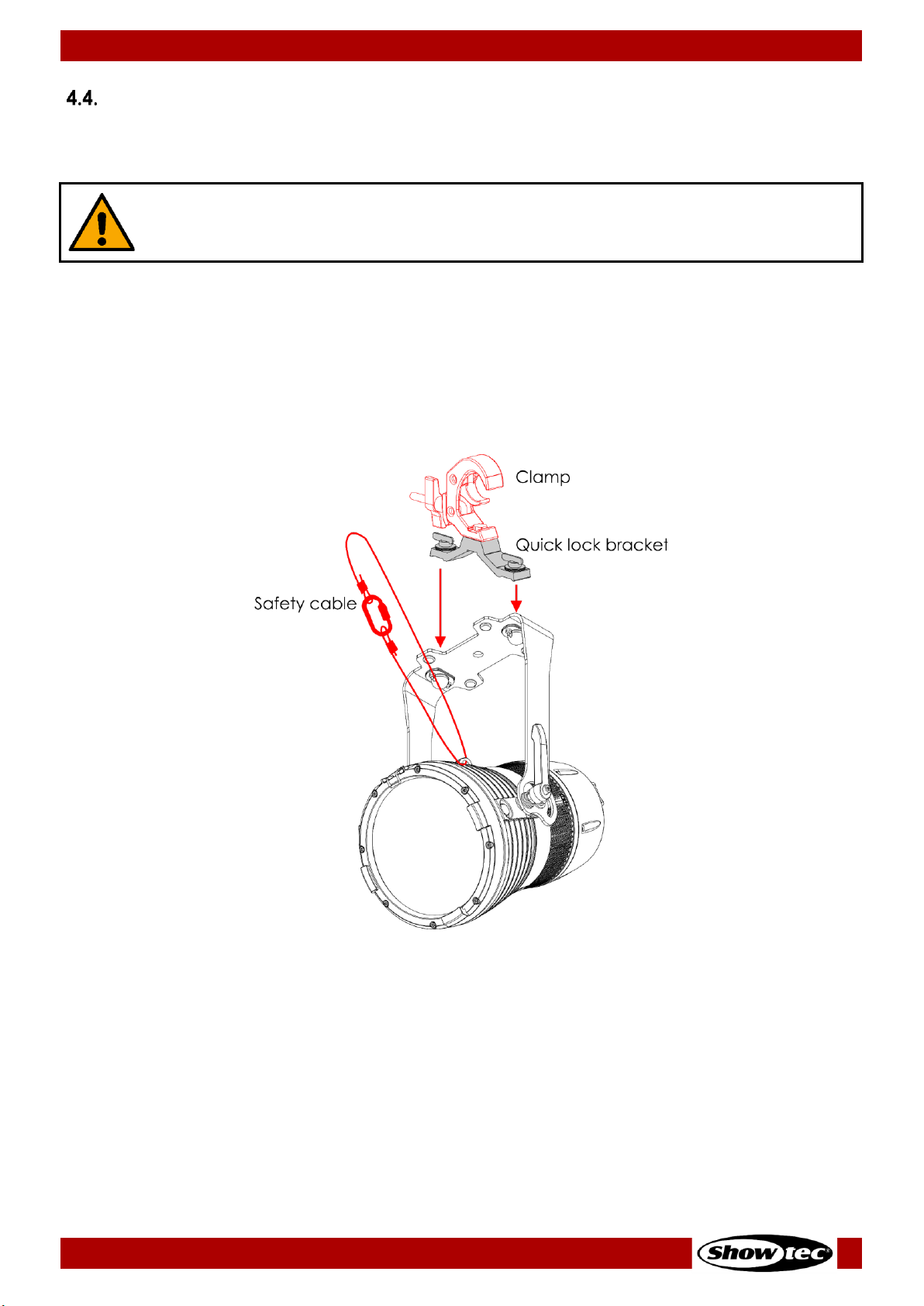

Rigging ...............................................................................................................................................................13
Angle Adjustment.......................................................................................................................................14
Connecting to Power Supply.........................................................................................................................15
Power Linking of Multiple Devices.................................................................................................................15
5. Setup ...................................................................................................................................................................16
Warnings and Precautions .............................................................................................................................16
Stand-alone Setup ...........................................................................................................................................16
DMX Connection..............................................................................................................................................16
DMX-512 Protocol .......................................................................................................................................16
DMX Cables .................................................................................................................................................17
Master/Slave Setup ....................................................................................................................................17
DMX Linking..................................................................................................................................................18
DMX Addressing..........................................................................................................................................18
6. Operation ...........................................................................................................................................................19
Safety Instructions for Operation...................................................................................................................19
Control Modes ..................................................................................................................................................19
Control Panel ....................................................................................................................................................20
Start-up...............................................................................................................................................................20
Menu Overview ................................................................................................................................................21
Main Menu Options .........................................................................................................................................22
Static .............................................................................................................................................................22
DMX Address ...............................................................................................................................................23
Run Mode.....................................................................................................................................................23
Personality ....................................................................................................................................................23
Settings..........................................................................................................................................................24
Reset .....................................................................................................................................................24
DMX Error..............................................................................................................................................24
Mode Settings .....................................................................................................................................25
Key.................................................................................................................................................................25
Information...................................................................................................................................................25
DMX Channels ..................................................................................................................................................26
Supported RDM PIDs (Parameter IDs) ..........................................................................................................26
7. Troubleshooting .................................................................................................................................................27

3
Spectral Revo UV IP65
Product code: 43641
8. Maintenance .....................................................................................................................................................28
Safety Instructions for Maintenance.............................................................................................................28
Preventive Maintenance................................................................................................................................28
Basic Cleaning Instructions .......................................................................................................................29
Corrective Maintenance................................................................................................................................29
9. Deinstallation, Transportation and Storage ....................................................................................................30
Instructions for Deinstallation..........................................................................................................................30
Instructions for Transportation ........................................................................................................................30
Storage...............................................................................................................................................................30
10. Disposal ..............................................................................................................................................................30
11. Approval.............................................................................................................................................................30

4
Spectral Revo UV IP65
Product code: 43641

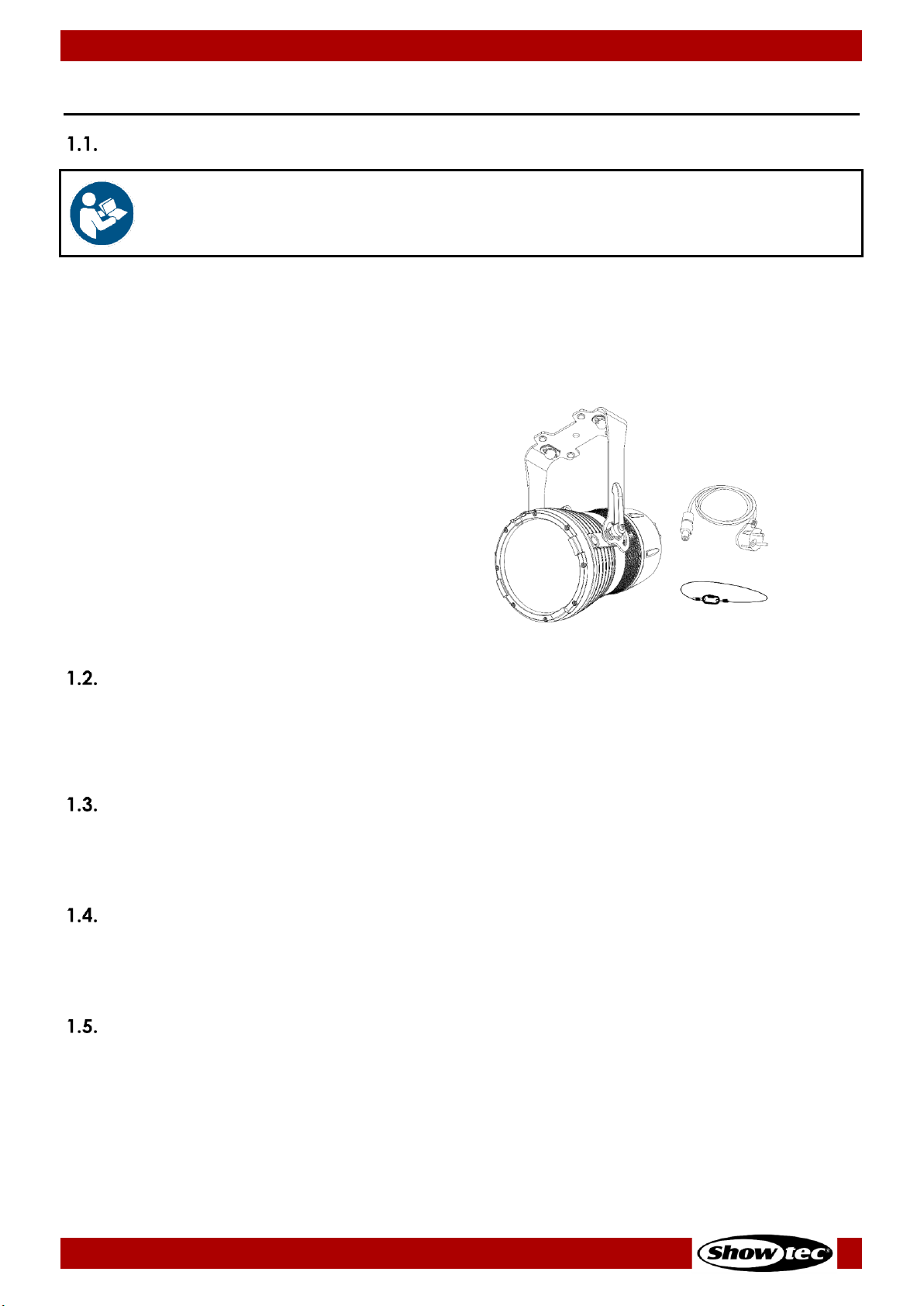

1. Introduction
Before Using the Product
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your
Highlite International dealer.
Your shipment includes:
●Showtec Spectral Revo UV IP65
●Schuko to Seetronic power cable (1,5 m)
●Safety cable
●User manual
Fig. 01
Intended Use
This device is intended for professional use as an outdoor spot. It is not suitable for households and for
general lighting.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.
Product Lifespan
This device is not designed for permanent operation. Disconnect the device from the electrical power
supply when the device is not in operation. This will reduce the wear and will improve the device’s
lifespan.
LEDs Lifespan
The light output of the LEDs gradually decreases over time (lumen depreciation). High operating
temperatures contribute to this process. You can extend the lifespan of the LEDs by providing adequate
ventilation and operating the LEDs at the lowest possible brightness.
Text Conventions
Throughout the user manual the following text conventions are used:
●Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons”
●References: References to chapters and parts of the device are in bold lettering, for example:
“Refer to 2. Safety”, “turn the adjustment handle (05)”
●0–255: Defines a range of values
●Notes: Note: (in bold lettering) is followed by useful information or tips

5
Spectral Revo UV IP65
Product code: 43641

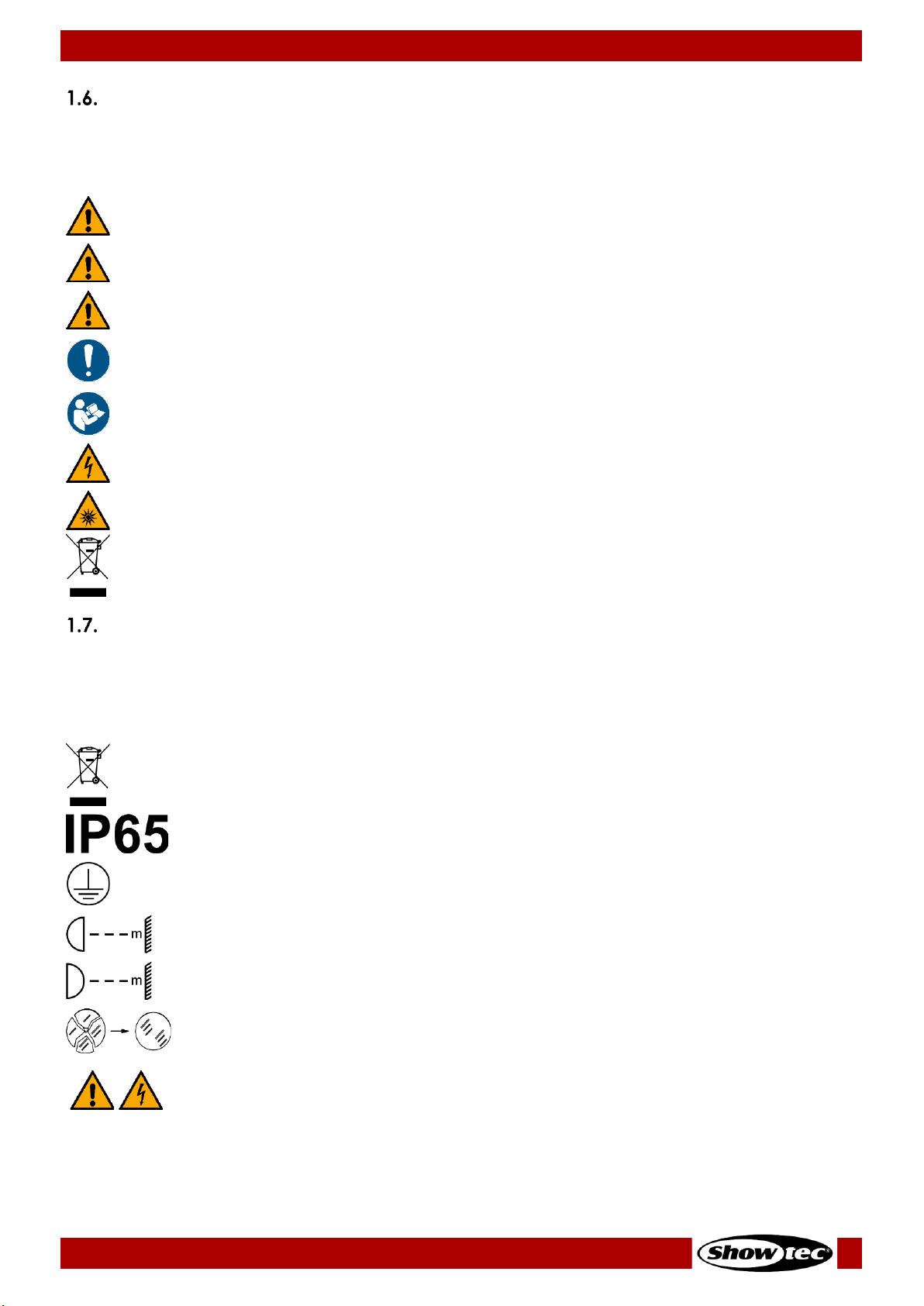

Symbols and Signal Words
Safety notes and warnings are indicated throughout the user manual by safety signs.
Always follow the instructions provided in this user manual.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
Attention
Indicates important information for the correct operation and use of the
product.
Important
Read and observe the instructions in this document.
Electrical hazard
Eye damage hazard
Provides important information about the disposal of this product.
Symbols on the Information Label
This product is provided with an information label. The information label is located on the mounting
bracket of the device.
The information label contains the following symbols:
This device shall not be treated as household waste.
This device is rated IP65.
This device falls under IEC protection class I.
Minimum distance from lighted objects.
Minimum distance from other objects.
Replace any cracked protective shield.
Caution: Risk of electric shock. Do not open.
Caution: To reduce the risk of electrical shock, do not remove cover. No user-
serviceable parts inside. Refer servicing to qualified personnel.

6
Spectral Revo UV IP65
Product code: 43641
2. Safety
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
Warnings and Safety Instructions
DANGER
Danger for children
For adult use only. The device must be installed beyond the reach of children.
●Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach. Packaging material is a potential source of danger for children.
DANGER
Electric shock caused by dangerous voltage inside
There are areas within the device where dangerous touch voltage may be present.
●Do not open the device or remove any covers.
●Do not operate the device if the covers or the housing are open. Before operation, check if the
housing is firmly closed and all screws are tightly fastened.
●Disconnect the device from electrical power supply before service and maintenance, and when the
device is not in use.
DANGER
Electric shock caused by short-circuit
This device falls under IEC protection class I.
●Make sure that the device is electrically connected to ground (earth). Connect the device only to a
socket-outlet with ground (earth) connection.
●Do not cover the ground (earth) connection.
●Do not bypass the thermostatic switch or fuses.
●Do not let the power cable come into contact with other cables. Handle the power cable and all
connections with the mains with caution.
●Do not modify, bend, mechanically strain, put pressure on, pull or heat up the power cable.
●Make sure that the power cable is not crimped or damaged. Examine the power cable periodically
for any defects.
●Do not immerse the device in water or other liquids. Do not install the device in a location where
flooding may occur.
●Do not use the device during thunderstorms. Disconnect the device from the electrical power supply
immediately.
●Keep the connectors sealed with the rubber caps when the connectors are not in use.
●Do not connect the cables from above the connectors, if the device is installed outdoors. Make a
‘drip loop’ in the cable so that rain water cannot enter the device.

7
Spectral Revo UV IP65
Product code: 43641
●Make sure that the cable run is not too heavy. A heavy cable run can cause damage to the
connectors. If the connectors are damaged, their ingress protection (IP) can deteriorate.
WARNING
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at
strobe lights.
CAUTION
Ultraviolet hazard
UV emitted from this device.
●Minimize exposure to eyes and skin.
●Do not operate the device without the lens.
●Do not look at the operating light source. May be harmful to the eye.
●Use appropriate shielding if looking into light source during service or maintenance.
Attention
Power supply
●Before connecting the device to the power supply, make sure that the current, voltage and
frequency match the input voltage, current and frequency specified on the information label on the
device.
●Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the
required power consumption of the device.
Attention
General safety
●Do not insert objects into the air vents.
●Do not connect the device to a dimmer pack.
●Do not switch the device on and off in short intervals. This decreases the device’s life.
●Do not shake the device. Avoid brute force when installing or operating the device.
●Change the lens or the LEDs if they are visibly damaged to such an extent that their effectiveness is
impaired, for example by cracks or deep scratches. Contact your Highlite International dealer for
more information, as servicing can be performed only by instructed or skilled persons.
●If the device is dropped or struck, disconnect the device from the electrical power supply
immediately.
●If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it
on immediately. Let the device reach room temperature before switching it on, otherwise it may be
damaged by the formed condensation.
●If the device fails to work properly, discontinue the use immediately.

8
Spectral Revo UV IP65
Product code: 43641
Attention
For professional use only
This device shall be used only for the purposes it is designed for.
This device is designed to be used as a professional outdoor spot. Any incorrect use may lead to
hazardous situations and result in injuries and material damage.
●This device is not suitable for households and for general lighting.
●This device is not designed for permanent operation.
●This device does not contain user-serviceable parts. Unauthorized modifications to the device will
render the warranty void. Such modifications may result in injuries and material damage.
Attention
Before each use, examine the device visually for any defects.
Make sure that:
●All screws used for installing the device or parts of the device are tightly fastened and are not
corroded.
●The safety devices are not damaged.
●There are no deformations on housings, fixations and installation points.
●The lens is not cracked or damaged.
●The power cables are not damaged and do not show any material fatigue.
Attention
Do not expose the device to conditions that exceed the rated IP class conditions.
This device is IP65 rated. IP (Ingress Protection) 65 class means that the device is dust-tight and protected
against harmful effect of water jets.
Requirements for the User
This product may be used by ordinary persons. Maintenance may be carried by ordinary persons.
Installation and service shall be carried out only by instructed or skilled persons. Contact your Highlite
International dealer for more information.
Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled
person, for specific tasks and work activities associated with the installation, service and maintenance of
this product, so that they can identify risks and take precautions to avoid them.
Skilled persons have training or experience, which enables them to recognize risks and to avoid hazards
associated with the installation, service and maintenance of this product.
Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons
include not only users of the product but also any other persons that may have access to the device or
who may be in the vicinity of the device.

9
Spectral Revo UV IP65
Product code: 43641
3. Description of the Device
The Showtec Spectral Revo UV IP65 is an IP65-rated outdoor spot. It features an innovative single lens
which creates a homogenous UV output.
Front View
01) 2 x Mounting holes for quick lock bracket
02) Mounting bracket
03) 2 x Adjustment screws
04) Lens
05) Color frame retaining clip
06) Safety eye
Fig. 02
Back View
07) IP65-rated 5-pin DMX signal connector IN
08) Control panel: OLED display and touch buttons
09) IP65-rated 5-pin DMX signal connector OUT
10) IP65-rated Seetronic power connector OUT
11) IP65-rated Seetronic power connector IN
Fig. 03

10
Spectral Revo UV IP65
Product code: 43641
Product Specifications
Model:
Spectral Revo UV IP65
Electrical:
Input voltage:
100–240 V AC, 50/60 Hz
Power consumption:
110 W
Physical:
Dimensions:
425 x 320 x 219 mm (L x W x H) (including bracket)
Weight:
6,1 kg
Optics:
Light source:
100 W UV LED module
Dimmer:
0–100 %
Strobe:
0–25 Hz
Beam angle:
16°
Operation and control:
Control:
Stand-alone
Master/Slave
DMX-512, RDM
DMX channels:
UNO (1 channel), DOS (2 channels), STD.P (4 channels)
Control panel:
OLED display and touch buttons
Connections:
Power connections:
IP65-rated Seetronic power connectors IN/OUT
Data connections:
IP65-rated 5-pin DMX connectors IN/OUT
Signal pinouts:
Pin 1 (earth), pin 2 (-), pin 3 (+), pin 4 (N/C), pin 5 (N/C)
Construction:
Housing:
Die-cast aluminum
Color:
Black
IP rating:
IP65
Cooling:
Forced convection
Thermal:
Maximum ambient temperature ta:
40 °C
Minimum distance:
Minimum distance from flammable surfaces:
0,8 m
Minimum distance to lighted object:
0,8 m

11
Spectral Revo UV IP65
Product code: 43641
Dimensions
Fig. 04
Fig. 05
Fig. 06

12
Spectral Revo UV IP65
Product code: 43641
4. Installation
Safety Instructions for Installation
WARNING
Incorrect installation can cause serious injuries and damage of property.
If trussing systems are used, installation must be carried out only by instructed or skilled persons.
Follow all applicable European, national and local safety regulations concerning rigging and trussing.
Personal Protective Equipment
During installation and rigging wear personal protective equipment in compliance with the national and
site-specific regulations.
Installation Site Requirements
●The device can be used outdoors.
●The device can be mounted to a truss or other rigging structure.
●The minimum distance between the light output and the illuminated surface must be bigger
than 0,8 m.
●The maximum ambient temperature ta= 40 °C must never be exceeded.
●The relative humidity must not exceed 50 % with an ambient temperature of 40 °C.

13
Spectral Revo UV IP65
Product code: 43641
Rigging
The device can be positioned on a flat surface or mounted to a truss or other rigging structure. Make sure
that all loads are within the pre-determined limits of the supporting structure.
CAUTION
Restrict the access under the work area during rigging and/or derigging.
To mount the device, follow the steps below:
01) Use a clamp to attach the device to the supporting structure, as shown in Fig. 07. Make sure that the
device cannot move freely. The use of a quick lock bracket is optional.
02) Secure the device with a secondary suspension. for example a safety cable. Make sure that the
secondary suspension can hold 10 times the weight of the device. If possible, the secondary
suspension should be attached to a supporting structure independent of the primary suspension. Put
the safety cable through the safety eye (06), as shown in Fig. 07. You can use the safety cable
supplied with the device.
Fig. 07

14
Spectral Revo UV IP65
Product code: 43641
Angle Adjustment
You can adjust the angle of the device with the 2 adjustment screws (03).
01) Turn the adjustment screws (03) counterclockwise to release them.
02) Tilt the device at the desired angle (see Fig. 08).
03) Turn the adjustment screws (03) clockwise to tighten them. Make sure that the device cannot move
freely after the adjustment screws (03) are tightened.
Fig. 08

15
Spectral Revo UV IP65
Product code: 43641
Connecting to Power Supply
DANGER
Electric shock caused by short-circuit
The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other
voltage or frequency to the device.
This device falls under IEC protection class I. Make sure that the device is always electrically connected
to the ground (earth).
Before connecting the device to the socket-outlet:
●Make sure that the power supply matches the input voltage specified on the information label on
the device.
●Make sure that the socket-outlet has ground (earth) connection.
Connect the device to the socket-outlet with the power plug. Do not connect the device to a dimmer
circuit, as this may damage the device.
This device is IP65 rated.
●Do not expose the device to conditions that exceed the rated IP class conditions.
●Keep the connectors sealed with the rubber caps when the connectors are not in use.
●Do not connect the cables from above the connectors, if the device is installed outdoors. Make a
‘drip loop’ in the cable so that rain water cannot enter the device.
●Make sure that the cable run is not too heavy. A heavy cable run can cause damage to the
connectors. If the connectors are damaged, their ingress protection (IP) can deteriorate.
Power Linking of Multiple Devices
This device supports power linking. Power can be relayed to another device via the power OUT
connector. Note that the input and the output connectors have different designs: one type cannot be
connected to the other.
Power linking of multiple devices must be carried out only by instructed or skilled persons.
WARNING
Incorrect power linking may lead to overload of the electrical circuit and result in serious
injuries and damage of property.
To prevent overload of the electrical circuit, when power linking multiple devices:
●Use cables with sufficient current-carrying capacity. The power cable supplied with the device is not
suitable for power linking of multiple devices.
●Make sure that the total current draw of the device and all connected devices does not exceed the
rated capacity of the power cables and the circuit breaker.
●Do not link more devices on one power link than the maximum recommended number.
Maximum recommended number of devices:
●at 100–120 V: 7 devices Spectral Revo UV IP65
●at 200–240 V: 15 devices Spectral Revo UV IP65

16
Spectral Revo UV IP65
Product code: 43641
5. Setup
Warnings and Precautions
DANGER
Electric shock caused by short-circuit
This device is IP65 rated.
●Do not expose the device to conditions that exceed the rated IP class conditions.
●Keep the connectors sealed with the rubber caps when the connectors are not in use.
●Do not connect the cables from above the connectors, if the device is installed outdoors. Make a
‘drip loop’ in the cable so that rain water cannot enter the device.
●Make sure that the cable run is not too heavy. A heavy cable run can cause damage to the
connectors. If the connectors are damaged, their ingress protection (IP) can deteriorate.
Attention
Connect all data cables before supplying power.
Disconnect power supply before connecting or disconnecting data cables.
Stand-alone Setup
When the Spectral Revo UV IP65 is not connected to a controller or to other devices, it functions as a
stand-alone device.
For more information about the control modes, refer to 6.2. Control Modes on page 19.
DMX Connection
DMX-512 Protocol
You need a DMX serial data link to run light shows of one or more devices using a DMX-512 controller or
to run synchronized shows of two or more devices set in a master/slave control mode.
The Spectral Revo UV IP65 has 5-pin DMX signal IN and OUT connectors.
The pin assignment is as follows: pin 1 (ground), pin 2 (-), pin 3 (+), pin 4 (N/C), pin 5 (N/C).
Devices on a serial data link must be daisy-chained in a single line. The number of devices that you can
control on one data link is limited by the combined number of the DMX channels of the connected
devices and the 512 channels available in one DMX universe.
To comply with the TIA-485 standard, no more than 32 devices should be connected on one data link.
In order to connect more than 32 devices on one data link, you must use a DMX optically isolated
splitter/booster, otherwise this may result in deterioration of the DMX signal.
Note:
●Maximum recommended DMX data link distance: 300 m
●Maximum recommended number of devices on a DMX data link: 32 devices

17
Spectral Revo UV IP65
Product code: 43641
DMX Cables
Shielded twisted-pair cables with 5-pin XLR connectors must be used for reliable DMX connection. You
can purchase DMX cables directly from your Highlite International dealer or make your own cables.
If you use XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable
operation of the DMX network.
When you make your own DMX cables, make sure that you connect the pins and wires correctly as
shown in Fig. 09.
Fig. 09
Master/Slave Setup
The Spectral Revo UV IP65 supports master/slave control mode. To connect multiple devices in a
master/slave setup, follow the steps below:
Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with a
5-pin DMX cable.
Repeat step 1 to connect all devices as shown in Fig. 10.
Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device in the setup.
04) Set the first device on the data link as a master device. See 6.6.5.3. Mode Settings on page 25 for
more information.
05) Set the remaining devices in the setup as slave devices. See 6.6.3 Run Mode on page 23 for more
information.
Fig. 10

18
Spectral Revo UV IP65
Product code: 43641
DMX Linking
To connect multiple devices on one DMX data link, follow the steps below:
Use a 5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN
connector of the first device.
02) Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with a
5-pin DMX cable.
03) Repeat step 2 to connect all devices in a daisy-chain as shown in Fig. 11.
04) Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device on the data
link.
Fig. 11
DMX Addressing
In a setup with multiple devices, make sure that you set the DMX starting address of each device
correctly. The Spectral Revo UV IP65 has 3 personalities: UNO (1 channel), DOS (2 channels), and STD.P
(4 channels).
If you want to connect multiple devices on one data link and use them in 4-channel mode, for example,
follow the steps below:
Set the starting address of the 1st device on the data link to 1 (001).
02) Set the starting address of the 2nd device on the data link to 5 (005), as 1 + 4 = 5.
03) Set the starting address of the 3rd device on the data link to 9 (009), as 5 + 4 = 9.
04) Continue assigning the starting addresses of the remaining devices by adding each time 4 to the
previous number.
Make sure that you do not have any overlapping channels in order to control the Spectral Revo UV IP65
correctly. If two or more devices are addressed similarly, they will work similarly.

19
Spectral Revo UV IP65
Product code: 43641
6. Operation
Safety Instructions for Operation
Attention
This device must be used only for the purposes it is designed for.
This device is intended for professional use as an outdoor spot. It is not suitable for households and for
general lighting.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.
Attention
Power supply
Before connecting the device to the power supply, make sure that the current, voltage and frequency
match the input voltage, current and frequency specified on the information label on the device.
Control Modes
The Spectral Revo UV IP65 can be operated with a DMX controller, or without a DMX controller as a
stand-alone device or in a master/slave setup.
The Spectral Revo UV IP65 supports the following control modes:
●Stand-alone: Manual operation mode (Static)
●Master/Slave: Manual operation mode (Static)
●DMX-512: 1, 2 and 4 channels
For more information about how to connect the devices, refer to 5. Setup on pages 16–18.
To operate the device manually as a stand-alone device:
01) Select SELF in the Mode Settings submenu. See 6.6.5.3. Mode Settings on page 25 for more
information.
02) Adjust the light intensity and add strobe effect. See 6.6.1. Static on page 22 for more information.
To operate the device in master/slave setup:
01) Set the master device and the slave devices. See 6.6.5.3. Mode Settings on page 25 and 6.6.3 Run
Mode on page 23 for more information.
02) Adjust the light intensity and add strobe effect. See 6.6.1. Static on page 22 for more information.
To operate the device with a DMX controller:
01) Select DMX mode in the Run Mode menu. See 6.6.3 Run Mode on page 23 for more information.
02) Set the DMX starting address of the device in the DMX Address submenu. See 5.3.5. DMX Addressing
on page 18 and 6.6.2. DMX Address on page 23.
03) Select the DMX channel mode. See 6.6.4. Personality on page 23 for more information. See 6.7. DMX
Channels on page 26 for complete overview of all DMX channels.
