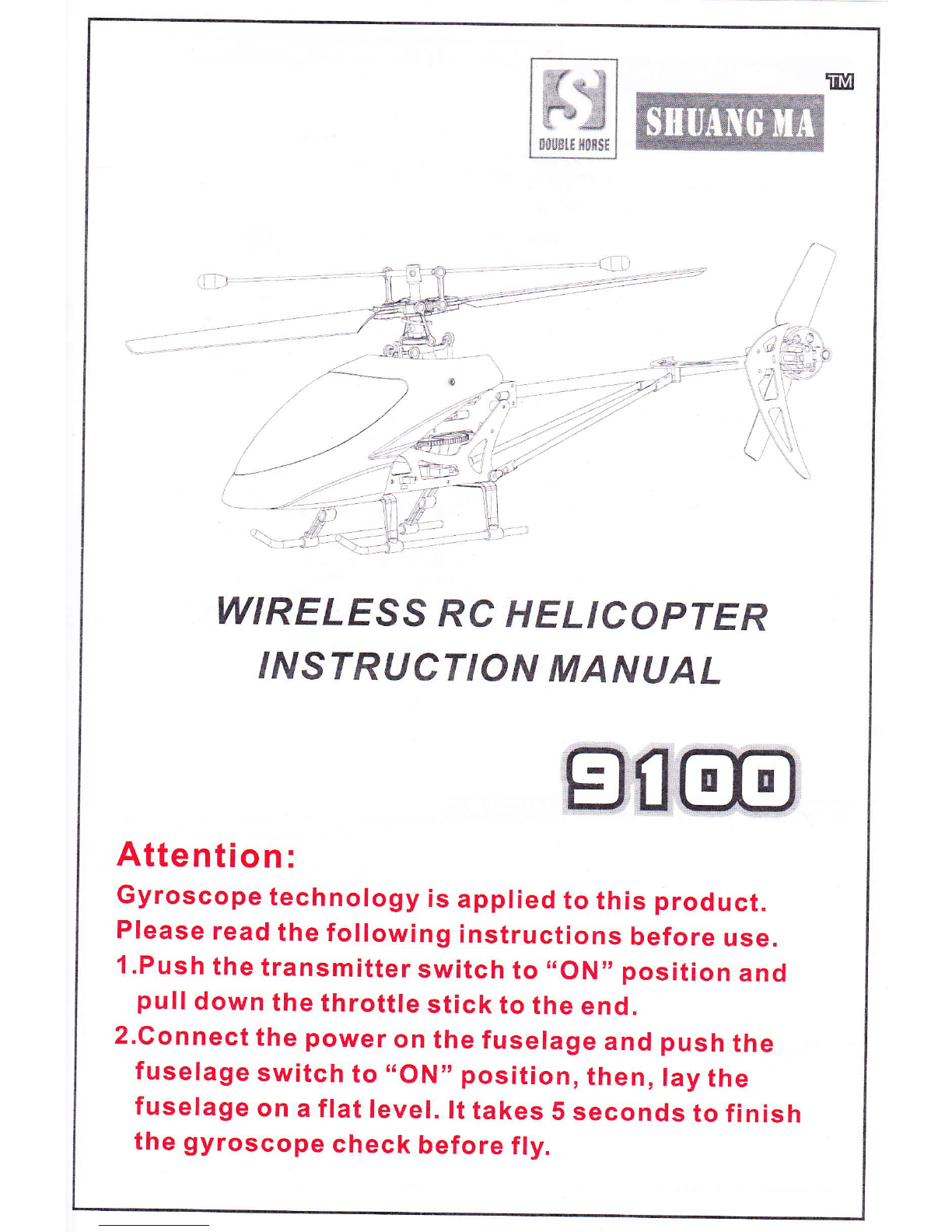

Shuang ma 9100 User manual

WIRELESS RC HELICOPTER
,NSTRUCTION MANIIAL
Attention:
Gyroscope technology is applied to this product.
Please read the following instructions before use.
1.Push the transmitter switch to ,,ON,, position and
pull down the throtfle stick to the end.
2.Connect the power on the fuselage and push the
fuselage switch to "ON,, position, then, lay the
fuselage on a flat level. lt takes 5 seconds to finish
the gyroscope check before fly.

Main blade grip set Flybar
Main blade Tail Blade
Con nector
NO/OFF
Undercarriage
Throttle indicator
Antenna
Indicator Light
forwards and
backward
Trimmer Rudder Trimmer
power
in d ica Throttle Stick Rudder stick
Steering Trimmer
(leftwa rd/rig htwa rd)
teering Trimmer
charging
indicator Throttle Trimme (fo rward/ba ckward )
Charger
1 .lnstall the antenna: screw the antenna clockwisely into the top of the transmitter.
2.lnstall the batteries: open the battery case cover, and insert 8 batteries (1 .sv AA)
properly'according to pole indications. (batteries to be purchased)
8 xl.5VAAbatteries
%"," Attention:
1. Match the batteries with pole
indications before installation.
2. Do not mix new batteries with
used ones.
3. Do not mix different types of
batteries.
Power switch
-1-

Charge the power batiery
1.Push the helicopter switch to OFF.
2.lnsert the DC 1 2V output plug ofthe adapter into the input socket of the charging case,
the light on the case turns red and this indicates that power switches on.
3.lnsert the three-pin plug of the power battery into the output socket, the flickering of the
green light shows that the charging begins. Charging is finished when the gredn light is on.
1.DC
2.DC
3.the
will
Attention'
1 .Make sure the adapter fits the local electricity supply.
2.The battery is overcharged if it overheats. Please stop charging immediately
for it could cause damage to the battery.
3.Do not leave the battery aside when charging.
4.The advanced balance charging mode is applied to the product. Do not use
other chargers on the battery in consideration of safety.
5.Recharge the battery 30 minutes after flying, because the battery temperature
could be too high and charging could damage the battery.
6.Do not leave the battery in the fire in consideration of safety.
7.Do not short circuit the battery. Do not Ieave the battery together with tiny medal
parts in consideration of safety.
Connect the battery wire with the circuit board socket
ca refu lly.
WARNING A
1 .lf the helicopter is not in use, please
push the fuselage switch to "OFF"
position.
2.lf the helicopter is not in use for a long
time, please disconnect the battery
wire from the circuit board.
'1 2V input
8.4V output
charging process
take 90 minutes.
-2-

1.Fly with good weather condition:
(DDo not fly with extreme temperatures.
Do not fly above 113"1-/45C, or below 50'F/10C.
Flying with extreme temperatures may affect the performance and damage the product.
€)Do not fly in windy days.
The performance and the control of the helicopter will be affected by winds.
Windy conditions may cause the missing and damage of the helicopter.
2.Select a wide-open space for flying and make sure no obstructions, animals or people
nearby.
Over 2.5 meters
d-.€
"""-y

Ascend ing
Push up the throttle stick
(left stick), and the spinning
speed of the main blades will
increase. The helicopter
begins to ascend.
Descending
Pull down the throttle stick
(left stick), and the spinning
speed of the main blades will
decrease. The helicopter
begins to descend.
Steering
1 . Push the rudder stick
(right stick) to the left,
and the helicopter
will turn to left.
Push the rudder
stick (right stick)
to the right, and the
helicopter will turn to right.
Fo rwa rd
When the
right control
lever (rudder)
€
is pushed upward,
the helicopter
swashplate will
uptilt and it
advances
Backward
When the right
control lever
(rudder) is
pushed downwa
the helicopter wi
downtilt and it
recedes.
-4-

lf the helicopter is rotating in the air uncontrollably, adjust with the rudder trimmer until
the helicopter is stable.
Attention:
When the helicopter ascends to 30cm high, it will suffer the "ground effect"
and its performance will become unstable.
When the helicopter is rotating
trimmer slowly to the right until to the left, screw the rudder
the helicopter is stable.
When the helicopter
trimmer slowly to theis rotating to left untilthe the right, screw the rudder
helicopter is stable.
Servo lever adjustment
Before flight, be sure that the Forward / Backward
Fine-turning on the transmitter are placed in the
middle. Turn on the switch of the transmitter and then
turn on the plane switch. After finishing the efficacy
of the plane gyro, check if the crossing tilting-tray is
horizontal. lf it is horizontal, you can remove the servo
lever and adjust it to a proper length untilthe swashplate
is in the horizontal position then flight begins.
When the helicopter is
please slowly turn the
rightward until it stops
hovering and moving backward,
Forward / Backward Fine-turning
moving backward.
When the helicopter is hovering and moving forward,
please slowly turn the Forward / Backward Fine-turning
leftward until it stops moving forward.
tr
-rJ-

@
To master the helicopter, please attempt the following flying practices.
cl-)
\ l-/'
<
A
q6-_/
\c1
Fixed-point revolving Rectangle flylng & Circular flying
xl
Fixed-point landing Figure eight flying
-6-

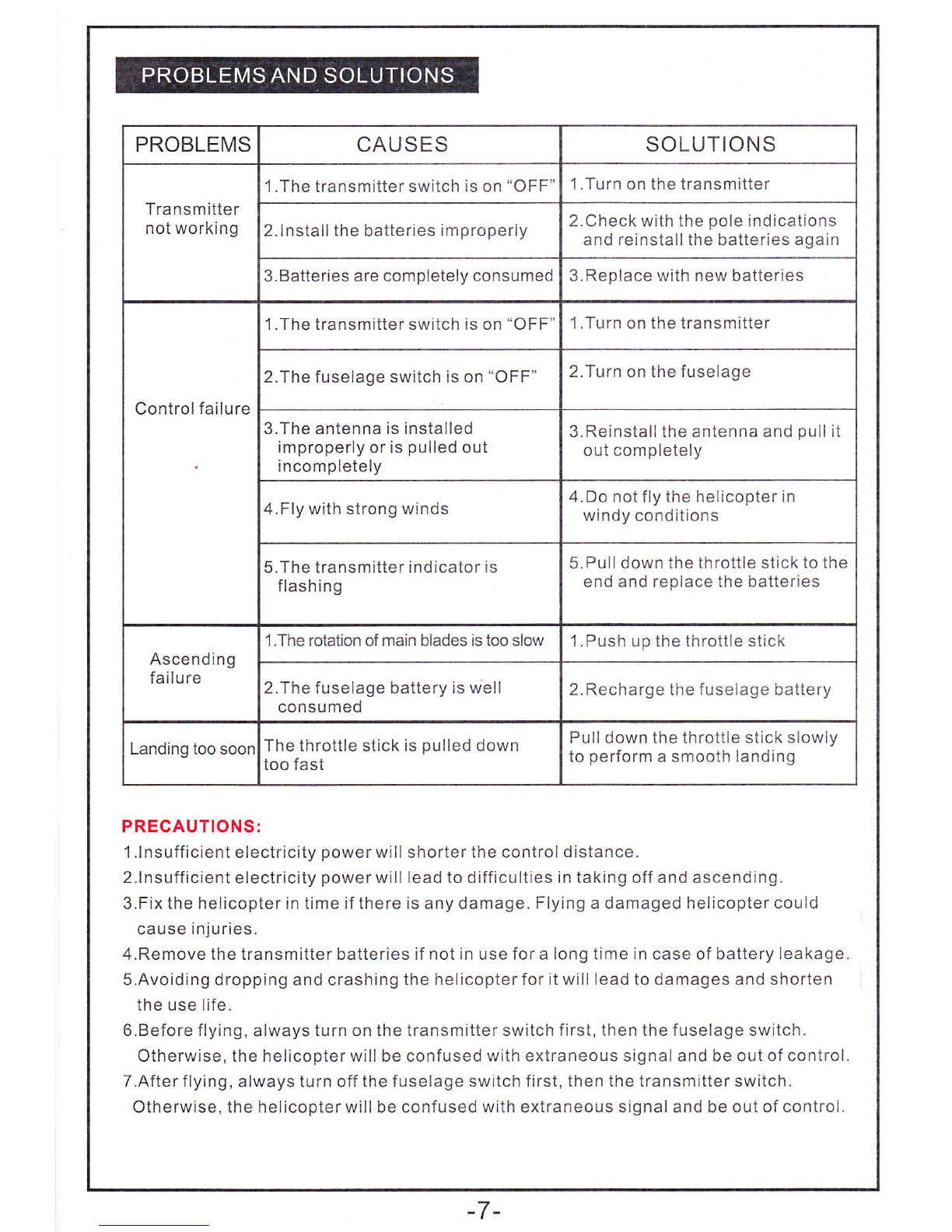

PROBLEMS CAUSES SOLUTIONS
Transmitter
not working
1 .The transmitier switch is on "OFF" 1.Turn on the transmitter
2.lnstall the batteries improperly 2.Check with the pole indications
and reinstall the batteries again
3.Batteries are completely consumed 3.Replace with new batteries
Control failure
I .The iransmitter switch rs on "OFF" 1.Turn on the transmitier
2.The fuselage switch is on "OFF" 2.Turn on the fuselage
3.The antenna is installed
improperly or is pulled out
incompletely
3.Reinstall the antenna and pull it
out completely
4.Fly with strong winds 4.Do not fly the helicopter in
windy conditions
5.The transmitter indicator is
flash ing 5.Pull down the throttle stick to the
end and replace the batteries
Ascendi ng
failure
1.The rotation of main blades is too slow 1 . Push up the throttle stick
2.The fuselage battery is well
consumed 2.Recharge the fuselage battery
Landing too soor The throttle stick is pulled down
too fast Pull down the throttle stick slowly
to perform a smooth landing
PRECAUTIONS:
1 .lnsufficient electricity power will shorter the control distance.
2.lnsuff icient electricity power will lead to difficulties in taking off and ascending.
3.Fix the helicopter in time if there is any damage. Flying a damaged helicopter could
cause injuries.
4.Remove the transmitter batteries if not in use for a long time in case of battery Ieakage.
5.Avoiding dropping and crashing the helicopter for it will lead to damages and shorten
the use life.
6.Before flying, always turn on the transmitter switch first, then the fuselage switch.
Otherwise, the helicopter will be confused with extraneous signal and be out of control.
T.After f lying, always turn off the f uselage switch f irst, then the transmitter switch.
Otherwise, the helicopter will be confused with extraneous signal and be out of control.
-7-
