Shuttle XPC Accessory H-RS232 – Adapter für
eine serielle Schnittstelle (RS232)

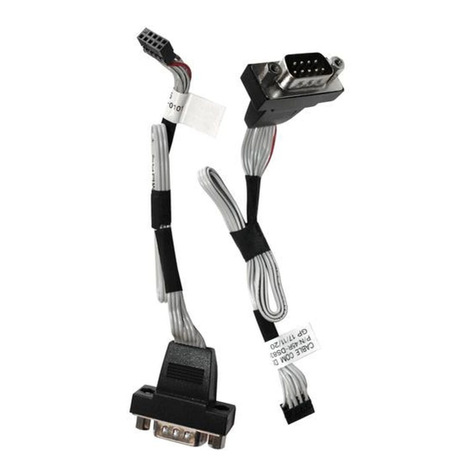

Mit Hilfe dieses Adapterkabels kann die serielle Schnittstelle (RS232) bei
einigen Shuttle XPCs nachgerüstet werden. Hierbei wird im Backpanel eine
Sub-D-Buchse eingebaut, die mit der seriellen Schnittstelle auf dem
Mainboards verbunden wird.
Spezifikation
Lieferumfang - Adapter
- Installationsanleitung
Anschlüsse - Extern: Sub-D, 9-polig, männlich
- Intern: 10-Pin (2x5), weiblich, 2,54mm Raster
Kabel - 9-pol. Flachbandkabel
- 32cm Länge
Kompatible
XPC-Modelle
Dieses Zubehör ist kompatibel mit den Shuttle XPCs
SH67H3, SH67H7 und SH61R4.
Bestell-Nr. POC-PC0701
XPC Accessor
y
H-RS232
Bestell-Nr.: POC-PC0701

Produkt Spezifikation
www.shuttle.com
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. [phone]
Fax [phone]
[email protected]
©2006 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without notice. Pictures for illustration puposes only.
Seite 2
|
9. Se
p
tember 2011

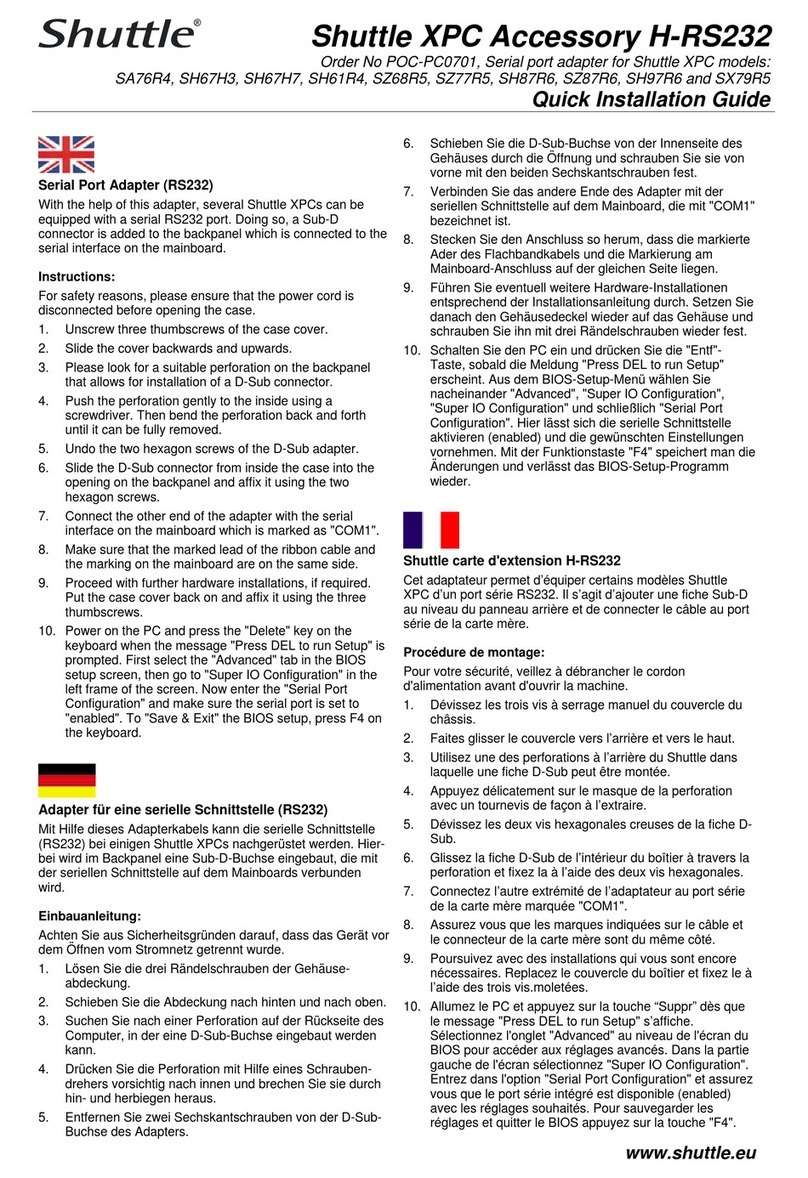

Installation Guide for H-RS232
Caution: For safety reasons, please ensure that the power cord is disconnected before opening the case!
1 Unscrew three thumbscrews of the case cover.
2 Slide the cover backwards and upwards.
3 Please look for a suitable perforation on the
backpanel that allows for installation of a D-Sub
connector.
4 Push the perforation gently to the inside using a
screwdriver. Then bend the perforation back and
forth until it can be fully removed.
5 Undo the two hexagon screws of the D-Sub
adapter.
6 Slide the D-Sub connector from inside the case
into the opening on the backpanel and affix it
using the two hexagon screws.
7 Connect the other end of the adapter with the
serial interface on the mainboard which is
marked as "COM1".
8 Make sure that the marked lead of the ribbon
cable and the marking on the mainboard are on
the same side.
9 Proceed with further hardware installations, if
required. Put the case cover back on and affix it
using the three thumbscrews.
10 Power on the PC and press the "Delete" key on
the keyboard when the message "Press DEL to
run Setup" is prompted. First select the
"Advanced" tab in the BIOS setup screen, then
go to "Super IO Configuration" in the left frame
of the screen. Now enter the "Serial Port
Configuration" and make sure the serial port is
set to "enabled". To "Save & Exit" the BIOS
setup, press F4 on the keyboard.
