HQ ,QVWDOODWLRQDQGRSHUDWLQJLQVWUXFWLRQV
Tumble dryer
WT47W580AU

2
Your new tumble dryer
You have opted for a tumble dryer
manufactured by Siemens.
Please take a few minutes to read and
become familiar with the advantages of
your tumble dryer.
To meet the high quality demands
required by Siemens, every tumble dryer
that leaves our factory is carefully
checked to ensure that it functions
correctly and is in perfect condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.siemens-
home.com or contact our Customer
Service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before operating the tumble
dryer.
Display rules
:Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■/ -
Lists are represented by a small box or
a dash.

en
3
Contents en Installation and operating instructions
8Intended use. . . . . . . . . . . . . . . . .4
(Safety instructions . . . . . . . . . . .4
Electrical safety. . . . . . . . . . . . . . . . . . 4
Safety for children. . . . . . . . . . . . . . . . 5
Appliance safety . . . . . . . . . . . . . . . . . 5
7Environmental protection . . . . . .7
Packaging/old appliance . . . . . . . . . . 7
Coolant . . . . . . . . . . . . . . . . . . . . . . . . 7
Energy-saving tips. . . . . . . . . . . . . . . . 7
YThe main points in brief . . . . . . .8
*Getting to know
your appliance . . . . . . . . . . . . . . .9
Dryer. . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control panel . . . . . . . . . . . . . . . . . . 10
Display panel . . . . . . . . . . . . . . . . . . 11
ZLaundry . . . . . . . . . . . . . . . . . . .12
Preparing the laundry . . . . . . . . . . . . 12
Sorting washing according to: . . . . . 12
/Programmes and buttons . . . . .13
Programmes . . . . . . . . . . . . . . . . . . . 13
Buttons . . . . . . . . . . . . . . . . . . . . . . . 15
1Operating the appliance . . . . . .16
Loading laundry
and switching on the dryer . . . . . . . . 16
Setting a programme . . . . . . . . . . . . 16
Starting the programme . . . . . . . . . . 17
Programme sequence . . . . . . . . . . . 17
Changing the programme
or adding laundry . . . . . . . . . . . . . . . 17
Cancelling the programme . . . . . . . . 17
Programme end . . . . . . . . . . . . . . . . 17
Removing laundry
and switching off the dryer . . . . . . . . 17
Clean the fluff filter . . . . . . . . . . . . . . 18
Emptying
the condensate container . . . . . . . . . 19
MSignal setting. . . . . . . . . . . . . . . 20
>Noises . . . . . . . . . . . . . . . . . . . . 21
DCleaning . . . . . . . . . . . . . . . . . . . 22
Cleaning the dryer
and the control panel . . . . . . . . . . . .22
Cleaning the moisture sensor . . . . . .22
Cleaning the filter
in the condensate container . . . . . . .22
3Faults and what to do
about them . . . . . . . . . . . . . . . . . 23
JAfter-sales service . . . . . . . . . . 25
[Consumption values. . . . . . . . . 26
Consumption values table . . . . . . . . .26
JTechnical data . . . . . . . . . . . . . . 27
5Installation and connection . . . 28
Scope of delivery. . . . . . . . . . . . . . . .28
Installing
and connecting the dryer . . . . . . . . .28
Changing the condensation drain . . .29
Optional accessories. . . . . . . . . . . . .31
Transport and frost protection . . . . . .31

en Intended use
4
8Intended use
Intendeduse ■Operate the dryer:
– Indoors only (not in an outside
area),
– Only inside the home and
– Only to dry and refresh fabrics
that have a care label specifying
that they are suitable for use in a
dryer.
■The dryer can be operated by
children 8 years old and older, by
persons with reduced physical,
sensory or mental abilities and by
persons with insufficient experience
or knowledge if they are supervised
or have been instructed in its use by
a responsible adult.
■Keep children under the age of 3
years old away from the dryer.
■Do not let children carry out any
unsupervised cleaning or
maintenance work on the dryer.
■Keep pets away from the dryer.
(Safety instructions
Safetyinstructions Electrical safety
:Warning
Risk of death!
There is a risk of electric shock
as the dryer is operated with
electricity.
You should therefore observe
the following:
■Never touch or hold the
mains plug with wet hands.
■Only pull out the mains cable
directly at the plug and never
by the cable, as this could
damage it.
■Do not use extension cables,
multiple plugs or connectors.
■Only have the mains cable
replaced by our after-sales
service.

Safety instructions en
5
Safety for children
:Warning
Risk of death or injury!
You should therefore observe
the following:
■Do not leave the dryer
unattended when children or
other people who cannot
assess the risks are nearby.
■Do not let children play with
the dryer.
■Children may become
entangled in packaging or
film if allowed to play with
them, or they may pull them
over their heads and
suffocate. Keep packaging,
packaging parts and film out
of the reach of children.
■Children may lock
themselves in the dryer.
Therefore, when an
appliance has reached the
end of its service life, unplug
it from the mains, cut through
the mains cable and destroy
the lock on the dryer door.
Appliance safety
:Warning
Risk of death!
■Do not use the dryer if
industrial chemicals have
been used to clean it.
■Laundry that has come into
contact with solvents, oil,
wax, wax remover, paint,
grease or stain remover may
ignite or cause an explosion
when drying is in progress.
Before drying, rinse the
laundry in hot water with
detergent.
■Coal dust or flour in the area
around the dryer may cause
an explosion.
■Only replace defective
components with genuine
spare parts.

en Safety instructions
6
Caution!
Risk of material damage to the
dryer or fabrics
■Only use the dryer for drying
and freshening up fabrics at
home and for fabrics that
have been washed with
water and are suitable for
tumble-drying.
Any other use is not
considered intended use and
is prohibited.
■Foamed material or foam
rubber may become
deformed or melt during
drying. Do not dry any
laundry that contains foamed
material or rubber.
■Do not lean or sit on the
dryer door, as the dryer may
tip over.
■Loose cables or hoses may
cause you to trip. Avoid
tripping hazards.
■Light things, such as hair,
may be sucked into the air
inlet during operation; keep
these away from the dryer.
■The last phase of the drying
cycle takes place without any
heat (cooling cycle) to
ensure that the laundry
remains at a temperature
that will not damage it.

Environmental protection en
7
7Environmental
protection
Environmentalprotection Packaging/old appliance
)
Dispose of packaging in an
environmentally-responsible manner.
This appliance is designated according
to European directive 2012/19/EC
which governs waste electrical and
electronic equipment (WEEE).
The directive provides a framework
for the collection and recycling of old
appliances, which is valid across
the EU.
Coolant
The dryer's heat exchanger contains
fluorinated greenhouse gas in a
hermetically sealed unit.
Dispose of the dryer properly.
Energy-saving tips
■Spin the laundry before drying. The
drier the laundry, the shorter the
drying time will be, thus consuming
less energy.
■Load the dryer with the maximum
load.
Note: Do not exceed the maximum
load for the programs, as this
prolongs the drying time and
increases energy consumption.
■Ventilate the room and keep the air
inlet on the dryer free to ensure air
exchange.
■Clean the fluff filter after each drying
cycle. If the fluff filter is dirty, the
drying time is prolonged and energy
consumption is increased.
■Energy saving mode: If the dryer is
not operated for a prolonged period,
it automatically switches off before
the program starts and when the
program has ended to save energy.
The display panel and indicator
lamps go off after a few minutes and
the Start button flashes. To activate
the lighting, press any button, open
or close the dryer door or turn the
program selector.
Greenhouse gas: R407c
Capacity (g): 385
GWP (kgCO2/kgRefrig): 1653
Total GWP (kgCO2): 636.4

en The main points in brief
8
YThe main points in brief
Themainpointsinbrief
--------
--------
--------

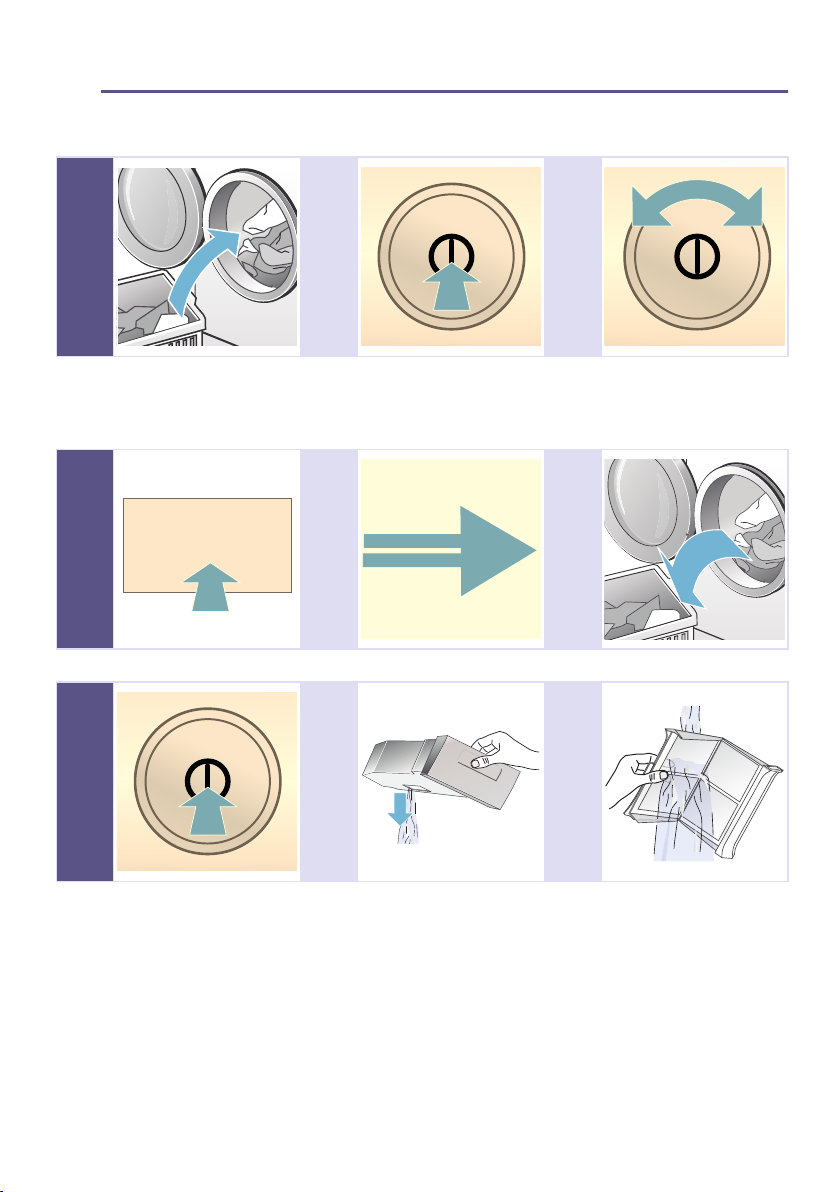

1@ @
Load the laundry and close
the door.
Switch off the dryer. Select a programme and,
if necessary, adjust
the default programme
settings.
2@ @
Select the start button Ü. Dry. Unload the laundry.
3@ @
Switch off the dryer. Empty the condensate
container.
Clean the fluff filter.

Getting to know your appliance en
9
*Getting to know your appliance

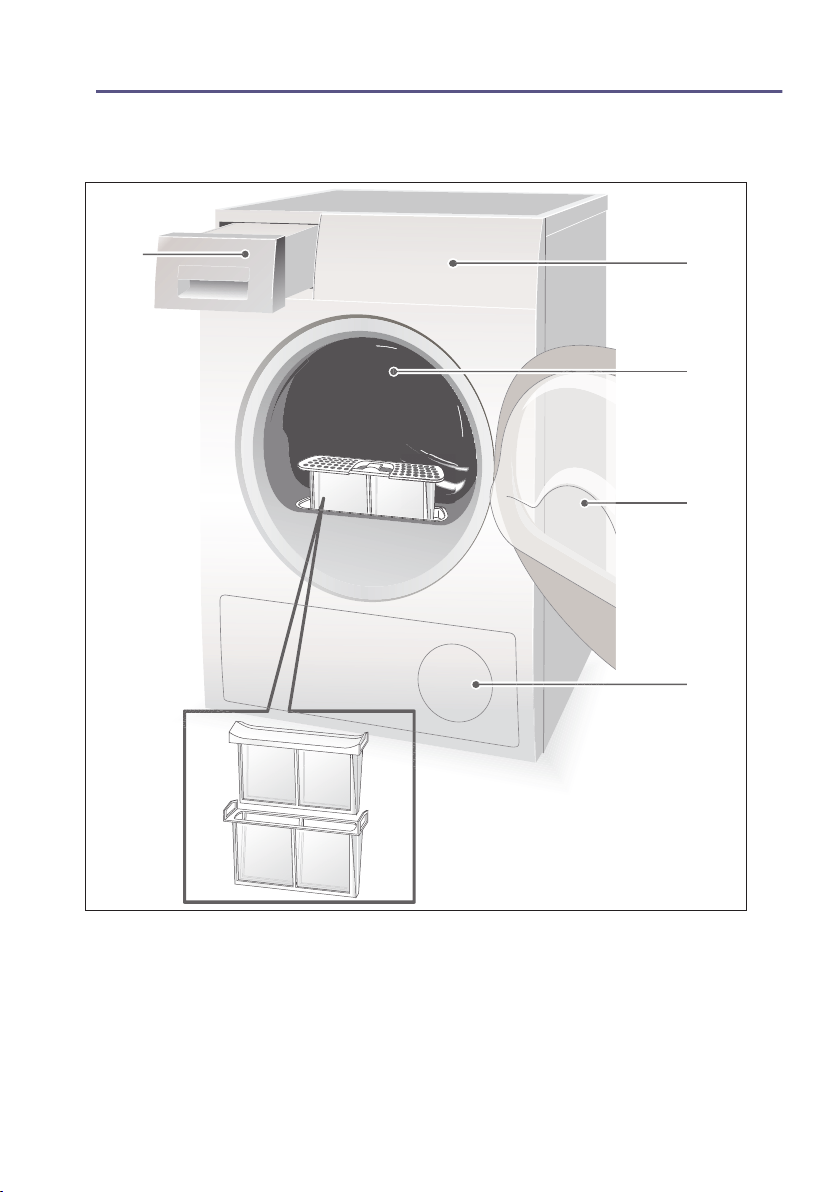

Gettingtoknowyourappliance Dryer
(Condensate container
0Control and display panel
8Drum interior light (depending on the model)
@Dryer door
HAir inlet
PFluff filter



#
+
3

en Getting to know your appliance
10

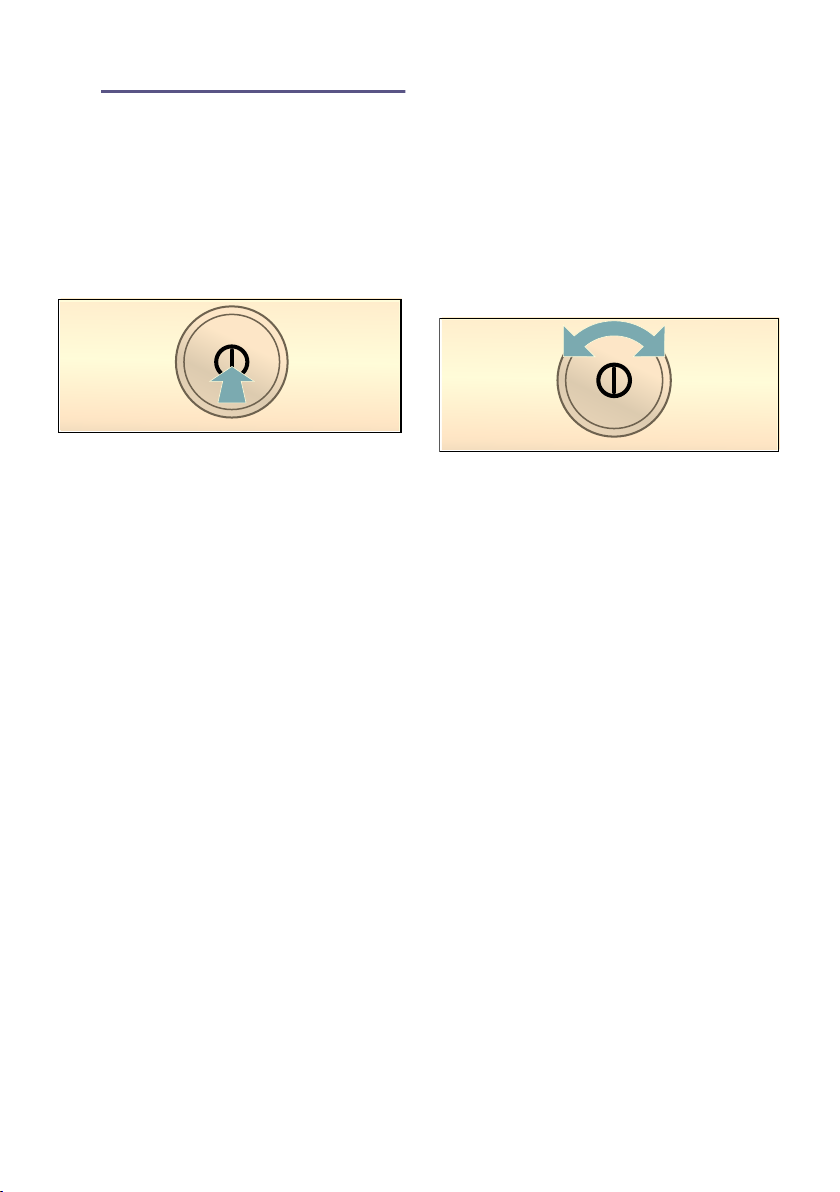

Control panel
Note: All buttons are sensitive and only need to be touched briefly.

#
+
(Programmes ~Page 13.
0Programme selector and On/Off button.
8Display panel with buttons ~Page 13.
@Start button for starting, interrupting or cancelling the programme.
HButtons ~Page 15.

Getting to know your appliance en
11
Display panel
Buttons on the display panel
For a detailed description of all buttons,
see ~Page 15 onwards.
Display panel
(Selects the dryness level.
0Selects the fine adjustment for
the degree of dryness.
8Selects - Finish in +.

Ø»»+ Dryness levels.
ÔÔÔ Fine adjustment of the
dryness level.
ûTimed programme selected.
1:47 min Expected programme
duration in hours and
minutes.
3 h Programme delay in hours
when "Finish in" time is
selected.
ðEmpties the condensate
container; ~Page 19.
ñCleans the fluff filters;
~Page 18.
éHeat exchanger is
automatically cleaned.
eØ»Ý- ‹ - - ˜ -
Programme progress: Dry;
Iron Dry; Cupboard Dry; Anti-
Crease; End and Pause.

en Laundry
12
ZLaundry
Laundry Preparing the laundry
:Warning
Risk of explosion or fire!
Remove any cigarette lighters and
matches from pockets.
Caution!
The dryer drum and fabrics may be
damaged.
Remove all objects from pockets and
take note of the following information:
■Tie cloth belts, apron strings, etc.
together or use a laundry bag.
■Close zips, hooks and eyes, and do
up any buttons.
■To ensure a consistent drying result,
sort the laundry by fabric type and
drying programme.
■Remove any metal objects, such as
paper clips, from pockets.
■Knitted fabrics, such as T-shirts and
jerseys, often shrink slightly the first
time they are tumble-dried. Use a
gentle programme.
■Do not over-dry easy-care laundry.
This increases creasing of the
laundry.
■When washing laundry that is to be
tumble-dried afterwards, use the
correct amount of fabric softener as
specified in the manufacturer's
instructions.
Sorting washing according to:
cSuitable for tumble drying
aDry at normal temperature
`Dry at low temperature
bDo not tumble-dry
If you dry thin- and thick-layered fabrics
and fabrics with several layers together,
these will dry to differing degrees. To
achieve an even drying result, you
should therefore only dry laundry of the
same type of fabric and structure
together. If you feel that the laundry is
still too damp afterwards, you can select
a time programme for subsequent
drying ~Page 13.
Caution!
Risk of material damage to the dryer or
laundry.
Do not dry non-breathable fabrics, such
as rubber-coated laundry.

Programmes and buttons en
13
/Programmes and buttons
Programmesandbuttons Programmes
Programme and fabrics Maximum load and programme
settings/info
Name of the programme
Which fabrics is the programme suitable for?
The maximum load is based on the
dry weight of the fabrics
Possible programme settings
Cottons
Hard-wearing fabrics, heat-resistant fabrics made of cotton or linen.
9 kg
Easy Care
Synthetic or blended fabrics.
3.5 kg
Mixed Load
Mixed load consisting of cotton and synthetic fabrics.
3 kg
Lingerie
For delicate, washable underwear, e.g. made of velvet, lace, Lycra,
silk or satin.
1 kg
Wool finish
Fabrics made from wool or a wool blend that are suitable for tumble
drying.
3 kg
ûCold
All types of fabric. For freshening up or airing items of laundry that
have not been worn for long.
3 kg
You can alter the drying time using
the button for the "Finish in" time.
ûWarm
Timed programme for all types of fabric except for wool and silk.
Dry laundry that is still slightly damp or has already been pre-dried.
Also suitable for the subsequent drying of multi-layered, thick laundry
that does not dry readily.
Note: This programme is suitable for drying individual woollen fab-
rics, sports shoes and soft toys. Only dry these using the basket for
woollens ~Page 31.
3 kg
You can alter the drying time using
the button for the "Finish in" time.
Shirts/Blouses
Non-iron shirts or blouses made of cotton, linen, synthetic fibres or
blended fabrics.
3 kg
Quilt
Fabrics, pillows, quilts or bedspreads filled with synthetic fibres.
Dry large items individually. Observe the care label.
2.5 kg

en Programmes and buttons
14
--------
Down Wear
Fabrics, pillows, bedspreads or eiderdowns filled with down.
Dry large items individually.
1.5 kg
Outdoor
Weatherproof and outdoor clothing with a membrane coating and
water-repellent fabrics.
1.5 kg
Towels
Hard-wearing towels made of cotton.
6 kg
Super Quick 40’
Synthetics and light cottons.
2kg
Hygienic
Hard-wearing fabrics.
Note: Particularly suitable for the highest hygiene requirements.
4 kg

Programmes and buttons en
15
Buttons
--------
Buttons Explanations and notes
Note: Not all buttons and their functions can be selected in all programmes.
Drying level: Select the dryness level according to the laundry to be dried.
If you have selected a dryness level, this is stored for all programmes, except for Cot-
tons, even after the dryer is switched off.
ÒCupboard dry plus For multi-layered, thick laundry which is difficult to dry.
±Cupboard dry Normal, single-layered laundry.
ØIron dry Normal, single-layered laundry, which should still be damp after drying and is suita-
ble for ironing or hanging up.
Fine Adjust If the laundry is too damp after drying, you can finely adjust the dryness levels e.g.
Cupboard Dry. The dryness level can be increased with the degree of dryness in
three stages, from Ôto ÔÔÔ.
If you have adjusted the dryness level, the setting for all programmes with a selecta-
ble dryness level is retained even after the dryer is switched off.
- Finish in + The programme ends in between 1 h and 24 h. Set the Finish in time in increments
of one hour to delay the start of the programme. The required number of hours after
the programme ends is displayed on the display panel.
Select the dryness level or the drying time of time programs in 10 minutes steps,
from 10 mins up to 3 hrs: 30 mins.
Wrinkle Guard+60’ The drum moves the laundry at regular intervals after drying to prevent creasing. You
can extend the automatic Anti-Crease function by 60 minutes after any programme
has finished.
Wrinkle Guard+
120’
The drum moves the laundry at regular intervals after drying to prevent creasing. You
can extend the automatic Anti-Crease function by 120 minutes after any programme
has finished.
Gentle Dry Reduced temperature for delicate fabrics, e.g. polyacrylic or elastane. Selecting the
button will extend the drying time.
Childlock 3 sec. You can activate or deactivate the childproof lock by pressing and holding the child-
proof lock button for three seconds.
End Signal A signal sounds after the programme has ended.
ÜStart/Pause Starts or pauses the programme.

en Operating the appliance
16
1Operating
the appliance
Operatingtheappliance Loading laundry and
switching on the dryer
Note: The dryer must be correctly
positioned and connected, ~Page 28.
1. Place the laundry in the drum.
2. Press the # button to switch the
dryer on.
3. Close the dryer door.
Caution!
Risk of material damage to the dryer
or laundry.
Do not trap any laundry between the
dryer door and the door seal.
Note: The dryer drum is lit up after the
door is opened and closed and once
the programme has started. The drum
interior light goes out on its own.
Setting a programme
Note: If you have activated the
childproof lock, you must deactivate it
before you can set a programme, see
~Page 15.
1. Select the required programme;
detailed information on the
programmes can be found from
~Page 13 onwards.
2. Use the programme selector to set
the required programme. The default
programme settings for the selected
programme appear in the display
panel.
Note: Default programme settings
are standard settings that are
already defined when a programme
is selected. After selecting a
programme, you can see the default
programme settings in the display
panel.
3. If required, adjust the default
programme settings. You can find
detailed information on this from
~Page 13 onwards.

Operating the appliance en
17
Starting the programme
Press the Start button.
Note: If you want to lock the
programme to prevent it from being
inadvertently adjusted, you can select
the childproof lock, see ~Page 15.
Programme sequence
The programme status is displayed in
the display field.
Changing the programme
or adding laundry
You can remove or add laundry and
change or alter the programme at any
time during drying.
1. To pause the programme, open the
dryer door or press the Start button.
2. Add or remove laundry.
3. Select another programme or an
additional function, if required.
4. Close the dryer door.
5. Press the Start button.
Note: The programme duration in the
display panel is updated depending on
the load and residual moisture in the
laundry. The values displayed may
change after the programme is
changed or the load is adapted.
Cancelling the programme
The programme can be interrupted at
any time; to pause, open the dryer door
or press the Start button.
Caution!
Risk of fire. Laundry may catch fire.
If you cancel the programme, you must
remove the laundry items and spread
them out so that the heat can disperse.
Programme end
- ‹ - appears in the display panel.
Removing laundry
and switching off the dryer
1. Remove the laundry.
2. Press the # button to switch the
dryer off.

en Operating the appliance
18
Clean the fluff filter
Note: During drying, fluff and hair from
the laundry is trapped by the fluff filter. If
the fluff filter is blocked or dirty, this
reduces the flow of air, which prevents
the dryer from achieving its maximum
performance. Clean fluff filters also
reduce energy consumption and the
drying time.
Clean the fluff filter after each drying
cycle:
1. Open the dryer door and remove all
fluff from the door.
2. Pull out the two-part fluff filter.
3. Remove the fluff from the recess in
the fluff filter.
Note: Ensure that no fluff falls into
the open shaft.
4. Pull apart the two-part fluff filter.
5. Open both filters and remove all the
fluff.
6. Rinse away the fluff under warm,
running water.
7. Dry the fluff filter, close it and reinsert
the two-part fluff filter.
Caution!
The dryer may be damaged.
Do not operate the dryer without a fluff
filter or if the fluff filter is defective.

Operating the appliance en
19
Emptying the condensate
container
Notes
■You can drain off the condensation
into the waste-water system using an
optional condensation drain*.
For installation, see ~Page 29.
■If you drain the condensation using
an optional condensation drain, you
do not have to empty the
condensate container.
Note: After each drying cycle, empty
the condensate container; otherwise the
next drying programme may be
cancelled as a result of the condensate
container being full.
1. Pull out the condensate container
horizontally.
2. Pour out the condensation water.
Caution!
Dirty condensation water may be
harmful to your health and cause
material damage.
Condensation water is not suitable
for drinking and may be
contaminated with fluff. Do not drink
the condensation water or reuse it.
3. Push in the condensate container
until you feel it lock back into place
in the dryer.
Note: The filter in the condensate
container filters the condensation which
is used during the dryer's automatic
cleaning cycle. The filter is cleaned by
emptying the condensation.
Nevertheless, you should check the
filter regularly for remaining deposits
and remove them. See ~Page 22.
* Depending on the model

en Signal setting
20
MSignal setting
Signalsetting You can change the following settings:
■The volume of the audible signal at
the end of the programme
and/or
■The volume of the audible button
signals.
■Activate or deactivate automatic
switch-off.
You will need to activate the setting
mode in order to change these settings.
Activating setting mode
1. Switch the dryer on.
2. Select the Cottons programme in
position 1.
3. Press and hold the button for the
dryness level and, at the same time,
turn the programme selector
clockwise to position 2.
4. Release the button for the dryness
level.
The setting mode is now activated and
the preset volume for the audible signal
at the end of the programme appears
on the display panel.
Changing the volume or automatic
switch-off
Leave the programme selector or turn it
to:
■Position 2: Press the button for the
"Finish in" time to change the volume
of the audible signal at the end of
the programme
and/or
■Position 3: Press the button for the
"Finish in" time to change the volume
of the audible button signals.
■Position 4: Press the button for the
"Finish in" time to activate or
deactivate automatic switch-off of
the dryer. "ON" for activated and
"OFF" for deactivated.
Note: To save energy, your dryer
will switch itself off after 15 minutes
when the "Automatic switch-off"
function is active.
Exiting setting mode
You can now end the process and
switch off the dryer. The settings have
been saved.





1 = quiet
2 = medium, 3 = loud,
4 = very loud
0 = off, 1 = quiet,
2 = medium, 3 = loud,
4 = very loud
