Siemens WTXL1100 User manual

2
Table of contents
Instruction manual
Your new dryer ...................................................... 4
Notes on disposal.................................................. 5
Disposing of packaging .................................... 5
Disposing of old dryers.................................... 5
Safety notes........................................................... 6
Using the dryer correctly .................................. 6
Before using the dryer..................................... 6
Observe when drying........................................ 7
Observe at the end of the program .................. 7
Notes on protecting the dryer........................... 7
Environmental protection / notes on economy...... 8
Drying in an economical and environmentally-
aware manner................................................... 8
Dryer description.................................................... 9
Brief instructions............................................... 9
Door operation.................................................. 9
Setting up the dryer........................................10
Control panel.................................................. 11
Notes on laundry.................................................. 12
Labelling of fabrics......................................... 12
Tips on drying................................................. 13
First use............................................................... 14
Drying ............................................................. 14
Selecting a program ............................................ 15
Selecting......................................................... 15

3
Program sequence......................................... 15
Standard programs......................................... 16
Program Time................................................. 17
Additional function ............................................... 17
Delicates button J........................................... 17
Signal button K............................................... 17
Cleaning and care................................................ 18
Cleaning the dryer......................................... 18
Fluff filter......................................................... 18
Changing the light bulb................................... 19
Troubleshooting................................................... 20
After-sales service............................................... 22
Technical data ..................................................... 23
Setting up and connecting................................... 24
Safety notes.................................................... 24
Setting up the dryer........................................25
Washer-dryer stack connection set................ 26
Assembling the exhaust air hose ................... 26
Electrical connection....................................... 27

4
Your new dryer
With the purchase of your new dryer, you have
chosen a modern, high-quality domestic
appliance.
A distinctive feature of your dryer is its low energy
consumption.
Every dryer which leaves our factory is carefully
checked to ensure that it functions correctly and
is in perfect condition. Our after-sales service is
available should you have any questions,
particularly on how to set up your dryer.
You will find further information and a selection of
our products on our website:
http://www.siemens.de/hausgeraete
Read and observe this instruction manual and all
other accompanying information for your dryer.
Keep all the documents in a safe place for future
reference or to pass on to the next owner.

5
Notes on disposal
Disposing of
packaging
!Risk of suffocation!
There is a risk of suffocation from the cardboard
box and plastic film.
Do not allow children to play with the packaging.
All our packaging materials are environmentally
friendly and recyclable. Please dispose of the
packaging in an environmentally-responsible
manner.
Any retailer or your local authority will be able to
advise you on the disposal methods currently
available.
Disposing of
old dryers
!Danger of death!
Danger of death from electrical voltage or
suffocation.
Your old dryer:
 Disconnect it from the mains.
 Cut through the mains cable and discard
along with the plug.
 Break the door lock. This prevents children
from locking themselves in the dryer.
Environmentally-friendly disposal conserves
valuable raw materials.
Any retailer or your local authority will be able
to advise you on the disposal methods
currently available.
!This appliance is marked according to the
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
This guideline is the frame of a European-wide
validity of return and recycling on Waste
Electrical and Electronic Equipment.

6
Safety notes
Using the dryer
correctly
 Only for domestic use.
 Only for drying fabrics which have been
washed in water.
 Do not leave children unsupervised near the
dryer –
!Risk of explosion/fire!
Solvent danger.
Do not use the dryer if:
 the laundry has been treated with a
solvent or has been colour-treated
(e.g. stain remover, petroleum ether).
Dust danger
Do not use the dryer if:
 the laundry contains dust, e.g. coal dust or
flour
 the laundry contains foam/rubber
 the laundry contains traces of hairspray, nail
varnish remover or similar substances.
Before using
the dryer
 Install the dryer in accordance with the
installation instructions (see page 24).
 Do not connect the dryer if it has visible
signs of damage. If in doubt, contact your
local dealer.
!Risk of explosion/fire!
Do not discharge exhaust air through an outlet pipe
used for waste gas from appliances which burn gas
or fuels.

7
Observe when
drying
 Do not leave children unsupervised near
the dryer.
 Keep pets away from the dryer.
 Remove all objects from pockets. Look out
for fires in particular –
!Risk of explosion!
Observe at the
end of the
program
 Switch off the dryer when the program has
ended.
Notes on
protecting the
dryer
 Do not climb onto the dryer.
 Do not lean or sit on the door –
!Risk of tipping!
 Do not lift the dryer by any protruding
components.
!Risk of breakage and injury!
 Do not use detergent boosters containing
solvents or dirt and stain removers in the
dryer. These substances may damage the
dryer.
 Empty the dryer completely when it is to
be transported or stored.
iDo not set up the dryer in a room
susceptible to frost.

8
Environmental protection /
notes on economy
Drying in an
economical and
environmentally-
aware manner
 Spin the laundry thoroughly before
drying.
Spin the laundry thoroughly in the washing
machine before drying. The higher the spin
speed, the shorter the drying time and the
lower the energy consumption. You should
also spin easy-care laundry.
 Fill to full capacity
Fill the dryer to its maximum
recommended capacities. Do not exceed
the capacities:
White and coloureds max. 5.0 kg
Easy-care fabrics max. 2.5 kg
 Ensure sufficient room ventilation
Open a window or door while drying
laundry.
 Clean the fluff filter
Clean the filter after each drying cycle
(see page 18).
 Do not obstruct the cooling air supply
Do not position or affix anything over the
cool air inlet on the rear of the dryer.

9
Dryer description
Brief
instructions
Before drying
 Open the door.
 Place the laundry in the drum.
 Close the door.
 Turn the program selector to a program
(see the program table on page 16).
 Set the additional function if required
(see page 17).
 Press Start button M.
Adding laundry
 Open the door.
The drying cycle is halted.
Add or remove laundry.
 Close the door.
 Select a different program if necessary
using the program selector (see the table
of programs from page 16 onwards).
 Press Start button M.
After drying
 Open the door.
 Remove the laundry.
 Turn the program selector to Off.
 Clean the fluff filter (see page 18).
Door operation
 Press the door to open.
 Close the door (you will hear a clicking
noise).

10

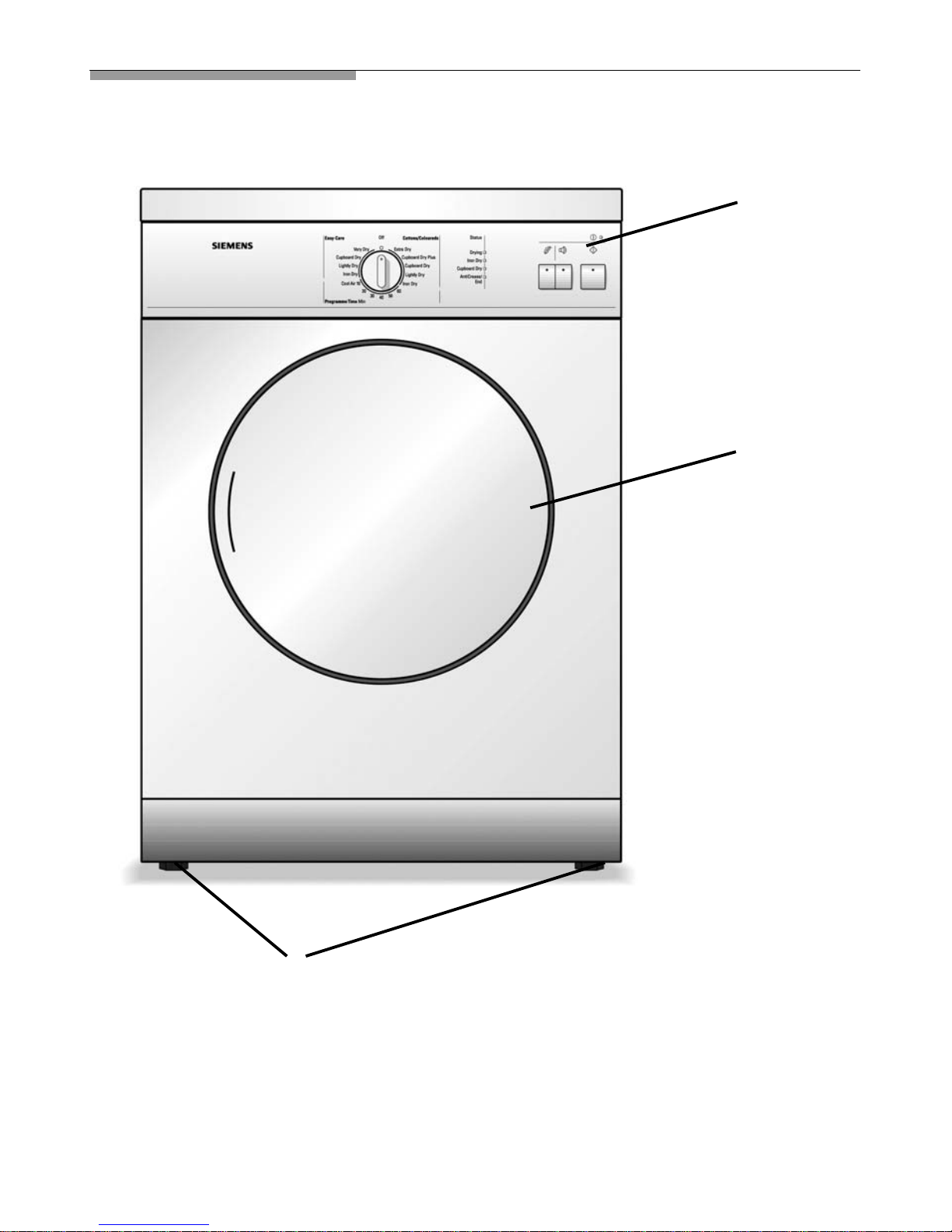

Setting up the dryer
1 Control panel
2 Door with internal filter
3 Adjustable dryer feet
1
2
3

11
Control panel
The indicator lamp
lights up when the
dryer is switched on
Status indicato
r
(LED) indicator lamp
for program status
Program selector /
time selector switch
To switch the dryer on and off and to
select a program or a drying time
Can be turned in both directions
Buttons for additional
functions
(in addition to the program
if desired)
Delicates J
For drying delicate fabrics
Signal K
The audible signal is switched
on when you press this button
Start button M
To start the
program

12
Notes on laundry
Labelling
of fabrics

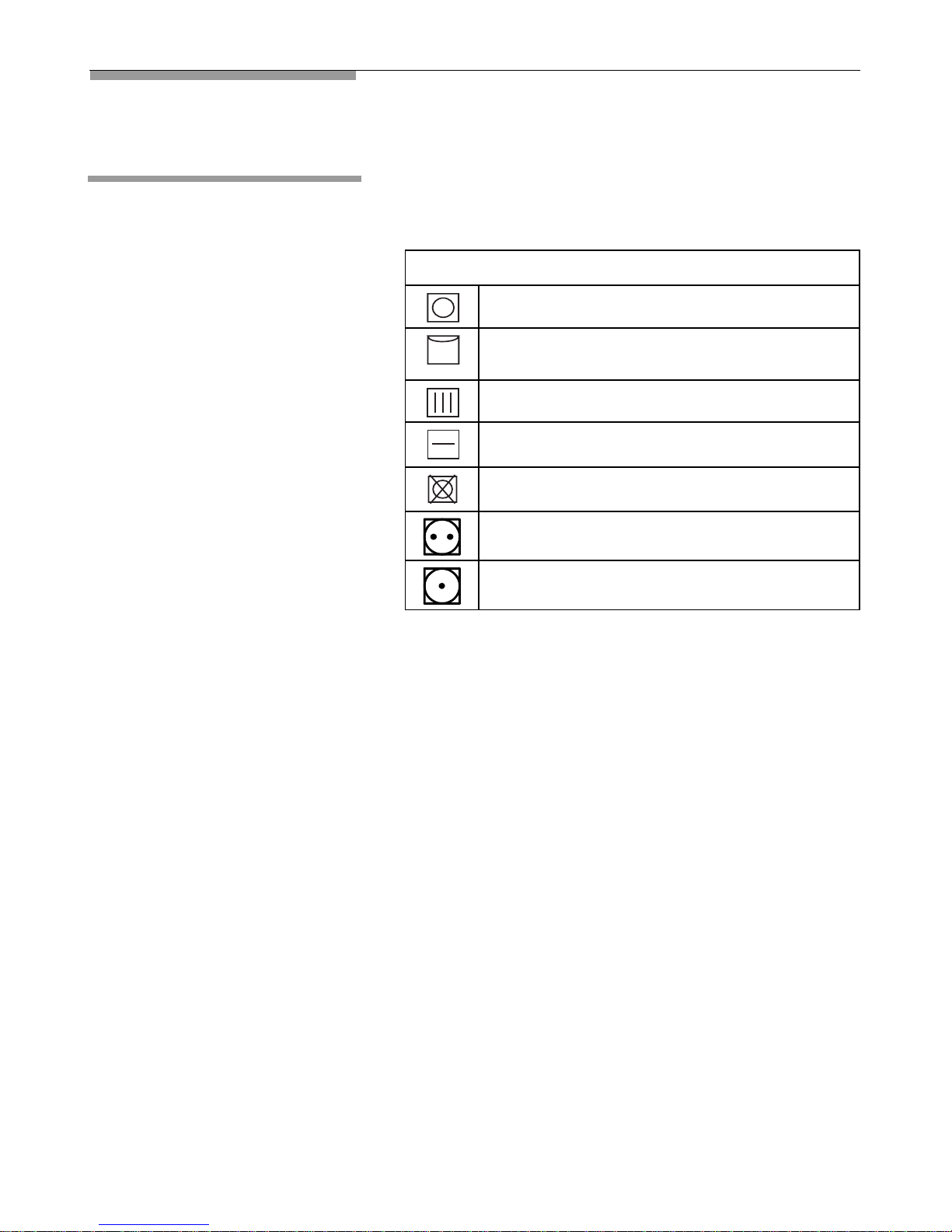

Check the following fabric symbols:
Do not tumble-dry the following fabrics:
 Airtight fabrics (e.g. rubber-coated fabrics).
 Delicate materials (silk, curtains made from
synthetic material) – they may crease!
 Dripping-wet laundry – high energy
consumption.
 Wool or fabrics containing wool.
 Observe the manufacturer's instructions.
DRYING
Can be dried in a tumble-dryer
Wring out and hang on a washing line
to dry
Do not wring, hang out wet to dry
Wring out, lay on a flat surface to dry
Do not dry in a tumble-dryer
Dry at normal temperatures
Dry at low temperatures

13
Tips on drying
Important for all drying cycles:
 To obtain a uniform drying result: sort the
laundry by fabric type and drying program.
 Fasten zips, hooks and eyes. Tie loose belts,
apron strings etc, together.
 Do not over-dry easy-care laundry:
Risk of creasing. Allow laundry to finish
drying in the air.
 Do not over-dry laundry.
 Do not iron laundry immediately after drying.
Leave laundry folded up for a short while. This
helps the residual moisture to distribute evenly.
 Knitted fabrics (e.g. T-shirts, jerseys) often
shrink slightly the first time they are tumble-
dried. Do not use the "Extra Dry" program.

14
First use
Drying
Please read this instruction manual before using
the dryer for the first time:
1. Open the door.
2. Place the laundry into the empty drum.
Ensure that the drum contains
only laundry.
3. Close the door.
4. Select a program using the program selector.
5. Set additional functions if required
(see page 17).
6. Press Start button M.
Note
You can interrupt the drying program by opening
the door.
 Close the door to continue the program.
 Press Start button M.
It is possible to change the drying program during
drying.
1. Turn the program selector to "off"
(to clear the program).
2. Turn the program selector to the desired
program.
3. Press Start button M.
i

15
Selecting a program
Selecting
Your dryer offers different programs and the
additional Delicates Jfunction (see page 17) for
optimum drying results.
Our drying programs are designed to protect your
laundry with minimum energy consumption. Due
to residual heat after drying, your laundry feels
damper than it really is.
If the dryness of the laundry is not sufficient after
cooling down, use the next highest drying
program and/or program time.
Program
sequence
In standard programs, the dryer works using an
electronic sensor system which continually
controls the dampness in the washing. The drying
cycle automatically stops as soon as the level of
dryness set has been reached. The indicator
lamps (LEDs) display the program status.
The dryer is equipped with an automatic anti-
crease function (anti-crease/End). It is effective if
the laundry is not taken out of the drum
immediately.
The drum rotates at specific time intervals for 1
hour. The laundry should be removed after this
time at the latest, if you have not already done so.
The laundry remains loose and soft until it is
removed.

16
Standard programs
Whites and coloureds/cotton or linen 3-5 kg.
Press Delicates button Jfor temperature sensitive fabrics.
Standard
Cottons /
Coloureds
program
Bed linen, table linen and towels For laundry: which needs to be pressed Iron Dry
Bed linen, table linen, towels,
T-shirts, polo shirts, work clothes which need to be ironed Iron Dry
T-shirts, polo shirts, dresses,
trousers, work clothes, underwear which do not need to be ironed or
need to be lightly ironed
Cupboard Dry
Terry towels, tea towels, hand
towels,
bed linen, underwear,
cotton socks
which do not need to be
ironed with thick,
quilted areas
Cupboard Dry
Plus
Terry bath robes and bed linen
No underwear or socks which are particularly
thick or quilted Extra Dry
Easy-care (drip-dry) laundry made of synthetic and mixed
fabrics and cotton e.g. viscose, cuprorayon, modal and
polyester up to 2.5 kg
Program time
Easy Care
Trousers, dresses, skirts and shirts For laundry: which needs to be ironed
Iron Dry
Trousers, dresses, skirts and shirts
Blouses, corsetry, leggings,
sportswear with a large proportion
of synthetic fibres
which do not need to be
ironed or
need to be lightly ironed
Lightly Dry
Shirts, blouses and sportswear which do not need to be
ironed
Cupboard Dry
Bed linen, table linen,
tracksuits, anoraks, blankets
cotton socks
which does not need to be
ironed – thick, quilted
fabrics
Very dry

17
Program Time
Additional function
Delicates button J
Press the Delicates button Jfor temperature
sensitive fabrics (e.g. acrylics).
Observe the fabric care instructions .
The temperature is reduced and the drying time
increased.
The function remains active until the button
is pressed again.
Signal button K
Press the Kbutton to switch on the audible signal.
Fabrics which have already been pre-dried and are slightly
damp, individual laundry items such as bath towels, bath robes,
dishcloths and quilted fabrics made of acrylic.
Press the Delicates button Jfor fabrics which are temperature
sensitive.
Hot
(adjustable in
10 minute
intervals up to 60
minutes)
Freshening up and airing items of clothing which have not been
worn recently.
For all types of fabric.
Cold
(can be set once
for 10 minutes)
i

18
Cleaning and care
Cleaning
the dryer
!Risk of explosion!
There is a risk of explosion from solvents.
Never use solvents for cleaning.
The dryer may be damaged if it is not cleaned
correctly. Do not spray the dryer with a water jet.
Do not use abrasive agents or general-purpose
cleaners.
 Clean the housing and the control panel with
a mild detergent and a soft cloth.

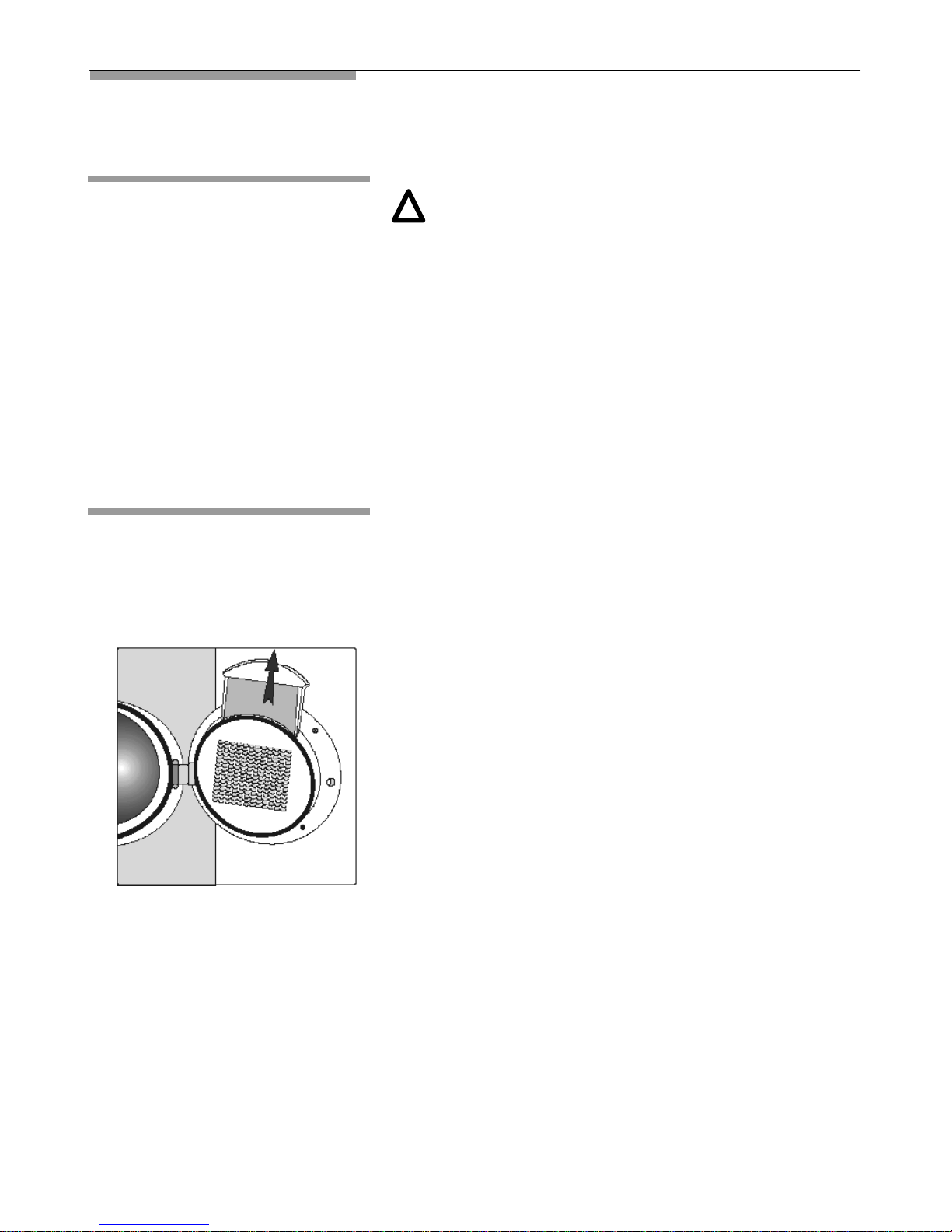

Fluff filter
Clean the fluff filter after each drying cycle.
Bobbling (fluff) occurs fabrics become worn.
These bobbles come off during the drying cycle
and collect in the fluff filter.
A clogged filter results in longer drying times and
higher energy consumption.
1. Open the door.
2. Pull the filter out towards the top.
3. Remove the fluff (by drawing your hand
across the filter).
4. Replace the filter (it can only be inserted one
way round).
5. Close the door.

19
Changing the
light bulb
!Risk of electrical shock!
Before replacing the bulb disconnect the plug
from the socket or switch Off the fuse/circuit
breaker.
!Never operate the tumble dryer
without the light cover!
 Open the door.
 Remove the bulb cover.
 Replace the bulb.
!Max. permissible power is 10 W!
 Put the cover back over the bulb.
!Risk of short circuit!
Cover and gasket must rest tightly in bearing
to prevent ingress of moisture.

20
Troubleshooting...
Troubleshooting... Cause Solution
The dryer is not plugged
in. Plug in the dryer.
No drying program has
been set. Turn the program selector to the program required.
The “on” indicator
lamp does not light
up.
The household fuse has
tripped. Reset/replace the fuse.
Start button Mhas not
been pressed. Press the button.
No drying program has
been set. Select the program you require using the program
selector.
The door is not shut. Close the door.
The dryer does not
start.
The ambient
temperature is below
5°C.
Increase the room
temperature.
The humidity in the
room has
increased
significantly.
The room is not
sufficiently ventilated. Ensure sufficient ventilation.
The door opens by
itself. The locking pins are not engaged. Push the door closed until you hear the locking pins click into
place.
Drying is not
satisfactory or the
drying time is too
long.
The filter is blocked. Clean the filter (page 18).
