Siemens LD97AA670 User manual
3
Table of contents
Instructionmanual
Important safety information.....................................................3
Environmental protection ..........................................................5
Saving energy......................................................................................5
Environmentally-friendly disposal.....................................................5
Operating modes........................................................................6
Exhaust air mode................................................................................6
Air recirculation ...................................................................................6
Getting to know the appliance ..................................................6
Control panel .......................................................................................6
Operating the appliance ............................................................7
Extending/retracting the appliance .................................................7
Setting the fan .....................................................................................7
Intensive setting ..................................................................................7
Fan run-on time ...................................................................................7
Lighting .................................................................................................7
Saturation display ...............................................................................7
Cleaning and maintenance........................................................8
What to do in the event of a fault ............................................10
After-sales service ...................................................................11
Accessories for circulating-air mode ........................................... 11
Produktinfo
Additional information on products, accessories, replacement
parts and services can be found at
www.siemens-home.com
and in the online shop
www.siemens-eshop.com
: Important safety information
Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for
future use or for subsequent owners.
The appliance can only be used safely if it
is correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly
at its installation location.
This appliance is intended for domestic use
and the household environment only. The
appliance is not intended for use outside.
Do not leave the appliance unattended
during operation. The manufacturer is not
liable for damage which is caused by
improper use or incorrect operation.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
This appliance may be used by children
over the age of 8 years old and by persons
with reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are
supervised or are instructed by a person
responsible for their safety how to use the
appliance safely and have understood the
associated hazards.
Children must not play with, on, or around
the appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 8 years old and are
being supervised.
Keep children below the age of 8 years old
at a safe distance from the appliance and
power cable.
Check the appliance for damage after
unpacking it. Do not connect the appliance
if it has been damaged in transport.
This appliance is not intended for operation
with an external clock timer or a remote
control.
Danger of suffocation!
Packaging material is dangerous to
children. Never allow children to play with
packaging material.
4
Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the
room if the appliance is being operated in
exhaust air mode at the same time as room
air-dependent heat-producing appliance is
being operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters
or water heaters) obtain combustion air
from the room in which they are installed
and discharge the exhaust gases into the
open air through an exhaust gas system
(e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from
the kitchen and neighbouring rooms - a
partial vacuum is produced if not enough
fresh air is supplied. Toxic gases from the
chimney or the extraction shaft are sucked
back into the living space.
■Adequate incoming air must therefore
always be ensured.
■An incoming/exhaust air wall box alone
will not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for
combustion is able to enter through
openings that cannot be sealed, for
example in doors, windows, incoming/
exhaust air wall boxes or by other technical
means.
In any case, consult your responsible
Master Chimney Sweep. He is able to
assess the house's entire ventilation setup
and will suggest the suitable ventilation
measures to you.
Unrestricted operation is possible if the
vapour extractor hood is operated
exclusively in the circulating-air mode.
Risk of fire!
■Grease deposits in the grease filter may
catch fire.
Clean the grease filter at least every
2 months.
Never operate the appliance without the
grease filter.
Risk of fire!
■Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-
removable cover is available. There must
be no flying sparks.
Risk of fire!
■Hot oil and fat can ignite very quickly.
Never leave hot fat or oil unattended.
Never use water to put out burning oil or
fat. Switch off the hotplate. Extinguish
flames carefully using a lid, fire blanket or
something similar.
Risk of fire!
■When gas burners are in operation without
any cookware placed on them, they can
build up a lot of heat. A ventilation
appliance installed above the cooker may
become damaged or catch fire. Only
operate the gas burners with cookware on
them.
Risk of fire!
■Operating several gas burners at the
same time gives rise to a great deal of
heat. The ventilation appliance may
become damaged or catch fire. The
ventilation appliance must only be
combined with gas burners that do not
exceed the maximum total output of
12.4 kW.
Risk of burns!
The accessible parts become very hot when
in operation. Never touch hot parts. Keep
children at a safe distance.
5
Risk of injury!
■Components inside the appliance may
have sharp edges. Wear protective gloves.
Risk of injury!
■Items placed on the appliance may fall
down. Do not place any objects on the
appliance.
Risk of injury!
■The light emitted by LED lights is very
dazzling, and can damage the eyes (risk
group 1). Do not look directly into the
switched on LED lights for longer than
100 seconds.
Risk of injury!
■Risk of jamming when retracting and
extending the appliance. Never reach into
the moving area of the appliance while it is
being retracted or extended. Keep
children at a safe distance.
Risk of injury!
■Cookware set down within the movement
area of the appliance can fall over. Hot
liquids that pour out can cause injury. Do
not set down any cookware within the
movement area of the appliance.
Risk of injury!
■Cookware and cooktops become very hot.
Never reach across the hot cooktop or
take hold of hot cookware.
Risk of electric shock!
■A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in
the fuse box. Contact the after-sales
service.
Risk of electric shock!
■Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the
appliance from the mains or switch off the
circuit breaker in the fuse box. Contact the
after-sales service.
Risk of electric shock!
■Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Causes of damage
Caution!
Risk of damage due to corrosion. Always switch on the
appliance while cooking to avoid condensation. Condensate
can produce corrosion damage.
Risk of damage due to ingress of humidity into the electronic
circuitry. Never clean operator controls with a wet cloth.
Surface damage due to incorrect cleaning. Clean stainless
steel surfaces in the direction of the grain only. Do not use any
stainless steel cleaners for operator controls.
Surface damage due to strong or abrasive cleaning agents.
Never use strong and abrasive cleaning agents.
Items placed on the appliance may damage the appliance or
adjacent cooktops when the appliance is extended or retracted.
Do not place any objects on the moving parts of the appliance.
Environmental protection
Your new appliance is particularly energy-efficient. Here you
can find tips on how to save even more energy when using the
appliance, and how to dispose of your appliance properly.
Saving energy
■During cooking, ensure that there is a sufficient supply of air
so that the extractor hood can work efficiently and with a low
level of operating noise.
■Adjust the fan speed to the intensity of the cooking fumes.
Only use intensive mode where this is required. A lower fan
speed means that less energy is consumed.
■If there are intensive cooking fumes, select a higher fan
speed in good time. If cooking fumes have already spread in
the kitchen, the extractor hood must be operated for longer.
■Switch off the extractor hood if you no longer require it.
■Switch off the lighting if you no longer require it.
■Clean and, if required, replace the filter at regular intervals in
order to increase the effectiveness of the ventilation system
and to prevent the risk of fire.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly manner.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning used
electrical and electronic appliances (waste
electrical and electronic equipment - WEEE). The
guideline determines the framework for the return
and recycling of used appliances as applicable
throughout the EU.
6

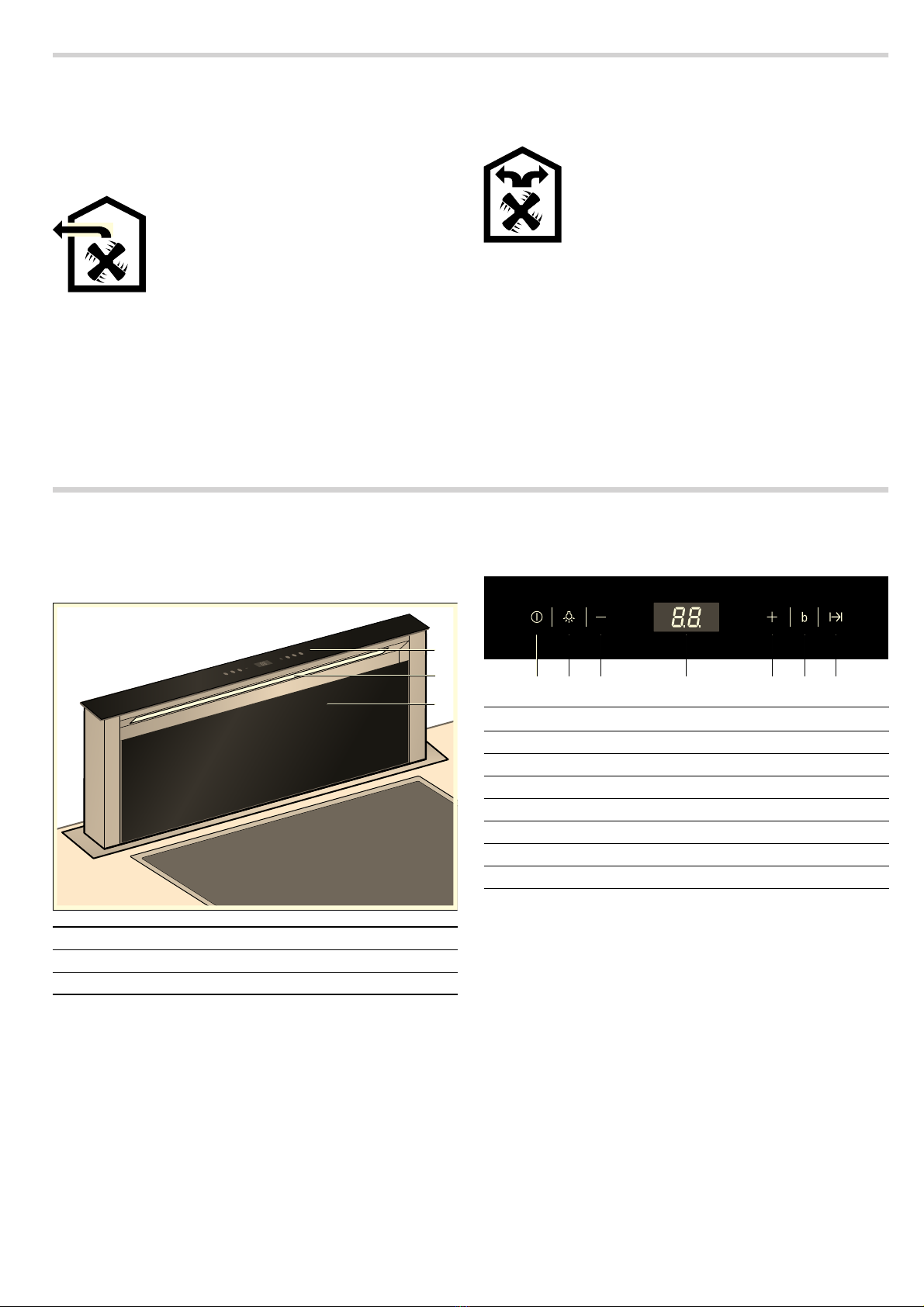

Operating modes
This appliance can be used in exhaust-air mode or circulating-
air mode.
Exhaust air mode
Note: The exhaust air must not be conveyed into a functioning
smoke or exhaust gas flue or into a shaft which is used to
ventilate installation rooms which contain heating appliances.
■Before conveying the exhaust air into a non-functioning
smoke or exhaust gas flue, obtain the consent of the heating
engineer responsible.
■If the exhaust air is conveyed through the outer wall, a
telescopic wall box should be used.
Air recirculation
Note: To bind odours in air recirculation mode, you must install
an activated carbon filter. The different options for operating the
appliance in air recirculation mode can be found in the
brochure. Alternatively, ask your dealer. The required
accessories are available from specialist retailers, from
customer service or from the Online Shop.
Getting to know the appliance
Here, you can get to know your appliance and receive
information about the accessories. Control panel
The air which is drawn in is cleaned by the
grease filters and conveyed to the exterior by a
pipe system.
The air which is drawn in is cleaned by the
grease filters and an activated carbon filter,
and is conveyed back into the kitchen.
1 Control panel
2 Light
3 Filter cover
Explanation
1 Retract/extend the appliance, switch the fan on and off
2 Switch on lighting
3 Turn the fan down
4 Display panel
5 Switch fan setting up
6 Intensive setting
7 Fan run-on time
7
Operating the appliance
This appliance only works when it is completely extended.
Note: Switch on the extractor hood when you start cooking and
switch it off again several minutes after you have finished
cooking. This is the most effective way of removing the kitchen
fumes.
Extending/retracting the appliance
: Risk of injury!
Risk of jamming when retracting and extending the appliance.
Never reach into the moving area of the appliance while it is
being retracted or extended. Keep children at a safe distance.
: Risk of injury!
Cookware set down within the movement area of the appliance
can fall over. Hot liquids that pour out can cause injury. Do not
set down any cookware within the movement area of the
appliance.
Note: If the appliance has been temporarily disconnected from
the power supply, it will retract fully.
Extending the appliance
1. Remove any objects from the area of movement of the
appliance.
2. Press the #button.
The appliance extends fully. The fan starts at setting 2.
Retracting the appliance
Note: The filter cover must be closed completely.
1. Remove any objects from the area of movement of the
appliance.
2. Press and hold the #button for two seconds.
The appliance retracts fully. The light and fan are
automatically switched off.
Setting the fan
Note: Always adjust the fan strength to meet current conditions.
If there is a large build-up of steam or fumes, select a high fan
setting.
Switching on the appliance
1. Press the #button.
The fan starts at setting 2.
2. Press the "+" or "-" buttons to set another fan setting.
Switching off the appliance
Press the #button.
Intensive setting
You can use the intensive setting if there is a large build-up of
odours and fumes/vapours.
Two different intensive settings are available:
›‚ – duration: 5 minutes
›ƒ – duration: 7 minutes
■Press the ›button.
Intensive setting ›‚ is activated.
■Press the ›button again to activate intensive setting ›ƒ.
Once the preset time has elapsed, the electronics automatically
switch the fan back to the setting at which it was operating
previously. If you wish to end the intensive setting before this
time has elapsed, press the ›button.
Fan run-on time
1. Press the xbutton.
The fan continues to operate for a further 15 minutes at the
previous setting, and then switches off automatically after this
time. The remaining run-on time is displayed in minutes in the
display panel. If the lighting is switched on, this is also
switched off after the run-on time.
2. Press the xbutton again.
The fan run-on ends before the end of the remaining run-on
time.
Lighting
The lighting can be switched on and off independently of the
ventilation.
Press the @button.
Setting the brightness
1. Press and hold the @button for two seconds.
The brightness is reduced.
2. Press the @button.
The maximum brightness is restored.
Saturation display
When the metal grease filter or activated charcoal filter is
saturated, the corresponding symbol flashes:
■Metal grease filter: ª
■Activated charcoal filter: ’
When this happens, do not delay cleaning the metal grease
filter or replacing the activated charcoal filter any further.
For instructions on how to clean the metal grease filter, please
refer to the section "Cleaning and maintenance".
Restoring the saturation displays
1. Switch off the motor.
2. Press and hold the "-" button for two seconds.
Switching over the display for circulating-air mode
For circulating-air mode, the electronic control display must be
switched over accordingly:
1. Check that the extractor hood is connected and switched off.
2. Press and hold the "+" button for two seconds.
’flashes twice, i.e. the electronic control is switched over to
circulating-air mode.
3. Press the "+" button.
’flashes once, i.e. the electronic control is switched back to
exhaust-air mode.
8
Cleaning and maintenance
: Risk of burns!
The appliance becomes hot during operation. Allow the
appliance to cool down before cleaning.
: Risk of electric shock!
Penetrating moisture may result in an electric shock. Clean the
appliance using a damp cloth only. Before cleaning, pull out the
mains plug or switch off the circuit breaker in the fuse box.
: Risk of electric shock!
Do not use any high-pressure cleaners or steam cleaners,
which can result in an electric shock.
: Risk of injury!
Components inside the appliance may have sharp edges. Wear
protective gloves.
Cleaning agents
Observe the information in the table to ensure that the different
surfaces are not damaged by using the wrong type of cleaning
agent. Do not use
■harsh or abrasive cleaning agents,
■cleaning agents with a high concentration of alcohol,
■hard scouring pads or sponges,
■high-pressure cleaners or steam cleaners.
Wash new sponge cloths thoroughly before use.
Follow all instructions and warnings included with the cleaning
agents.
Cleaning the metal mesh grease filters
These instructions apply to several appliance variants. It is
possible that individual features are described which do not
apply to your appliance.
: Risk of fire!
Grease deposits in the grease filter may catch fire.
Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
Notes
■Do not use any aggressive, acidic or alkaline cleaning
agents.
■When cleaning the metal mesh grease filters, also clean the
holder for the metal mesh grease filters in the appliance
using a damp cloth.
■The metal mesh grease filters can be cleaned in the
dishwasher or by hand.
By hand:
Note: You can use a special grease solvent for stubborn dirt. It
can be ordered via the Online Shop.
■Soak the metal mesh grease filters in a hot soapy solution.
■Clean the filters with a brush and then rinse them thoroughly.
■Leave the metal mesh grease filters to drain.
In the dishwasher:
Note: If the metal mesh grease filters are cleaned in the
dishwasher, slight discolouration may occur. This has no effect
on the function of the metal mesh grease filters.
■Do not clean heavily soiled metal mesh grease filters together
with utensils.
■Place the metal mesh grease filters loosely in the dishwasher.
The metal mesh grease filters must not be wedged in.
Area Cleaning agents
Stainless steel Hot soapy water:
Clean with a dish cloth and dry with a
soft cloth.
Clean stainless steel surfaces in the
direction of the grain only.
Special stainless steel cleaning products
are available from our after-sales service
or from specialist retailers. Apply a very
thin layer of the cleaning product with a
soft cloth.
Painted surfaces Hot soapy water:
Clean using a damp dish cloth and dry
with a soft cloth/towel.
Do not use any stainless steel cleaners.
Aluminium and
plastic
Glass cleaner:
Clean with a soft cloth.
Glass Glass cleaner:
Clean with a soft cloth. Do not use a
glass scraper.
Operating controls Hot soapy water:
Clean using a damp dish cloth and dry
with a soft cloth.
Risk of damage to the electronics from
penetrating moisture. Never clean oper-
ator controls with a wet cloth.
Do not use any stainless steel cleaners.
9
Removing and installing the filter
In order to guarantee efficient filtration of odours and grease,
the filter must be serviced regularly.
Metal grease filter
The metal grease filter must be cleaned every 100 operating
hours, and at least after two months.
Activated charcoal filter (only in circulating-air mode)
The activated charcoal filter must be replaced every
200 operating hours.
Opening the filter cover
1. Fold the filter cover forwards.
2. Lift the filter cover forwards.
Removing metal grease filter
1. Open the metal grease filter lock and remove the filter from
the holder.
Note: Grease can collect in the bottom of the filter holder.
Hold the filter holder at an angle to prevent grease from
dripping out.
2. Clean the metal grease filter and filter cover.
3. After removing the filters, clean the inside of the appliance.
Changing the activated charcoal filter (only in circulating-air
mode)
1. Hold the edge of the metal clip firmly and pull towards the
middle of the filter.
2. Take the metal clip out of the holder.
3. Disconnect the activated charcoal filter from the metal grease
filter.
4. Secure the activated charcoal filter back to the metal grease
filter with the metal clip.
Installing the metal mesh grease filter
1. Fit the metal grease filter.
2. Fit the filter cover.
10
What to do in the event of a fault
Malfunctions often have simple explanations. Please read the
following notes before calling the after-sales service.
: Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be carried
out and damaged power cables replaced by one of our trained
after-sales technicians. If the appliance is defective, unplug the
appliance from the mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
LED lights
Defective LED lights must only be replaced by the
manufacturer, their customer service department or a licensed
technician (electrician).
What to do if water gets in
If water gets in to the appliance during cooking or cleaning,
proceed as follows:
1. Switch off the appliance.
2. Open the floor cupboard and mop up leaking water.
3. Leave the appliance switched off for 24 hours.
After this time, the appliance can be used again without
restrictions.
Malfunction table
--------
Problem Possible cause Solution
‚‚ is shown on
the display.
The safety switch-
off function is deac-
tivated. With the
safety switch-off
function deacti-
vated, the appli-
ance extends and
retracts and will be
ready to use again
after around
30 seconds.
: Risk of injury!
Risk of crushing
when the appliance
is extending and
retracting. Stop
using the appli-
ance. Keep children
away from the
appliance.
Note: Disconnect the
appliance from the
power supply. The appli-
ance needs to be
repaired. Call the after-
sales service.
The appliance
does not work
The plug is not
plugged in.
Connect the appliance
to the electricity supply
Power cut Check whether other
kitchen appliances are
working
Faulty fuse Check in the fuse box to
make sure that the fuse
for the appliance is OK
Appliance does
not switch on.
Filter cover not
closed.
Close the filter cover
fully.
The appliance
does not extend
or retract.
The circuit breaker
in the electrical box
is defective.
Call the after-sales
service.
The 7 segment
display is not
working.
The operating mod-
ule is defective.
Call the after-sales
service.
The lighting
does not work.
The LED lights are
defective.
Call the after-sales
service.
If ªor ’
appears on the
display
The grease or acti-
vated charcoal filter
is saturated.
Clean the filter – see
section "Cleaning and
maintenance".
11
After-sales service
Our after-sales service is there for you if your appliance needs
to be repaired. We will always find the right solution in order to
avoid unnecessary visits from a service technician.
When calling us, please give the product number (E no.) and
the production number (FD no.) so that we can provide you with
the correct advice. The rating plate with these numbers can be
found inside the appliance (remove the metal mesh grease
filter to gain access).
You can make a note of the numbers of your appliance and the
telephone number of the after-sales service in the space below
to save time should it be required.
Please be aware that a visit by an after-sales engineer will be
charged if a problem turns out to be the result of operator error,
even during the warranty period.
Please find the contact data of all countries in the enclosed
customer service list.
To book an engineer visit and product advice
Rely on the professionalism of the manufacturer. You can
therefore be sure that the repair is carried out by trained service
technicians who carry original spare parts for your appliances.
Accessories for circulating-air mode
(not included in the delivery)
E no. FD no.
After-sales serviceO
GB 0344 892 8999
Calls charged at local or mobile rate.
IE 01450 2655
0.03 € per minute at peak.
Off peak 0.0088 € per minute.
LZ53750
BSH Hausgeräte GmbH
Carl-Wery-Straße 34, 81739 München, GERMANY
*9001078006*
9001078006 951117
siemens-home.com
.BOVGBDUVSFECZ#4))BVTHFS¤UF(NC)VOEFS5SBEFNBSL-JDFOTFPG4JFNFOT"(
Other manuals for LD97AA670
1
Table of contents
