en Instruction Manual
and Installation
Instructions
WM14Y540EE
Washing machine

2
Your new washing machine
You have chosen a premium washing machine made by
Siemens. Thanks to its innovative technologies, the washing
machine is distinguished by its perfect washing performance and
its economic consumption of water and energy.
Please take a couple of minutes to read and become familiar
with the advantages of your washing machine.
To meet the high quality demands of the Siemens brand, each
washing machine, which leaves our factory, is inspected
thoroughly to ensure that it functions properly and is in perfect
condition.
Further information on our products, accessories, spare parts
and services can be found at: www.siemens-home.com or
contact our customer service centres.
If the instructions for use and assembly describe various models,
reference is made to the differences at the appropriate places.
Explanation of the symbols
ãWarning!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in death or
serious injuries unless it is avoided.
ãCaution!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in slight or
minor injuries or damage to property and the environment.
²
Instructions on how best to use the appliance as well as other
useful information.

3
Contents en InstructionManualandInstallationInstructions
Before washing
ØIntended use 4
ØSafety instructions 5
ØProtection of the environment 8
ØGetting to know your appliance 9
ØDetergent drawer 10
ØOperating elements/Display elements 11
ØThe main points in brief 12
Operating the appliance
ØBefore each washing 13
ØWashing 18
ØAfter washing 21
ØProgramme overview 22
ØProgramme settings 26
ØConsumption values 28
ØAppliance settings 29
ØSensors – Your washing machine is so intelligent 31
Cleaning and maintenance
ØCare and maintenance 32
ØEmergency lock release, e.g. if power failure occurs 36
ØInformation on the display panel 37
ØFaults, what to do? 38
ØCustomer service 40
Installing the appliance
ØStandard accessories 41
ØInstallation 43
ØRemove transportation protection devices 46
ØConnecting the water 48
ØAlignment 51
ØElectrical connection 52
ØBefore the 1st washing 53
ØTransportation, e.g. if moving house 54
Index 55

4
Beforewashing
Intended use
ØFor use in the household only.
ØThe washing machine is suitable for washing machine-
washable textiles and hand-washable wool in wash liquor.
ØThe washing machine is suitable to be operated with cold
drinking water and commercially available detergents and
care products which are suitable for use in washing
machines.
ØWhen dosing all detergents, cleaning aids, cleaning products
and cleaning agents, always follow the manufacturer's
instructions.
ØThe washing machine may be operated by children from 8
years of age, by persons who have limited physical, sensory
or mental abilities and by persons who have inadequate
experience or knowledge, provided they are supervised or
have been instructed by a responsible person.
ØKeep pets away from the washing machine!
Read and follow the operating and installation instructions and all
other information enclosed with the washing machine.
Retain documents for subsequent use.

5
Safety instructions
ãWarning!
Danger of death from electric shock!
Danger of death if live parts are touched.
– Never pull out the mains plug by tugging the power cord.
– Insert/pull out the mains plug with dry hands only.
ãWarning!
Risk to children!
– Do not leave children unsupervised near the washing machine.
– Children must not play with the washing machine.
– This will prevent children from locking themselves in and
suffocating.
On redundant appliances:
– Pull out the mains plug!
– Sever the power cord and discard together with the plug.
– Destroy the lock on the washing-machine door.
– Children must not perform any cleaning or maintenance work
without supervision.
– When playing, children may become entangled in the
packaging/film and packaging parts or pull them over their
heads and suffocate.
Keep packaging, plastic film and packaging parts out of the reach
of children.
– When washing at high temperatures, the glass of the washing
machine door becomes hot.
Prevent children from touching the hot washing machine door.
– Detergents and care products may cause intoxication if
consumed or eye and skin irritation if touched.
Keep detergents and care products out of the reach of children.

6
ãWarning!
Risk of explosion!
Items of washing pretreated with solvent detergents, e.g. stain
remover/petroleum ether, may cause an explosion when the
washing machine has been loaded.
Before hand thoroughly rinse items of washing by hand.
ãCaution!
Danger of scalding!
When washing at high temperatures, you may be scalded if you
touch the hot wash liquor (e.g. if draining hot wash liquor into a
washbasin or if draining the washing machine in an emergency).
Allow detergent solution to cool down.
ãCaution!
Risk of damaging appliance!
–Cover plate may break!
Do not climb on the washing machine.
–Opened washing machine door may break off or washing
machine may overturn!
Do not lean on the open washing machine door.
ãCaution!
Danger when reaching into/gripping the rotating drum!
If you reach into the rotating drum, you may injure your hands.
Do not grip the rotating drum. Wait until the drum stops rotating.

7
ãCaution!
Risk of coming into contact with liquid detergents/care products!
If the detergent drawer is opened while the washing machine is
running, detergent/care product may spray out.
Caution when opening the detergent drawer.
In case of eye/skin contact, rinse thoroughly.
If accidentally swallowed, seek medical advice.

8
Protection of the environment
Packaging/Old appliance
Hints and tips
ØUtilise the maximum amount of washing for the particular
programme.
ØWash normally soiled washing without Pre-wash.
ØInstead of Algodón (Cottons) 90 °C programme select
Algodón (Cottons) 60 °C and ecoPerfect ¦ button.
Comparable cleaning result with significantly lower energy
consumption.
ØEnergy saving mode: The display panel light goes out after
several minutes, Inicio/Carga (Start/Reload) Üflashes.
To activate the light, select any button.
The energy-saving mode is not activated if a programme is
running.
ØAutomatic switch off: If the appliance is not operated for a
prolonged period, it automatically switches off before the
programme starts and when the programme has ended to
save energy. Switch on by pressing main switch # button.
ØIf the washing is then dried in the tumble dryer, select spin
speed according to the instructions of the dryer
manufacturer.
)Dispose of packaging in an environmentally friendly manner.
This appliance has been identified in accordance with the
European Directive 2002/96/EG on Waste Electrical and
Electronic Equipment (WEEE).
The Directive specifies the framework for an EU-wide valid return
and recycling of waste appliances.

9

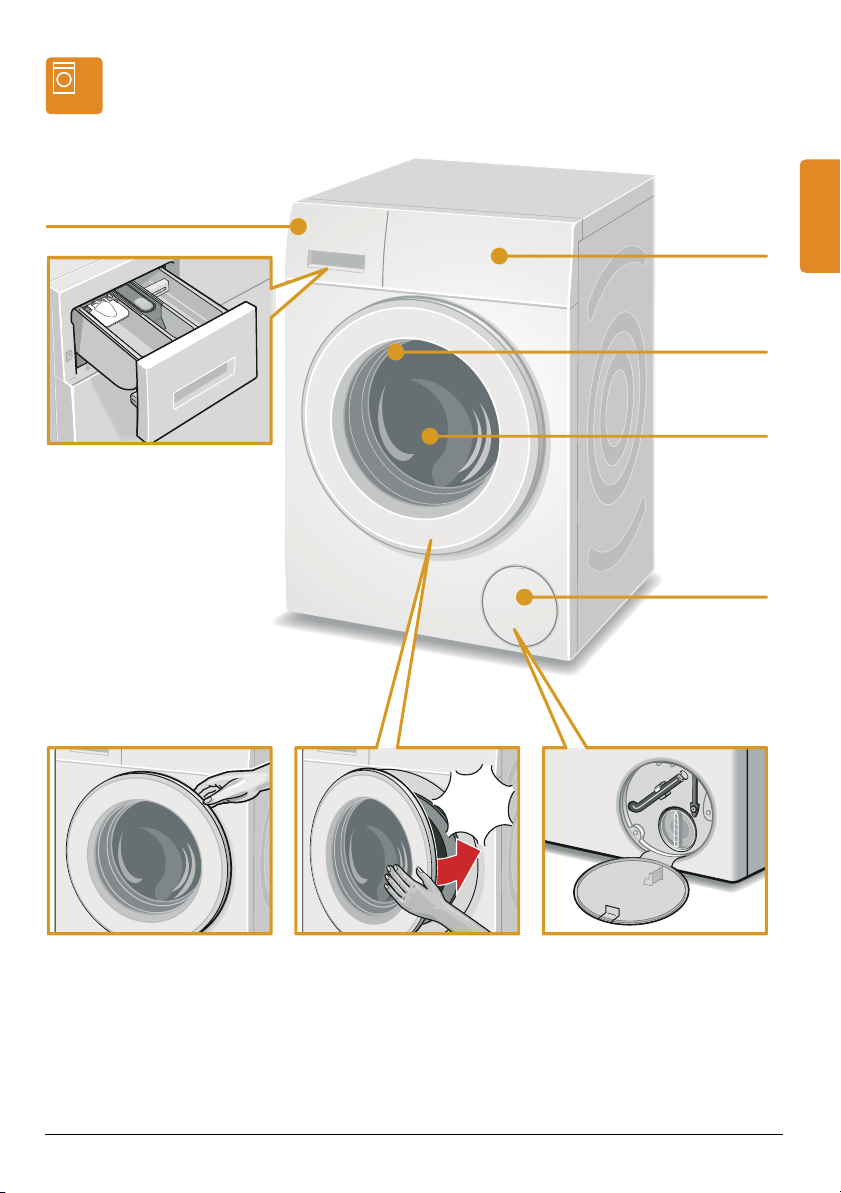

Getting to know your appliance
'HWHUJHQWGUDZHU
FODFN
2SHUDWLQJ
HOHPHQWV
'LVSOD\
HOHPHQWV
'UXPOLJKW
GHSHQGLQJ
RQPRGHO
'RRU
6HUYLFHIODS
2SHQLQJ DQGFORVLQJWKHGRRU 6HUYLFHIODS

10
Detergent drawer
Dispenser IDetergent for prewash
Dispenser iSoftener, starch. Do not exceed the maximum load.
Dispenser II Detergent for main wash, water softener, bleach,
stain remover
Dispenser Afor dosing liquid detergent (not for all models)
For models with insert for liquid detergent:
The detergent drawer features an insert which is used as a dosing aid for liquid detergent.
²Do not use insert:
– For gel-like detergents and washing powders.
– For programmes with Prewash or Ready in option.
Position insert for dosing liquid detergent:
Completely remove detergent drawer.
Push insert forwards.
For models without insert for liquid detergent:
Dose liquid detergent according to the manufacturer’s instructions.

11

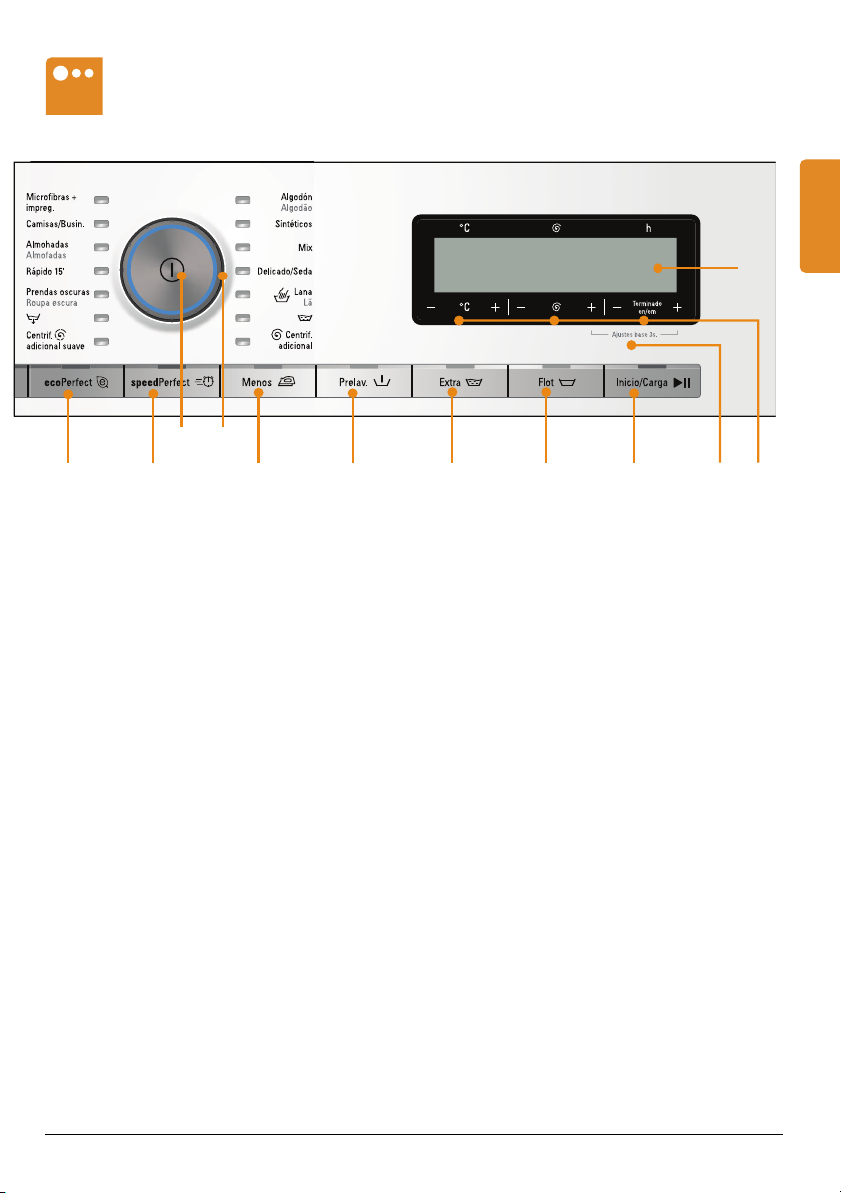

Operating elements/Display elements
K
LM
NO P Q R ST U
V
²All buttons are sensitive, they only need to be touched gently.
iPress the main switch #button. Switch
on and off the appliance.
jProgramme selector can be rotated
in either direction. Programme overview,
refer to ~Page 22
Programme settings: ~Page 16,
~Page 22
kecoPerfect ¦
lspeedPerfect G
mMenos Ø(Less Ironing)
nPrelav. !(Pre-wash)
oExtra q(Extra rinse)
pFlot $(Rinse Hold)
rTemperature selection, Select spin
speed, End time preselection button
qInicio/Carga (Start/Reload) Übutton
to start, interrupt and cancel the pro-
gramme (e.g. Topping up the washing).
hChange appliance settings. Hold down
Ajustes base 3s. (Basic settings 3 sec.)
buttons for appliance settings
(end signal, button signal, language,
autom. switch off) for approx. 3 seconds.
Overview of all settings ~Page 29
sDisplay panel for settings and
information

12
The main points in brief
1@ @ @
Insert mains plug.
Turn the tap on.
Open the washing
machine door.
To switch on, press
the #button.
Select the pro-
gramme, e.g.
Algodón (Cotton).
2@ @
Sort the washing. Insert the washing. Do not exceed maximum load.
3@ @
Open the detergent
drawer.
Dose detergent according to dosing recommen-
dation.
Close the washing
machine door.
FODFN
4@
If required, change presettings of the selected programme and/or
select programme settings.
Select Inicio/Carga
(Start/Reload) Ü.
5@ @
End of the programme For switching the
machine on, press
the # button.
Turn off the mains
supply (for models
without Aqua-Stop).

13
Operatingtheappliance
Before each washing
²–Install and connect washing machine properly.
Refer to ~Page 43
– Before the 1st wash, wash once without any washing.
~Page 53
1. Preparing the washing
Sorting the washing according to:
ØType of fabric/fibre.
ØColour.
ØSoiling.
ØFollow manufacturer’s care information.
ØCare label specifications:
Protecting the washing and the machine:
²– When dosing all detergents, cleaning aids, cleaning products
and cleaning agents, always follow the manufacturer's
instructions.
– Keep detergents and agents for the pretreatment of washing
(e.g. stain remover, prewash sprays, ...) away from the
surfaces of the washing machine. Using a damp cloth,
immediately remove any fine spray residue and other
residue/droplets.
–Emptypockets.
– Remove metal parts (paper clips, etc.).
– Wash delicates in the net/bag (tights, underwired bras).
–Closezips,buttonupcovers.
– Brush sand out of pockets and collars.
– Remove curtain fittings or include in the net/bag.
–Washnewitemsseparately.
<;Cottons 95 °C, 90 °C
:98Coloureds 60 °C, 40 °C, 30 °C
BA > Easy-Care 60 °C, 40 °C, 30 °C
AL>
K
Delicates 40 °C, 30 °C
WAL
>K
Hand and machine-washable silk and woollens cold,
40 °C, 30 °C
ŽDo not wash laundry in the washing machine.

14
2. Preparing the appliance
Insert mains plug.
Turn on water tap.
3. Selecting programme and loading laundry in the drum
1. Open the washing machine door.
2. Check whether the drum has been completely emptied. If
required, empty. Otherwise, the load display may malfunction.
~Page 31
3. Press the #button. The appliance is switched on.
Then always the Algodón (Cottons) programme preset at the
factory is displayed.
Displays for the Algodón (Cottons) programme:
– The indicator lamp is lit on the programme selector and
the main menu for the selected programme is indicated
on the display panel.
– For appliances with drum light:
After switching on the appliance, after opening and
closing the washing machine door as well as after starting
theprogramme,thedrumislit.Thelightgoesout
automatically.

15
4. Select the programme.
You can use the displayed programme
or select another programme. Programme overview, refer to
~Page 22
5. Insert laundry
The load screen for the selected programme (e.g. for Cottons) is
indicated on the display panel. The load screen is indicated
when the door is opened or when the amount of washing
is changed.
²– Unfold and load presorted items of washing. Mix large and
small items. Washing items of different size distribute
themselves better during the spin cycle. Individual items
of washing may cause an unbalanced load. ~Page 31
– Do not load the laundry until the main menu for the
programme is displayed.
– The load bar progresses as the washing machine is loaded.
If the max. load is exceeded, the bar flashes. Do not exceed
indicated max. load. Overfilling reduces the washing result
and encourages creasing.
4. Add detergent and fabric care product
1. Pull out the detergent drawer.
2. Dosing in dispenser ~Page 10 according to:
– Dosage recommendation on the display panel,
e.g. for Cottons:
Depending on the amount of washing in the washing
machine, a dosing recommendation is indicated on the
display panel. The indicated % refers to the dosage
recommendation of the detergent manufacturer.

16
2= 40 % of the recommendation of the detergent
manufacturer
3= 60 %
4= 75 %
5= 100 %
–Soiling,
–Waterhardness(depending on model can be determined
using enclosed water hardness strip or is available from
your water utility company).
– Manufacturer’s instructions.
²– When dosing all detergents, cleaning aids, cleaning products
and cleaning agents, always follow the manufacturer's
instructions.
– Dilute viscous fabric softener and fabric conditioner with
water.
Prevents blockage of the overflow!
5. Changing programme settings
²Take care not to trap any items of clothing between the loading
door and rubber seal.
Close the washing machine door.

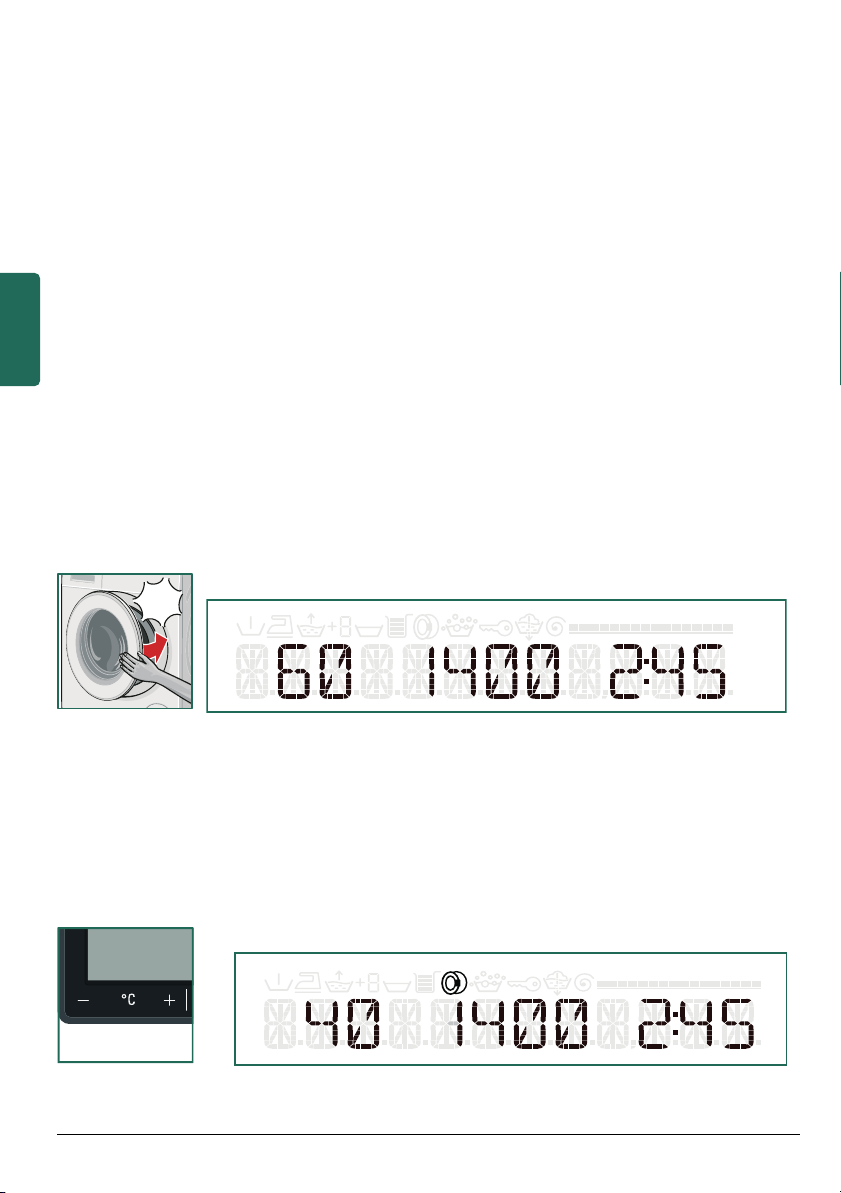

The main menu for the selected programme is indicated again
on the display panel.
You can use the displayed presettings or adjust the selected
programme optimally to the items of washing by changing the
presettings or selecting additional settings.
ØChange presettings for temperature, spin speed, finished in
time; ~Page 22, ~Page 26
E.g. select and change –°C +(temperature) buttons :
The settings are active without acknowledgement and are
displayed in the main menu.
FODFN

17
²– If the buttons are held down, the set values automatically run
through (– downwards, + upwards).
– The respective programme duration is displayed by selecting
the programme. The programme duration is adjusted while
the programme is running if the programme duration requires
changing, e.g. due to changes in the programme settings,
foam detection, unbalanced load detection, the load
or soiling.

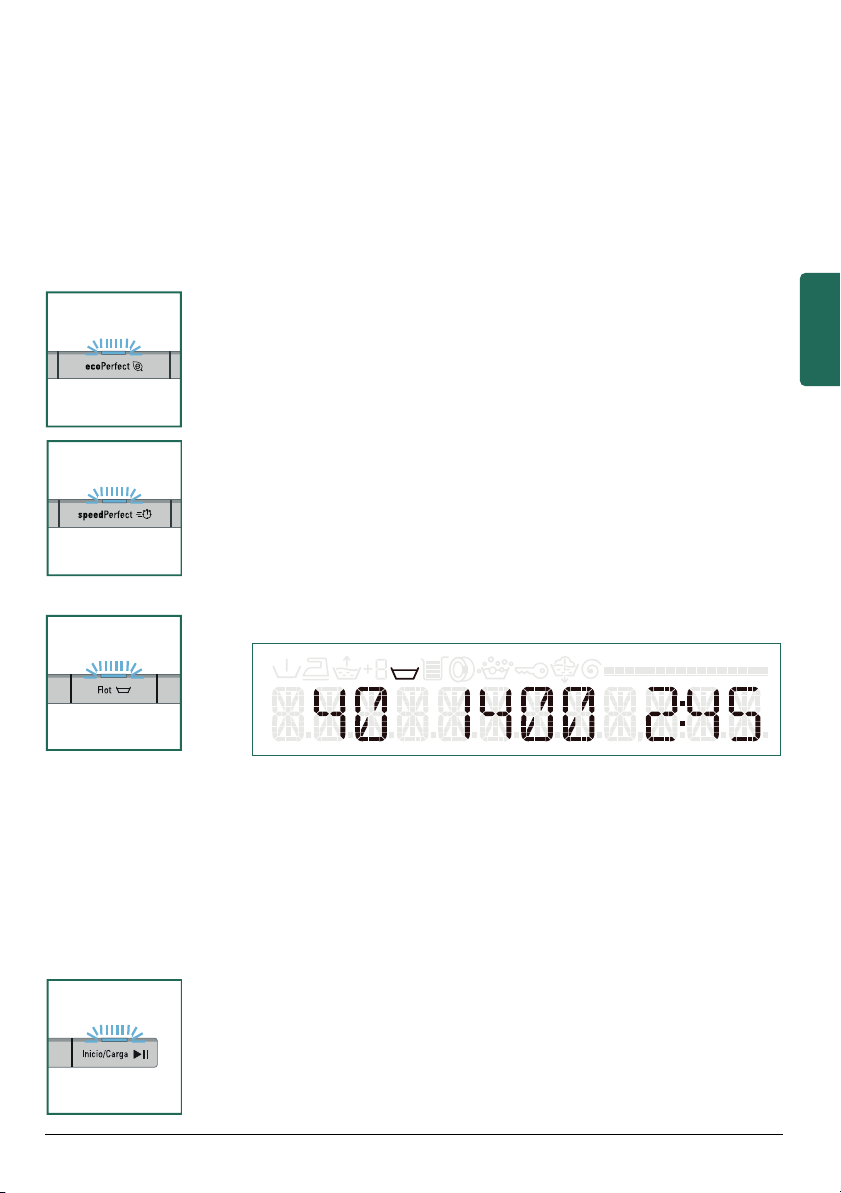

ØSelect addition programme settings: ~Page 22,
~Page 26
–ecoPerfect ¦
For saving energy with a comparable washing effect to the
standard programme. When selected, the display lamp
is lit.
–speedPerfect G
For a shorter wash time with a comparable washing effect
to the standard programme. Observe maximum load.
~Page 22 When selected, the display lamp is lit.
Other settings can be selected depending on the model,
e.g. Flot $(Rinse Hold) button:
When selected, the button indicator lamp is lit and
a corresponding symbol is indicated on the display panel:
Button Menos Ø(Less Ironing)
Button Prelav. !(Pre-wash)
Button Extra q(Extra rinse) – «+ Ë, Ì, Í(Rinse cycles)
Button Flot $(Rinse Hold)
6. Starting the programme
ØSelect Inicio/Carga (Start/Reload) Ü. The indicator light
is on.

18
Washing
Programme sequence
While the programme is running, the programme progress
is indicated on the display panel via corresponding symbols and
a progress bar. The bar progresses in the course of the wash
cycles.
The combined symbol Æindicates the following programme
states:
¿Pre-wash
¼Wash
½Rinse
¾Drain
Other symbols:
BSpin
wChildlock has been activated
ÅOverdosage of the detergent detected, additional rinse
cycles activated.
Äis lit when the door is locked or unlocked.
During the washing
ØChildlock
To prevent the set functions of the washing machine from
being accidentally changed, the childproof lock
can be activated when the programme has started.
Activate/deactivate: press Terminado en/em + (Finished in +)
for approx. 5 seconds.
The activated childproof lock is indicated on the display
panel by the symbol w.

19
If the programme selector is adjusted or a button is selected
while the childproof lock is active, the wsymbol flashes
briefly.
ØTopping up laundry
When the programme has started, washing can be reloaded
or taken out as required.
Select Inicio/Carga (Start/Reload)Ü.
²– If there is a high water level, high temperature or if the drum
is rotating, the washing machine door remains locked for
reasons of safety and reload is not possible. Follow the
information on the display panel. To continue the programme,
select the Inicio/Carga (Start/Reload) Übutton. The
washing machine door is locked and the programme
continues automatically.
– Load display is not active during reloding.
– Do not leave washing machine door open for a prolonged
period – water could run out of the washing.
ØChanging the programme
if you have mistakenly started a wrong programme.
1. Select Inicio/Carga (Start/Reload)Ü.
2. Select another programme.
3. Select Inicio/Carga (Start/Reload) Ü. The new
programme starts from the beginning.
ØCancelling the programme
For programmes at high temperature:
1. Select Inicio/Carga (Start/Reload)Ü.
2. Cool down laundry: select Rinse.
3. Select Inicio/Carga (Start/Reload) Ü.
For programmes at low temperature:
1. Select Inicio/Carga (Start/Reload)Ü.
2. Select BCentrif. adicional (Spin) or p(Drain).
3. Select Inicio/Carga (Start/Reload) Ü.

20

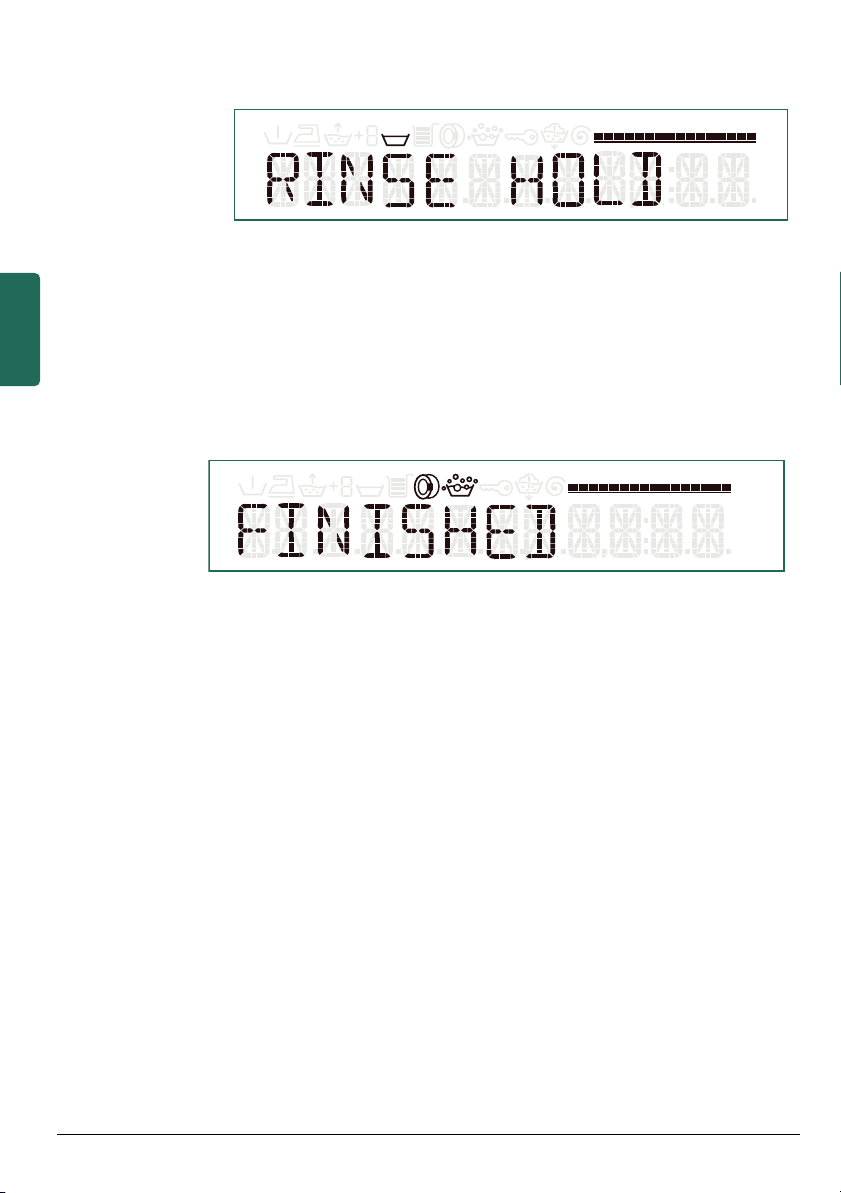

ØEnd of programme by Flot $(Rinse Hold). Programme
stops in the last rinse cycle.
– Select Inicio/Carga (Start/Reload) Ü. The programme
continues with the drain and spin cycles (if required
change spin speed).
– If only the drain cycle, but not the spin cycle, is required,
select and start the p(Drain) programme.
End of the programme
μ¸½¸Â¯´³ is indicated on the display panel.
If the symbol Åis also indicated on the display panel,
the washing machine has detected too much foam during the
wash programme and therefore automatically activates additional
rinse cycles to eliminate the foam.
²Dose less detergent in the next wash cycle with the same load.
