Your new washing machine
You have chosen a premium washing machine made by
Siemens. Thanks to its innovative technologies, the washing
machine is distinguished by its perfect washing performance and
its economic consumption of water and energy.
Please take a couple of minutes to read and become familiar
with the advantages of your washing machine.
To meet the high quality demands of the Siemens brand, each
washing machine, which leaves our factory, is inspected
thoroughly to ensure that it functions properly and is in perfect
condition.
Further information on our products, accessories, spare parts
and services can be found at: www.siemens-home.com or
contact our customer service centres.
If the instructions for use and assembly describe various models,
reference is made to the differences at the appropriate places.
Explanation of the symbols
ãWarning!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in death or
serious injuries unless it is avoided.
ãCaution!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in slight or
minor injuries or damage to property and the environment.
²
Instructions on how best to use the appliance as well as other
useful information.

3
Contents en InstructionManualandInstallationInstructions
Before washing
ØIntended use 4
ØSafety instructions 5
ØProtection of the environment 8
ØGetting to know your appliance 9
ØDetergent drawer 10
ØOperating elements/Display elements 11
ØThe main points in brief 12
Operating the appliance
ØBefore each washing 13
ØWashing 19
ØAfter washing 22
ØProgramme overview 23
ØProgramme settings/options 30
ØAnti-stain system 33
ØIntelligent Dosing System 34
ØConsumption values 39
ØAppliance settings 40
ØSensors – Your washing machine is so intelligent 41
Cleaning and maintenance
ØCare and maintenance 42
ØEmergency lock release, e.g. if power failure occurs 48
ØInformation on the display panel 49
ØFaults, what to do? 50
ØCustomer service 52
Installing the appliance
ØStandard accessories 53
ØInstallation 55
ØRemove transportation protection devices 59
ØConnecting the water 61
ØAlignment 65
ØElectrical connection 66
ØBefore the 1st washing 68
ØTransportation, e.g. if moving house 69
Index 70

4
Beforewashing
Intended use
ØFor use in the household only.
ØThe washing machine is suitable for washing machine-
washable textiles and hand-washable wool in wash liquor.
ØThe washing machine is suitable to be operated with cold
drinking water and commercially available detergents and
care products which are suitable for use in washing
machines.
ØWhen dosing all detergents, cleaning aids, cleaning products
and cleaning agents, always follow the manufacturer's
instructions.
ØThe washing machine may be operated by children from 8
years of age, by persons who have limited physical, sensory
or mental abilities and by persons who have inadequate
experience or knowledge, provided they are supervised or
have been instructed by a responsible person.
ØKeep pets away from the washing machine!
Read and follow the operating and installation instructions and all
other information enclosed with the washing machine.
Retain documents for subsequent use.

5
Safety instructions
ãWarning!
Danger of death from electric shock!
Danger of death if live parts are touched.
– Never pull out the mains plug by tugging the power
cord.
– Insert/pull out the mains plug with dry hands only.
ãWarning!
Risk to children!
– Do not leave children unsupervised near the
washing machine.
– Children must not play with the washing machine.
– This will prevent children from locking themselves
in and suffocating.
On redundant appliances:
– Pull out the mains plug!
– Sever the power cord and discard together with
the plug.
– Destroy the lock on the washing-machine door.
– Children must not perform any cleaning or
maintenance work without supervision.
– When playing, children may become entangled in
the packaging/film and packaging parts or pull
them over their heads and suffocate.
Keep packaging, plastic film and packaging parts
out of the reach of children.
– When washing at high temperatures, the glass of
the washing machine door becomes hot.

6
Prevent children from touching the hot washing
machine door.
– Detergents and care products may cause
intoxication if consumed or eye and skin irritation if
touched.
Keep detergents and care products out of the reach
of children.
ãWarning!
Risk of explosion!
Items of washing pretreated with solvent detergents,
e.g. stain remover/petroleum ether, may cause an
explosion when the washing machine has been
loaded.
Before hand thoroughly rinse items of washing by
hand.
ãCaution!
Danger of scalding!
When washing at high temperatures, you may be
scalded if you touch the hot wash liquor (e.g.
if draining hot wash liquor into a washbasin or if
draining the washing machine in an emergency). Allow
detergent solution to cool down.
ãCaution!
Risk of damaging appliance!
–Cover plate may break!
Do not climb on the washing machine.
–Opened washing machine door may break off or
washing machine may overturn!
Do not lean on the open washing machine door.

7
ãCaution!
Danger when reaching into/gripping the rotating
drum!
If you reach into the rotating drum, you may injure your
hands.
Do not grip the rotating drum. Wait until the drum stops
rotating.
ãCaution!
Risk of coming into contact with liquid detergents/
care products!
If the detergent drawer is opened while the washing
machine is running, detergent/care product may spray
out.
Caution when opening the detergent drawer.
In case of eye/skin contact, rinse thoroughly.
If accidentally swallowed, seek medical advice.
ãCaution!
Hazard due to detergent/softener running out of the
dispensers!
Leaking detergent/softener may impair the function of
the appliance, e.g. damage to electronics.
Before transporting the appliance, always drain
dispensers.

8
Protection of the environment
Packaging/Old appliance
Hints and tips
ØUtilise the maximum amount of washing for the particular
programme.
ØWash normally soiled washing without Pre-wash.
ØInstead of Algodón/Algodão (Cottons) 90 °C programme
select Algodón/Algodão (Cottons) 60 °C and ecoPerfect ¦
button. Comparable cleaning result with significantly lower
energy consumption.
ØDetergent dosage using the intelligent dosing system helps
save detergent and water.
ØEnergy saving mode: The display panel light goes out after
several minutes, Inicio/Carga (Start/Pause) Üflashes. To
activate the light, select any button.
The energy-saving mode is not activated if a programme is
running.
ØAutomatic switch off: If the appliance is not operated for a
prolonged period, it automatically switches off before the
programme starts and when the programme has ended to
save energy. Switch on by pressing main switch # button.
ØIf the washing is then dried in the tumble dryer, select spin
speed according to the instructions of the dryer
manufacturer.
)Dispose of packaging in an environmentally friendly manner.
This appliance has been identified in accordance with the
European Directive 2002/96/EG on Waste Electrical and
Electronic Equipment (WEEE).
The Directive specifies the framework for an EU-wide valid return
and recycling of waste appliances.

9
Getting to know your appliance
2SHUDWLQJ
HOHPHQWV
'LVSOD\
HOHPHQWV
'UXPOLJKW
GHSHQGLQJ
RQPRGHO
'RRU
6HUYLFHIODS
'HWHUJHQWGUDZHU
2SHQLQJ DQGFORVLQJWKHGRRU 6HUYLFHIODS
FODFN

10
Detergent drawer
L
Intelligent Dosing System (i-Dos):
Your washing machine features an intelligent dosing system for liquid detergent and
softener. Dispensers i-Dos ô (1.3 l) and i-Dos iIô (0.5 l) in the detergent drawer are
used for this. You can select whether you want to use one liquid detergent and one
softener or two liquid detergents.
Depending on the selected programme and settings, the optimum amounts of detergent/
softener are dosed via the i-Dos containers.
At the factory the dosage has been preset for:
–i-Dos
ô¨detergent for lightly soiled washing and
–i-Dos
iIô©softener for normally soft washing.
Overview of the i-Dos settings starting on ~Page 23
¼ü 



½0{
ðð
Dispenser ôfor intelligent dosage: liquid detergent
Dispenser iôfor intelligent dosage: softener or liquid detergent
Dispenser ÀÁ for manual dosage. ~Page 38

11
Operating elements/Display elements
MP Q RS
T
O
K
N
U
V
²All buttons are sensitive, they only need to be touched gently.
iIndicator lights for intelligent dosage
~Page 35
jButton ecoPerfect ¦~Page 17,
~Page 30
kPress the main switch #button. Switch
on and off the appliance.
lProgramme selector – can be rotated in
either direction. Programme Overview,
refer to ~Page 23
mButton speedPerfect ~Page 17,
~Page 30
nButtons °C (Temperature), B(Spin),
Terminado en/em (Finish in) time
~Page 17, ~Page 30
oi-Dos iIôbutton, Dosage ~Page 18,
~Page 31
pi-Dos ôbutton, Dosage ~Page 18,
~Page 31
qInicio/Carga Ü(Start/Pause) button to
start, interrupt and cancel the
programme (e.g. reload washing).
hSimultaneously hold down Ajustes
base 3s. (Basic Settings 3 sec.) for
appliance settings (end signal, button
signal, language, autom. switch off, i-Dos
settings) for approx. 3 seconds.
Overview of all settings ~Page 40
rDisplay panel for settings and
information.
sSelect ×Menu (Options) for additional
programme options. Overview of all
options ~Page 32

12
The main points in brief

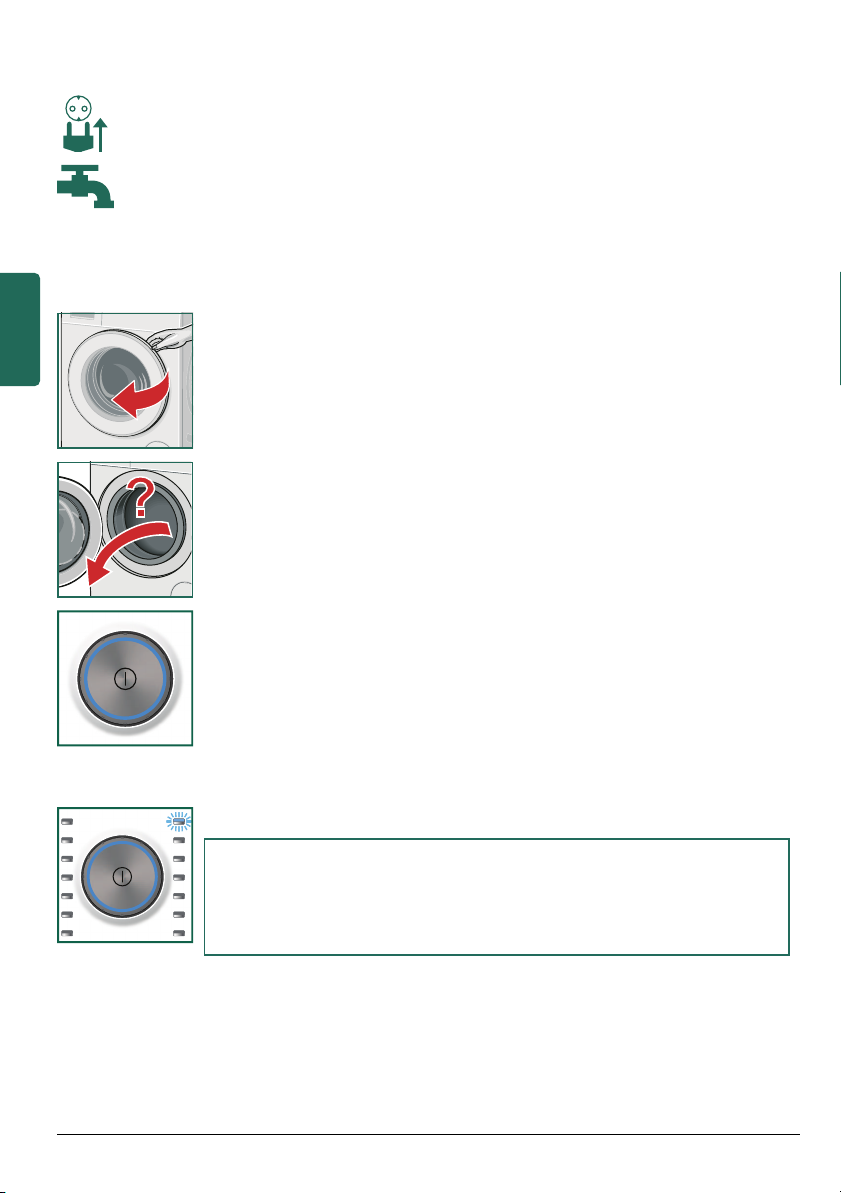

1@ @ @
Insert mains plug.
Turn the tap on.
Open the washing
machine door.
To switch on, press
the #button.
Select the pro-
gramme, e.g.
Algodón/Algodão
(Cottons).
2@ @
Dosage: automatic ú
Please load laundry: max. 8kg
Sort the washing. Insert the washing. Do not exceed maximum load.
3@ @
Close the washing
machine door.
If required, change programme settings of the
selected programme and select programme set-
tings/options.
Select Inicio/Carga
Ü(Start/Pause).
FODFN
4@ @
vFinished, remove washing
End of the programme For switching the
machine on, press
the # button.
Turn off the mains
supply (for models
without Aqua-Stop).

13
Operatingtheappliance
Before each washing
²–Install and connect washing machine properly.
Refer to ~Page 55
– Before the 1st wash, wash once without any washing.
~Page 68
1. Preparing the washing
Sorting the washing according to:
ØType of fabric/fibre.
ØColour.
ØSoiling.
ØFollow manufacturer’s care information.
ØCare label specifications:
Protecting the washing and the machine:
²– When dosing all detergents, cleaning aids, cleaning products
and cleaning agents, always follow the manufacturer's
instructions.
– Keep detergents and agents for the pretreatment of washing
(e.g. stain remover, prewash sprays, ...) away from the
surfaces of the washing machine. Using a damp cloth,
immediately remove any fine spray residue and other
residue/droplets.
–Emptypockets.
– Remove metal parts (paper clips, etc.).
– Wash delicates in the net/bag (tights, underwired bras).
–Closezips,buttonupcovers.
– Brush sand out of pockets and collars.
– Remove curtain fittings or include in the net/bag.
–Washnewitemsseparately.
<;Cottons 95 °C, 90 °C
:98Coloureds 60 °C, 40 °C, 30 °C
BA > Easy-Care 60 °C, 40 °C, 30 °C
AL>
K
Delicates 40 °C, 30 °C
WAL
>K
Hand and machine-washable silk and woollens cold, 40 °C,
30 °C
ŽDo not wash laundry in the washing machine.

14
2. Preparing the appliance
Insert mains plug.
Turn on water tap.
3. Selecting a programme and putting the washing in the
drum
1. Open the washing machine door.
2. Check whether the drum has been completely emptied. If
required, empty. Otherwise, the load display may malfunction.
~Page 41
3. Press the #button. The appliance is switched on.
The Siemens logo is indicated on the display panel and all
programme indicator lamps are lit.
Then always the Algodón/Algodão (Cottons) programme
preset at the factory is displayed.
Displays for the Algodón/Algodão (Cottons) programme:
– The indicator lamp is lit on the programme selector and
the main menu for the selected programme is indicated
on the display panel.
cc c c
60°C 1400B2:31h
i-Dos iIô©
i-Dos ø øô¨
bbb

15
– In the shell grip of the detergent drawer the indicator lights
for intelligent dosage are lit if intelligent dosage has been
selected.
– For appliances with drum light:
After switching on the appliance, after opening and
closing the washing machine door as well as after starting
the programme, the drum is lit. The light goes out
automatically.
4. Select a programme.
You can use the saved programme
or select another programme, Programme overview, refer
to ~Page 23,
or select other programmes (see Programas adic. (Others))
and choose one programme as follows:
e.g. Outdoor:
– Select programme using the buttons under the arrows.
The selection is acknowledged by a tick.
– Wait or back by pressing Main menu button, selected
programme is indicated on the display panel.
– To change the programme, select button under the black
highlighted programme and change programme.
5. Insert the washing.
The load screen for the selected programme (e.g. for
Cottons) is indicated on the display panel.
30 °C 800 B1:04h
Lingerie
Additional programms Outdoor è
Rinse
Main menu bc
cccc
30°C 800B1:04h
Outdoor
bbbb
Dosage: automatic ú
Please load laundry: max. 8kg

16
Displays for recommended dosage:
–Dosage: automatic, if intelligent dosage has been preset.
–Dosage: ...%, recommended dosage if no intelligent
dosage preset, see Manual dosage. ~Page 38
²– Unfold and load presorted items of washing. Mix large and
small items. Washing items of different size distribute
themselves better during the spin cycle. Individual items of
washing may cause an unbalanced load. ~Page 41
– Do not load washing until the main menu for the saved
programme is displayed after the Siemens logo.
– The load screen is indicated when the door is opened or
when the amount of washing is changed.
– The load bar progresses as the washing machine is loaded. If
the max. load is exceeded, the bar flashes. Do not exceed
indicated max. load. Overfilling reduces the washing result
and encourages creasing.
4. Changing the settings of the selected programme
²Take care not to trap any items of clothing between the loading
door and rubber seal.
Close the door.
The main menu for the selected programme is indicated again on
the display panel.
You can use the displayed presettings or adjust the selected
programme optimally to the items of washing by changing the
presettings or selecting additional settings/options.
ØChange °C (Temperature), B (Spin), Terminado en/em
(Finish in) time:
Selecting and changing e.g. the °C (Temperature):
FODFN
cccc
60°C 1400B2:31h
i-Dos iIô©
i-Dos ø øô¨
bb b
cccc
70
60°C
i-Dos iIô©
i-Dos øø ô ¨
1400B2:31h
50
bb b

17
The arrows on the display panel indicate which buttons are
used to change the settings. The settings are active without
acknowledgement and are displayed in the main menu.
²– If the buttons are held down, the set values automatically run
through.
– The respective programme duration is displayed by selecting
the programme. The programme duration is adjusted while
the programme is running if the programme duration requires
changing, e.g. due to changes in the programme settings/
options, foam detection, unbalanced load detection, the load
or soiling.
ØecoPerfect ¦:
For saving energy with a comparable washing effect to the
standard programme. When selected, the display lamp is lit.
ØspeedPerfect G:
For a shorter wash time with a comparable washing effect to
the standard programme. Observe maximum load. Refer to
When selected, the display lamp is lit.
ØßMenu (Options). Overview of all options ~Page 30
Select ßMenu (Options) and e.g. zWater Plus button:
– Select option by pressing the two buttons displayed on the
left.
– Select/deselect option by pressing the two buttons
displayed on the right. The selected options are
immediately active.
In the case of multi-level settings keep touching the
buttons to run through the settings automatically.
– Wait or back to the main menu by pressing ßMenu
(Options) button.
60°C 1400B2:31h z
Extra rinse
zWater Plus on è
Rinse Hold
bcbc

18
Øi-Dos iIôfordosingasoftenerorasecondliquid
detergent:
Selecting i-Dos iIôand changing dosage strength:
strong: for especially soft washing (softener) or for heavily
soiled or stained washing (detergent) when container
content: Detergent set
Øi-Dos ôfor dosing a liquid detergent:
Selecting i-Dos ôand changing dosage strength:
normal: for normally soiled washing.
²Do not manually dose additional detergent into detergent
drawer ÀÁ, if intelligent dosage for detergent has been
activated; prevents overdosage and foaming.
6. Starting the programme
ØSelect Inicio/Carga Ü(Start/Pause). The indicator light
is on.
60°C 1400B2:31h iIôª
normal
i-Dos iIôdosage ªstrong è
off
bc b c
60°C 1400B2:31h ô©
light
i-Dos ôdosage ©normal è
strong
bc b c

19
Washing
During the wash cycle the programme progress is indicated by a
bar on the display panel. The bar progresses in the course of the
wash cycle and provides information about the current
programme progress.
The arrows are switched on and off according to the programme
progress. They indicate the programme settings/options which
can be changed/added as the programme progresses.
Some programme sequence steps explained:
ØLoad adjust active ~Page 41
ØPrewash, wash, rinse, spin, drain ... are displayed during the
wash cycle.
ØRinsing with aqua sensor ~Page 41
ØExtra rinse: foam
ØOther displays ~Page 49
During washing
ØChildlock
To prevent the set functions of the washing machine from
being accidentally changed, the childproof lock can be
activated.
Activate/deactivate: press Terminado en/em (Finish in) for
approx. 5 seconds.
Display panel goes back to the Main menu after approx.
3seconds.
cc c
60°C 1400B2:31h
i-Dos iIô©
i-Dos ø øô¨
Load adjust active
bb
wChildlock has been activated

20
If the programme selector is adjusted or a button is selected
while the childproof lock is active, the wsymbol flashes
briefly.
ØTopping up washing
When the programme has started, washing can be reloaded
or taken out as required.
Select Inicio/Carga Ü(Start/Pause).
²– If there is a high water level, high temperature or if the drum
is rotating, the washing machine door remains locked for
reasons of safety and reload is not possible. Follow the
information on the display panel. To continue the programme,
select the Inicio/Carga Ü(Start/Pause) button. The
washing machine door is locked and the programme
continues automatically.
– Load display is not active during relosding.
– Do not leave washing machine door open for a prolonged
period – water could run out of the washing.
ØChanging the programme
if you have mistakenly started a wrong programme:
1. Select Inicio/Carga Ü(Start/Pause).
2. Select another programme.
3. Select Inicio/Carga Ü(Start/Pause). The new
programme starts from the beginning.
ØCancelling the programme
For programmes at high temperature:
1. Select Inicio/Carga Ü(Start/Pause).
2. Cool down washing: select Rinse (see Programas adic.
(other programmes)).
3. Select Inicio/Carga Ü(Start/Pause).
For programmes at low temperature:
1. Select Inicio/Carga Ü(Start/Pause).
2. Select Spin * or Drain *.
(* see Programas adic. (other programmes))
3. Select Inicio/Carga Ü(Start/Pause).
cc c
60°C 1400B2:31h
i-Dos iIô©
i-Dos ø øô¨
Pause: Reload is possible
bb
