AirPrime XS1110
Product Technical Specification
41113354
Rev 4.0

Product Technical Specification
Rev 4.0 Jul.20 2 41113354
Important
Notice
Due to the nature of wireless communications, transmission and reception of data
can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or
be totally lost. Although significant delays or losses of data are rare when wireless
devices such as the Sierra Wireless product are used in a normal manner with a
well-constructed network, the Sierra Wireless product should not be used in
situations where failure to transmit or receive data could result in damage of any
kind to the user or any other party, including but not limited to personal injury,
death, or loss of property. Sierra Wireless accepts no responsibility for damages
of any kind resulting from delays or errors in data transmitted or received using
the Sierra Wireless product, or for failure of the Sierra Wireless product to
transmit or receive such data.
Safety and
Hazards
Do not operate the Sierra Wireless product in areas where blasting is in progress,
where explosive atmospheres may be present, near medical equipment, near life
support equipment, or any equipment which may be susceptible to any form of
radio interference. In such areas, the Sierra Wireless product MUST BE
POWERED OFF. The Sierra Wireless product can transmit signals that could
interfere with this equipment.
Do not operate the Sierra Wireless product in any aircraft, whether the aircraft is
on the ground or in flight. In aircraft, the Sierra Wireless product MUST BE
POWERED OFF. When operating, the Sierra Wireless product can transmit
signals that could interfere with various onboard systems.
Note: Some airlines may permit the use of cellular phones while the aircraft is on the
ground and the door is open. Sierra Wireless modems may be used at this time.
The driver or operator of any vehicle should not operate the Sierra Wireless
product while in control of a vehicle. Doing so will detract from the driver or
operator's control and operation of that vehicle. In some states and provinces,
operating such communications devices while in control of a vehicle is an offence.
Limitation of
Liability
The information in this manual is subject to change without notice and does not
represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND
ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL
DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL,
PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO,
LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE
ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS
PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE
FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY.
Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its
affiliates aggregate liability arising under or in connection with the Sierra Wireless
product, regardless of the number of events, occurrences, or claims giving rise to
liability, be in excess of the price paid by the purchaser for the Sierra Wireless
product.

Preface
Rev 4.0 Jul.20 3 41113354
Patents This product may contain technology developed by or for Sierra Wireless Inc. This
product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one
or more patents licensed from MMP Portfolio Licensing.
Copyright © 2020 Sierra Wireless. All rights reserved.
Trademarks Sierra Wireless®, AirPrime®, AirLink®, AirVantage® and the Sierra Wireless logo
are registered trademarks of Sierra Wireless.
Windows® and Windows Vista® are registered trademarks of Microsoft
Corporation.
Other trademarks are the property of their respective owners.
Contact
Information
Revision
History
Sales information and technical
support, including warranty and returns
Web: sierrawireless.com/company/contact-us/
Global toll-free number: 1-877-687-7795
6:00 am to 5:00 pm PST
Corporate and product information Web: sierrawireless.com
Revision
number
Release date Changes
1.0 August 26, 2019 Creation
1.1 September 02, 2019 Updated:
•Table 2-1 on page 13
•Table 2-6 on page 16
•Table 3-14 on page 23
•Figure 5-5 on page 40
1.3 February 13, 2020 Updated:
•Patents and Trademarks sections
•Product Highlights and Features
•Specifications table
2.0 March 16, 2020 Removed Sleep mode under Power Saving in Table 2-6

Product Technical Specification
Rev 4.0 Jul.20 4 41113354
3.0 April 08, 2020 Added Appendix - Abbreviations
Minor text edits
Added SGE duration under SGE on page 9
Under PVT Logger Function on page 9:
•Removed valid and checksum
•Changed internal to external
•Changed 8 KB to 4.8 KB
Under Table 2-3:
•Changed Normal to Normal (Floating)
•Changed BootROM to BootROM (Pull high) and added step 5
Under Table 2-6:
•Removed maximum cold start from TTFF description
•Changed Position Accuracy to 1.5 m without aid
•Changed max altitude to 80,000
•Added another baud rate value
Under Table 3-10, Table 3-13, Table 3-19, changed QZSS to 193-201
On page 33, page 34, page 35, changed bypass capacitors to decoupling capacitors
4.0 July 2, 2020 Modified UART damping resistor value
Modified values in Table 7-1
Revision
number
Release date Changes

Rev 4.0 Jul.20 5 41113354
Contents
Function Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Target Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Product Highlights and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

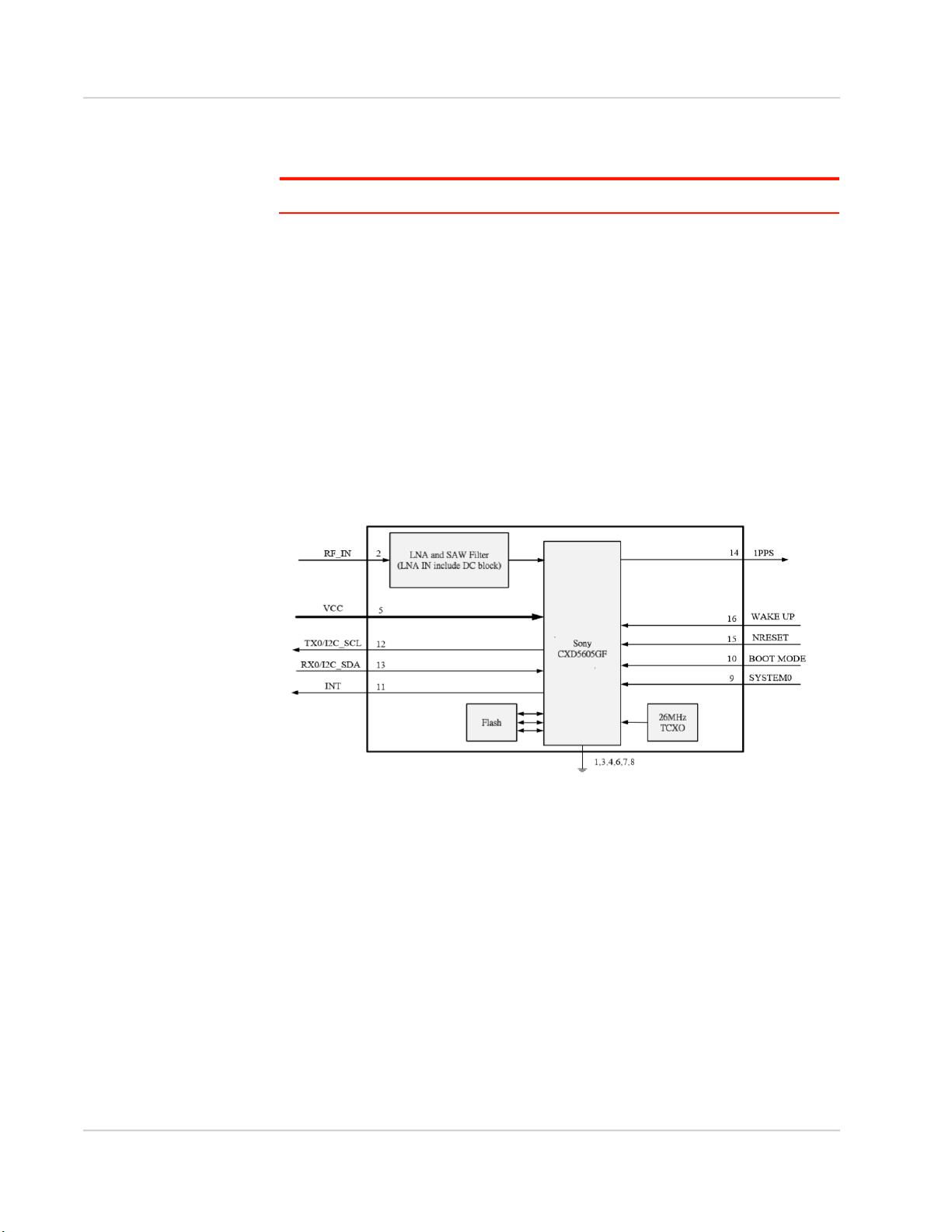

System Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
I2C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

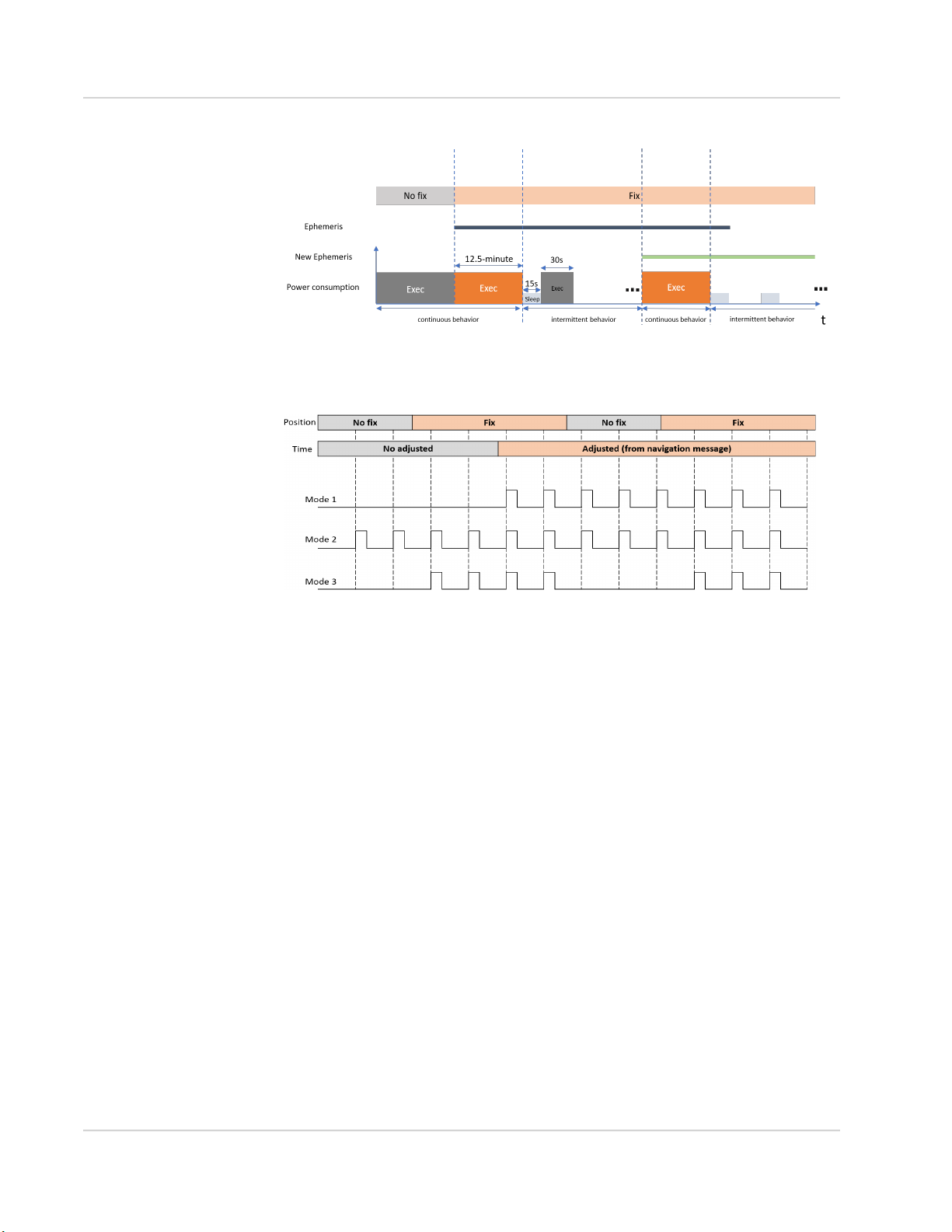

1PPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
LLE for Faster TTFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
SGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
PVT Logger Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Normal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

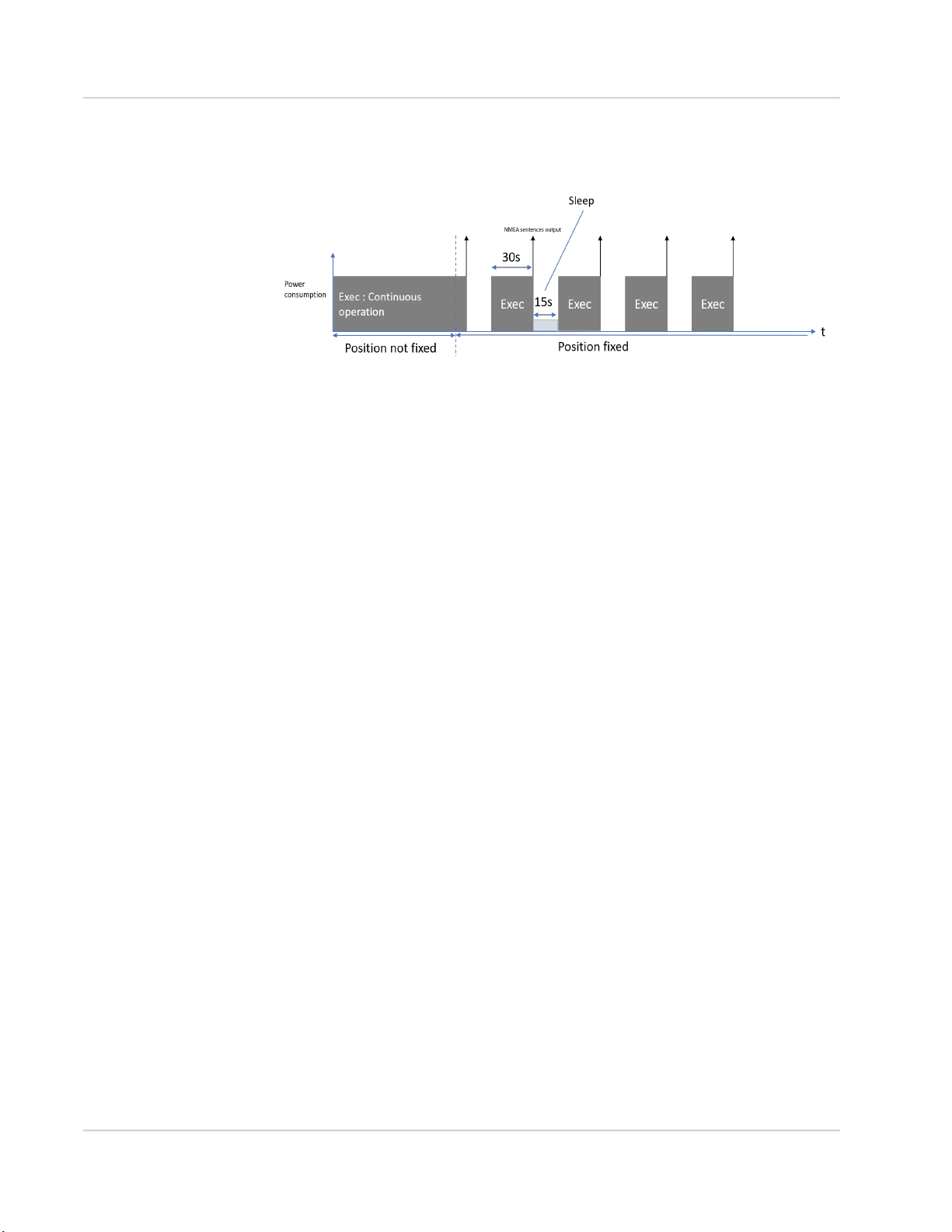

Low Power Tracking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Low Power Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

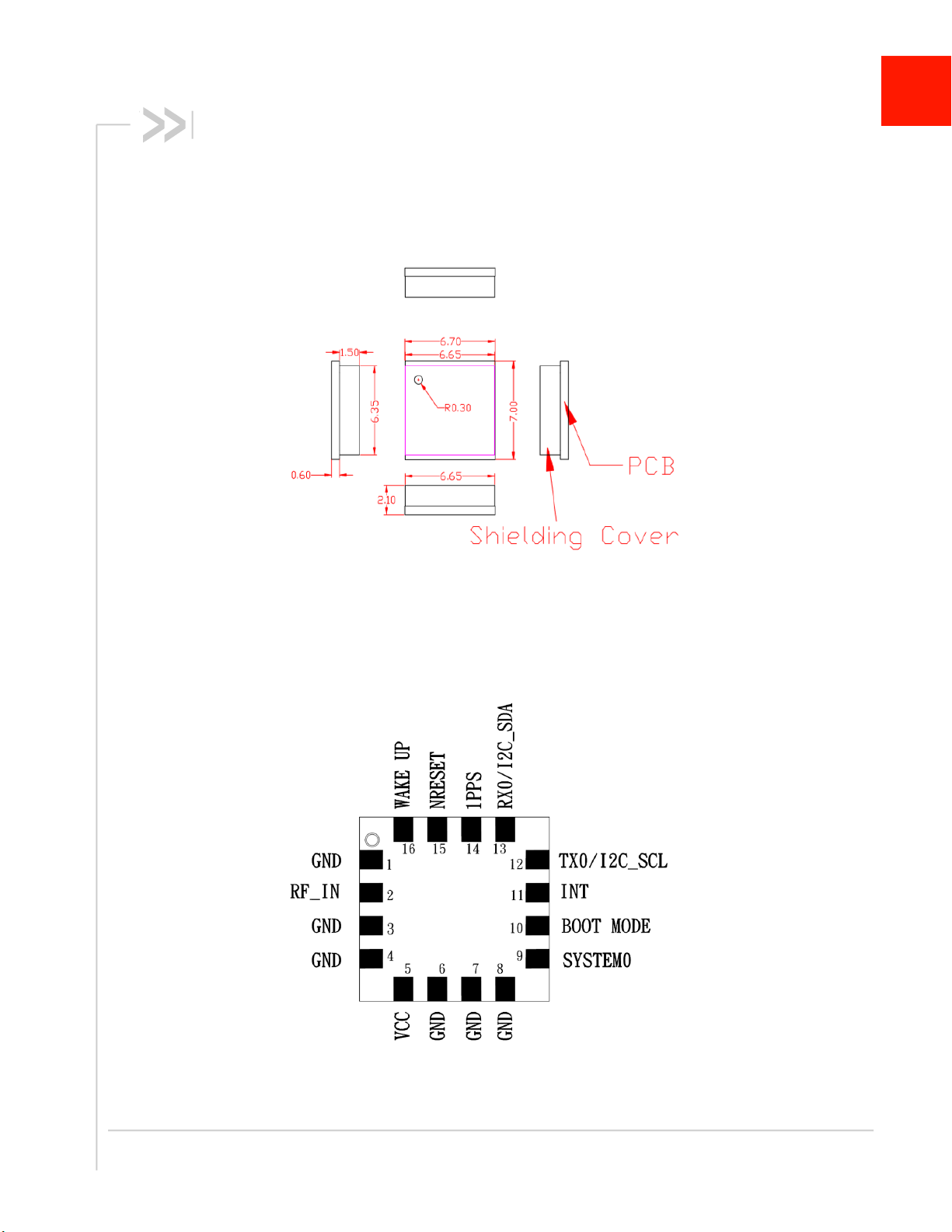

Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Pin Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

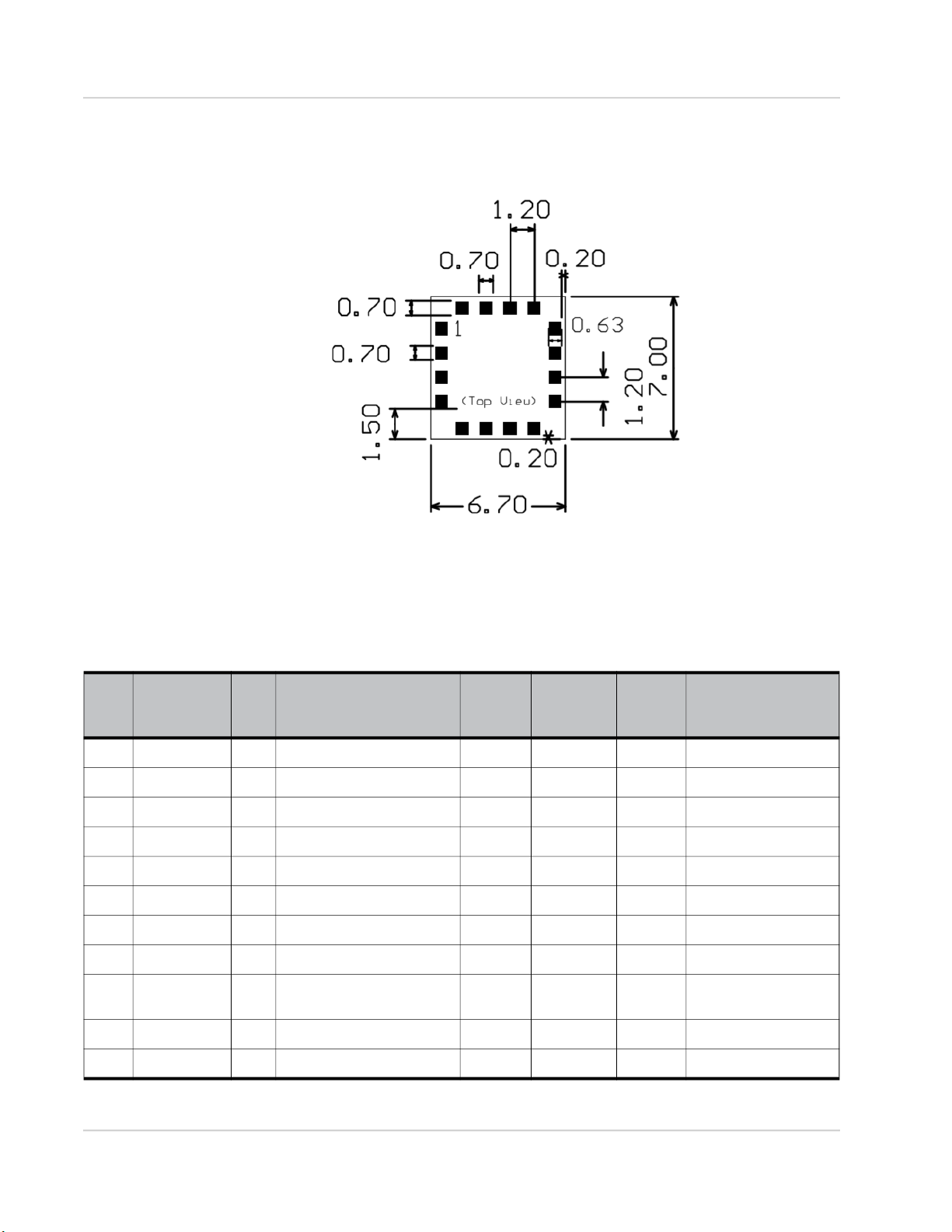

Pin Dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Description of I/O Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Absolute Maximum Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
NMEA Output Sentences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
GGA—Time, Position and Related Data of Navigation Fix . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
GLL—Geographic Position—Latitude / Longitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
GNS—GNSS Fixed Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
GSA—GNSS DOP and Active Satellites, Including GPS (GPGSA), GPS, and GLONASS (GNG-
SA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
GSV—Satellites in View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
RMC—Recommended Minimum Navigation Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Product Technical Specification
Rev 4.0 Jul.20 6 41113354
VTG—Course and Speed Information Relating to the Ground . . . . . . . . . . . . . . . . . . . . . . . . . 29
ZDA—Time and Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
PSWIRAW—Raw Measurement Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
NMEA Command Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Reference Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Reference Schematic Design for Using UART and I2C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Reference Schematic Design for UART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Reference Schematic Design for I2C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Reference Schematic Design for Using Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Reference Schematic Design for a Patch (Passive) Antenna . . . . . . . . . . . . . . . . . . . . . . . 36
General Rules for Circuit Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
UART / I2C Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
UART (RX / TX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
I2C (SCL / SDA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Antenna Compliance Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Designing an External Passive Patch Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
1PPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Layout Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Layout Underneath the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Trace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Ground Segmentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Checking the Working Status of the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Characteristic Impedance of the RF Input Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
UART to RS232 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
UART to USB Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Appendix - Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Rev 4.0 Jul.20 7 41113354
1
1: Function Description
Note: See Appendix - Abbreviations for the full meaning of abbreviations in this guide.
Overview
The XS1110 is a receiver that is capable of tracking GPS and GLONASS systems
simultaneously. This module provides an external antenna interface that supports
passive GNSS antennas.
The XS1110 is one of the smallest multi-GNSS modules on the market with an ultra-
compact size of 6.7 x 7.0 x 2.1 mm in a QFN package. It supports multiple interfaces
such as I2C that can be used instead of UART.
The module is integrated with a low drop out LDO which allows for the lowest possible
power consumption while offering optimum GNSS sensitivity and performance.
The XS1110 is based on the latest Sony CXD5605GF chipset and supports all
standard GNSS features including QZSS, Anti-Jamming, and AGPS.
Target Applications
•Handheld Devices
•M2M applications
•Asset management
•Surveillance systems
•Wearable products
Product Highlights and Features
•24 tracking / 12 acquisition-channel GPS and GLONASS, or GPS and Galileo, or
GPS and BeiDou receiver
•Supports QZSS and SBAS
•Sensitivity: -161 dBm
•Update rate: 1 Hz (default)
•High accuracy 1PPS timing (+-25ns) and the pulse width are 125 ms / 250 ms /
500 ms.
•LLE support for Fast TTFF (LLE data is injected in flash from FTP; supports 3 / 7 /
14 days)
•SGE orbit prediction for fast TTFF
•PVT logger function
•Supports interface types I2C/UART
•Consumption current (@1.8 V) for GPS and GLONASS constellations:
·Acquisition:15 mA / 18 mA / 22 mA (minimum / typical / maximum)
·Tracking: 12 mA / 15 mA / 22 mA (minimum / typical / maximum)
•RoHS compliant
•RED compliant

Product Technical Specification
Rev 4.0 Jul.20 8 41113354
Precautions
Important: Please read carefully before you start.
If you use the GNSS receiver inside buildings, tunnels, or beside any huge
objects, the GNSS signals might be cut off or weakened. Please do not assume
the receiver has malfunctioned.
This document provides the necessary guidelines for a successful system design
using the XS1110 module. For detailed module specifications, refer to this guide.
The XS1110 is an electrostatic-sensitive device; please DO NOT touch the
module directly. Follow ESD safety rules when handling. When using the XS1110
for the first time, it is strongly recommended that you test the module outdoors
with open sky, for at least 12 minutes and 30 seconds, to ensure receiving the
complete navigation message.
System Block Diagram
Figure 1-1: System Block Diagram
I2C
The I2C interface is a serial input and output port, operating as a slave device.
•Slave receiving
•Slave address: 0x24
•Speed grades: Standard-mode 100 kbit/s, Fast-mode 400 kbit/s

Function Description
Rev 4.0 Jul.20 9 41113354
1PPS
The XS1110 generates a one pulse-per-second signal (1PPS) after 3D fixed. It is
an electrical signal which precisely indicates the start of a second within an
accuracy of 25 ns. The PPS signal is provided through a designated output pin for
additional applications.
LLE for Fast TTFF
The LLE provides pre-download proprietary ephemeris data to speed up TTFF.
This feature is useful when a satellite signal is weak or when there is no signal; it
allows for the module to get position information quickly. LLE can be downloaded
from an FTP server via the Internet. LLE injection type can support GPS,
GLONASS, Galileo, BeiDou and QZSS.
SGE
The SGE is for quick positioning by itself when information received from the
satellites is sufficient. When SGE is enabled, the XS1110 will automatically
calculate and then predict single ephemeris up to three days. The predicted
information will be saved into the memory and the XS1110 will then use the saved
information for later positioning. The valid duration of SGE data is three days.
PVT Logger Function
The PVT logger function is enabled in the XS1110 module, and allows for the
module to become a logger-capable (built-in internal flash) device and record
GNSS data such as UTC, latitude, and longitude; it helps with record logging for
debugging.
The external flash of the module has 4.8 KB for this function and uses the smart
overlapping mechanism to keep the latest logger data.
Normal Mode
In Normal mode, the XS1110 module keeps on operating normally and updates
the latest navigation message anytime to get an accurate positional information.
Figure 1-2: Power Consumption in Normal Mode

Product Technical Specification
Rev 4.0 Jul.20 10 41113354
Low Power Tracking
Figure 1-3: Power Consumption in Low Power Tracking
When low power tracking of XS1110 is enabled, in the beginning, it keeps
receiving a GNSS navigation message. This GNSS navigation message is
continually received for about 12 minutes and 30 seconds and includes the
ephemeris, almanac, and satellite health in open sky.
After that, the module runs to cycle between Sleep (15 secs) and Exec (30 secs)
as shown in Figure 1-3.
Before the XS1110 module enters into a sleep state, it outputs
"GNSSLOWP,ENTRY,OK" messages in NMEA sentences to indicate that sleep
mode will be executed. Once the XS1110 wakes up, it outputs "GNSSLOWP,
WAKEUP, OK" to indicate that the module has woken up and will start updating
the navigation message.
The module executes hot start internally after waking up every time, then it
acquires satellite information for about 30 seconds to update the TOW (time of
the week).The module will check all of the satellite ephemeris status and ensure
that all updated data is the latest. Once update is complete, the modules enters
into the sleep cycle. If it doesn’t, it will keep acquiring satellites in an exec status
until all the navigation messages are completely updated as this is helpful for
ensuring positional accuracy.
The module will hot start after waking up from an intermittent behavior and, within
30 seconds, track satellites to update the TOW (time of the week). Then the
module will check all of the satellite ephemeris to ensure data update is complete.
If there are no issues, the module gets into the next sleep cycle. Otherwise, the
module will switch into continuous operation and keep tracking until data update
is complete.

Function Description
Rev 4.0 Jul.20 11 41113354
Figure 1-4: Low Power Tracking Behavior
Figure 1-5: 1PPS Output Types

Rev 4.0 Jul.20 12 41113354
2
2: Specifications
Mechanical Dimensions
Dimension: (Unit: mm, Maximum height: 2.3)
Figure 2-1: Mechanical Dimensions
Pin Configuration
Figure 2-2: Pin Configuration

Specifications
Rev 4.0 Jul.20 13 41113354
Pin Dimension
Figure 2-3: Pin Dimension
Pin Assignment
Table 2-1: Pin Assignment
Pin Name I/O Description and Note
Active
Low /
High
IO
Voltage
Domain
Reset
Statea
Recommendation
for Unused Pad
1GND P Ground 0V Mandatory connection
2RF_IN I GNSS RF signal input Mandatory connection
3GND P Ground 0V Mandatory connection
4GND P Ground 0V Mandatory connection
5VCC PI Main DC power input 1.8V Mandatory connection
6GND P Ground 0V Mandatory connection
7GND P Ground 0V Mandatory connection
8GND P Ground 0V Mandatory connection
9SYSTEM0 I UART / I2C interface
setting
1.8V I, PDaLeft open
10 BOOT MODE I BOOT firmware setting H 0V I, PDaLeft open
11 INT O Interrupt pin for I2C 1.8V O, PUaLeft open

Product Technical Specification
Rev 4.0 Jul.20 14 41113354
Description of I/O Pins
• Pin1: GND (Ground)
• Pin2: RF_IN
The GNSS RF signal input which can be connected to a passive antenna.
• Pin3: GND (Ground)
• Pin4: GND (Ground)
• Pin5: VCC
Main DC power supply (1.71 V to 1.89 V; typical: 1.8 V)
• Pin6: GND (Ground)
• Pin7: GND (Ground)
• Pin8: GND (Ground)
• Pin9: SYSTEM0
Can be used to set the UART or I2C interface.
12 TX0 /
I2C_SCL
I/O Serial data output for
NMEA output (TTL) / I2C
series clock (in slave mode)
1.8V Mandatory connection
13 RX0 /
I2C_SDA
I/O Serial data output for
firmware update (TTL) / I2C
series data (in slave mode)
1.8V Mandatory connection
14 1PPS O 1PPS time mark output 1.8V O, PUaLeft open
15 NRESET I Reset input L 1.8V I, PUaLeft open
16 WAKE UP I Wake up from power saving H 0V I, PDaLeft open
a. I = Input, O = Output, PU = Pull Up, PD = Pull Down, H = High, T = High Impedance
Table 2-1: Pin Assignment (Continued)
Pin Name I/O Description and Note
Active
Low /
High
IO
Voltage
Domain
Reset
Statea
Recommendation
for Unused Pad
Table 2-2: SYSTEM0 Setting
SYSTEM0 Interface
High (default 1.8 V) UART
Low I2C

Specifications
Rev 4.0 Jul.20 15 41113354
• Pin10: BOOT MODE
• Pin11: INT
·This is the interrupt sync. It is used to determine whether NMEA is stored in
the I2C buffer.
·If NMEA data is ready and stored in the I2C buffer, the pin will become
high.
·When the I2C bus is busy, the INT pin becomes high. When the I2C bus is
not busy, the INT pin becomes low.
• Pin12: TX0/I2C_SCL
Through the SYSTEM0 setting, the user can define this pin role as either
UART_TX0 or I2C_SCL.
·For TX0 pin: UART 0 transmitter; outputs GNSS information for application.
·For I2C_SCL pin: It can transceiver clock and communicate with host.
• Pin13: RX0/I2C_SDA
Through the SYSTEM0 setting, the user can define this pin role as either
UART_RX0 or I2C_SDA.
·For RX0 pin: UART 0 receiver; to receive commands from the system.
·For I2C_SDA pin: It can transceiver data and communicate with host.
Note: UART signals are named with respect to Module and directions are listed with
respect to the module. For example, UART_RX0 is an output from the Host to the module.
UART_TX0 is an output from the module to the Host.
• Pin14: 1PPS
This pin provides a one pulse-per-second signal output. If not used, keep this
pin floating.
• Pin15: NRESET
Active on Low for the module to reset. If not used, keep this pin floating.
Table 2-3: BOOT MODE Pin Setting
Mode Function
Normal (Floating) The module automatically enters normal mode by default.
BootROM (Pull high) Enter Boot ROM mode to upgrade by firmware using these
steps, when the module does not work normally or the upgrade
fails:
1. The WAKEUP pin must be initially connected to “VCC”.
2. Power on the module’s main power.
3. Use “SWGNSSTool’ to upgrade the firmware.
4. The BOOT MODE pin can be removed from “VCC” when
the upgrade process is completed.
5. Push the NRESET button to reset the module and allow it
to boot up normally.

Product Technical Specification
Rev 4.0 Jul.20 16 41113354
• Pin16: WAKE UP
Active on High will wake the module up from power-saving mode.
Specifications
Table 2-4: NRESET Level
Level Min (V) Typ (V) Max (V)
Low 0 - 0.5
High (default) 1.2 - 1.8
Table 2-5: WAKEUP Level
Level Min (V) Typ (V) Max (V)
Low (default) 0 - 0.5
High 1.2 - 1.8
Table 2-6: Specification Data
Description
GNSS Chipset Sony CXD5605GF
Frequency GPS / QZSS / SBAS L1, 2.046 MHz BW NB (centered on 1575.42 MHz)
GLONASS L1, ~8.3 MHz BW (1597–1606 MHz), 14 channels (-7 to +6)
Galileo E1, 4.092 MHz BW (centered on 1575.42 MHz)
BEIDOU B1, 4.092 MHz BW (1559.05 –1563.14 MHz)
Sensitivity Acquisition: -147dBm
Tracking: -161dBm
SV Numbers GPS #1~32
GLONASS #65~88 (see Chapter 3 for details)
BEIDOU #1~30
Galileo # 1~30
Protocol NMEA 0183 v4.10
TTFF
(No. of SVs ≥ 6, C/N > 40dB)
Hot start: 2 seconds typical
Warm start: 33 seconds typical
Cold start: 35 seconds typical
Position Accuracy Without aid: 1.5 m (CEP50)
Velocity Accuracy Without aid: 0.1 m/s
Timing Accuracy (1PPS Output) +-25 ns within 125 ms / 250 ms / 500 ms in one pulse
Altitude 80,000 m maximum

Specifications
Rev 4.0 Jul.20 17 41113354
Absolute Maximum Ranges
The maximum power supply voltage is 1.89 V.
Operating Conditions
Velocity Maximum 138 m/s
Acceleration Maximum 1.5 G
Update Rate 1 Hz
Baud Rate 115200 bps (default)
Power Supply VCC: 1.71 V to 1.89 V (typical: 1.8 V)
Current Consumption
@ 1.8 V,1 Hz Update Rate
GPS and GLONASS, GPS and Galileo, or GPS and BEIDOU:
Acquisition: 15 mA / 18 mA / 22 mA (minimum / typical / maximum)
Tracking: 12 mA / 15 mA / 22 mA (minimum / typical / maximum)
Power Saving Idle: 4 mA (typical)
Sleep 0 mode: 1 mA (typical)
Sleep 1 mode: 350 μA (typical)
NRESET Current @ 1.8 V 500 μA (typical)
Working Temperature -40 °C to +85 °C
Dimension 6.7 x 7.0 x 2.1 mm, SMD
Weight 0.2 g
Table 2-6: Specification Data (Continued)
Description
Table 2-7: Maximum Ranges
Symbol Minimum Maximum Unit
Power Supply Voltage VCC 1.71 1.89 V
Table 2-8: Operating Conditions
Parameter Condition Minimum Typical Maximum Unit
RX0 TTL H Level
VCC=1.8 V
1.2 - 1.8 V
RX0 TTL L Level 0 - 0.5 V
TX0 TTL H Level 1.4 - 1.8 V
TX0 TTL L Level 0 - 0.3 V

Rev 4.0 Jul.20 18 41113354
3
3: Protocols
NMEA Output Sentences
Table 3-1 lists all NMEA output sentences specifically developed and defined by
Sony.
Table 3-2 lists NMEA output sentences used in GPS and GLONASS systems.
Table 3-1: Position Fix Indicator
Option Description
GGA Time, position and fix type data.
GSA GNSS receiver operating mode, active satellites used in the
position solution and DOP values.
GSV Number of GPS satellites in view, satellite ID numbers, elevation,
azimuth, and SNR values.
RMC Time, date, position, course and speed data.
Recommended minimum navigation information.
VTG Course over ground and ground speed
ZDA Time and date
PSWIRAW GNSS raw measurement data
Table 3-2: NMEA v4.10 Output Sentence for GPS and GNSSa
System GGA GSA GSV RMC VTG ZDA
GPS GPGGA GPGSA GPGSV GPRMC GPVTG GPZDA
GNSS
(GPS and GLONASS)
GNGGA GNGSA GPGSV
GLGSV
GNRMC GNVTG GNZDA
QZSS GQGSV
a. In Talker ID, GP is a short term of “GPS”, GL is “GLONASS”, GQ is “QZSS” and GN is “GNSS”.

Protocols
Rev 4.0 Jul.20 19 41113354
GGA—Time, Position and Related Data of
Navigation Fix
Table 3-3 explains the sentence below.
GPS satellite or GPS and GLONASS satellites:
$GPGGA,185942.00,3732.999923,N,12658.999901,E,1,12,0.7,
-18.1,M,18.3,M,x.x,xxxx*79
Table 3-3: GGA Data Format
Name Example Units Description
Header $
Talker ID GP GP: Using only GPS for positioning
GL: Using only GLONASS for positioning
GA: Using only Galileo for positioning
BD: Using only BeiDou for positioning
GQ: Using only QZSS for positioning
GN: Using combined satellite systems for positioning
Sentence ID GGA
UTC Time 080105.08 hh [hr] mm [min] ss.ss [sec]
Latitude 2459.9326 dd [deg] mm.mmmm [min]
N/S Indicator N N: North latitude or S: South latitude
Longitude 12127.4423 dd [deg] mm.mmmm [min]
E/W Indicator E E: East longitude or W: West longitude
Quality Indicator 1 See Table 3-4
Number of satellites in
use
12
HDOP 1.0 Horizontal Dilution of Precision
MSL Altitude 14.7 meters Antenna Altitude above / below mean sea-level
Units M meters Units of antenna altitude
Geoidal Separation 17.0 meters
Units M meters Units of geoids separation
Age f DGPS Data x.x second Null fields when DGPS is not used
Differential reference
station ID
xxxx Null fields when DGPS is not used
Checksum *5C
<CR><LF> End of message termination

Product Technical Specification
Rev 4.0 Jul.20 20 41113354
Table 3-4: Position Fix Indicator
Value Description
0Fix not available
1GPS Fix
2Differential GPS Fix
