WARNING
To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
Note
You are cautioned that any changes or modifications not expressly approved in this manual
could void your authority to operate this equipment.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
This equipment complies with FCC radiation exposure limits set forth for uncontrolled
equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to
OET65. This equipment should be installed and operated with at least 20cm and more
between the radiator and person’s body (excluding extremities: hands, wrists, feet and legs).
Owner’s Record
The model and serial numbers are located on the bottom of both units. Record the serial
number in the space provided below. Refer to them whenever you call upon your Sony dealer
regarding this product.
Model number: HWS-AV10K
Transmitter: HWS-AV10T
Receiver: HWS-AV10R
Serial number
Transmitter: ___________________________
Receiver: ___________________________

3US
Table Of Contents
Features ........................................................................................................4
Preparing
Checking the package contents .................................................................5
Identifying parts and controls.....................................................................6
Transmitter .............................................................................................................. 6
Receiver ................................................................................................................... 7
Preparing the transmitter ............................................................................8
Preparing the receiver .................................................................................9
Operating
Watching A/V contents ..............................................................................10
Improving reception ...................................................................................11
To avoid the electromagnetic interference ............................................................ 11
Adjusting the dedicated antenna ........................................................................... 12
Installing the IR Blaster .............................................................................13
Others
Troubleshooting .........................................................................................14
Precautions.................................................................................................16
Specifications .............................................................................................17
US

4US
Features
Enjoy wireless transmission of stereo A/V contents in virtually any room of your house.
Easily and wirelessly enjoy A/V contents playing in one room on a TV in another room. Just
plug the transmitter into the A/V equipment you want to watch and plug the receiver into the
TV in another room.
PLAY
PLAY
Receiver
Receiver
Transmitter
Transmitter
Receiver
Transmitter
•Wireless system eliminates the need for cables running between rooms.
• Sony original 2.4 GHz wireless A/V transmission system.
•4selectable transmission channels (frequencies) for optimum reception.
• Wireless remote control signal transmission, allowing remote control of transmitting A/V
equipment from another room (remote control not supplied).
• Remote control extender (IR Blaster) supplied to control A/V equipment in main room using
an existing remote control.
•Up to 100 ft. unobstructed signal reception (up to 60 ft. reception through most walls and
floors).
•Separate receiving dedicated antenna for excellent transmission.
*As with all wireless products, actual performance will vary depending on environment.

5US
Preparing
Checking the package contents
After unpacking, check that all the following items have been included:
•Transmitter: HWS-AV10T* (1)
•Receiver: HWS-AV10R* (1)
•Dedicated antenna (1)
•IR Blaster (1)
•AC power adaptor (2)
•A/V cable (2)
•Operating instructions (1)
• To enjoy clear images and sounds (1)
•Double sided seal (for IR Blaster) (1)
•Warranty card (1)
*The transmitter and receiver are the same shape.
Check the label on the bottom of both units for the
model name.

6US
Identifying parts and controls

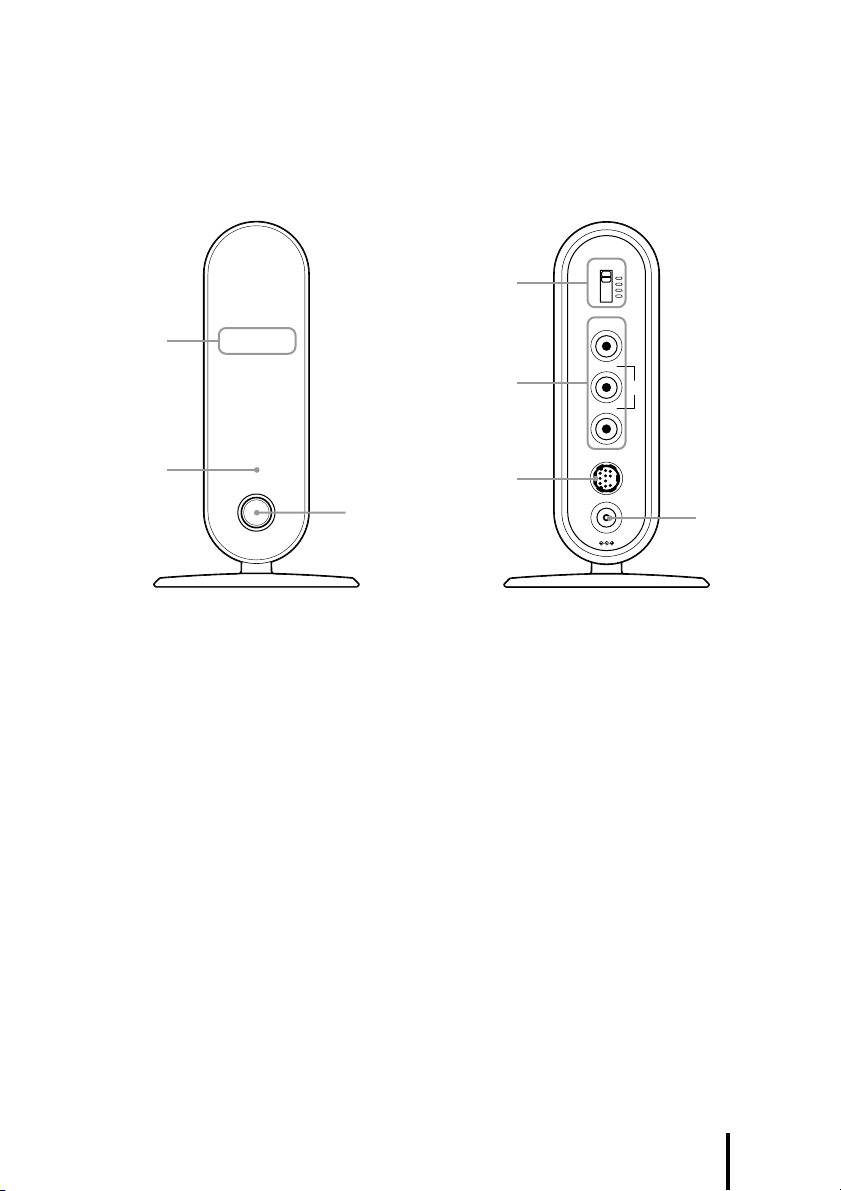

Transmitter
Front
1
2
1Power indicator
Lights when the transmitter is turned on.
2Power button
Turns the transmitter power on and off.
Rear
CHANNEL
VIDEO IN
LEFT
AUDIO
IN
RIGHT
IR
EXTENDER
DC IN 6V
3
4
5
6
3CHANNEL switch*(page 11)
Selects a desired channel (frequency) to
transmit.
4VIDEO/AUDIO IN jacks (page 8)
Connects the A/V cables to A/V
equipment in main room.
5IR EXTENDER jack (page 13)
Connects the IR Blaster (supplied).
Do not connect the other of supplied IR
Blaster.
6DC IN 6V jack (page 8)
Connects the AC power adaptor
(supplied).
* Make sure to set the CHANNEL switch of the
transmitter and receiver to the same position.

7US
Receiver
Rear
CHANNEL
VIDEO OUT
LEFT
AUDIO
OUT
RIGHT
ANT
DC IN 6V
b
4
5
6
7
4CHANNEL switch*(page 11)
Selects a desired channel (frequency) to
receive.
5VIDEO/AUDIO OUT jacks
(page 9)
Connects the A/V cables to your TV in
another room.
6ANT jack (page 9)
Connects the dedicated antenna.
7DC IN 6V jack (page 9)
Connects the AC power adaptor
(supplied).
* Make sure to set the CHANNEL switch of the
transmitter and receiver to the same position.
Front
1
2
3
1Infrared receiver
Receives the signal from the remote
control.
Point and operate the remote control of
A/V equipment at here.
2Power indicator
Lights when the receiver is turned on.
3Power button
Turns the receiver power on and off.

8US
Preparing the transmitter

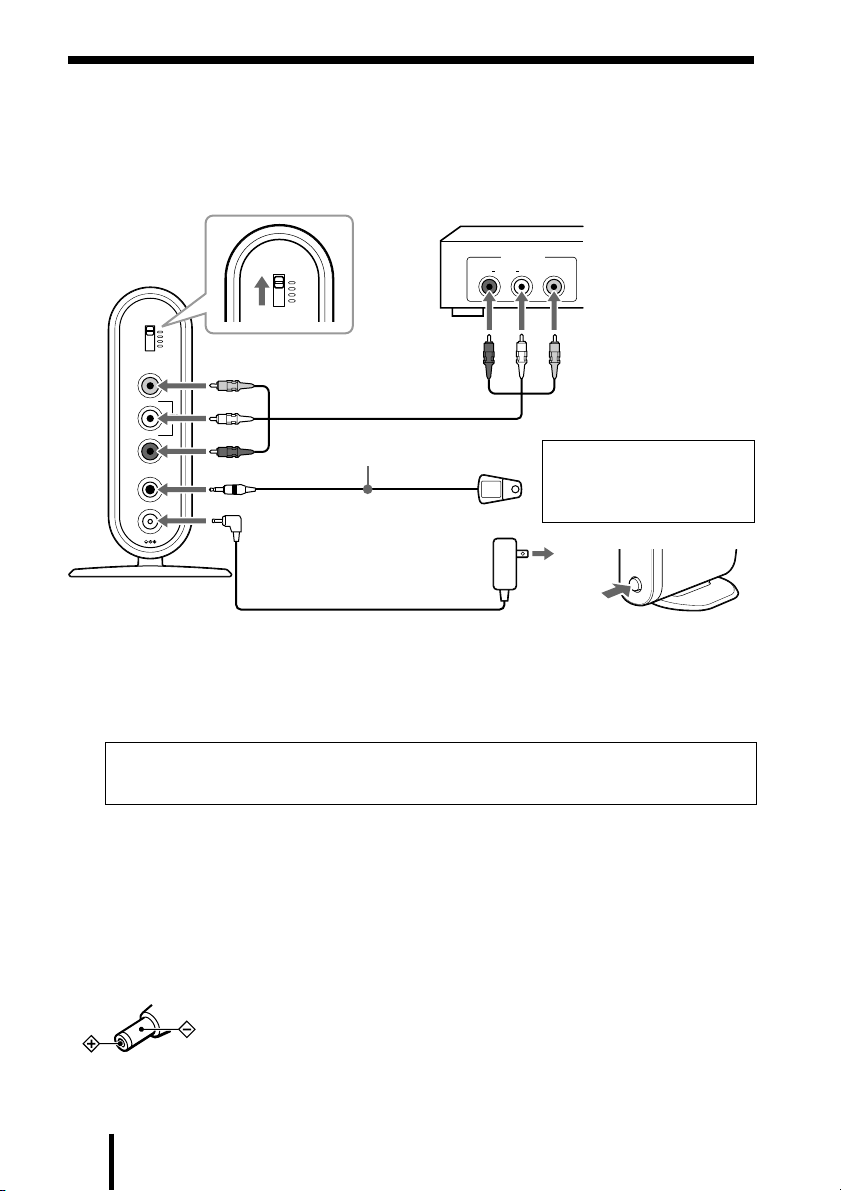

Connect the A/V equipment in the main room to the transmitter and then turn on the
transmitter. If you want to operate the A/V equipment connected with the transmitter from
another room, see “Installing the IR Blaster” (page 13) to set the IR Blaster.
CHANNEL
VIDEO IN
LEFT
AUDIO
OUT
RIGHT
DC IN 6V
IR
EXTENDER
R AUDIO L VIDEO
OUT PUT
CHANNEL
1
2
5
34
1Connect the A/V equipment’s output jacks in the main room to the
transmitter’s VIDEO/AUDIO IN jacks with the A/V cable (supplied).
2Set the CHANNEL switch to the top.
Important
Make sure to set the CHANNEL switch of the transmitter and receiver to the same position.
3Connect the AC power adaptor to the transmitter.
4Connect the AC power adaptor to the wall outlet.
5Press the POWER button on the front of the transmitter to turn it on.
The power indicator on the front of the transmitter lights green.
Notes
• Use only the recommended AC power adaptor manufactured by Sony. Polarity of the plugs of other
manufacturers may be different.
•If you connect a DVD player to the transmitter via a VCR, the VCR’s copy guard function may distort
or dim the DVD picture. In this case connect the DVD player directly to the VIDEO/AUDIO IN jack on
the transmitter.
A/V equipment
For details about
installing the IR Blaster,
see “Installing the IR
Blaster” (page 13).
IR Blaster (supplied)*
* Do not connect the other of supplied IR Blaster.

9US
Preparing the receiver
Connect the TV in another room to the receiver and then turn on the receiver.
INPUT
CHANNEL
VIDEO OUT
LEFT
AUDIO
OUT
RIGHT
DC IN 6V
ANT
b
R AUDIO L VIDEO
CHANNEL
1
2
6
4
3
5
1Connect the TV’s external input jacks in the another room to the
receiver’s VIDEO/AUDIO OUT jacks with the other A/V cable
(supplied).
2Set the CHANNEL switch to the top.
Important
Make sure to set the CHANNEL switch of the transmitter and receiver to the same position.
3Connect the dedicated antenna to the ANT jack.
4Connect the AC power adaptor to the receiver.
5Connect the AC power adaptor to the wall outlet.
6Press the POWER button on the front of the receiver to turn it on.
The power indicator on the front of the receiver lights green.
TV

10US
Operating
Watching A/V contents
You can enjoy images and sounds from A/V equipment connected to the transmitter in the
main room by setting the appropriate input. See also the TV’s instruction manual.
Before you operate the TV, make sure as following:
sConnected the transmitter to the A/V equipment and the receiver to the TV.
sTurned on the transmitter and receiver.
sSet the CHANNEL switch of transmitter and receiver to the same position.
1Turn on the TV.
2Set the TV to the appropriate input.
3Play back the A/V equipment connected to the transmitter.
You can enjoy images and sounds received by the receiver.
Notes
• If the connected A/V equipment is not turned on, you cannot enjoy the image and sounds.
•If the image or sound is distorted, see “Improving reception” (page 11).
Information
If you operate the A/V equipment connected to the transmitter using the remote control,
see “Installing the IR Blaster” (page 13).
PLAY

11US
To avoid the electromagnetic interference
2.4 GHz range
wireless equipment
2.4 GHz range
wireless equipment
Bluetooth
R
equipment
Wireless LAN
system
Cordless phone Wireless LAN
system
Cordless phone
HWS-AV10K
If this unit or other equipment does not work correctly
Try one or both of the following procedures.
1Change the frequency (CHANNEL switch) to another frequency.
CHANNEL
You can avoid conflicts between this unit and other equipment by changing the CHANNEL
switch on the rear of this unit. See the table at above for the frequency settings.
Important
Make sure to set the CHANNEL switch of the transmitter and receiver to the same position.
2Move this unit away from other equipment.
When you are using this unit close to other equipment, electromagnetic interference may
occur. Move this unit away from other equipment.
Improving reception
Channel 1 : 2.415 GHz
Channel 2 : 2.429 GHz
Channel 3 : 2.443 GHz
Channel 4 : 2.457 GHz
This unit uses a 2.4 GHz frequency
range. This is the same frequency
range used by a cordless phone,
wireless LAN, Bluetooth equipment,
microwave oven or other wireless
equipment. If you use this unit
together such equipment, malfunction
may result.

12US
Antenna adjuster knob
Antenna adjuster knob
Adjusting the dedicated antenna
If the image is distorted, try the following procedures.
1Rotate the dedicated antenna horizontally for optimum reception.
2Adjust the dedicated antenna by using the antenna adjuster knob.
3Repeat step 1 and 2, and set the dedicated antenna where a clear
image is achieved.
Tips
• The antenna adjuster knob has a “v”mark to show the reception direction, which can be adjusted for
optimum sensitivity.
•You can set the dedicated antenna by adjusting the cable along the groove on the bottom of the
dedicated antenna.
Bottom of the dedicated antenna

13US
Installing the IR Blaster
You can operate the A/V equipment connected to the transmitter using the remote control in
another room.
PLAY
Another room A/V equipment's room
PLAY
Control signal
Set the IR Blaster by the following procedure.
1Put the supplied double sided seal on the IR Blaster.
Do not remove the opposite face of the double sided seal yet. You can also use a
store-bought double sided seal.
2Connect the IR Blaster to the IR EXTENDER jack on the rear of the
transmitter.
Do not connect the other of supplied IR Blaster.
3Position the IR Blaster above the infrared receiver on the A/V
equipment.
To locate the infrared receiver, see the instruction manual for the connected A/V
equipment. Make sure to place the IR Blaster just above the infrared receiver.
4Perform the operation test.
Point and operate the remote control of A/V equipment at the receiver’s infrared receiver,
and check the performance of the connected A/V equipment correctly.
5Fix the IR Blaster.
After performing the operation test on the connected A/V equipment, remove the opposite
face of the double sided seal, and then fix the IR Blaster in the installation in step 3.
Notes
• Some A/V equipment may not operate correctly, depending on the installation location. Install the IR
Blaster and A/V equipment’s infrared receiver as close as possible.
•If other A/V equipment is nearby the transmitter, accidental wrong operation of this A/V equipment may
occur due to the location of the IR Blaster. In this case, change the installation location of the IR Blaster.
• If you place the transmitter too close to the receiver, the signal may be looped from the receiver back to
the transmitter. In this case, place the receiver further apart from the transmitter.
Double sided seal
A/V equipment
Infrared emitter
Infrared receiver

14US
Others
Troubleshooting
There is no picture or sound on the TV.
The unit does not turn on.
The unit does not connect
to A/V equipment
correctly, or there is no
A/V signal from the A/V
equipment.
The transmitter’s
frequency is different
from the receiver’s.
No signal reaches the
receiver.
Electromagnetic
interference occurs.
The TV is not set to the
appropriate input.
cMake sure to turn on the transmitter and receiver.
cMake sure to connect the transmitter to the AC power adaptor,
and then to a wall outlet.
cMake sure to connect the receiver to the AC power adaptor, and
then to a wall outlet.
cMake sure to connect the transmitter to the A/V equipment.
cMake sure to connect the receiver to the TV, and the receiver to
the dedicated antenna.
cTurn on the A/V equipment connected to the transmitter and
play back.
cMake sure to set the CHANNEL switch of the transmitter and
receiver to the same position.
cAdjust the direction of the dedicated antenna (page 12).
cSet the transmitter closer to the dedicated antenna.
cIf there are any obstacles (especially metallic) between the
transmitter and the receiver, remove them.
cReorient the dedicated antenna to minimize the problem (page
12).
cWhen you are using a microwave oven near the dedicated
antenna, electromagnetic interference occurs in the unit, but
stops if you stop using the microwave oven.
cWhen you are using a cordless phone, a wireless LAN,
Bluetooth equipment such as same frequency (2.4 GHz)
wireless equipment as the unit near the dedicated antenna,
change the CHANNEL switch (frequency) to another frequency
to avoid interference, or set the unit away from the interfering
equipment.
cSet the TV to the appropriate input.

15US
There is a noise on the image or sound.
The signal from the
transmitter is weak.
The unit is influenced by
other electromagnetic
radiation.
cReorient the dedicated antenna (page 12).
cSet the transmitter closer to the dedicated antenna.
cIf there are any obstacles (especially metallic) between the
transmitter and the receiver, remove them.
If you set the transmitter or the receiver (the dedicated antenna)
in a cabinet, relocate out of cabinet.
cReorient the dedicated antenna to minimize the problem (page
12).
cWhen you are using a microwave oven near the dedicated
antenna, electromagnetic interference occurs in the unit, but
stops if you stop using the microwave oven.
cWhen you are using a cordless phone, a wireless LAN,
Bluetooth equipment such as same frequency (2.4 GHz)
wireless equipment as the unit near the dedicated antenna,
change the CHANNEL switch (frequency) to another frequency
to avoid interference, or set the unit away from the interfering
equipment.
You cannot use a wireless LAN when you started using the unit.
This malfunction occurs
as a result of the unit and
wireless LAN’s frequency
being the same.
cChange to another frequency so as not to influence the wireless
LAN.
cSet the transmitter away from the equipment using the wireless
LAN.
You cannot operate the remote control.
The remote control signal
does not get to the
receiver’s infrared
receiver.
The signal from the
transmitter (IR Blaster)
does not reach the infrared
receiver of the A/V
equipment connected to
the transmitter.
cPoint and operate the remote control from a position that faces
the receiver.
cIf there are any obstacles between the receiver and the remote
control, remove them.
cMake sure to connect the IR Blaster to the transmitter correctly.
cSet the infrared position (forefront) of the IR Blaster to the
infrared receiver position of the A/V equipment connected to
the transmitter.

16US
Precautions
•Operate the unit on the power sources specified in “Specifications”.
•The nameplate indicating voltage, etc. is located on the bottom of the unit.
•To disconnect the power cord (mains lead), pull it out by the plug, not the cord.
•Disconnect the AC power adaptor from the wall outlet when the unit is not to be used for a
long period of time.
•Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies)
that block the ventilation holes.
•Should any liquid or solid object fall into the unit, unplug the unit and have it checked by
qualified personnel before operating it further.
•To clean the casing, use a soft cloth dampened with a mild detergent solution.
•Be sure to bring the transmitter, receiver and dedicated antenna to the Sony dealer when
requiring repair work.
If you have any questions or problems concerning the system that are not covered in this
manual, please consult your nearest Sony dealer.

17US
Specifications
General
Model name: HWS-AV10K
Transmission frequency:
A/V signal Channel 1 : 2.415 GHz
Channel 2 : 2.429 GHz
Channel 3 : 2.443 GHz
Channel 4 : 2.457 GHz
Control signal 433.92 MHz
Max. communication range: Line of sight approx.100 ft. (30 m)
Operating temperature: 0°C to 40°C (32°F to 104°F)
Supplied accessories:
AC power adaptor (DC 6 V, 800 mA) (2), A/V cable (approx. 39.4 inches/1 m,
V/L/R yV/L/R) (2), IR Blaster (1), Double sided seal (1), Operating instructions
(1), To enjoy clear images and sounds (1), Warranty card (1)
Transmitter: HWS-AV10T
Video input: Impedance: 75 Ω
Level: 1 Vp-p
Audio input: Impedance: 81 kΩ
Level: 0.5 Vrms
Power consumption: Less than 240 mA
Power requirement: DC 6 V (supplied AC power adaptor)
Input terminal: Pin jack (Video, Audio L/R)
Output terminal: ø 3.5 mm monaural mini jack (IR Blaster)
Dimensions (w/h/d): approx. 2.7 ×4.9 ×4.3 inches (approx. 68 ×124 ×110 mm)
Mass: approx. 6.7 oz (186 g)
Receiver:HWS-AV10R
Video output: Level: 1 Vp-p
Audio output: Level: 0.5 Vrms
Frequency response: 100 Hz - 20 kHz
Power consumption: Less than 260 mA
Power requirement: DC 6 V (supplied AC power adaptor)
Input terminal: 10-pin mini DIN jack (Dedicated antenna)
Output terminal: Pin jack (Video, Audio L/R)
Dimensions (w/h/d):
Main unit: approx. 2.7 ×4.9 ×4.3 inches (approx. 68 ×124 ×110 mm)
Dedicated antenna: approx. 3.4 ×3.2 ×3.2 inches (approx. 86 ×82 ×82 mm)
(Cable length: approx. 39.4 inches/1 m)
Mass:
Main unit: approx. 5.8 oz (approx. 165 g)
Dedicated antenna: approx. 4.7 oz (approx. 133 g)
Design and specifications are subject to change without notice.

2ES
ADVERTENCIA
Para reducir el riesgo de incendios o electrocución, no exponga el aparato a la
lluvia ni a la humedad.
Nota
Tenga en cuenta que cualquier cambio o modificación no expresamente aprobado en este manual puede
anular su autoridad para utilizar este equipo.
El transmisor no debe colocarse ni utilizarse junto con ninguna otra antena o transmisor.
Este equipo cumple con los límites de exposición a la radiación de la FCC establecida para
equipos no controlados y con las directrices de exposición a radiofrecuencia (RF) de la FCC
que figuran en el suplemento C de la OET65. Este equipo debe instalarse y utilizarse con una
separación mínima de 20 cm o superior entre el radiador y el cuerpo de la persona (excluidas
las extremidades: manos, muñecas, pies y piernas).

3ES
Tabla de contenido
Características .............................................................................................4
Preparación
Comprobación del contenido del paquete ................................................5
Identificación de piezas y controles...........................................................6
Transmisor............................................................................................................... 6
Receptor .................................................................................................................. 7
Preparación del transmisor.........................................................................8
Preparación del receptor .............................................................................9
Funcionamiento
Visualización de contenidos de A/V .........................................................10
Mejora de la recepción ..............................................................................11
Para evitar interferencias electromagnéticas ......................................................... 11
Ajuste de la antena específica ............................................................................... 12
Instalación del IR Blaster ..........................................................................13
Otros
Solución de problemas ..............................................................................14
Precauciones ..............................................................................................16
Especificaciones ........................................................................................17
ES

4ES
Características
Disfrute de la transmisión inalámbrica de contenido de A/V estéreo en casi cualquier
habitación de la casa.
Disfrute del contenido de A/V que se está reproduciendo en una habitación, en un televisor de
otra habitación de manera sencilla y sin cables. Simplemente enchufe el transmisor en el
equipo de A/V en el que desee visualizar los contenidos y enchufe el receptor en el televisor de
la otra habitación.
PLAY
PLAY
Rece
Rece
pto
pto
r
Transmi
Transmi
so
so
r
Receptor
Transmisor
•El sistema inalámbrico elimina la necesidad de pasar cables de una habitación a otra.
•Sistema de transmisión de A/V inalámbrico de 2,4 GHz original Sony.
•Cuatro canales de transmisión seleccionables (frecuencias) para conseguir una recepción
óptima.
•La transmisión de señales de control remoto inalámbrico permiten el control remoto del
equipo transmisor de señales de A/V desde otra habitación (el control remoto no viene
suministrado).
•Se suministra un amplificador para el control remoto (IR Blaster) para controlar los equipos
de A/V situados en la habitación principal mediante un control remoto del que ya disponga.
• Alcance de la recepción de la señal sin obstáculos de hasta 30 metros (alcance de la
recepción de hasta 18 metros a través de la mayoría de las paredes y suelos).
•Antena específica para la recepción independiente para obtener una excelente transmisión.
*Al igual que con todos los productos inalámbricos, el rendimiento real variará en función del entorno.
