Wyrestorm SW-515-RX User manual

Copyright © 2019 WyreStorm Technologies | wyrestorm.com
SW-515-RX Quickstart Guide | 191212
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
[email protected]
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the
installation process.
Basic Wiring Diagram
SW-510-TX
Amplifier
Router
Touchscreen
Window Blinds
USB Flash Drive
USB Camera
Interactive
Whiteboard
Short Throw
Projector
Signage Player
12V DC 1.5A
Power Supply
KEY
HDMI/DisplayPort/USB-C
HDBaseT/Ethernet
RS-232/Relay
Analog Audio
Analog Video
USB 2.0
3-input 4K UHD Switching HDBaseT Receiver
with USB Host/Device Ports & Dual Ethernet (4K: 100m/328ft)
SW-515-RX Quickstart Guide
IMPORTANT! Installation Requirements
• Read through the Wiring and Connections section for important wiring
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
• Visit the product page to download the latest rmware, document version,
additional documentation, and conguration tools.
Information and Parts Required for Installation
This extender requires connection via RS-232 or Ethernet in order to congure
functions such as EDID. Ensure that the following items are on hand before
proceeding with the installation.
• PC or Mac
• Telnet and Terminal software such as PuTTY
• USB COM Port Adapter (Not Included)
• WyreStorm Part: CAB-USB-3PIN
• Network router and/or switch if using IP telnet for conguration.
• Latest version of the SW-515-RX API for advanced conguration not
covered in this document.
In the Box
1x SW-515-RX Receiver
1x 12V DC Power Supply (US/UK/EU)
1x IR Transmitter
2x Mounting Brackets
3x 3-pin Screw Down Phoenix Connector
1x 4-pin Screw Down Phoenix Connector
1x Quickstart Guide (This Document)
Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its
entirety before running or terminating any wires to ensure proper operation and to avoid damaging the equipment.
IMPORTANT! Wiring Guidelines
• The use of patch panels, wall plates, cable extenders, kinks in cables, and
electrical or environmental interference will have an adverse effect on
signal transmission which may limit performance. Steps should be taken
to minimize or remove these factors completely during installation for best
results.
• WyreStorm recommends using pre-terminated VGA, HDMI, DP and USB
cables due to the complexity of these connector types. Using pre-
terminated cables will ensure that these connections are accurate and will
not interfere with the performance of the product.
• This product contains a USB-C connection that can be used as an audio/
video input. When using this connection verify that the USB-C cable used
supports audio/video functionality as not all USB-C cables support this
requirement.

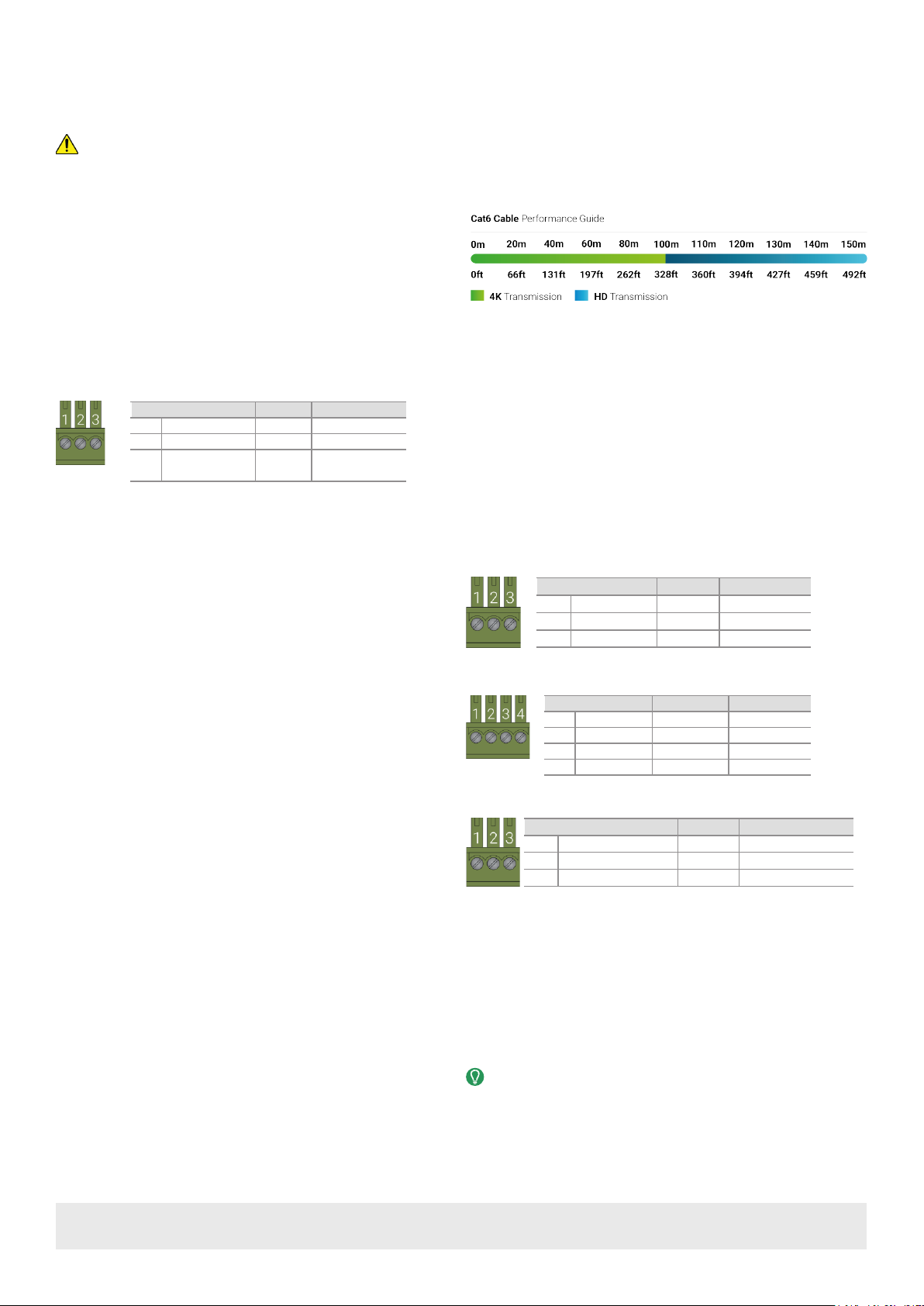

Communication Connections
RS-232 Wiring
The SW-515-RX uses a 3-pin RS-232 with no hardware ow control. Most
control systems and computers are DTE where pin 2 is RX, this can vary from
device to device. Refer to the documentation for the connected device for pin
functionally to ensure that the correct connections can be made.
PC Connection
Connection to a PC uses the RS-232 Control connection and requires the use
of a USB to 3-pin Port Adapter cable (CAB-USB-3PIN) in order for a port to
be provided on the PC. Note that this adaptor can be used on both v1 and v2
versions.
RS-232 Passthrough
3rd Party Device
Pin 1 TX (Transmit) ---> To ---> RX (Receive)
Pin 2 RX (Receive) ---> To ---> TX (Transmit)
Pin 3 G (Ground) ---> To ---> G (Ground)
WyreStorm Connector
RS-232 Control
3rd Party Device
Pin 1 12V DC Out No Connection Reserved
Pin 2 TX (Transmit) ---> To ---> RX (Receive)
Pin 3 RX (Receive) ---> To ---> TX (Transmit)
Pin 4 G (Ground) ---> To ---> G (Ground)
WyreStorm Connector
Audio Connections
Audio Out
3rd Party Device
Pin 1 L (Left Signal) ---> To ---> Left Signal (L+)
Pin 2 R (Right Signal) ---> To ---> Right Signal (R+)
Pin 3 GND (Ground) ---> To --->
Left Ground (L-)
Right Ground (R-)
WyreStorm Connector
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
• Verify that power is being supplied to the transmitter and receiving device.
• Verify that all HDMI and HDBaseT connections are not loose and are
functioning properly.
• Verify that the HDBaseT cable is properly terminated following EIA568B
standard.
• Verify that the output resolution of the source and display is supported by
this extender.
• Congure EDID Settings to a lower resolution.
• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.
No or Intermittent 3rd party Device Control
• Verify that the IR, RS-232, and Ethernet cables are properly terminated
following the Wiring and Connections section.
Relays Not Functioning
• Verify polarity of the relay connections.
Troubleshotting Tips
• WyreStorm recommends using a cable tester or connecting the cable to
other devices to verify functionality.
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
SW-515-RX Quickstart Guide | 191212
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
[email protected]
2 of 4
Relay Wiring
The relays on this extender can be used to be trigger devices such as projector
screens that are Normally Open (NO) or Normally Closed (NC).
3rd Party Device
Pin 1 NO (Normally Open) ---> To ---> NO (Normally Open)
Pin 2 Common (Ground) ---> To ---> Common (Ground)
Pin 3 NC (Normally Closed) ---> To ---> NC (Normally Closed)
WyreStorm Connector
Setup and Conguration
The SW-515-RX is congured using RS-232 and/or Telnet commands for IP address, Output Resolution, and EDID. Follow these steps to properly congure the
extender based on the system requirement.
Note: The steps and information provided in this QSG are for basic operation of the extender out of the box. Refer to the SW-515-RX API for full conguration
settings.
1. Assign a Static IP Address to ensure proper communication on an IP Network. See Conguring a Static IP Address
2. Set EDIDs to be used at each input of the device. See Conguring Input EDIDs
Communication Settings
The commands listed below can be sent by connecting to either the TX or
RX for RS-232 and the RX only for Ethernet. Each device must be connected
together via HDBaseT in to order to send a command from one device to the
other. The only exception is Conguring a Static IP Address which requires
connection to the RX.
The SW-515-RX contains a web UI that can be accessed by connecting to a
network and entering the IP address. We recommend that the IP address is
changed from default before accessing the web UI for the rst time.
RS-232 and IP Settings
Baud rate: 115200
Data Bits: 8bits
Parity: None
Stop Bits: 1bit
Flow Control: None
Default IP Address 192.168.11.43
Default IP Port 23
Conguring a Static IP Address
By default, the switcher is set to a static IP of 192.168.11.043. We recommend changing this as it shared with other WyreStorm products and may cause
improper communication if left unchanged. Connect to the RX via RS-232 and send the following command to set the IP address.
Conguring Input EDIDs
By default, all inputs are set to an EDID or 1920x1080@60Hz 2CH. However, this can be congured to suit the installation.
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
SW-515-RX Quickstart Guide | 191212
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
[email protected]
3 of 4
SET IPADDR STATIC ip4addr [IP Address] netmask [Netmask]<CR><LF>
Example: SET IPADDR STATIC ip4addr 192.168.11.243 netmask 255.255.255.0 <CR><LF>
Response: IPADDR STATIC ip4addr 192.168.11.243 netmask 255.255.255.0 <CR><LF>
Note: This command can only be sent to the receivers (RX) RS-232 port.
Set Input EDID
SET EDID [Input] [Resolution] [Device]<CR><LF>
Example: SET EDID in1 1 tx<CR><LF>
Response: EDID SET in1 1 tx<CR><LF>
Query Input EDID
GET EDID [Input] [Device]<CR><LF>
Example: GET EDID in1 tx<CR><LF>
Response: EDID GET in1 1 tx<CR><LF>
Input= VGA | DP | TXHDMI | USBC | RXHDMI1 | RXHDMI2
Resolution={Below tables based on connection}
VGA EDID HDMI/USB-C EDIDs
1024x768@60Hz 2CH 1024x768@60Hz 2CH
1280x768@60Hz 1280x720@60Hz
1360x768@60Hz 1360x768@60Hz
1440x900@60Hz 1440x900@60Hz
1600x900@60Hz 1600x900@60Hz
1680x1050@60Hz 1680x1050@60Hz
1920x1080@60Hz 1920x1080@60Hz
1920x1200@60Hz 3840x2160@30Hz
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
SW-515-RX Quickstart Guide | 191212
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
[email protected]
4 of 4
Warranty Information
WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a
period of ve (5) years from the date of purchase. Refer to the Product Warranty page on wyrestorm.com for more details on our limited
product warranty.
Specications
Note: WyreStorm reserves the right to change product specication, appearance or dimensions of this product at any time without prior notice.
Audio and Video
Inputs 2x HDMI: 19-pin type A
1x HDBT In: 8-pin RJ-45 Female
Outputs
1x HDMI Out: 19-pin type A
1x Audio Out: 3-pin Phoenix
1x Line Out: 3.5mm (1/8in) TRS Stereo
Video Encoding HDBaseT Class C
Encoding Data Rate 9.2Gbps
End to End Latency 10μs (micro seconds)
Audio Formats 2ch Analog/PCM | Multichannel: LPCM
Video Resolutions (Max)
Video Resolution HDMI Cat6 Cat6a/7
1920x1200p @60Hz 8bit 15m/49ft 150m/492ft 150m/492ft
1920x1080p @60Hz 8bit 15m/49ft 150m/492ft 150m/492ft
3840x2160p @30Hz 8bit 4:4:4 7m/23ft 100m/328ft 100m/328ft
4096x2160p @60Hz 8bit 4:2:0 7m/23ft 100m/328ft 100m/328ft
Supported Standards DCI | RGB
Maximum Pixel Clock 297MHz
Communication and Control
HDMI HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
HDBaseT HDMI | HDCP 2.2 | EDID | CEC | 2ch audio | USB
Ethernet 2x 8-pin RJ-45 female | Web UI | IP Control | Bidirectional over HDBaseT
RS-232 1x RS-232 (Control): 3-pin Phoenix | 1x RS-232 (Passthrough): 3-pin Phoenix
IR 1x IR TX: 3.5mm (1/8in) TS Mono
Relays 1x Screen UP: 3-pin Phoenix | 1x Screen DWN: 3-pin Phoenix
USB 2x USB Host: USB-B | 3x USB Device: USB-A
Power
Power Supply 12V DC 2A
Max Power Consumption 16.25W
Environmental
Operating Temperature 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
Storage Temperature -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
Maximum BTU 55BTU/hr
Dimensions and Weight
Rack Units/Wall Box <1U
Height With | Without Feet 44.5mm/1.76in | 42mm/1.66in
Width With | Without Brackets 263mm/10.36in | 220mm/8.67in
Depth With | Without Handles 148.7mm/5.86in | 148.7mm/5.86in
Weight 0.95kg/2.09lbs
Regulatory
Safety and Emission CE | FCC | RoHS

This manual suits for next models

1

Other Wyrestorm Receiver manuals

Wyrestorm RX-70-4K-ARC User manual

Wyrestorm

Wyrestorm RX-70-4K-ARC User manual

Wyrestorm RXV-70-4K-ARC User manual

Wyrestorm

Wyrestorm RXV-70-4K-ARC User manual

Wyrestorm RX-70-4K User manual

Wyrestorm

Wyrestorm RX-70-4K User manual

Wyrestorm RX-70-PP User manual

Wyrestorm

Wyrestorm RX-70-PP User manual

Wyrestorm RX-70-POH User manual

Wyrestorm

Wyrestorm RX-70-POH User manual

Wyrestorm RXV-35-4K V1 User manual

Wyrestorm

Wyrestorm RXV-35-4K V1 User manual

Wyrestorm RX-35-POH User manual

Wyrestorm

Wyrestorm RX-35-POH User manual

Wyrestorm RX-70-IR-POH User manual

Wyrestorm

Wyrestorm RX-70-IR-POH User manual

Wyrestorm RX-700 User manual

Wyrestorm

Wyrestorm RX-700 User manual

Wyrestorm RX-70-4K-ARC User manual

Wyrestorm

Wyrestorm RX-70-4K-ARC User manual

Wyrestorm MX-0404-HDBT-H2-KIT User manual

Wyrestorm

Wyrestorm MX-0404-HDBT-H2-KIT User manual

Wyrestorm RXV-35-SCL User manual

Wyrestorm

Wyrestorm RXV-35-SCL User manual

Wyrestorm RXV-70-G2-SCL User manual

Wyrestorm

Wyrestorm RXV-70-G2-SCL User manual

Wyrestorm RXV-70-4K-G2 User manual

Wyrestorm

Wyrestorm RXV-70-4K-G2 User manual

Wyrestorm RX-70-4K-SCL v1 User manual

Wyrestorm

Wyrestorm RX-70-4K-SCL v1 User manual

Wyrestorm MX-0404-HDBT-H2 User manual

Wyrestorm

Wyrestorm MX-0404-HDBT-H2 User manual

Wyrestorm RX-70-4K-SCL User manual

Wyrestorm

Wyrestorm RX-70-4K-SCL User manual

Wyrestorm RXV-70-4K User manual

Wyrestorm

Wyrestorm RXV-70-4K User manual

Wyrestorm RXF-300-4K User manual

Wyrestorm

Wyrestorm RXF-300-4K User manual

Wyrestorm MX-0404-HDBT-H2A-KIT User manual

Wyrestorm

Wyrestorm MX-0404-HDBT-H2A-KIT User manual

Wyrestorm RX-70-POH User manual

Wyrestorm

Wyrestorm RX-70-POH User manual

Wyrestorm EXF-300-H2 User manual

Wyrestorm

Wyrestorm EXF-300-H2 User manual

Wyrestorm RX-70-4K v2 User manual

Wyrestorm

Wyrestorm RX-70-4K v2 User manual

Wyrestorm RX-70-POH User manual

Wyrestorm

Wyrestorm RX-70-POH User manual

Popular Receiver manuals by other brands

Comnet FVR4C4BM4 Installation and operation manual

Comnet

Comnet FVR4C4BM4 Installation and operation manual

Pioneer VSX94TXH - Elite AV Receiver Specifications

Pioneer

Pioneer VSX94TXH - Elite AV Receiver Specifications

Sony STR-DE725 - Fm Stereo/fm-am Receiver operating instructions

Sony

Sony STR-DE725 - Fm Stereo/fm-am Receiver operating instructions

Regency ACT-R 10H instruction manual

Regency

Regency ACT-R 10H instruction manual

Linear MEGACODE MDR installation instructions

Linear

Linear MEGACODE MDR installation instructions

Topfield SBI-2070 user guide

Topfield

Topfield SBI-2070 user guide

Pioneer AVIC-9DVD installation manual

Pioneer

Pioneer AVIC-9DVD installation manual

EMS 7000 Iris+ operating instructions

EMS

EMS 7000 Iris+ operating instructions

Yamaha RX-V650 owner's manual

Yamaha

Yamaha RX-V650 owner's manual

Marantz SR4400 Service manual

Marantz

Marantz SR4400 Service manual

Mighty Seven PA-9048 manual

Mighty Seven

Mighty Seven PA-9048 manual

Delphi SkyFi2 SA10102 installation guide

Delphi

Delphi SkyFi2 SA10102 installation guide

EchoStar D-2510 IP Viaccess user manual

EchoStar

EchoStar D-2510 IP Viaccess user manual

Vicon V1305R-DC Installation & operation manual

Vicon

Vicon V1305R-DC Installation & operation manual

SCS Sentinel RadioGate KIT quick guide

SCS Sentinel

SCS Sentinel RadioGate KIT quick guide

CYP CH-107 RX Operation manual

CYP

CYP CH-107 RX Operation manual

Phoenix MTU-5D quick start guide

Phoenix

Phoenix MTU-5D quick start guide

SBG Systems SplitBox user manual

SBG Systems

SBG Systems SplitBox user manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
