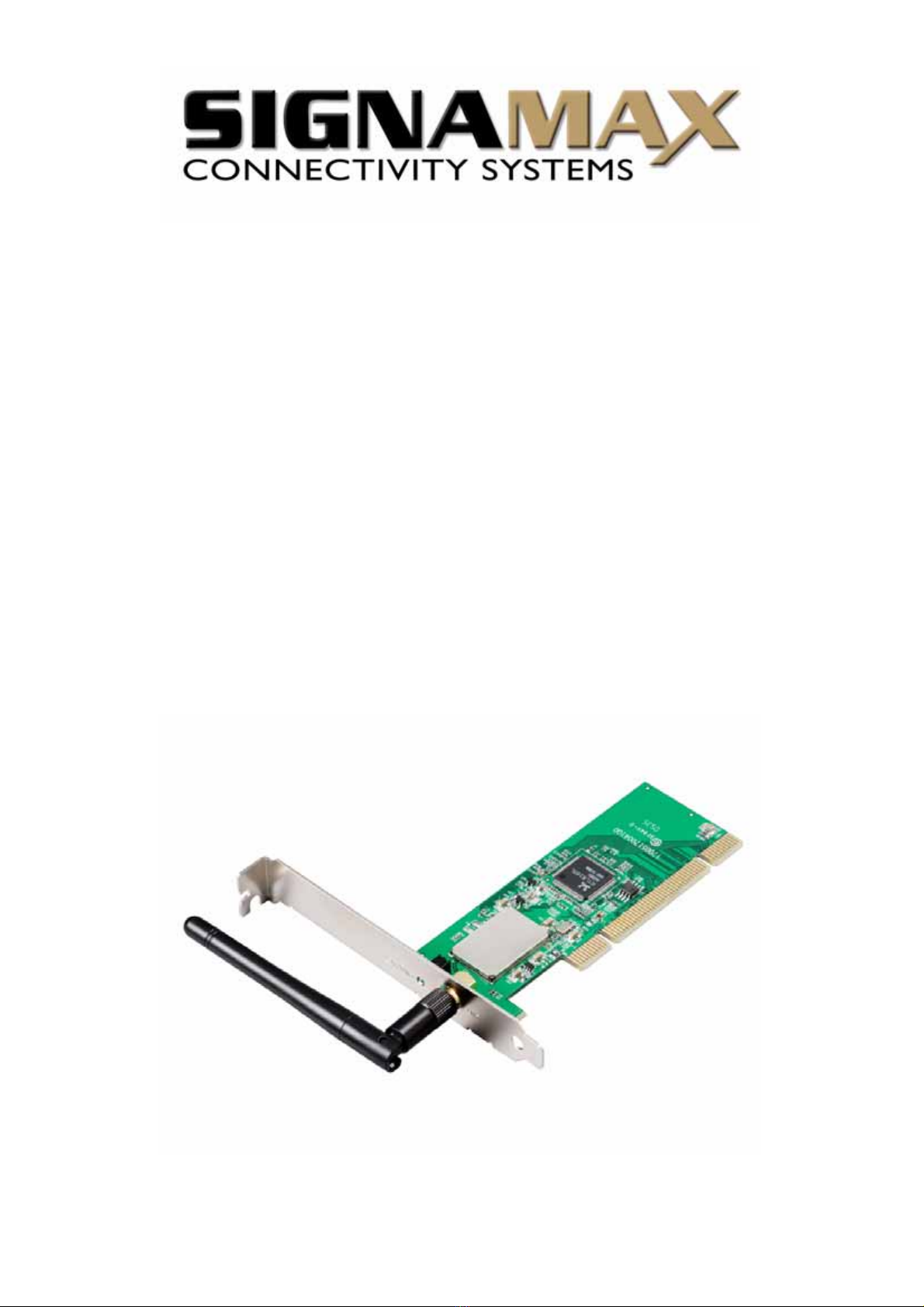

SignaMax 065-1798 User manual

Signamax™Connectivity Systems
11g Wireless 54Mpbs PCI Adapter
Model:065-1798
User’s Manual
September2006

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
1
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communication. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
- Consult the dealer or an experienced radio/TV technician for help. the receiver is
connected.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
about eight inches (20cm) between the radiator and your body.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
Copyright
1999 All Rights Reserved.
No part of this document can be copied or reproduced in any form without written consent from

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
2
the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Revision History
Revision History
V1.0 Firstrelease

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
3
Contents
1. Instruction............................................................................... 4
1.1 Features.................................................................................................. 4
1.2 Package Contents ................................................................................. 4
1.3 LED Indicator ......................................................................................... 4
2. Install Driver & Utility ............................................................. 5
2.1 For Windows XP and 2000 ..........................................................5
2.2 For Windows ME and 98SE .......................................................10
3. Wireless Network Configuration Utility.............................. 15
3.1 General........................................................................................15
3.2 Profile..........................................................................................15
3.3 Available Network ......................................................................16

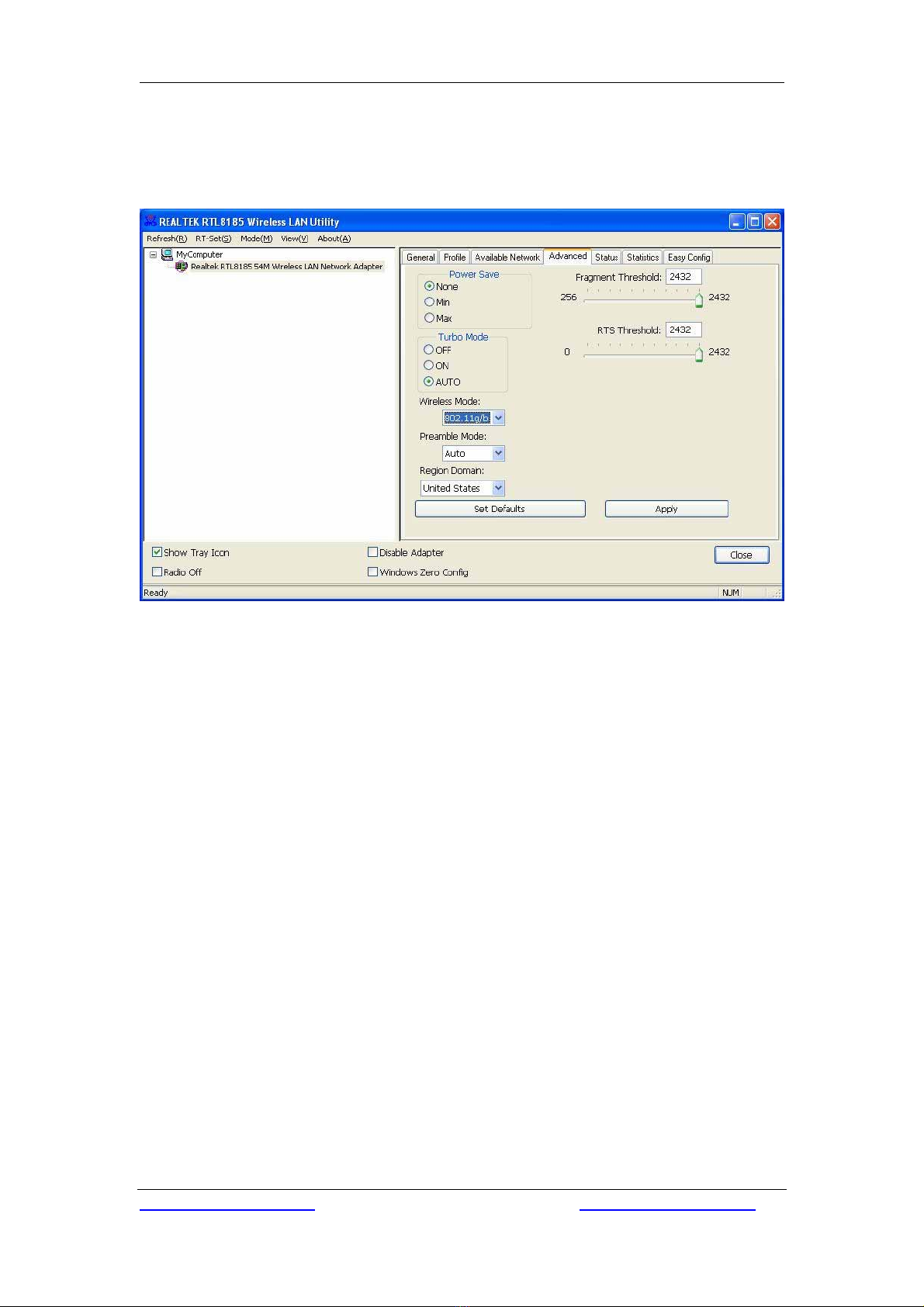

3.4 Advanced....................................................................................19
3.5 Status ..........................................................................................20
3.6 Statistics .....................................................................................20
3.7 Easy Config ................................................................................21
3.8 RT-Set .........................................................................................22
4. Glossary................................................................................ 23

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
4
1. Instruction
Congratulations on purchasing 065-1798 Wireless 54Mbps PCI Adapter. 065-1798 Wireless
PCI Adapter is designed to comply with IEEE 802.11g Wireless LAN standard and it is suitable
for any laptop computers and provides maximum data transfer rate up to 54 Mbps. It provides
up to a 128-bit level of WEP security to your wireless data transfers. 065-1798 wireless PCI
adapter comes with software drivers for the most popular Microsoft Windows operating
systems and can be integrated into a larger network, running Windows XP/2000/Me/98SE in
either Ad-Hoc mode (without an access point or router) or Infrastructure mode (with an access
point or router), the configuration of your working environment, or the capabilities or limitations
of your computer systems.
1.1 Features
‧ Up to 54Mbps data transfer rates
‧ Supports 64/128-bit WEP data encryption function for high level of security
‧ Supports WPA-PSK advanced WLAN security
‧ Supports Infrastructure mode
‧ Supports Ad-Hoc mode (peer-to-peer communication among any wireless users, no
Access Point required)
‧ Supports automatic fallback increase data security and reliability
‧ Supports Power Save mode
‧ Compliant with PCI v2.2
1.2 Package Contents
‧ One 065-1798 Wireless PCI Adapter
‧ One Detachable Antenna
‧ One CD disk includes driver, utility and user’s manual
1.3 LED Indicator
LED Light Status Description
Flashing Wireless LAN has Activity (ACT) data being sent.ACT / LINK
On Wireless LAN has been activated.

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
5
2. Install Driver & Utility
Note: If you have installed the Wireless PCI Card driver & utility before, please uninstall
the old version first.
2.1 For Windows XP and 2000
Note: The following installation was operated under Windows XP. (Procedures will be
same for Windows 2000)
Step1: Turn off your PC.

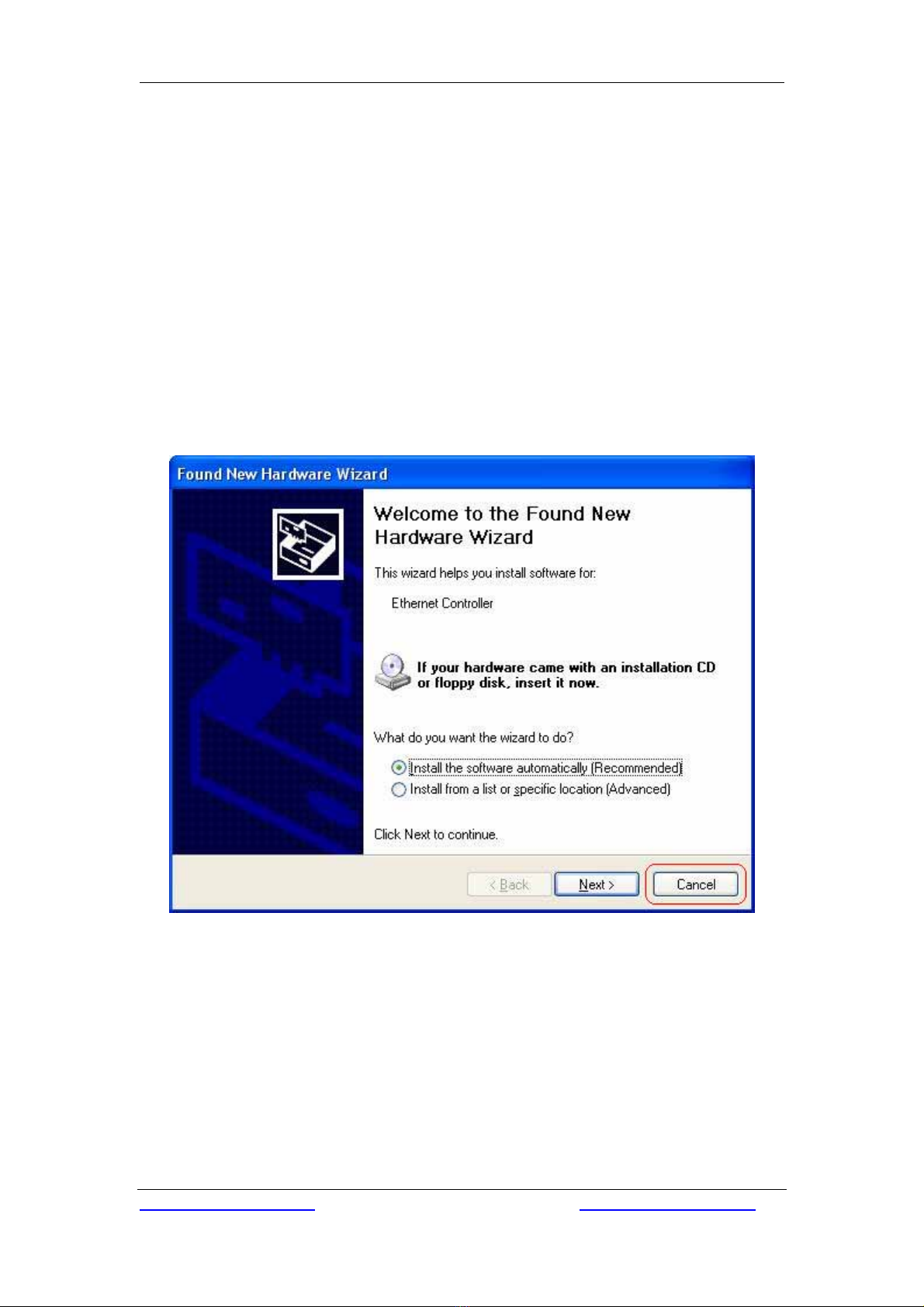

Step2: Insert 065-1798 Wireless PCI card into the PCI slot of your computer, the system will
automatically find the device and search for its driver. Please click Cancel to continue.

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
6

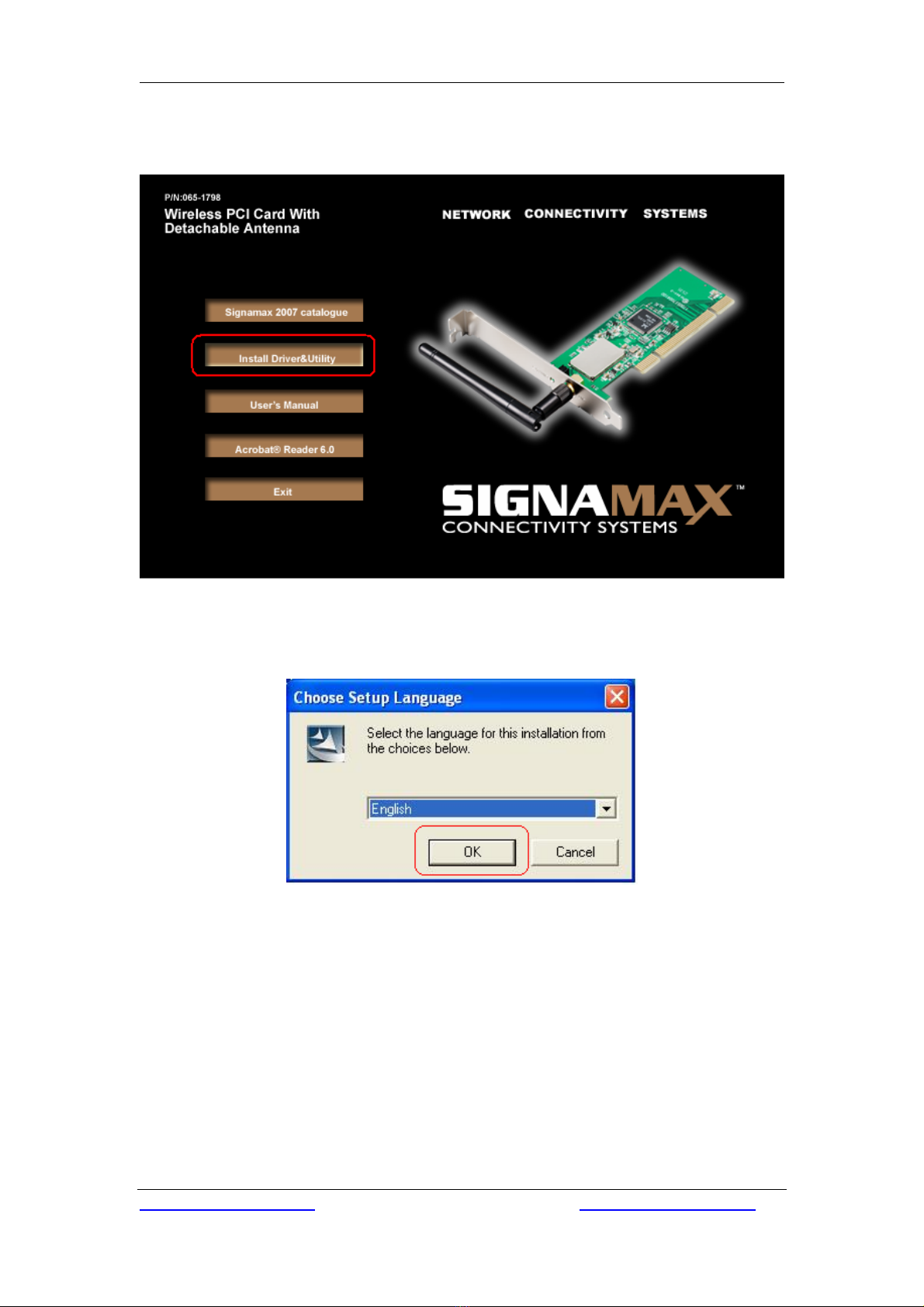

Step3: Insert Wireless 54Mbps PCI Adapter Installation CD into CD-ROM drive then windows
below will appear. Click Install Driver & Utility to begin device driver installation.
Step4: Select the language for this installation from the choices below and click OK to
continue.

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
7

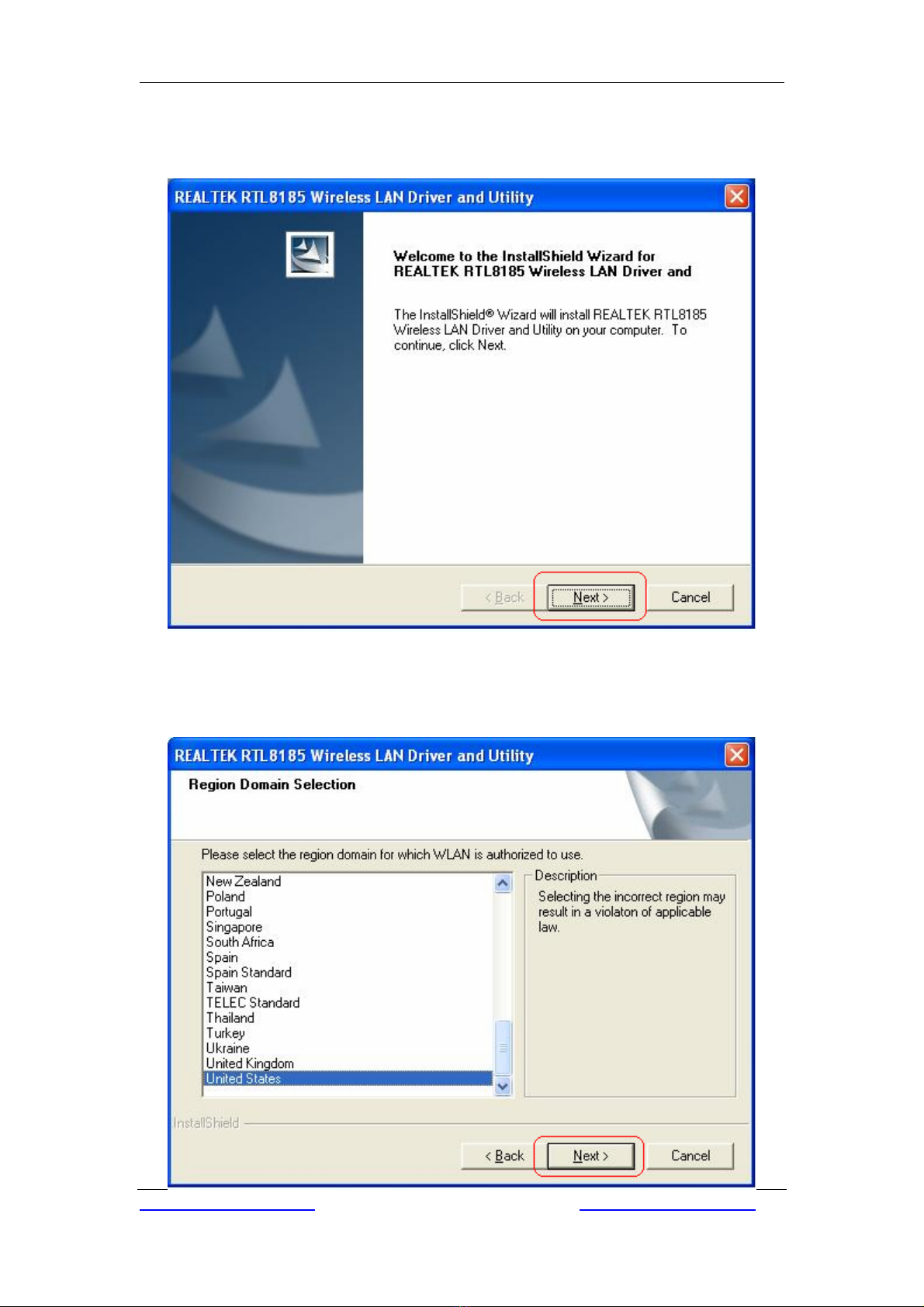

Step5: The InstallShield Wizard for Realtek Wireless Network Utility will display, click Next> to
continue.
Step6: Select the country domain for which RTL8185 WLAN is authorized to use. Then, click
Next> to continue.

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
8

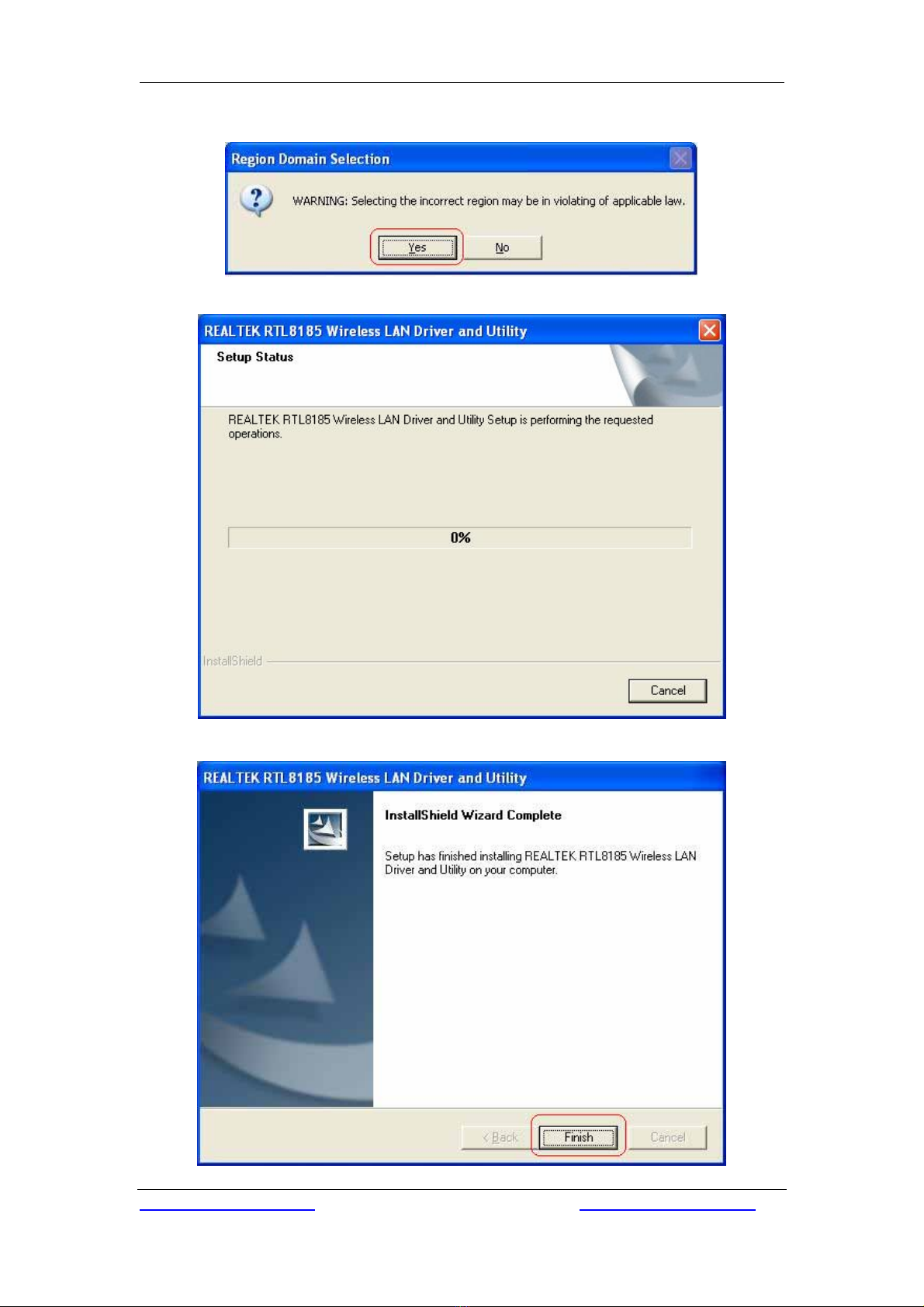

Step7: Click Yes to continue.
Step8: Please wait for a while for installing process.
Step9: After Wizard has finished the installing, click Finish to compete the setup.

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
9
To check if Wireless PCI card is properly installed, you can right-click My Computer
Æchoose Properties Æclick Device Manager.
When Utility setup is completed, the Wireless LAN utility’s main page will automatically
show up on your screen.
Also, a shortcut named Realtek Wireless LAN Utility will appear in the computer’s
desktop. Double click the shortcut and start using the WLAN PCI Card.

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
10
2.2 For Windows ME and 98SE
Step1: Turn off your PC

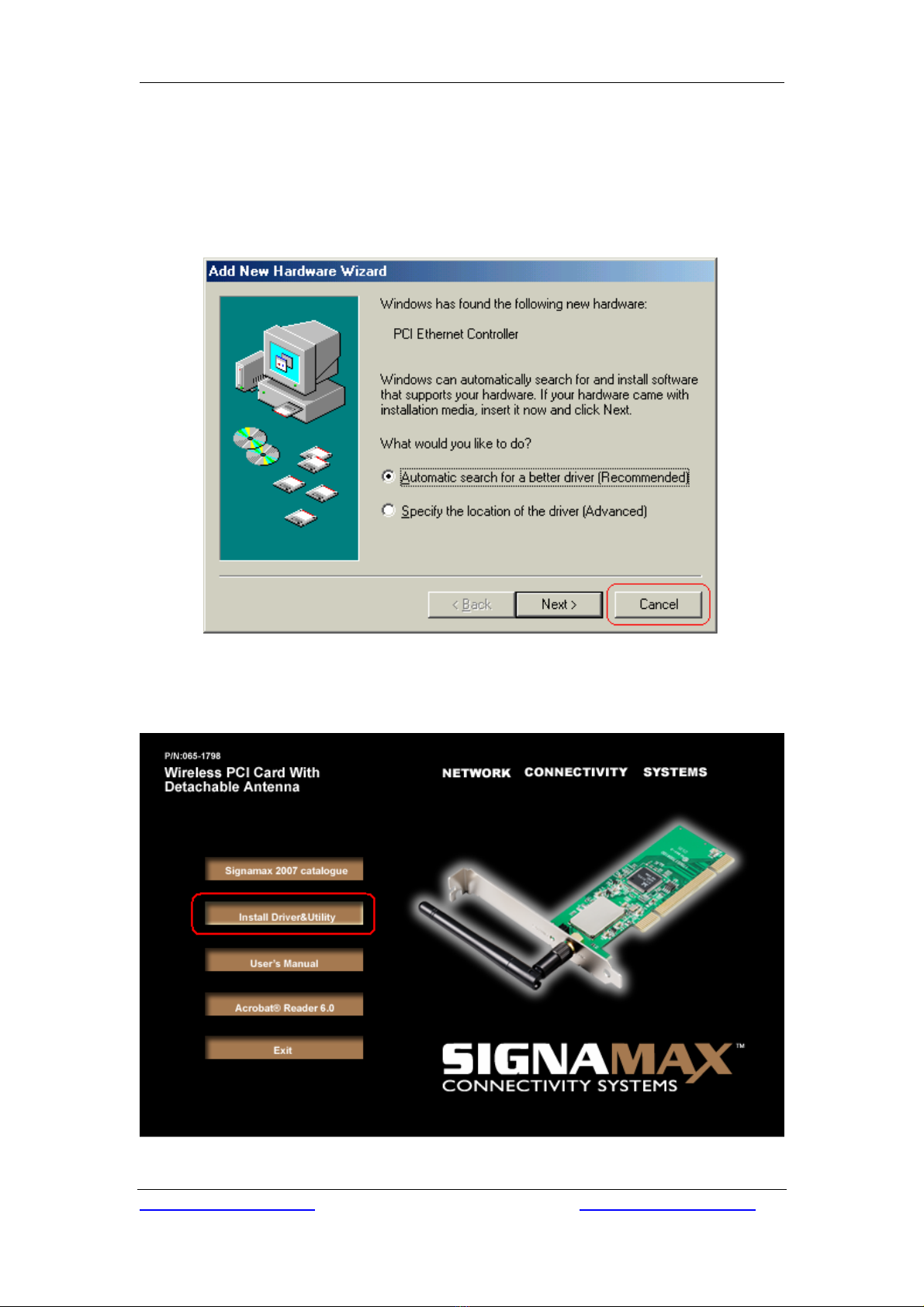

Step2: Insert 065-1798 Wireless PCI card into the PCI slot of your computer, the system will
automatically find the device and search for its driver. Please click Cancel to continue.
Step3: Insert 065-1798 Wireless 54Mbps PCI Adapter Installation CD into CD-ROM drive then
windows below will appear. Click Install Driver & Utility to begin device driver installation.

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
11

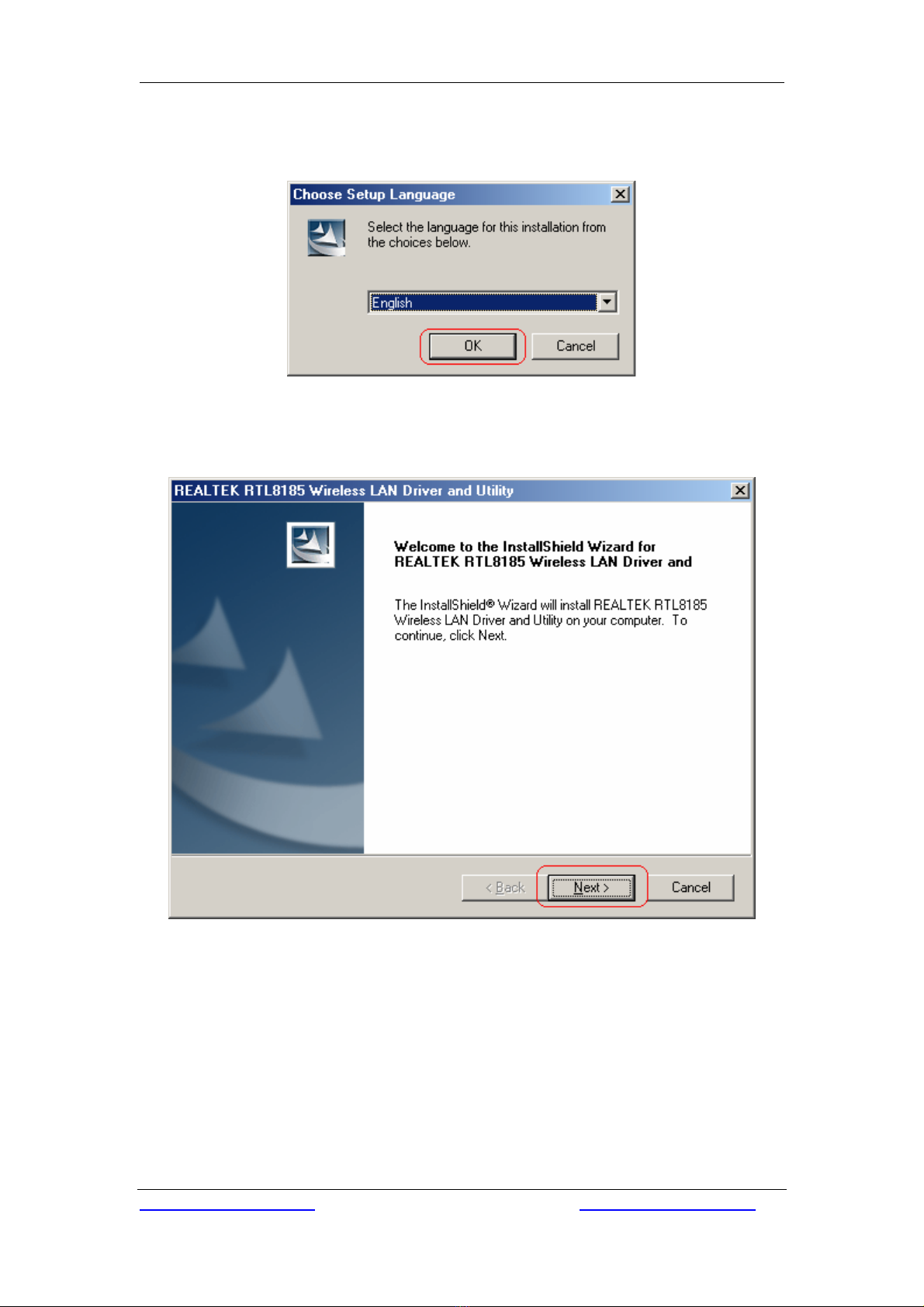

Step4: Select the language for this installation from the choices below and click OK to
continue.
Step5: The InstallShield Wizard for Realtek Wireless Network Utility will display, click Next> to
continue.

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
12

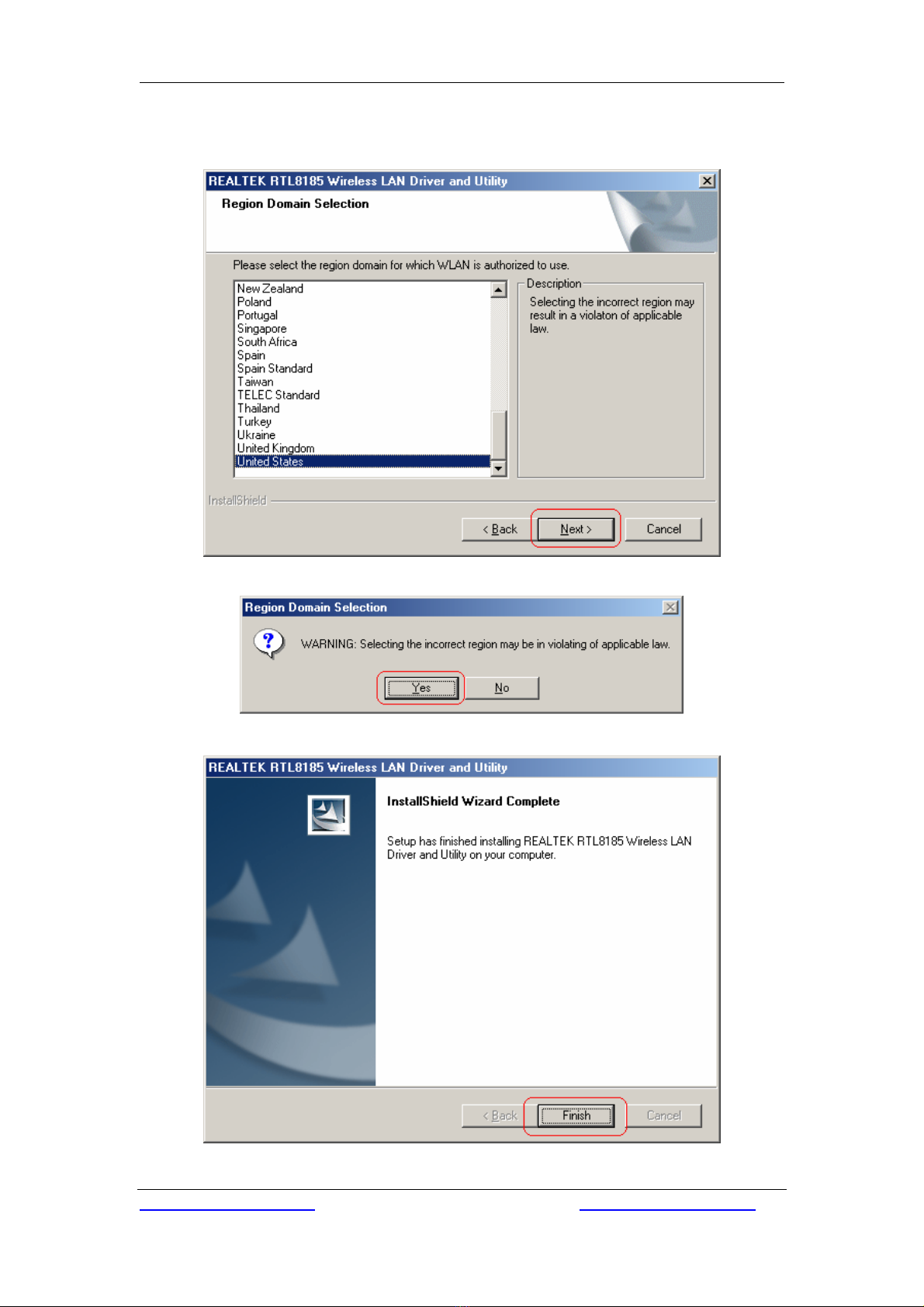

Step6: Select the country domain for which RTL8185 WLAN is authorized to use. Then, click
Next> to continue.
Step7: Click Yes to continue.
Step8: After Wizard has finished the installing, click Finish to compete the setup.

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
13
Step10: For complete your setup, you must restart your computer before you can use the
program. Choose Yes, I want to restart my computer now and click OK.
To check if Wireless PCI card is properly installed, you can right-click My Computer
Æchoose Properties Æclick Device Manager.

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
14
After restart your computer and the utility setup is completely installed. The Wireless LAN
utility’s main page will automatically show up on your screen as below:

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
15
3. Wireless Network Configuration Utility
The Configuration Utility is an application that helps you to configure 065-1798 Wireless LAN
PCI Card and monitor the link status and statistics during the communication process.
3.1 General
In the “Configuration”, you can immediately monitor the link status.
3.2 Profile
In the “Profile”, you can view the current using Available Point(s). You can add, remove or edit
the current Available Point(s). Also you can duplicate the AP or Set current AP as Default.

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
16
3.3 Available Network
The “Available Network” shows all Access Points, Routers or Adapters nearby when
operating in Ad-Hoc mode.
Click “Refresh” button to collect the SSID and Channel information of all the wireless devices
nearby. If you want to connect to any device on the list, double-click the item on the list, and
the card will automatically connect to the selected device.

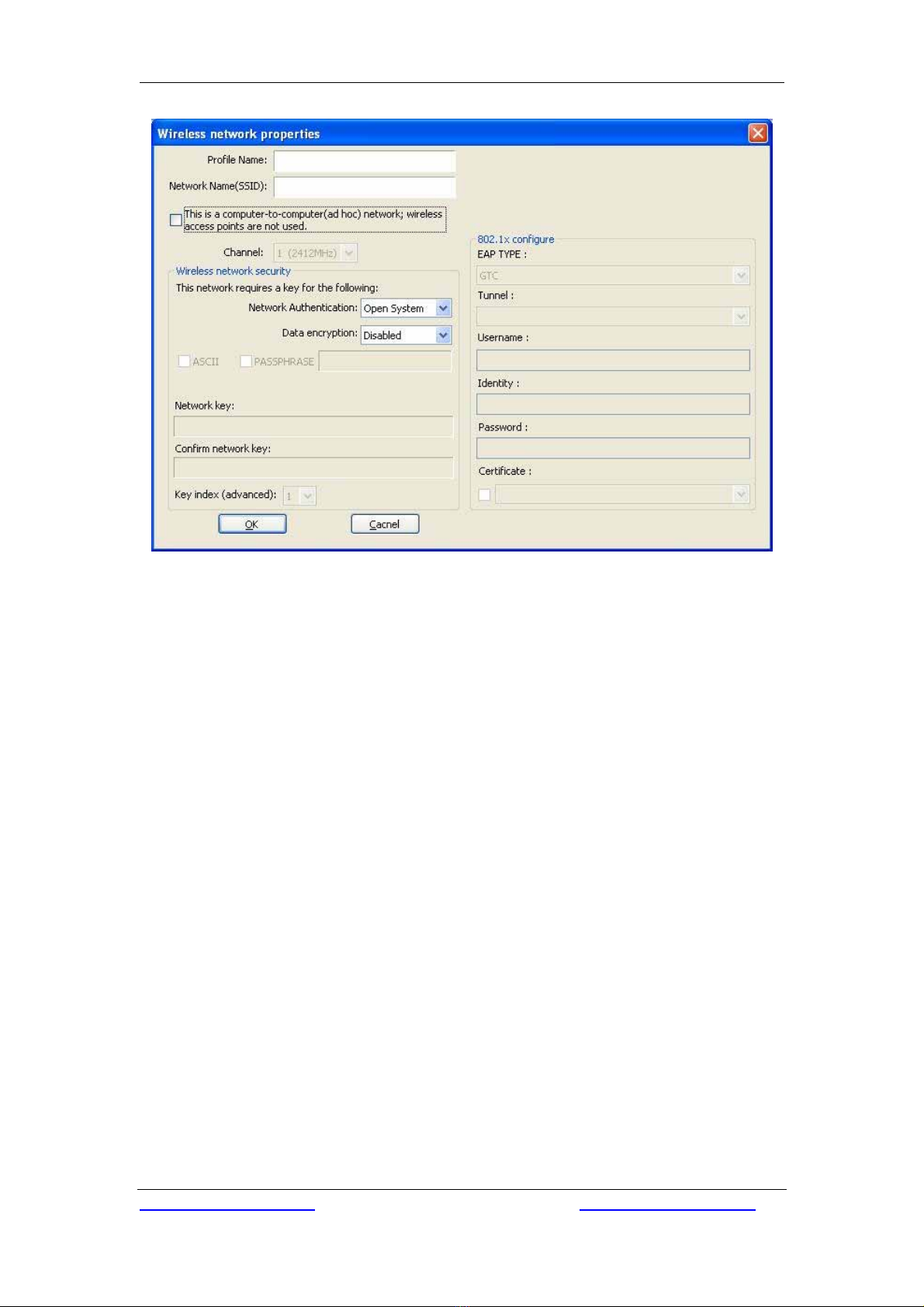

If you want to add one Access Point to the profile, click “Add to Profile” button. The Wireless
network properties windows will display. You can configure your Wireless Network Security
for the card.

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
17
[Network Authentication]
-- Open System: No authentication is needed among the wireless devices.
-- Shared Key: Only Wireless device using a shared key (WEP Key identified) is allowed to
connecting each other. Setup the same key as the wireless device which the card intends to
connect.
-- WPA-PSK: It is a special modem of WPA for home users without an enterprise
authentication server and provides the same strong encryption protection.
-- WPA2-PSK (for WPA2 Personal): This option will be present only if the wireless network
adapter and its driver support WPA2.
-- WPA 802.1X: 802.1x authentication is required in WPA. In the 802.11 standard, 802.1x
authentication was optional.
-- WPA2 802.1X: WPA2 is the next-generation Wi-Fi security standard, combining the most
powerful authentication and encryption techniques to protect wireless networks from
unauthorized use. Based upon the recently-ratified IEEE 802.11i standard, WPA2 adds the
Advanced Encryption Standard (AES) to the original WPA specification to provide the greatest
levels of network security available. The National Institute of Standards and Technology (NIST)
advocates the use of AES security to protect sensitive digital information on government
networks.
[Data Encryption]
-- Disabled: Disable the WEP Data Encryption.
-- WEP: Enabled the WEP Data Encryption. When the item is selected, you have to continue
setting the WEP Key Length & the key Index.

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
18
-- TKIP: Enable the TKIP Data Encryption. When the item is selected, you have to continue
setting the Network Key & Confirm network key.
-- Network Key: The keys are used to encryption data transmitted in the wireless network. Fill
in the text box by following rules below:
Æ64-bit: Input 10 digit Hex values (in the “A-F”, “a-f”, and “0-9” range) as the encryption
keys. For example: “0123456aef”
Æ128-bit: Input 26 digit Hex values (in the “A-F”, “a-f”, and “0-9” range) as the
encryption keys. For example: “01234567890123456789abcdef”
-- Confirm Network Key: Re-type again the Network key in this text box.
-- Key Length: You may select the 64-bit or 128-bit to encryption transmitted data. Larger key
length will provide higher level of security, but the throughput will be lower.
-- Key Index (Advanced): The maximum of key index is 4.
[802.1X configure]
-- EAP TYPE (Extensible Authentication Protocol Authentication Types): Because WLAN
security is essential and EAP authentication types provide a potentially better means of
securing the WLAN connection, vendors are rapidly developing and adding EAP
authentication types to their WLAN access points. Some of the most commonly deployed EAP
authentication types include MD5,GTC,TLS,EAP,TTSL,and PEAP.
-- Tunnel: Use the drag-down list to choose the tunnel.
-- Username: Enter the username for personal certificate.
-- Identity: Enter the Identity for personal certificate.
-- Password: Enter the password in advance.
-- Certificate: Click drag-down list to choose certificate that you want to use.

Signamax Connectivity System 065-1798
www.signamax-us.com www.signamax-eu.com
19
3.4 Advanced
In the “Advanced”, you can configure Wireless LAN adapter’s Power Save, Wireless Mode,
802.00b Preamble Mode, Region Domain, Fragment Threshold, and RTS Threshold.
