VALLONA RANGE HOOD INSTALLATION
IMPORTANT SAFETY INFORMATION
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
PERSONAL INJURY, PLEASE READ THE FOLLOWING:
Use the range hood only in the manner intended by the
manufacturer. If you have questions, please contact Signa-
ture Hardware Customer Relations at 866-855-2284.
Before servicing or cleaning the unit, power off the unit and
switch off the unit’s circuit on the electrical panel.
Installation and electrical wiring must be done by a qualified
and licensed professional in accordance with all applicable
codes, standards, and fire-rated constructions.
Do not use the unit if any fans or electrical wiring are
damaged. Contact Customer Relations or a qualified
professional if any such issues arise.
To prevent backdraft, sufficient air is needed for proper
combustion. Gas from the fuel burning equipment needs to
exhaust through the flue (chimney). Follow the heating
equipment manufacturer’s guidelines and safety standards
such as those published by the National Fire Protection
Association (NFPA), the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and
the local code authorities.
When cutting or drilling into walls or the ceiling, be aware of
electrical wires, plumbing, and other utilities behind the wall.
Ducted fans must always be vented outdoors.
CAUTION: For general ventilation use only. Do not use to
exhaust hazardous or explosive materials and vapors.
CAUTION: To reduce the risk of fire and to properly
exhaust air, be sure to duct air outside - DO NOT vent
exhaust air into attics, crawl spaces, garages, or within walls
or ceilings.
1Vallona Range Hood Installation Instructions
TO REDUCE THE RISK OF A STOVETOP GREASE FIRE,
PLEASE READ THE FOLLOWING:
Never leave surface units unattended at high settings.
Boil-over can cause smoke and grease to spill over which
could ignite. Heat oils slowly on low or medium settings.
Always turn the range hood ON when cooking at high heat or
when cooking foods that could flame.
Clean venitlation fans frequently. Grease should not be
allowed to accumulate on fans or filters.
Use proper pan sizes when cooking. Always use cookware
appropriate for the size of the surface element.
TO REDUCE THE RISK OF INJURY, IN THE EVENT OF A
STOVETOP GREASE FIRE, PLEASE READ THE FOLLOW-
ING:
SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
Never pick up or handle a flaming pan.
DO NOT USE WATER, including wet dishcloths or towels.
This could cause a violent steam explosion.
Use an extinguisher ONLY if:
- Your fire extinguisher is a class ABC extinguisher, and you
know how to operate it.
- The fire is small and contained in the area in which it
started.
- The fire department has been called.
- You can fight the fire with your back to an exit.
*Above based on “Kitchen Fire Safety Tips” published by the
NFPA.
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK,
DO NOT USE RANGE HOOD WITH ANY SOLID-STATE
SPEED CONTROL DEVICE.

VALLONA RANGE HOOD INSTALLATION
LOCATION REQUIREMENTS
GENERAL REQUIREMENTS
- Range hood must be ventilated to the outdoors, except for
non-vented (recirculating) installations.
- Do not use 4” (10.2cm) laundry-type wall caps.
- Length of the range hood and the number of elbows should
be kept to a minumum to provide maximum performance.
FOR THE MOST EFFICIENT AND QUIET
OPERATION
- Use no more than three (3) 90-degree elbows.
- Ensure that there is a minimum of 24” (61cm) of straight
duct between the elbows if more than one is used.
- Do not join two elbows together.
- Use clamps and tape to seal all joints in the vent system.
- The vent system must have a damper. If the roof or wall cap
has a damper, do not use the damper supplied with the range
hood.
- Use caulking to seal exterior walls or roof openings around
the cap.
- The size of the vents should be uniform.
COLD WEATHER INSTALLATIONS
An additional back draft damper should be installed to
minimize backward cold air flow. A thermal break should be
installed to minimize conduction of outside temperatures as
part of the vent system. The damper should be on the cold air
side of the thermal break. The break should be as close as
possible to where the vent system enters the heated portion
of the home.
MAKEUP AIR
Local building codes may require the use of makeup air
systems, when using ventilation systems greater than
specified CFM of air movement. The specified CFM varies
from state to state. Consult your HVAC professional for
specific local requirements.
VENTING METHOD
To vent through a wall, a 90-degree elbow is needed. If
exhaust ducting with a diameter less than 5.91” (150mm) or if
flat ducting is used, the noise level of the range hood could
increase and extraction will be less efficient.
IMPORTANT: Observe all governing codes and ordinances. It
is the installer’s responsibility to comply with installation
clearances specified on the model/serial rating plate. Range
hood’s location should be away from strong draft areas, such
as windows, doors, and strong heating vents. Cabinet
opening dimensions that are shown must be used. Given
dimensions provide minimum clearance.
ELECTRICAL REQUIREMENTS
120 volt, 60 Hz, AC only, 15-amp
If the home contains aluminum wiring, follow the procedure
below:
- Connect a section of solid copper wire to the pigtail leads.
- Connect the aluminum wiring to the copper wire using
special connectors and\or tools designed and UL listed for
joining copper to aluminum. Follow the manufacturer’s
recommended procedure for the electrical connector.
Aluminum/copper connection must conform to local codes
and industry accepted wiring practice.
Wire sizes and connections must conform to the rating of
the appliance as specified on the model/serial rating plate.
The model/serial plate is located behind the filter on the rear
wall of the range hood.
Wire sizes must conform to the requirements of the Nation-
al Electrical Code, ANSI/NFPA 70 (latest edition), or CSA
Standards C22. 1-94, Canadian Electrical Code, Part 1 and
C22.2 No. 0-M91 (latest edition) and all local codes and
ordinances.
2Vallona Range Hood Installation Instructions
VENTILATION REQUIREMENTS

VALLONA RANGE HOOD INSTALLATION
REAR DISCHARGE
A 90-degree elbow may be installed immediately above the
hood.
FOR NON-VENTED (recirculating) INSTALLATIONS
If it is not possible to vent the range hood to the outside,
certain hoods can be used in the non-vented (recirculating)
version by fitting a carbon filter at the motor. Fumes and
vapors are recycled through the top grille. DO NOT block the
chimney holes.
CALCULATING VENT SYSTEM LENGTH
To calculate the length of the system you need, add the
equivalent feet (meters) for all vent pieces used in the
system.
3Vallona Range Hood Installation Instructions
VENTILATION REQUIREMENTS
(cont’d.)
Wood
Screws
TOOLS AND MATERIALS
Pencil Level Utility Knife
Drill Tape Measure
Phillips
Screwdriver
Duct Tape 6” Ducting Outside Duct
Cap
Jigsaw
ABC

VALLONA RANGE HOOD INSTALLATION
4Vallona Range Hood Installation Instructions
INSTALLATION
• Drill holes A-B-C according to indications quoted in
(fig.3).
• Hang the range hood on the wall using the drill holes
A (fig.5).
• Fasten the range hood using the fastening drill holes
B (fig.6).
•Connect the flange Y of range hood (fig.2) to the
outside vent using 6” diameter ducting. If the existing
outside vent contains a 5” opening, a reduction fitting
can be used.
• Thread the upper chimney E to the inside of the
lower chimney F; Insert them vertically on of the range
hood body (fig.7).
• Affix the bracket Z (fig.8) to the wall via the drill holes
C.
•Slide the upper chimney E towards the top, locking it
in with the appropriate screws in the drill holes of the
bracket Z previously affixed to the wall (fig.9).

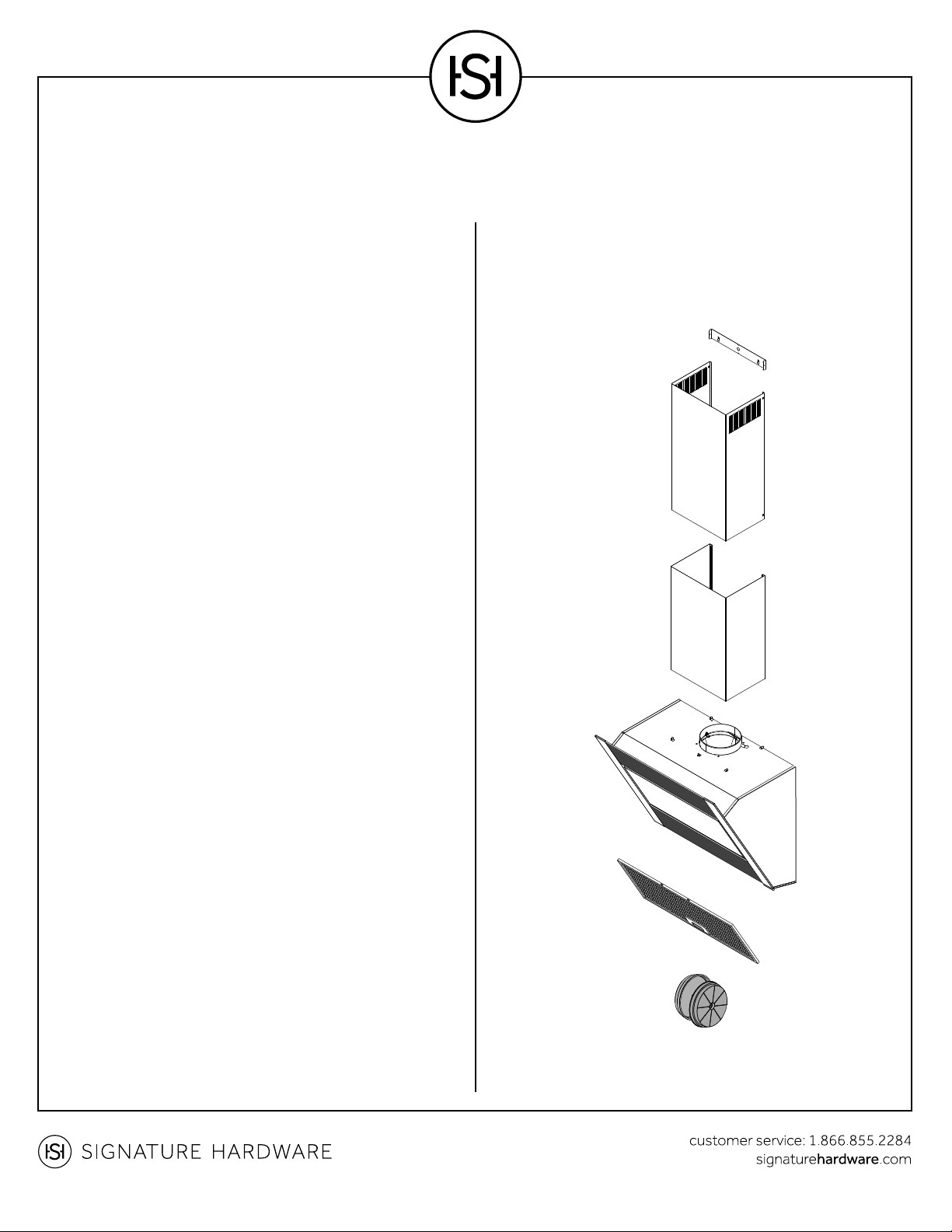

COMPONENTS (also Fig. 2)
(optional)
recirculating
mode only

VALLONA RANGE HOOD INSTALLATION
5Vallona Range Hood Installation Instructions
Fig.4
Ⓩ
Ⓔ
Ⓕ
Ⓛ(optional)
recirculating
mode only
Ⓨ
Ⓜ

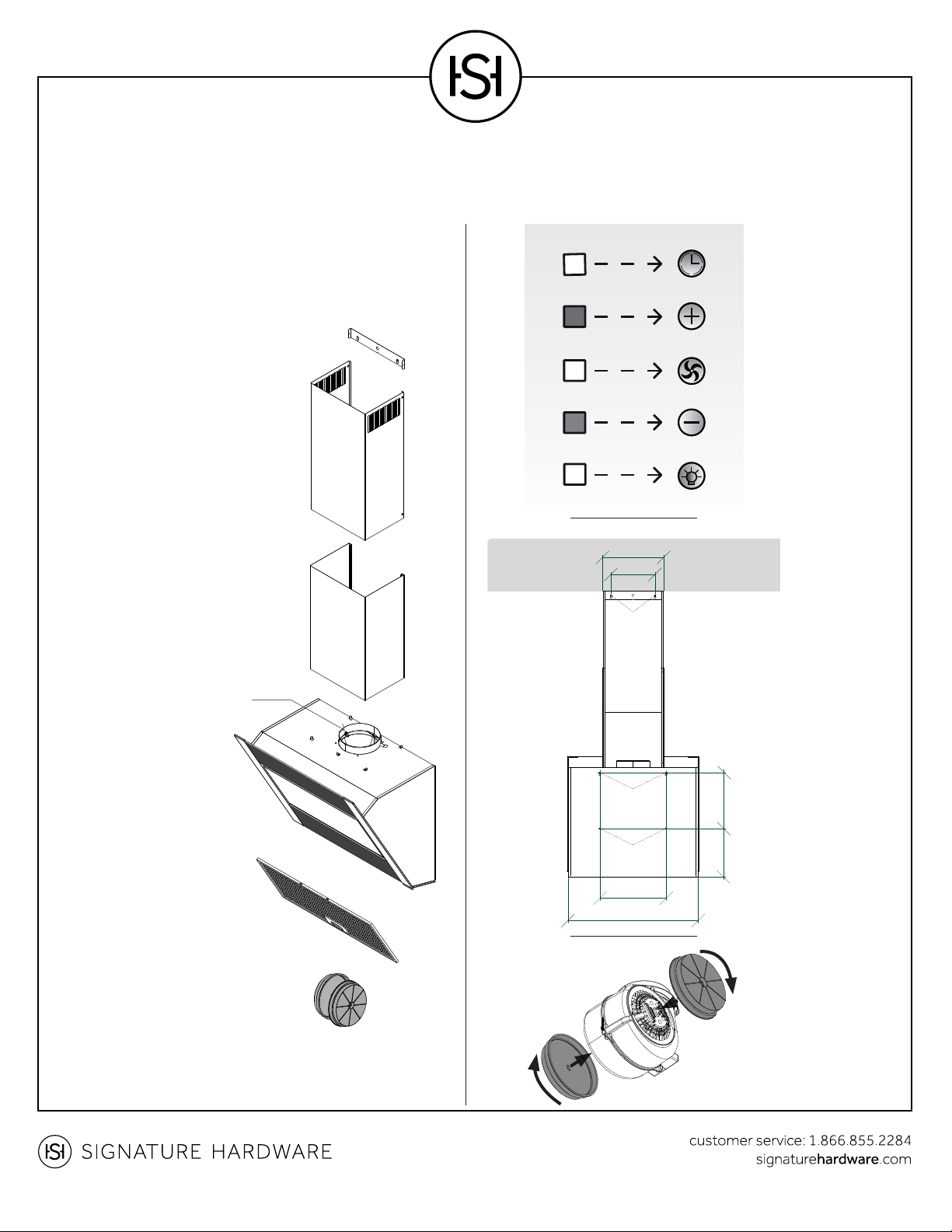

Fig.2
A
C
B
8 21/32 10 5/64
10 29/32
7 7/8
11 13/16
23 5/8_27 9/16_35 7/16
Fig.3
1
3
2
3
4
Fig.1

VALLONA RANGE HOOD INSTALLATION
6Vallona Range Hood Installation Instructions
Fig.5
Fig.8
25" 19/32
21" 21/32
Fig.10
Fig.6
Fig.7
Fig.9
Ⓕ
Ⓔ
Ⓔ
Ⓩ

VALLONA RANGE HOOD INSTALLATION
7Vallona Range Hood Installation Instructions
Clean the hood and panel filters frequently per the
following instructions.
Do’s:
- Clean your range hood using a non-abrasive cloth or
sponge and a mild liquid dish soap.
- Always wipe in the direction of the grain pattern.
- After cleaning, rinse with warm water.
- Make sure range hood is wiped dry after cleaning to
avoid water marks.
Don’ts:
- Do not use steel wool or scouring pads, which will
scratch and leave iron residue that could lead to
rusting and corrosion.
- Do not wipe against the grain pattern as this could
impact the original finish.
- Do not use chlorine bleach.
Grease/Baffle Filter:
- Remove the filter by pulling the spring release
handle and then pulling down the filter.
- Wash filters as needed in dishwasher or hot deter-
gent solution (low temperature, short cycle).
- If your model contains a grease tray, remove, drain,
and clean periodically.
- Make sure filters are completely dry before putting
back into the range hood.
- Reinstall the filter by making sure the spring release
handles are toward the front. Insert filter into upper
track. Push the spring release handle. Push up on filter
and release handle to latch into place.
CARE AND MAINTENENCEOPERATING INSTRUCTIONS
Use the high suction speed in cases of heavy stove-
top cooking. It is recommended that the range hood
suction is switched on for 5 minutes prior to cooking.
Leave in operation during cooking and for another 15
minutes after cooking.
Version with TOUCH CONTROL on glass (capacita-
tive)
1. [Light] key:
On: the key will light up when the light is on.
Off: the key will turn off when the light is off.
2. [On/Off ] Key:
Turns the range hood on and off.
3. [Fan Speed] Key:
Controls the fan speed. Speed 1 for the lowest
setting, and Speed 4 for maximum. Speed is shown by
a flashing light and is time-controlled; after about 15
minutes of operation at 4 speed, the fan will automat-
ically switch to speed 3.
4. [Timer] key:
Automatically switches the fan off, after 15 minutes
of operation at maximum speed (flashing light).
1
3
2
3
4
