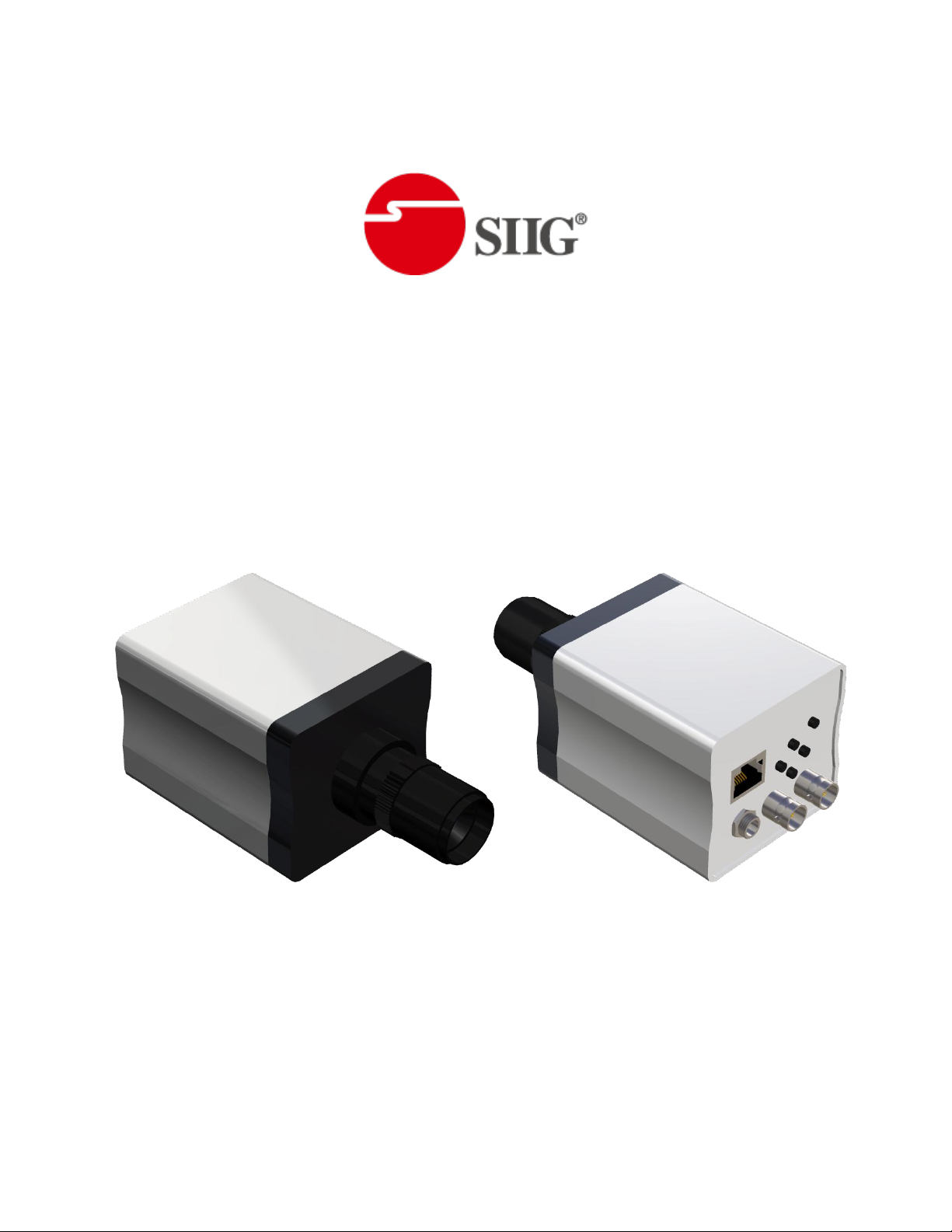

SIIG AV-GM0AB3-S1 User manual

HD-SDI Surveillance Camera w/HDMI(or Cat.X) and
Analog output and PoC (optional)
P/N: AV-GM0AB3-S1

1
Safety and Notice
The AV-GM0AB3-S1 HD-SDI Surveillance Camera w/HDMI(or Cat.X) and Analog output and
PoC (optional) has been tested for conformance to safety regulations and requirements, and has
been certified for international use. However, like all electronic equipments, the AV-GM0AB3-S1
should be used with care. Please read and follow the safety instructions to protect yourself from
possible injury and to minimize the risk of damage to the unit.
Follow all instructions and warnings marked on this unit.
Do not attempt to service this unit yourself, except where explained in this manual.
Provide proper ventilation and air circulation and do not use near water.
Keep away the objects that might damage the device and assure that the placement of this
unit is on a stable surface.
Use only the power adapter, power cords and connection cables designed for this unit.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.

2
INTRODUCTION
The AV-GM0AB3-S1 HD-SDI Surveillance Camera w/HDMI(or Cat.X) and Analog output and
PoC (optional) is an advanced HDCCTV bullet camera which can transmit 2 mega pixels full HD
1080P quality digital images over standard coaxial cable or HDMI cable. Besides, AV-GM0AB3-S1
also supports analog(CVBS) output. AV-GM0AB3-S1 offers the ultra low jitters, which play the
major role for SDI transmission and reception for long range applications.
AV-GM0AB3-S1 is based on a 1/2.8” 2 mega pixels progressive scan sensor for full HD
images, with field selectable choice of 1080p resolution output, or 720p resolution to conserve
DVR hard disk space. With AV-GM0AB3-S1, the security solution providers can easily upgrade the
current CVBS based systems to the most promising HDCCTV with ease and stability!
Features
Sony 1/2.8” CMOS Sensor IMX122
HD 1080p 30 resolution
2 mega pixels
Auto AE/AWB/AF Control
Fog Reduction, 2D/3D Noise Removal
High Light/Back Light Compensation
OSD/ RS-232/ IR Control
OSD Menu Support
SDI/HDMI (or Cat.X)/CVBS output
Up to 64x Digital Zoom
IR Cut Filter (optional)
PoC (optional)
Embeded Microphone

3
SPECIFICATIONS
Model Name
AV-GM0AB3-S1
Technical
Role of usage
HD-SDI Camera
SDI standards
HD-SDI (HDcctv)
Image Area Dimensions
ø 6.4 mm area diagonal
Sensitivity (Minimum Illumination)
0.4Lux/F=1.2; 0 Lux(IR LED ON)
WDR
50 dB
Output Video bandwidth
2.970Gpbs, 2.970/1.001Gbps
Output Video resolution
[Digital] 1080p @30Hz, [Analog] NTSC
Output Video form
PAL or NTSC
Audio support
PCM 2 (32KHz–192KHz Fs sample rate)
Lens connector type
C/CS mount
Output
1x BNC [SDI], 1x BNC [CVBS], 1x RJ45 [or HDMI]
OSD
OSD
OSD Menu
OSD/ RS-232/ IR Control
Day/ Night Mode
Color/ B&W/ AUTO/ EXTERNAL
Electronic Shutter
Auto/ Manual selectable
Sense up
Auto/ OFF
ACCE
Low/ Middle/ High/ OFF
Defog
ON/ OFF
Gain control
-128~+127 levels
White Balance
ATW/ AWC-SET/ Indoor/ Outdoor
WDR
WDR/ BLC/ OFF
Flicker Suppress
ON/ OFF
DNR
2D-NR: ON/ OFF 3D-NR: ON/ OFF
Language
English/ Japanese/ Chinese
Mechanical
AV-GM0AB3-S1
Housing
Metal enclosure
Dimensions[L x D x H]
13 x 6 x 5 cm
Weight
Package
Fixedness
Carton
TBA
Model
TBA
Package
TBA
Power supply
12V 5A DC
230g [8oz]
Power consumption
5 Watts [max]
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]

4
PACKAGE CONTENTS
●1x AV-GM0AB3-S1
●1x12V 5A power supply unit
●1x User Manual

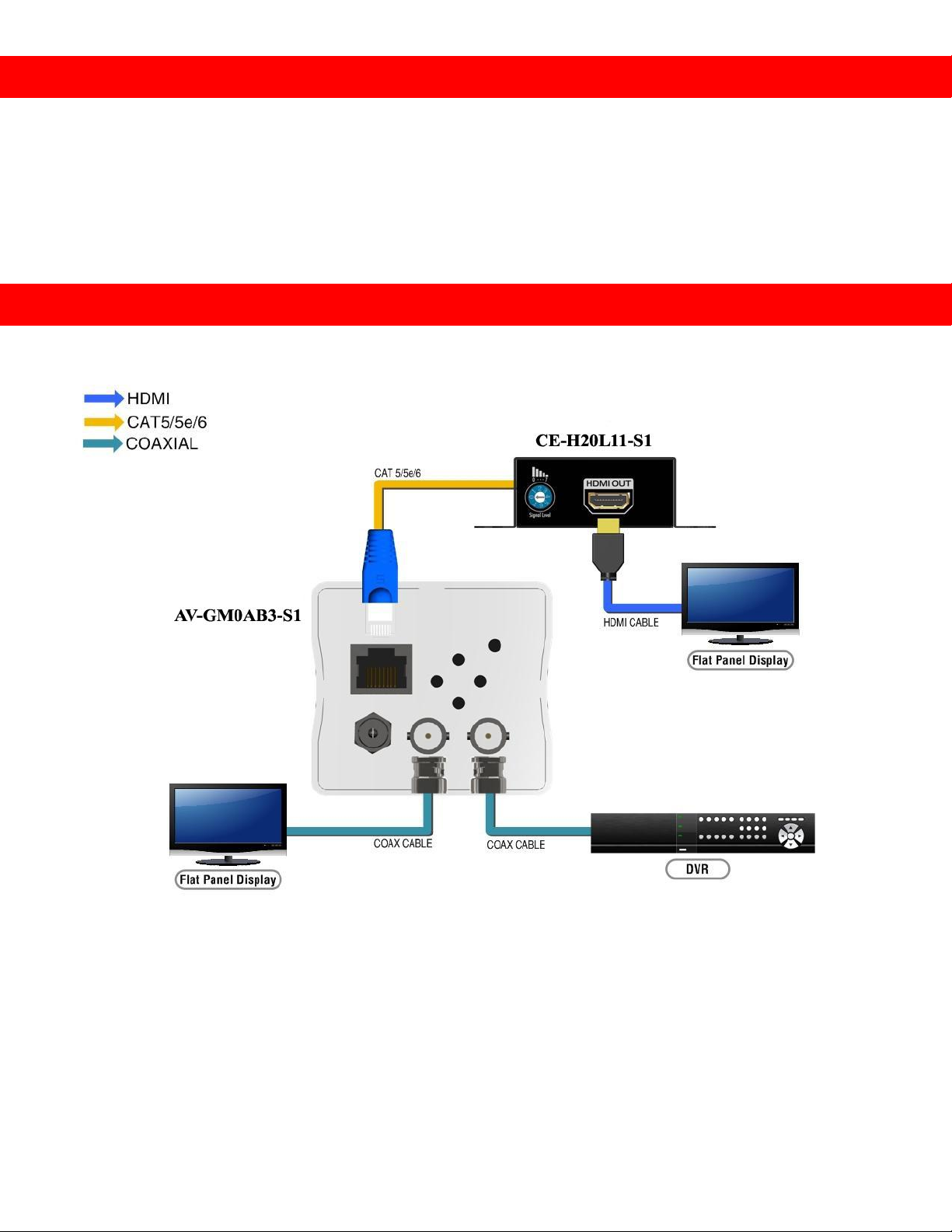

CONNECTION DIAGRAM

5
PANEL DESCRIPTIONS
Front Panel
1. Lens
2. HDMI over Cat5 Output
3. OSD Control
4. DC+12V
5. CVBS(Video/composite) Output
6. SDI Output

6
MEASUREMENT DATA

7
WARRANTY
The SELLER warrants the AV-GM0AB3-S1 HD-SDI Surveillance Camera w/HDMI(or Cat.X) and
Analog output and PoC (optional) to be free from defects in the material and workmanship for 3
years from the date of purchase from the SELLER or an authorized dealer. Should this product
fail to be in good working order within 3 years warranty period, The SELLER, at its option, repair
or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or
any unauthorized modifications including static discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price
of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the
day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the
unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be
accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or fitness or merchantability for any particular purpose,
all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables are limited to a 30 day warranty
and cable must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate.
However, The SELLER assumes no responsibility for any inaccuracies that may be contained in
this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or
consequential damages resulting from any defect or omission in this manual, even if advised of
the possibility of such damages. Also, the technical information contained herein regarding the
AV-GM0AB3-S1 features and specifications is subject to change without further notice.
April, 2018
Support
For more info or tech support
http://www.siig.com/support
