Silent Angel Z1 PLUS User manual

Connection DiagramQuick Start Guide
Z1 PLUS
Thank you for choosing Rhein Z1 PLUS
Package Contents
Z1 PLUS
Dual firmware design prevents the firmware from being damaged during upgrade.
The dual network port design can connect the network and player at the same time.
USB Audio Optimizer is an optimized USB audio processing.
Event triggered system architecture minimizes system load.
BNC external clock interface is applicable to external clock equipment.
Product Features
Power adapter x1 Network cable x1Power cord x1 Product manual x1 Warranty card x1
1 2
HDMI
( ENGINEER ONLY )
TYPE - C USB STORAGE
12V DC USB AUDIO
ON / OFF
CLOCK INPUT 25MHz
M1 / M1T / B1 / B1T External Storage Expansion
External Storage Expansion
For Engineer's testing only
USB DACPower SupplyGX
M-IO M-LINK
DC IN ON / OFF
GbE LAN
100mA max. 100mA max.
ANALOG OUTPUTDIGITAL OUTPUT
R L
COAXIALAES / EBU
I2S
STORAGE EXPANSION
USB AUDIO
Network
Ethernet Cable
Router
USB 2.0
HDMIUSB 3.0
USB 2.0

Make Power Connections
Power On
Power on other audio devices
Use below QR code to install "VitOS Manager" app on a pad or phone.
Power on Z1 PLUS by pushing the power button in the front pane.The power LED will light on.
Install“VitOS Manager"App on a Pad or Phone
Use“VitOS Manager" App to Control Z1 PLUS
Make sure audio devices are all powered off

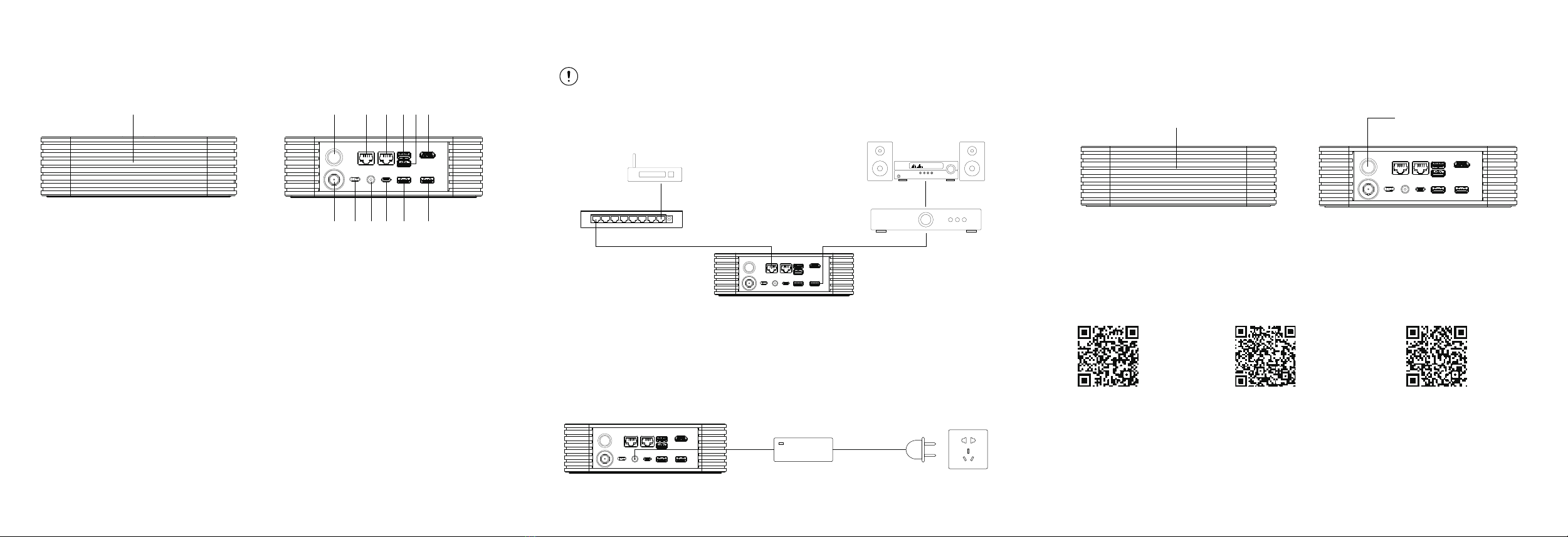

Front Panel Rear Panel
Connect Z1 PLUS Network port to a Bonn series or WiFi router LAN port with an Ethernet cable.
Connect USB AUDIO port to a USB DAC with the USB cable.
Amplifier
DAC
Z1 PLUS
Wi-Fi Router
Connect the power adaptor to the circular power inlet in the rear panel.
Connect the power adaptor to the AC outlet with power cordMake sure the power cord has been plugged
into the power adaptor before plugging into the AC outlet on the well.
Features Make Connections
1DC IN2345678
①Power indicator
When the power is on, the blue light comes on
When the power is off, there is no indicator
②Power Button
When the power is off, press the button to turn on the power
When the power is on, long press the button to turn off the power
③Network Port
Supports 1000Mbps Ethernet Network and 100Mbps Ethernet
Network
④Player Port
Supports 1000Mbps Ethernet Network and 100Mbps Ethernet
Network
⑤Capacity Expansion Port
USB3.1 (USB 2.0 compatible)
⑥Capacity Expansion Port
USB3.1 (USB 2.0 compatible)
⑦Clock Input
25MHz clock Input port (BNC interface, 50 ohm impedance)
⑧Clock Selector (Slide the switch when the device is turned off)
To use external clock, slides to the side of Clock Input and
power cycle
To use internal clock, slides to the side of Internal Clock and
power cycle
⑨DC Input
5.5mm x 2.5mm DC 12V power input ( can be connected to
Silent Angel F2 or suitable 12VDC linear power supply)
⑩Type-C Interface
Accessible hard disk or other storage devices，Speed USB 2.0
⑪Capacity Expansion Port
USB 2.0
⑫USB Audio Output Port
USB AUDIO Ultra high resolution digital audio output
⑬Maintenance port
Only for engineers to maintain equipment, do not use
⑧
① ② ③ ④ ⑤ ⑥
⑦
By using“VitOSManager"app on a iPad/iPhone/Android Pad/Android Phone, which is connected to the same
LAN, you are able to discover Z1 PLUS, install Roon Server to Z1 PLUS, view system status of Z1 PLUS, Please refer
to the official website for more function instructions http://www/silentangel.com/.
⑨ ⑩ ⑪ ⑫
⑬
Ethernet Cable
Ethernet Cable
XLR / RCA
Audio Cables
USB Cable
Bonn N8 / Switch
Z1 PLUS Power Adaptor AC Outlet
Power Cord
Power ButtonPower LED
iPad / iPhone
(iOS)
Android Pad / Phone
(Google Play)
Android Pad / Phone
(Huawei Appstore)
