Simplicity 2400 Series User manual

Parts Manual
Rev. 04/2007
Coronet / 400 / 2400
Series Riders & Mower Decks
Mf
g
. No. Descri
p
tion
13HP Product
1694462 Coronet, 13HP Hydro
1694464 2413H, 13HP Hydro
1694510 Coronet, 13HP Hydro (CE/Export)
1694536 2413, 13HP Hydro (CE/Export)
Mf
g
. No. Descri
p
tion
16HP Product
1694463 Coronet, 16HP Hydro
Mf
g
. No. Descri
p
tion
Mower Decks
1692543 30" Mower Deck
1694053 30" Mower Deck
1694511 30" Mower Deck (CE/Export)
1694537 30" Mower Deck
1692545 34" Mower Deck
TP 400-4095-00-CO-SMA
1731142
Part No.:

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Frame & Fuel System Group ............................................................................................................................... 4
Steering & Lift Group ............................................................................................................................................ 8
Engine & Electric Clutch Group - 13HP Briggs & Stratton, INTEK ...................................................................... 10
Engine & Electric Clutch Group - 16HP Kohler CV460 ....................................................................................... 12

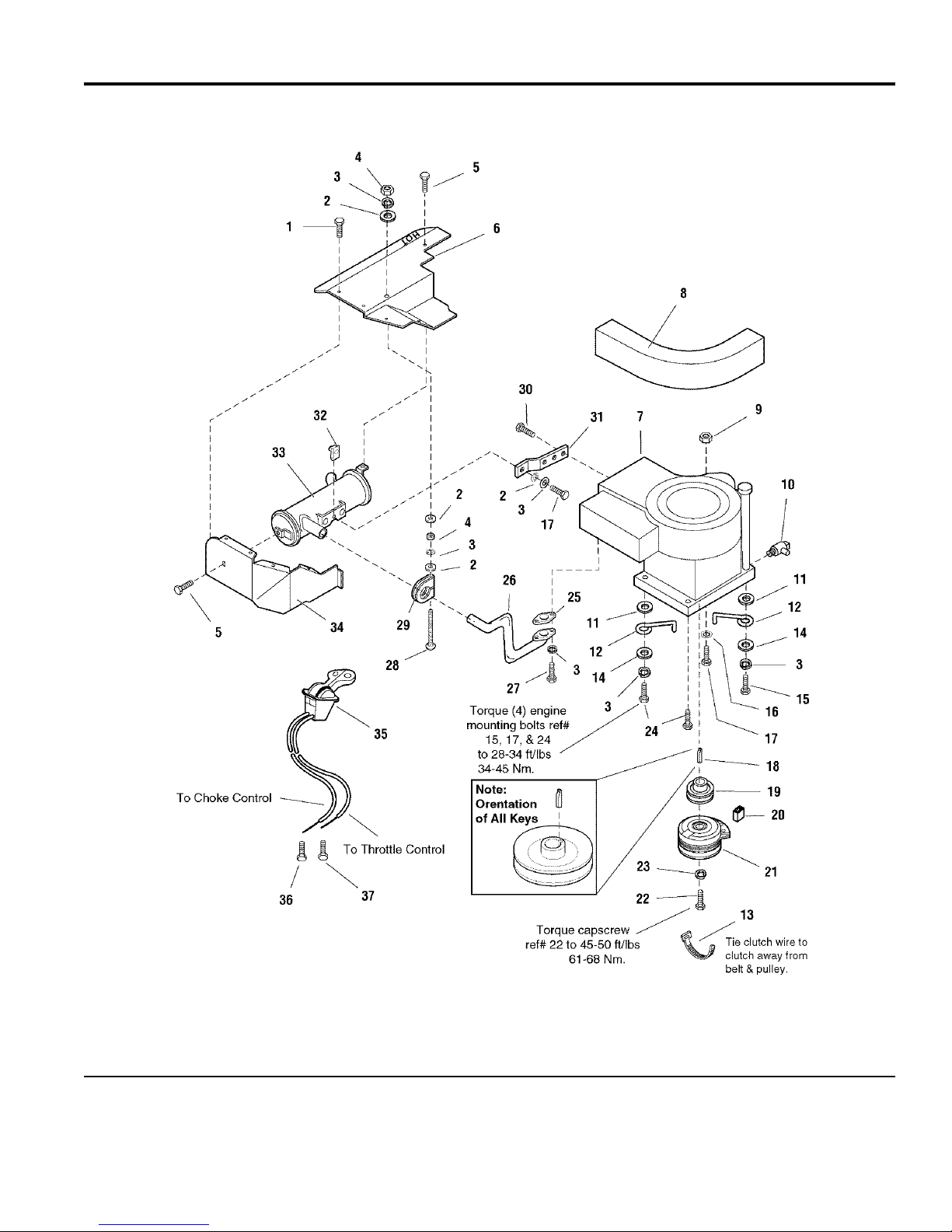

Engine Group - 13HP Briggs & Stratton (CE/Export) .......................................................................................... 14
Engine Group - 13HP Briggs & Stratton Intek ..................................................................................................... 16

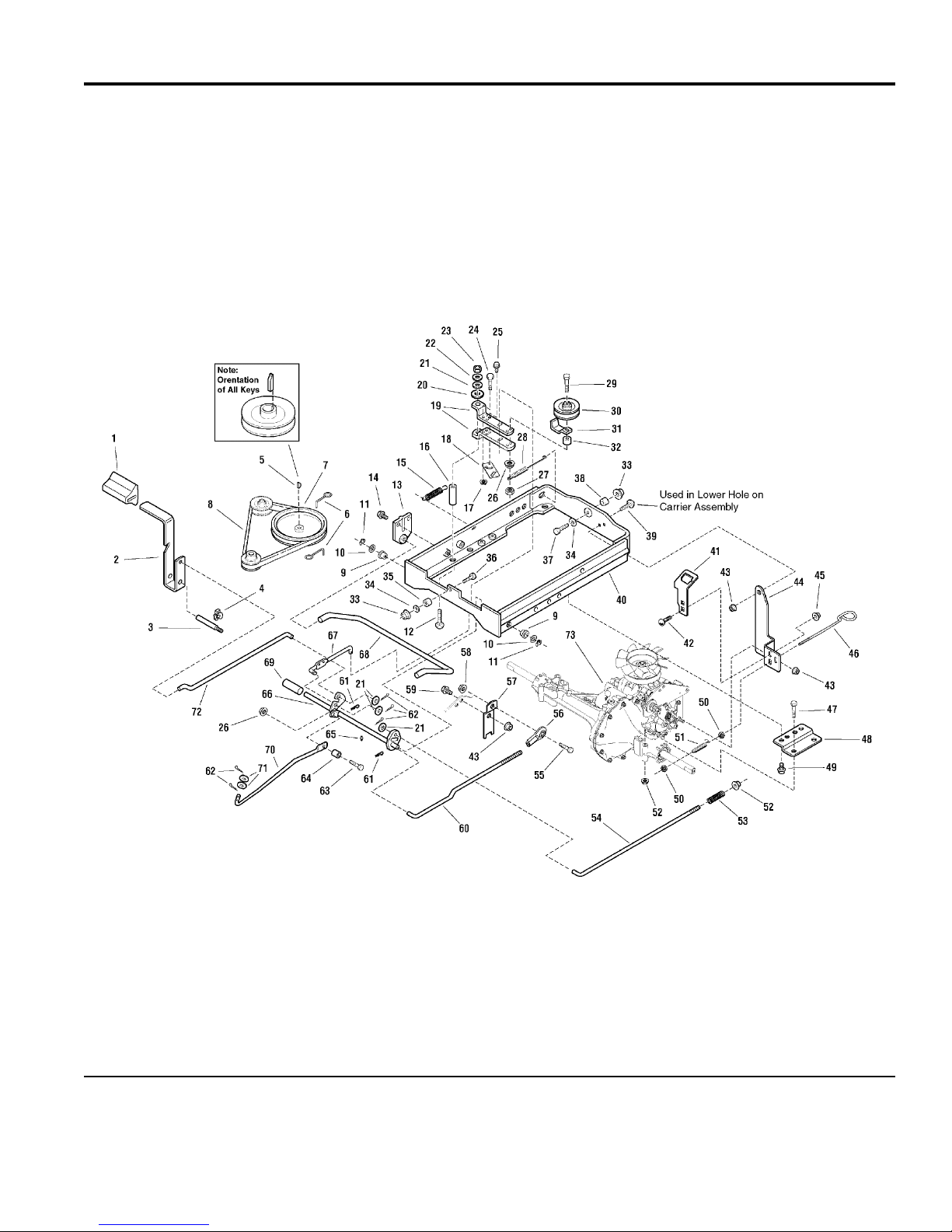

Transmission Group - Hydro-Gear 340-0510 ...................................................................................................... 18
Transmission SERVICE PARTS - Hydro-Gear 340-0510 ................................................................................... 22
Electrical Group .................................................................................................................................................... 28
Electrical Group .................................................................................................................................................... 30
Electrical Group .................................................................................................................................................... 32
Front Column & Dash Group ............................................................................................................................... 34
Wheels & Tires Group .......................................................................................................................................... 38
Decals Group - Brand & Model ............................................................................................................................ 40
Decals Group - Common & Safety ...................................................................................................................... 42
30" Mower Deck - Drive & Arbor .......................................................................................................................... 44
30" Mower Deck - Housing & Height Adjustment (CE/Export) ............................................................................ 46
30" Mower Deck - Housing, Hitch & Height Adjustment ...................................................................................... 50
34" Mower Deck - Drive & Arbor .......................................................................................................................... 54
34" Mower Deck - Height Adjustment .................................................................................................................. 56
34" Mower Deck - Housing, Hitch & Deflector ..................................................................................................... 58

Frame & Fuel System Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986408
The above parts group applies to the following Mfg. Nos.:
2007 4 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694462 - Coronet
1694463 - Coronet
1694464 - 2413H
1694510 - Coronet
1694536 - 2413
TP 400-4095-00-CO-SMA

PART NO. DESCRIPTIONREF NO QTY.
Frame & Fuel System Group
Footnotes
CAPSCREW, Hex Head, 5/16-18 x 11 1921333SM 2
CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/22 1925003SM 8
SHROUD, Rear3 1715962ASM 1
NUT, Hex, Flange, Whizlock, 5/16-184 1931277SM 5
SUPPORT, Fuel Tank5 1726558ASM 1
CARRIAGE BOLT, 5/16-18 x 3/46 1931333SM 1
STRAP, Fuel Tank, Brace7 1708362ASM 1
CAP, Fuel Tank, Vented8 1714020SM 1
TANK, Fuel9 1726635SM 1
SPACER, 21/64 x 1/2 x 21/6410 1710437SM 1
WASHER, Plain, 13/32 x 7/8 x 5/6411 1924940SM 1
CAPSCREW, Taptite, 5/16-18 x 1-1/ (16HP Models)12 1931202SM 1
CAPSCREW, Hex, Taptite, 5/16-18 x 1 (13 HP Models)12 1960373SM 1
BUSHING, Rubber13 1726400SM 1
ELBOW, Fitting with Screen14 1674792SM 1
CLAMP, Hose15 2860112SM 2
HOSE, Fuel Line16 1718678SM 1
WASHER, Plain17 1960044SM 2
PUSH NUT, 5/1618 1933988SM 2
CAPSCREW, Hex Head, Whizlock, 5/16-18 x 3/419 1930591SM 10
PAD, Foot Rest, LH20 1708525SM 1
FRAME ASSEMBLY21 1727222A 1
PAD, Foot Rest, RH22 1708524SM 1
FASTENER23 1704351SM 14
PANEL, Front24 1727685ASM 1
PAL NUT, 5/16-1825 1935255SM 4
SUPPORT, "U", Seat (16 HP Models)26 1726563ASM 1
SUPPORT, "U", Seat (13 HP Models)26 1726563ASM 1
BUMPER, Rubber27 1715970SM 2
CAPSCREW, Hex Head, Taptite, 5/16 x 1/228 1924856SM 1
DUCT, Air Inlet (13 HP Models)29 1708725ASM 1
DUCT, Air Inlet (16 HP Models)29 1726971ASM 1
SPACER, Plastic30 1704626SM 2
SPACER31 1705249SM 2
PIN, Quick32 1704628SM 2
PIVOT, Hood33 1705248SM 2
WASHER35 1917356SM 4
CAPSCREW, Hex Head, 5/16-18 x 1-1/236 1921221SM 1
NUT, Hex, 5/16-1837 1917372SM 1
CAPSCREW, 5/16-18 x 1-1/438 1921977SM 1
SPACER39 1703900SM 1
WASHER, 1"40 2860208SM 2
CAP, Black, Vinyl41 1708881SM 1
The above parts group applies to the following Mfg. Nos.:
2007 5 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694462 - Coronet
1694463 - Coronet
1694464 - 2413H
1694510 - Coronet
1694536 - 2413
TP 400-4095-00-CO-SMA

Frame & Fuel System Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986408
The above parts group applies to the following Mfg. Nos.:
2007 6 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694462 - Coronet
1694463 - Coronet
1694464 - 2413H
1694510 - Coronet
1694536 - 2413
TP 400-4095-00-CO-SMA

PART NO. DESCRIPTIONREF NO QTY.
Frame & Fuel System Group
Footnotes
ADJUSTER, Seat42 1725532ASM 1
SPRING, Extension43 1667286SM 1
SUPPORT, Seat44 1725531ASM 1
SPACER45 1708511SM 4
SEAT ASSEMBLY46 1725486SM 1
DECK, Seat, Orange Simplicity47 1726648SM 1
DECK, Seat, Red47 1726649SM 1
DECK, Seat, Orange Agco Allis47 1686638SM 1
RIVET48 1673320SM 3
SCREEN, Seat Deck Top49 1708504SM 1
CAPSCREW, Hex Head, Whizlock, 1/4-20 x 5/850 1960295SM 7
NUT, Hex, Flange Lock, 1/4-2051 1930642SM 7
WASHER, 5/1652 1919381SM 1
SCREW, Truss Head, 1/4-20 x 3/453 1960715SM 4
CAPSCREW, Hex Head, 5/16-18 x 1-3/4 (16 HP Models)54 1922127SM 1
PLATE, Control55 1726836ASM 1
SCREEN56 1724598SM 1
WASHER, 11/32 x 1 x 1/857 1919381SM 4
NUT, ESNA 1/4-2058 1920397SM 1
The above parts group applies to the following Mfg. Nos.:
2007 7 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694462 - Coronet
1694463 - Coronet
1694464 - 2413H
1694510 - Coronet
1694536 - 2413
TP 400-4095-00-CO-SMA

Steering & Lift Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
984685SL
The above parts group applies to the following Mfg. Nos.:
2007 8 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694462 - Coronet
1694463 - Coronet
1694464 - 2413H
1694510 - Coronet
1694536 - 2413
TP 400-4095-00-CO-SMA

PART NO. DESCRIPTIONREF NO QTY.
Steering & Lift Group
Footnotes
NUT, Hex, 3/8-161 1930645SM 1
PIVOT2 2108512SM 1
ARM ASSEMBLY, Lift3 1708955ASM 1
GRIP, Lever4 1708966SM 1
LEVER, Lift5 1708557ASM 1
SPRING, Compression6 1708884SM 1
WASHER, Plain, 13/32 x 7/8 x 5/647 1924940SM 3
COTTER PIN, 3/32 x 3/48 1918447SM 3
CABLE ASSEMBLY, Lift9 1708556SM 1
NUT, Hex, Esna Lock, 3/8-1610 1919439SM 1
PULLEY, Lift11 1708559SM 1
SPACER12 1708973SM 1
WASHER, Plain, 13/32 x 1-1/2 x 1/813 1924356SM 1
CAPSCREW, Hex Head, 3/8-16 x 1-1/214 1921969SM 1
NUT, Hex, Flange Lock, 3/8-1615 1930645SM 1
ECCENTRIC16 1708514SM 1
WASHER, 13/32 x 7/8 x 1/817 1922755SM 1
CAPSCREW, Hex Head, 3/8-16 x 1-3/418 1921971SM 1
SPINDLE ASSEMBLY, LH19 1706011SM 1
NUT, Hex, Flange Lock, 5/16-1820 1935048SM 3
SPACER21 1960236SM 2
KLIP RING22 1611710SM 2
CARRIAGE BOLT, 5/16-18 x 123 1931335SM 2
TIE ROD, LH24 1708501ASM 1
WASHER25 1919381SM 1
SPACER, 21/64 x 1/2 x 5/826 1710703SM 1
WASHER27 1960170SM 2
LEVER28 1708516ASM 1
ROD, Hitch29 1708521SM 1
CAPSCREW, Hex Head, 1/2-13 x 1-1/230 1920328SM 2
HITCH, Hook31 1709237ASM 1
SPACER32 1709235SM 2
NUT, Hex, Flange Lock, 1/2-1333 1930644SM 2
SPINDLE ASSEMBLY, RH34 1706019SM 1
TIE ROD, RH35 1708500ASM 1
The above parts group applies to the following Mfg. Nos.:
2007 9 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694462 - Coronet
1694463 - Coronet
1694464 - 2413H
1694510 - Coronet
1694536 - 2413
TP 400-4095-00-CO-SMA

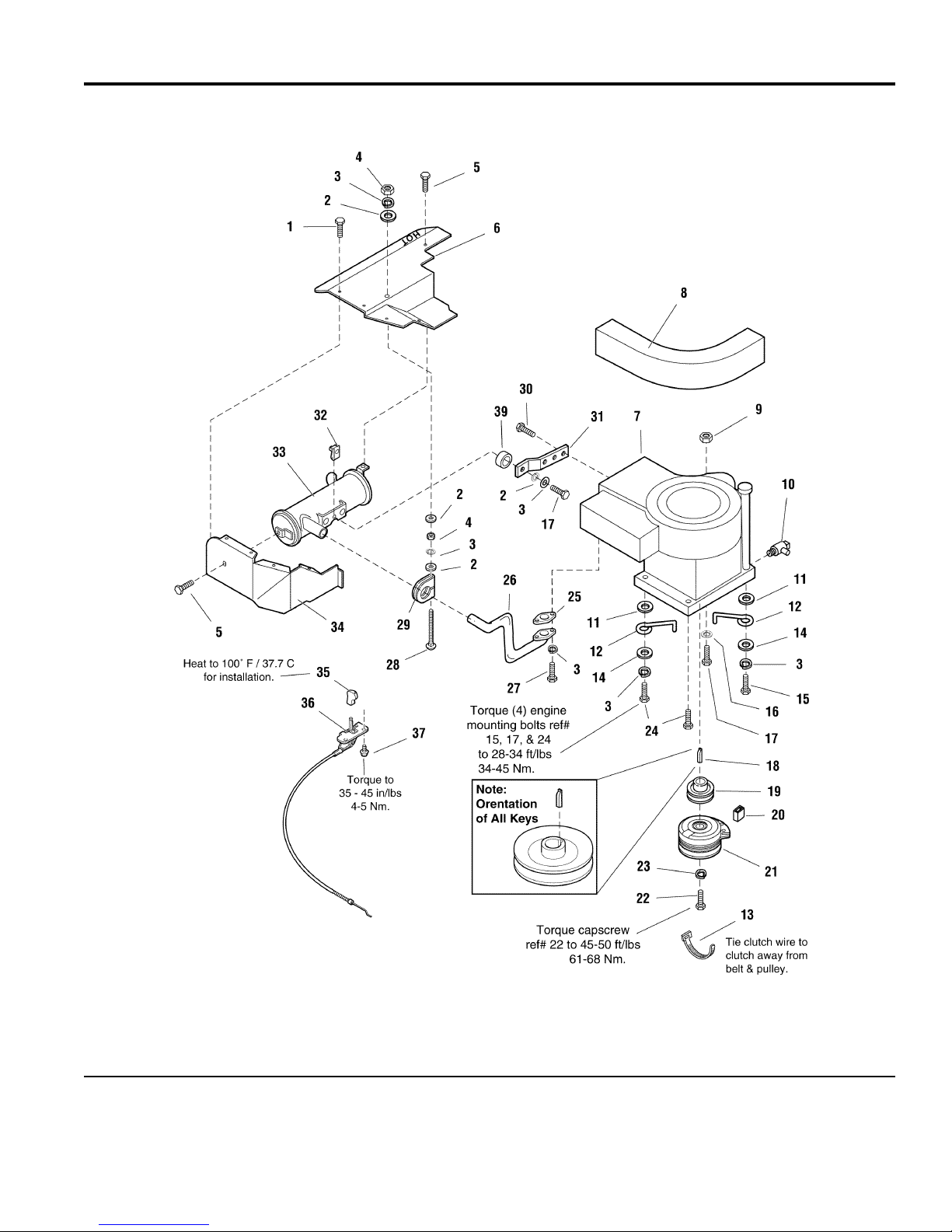

Engine & Electric Clutch Group - 13HP Briggs & Stratton, INTEK
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986211
The above parts group applies to the following Mfg. Nos.:
2007 10 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694462 - Coronet
1694464 - 2413H
TP 400-4095-00-CO-SMA

PART NO. DESCRIPTIONREF NO QTY.
Engine & Electric Clutch Group - 13HP Briggs & Stratton, INTEK
Footnotes
CAPSCREW, Self-Tapping, #10-16 x 1/21 1960720SM 5
WASHER, 5/162 1919326SM 4
LOCKWASHER, 5/163 1917356SM 8
NUT, Hex, 5/16-184 1917372SM 2
CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/25 1924856SM 2
DUCT, R.H., Top6 1724426ASM 1
ENGINE, Briggs & Straton, 13HP, Model 21A9079228587* 1
SEAL, Air Inlet8 1709055SM 1
NUT, Flange, Whizlock, 5/16-189 1931277SM 3
VALVE, Shut-Off10 1708405SM 1
WASHER, Plain11 1933263SM 2
BELT STOP12 1704419SM 2
TIE, Self Locking13 1701011SM 1
WASHER, 3/814 1922755SM 2
CAPSCREW, Taptite, 3/8-16 x 215 2860361SM 1
PUSH NUT, 5/16-1816 1933988SM 1
CAPSCREW, Hex, Whizlock, Flange, 5/16-18 x 1-1/217 1933689SM 1
** KEY18 2171241SM 1
PULLEY, Engine19 1709218SM 1
SLEEVE, Clutch Anchor20 1708537SM 1
CLUTCH, Electric, Kit21 1686882SM 1
CAPSCREW, Hex Head, 7/16-20 x 2-1/222 1960370SM 1
LOCKWASHER, 7/1623 1918199SM 1
CAPSCREW, Taptite, 3/8-16 x 1-1/224 1930598SM 2
GASKET, Muffler25 1650670SM 1
PIPE, Exhaust26 1724466SM 1
CAPSCREW, Socket Head, 5/16-18 x 3/427 1936228SM 2
CARRIAGE BOLT, 5/16-18 x 3-1/428 1960748SM 1
CLAMP, Muffler29 1676183SM 1
CAPSCREW, Hex Head, 1/4-20 x 7/830 1960568SM 2
SUPPORT, Muffler31 1724428ASM 1
SPEED NUT, 5/16-1832 1935255SM 1
MUFFLER ASSEMBLY33 1708416SM 1
DUCT, L.H.34 1724427ASM 1
KNOB, Throttle35 1713846SM 1
THROTTLE CONTROL ASSEMBLY36 1714040SM 1
SCREW, Plastite, 1/4-10 x 1/237 1960536SM 2
STOP, Throttle (Not Pictured, Export Models Only)38 1708442SM 1
SPACER39 2157081SM 1
Note* See your local Briggs & Stratton distributor for parts & service.
Note** Key MUST be installed as shown to prevent damage to electric clutch.
The above parts group applies to the following Mfg. Nos.:
2007 11 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694462 - Coronet
1694464 - 2413H
TP 400-4095-00-CO-SMA

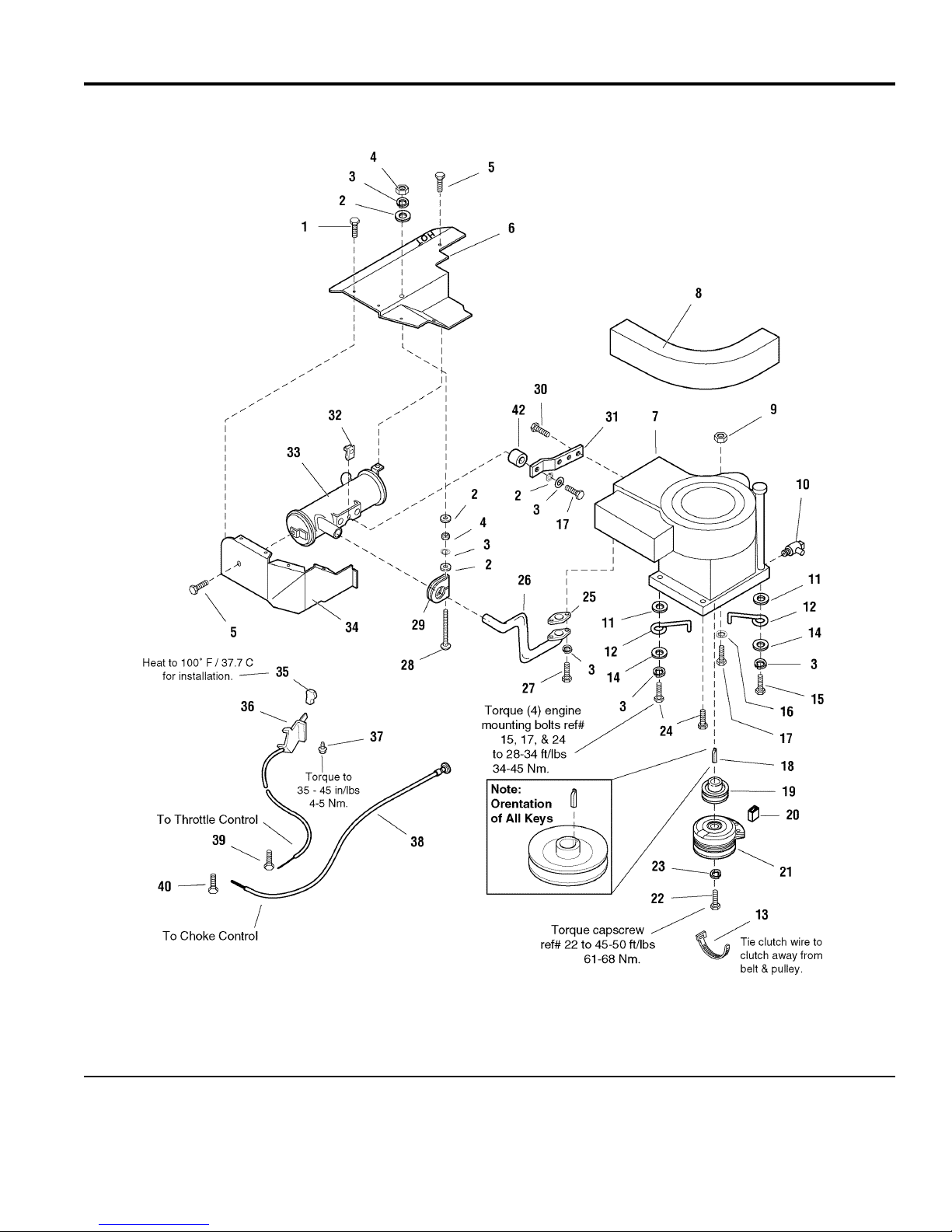

Engine & Electric Clutch Group - 16HP Kohler CV460
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
E986007
The above parts group applies to the following Mfg. Nos.:
2007 12 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694463 - Coronet
TP 400-4095-00-CO-SMA

PART NO. DESCRIPTIONREF NO QTY.
Engine & Electric Clutch Group - 16HP Kohler CV460
Footnotes
THROTTLE CONTROL ASSEMBLY1 1714065SM 1
ENGINE ASSEMBLY, 16 HP Kohler, Model CV 460, Type PA 265072* 1
KNOB, Throttle3 1713846SM 1
SCREW, Plastite, 1/4-10 x 1/24 1960536SM 2
SEAL, Air Inlet5 1709055SM 1
VALVE, Shut Off6 1708405SM 1
WASHER, Plain, 5/167 1919381SM 4
LOCKWASHER, 5/168 1917356SM 2
CAPSCREW, Hex Head TapTite 3/8-16 x 1-1/49 1928635SM 2
WASHER, Plain10 1933263SM 2
CAPSCREW, Hex Head Washer TapTite 3/8-16 x 1, Black11 1927187SM 2
CLUTCH, Electric, Kit12 1686882SM 1
LOCKWASHER, 7/1613 1918199SM 1
CAPSCREW, Hex, 7/16-20 x 2-1/214 1960370SM 1
PIPE, Exhaust15 1713502SM 1
CLAMP, Muffler16 1676183SM 1
CARRIAGE BOLT, 5/16-18 x 3-1/417 1960748SM 1
WASHER, 5/1618 1919326SM 4
NUT, Hex, 5/16-1819 1917372SM 2
NUT, Speed, 5/16-1820 1935255SM 1
MUFFLER ASSEMBLY21 1708416SM 1
SUPPORT, Muffler22 1713557ASM 1
CAPSCREW, Hex, Taptite, 5/16-18 x 1/223 1924856SM 3
AIR DUCT, Bottom24 1722621ASM 1
SHIELD, Muffler25 1726418SM 1
CAPSCREW, Hex,Washer Head Thd. Form, #10-16 x 3/826 1960720SM 5
SLEEVE, Anchor, Clutch27 1708537SM 1
CAPSCREW, Hex Head, 5/16-18 x 128 1921333SM 1
PLUG, Oil Drain29 * 1
GASKET, Muffler30 * 1
NUT, Hex Flange31 * 2
BELT STOP32 1704419SM 2
** KEY33 2171241SM 1
PULLEY34 1709218SM 1
TIE, Self Locking35 1701011SM 1
AIR DUCT36 1726971SM 1
Note* See your local Kohler distributor for parts & service.
Note** Key MUST be installed as shown to prevent damage to electric clutch.
The above parts group applies to the following Mfg. Nos.:
2007 13 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694463 - Coronet
TP 400-4095-00-CO-SMA

Engine Group - 13HP Briggs & Stratton (CE/Export)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986570
The above parts group applies to the following Mfg. Nos.:
2007 14 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694536 - 2413
TP 400-4095-00-CO-SMA

PART NO. DESCRIPTIONREF NO QTY.
Engine Group - 13HP Briggs & Stratton (CE/Export)
Footnotes
CAPSCREW, Self-Tapping, #10-16 x 1/21 1960720SM 4
WASHER, 5/162 1919326SM 4
LOCKWASHER, 5/163 1917356SM 8
NUT, Hex, 5/16-184 1917372SM 2
CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/25 1924856SM 2
DUCT, R.H., Top6 1724426ASM 1
ENGINE, Briggs & Straton, 13HP, Model 21A9079228587* 1
SEAL, Air Inlet8 1709055SM 1
NUT, Flange, Whizlock, 5/16-189 1931277SM 3
VALVE, Shut-Off10 1708405SM 1
WASHER, Plain11 1933263SM 2
BELT STOP12 1704419SM 2
TIE, Self Locking13 1701011SM 1
WASHER, 3/814 1922755SM 2
CAPSCREW, Taptite, 3/8-16 x 215 2860361SM 1
PUSH NUT, 5/16-1816 1933988SM 1
CAPSCREW, Hex, Whizlock, Flange, 5/16-18 x 1-1/217 1933689SM 1
** KEY18 2171241SM 1
PULLEY, Engine19 1709218SM 1
SLEEVE, Clutch Anchor20 1708537SM 1
CLUTCH, Electric, Kit21 1686882SM 1
CAPSCREW, Hex Head, 7/16-20 x 2-1/222 1960370SM 1
LOCKWASHER, 7/1623 1918199SM 1
CAPSCREW, Taptite, 3/8-16 x 1-1/224 1930598SM 2
GASKET, Muffler25 1650670SM 1
PIPE, Exhaust26 1724466SM 1
CAPSCREW, Socket Head, 5/16-18 x 3/427 1936228SM 2
CARRIAGE BOLT, 5/16-18 x 3-1/428 1960748SM 1
CLAMP, Muffler29 1676183SM 1
CAPSCREW, Hex Head, 1/4-20 x 7/830 1960568SM 2
SUPPORT, Muffler31 1724428ASM 1
SPEED NUT, 5/16-1832 1935255SM 1
MUFFLER ASSEMBLY33 1708416SM 1
DUCT, L.H.34 1724427ASM 1
CONTROL, Throttle Double 39" Long w/Knobs35 1727223SM 1
SCREW, Thread Forming W/Washer, B&S #9522036 1726787SM 1
SCREW, Hex, Washer Head, B&S #9490937 1726788SM 1
STOP, Throttle (Not Pictured, Export Models Only)38 1708442SM 1
Note* See your local Briggs & Stratton distributor for parts & service.
Note** Key MUST be installed as shown to prevent damage to electric clutch.
The above parts group applies to the following Mfg. Nos.:
2007 15 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694536 - 2413
TP 400-4095-00-CO-SMA

Engine Group - 13HP Briggs & Stratton Intek
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986489
The above parts group applies to the following Mfg. Nos.:
2007 16 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694510 - Coronet
TP 400-4095-00-CO-SMA

PART NO. DESCRIPTIONREF NO QTY.
Engine Group - 13HP Briggs & Stratton Intek
Footnotes
CAPSCREW, Self-Tapping, #10-16 x 1/21 1960720SM 4
WASHER, 5/162 1919326SM 4
LOCKWASHER, 5/163 1917356SM 7
NUT, Hex, 5/16-184 1917372SM 2
CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/25 1924856SM 2
DUCT, R.H., Top6 1724426ASM 1
ENGINE, Briggs & Straton, 13HP, Model 21A9079228587* 1
SEAL, Air Inlet8 1709055SM 1
NUT, Flange, Whizlock, 5/16-189 1931277SM 3
VALVE, Shut-Off10 1708405SM 1
WASHER, Plain11 1933263SM 2
BELT STOP12 1704419SM 2
TIE, Self Locking13 1701011SM 1
WASHER, 3/814 1922755SM 2
CAPSCREW, Taptite, 3/8-16 x 215 2860361SM 1
PUSH NUT, 5/16-1816 1933988SM 1
CAPSCREW, Hex, Whizlock, Flange, 5/16-18 x 1-1/217 1933689SM 1
** KEY18 2171241SM 1
PULLEY, Engine19 1709218SM 1
SLEEVE, Clutch Anchor20 1708537SM 1
CLUTCH, Electric, Kit21 1686882SM 1
CAPSCREW, Hex Head, 7/16-20 x 2-1/222 1960370SM 1
LOCKWASHER, 7/1623 1918199SM 1
CAPSCREW, Taptite, 3/8-16 x 1-1/224 1930598SM 2
GASKET, Muffler25 1650670SM 1
PIPE, Exhaust26 1724466SM 1
CAPSCREW, Socket Head, 5/16-18 x 3/427 1936228SM 2
CARRIAGE BOLT, 5/16-18 x 3-1/428 1960748SM 1
CLAMP, Muffler29 1676183SM 1
CAPSCREW, Hex Head, 1/4-20 x 7/830 1960568SM 2
SUPPORT, Muffler31 1724428ASM 1
SPEED NUT, 5/16-1832 1935255SM 1
MUFFLER ASSEMBLY33 1708416SM 1
DUCT, L.H.34 1724427ASM 1
KNOB, Throttle35 1713846SM 1
THROTTLE CONTROL ASSEMBLY36 1714040SM 1
SCREW, Plastite, 1/4-10 x 1/237 1960536SM 2
CABLE, Choke Control38 1704344SM 1
SCREW, Hex, Washer Head, B&S #9490939 1726788SM 1
SCREW, Thread Forming W/Washer, B&S #9522040 1726787SM 1
STOP, Throttle (Not Pictured, Export Models Only)41 1708442SM 1
SPACER42 2157081SM 1
Note* See your local Briggs & Stratton distributor for parts & service.
Note** Key MUST be installed as shown to prevent damage to electric clutch.
The above parts group applies to the following Mfg. Nos.:
2007 17 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694510 - Coronet
TP 400-4095-00-CO-SMA

Transmission Group - Hydro-Gear 340-0510
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986402
The above parts group applies to the following Mfg. Nos.:
2007 18 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694462 - Coronet
1694463 - Coronet
1694464 - 2413H
1694510 - Coronet
1694536 - 2413
TP 400-4095-00-CO-SMA

PART NO. DESCRIPTIONREF NO QTY.
Transmission Group - Hydro-Gear 340-0510
Footnotes
PAD, Brake1 1704849SM 1
LEVER, Clutch2 1723348ASM 1
PIVOT, Brake3 1708409SM 1
RING, Klipring Extension4 1708554SM 1
KEY, Hi-Pro5 2171241SM 1
STOP, Belt6 1704419SM 2
PULLEY & HUB ASSEMBLY, Engine7 1723497SM 1
V - BELT8 1707346SM 1
BUSHING9 1715025SM 2
WASHER, 1/210 1924361SM 2
RING, Klipring Extension11 1703805SM 1
CARRIAGE BOLT, 5/16 - 18 x 2-1/4 G512 1931342SM 1
BRACKET, Torsion Bar13 1708367SM 2
SCREW, Hex, Washer Head, Taptite, 5/16 - 18 x 1/214 1924856SM 4
SPRING, Extension15 2159106SM 1
SPACER16 1709345SM 1
NUT, Hex, Flange, 1/4 - 20, Whiz Lock LG17 1930641SM 1
PLATE, Idler 10GA18 1725839ASM 1
CLEVIS HALF19 1709221SM 2
WASHER, 5/820 1924366SM 1
WASHER, 5/1621 1919326SM 5
LOCKWASHER, Spring 5/1622 1917356SM 1
NUT, Hex 5/16 - 1823 1917372SM 1
CAPSCREW, Hex Head, 1/4 - 20 x 3/4 G524 1923341SM 1
SCREW, Hex, Washer Head, Taptite, 1/4 - 20 x 5/825 1927429SM 1
NUT, Hex Flange,, 3/8 - 16 Whiz Lock LG26 1928352SM 2
NUT, Hex, Toplock, Jam, 3/8 - 1627 1928731SM 1
SPRING, Extension28 1725250SM 1
CAPSCREW, Hex Head, 3/8 - 16 x 3-1/4 G529 1922918SM 1
PULLEY30 1668827SM 1
GUARD, Spring31 1708352ASM 1
SPACER32 1725838SM 1
, 1/2 - 13, Two-Way Lock33 1930644SM 1
WASHER, 1/234 1924361SM 1
SPACER35 1719683SM 1
CAPSCREW, Hex Head, 1/2 - 20 x 1-3/4 G836 1719682SM 1
CAPSCREW, Hex Head, 1/2 - 13 x 1 G537 1923114SM 1
SPACER38 1719725SM 1
CARRIAGE BOLT, 5/16 - 18 x 5/8 G539 1931332SM 1
CARRIER ASSEMBLY40 1726591ASM 1
BRACKET, Switch Mounting (No-Mow Models Only)41 1726554ASM 1
CARRIAGE BOLT, 1/4 - 20 x 5/8 G5 (No-Mow Models Only)42 1960252SM 2
NUT, Hex Flange, 5/16 - 18, Whiz Lock Small43 1931277SM 3
STRAP, Torque (No-Mow Models Only)44 1726555ASM 1
The above parts group applies to the following Mfg. Nos.:
2007 19 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694462 - Coronet
1694463 - Coronet
1694464 - 2413H
1694510 - Coronet
1694536 - 2413
TP 400-4095-00-CO-SMA

Transmission Group - Hydro-Gear 340-0510
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986402
The above parts group applies to the following Mfg. Nos.:
2007 20 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694462 - Coronet
1694463 - Coronet
1694464 - 2413H
1694510 - Coronet
1694536 - 2413
TP 400-4095-00-CO-SMA
