Simplicity Colt ZT2148 User manual

Print Instructions for Print Vendors (Paper Manuals)
PARTS MANUAL
TOTAL PAGE COUNT: Less than 80
Paper Size: • 11 x 17
• Body - 50 lbs brilliant white offset or equivalent.
• Cover - on 80 lbs coated, pre-printed “grid” cover stock
(NOTE: If total order quantity is less than 100 pieces, use uncoated cover stock)
Press: • Body - 1-color, 2-sided
• Cover imprint - 1-color, 2-sided
Bindery: • Fold & Staple (2X), Face Trim, 3-Hole Drill
TOTAL PAGE COUNT: 80 or greater
Paper Size: • 8-1/2 x 11
• Body - 50 lbs brilliant white offset or equivalent.
• Cover - on 80 lbs coated, pre-printed “grid” cover stock
(NOTE: If total order quantity is less than 100 pieces, use uncoated cover stock)
Press: • Body - 1-color, 2-sided
• Cover imprint - 1-color, 2-sided
Bindery: • Perfect Bind, Face Trim (3 knife), 3-Hole Drill
GENERAL
COVERS: • Covers are located at the beginning of this package.
• Back cover is the page IMMEDIATELY AFTER the front cover.
• If supplied, the “Hardware Identification & Torque Specifications” is located IMMEDIATELY AFTER
the back cover. This page MUST be printed on the INSIDE of the BACK cover.
• Check the front cover for the individual part number (typically a 2xxxx or 182xxxx number).
• Check the front cover for the document number (TP 4xx - xxxx - xx - xx - xx)
BODY: •ODD number pages are ALWAYS right hand pages, and EVEN number are ALWAYS left hand
pages.
General: • This instruction page is NOT part of the manual and must NOT be printed.
• Pages labeled with the text “THIS PAGE INTENTIONALLY BLANK” are placement pages ONLY,
and should NOT be printed.
If you have any further questions regarding this manual, please contact Ken Cehonski in
Ferris Industries Engineering Department at [phone] ext. 249.

THIS PAGE INTENTIONALLY BLANK

22819
Rev. No. 02
Rev. Date: 10/2003
TP 400-7034-02-CT-D
Model Number: Description:
ZT2148 Colt, w/ 21 HP Briggs & Stratton & 48” Mower Deck
ZT2148B Colt, w/ 21 HP Briggs & Stratton & 48” Mower Deck
ZT2148K Colt, w/ 21 HP Kohler & 48” Mower Deck
ZT2352 Colt, w/ 23 HP Briggs & Stratton & 52” Mower Deck
ZT2352B Colt, w/ 23 HP Briggs & Stratton & 52” Mower Deck
ZT2352K Colt, w/ 23 HP Kohler & 52” Mower Deck
Colt
Zero-Turn Riding Mower
TM
mowers are built by
Ferris Industries, a
Simplicity company.
Ferris Industries
5375 North Main Street
Munnsville, NY 13409
800-933-6175
TM
PARTS
MANUAL

Ferris Industries
5375 North Main Street
Munnsville, NY 13409
800-933-6175
www.ferrisindustries.com
© Copyright 2003 Ferris Industries
All Rights Reserved. Printed in USA.

Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
SAE Grade 2 SAE Grade 5 SAE Grade 8
Size Of in/lbs in/lbs in/lbs
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32 19 2.1 30 3.4 41 4.6
8-36
20 2.3 31 3.5 43 4.9
10-24
27 3.1 43 4.9 60 6.8
10-32
31 3.5 49 5.5 68 7.7
1/4-20
66 7.6 810.9 12 16.3
1/4-28
76 8.6 10 13.6 14 19.0
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
Hex Head Capscrew
Hex Nut
Lockwasher
Washer
Carriage Bolt
NOTES
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. For prevailing torque locknuts:
use 65% of Grade 5 torque.
b. For flange whizlock nuts and screws:
use 135% of Grade 5 torque.
3. Unless otherwise noted on assembly drawings,
all torque values must meet this specification.

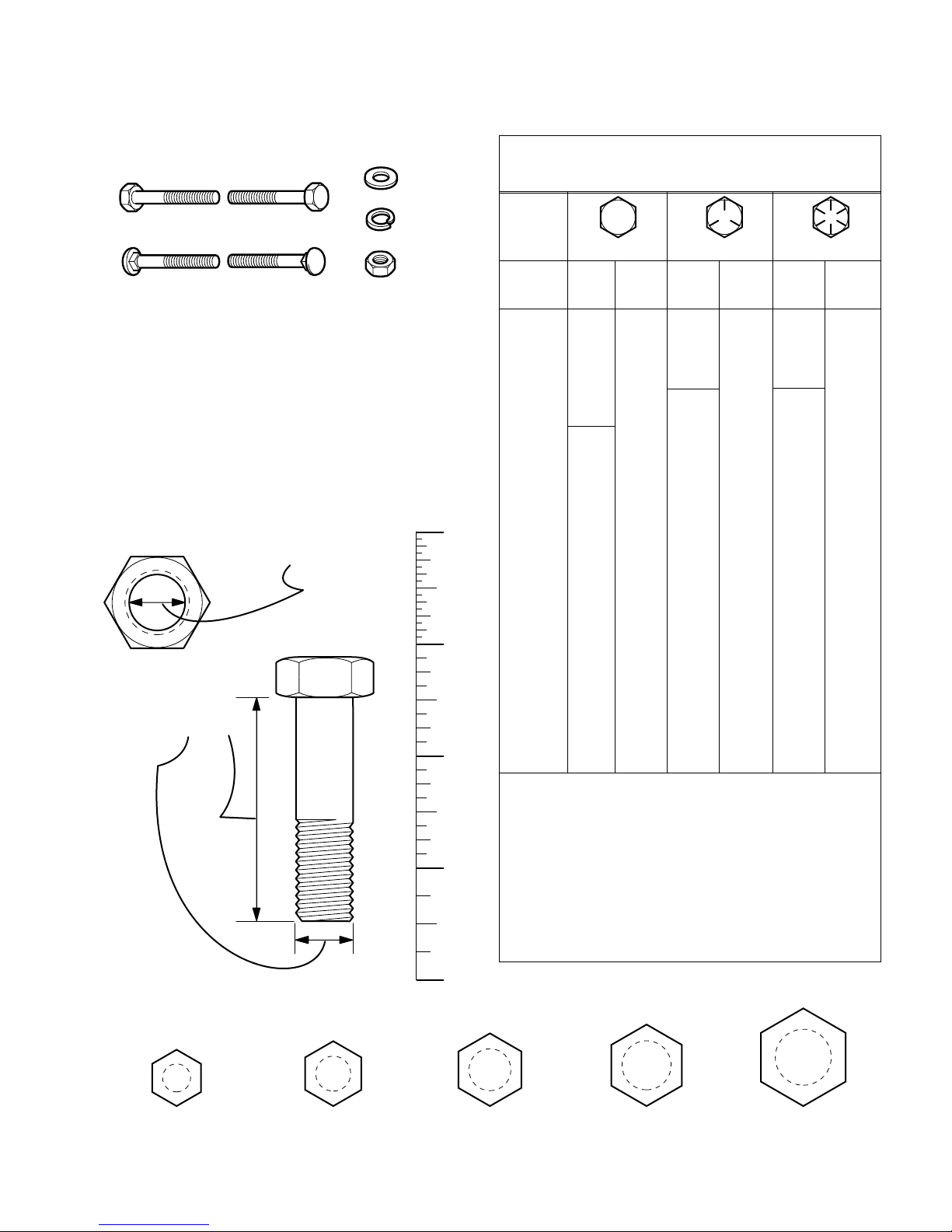

Hardware Identification & Torque Specifications
Common Hardware Types
Screw, 1/2 x 2
Body
Diameter
Body
Length
Inside
Diameter
Nut, 1/2”
No
Marks
3/8” Bolt or Nut
Wrench—9/16”
3/8
5/16” Bolt or Nut
Wrench—1/2”
5/16
1/4” Bolt or Nut
Wrench—7/16”
1/4
1/2” Bolt or Nut
Wrench—3/4”
1/2
7/16
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
Wrench & Fastener Size Guide
Standard Hardware Sizing
When a washer or nut is identified as 1/2”, this is the
nominal size , meaning the inside diameter is 1/2 inch; if a
second number is present it represents the
threads per inch.
When a bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the
nominal size , or body diameter is 1/2 inch; the
second number represents the
threads per inch (16 in this
example), and the final number is the
body length of the
bolt or screw (2 inches long in this example).
The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.
0
1/4 3/4
1/2
1
1/4 3/4
1/2
2
1/4 3/4
1/2
3
1/4 3/4
1/2
4

THIS PAGE INTENTIONALLY BLANK

1
TP 400-7034-01-CT-D
© Copyright 2003 Ferris Industries. All Rights Reserved.
Table of Contents
RIDER COMPONENTS
Main Frame and Front Caster Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Floor & Brake Cover Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Seat & Seat Mount Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Control Cover, Mount & Fan Shield Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Instrument Panel Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Fuel Tank & Bumper Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Fuel Supply Hose Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Engine & PTO Group - Briggs & Stratton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Engine & PTO Group - Kohler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Pump Drive Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Motion Control Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Motion Control - Neutral Return Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Hydraulic Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Parking Brake Group-Upper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Parking Brake Group-Lower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Battery Mount, Reservoir Mount & Soleniod Mount Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Deck Lift Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Tire & Wheel Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Electrical Schematics - Briggs & Stratton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Electrical Schematics - Kohler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Decals - Brand & Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Decals - Safety & Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
MOWER DECK COMPONENTS
Mower Housing, Cover, Spindle and Blade Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Mower Drive Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Mower Rear Mount Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Mower Deck Roller Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
REFERENCE INFORMATION:
Torque Specification Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Inside Back Cover

2
TP 400-7034-01-CT-D
© Copyright 2003 Ferris Industries. All Rights Reserved.
The above parts group applies to the following Model Nos.:
ZT2148 Colt 21 HP Briggs & Stratton Rider w/ 48” Mower
ZT2148B Colt 21 HP Briggs & Stratton Rider w/ 48” Mower
ZT2148K Colt 21 HP Kohler Rider w/ 48” Mower
ZT2352 Colt 23 HP Briggs & Stratton Rider w/ 52” Mower
ZT2352B Colt 23 HP Briggs & Stratton Rider w/ 52” Mower
ZT2352K Colt 23 HP Kohler Rider w/ 52” Mower
Main Frame & Front Caster Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
See Wheel & Tire Group
for Tires & Fasteners
1
32
5
4
8
7
6

3
TP 400-7034-01-CT-D
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
1 1847007 1 MAIN FRAME
2 21073 2 CAP
3 25203-10 2 PIN, Cotter
4 25104 2 NUT, Hex, Slotted, 3/4-16
5 25160 2 WASHER, 3/4
6 20884 4 BEARING, Tapered Roller
7 21072 2 SEAL, Grease
8 1847049 2 CASTER YOKE
The above parts group applies to the following Model Nos.:
ZT2148 Colt 21 HP Briggs & Stratton Rider w/ 48” Mower
ZT2148B Colt 21 HP Briggs & Stratton Rider w/ 48” Mower
ZT2148K Colt 21 HP Kohler Rider w/ 48” Mower
ZT2352 Colt 23 HP Briggs & Stratton Rider w/ 52” Mower
ZT2352B Colt 23 HP Briggs & Stratton Rider w/ 52” Mower
ZT2352K Colt 23 HP Kohler Rider w/ 52” Mower

4
TP 400-7034-01-CT-D
© Copyright 2003 Ferris Industries. All Rights Reserved.
The above parts group applies to the following Model Nos.:
ZT2148 Colt 21 HP Briggs & Stratton Rider w/ 48” Mower
ZT2148B Colt 21 HP Briggs & Stratton Rider w/ 48” Mower
ZT2148K Colt 21 HP Kohler Rider w/ 48” Mower
ZT2352 Colt 23 HP Briggs & Stratton Rider w/ 52” Mower
ZT2352B Colt 23 HP Briggs & Stratton Rider w/ 52” Mower
ZT2352K Colt 23 HP Kohler Rider w/ 52” Mower
Floor & Brake Cover Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1
10
2
3
4
5
7 8
6
9
11
11
12
7
