Simplicity Pacer 1694287 User manual

Parts Manual
Rev. 11/2008
Pacer
Series Transaxle Drive Walk-Behind Mower
TP 400-7226-H-PA-S
Mf
g
. No. Descri
p
tion
15HP Product
1694895 Pacer, 15HP B&S Walk-Behind
2690447 Pacer, 15HP B&S w/34" Deck
Mf
g
. No. Descri
p
tion
17.5HP Product
5900630 Pacer, 17.5HP B&S w/34" Deck
5900766 Pacer, 17.5HP B&S w/32" Deck
Mf
g
. No. Descri
p
tion
Mower Decks
1694287 34" Mower Deck
5100117
Part No.:

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Engine Frame & Handle Bars Group ................................................................................................................... 4
Engine Frame & Handle Bars Group ................................................................................................................... 6
Engine & PTO Group ........................................................................................................................................... 8
Engine & PTO Group ........................................................................................................................................... 10
Transaxle - SERVICE PARTS ............................................................................................................................. 12
Transaxle, Mount & Drive Idler Group ................................................................................................................. 14
Motion Control, Parking Brake & Operator Presence Group ............................................................................... 16
Motion Control, Parking Brake & Operator Presence Group ............................................................................... 20
Fuel Supply Hose & Tank Replacement Parts Group ......................................................................................... 22
Fuel Tank & Mount Group (S/N: 2012825357 & Below) ...................................................................................... 24
Fuel Tank & Mount Group (S/N: 2012825358 & Above) ..................................................................................... 26
Electrical Group (S/N: 2013136020 & Below) ...................................................................................................... 28
Electrical Group (S/N: 2013136021 & Above) ..................................................................................................... 30
Wheel & Tire Group ............................................................................................................................................. 32
Decal Group ......................................................................................................................................................... 34
Decal Group ......................................................................................................................................................... 36
32" Mower Deck - Frame, Caster & Shield .......................................................................................................... 38
32" Mower Deck - Height Adjustment .................................................................................................................. 40
32" Mower Deck - Housing, Spindles, Blades & Pulleys ..................................................................................... 42
34" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................ 44
34" Mower Deck - Frame, Caster & Shield .......................................................................................................... 46
34" Mower Deck - Grass Mulcher ........................................................................................................................ 48
34" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 50
34" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 54

Engine Frame & Handle Bars Group (17/32 Model)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
5301452
The above parts group applies to the following Mfg. Nos.:
4
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
5900766 - Pacer
TP 400-7226-H-PA-S

PART NO. DESCRIPTIONREF NO. QTY.
Engine Frame & Handle Bars Group (17/32 Model)
Footnotes
SWITCH, BLADE ENGAGEMENT1 5022180 1
RING, SWITCH RETAINER2 5022222 1
WELD, ENGINE DECK, HC36 - ORG3 5049229C 1
NUT, 1/4-20 HEX SERR. FLANGE ( For Battery Terminals - Not Shown)4 5025126 2
BOLT, 1/4-20 X 3/4 GD5 YZ (2 For Battery Terminals - Not Shown)5 5025010X6 2
SWITCH, IGNITION, 6 POST (Includes Ref. No. 7-9)6 5020927 1
KEY, IGNITION, MOLDED SET7 5022789 1
COVER, PLASTIC SNAP ON8 5022790 1
NUT, PLASTIC9 5022791 1
CABLE, THROTTLE CONTROL, 40"10 5048231 1
GRIP, FOAM, .940 X 5 X .18711 5021841 2
NUT, 1/4-20 HEX NYLOCK FLANGE12 5025391 2
WELD, HANDLE BAR13 5061279C 1
NUT, #10-24 HEX NYLON LOCK14 5025271 2
STRAP, RUBBER15 5021670 1
SCREW, #10-24 X 1 RS, CZ16 5025270 2
BATTERY BOX, W/ DRAIN HOLE17 5100688 1
BATTERY, WET ( BCIU1, 340 CCA)18 - 1
CLIP, BODY , 5/16-18 FOR 7 GA.19 5022308 4
SHIELD, REAR20 5047735C 1
BOLT, 5/16-18 X 1 GD5 YZ21 5025011X8 4
WASHER, 5/16 SAE22 5025155 4
The above parts group applies to the following Mfg. Nos.:
5
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
5900766 - Pacer
TP 400-7226-H-PA-S

Engine Frame & Handle Bars Group (226hbre0)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
226hbre0
The above parts group applies to the following Mfg. Nos.:
6
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694895 - Pacer
2690447 - Pacer
5900630 - Pacer
TP 400-7226-H-PA-S

PART NO. DESCRIPTIONREF NO. QTY.
Engine Frame & Handle Bars Group (226hbre0)
Footnotes
SWITCH, PTO1 1722887SM 1
SWITCH RETAINER RING2 5022222SM 1
NUT, 3/8-24 Hex3 5025035SM 1
CABLE, Choke Control, 47"4 5046501SM 1
BOLT, 1/4-20 x 3/45 5025010X6SM 2
SWITCH, Ignition, Complete6 1686734SM 1
KEY, Ignition, Molded Set7 1717163SM 1
COVER8 1704346SM 1
PLASTIC NUT9 5022791SM 1
CABLE, Throttle Control, 46"10 5047629SM 1
GRIP, Foam11 5021841SM 2
NUT, 1/4-20 Hex Nylon Lock12 5025095SM 2
HANDLE BAR ASSEMBLY13 5061279CSM 1
NUT, #10-24 Hex Nylon Lock14 5025271SM 2
RUBBER STRAP15 5021670SM 1
SCREW, #10-24 x 116 5025270SM 2
BATTERY BOX17 5046188SM 1
BATTERY, Lawn & Garden, 12V (BCIU1, 340 CCA)18 - 1
BODY CLIP, 5/16-1819 5022308SM 4
REAR SHIELD20 5047735CSM 1
BOLT, 5/16-18 x 3/421 5025011X6SM 4
WASHER, 5/16" SAE22 5025155SM 4
ENGINE DECK ASSEMBLY23 5049229C 1
The above parts group applies to the following Mfg. Nos.:
7
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694895 - Pacer
2690447 - Pacer
5900630 - Pacer
TP 400-7226-H-PA-S

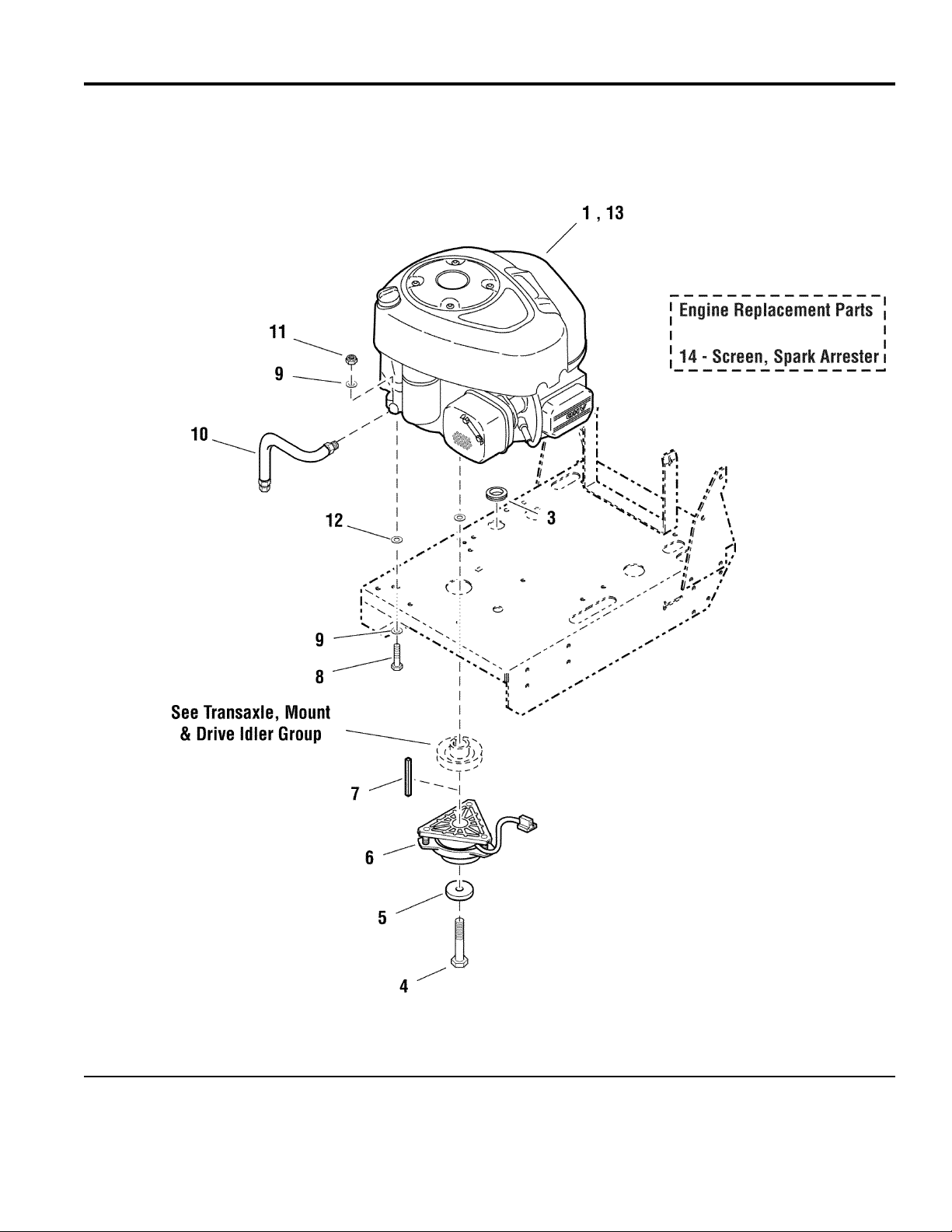

Engine & PTO Group (17/32 Model)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
5301446
The above parts group applies to the following Mfg. Nos.:
8
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
5900766 - Pacer
TP 400-7226-H-PA-S

PART NO. DESCRIPTIONREF NO. QTY.
Engine & PTO Group (17/32 Model)
Footnotes
ENGINE, 17.5HP ELS, B&S#31F777-0118-G11- 1
GROMMET, 7/82 5021379SM 1
GROMMET, 1/23 5021077SM 1
BOLT, 5/16-18 X 1-1/2 GD5 YZ4 5025011X12SM 5
NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)5 5025139SM 3
BUSHING, BRASS, 3/4 X 1 X 16 5020876CSM 2
IDLER WELDMENT, ENGINE DECK7 5047661CSM 1
WASHER, 3/4 SAE8 5025160SM 1
C-CLIP, 3/4 SHAFT9 5020863SM 1
PULLEY, IDLER10 5021369SM 1
WASHER, 1/2 SAE11 5025158SM 1
BOLT, 1/2-13 X 2-3/4 GD512 5025017X22SM 1
NUT, 1/2-13 HEX NYLON LOCK13 5025056SM 1
BOLT, CRANKSHAFT, 7/16X2-3/4, PATCH YZ14 5047632SM 1
SPACER, .45 X 1.62 X .3715 5042132SM 1
CLUTCH,#504586, ELECTRIC, OGURA JD-1116 1717664SM 1
KEY, 1/4" SQ. X 2.0017 5050407X16SM 1
BOLT, 5/16-18 X 2-1/4 GD5 YZ18 5025011X18SM 1
WASHER, 5/16 SAE19 5025155SM 4
SPRING, EXTENSION20 5021103SM 1
WASHER, 5/16 INT. TOOTH LOCK21 5025188SM 1
BOLT, 5/16-18 X 3/4 GD522 5025011X6SM 1
CLAMP, HOSE, 1.000 DIA. (2 Not Shown)23 5023173SM 3
HOSE, OIL DRAIN24 5048681SM 1
NUT, 5/16-18 HEX NYLON LOCK25 5025057SM 4
NUT, 5/16-18 HEX NYLOCK FLANGE26 5025392SM 2
WASHER, 5/16 USS27 5025337SM 2
SPACER, .52 X 1.00 X .3828 5044609SM 1
ARRESTOR-SPARK (Not Shown)29 392390 1
The above parts group applies to the following Mfg. Nos.:
9
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
5900766 - Pacer
TP 400-7226-H-PA-S

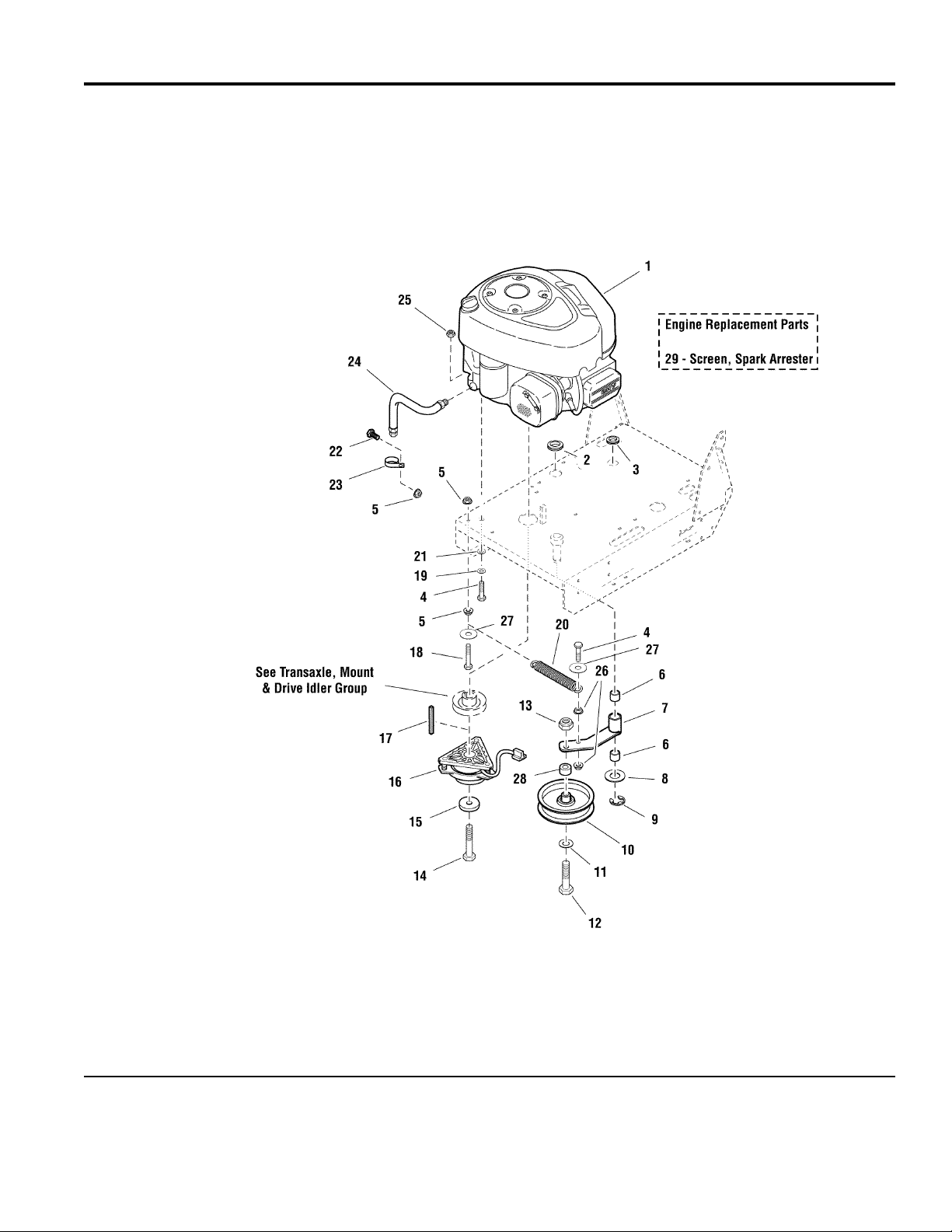

Engine & PTO Group (226eng0)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
226eng0
The above parts group applies to the following Mfg. Nos.:
10
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694895 - Pacer
2690447 - Pacer
5900630 - Pacer
TP 400-7226-H-PA-S

PART NO. DESCRIPTIONREF NO. QTY.
Engine & PTO Group (226eng0)
Footnotes
ENGINE, 15HP Briggs & Stratton, Model 28 (15HP Model Only)1* 1
FUEL FILTER2 5021178X3SM 1
OIL FILTER (492932)2* 1
FOAM PRE-CLEANER (697015)2* 1
AIR FILTER (697634)2* 1
SPARK PLUG (691043)2* 1
MUFFLER (697349)2* 1
EXHAUST MANIFOLD (496750)2* 1
EXHAUST DEFLECTOR (396903)2* 1
EXHAUST MANIFOLD GASKET (692236)2* 2
GROMMET3 5021379SM 1
CRANKSHAFT BOLT, 7/16 x 2-3/44 5047632SM 1
CLUTCH RETAINER5 5042132SM 1
ELECTRIC CLUTCH6 1686880SM 1
KEY, 1/4 Sq. x 27 5050407X3SM 1
CAPSCREW, Hex Head, 5/16-18 x 2-1/28 5025011X20SM 1
WASHER, 5/169 5025155SM 5
OIL DRAIN HOSE10 5048681SM 1
NUT, Hex Nylon Lock, 5/16-1811 5025057SM 4
WASHER, 5/16" Internal Tooth Lock12 5025188SM 2
ENGINE, 17HP Briggs & Stratton (17HP Model Only)13 * 1
ARRESTOR-SPARK (NOT SHOWN)14 392390SM 1
The above parts group applies to the following Mfg. Nos.:
11
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694895 - Pacer
2690447 - Pacer
5900630 - Pacer
TP 400-7226-H-PA-S

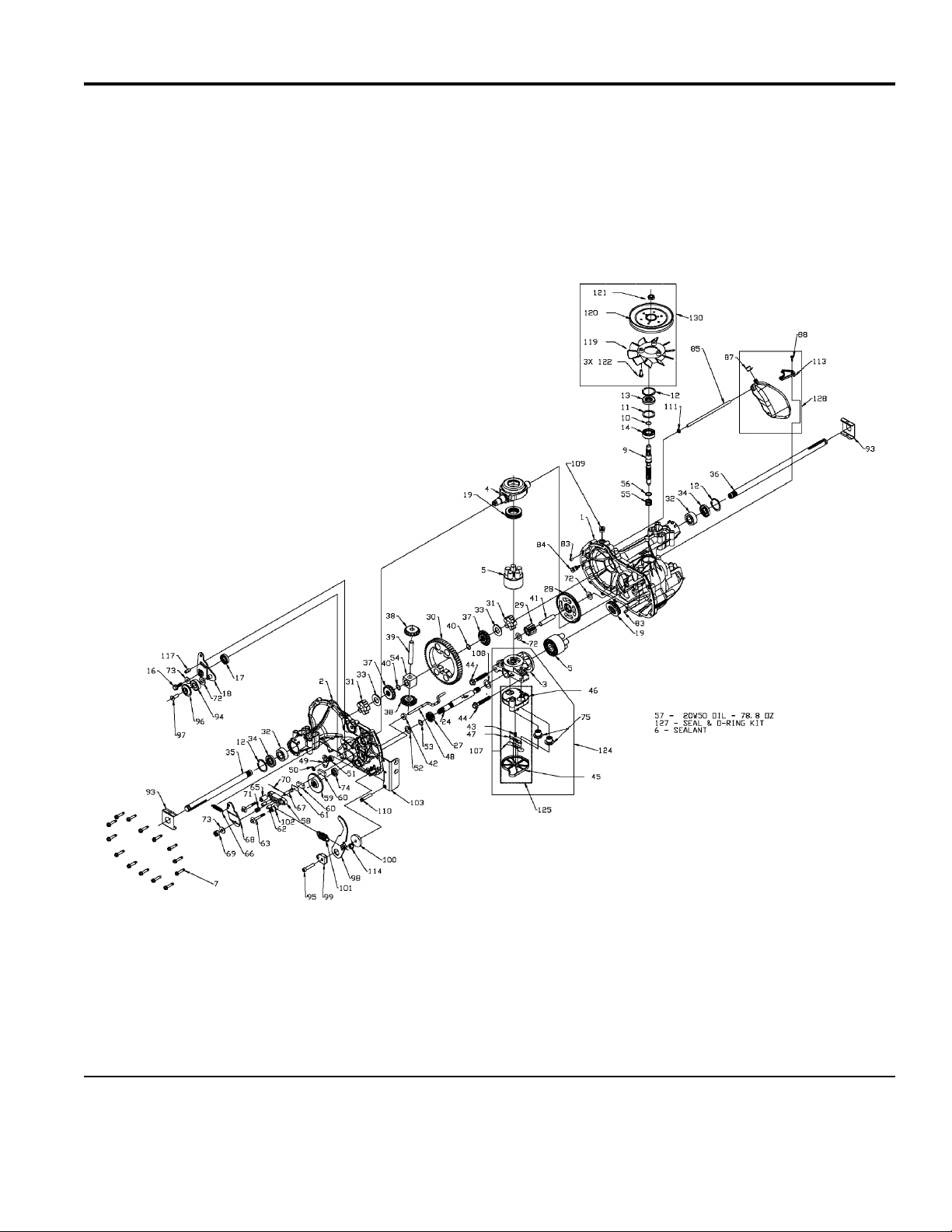

Transaxle - SERVICE PARTS (226tsp0)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
226TSP0
The above parts group applies to the following Mfg. Nos.:
12
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694895 - Pacer
2690447 - Pacer
5900630 - Pacer
5900766 - Pacer
TP 400-7226-H-PA-S

PART NO. DESCRIPTIONREF NO. QTY.
Transaxle - SERVICE PARTS (226tsp0)
Footnotes
SEALANT6 5022905X1SM 10.5
SHAFT, INPUT9 5022905X2SM 1
RING - RETAINING10 5022905X3SM 1
SPACER11 5022905X4SM 1
RING - RETAINING12 5022905X5SM 3
SEAL, Lip, .67 x 1.58 x .27613 5022905X16SM 1
BALL BEARING14 5022905X6SM 1
OUTBOARD SLEEVE BEARING32 5022905X7SM 2
LIP SEAL, Axle Seal34 5022905X17SM 2
AXLE SHAFT - RH35 5022905X8SM 1
AXLE SHAFT - LH36 5022905X9SM 1
SPRING - HELICAL COMPRESSION55 5022905X10SSM 1
WASHER56 5022905X11SM 1
20W-50 OIL57 5022905X12 78.8
HYDRO RETURN SPRING101 5022967SM 1
FAN, 6", 10 BLADE119 5022905X13SM 1
EXPANSION TANK KIT128 5022905X14SM 1
FAN/PULLEY KIT130 5022905X15SM 1
The above parts group applies to the following Mfg. Nos.:
13
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694895 - Pacer
2690447 - Pacer
5900630 - Pacer
5900766 - Pacer
TP 400-7226-H-PA-S

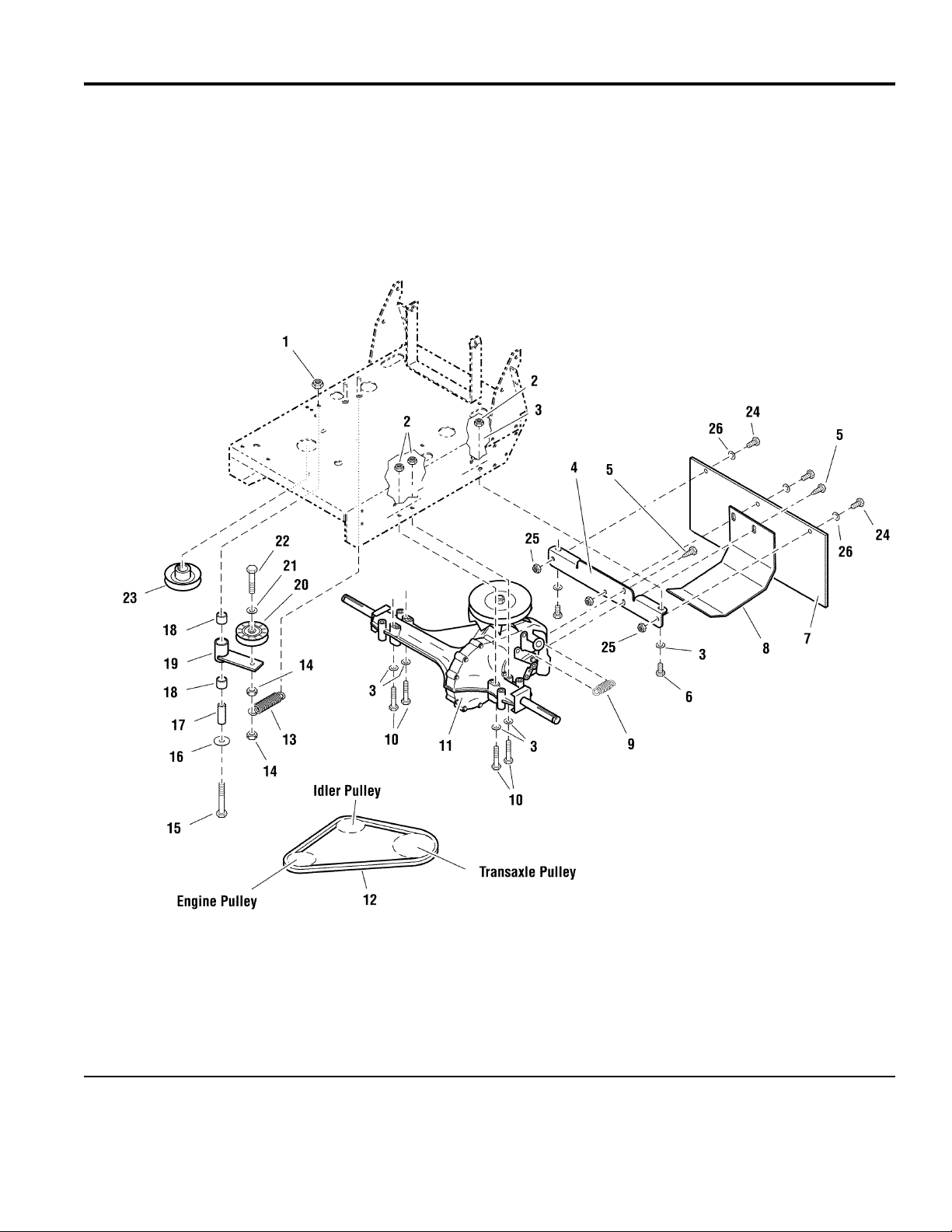

Transaxle, Mount & Drive Idler Group (226trn0)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
226trn0
The above parts group applies to the following Mfg. Nos.:
14
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694895 - Pacer
2690447 - Pacer
5900630 - Pacer
5900766 - Pacer
TP 400-7226-H-PA-S

PART NO. DESCRIPTIONREF NO. QTY.
Transaxle, Mount & Drive Idler Group (226trn0)
Footnotes
NUT, Hex Nylon Lock, 3/8-16 (34" Models Only)1 5025096SM 1
NUT, Hex Nylon Lock, 5/16-182 5025057SM 6
WASHER, 5/163 5025155SM 12
TRANSAXLE BRACE4 5047582CSM 1
CAPSCREW, Hex Head, Self-Tapping, 5/16-18 x 3/45 5025059X6SM 2
CAPSCREW, Hex Head, 5/16-18 x 3/46 5025011X6SM 2
RUBBER FLAP7 5047736SM 1
SKID PLATE8 5048312CSM 1
HYDRO RETURN SPRING9 5022967SM 1
CAPSCREW, Hex Head, 5/16-18 x 310 5025011X24SM 4
HYDROSTATIC TRANSAXLE11 5022905SM 1
BELT12 5022968SM 1
SPRING, Extension (34" Models Only)13 5020807SM 1
NUT, Hex, Side Lock, 3/8-16 (34" Models Only)14 5025100SM 2
CAPSCREW, Hex Head, 3/8-16 x 3 (34" Models Only)15 5025013X24SM 1
WASHER, Fender, 3/8 (34" Models Only)16 5025165SM 2
SPACER (34" Models Only)17 5047716SM 1
BUSHING, Brass (34" Models Only)18 5020876BSM 2
TRANSAXLE IDLER ARM (34" Models Only)19 5047717CSM 1
IDLER PULLEY ASSEMBLY (34" Models Only)20 5043627SM 1
WASHER, 3/8 (34" Models Only)21 5025156SM 1
CAPSCREW, Hex Head, 3/8-16 x 2 (34" Models Only)22 5025013X16SM 1
TRANSAXLE DRIVE PULLEY23 5047626SM 1
BOLT, 3/8 - 16 X 124 5025013X8SM 3
BOLT, 3/8 - 16, HEX NYLON FLANGE25 5025394SM 3
WASHER, 3/8 SAE26 5025156SM 3
The above parts group applies to the following Mfg. Nos.:
15
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694895 - Pacer
2690447 - Pacer
5900630 - Pacer
5900766 - Pacer
TP 400-7226-H-PA-S

Motion Control, Parking Brake & Operator Presence Group (17/32 Model)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
5300480
The above parts group applies to the following Mfg. Nos.:
16
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
5900766 - Pacer
TP 400-7226-H-PA-S

PART NO. DESCRIPTIONREF NO. QTY.
Motion Control, Parking Brake & Operator Presence Group (17/32 Model)
Footnotes
GRIP, FOAM, 1/4" X 11 5025510 1
WELD, BRAKE CONTROL2 5061278B 1
SWITCH, Plunger, NO/NO (Parking brake)3 5022438 1
NUT, #10-24 HEX (S/N: 2013136020 & Below use Qty.8)4 5025029 6
SWITCH, Plunger, NC (S/N: 2013136020 & Below use Qty.3) (Operator Presence)5 5021769 1
SCREW, #10-24 X 1/2" ROUND PHILLIPS (S/N: 2013136020 & Below use Qty.8)6 5025179X4 6
BEARING, BRONZE FLANGE, 3/47 5021098 4
ROD, PARKING BRAKE LINKAGE8 5061495 1
COLLAR, 5/16" SET9 5020047 3
NUT, 5/16-18 HEX NYLOCK FLANGE10 5025392 5
WASHER, 5/16" SAE11 5025155 4
BOLT, 5/16-18 X 3/4" GD512 5025011X6 8
NUT, 3/8-16 HEX TOP LOCK13 5025046 2
BOLT, 1/4-20 X 1", GD5 (S/N: 2013136020 & Below)14 5025010X8 6
SPRING, COMPRESSION (S/N: 2013136021 & Above)15 5020637 1
HANDLE, RUBBER HYDROCUT - LH16 5061691 1
HANDLE, RUBBER HYDROCUT - RH (Not Shown)17 5061702 1
NUT, 1/4-20 HEX NYLOCK FLANGE (S/N: 2013136021 & Above)18 5025391 1
NUT, 1/4-20 HEX SERR. FLANGE19 5025126 4
BOLT, 1/4-20 X 3/4" GD5 YZ20 5025010X6 8
MOUNT, MOTION CONTROLS, LH - BLACK (S/N: 2013136021 & Above)21 5404461A 1
MOUNT, MOTION CONTROLS, RH - BLACK (S/N: 2013136021 & Above) (Not
Shown)
22 5404462A 1
BOLT, 1/4-20 X 3, GD5 (S/N: 2013136021 & Above)23 5025010X24 1
BOLT, 3/8-16 X 1.0", 1/2" SHOULDER24 5025223 2
WELD, ARM CONTROL, LH25 5061683B 1
WELD, ARM CONTROL, RH (Not Shown)26 5061685B 1
PIN, CLEVIS, 5/16" X 127 5025213X8 7
PIN, COTTER, 3/32" X 3/428 5025201X6 7
CLEVIS, 5/16-24, PLASTIC29 5020979 10
NUT, 5/16-24 HEX30 5025033 8
ROD, THUMB CONTROL LINKAGE31 5047642 2
NUT, 3/8-16 HEX SERRATED FLANGE32 5025128 1
NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)33 5025139 1
BOLT, 5/16-18 X 1 1/2" FLANGE34 5023157 1
WELD, CONTROL SHAFT35 5047697B 1
LINK, STUD36 5047740 1
BOLT, 3/8-16 X 4" GD5 YZ37 5025013X32 1
SPRING, EXT, 3.875 X .70 LOOP38 5049352 1
LINK, PARKING BRAKE LOWER39 5048328 1
COLLAR, 1/4" SET40 5022481 2
LEVER, DUMP VALVE41 5047732 1
NUT, 1/4-20 HEX NYLOCK FLANGE42 5025391 4
NUT, 3/8-16 HEX NYLOCK FLANGE43 5025394 1
WASHER, 1/4" SAE44 5025154 6
The above parts group applies to the following Mfg. Nos.:
17
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
5900766 - Pacer
TP 400-7226-H-PA-S

Motion Control, Parking Brake & Operator Presence Group (17/32 Model)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
5300480
The above parts group applies to the following Mfg. Nos.:
18
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
5900766 - Pacer
TP 400-7226-H-PA-S

PART NO. DESCRIPTIONREF NO. QTY.
Motion Control, Parking Brake & Operator Presence Group (17/32 Model)
Footnotes
NUT, 3/8"-16 HEX NYLOCK FLANGE45 5025394 4
WASHER, 3/8" SAE46 5025156 4
BOLT, 3/8-16 X 3/4" GD547 5025013X6 4
ROD, OPC SWITCH, PACER (S/N: 2013136021 & Above)48 5101679 1
SPACER, SHOULDER (S/N: 2013136021 & Above)49 5045943 2
ADJUSTER, LINKAGE (S/N: 2013136021 & Above)50 5043417 2
NUT, 3/8-16 HEX (S/N: 2013136021 & Above)51 5025034 2
GRIP, VINYL, 1/2 X 4 (S/N: 2013136021 & Above)52 5021490 2
WELD, OPERATOR PRESENCE, LH - RED (S/N: 2013136021 & Above)53 5449175B 1
WELD, OPERATOR PRESENCE, RH - RED (S/N: 2013136021 & Above)54 5449176B 1
MOUNT, MOTION CONTROLS, LH (S/N: 2013136020 & Below)55 5061689 1
MOUNT, MOTION CONTROLS, RH (S/N: 2013136020 & Below) (Not Shown)56 5061692 1
SPACER, SLIDE (S/N: 2013136020 & Below)57 5061693 4
ACTUATOR, SWITCH (S/N: 2013136020 & Below)58 5061713B 2
The above parts group applies to the following Mfg. Nos.:
19
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
5900766 - Pacer
TP 400-7226-H-PA-S

Motion Control, Parking Brake & Operator Presence Group (226mcge0)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
226mcge0
The above parts group applies to the following Mfg. Nos.:
20
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694895 - Pacer
2690447 - Pacer
5900630 - Pacer
TP 400-7226-H-PA-S
