Simplicity Conquest Garden Tractor & Mower Deck User manual

Parts Manual
Rev. 04/2007
Conquest
Series Garden Tractor & Mower Deck
TP 400-4598-00-CQ-S
Mf
g
. No. Descri
p
tion
23HP Product
1695208 Conquest, 23HP B&S Hydro w/4wd
2690638 Conquest, 23HP B&S Hydro w/4wd and 50" Mower Deck
Mf
g
. No. Descri
p
tion
Mower Decks
1695213 50" Mower Deck
1734978
Part No.:

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Frame & Front Axle Group - 4WD ....................................................................................................................... 4
Power Steering & Hydraulic Lift Group ................................................................................................................ 8
Steering Group - Power Steering ......................................................................................................................... 10
Engine Group - 22HP & 23HP Briggs & Stratton, Vanguard Twin ...................................................................... 12
Transmission Group ............................................................................................................................................. 14
Controls Group ..................................................................................................................................................... 18
Cruise Control Group ........................................................................................................................................... 20
Electrical Group .................................................................................................................................................... 22
Hood, Grille & Dash Group .................................................................................................................................. 26
Seat & Seat Deck Group ...................................................................................................................................... 28
Lift Group - Manual Lift ........................................................................................................................................ 30
Wheels & Tires Group .......................................................................................................................................... 32
Decals Group ....................................................................................................................................................... 34
44" & 50" Mower Deck - Clutch & Support Group ............................................................................................... 36
50" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 38
50" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 42

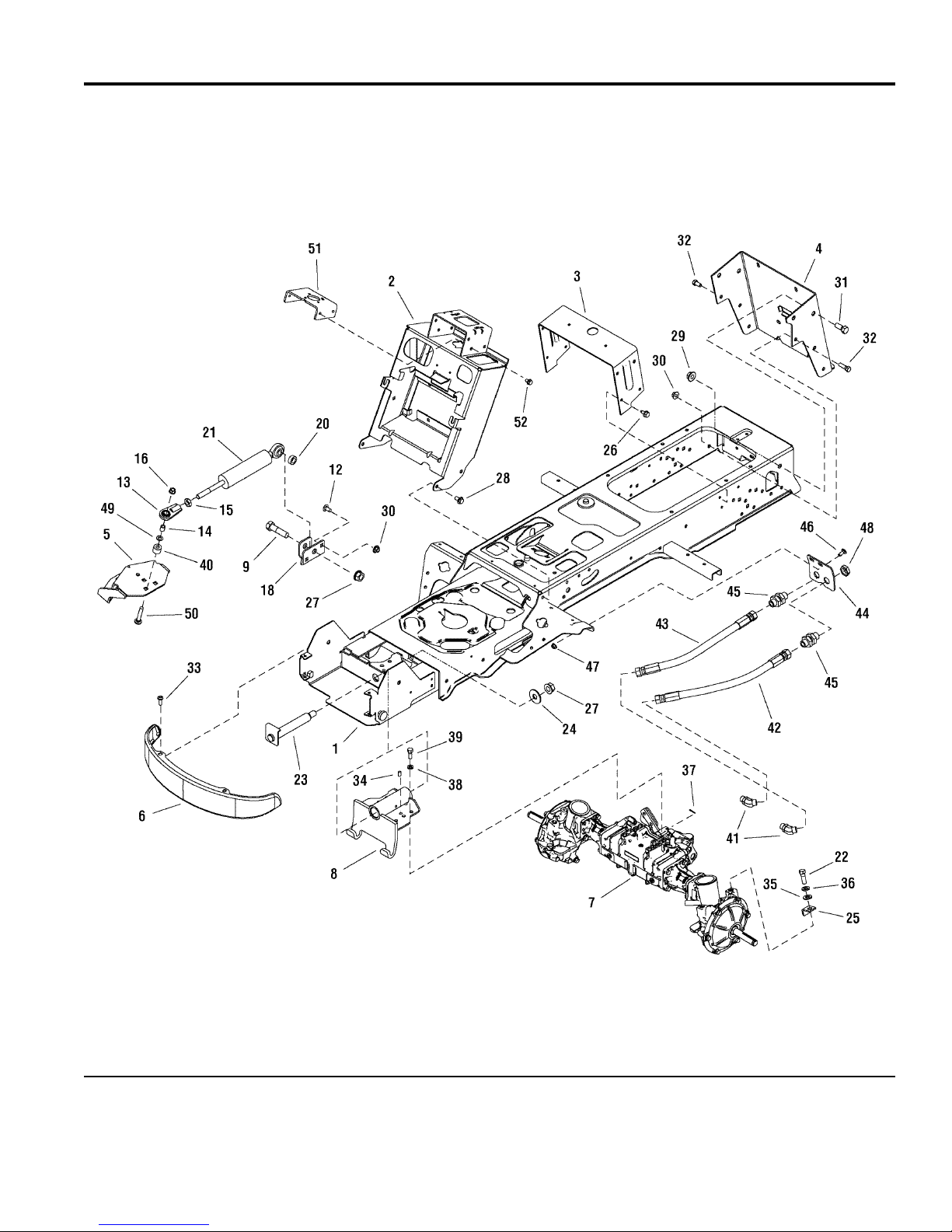

Frame & Front Axle Group - 4WD
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987590
The above parts group applies to the following Mfg. Nos.:
4
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

PART NO. DESCRIPTIONREF NO QTY.
Frame & Front Axle Group - 4WD
Footnotes
FRAME ASSEMBLY, Front & Rear 4WD1 1734731ASM 1
TOWER & SUPPORT ASSEMBLY2 1733139ASM 1
SUPPORT, Seat Deck3 1723528ASM 1
BACKPLATE, Hitch4 1722602ASM 1
BRACKET ASSEMBLY, Steering 4WD5 1733918ASM 1
BUMPER, 4GA6 1721805ASM 1
AXLE ASSEMBLY, Front7 1733480SM 1
PIVOT ASSEMBLY, Axle w/Bushings8 1734241ASM 1
CAPSCREW, Hex Head, 5/8-11 x 2-1/2 G59 1960755SM 1
CARRIAGE BOLT, 3/9-16 x 3/4 G512 1931348SM 2
JOINT, Ball 1/2-2013 1702779SM 1
SPACER14 1708236SM 1
NUT, Hex Jam, 1/2-2015 1919262SM 1
NUT, Hex Flange, 3/8-16 Two-Way Lock16 1930645SM 1
BRACKET, Cylinder Mounting18 1733166ASM 1
SPACER20 2172914SM 1
CYLINDER, Hydraulic Steering21 1733759SM 1
CAPSCREW, Hex Head, M12-1-3/4 x 3522 197487SM 3
SHAFT & BRACKET ASSEMBLY, Axle Pivot23 1733863SM 1
WASHER, 5/824 1960035SM 2
STOP, "L" Steering25 1734511ASM 1
SCREW, Hex Washer Head Taptite, 5/16-18 x 3/426 1664847SM 4
NUT, Hex Flange 5/8-11 Two-Way Lock27 2860646SM 2
SCREW, Hex Washer head, Taptite, 3/8-16 x 3/428 1923683SM 4
NUT, Hex Flange 1/2-13 Whiz Lock29 2860668SM 2
NUT, Hex Flange 3/8-16 Whiz Lock30 1928352SM 4
CAPSCREW, Hex Head 1/2-13 x 1 G531 1923114SM 2
CAPSCREW, Hex Head 3/8-16 x 1 G532 1921210SM 2
SCREW, Truss Head Torx Drive 5/16-18 x 7/833 1960086SM 4
PIN, Dowel34 1733581SM 2
WASHER, 1/235 1960170SM 3
LOCKWASHER, Spring36 1916966SM 3
PIN, Cotter37 1923360SM 1
LOCKWASHER, Spring38 1960754SM 6
CAPSCREW, Hex Head39 1950036SM 6
SPACER, Powdered Metal40 1667812SM 1
FITTING, Hose Elbow, 45 Degrees, 13/16-16 x 3/4-1641 1733403SM 2
HOSE ASSEMBLY, Hydraulic42 1733400SM 1
HOSE ASSEMBLY, Hydraulic43 1733891SM 1
BRACKET, Hose Mounting 10GA44 1733501ASM 1
FITTING, Bulkhead Union 13/16-1645 1733402SM 2
CARRIAGE BOLT, 5/16-18 x 3/4 G546 1931333SM 2
NUT, Hex KEPS, 5/16-1847 1960636SM 2
NUT, Jam 13/16-1648 1733947SM 2
The above parts group applies to the following Mfg. Nos.:
5
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

Frame & Front Axle Group - 4WD
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987590
The above parts group applies to the following Mfg. Nos.:
6
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

PART NO. DESCRIPTIONREF NO QTY.
Frame & Front Axle Group - 4WD
Footnotes
WASHER, 3/849 1960103SM 1
CARRIAGE BOLT, 3/8-16 x 2-1/4 G550 1931355SM 1
SUPPORT, Steering Unit 7GA51 1733044ASM 1
SCREW, Hex Washer Head Taptite 5/16-18 x 1/252 1924856SM 4
The above parts group applies to the following Mfg. Nos.:
7
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

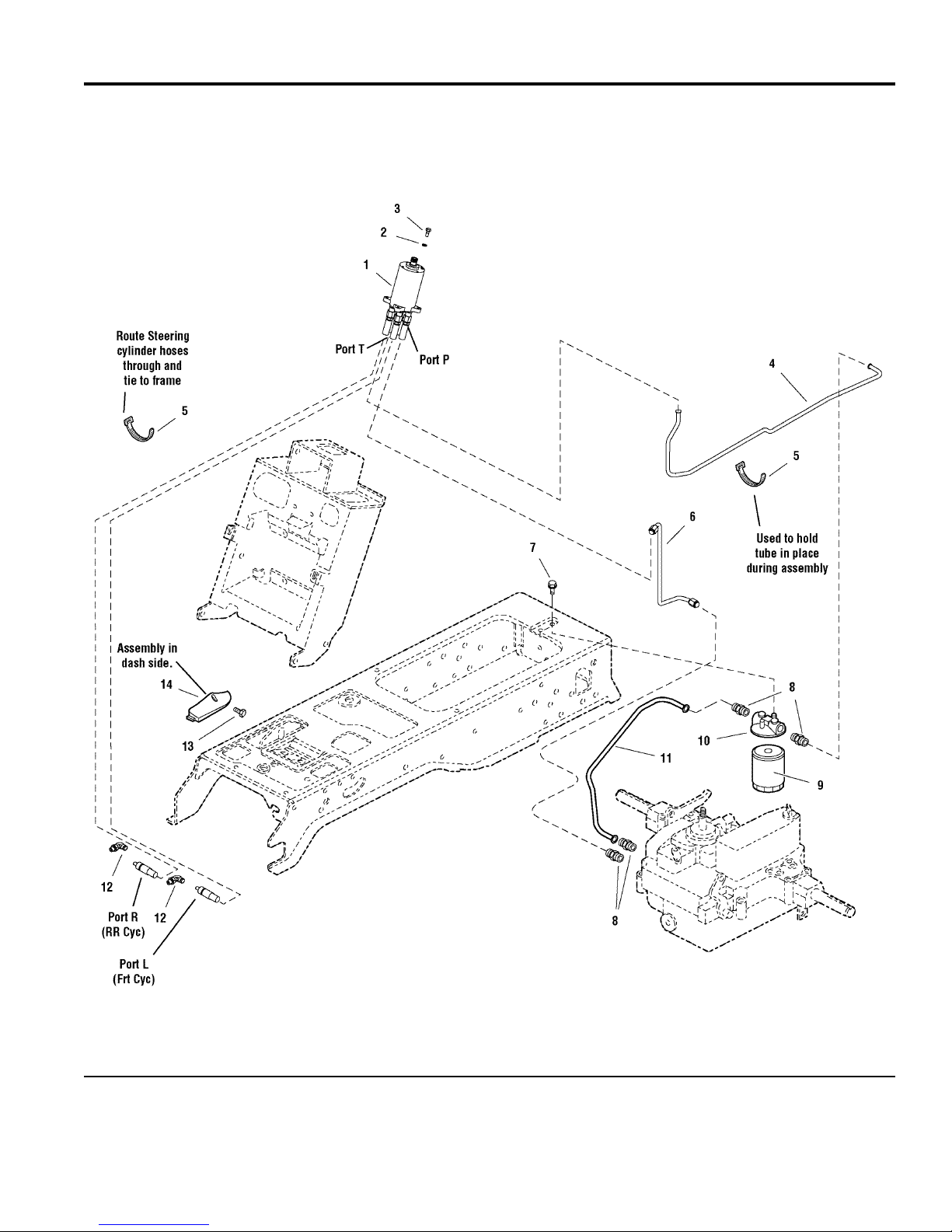

Power Steering & Hydraulic Lift Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987528
The above parts group applies to the following Mfg. Nos.:
8
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

PART NO. DESCRIPTIONREF NO QTY.
Power Steering & Hydraulic Lift Group
Footnotes
POWER STEERING ASSEMBLY1 1733582SM 1
POWER STEERING ASSEMBLY (Used only on 4WD models)1 1733894SM 1
LOCKWASHER, Spring2 1916964SM 4
CAPSCREW, Hex Head3 2860444SM 4
TUBE, Hydraulic4 1722138SM 1
TIE, Self Locking5 2825094SM 2
TUBE, Hydraulic6 1733727SM 1
SCREW, Hex Whiz Lock Flange 1/4-20 x 1/27 1931646SM 2
FITTING, Straight8 1722123SM 4
FILTER, Oil9 1719168SM 1
BASE, Oil Filter10 1719169SM 1
TUBE, Hydraulic11 1722297SM 1
TUBE, Hydraulic (Used only on 4WD models)11 1733427SM 1
FITTING, Hose Elbow Perma Push 9/16-1812 1733230SM 2
SCREW, Round Head Plastite (Used only on 4WD models)13 1722607SM 1
COVER, Lift (Used only on 4WD models)14 1722285SM 1
The above parts group applies to the following Mfg. Nos.:
9
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

Steering Group - Power Steering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987424
The above parts group applies to the following Mfg. Nos.:
10
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

PART NO. DESCRIPTIONREF NO QTY.
Steering Group - Power Steering
Footnotes
STEERING WHEEL1 1733363SM 1
PLATE, Steering Mounting4 1724685ASM 1
CARRIAGE BOLT, 5/16-18 x 1-1/4 G55 1960655SM 2
ADAPTER, Tilt6 1725294SM 1
SPACER7 1723898SM 2
NUT, Push Pal8 1933988SM 2
NUT, Hex Keps 5/16-189 1960636SM 2
STEERING UNIT, Tilt10 1733790SM 1
BELLOWS, Tilt Steering Unit w/Slot11 1686970SM 1
CAP, Steering Wheel12 1725024SM 1
DECAL, Power Steering (Not Shown)13 1716518SM 2
WASHER, 5/814 1924366SM 1
NUT, Hex Lock ESNA Light 5/8-1815 1960576SM 1
The above parts group applies to the following Mfg. Nos.:
11
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

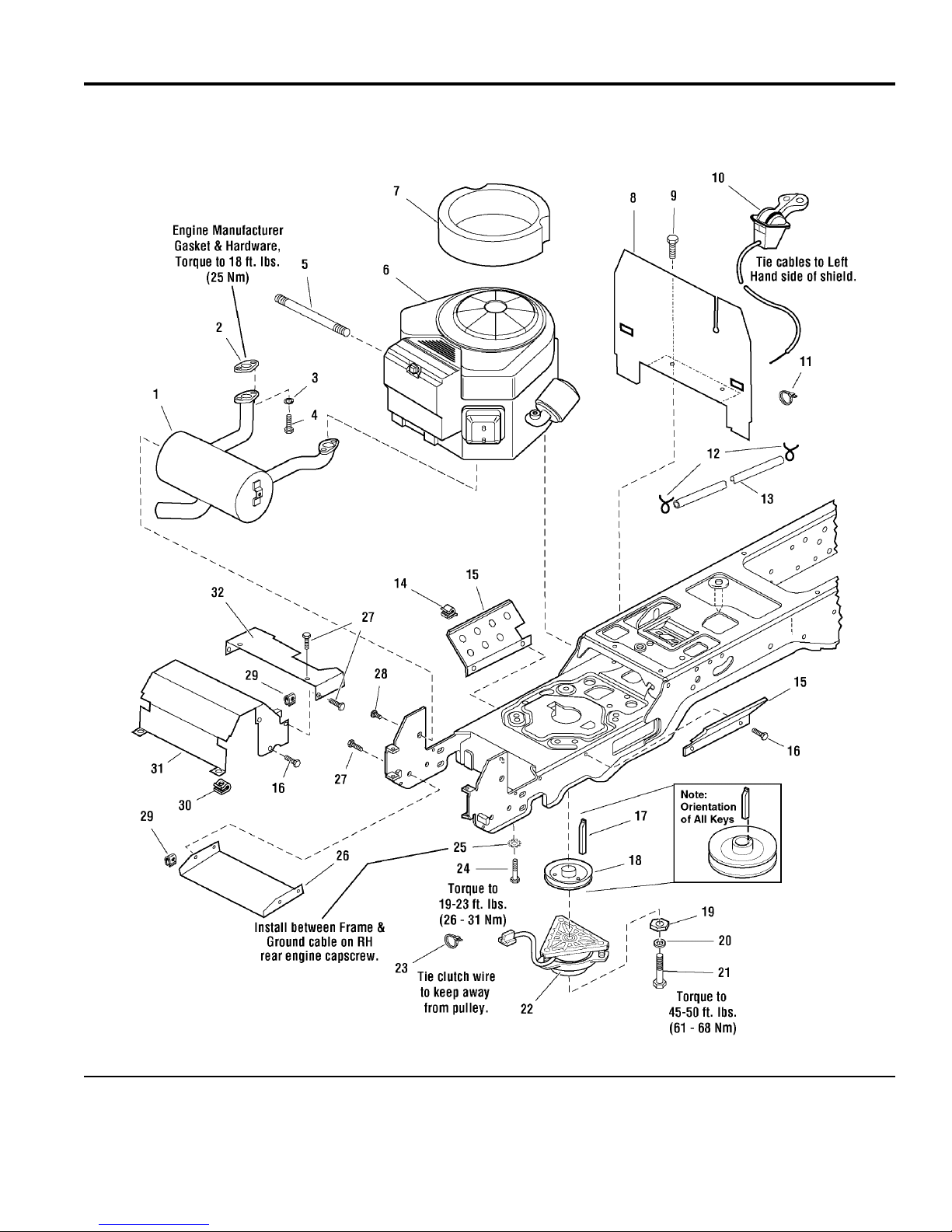

Engine Group - 22HP & 23HP Briggs & Stratton, Vanguard Twin
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986651
The above parts group applies to the following Mfg. Nos.:
12
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

PART NO. DESCRIPTIONREF NO QTY.
Engine Group - 22HP & 23HP Briggs & Stratton, Vanguard Twin
Footnotes
MUFFLER1 1726920SM 1
GASKET2* 2
LOCKWASHER, 5/163 1917356SM 4
CAPSCREW, Socket Head, 5/16-18 x 7/8, G84 2860660SM 4
HOSE, Oil Drain5 1723165SM 1
ENGINE, 22HP Briggs & Stratton VANGUARD Twin, Model 386777, Type 0111E16* 1
ENGINE, 23HP Briggs & Stratton VANGUARD Twin, Model 386777, Type 0111E16* 1
ENGINE, 21HP Briggs & Stratton VANGUARD Twin, Model 385777, Type 0119-E16* 1
SEAL, Circle7 1722949SM 1
BULKHEAD8 1722388ASM 1
CAPSCREW, Hex Head Taptite, 1/4-20 x 1/29 1925003SM 2
CONTROL, Throttle Double 39" Long w/Knobs10 1727223SM 1
TIE11 1701011SM 1
CLAMP, Hose Type E12 2860112SM 2
HOSE, 59" Long13 1718678SM 1
CLIP, Wire14 2834683SM 2
SHIELD15 1722392ASM 2
SCREW, Hex Head Taptite, 1/4-20 x 3/816 1929000SM 8
KEY17 1720463SM 1
PULLEY & HUB ASSEMBLY, 4-1/2 OD18 1722288SM 1
WASHER, Hex19 1708264SM 1
LOCKWASHER, 7/1620 1918199SM 1
CAPSCREW, Hex Head, 7/16-20 x 2-3/421 1960648SM 1
CLUTCH, Electric, OGURA22 1686883SM 1
CLUTCH, Electric, Big Brake OGURA22 1720532SM 1
TIE23 2832747SM 1
CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/224 2830598SM 4
LOCKWASHER, External Tooth, 3/825 2820427SM 1
SHIELD, Muffler Bottom26 1722414ASM 1
CAPSCREW, Hex Head Flange Lock, 1/4-20 x 5/827 1960295SM 8
CAPSCREW, Hex Head Taptite, 5/16-18 x 1/228 1924856SM 2
NUT, Speed, 1/4-2029 1960368SM 8
NUT, Speed, 5/16-1830 1935255SM 2
DUCT, Muffler Top31 1722389ASM 1
DUCT, Muffler Extension32 1722390ASM 1
Note* See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
13
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987547
The above parts group applies to the following Mfg. Nos.:
14
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

PART NO. DESCRIPTIONREF NO QTY.
Transmission Group
Footnotes
TRANSMISSION ASSEMBLY, K6641 1733478SM 1
PULLEY & HUB ASSEMBLY2 1722194SM 1
FAN3 1719233SM 1
SCREW, Hex Washer Head, Taptite, 1/4-20 x 1-1/44 1933958SM 3
BELT, 94.055 1721392SM 1
STRAP, 4-1/4 Long6 1721593ASM 1
ARM, Control 7GA7 1733318ASM 1
ROD, 17-27/64 Long8 1721424SM 1
SPRING, Compression9 1722684SM 1
SPRING, Compression10 1729277SM 1
CAP, Expansion11 1722711SM 1
SCREW, Pan Head Torx, 1/4-20 x 1-1/4 Taptite12 1960676SM 2
FASTENER, Panel13 1704351SM 15
PAD, Footrest L.H.14 1722174SM 1
PAD, Footrest R.H.15 1722173SM 1
ROD, Free Wheel16 1721622SM 1
KNOB, Interior Thread17 1723126SM 1
SUPPORT, Transmission18 1721728ASM 2
HOSE, Hydraulic19 1733531SM 1
BOLT, Shoulder, 3/8-1621 1732129SM 3
CLIP, Hair Pin22 1960074SM 1
SPACER23 1734337SM 1
CLAMP, Hose Worm24 2860266SM 1
WASHER, 1/225 1960027SM 3
WASHER, 3/826 1924940SM 1
PIN, Quick27 1722460SM 1
TANK, Oil Natural28 1732989SM 1
CLAMP, Hose Worm29 1723214SM 2
NUT, Hex Flange 5/16-18 ESNA30 1960686SM 6
COTTER PIN31 1918447SM 1
CAPSCREW, Hex Head 5/16-18 x 2-1/2 G532 1921719SM 1
WASHER, 5/1633 1960141SM 1
CARRIAGE BOLT, 5/16-18 x 1 G534 1931335SM 1
NUT, Hex KEPS 5/16-1835 1960636SM 2
NUT, Hex Flange36 1719968SM 1
NUT, Hex Flange 3/8-16 ESNA42 1960687SM 4
WASHER, 7/1643 1918267SM 1
CARRIAGE BOLT, 3/8-16 x 1 G544 1931350SM 6
CAPSCREW, Hex Head 5/16-18 x 3 G545 1960590SM 4
WASHER, 5/1646 1919326SM 3
NUT, Hex Keps 3/8-1647 1960637SM 6
ACTUATOR, Switch48 1727215ASM 1
POP RIVET49 1960241SM 2
PIN, Clevis50 1724107SM 1
The above parts group applies to the following Mfg. Nos.:
15
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987547
The above parts group applies to the following Mfg. Nos.:
16
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

PART NO. DESCRIPTIONREF NO QTY.
Transmission Group
Footnotes
BEARING51 1722648SM 1
HOSE, Hydraulic52 1722468SM 1
CAPSCREW, Hex Head, 5/16-18 x 2-1/4 G553 1921160SM 1
SPACER54 1713588SM 1
PIVOT ASSEMBLY, Control55 1733320ASM 1
ARM, Control56 1733525ASM 1
TUBE, Hydraulic 4WD57 1733483SM 1
TUBE, Hydraulic Rear58 1733484SM 1
The above parts group applies to the following Mfg. Nos.:
17
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

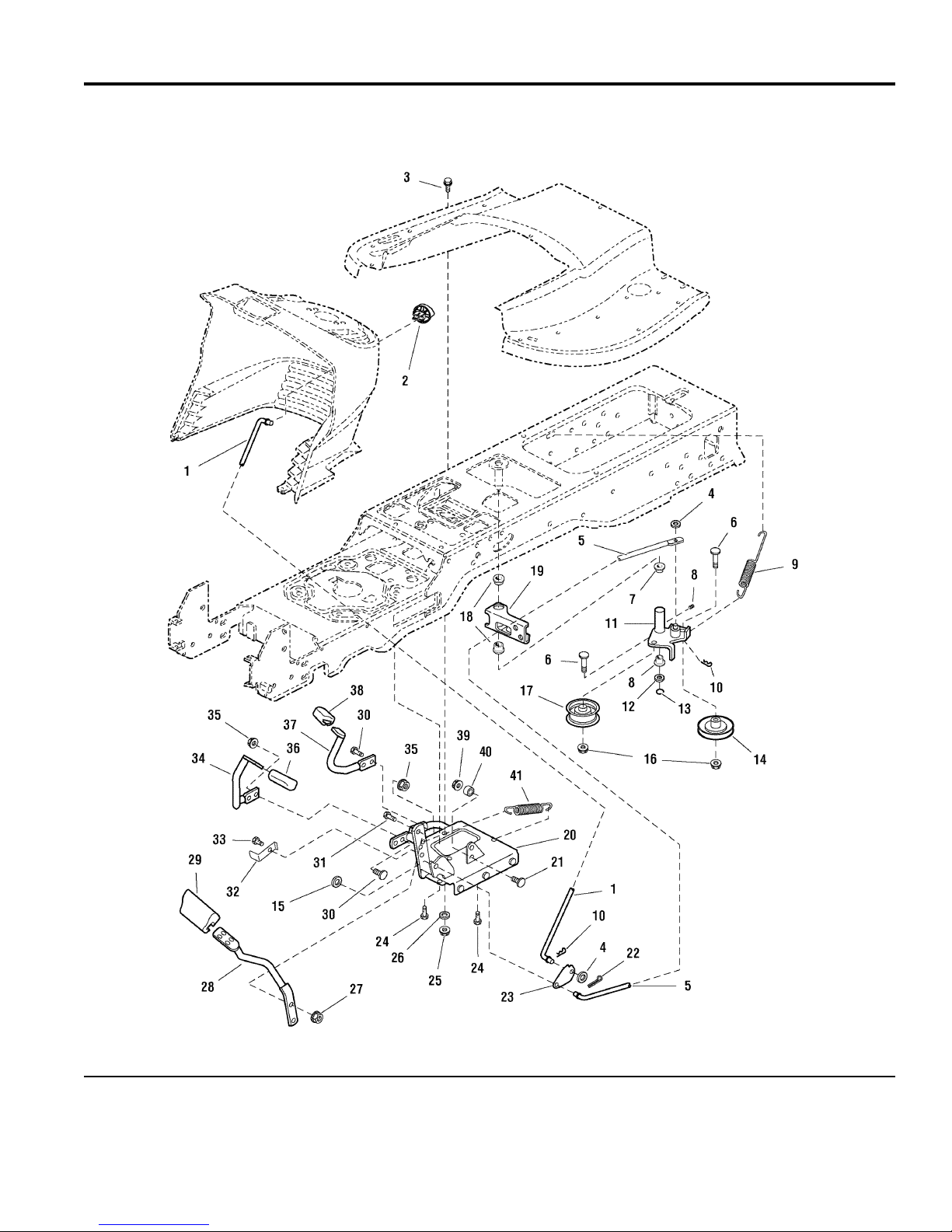

Controls Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986599
The above parts group applies to the following Mfg. Nos.:
18
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

PART NO. DESCRIPTIONREF NO QTY.
Controls Group
Footnotes
ROD, Brake Lock1 1721353SM 1
KNOB, Push On, Red Plastic "P"2 1721891SM 1
CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/43 1930591SM 1
WASHER, 5/16, Black4 1919326SM 2
ROD, Brake5 1721476SM 1
CARRIAGE BOLT, 3/8-16 x 1 3/46 1931353SM 2
BUSHING, 5/8 x 3/4 x 3/4, Nylon7 1663114SM 2
FITTING, Lube, 1/48 2821133SM 1
SPRING, Extension9 1725250SM 1
PIN, Quick10 1722460SM 3
ARM & HUB ASSEMBLY, Idler11 1724917SM 1
WASHER, 5/812 1960020SM 1
RING, Clipring Extension13 1704420SM 1
PULLEY, w/Bearing14 1721134SM 1
WASHER, 3/815 1924940SM 1
NUT, Hex Flange ESNA, 3/8-1616 1960687SM 2
PULLEY, Idler17 1721133SM 1
BUSHING, 1 x 1-1/8 x 5/8, Nylon18 1723237SM 2
ARM, Brake19 1722513SM 1
PEDAL ASSEMBLY, Foot20 1726763SM 1
CARRIAGE BOLT, 1/4-20 x 1-1/421 1931320SM 1
PIN, Cotter, Black22 1918447SM 1
LATCH, Brake23 1721354ASM 1
CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/424 1664847SM 3
NUT, Hex Lock ESNA Light, 5/16-1825 1919438SM 1
WASHER, 5/16, Black26 1919381SM 1
NUT, Hex Flange Whiz Lock Large, 5/16-1827 1927557SM 2
PEDAL, Brake28 1722535ASM 1
PAD, Brake Pedal29 1721577SM 1
CARRIAGE BOLT, 5/16-18 x 7/830 1931334SM 4
CAPSCREW, 5/16-18 x 131 1921333SM 2
ACTUATOR, Switch 2.53" Long32 1722083ASM 1
CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/433 1923683SM 1
PEDAL, Forward34 1722070ASM 1
NUT, Hex KEPS, 5/16-1835 1960636SM 4
PAD, Foot Pedal Forward36 1721675SM 1
PEDAL, Reverse37 1722071ASM 1
PAD, Foot Pedal Reverse38 1721674SM 1
NUT, Hex Lock ESNA Light, 1/4-2039 1920397SM 1
CAM, Roller40 1686612SM 1
SPRING, Extension41 1721995SM 1
The above parts group applies to the following Mfg. Nos.:
19
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S

Cruise Control Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985883
The above parts group applies to the following Mfg. Nos.:
20
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695208 - Conquest
2690638 - Conquest
TP 400-4598-00-CQ-S
