Simplicity CONQUEST Conquest / 2700 User manual

Parts Manual
Rev. 11/2008
Conquest / 1700 / 2700
Series Garden Tractors & Mower Decks RMO
Mf
g
. No. Descri
p
tion
23HP Product
1695152 Conquest, 23HP B&S Hydro w/PS RMO
1695153 Conquest, 23HP Kohler Hydro RMO
1695154 1723H, 23HP B&S Hydro w/PS RMO
1695155 2723H, 23HP B&S Hydro w/PS RMO
1695226 Conquest, 23HP B&S Hydro (CE/Export)
2690598 Conquest, 23HP Hydro RMO and 44" Mower Deck
2690600 Conquest, 23HP Hydro w/PS RMO and 50" Mower Deck
2690603 1723H, 23HP Hydro w/PS RMO and 50" Mower Deck
2690605 2723H, 23HP Hydro w/PS RMO and 50" Mower Deck
2690656 Conquest, 23HP B&S Hydro and 44" Mower Deck
(CE/Export)
Mf
g
. No. Descri
p
tion
Mower Decks
1694038 44" Mower Deck
1695028 44" Mower Deck (CE/Export)
1695183 50" Mower Deck
1695184 50" Mower Deck
TP 400-4593-A-CQ-SMA
1734979
Part No.:
Not for
Reproduction

Not for
Reproduction

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Frame Group - Manual Steering .......................................................................................................................... 4
Frame Group - Power Steering ............................................................................................................................ 8
Power Steering & Hydraulic Lift Group ................................................................................................................ 12
Steering Group - Manual Steering ....................................................................................................................... 14
Steering Group - Tilt Steering .............................................................................................................................. 16
Engine Group - 20HP, 22HP & 23HP Briggs & Stratton, Vanguard Twin ........................................................... 18
Engine Group - 23HP Kohler, Courage Twin ...................................................................................................... 20
Transmission Group ............................................................................................................................................. 22
Controls Group ..................................................................................................................................................... 26
Cruise Control Group ........................................................................................................................................... 28
Electrical Group .................................................................................................................................................... 30
Hood, Grille & Dash Group .................................................................................................................................. 34
Seat & Seat Deck Group ...................................................................................................................................... 36
Lift Group - Manual Lift ......................................................................................................................................... 38
Wheels & Tires Group .......................................................................................................................................... 40
Decals Group - Brand & Model ............................................................................................................................ 42
Decals Group - Safety & Common ...................................................................................................................... 44
44" & 50" Mower Deck - Clutch & Support Group ............................................................................................... 46
44" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................ 48
44" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 50
44" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 54
50" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 58
50" Mower Deck - Housing, Arbors & Blades Group ........................................................................................... 62
Not for
Reproduction

Frame Group - Manual Steering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986747
The above parts group applies to the following Mfg. Nos.:
2008 4 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695153 - Conquest
1695226 - Conquest
2690598 - Conquest
2690656 - Conquest
TP 400-4593-A-CQ-SMA
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Frame Group - Manual Steering
Footnotes
TOWER & SUPPORT ASSEMBLY1 1733139ASM 1
CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/42 1923683SM 4
CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/43 1960541SM 4
SUPPORT, Seat Deck4 1723528ASM 1
NUT, Hex Flange 3/8-16 Whiz Lock, Large5 1928352SM 2
NUT, Hex Flange Two-Way Lock, 1/2-136 1930644SM 2
BACKPLATE7 1722602ASM 1
CAPSCREW, Hex Head 1/2-13 x 1, Black8 1923114SM 2
CAPSCREW, Hex Head 3/8-16 x 1, Black9 1921210SM 2
FRAME ASSEMBLY, Front & Rear10 1726989ASM 1
NUT, Hex Flange Two-Way Lock, 3/8-1611 1930645SM 7
WASHER, 3/8, Black12 1922755SM 1
WASHER, 3/8, Black13 1960103SM 2
LINK, Drag14 1722541SM 1
NUT, Hex Jam 1/2-2015 1919262SM 1
JOINT, Ball16 1702779SM 1
SPACER, 3/8 x 1/2 x 5/817 1708236SM 1
CARRIAGE BOLT, 3/8-16 x 118 1931350SM 2
ROD, Tie19 1722626ASM 1
AXLE ASSEMBLY w/LH Spindle (Includes Ref. Nos. 22, 24, 41, 42 & 43)20 1722200ASM 1
SPACER, 25/64 x 5/8 x 5/16, Powder Metal21 1611705SM 2
BUSHING, 31/32 x 1-1/4 x 3/4, Powder Metal22 1721682SM 6
NUT, Hex Flange Two-Way Lock, 7/16-1423 1930650SM 2
FITTING, Lube24 2821133SM 3
SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27, 28, 29 & 30)25 1686985SM 1
CAPSCREW, 3/8-16 x 7/8, GR826 2823485SM 1
WASHER, Spring, 3/827 1663151SM 1
HUB & ARM ASSEMBLY28 1725112SM 1
KEY, Woodruff29 2830671SM 1
SPINDLE, LH30 1724264SM 1
CARRIAGE BOLT, 3/8-16 x 1-1/231 1931352SM 1
SPACER, 11/16 x 21/32 x 2 3/3232 1721752SM 1
CAPSCREW, Hex Head, 7/16-14 x 2 G833 1927531SM 2
HOOK, "J"34 1721918ASM 1
BUMPER, Black35 1721805ASM 1
BUMPER, Chrome35 1723502SM 1
SCREW, Truss Head Torque Drive, 5/16-18 x 7/836 1960086SM 4
CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/437 1930591SM 2
PLATE, Axle Wear38 1724801ASM 1
NUT, Hex Flange Whix Lick, 5/16-1839 1931277SM 2
SPINDLE, RH40 1722199SM 1
WASHER41 1919394SM 1
RETAINING RING42 2832577SM 1
The above parts group applies to the following Mfg. Nos.:
2008 5 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695153 - Conquest
1695226 - Conquest
2690598 - Conquest
2690656 - Conquest
TP 400-4593-A-CQ-SMA
Not for
Reproduction

Frame Group - Manual Steering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986747
The above parts group applies to the following Mfg. Nos.:
2008 6 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695153 - Conquest
1695226 - Conquest
2690598 - Conquest
2690656 - Conquest
TP 400-4593-A-CQ-SMA
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Frame Group - Manual Steering
Footnotes
CAPSCREW, Hex Flange Whiz Lock, 3/8-16 x 3/443 1933260SM 4
FITTING, Grease for Wear Plate44 2821133SM 2
WASHER, 5/845 1960035SM 2
CAPSCREW, Hex Head, 5/8-11 x 3-1/246 2860645SM 1
NUT, Hex Flange Two-Way Lock, 5/8-1147 2860646SM 1
PLATE, Axle48 1722212ASM 1
The above parts group applies to the following Mfg. Nos.:
2008 7 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695153 - Conquest
1695226 - Conquest
2690598 - Conquest
2690656 - Conquest
TP 400-4593-A-CQ-SMA
Not for
Reproduction

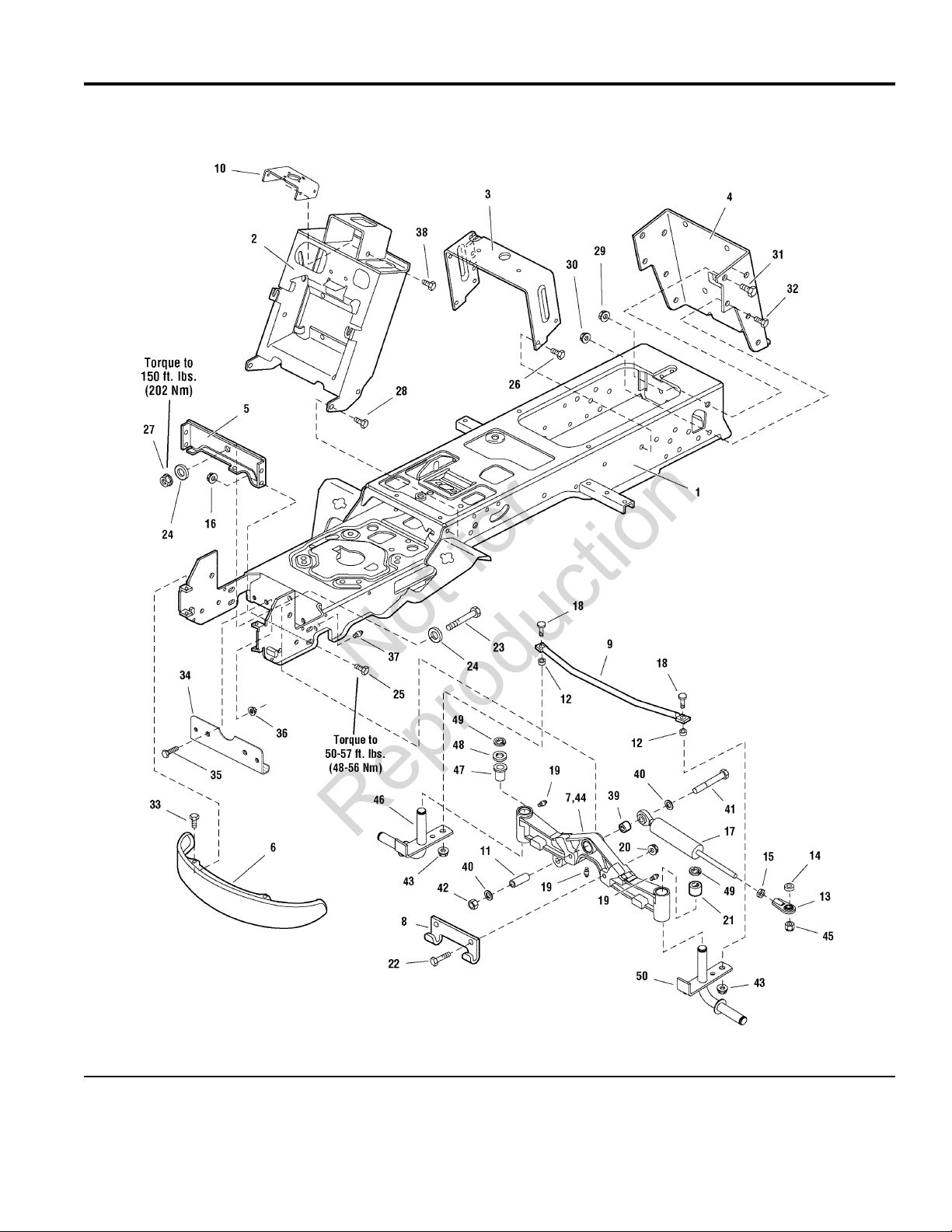

Frame Group - Power Steering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987426
The above parts group applies to the following Mfg. Nos.:
2008 8 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695152 - Conquest
1695154 - 1723H
1695155 - 2723H
2690600 - Conquest
2690603 - 1723H
2690605 - 2723H
TP 400-4593-A-CQ-SMA
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Frame Group - Power Steering
Footnotes
FRAME ASSEMBLY, Front & Rear1 1733765ASM 1
TOWER & SUPPORT ASSEMBLY2 1733139ASM 1
SUPPORT, Seat Deck3 1723528ASM 1
BACKPLATE, Hitch4 1722602ASM 1
PLATE, Axle Support5 1722212ASM 1
BUMPER6 1721805ASM 1
AXLE, SPINDLES & BUSHINGS ASSEMBLY (Includes Ref. Nos. 19, 21, 44, 45, 46, 47,
48, 49 & 50)
7 1732937ASM 1
HOOK, "J"8 1721918ASM 1
ROD, Tie, Flat Ends9 1732759ASM 1
SUPPORT, Steering Unit10 1733044ASM 1
SPACER, Powdered Metal11 1721752SM 1
SPACER12 1611705SM 2
JOINT, Ball, 1/2-20 Thread13 1702779SM 1
SPACER14 1719725SM 1
NUT, Hex Jam, 1/2-2015 1919262SM 1
NUT, Hex Flange, 3/8-16 Two-Way Lock16 1930645SM 4
CYLINDER, Hydraulic Steering17 1732439SM 1
CARRIAGE BOLT, 3/8-16 x 1 G518 1931350SM 2
FITTING, Lube 1/4 Drive19 1704314SM 3
NUT, Hex Flange 7/16-14 Two Way Lock20 1930650SM 2
SPACER, Powdered Metal21 1732208SM 1
CAPSCREW, Hex Head 7/16-14 x 2 G822 1927531SM 2
CAPSCREW, Hex Head 5/8-11 x 3-1/2 G523 2860645SM 1
WASHER, 5/824 1960035SM 2
SCREW, Hex Whiz Lock Flange 3/8-16 x 3/425 1933260SM 4
SCREW, Hex Washer Head Taptite 5/16-18 x 3/426 1664847SM 4
NUT, Hex Flange 5/8-11 Two Way Lock27 2860646SM 1
SCREW, Hex Washer Head Taptite 3/8-16 x 3/428 1923683SM 4
NUT, Hex Flange 1/2-13 Whiz Lock29 2860668SM 2
NUT, Hex Flange 3/8-16 Whiz Lock Large30 1928352SM 2
CAPSCREW, Hex Head 1/2-13 x 1 G531 1923114SM 2
CAPSCREW, Hex Head 3/8-16 x 1 G532 1921210SM 2
SCREW, Truss Head Torx Drive 5/16-18 x 7/833 1960086SM 4
PLATE, Axle "U" Form34 1724801ASM 1
SCREW, Hex Whiz Lock Flange 5/16-18 x 3/435 1930591SM 2
NUT, Hex Flange 5/16-18 Whiz Lock36 1931277SM 2
FITTING, Lube 1/4 Drive37 2821133SM 2
SCREW, Hex Washer Head Taptite 5/16-18 x 1/238 1924856SM 4
SPACER39 1733912ASM 1
WASHER, 5/840 1924366SM 2
CAPSCREW, Hex Head41 1960713SM 1
NUT, Hex Toplock42 1960714SM 1
NUT, Hex Flange, Machine Lock 3/8-1643 1960339SM 2
The above parts group applies to the following Mfg. Nos.:
2008 9 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695152 - Conquest
1695154 - 1723H
1695155 - 2723H
2690600 - Conquest
2690603 - 1723H
2690605 - 2723H
TP 400-4593-A-CQ-SMA
Not for
Reproduction

Frame Group - Power Steering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987426
The above parts group applies to the following Mfg. Nos.:
2008 10 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695152 - Conquest
1695154 - 1723H
1695155 - 2723H
2690600 - Conquest
2690603 - 1723H
2690605 - 2723H
TP 400-4593-A-CQ-SMA
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Frame Group - Power Steering
Footnotes
AXLE, Front Casting44 1733851SM 1
NUT, Hex Lock ESNA Heavy 1/2-1345 1960355SM 1
SPINDLE & ARM ASSEMBLY, R.H.46 1732939SM 1
BUSHING, Axle47 1721682SM 6
WASHER, 148 1919394SM 1
RING, Retaining, Extension49 2832577SM 2
SPINDLE & ARM ASSEMBLY, L.H.50 1734202SM 1
The above parts group applies to the following Mfg. Nos.:
2008 11 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695152 - Conquest
1695154 - 1723H
1695155 - 2723H
2690600 - Conquest
2690603 - 1723H
2690605 - 2723H
TP 400-4593-A-CQ-SMA
Not for
Reproduction

Power Steering & Hydraulic Lift Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987528
The above parts group applies to the following Mfg. Nos.:
2008 12 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695152 - Conquest
1695154 - 1723H
1695155 - 2723H
2690598 - Conquest
2690600 - Conquest
2690603 - 1723H
2690605 - 2723H
2690656 - Conquest
TP 400-4593-A-CQ-SMA
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Power Steering & Hydraulic Lift Group
Footnotes
POWER STEERING UNIT, 32CC, 4 Ports1 1733409SM 1
LOCKWASHER, Spring2 1916964SM 4
CAPSCREW, Hex Head3 2860444SM 4
TUBE, Hydraulic4 1722138SM 1
TIE, Self Locking5 2825094SM 2
TUBE, Hydraulic6 1733727SM 1
SCREW, Hex Whiz Lock Flange 1/4-20 x 1/27 1931646SM 2
FITTING, Straight8 1722123SM 4
FILTER, Oil9 1719168SM 1
BASE, Oil Filter10 1719169SM 1
TUBE, Hydraulic11 1722297SM 1
FITTING, Hose Elbow Perma Push 9/16-1812 1733230SM 2
HOSE ASSEMBLY, 50" Port R25 1733413SM 1
HOSE ASSEMBLY, 18" Port T26 1733791SM 1
HOSE ASSEMBLY, 26" Port P27 1733780SM 1
HOSE ASSEMBLY, 46" Port L28 1733212SM 1
POWER STEERING ASSEMBLY, 32CC, 4 Ports (Includes Ref. Nos 1, 25, 26, 27 & 28)29 1733582SM 1
The above parts group applies to the following Mfg. Nos.:
2008 13 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695152 - Conquest
1695154 - 1723H
1695155 - 2723H
2690598 - Conquest
2690600 - Conquest
2690603 - 1723H
2690605 - 2723H
2690656 - Conquest
TP 400-4593-A-CQ-SMA
Not for
Reproduction

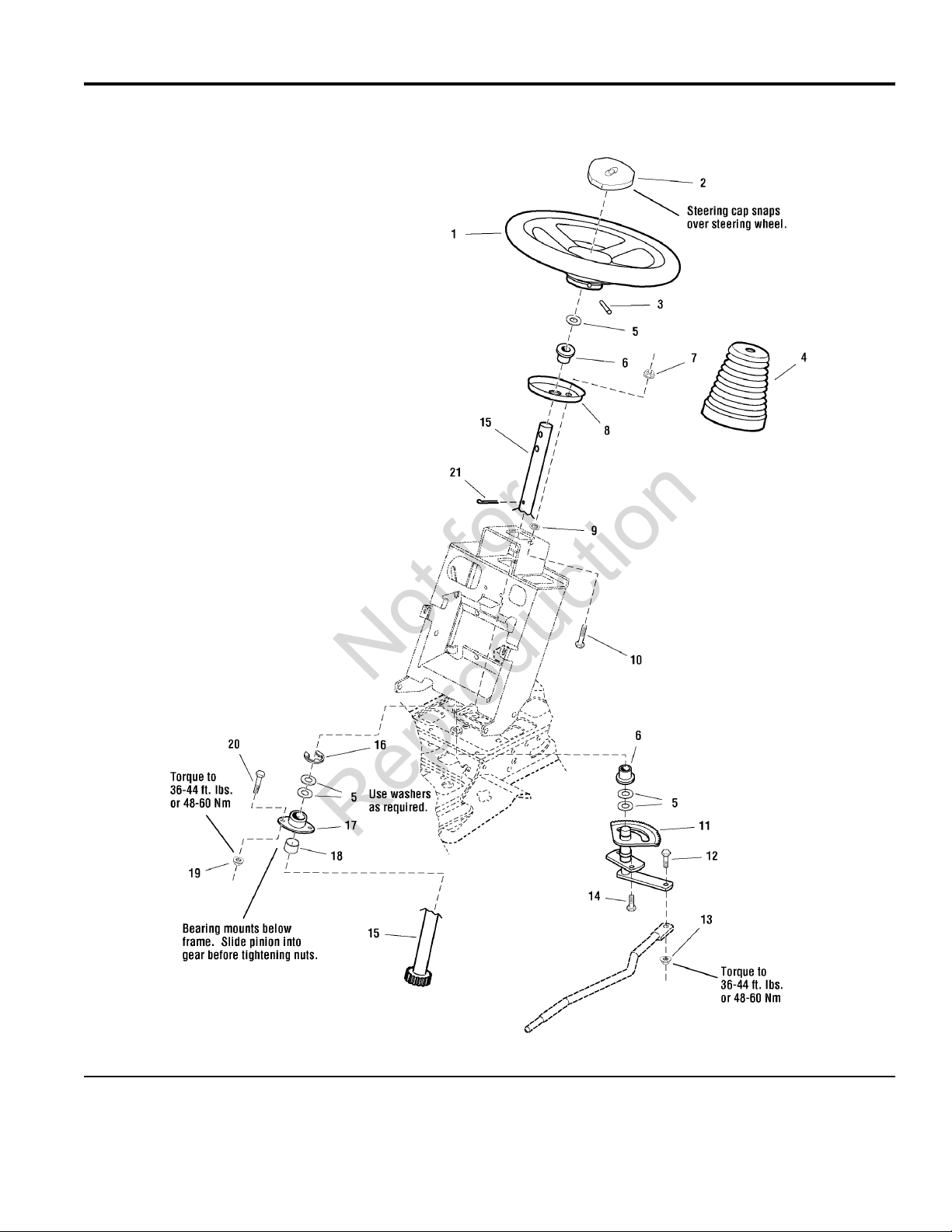

Steering Group - Manual Steering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985890
The above parts group applies to the following Mfg. Nos.:
2008 14 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695153 - Conquest
1695226 - Conquest
2690598 - Conquest
2690656 - Conquest
TP 400-4593-A-CQ-SMA
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Steering Group - Manual Steering
Footnotes
STEERING WHEEL, Straight, Shaft1 1722318SM 1
CAP, Steering Wheel, SMI Logo2 1722319SM 1
CAP, Steering Wheel, Plain2 1725024SM 1
PIN, Spring, 5/16 x 2-1/23 1960540SM 1
COVER, Rubber, Upper Steering Shaft4 1722749SM 1
WASHER, 3/45 1960114SM 5
BUSHING, 15/32 x 7/8 x 7/8, Nylon6 2176440SM 2
NUT, Hex KEPS 5/6-187 1960636SM 2
PLATE, Mounting Steering8 1721736ASM 1
NUT, Push9 1933988SM 2
CARRIAGE BOLT, 5/16-18 x 1-1/410 1960655SM 2
GEAR & SHAFT ASSEMBLY, Steering11 1724470ASM 1
CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black12 1960032SM 1
NUT, Hex Flange Two-Way Lock, 3/8-1613 1930645SM 1
CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/414 1664847SM 2
SHAFT & PINION ASSEMBLY, Steering Manual15 1721626SM 1
RING, Clipring Extension16 1611710SM 1
BEARING, 3/4 x 1-11/16 x 13/16, 3" Long Housing17 1722459SM 1
SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal18 1722461SM 1
NUT, Hex Flange Whiz Lock, 3/8-16, Small19 1931211SM 2
CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 3/4, Black20 1933260SM 2
PIN, Cotter, 1-1/4, Black21 1919314SM 1
The above parts group applies to the following Mfg. Nos.:
2008 15 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695153 - Conquest
1695226 - Conquest
2690598 - Conquest
2690656 - Conquest
TP 400-4593-A-CQ-SMA
Not for
Reproduction

Steering Group - Tilt Steering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987424
The above parts group applies to the following Mfg. Nos.:
2008 16 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695152 - Conquest
1695154 - 1723H
1695155 - 2723H
2690600 - Conquest
2690603 - 1723H
2690605 - 2723H
TP 400-4593-A-CQ-SMA
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Steering Group - Tilt Steering
Footnotes
STEERING WHEEL1 1733363SM 1
PLATE, Steering Mounting4 1724685ASM 1
CARRIAGE BOLT, 5/16-18 x 1-1/4 G55 1960655SM 2
ADAPTER, Tilt6 1725294SM 1
SPACER7 1723898SM 2
NUT, Push Pal8 1933988SM 2
NUT, Hex Keps 5/16-189 1960636SM 2
STEERING UNIT, Tilt10 1734002SM 1
BELLOWS, Tilt Steering Unit w/Slot11 1724368SM 1
CAP, Steering Wheel12 1725024SM 1
DECAL, Power Steering (Not Shown)13 1716518SM 2
NUT, Hex Lock ESNA Light 5/8-1815 1960576SM 1
The above parts group applies to the following Mfg. Nos.:
2008 17 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695152 - Conquest
1695154 - 1723H
1695155 - 2723H
2690600 - Conquest
2690603 - 1723H
2690605 - 2723H
TP 400-4593-A-CQ-SMA
Not for
Reproduction

Engine Group - 20HP, 22HP & 23HP Briggs & Stratton, Vanguard Twin
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986651
The above parts group applies to the following Mfg. Nos.:
2008 18 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695152 - Conquest
1695154 - 1723H
1695155 - 2723H
1695226 - Conquest
2690600 - Conquest
2690603 - 1723H
2690605 - 2723H
2690656 - Conquest
TP 400-4593-A-CQ-SMA
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Engine Group - 20HP, 22HP & 23HP Briggs & Stratton, Vanguard Twin
Footnotes
MUFFLER1 1726920SM 1
MUFFLER (Only used on 20HP Models)1 1722625SM 1
GASKET2* 2
LOCKWASHER, 5/163 1917356SM 4
CAPSCREW, Socket Head, 5/16-18 x 7/8, G84 2860660SM 4
HOSE, Oil Drain5 1723165SM 1
ENGINE, 22HP Briggs & Stratton VANGUARD Twin, Model 386777, Type 0111E16* 1
ENGINE, 23HP Briggs & Stratton VANGUARD Twin, Model 386777, Type 0111E16* 1
ENGINE, 21HP Briggs & Stratton VANGUARD Twin, Model 385777, Type 0119-E16* 1
ENGINE, 20HP Briggs & Stratton VANGUARD Twin, Model 358777, Type 0110-E16* 1
SEAL, Circle7 1722949SM 1
BULKHEAD8 1722388ASM 1
CAPSCREW, Hex Head Taptite, 1/4-20 x 1/29 1925003SM 2
CONTROL, Throttle Double 39" Long w/Knobs (Only used on 20HP Models)10 1727223SM 1
CONTROL, Throttle Double10 1734506SM 1
TIE11 1701011SM 1
CLAMP, Hose Type E12 2860112SM 2
HOSE, 59" Long13 1718678SM 1
CLIP, Wire14 2834683SM 2
SHIELD15 1722392ASM 2
SCREW, Hex Head Taptite, 1/4-20 x 3/816 1929000SM 8
KEY17 1720463SM 1
PULLEY & HUB ASSEMBLY, 4-1/2 OD18 1722288SM 1
WASHER, Hex19 1708264SM 1
LOCKWASHER, 7/1620 1918199SM 1
CAPSCREW, Hex Head, 7/16-20 x 2-3/421 1960648SM 1
CLUTCH, Electric, OGURA22 1686883SM 1
CLUTCH, Electric, Big Brake OGURA22 1720532SM 1
TIE23 2832747SM 1
CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/224 2830598SM 4
LOCKWASHER, External Tooth, 3/825 2820427SM 1
SHIELD, Muffler Bottom26 1722414ASM 1
CAPSCREW, Hex Head Flange Lock, 1/4-20 x 5/827 1960295SM 8
CAPSCREW, Hex Head Taptite, 5/16-18 x 1/228 1924856SM 2
NUT, Speed, 1/4-2029 1960368SM 8
NUT, Speed, 5/16-1830 1935255SM 2
DUCT, Muffler Top31 1722389ASM 1
DUCT, Muffler Extension32 1722390ASM 1
Note* See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
2008 19 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695152 - Conquest
1695154 - 1723H
1695155 - 2723H
1695226 - Conquest
2690600 - Conquest
2690603 - 1723H
2690605 - 2723H
2690656 - Conquest
TP 400-4593-A-CQ-SMA
Not for
Reproduction

Engine Group - 23HP Kohler, Courage Twin
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987542
The above parts group applies to the following Mfg. Nos.:
2008 20 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1695153 - Conquest
2690598 - Conquest
TP 400-4593-A-CQ-SMA
Not for
Reproduction
