Simplicity CORONET Coronet / 2400 User manual

Parts Manual
Rev. 11/2005
Coronet / 2400
Series Riders & Mower Decks RMO
TP 400-4207-00-CO-SM
Mf
g
. No. Descri
p
tion
1
3
HP Product
1694610 Coronet, 13HP Hydro RMO
1694612 Coronet, 13HP Hydro RMO (CE)
1694613 2413H, 13HP Hydro RMO
1694614 2413H, 13HP Hydro RMO (CE)
2690244 Coronet, 13HP Hydro RMO and 30" Mower Deck
2690246 Coronet, 13HP Hydro RMO and 30" Mower Deck (CE)
2690247 2413H, 13HP Hydro RMO and 30" Mower Deck
2690248 2413H, 13HP Hydro RMO and 30" Mower Deck (CE)
Mf
g
. No. Descri
p
tion
1
6
HP Product
1694611 Coronet, 16HP Hydro RMO
2690245 Coronet, 16HP Hydro RMO and 34" Mower Deck
Mf
g
. No. Descri
p
tion
Mower Decks
1692543 30" Mower Deck
1694053 30" Mower Deck
1694511 30" Mower Deck (CE)
1694537 30" Mower Deck
1692545 34" Mower Deck
1731175
Part No.:

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Frame & Fuel System Group ............................................................................................................................... 4
Steering & Lift Group ............................................................................................................................................ 8
Engine & Electric Clutch Group - 13HP Briggs & Stratton Models ...................................................................... 10
Engine & Electric Clutch Group - 16HP Kohler Models ....................................................................................... 12
Transmission Group - Hydro-Gear 340-0510 ...................................................................................................... 14
Transmission SERVICE PARTS - Hydro-Gear 340-0510 ................................................................................... 18
Electrical Group .................................................................................................................................................... 24
Electrical Group .................................................................................................................................................... 26
Front Column & Dash Group ............................................................................................................................... 28
Wheels & Tires Group .......................................................................................................................................... 32
Decals Group - Brand & Model ............................................................................................................................ 34
Decals Group - Common & Safety ...................................................................................................................... 36
30" Mower Deck - Drive & Arbor .......................................................................................................................... 38
30" Mower Deck - Housing & Height Adjustment (CE) ........................................................................................ 40
30" Mower Deck - Housing, Hitch & Height Adjustment ...................................................................................... 44
34" Mower Deck - Drive & Arbor .......................................................................................................................... 48
34" Mower Deck - Height Adjustment .................................................................................................................. 50
34" Mower Deck - Housing, Hitch & Deflector ..................................................................................................... 52

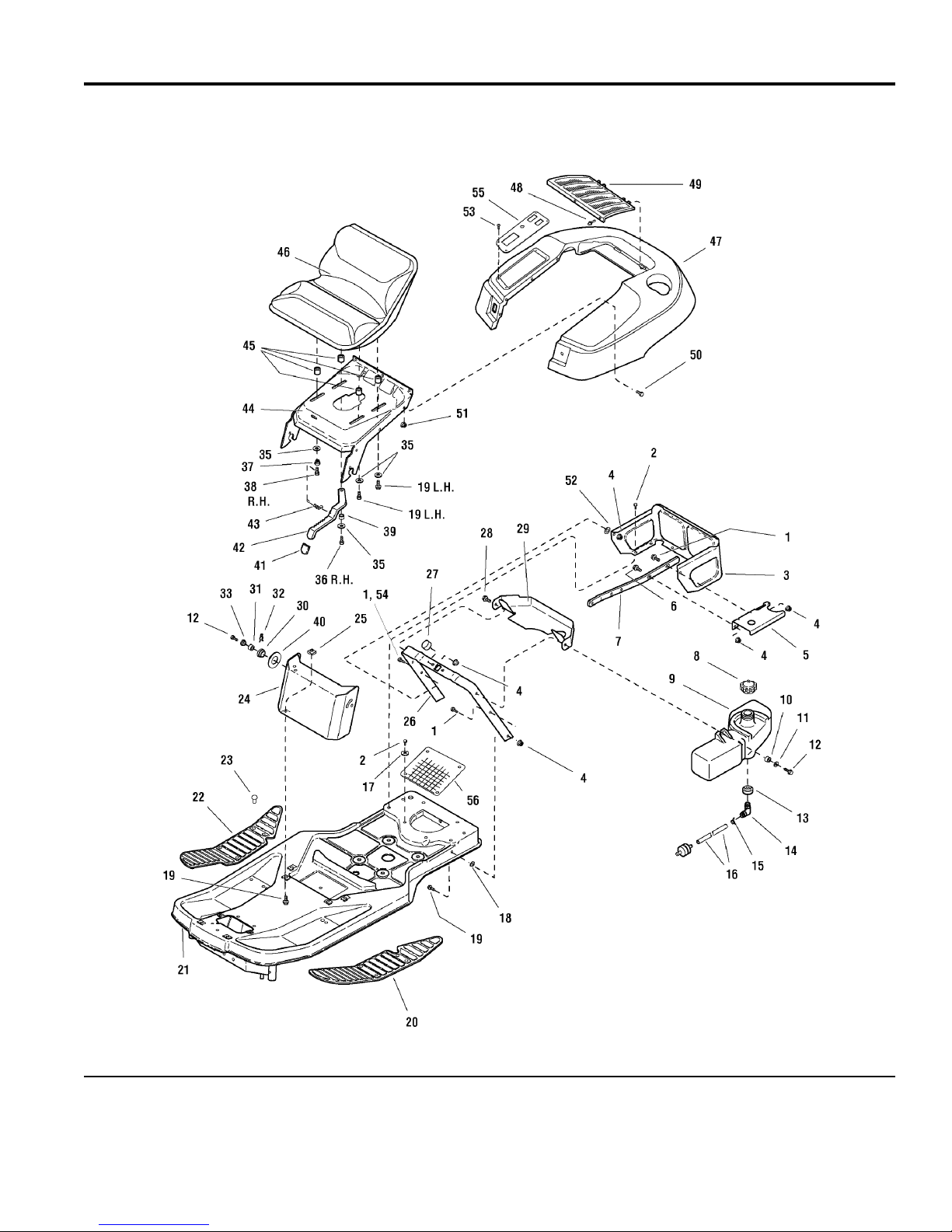

Frame & Fuel System Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986408
The above parts group applies to the following Mfg. Nos.:
2005 4 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694611 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM

PART NO. DESCRIPTIONREF NO QTY.
Frame & Fuel System Group
Footnotes
1 1921333 2 CAPSCREW, Hex Head, 5/16-18 x 1
2 1925003 8 CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2
3 1715962A 1 SHROUD, Rear
4 1931277 5 NUT, Hex, Flange, Whizlock, 5/16-18
5 1726558A 1 SUPPORT, Fuel Tank
6 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4
7 1708362A 1 STRAP, Fuel Tank, Brace
8 1714020 1 CAP, Fuel Tank, Vented
9 1726635 1 TANK, Fuel
10 1710437 1 SPACER, 21/64 x 1/2 x 21/64
11 1924940 1 WASHER, Plain, 13/32 x 7/8 x 5/64
12 1931202 1 CAPSCREW, Taptite, 5/16-18 x 1-1/ (16HP Models)
12 1960373 1 CAPSCREW, Hex, Taptite, 5/16-18 x 1 (13 HP Models)
13 1726400 1 BUSHING, Rubber
14 1674792 1 ELBOW
15 1960112 2 CLAMP, Hose
16 1666272 1 HOSE, Fuel Line
17 1960044 2 WASHER, Plain
18 1933988 2 PUSH NUT, 5/16
19 1930591 10 CAPSCREW, Hex Head, Whizlock, 5/16-18 x 3/4
20 1708525 1 PAD, Foot Rest, LH
21 1727222 1 FRAME ASSEMBLY
22 1708524 1 PAD, Foot Rest, RH
23 1704351 14 FASTENER
24 1727685A 1 PANEL, Front
25 1935255 4 PAL NUT, 5/16-18
26 1726566A 1 SUPPORT, "U", Seat (16 HP Models)
26 1726563A 1 SUPPORT, "U", Seat (13 HP Models)
27 1715970 2 BUMPER, Rubber
28 1924856 1 CAPSCREW, Hex Head, Taptite, 5/16 x 1/2
29 1708725A 1 DUCT, Air Inlet (13 HP Models)
29 1726971A 1 DUCT, Air Inlet (16 HP Models)
30 1704626 2 SPACER, Plastic
31 1705249 2 SPACER
32 1704628 2 PIN, Quick
33 1705248 2 PIVOT, Hood
35 1919381 4 WASHER
36 1921221 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/2
37 1917372 1 NUT, Hex, 5/16-18
38 1921977 1 CAPSCREW, 5/16-18 x 1-1/4
39 1703900 1 SPACER
40 2860208 2 WASHER, 1"
41 1708881 1 CAP, Black, Vinyl
The above parts group applies to the following Mfg. Nos.:
2005 5 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694611 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM

Frame & Fuel System Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986408
The above parts group applies to the following Mfg. Nos.:
2005 6 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694611 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM

PART NO. DESCRIPTIONREF NO QTY.
Frame & Fuel System Group
Footnotes
42 1725532A 1 ADJUSTER, Seat
43 1667286 1 SPRING, Extension
44 1725531A 1 SUPPORT, Seat
45 1708511 4 SPACER
46 1725486 1 SEAT ASSEMBLY
47 1726648 1 DECK, Seat, Orange Simplicity
47 1726649 1 DECK, Seat, Red
47 1714027 1 DECK, Seat, Orange Agco Allis
48 1673320 3 RIVET
49 1708504 1 SCREEN, Seat Deck Top
50 1960295 7 CAPSCREW, Hex Head, Whizlock, 1/4-20 x 5/8
51 1930642 7 NUT, Hex, Flange Lock, 1/4-20
52 1919381 1 WASHER, 5/16
53 1960715 4 SCREW, Truss Head, 1/4-20 x 3/4
54 1922127 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4 (16 HP Models)
55 1726836A 1 PLATE, Control
56 1724598 1 SCREEN
The above parts group applies to the following Mfg. Nos.:
2005 7 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694611 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM

Steering & Lift Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
984685SL
The above parts group applies to the following Mfg. Nos.:
2005 8 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694611 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM

PART NO. DESCRIPTIONREF NO QTY.
Steering & Lift Group
Footnotes
1 1930651 1 NUT, Hex, 3/8-16
2 2108512 1 PIVOT
3 1708955A 1 ARM ASSEMBLY, Lift
4 1708966 1 GRIP, Lever
5 1708557A 1 LEVER, Lift
6 1708884 1 SPRING, Compression
7 1924940 3 WASHER, Plain, 13/32 x 7/8 x 5/64
8 1918447 3 COTTER PIN, 3/32 x 3/4
9 1708556 1 CABLE ASSEMBLY, Lift
10 1919439 1 NUT, Hex, Esna Lock, 3/8-16
11 1708559 1 PULLEY, Lift
12 1708973 1 SPACER
13 1924356 1 WASHER, Plain, 13/32 x 1-1/2 x 1/8
14 1921969 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/2
15 1930645 1 NUT, Hex, Flange Lock, 3/8-16
16 1708514 1 ECCENTRIC
17 1922755 1 WASHER, 13/32 x 7/8 x 1/8
18 1921971 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4
19 1706011 1 SPINDLE ASSEMBLY, LH
20 1935048 3 NUT, Hex, Flange Lock, 5/16-18
21 1960236 2 SPACER
22 1704420 2 KLIP RING
23 1931335 2 CARRIAGE BOLT, 5/16-18 x 1
24 1708501A 1 TIE ROD, LH
25 1919381 1 WASHER
26 1710703 1 SPACER, 21/64 x 1/2 x 5/8
27 1960170 2 WASHER
28 1708516A 1 LEVER
29 1708521 1 ROD, Hitch
30 1920328 2 CAPSCREW, Hex Head, 1/2-13 x 1-1/2
31 1709237A 1 HITCH, Hook
32 1709235 2 SPACER
33 1930644 2 NUT, Hex, Flange Lock, 1/2-13
34 1706019 1 SPINDLE ASSEMBLY, RH
35 1708500A 1 TIE ROD, RH
The above parts group applies to the following Mfg. Nos.:
2005 9 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694611 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM

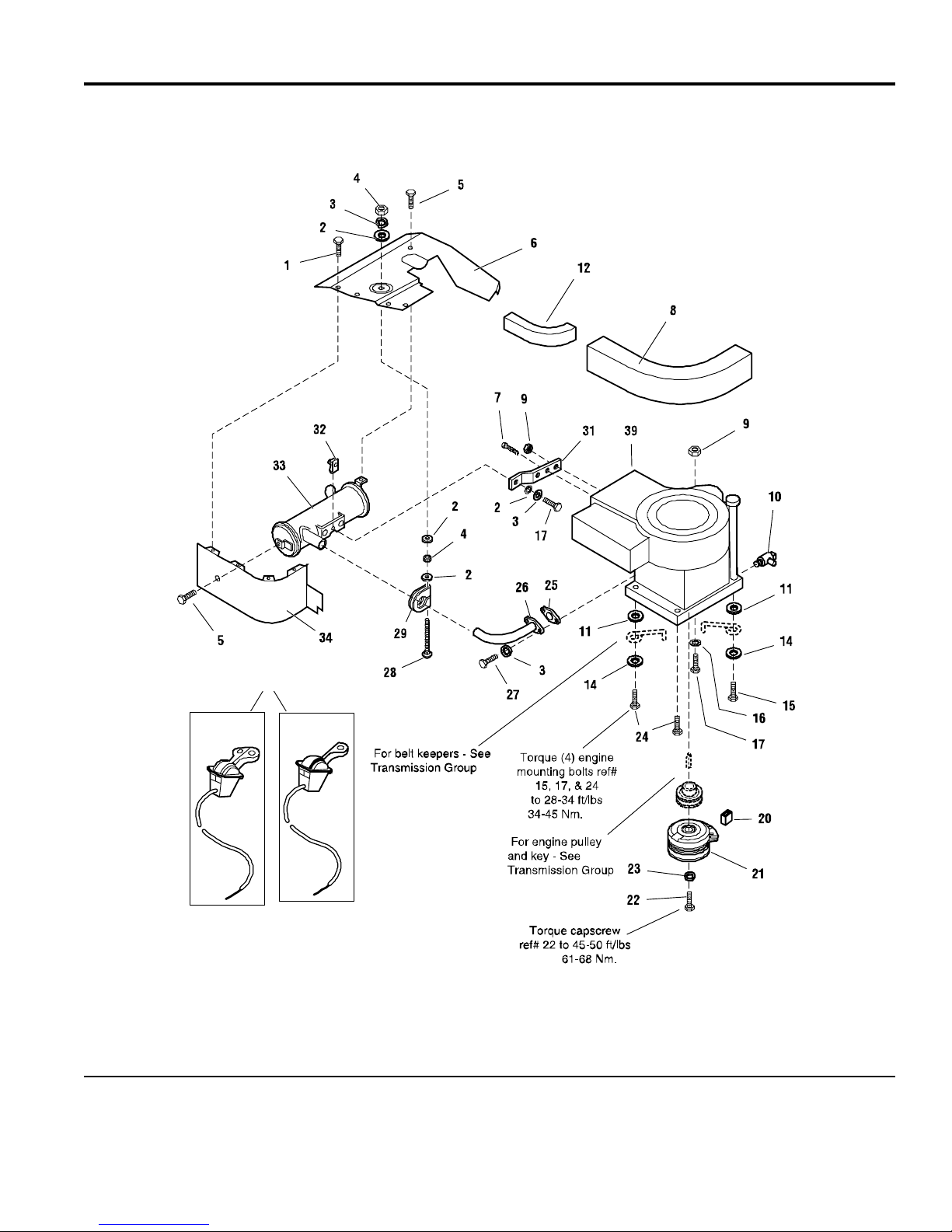

Engine & Electric Clutch Group - 13HP Briggs & Stratton Models
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Single
Control
Dual
Control
35
986646
The above parts group applies to the following Mfg. Nos.:
2005 10 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM

PART NO. DESCRIPTIONREF NO QTY.
Engine & Electric Clutch Group - 13HP Briggs & Stratton Models
Footnotes
1 1960720 5 SCREW, Thread Forming, #10-16 x 1/2
2 1919326 4 WASHER, .34
3 1917356 4 LOCKWASHER, 5/16
4 1917372 2 NUT, Hex, 5/16-18
5 1924856 2 CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2
6 1708420 1 DUCT, R.H., Top
7 1960568 2 SCREW, Taptite, 1/4-20 x .88
8 1709055 1 SEAL, Air Inlet
9 1931277 1 NUT, Flange, Whizlock, 5/16-18
10 1708405 1 VALVE, Shut-Off
11 1933263 2 WASHER, Plain
12 1718648 1 EDGING, Seal
14 1922755 2 WASHER, 3/8
15 2860361 1 CAPSCREW, Taptite, 3/8-16 x 2
16 1933988 1 PUSH NUT, 5/16-18
17 1933689 1 CAPSCREW, Hex, Whizlock, Flange, 5/16-18 x 1-1/2
20 1708537 1 SLEEVE, Clutch Anchor
21 1708536 1 CLUTCH, Electric, Kit
22 1960370 1 CAPSCREW, Hex Head, 7/16-20 x 2-1/2
23 1918199 1 LOCKWASHER, 7/16
24 1930598 2 CAPSCREW, Taptite, 3/8-16 x 1-1/2
25 1650670 1 GASKET, Muffler
26 1708421 1 PIPE, Exhaust
27 1936228 2 CAPSCREW, Socket Head, 5/16-18 x 3/4
28 1960483 1 CARRIAGE BOLT, 5/16-18 x 3-1/4
29 1676183A 1 CLAMP, Muffler
31 1724428A 1 SUPPORT, Muffler
32 1935255 1 SPEED NUT, 5/16-18
33 1708416 1 MUFFLER ASSEMBLY
34 1724427A 1 DUCT, Bottom
35 1727223 1 THROTTLE CONTROL, Duel (Export Only)
35 1722955 1 THROTTLE CONTROL, Single
39 * 1 ENGINE, Briggs & Straton, 13HP, Model 21A907, Type 0131-E1
Note* See your local Briggs & Stratton distributor for parts & service.
The above parts group applies to the following Mfg. Nos.:
2005 11 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM

Engine & Electric Clutch Group - 16HP Kohler Models
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
35
986648
The above parts group applies to the following Mfg. Nos.:
2005 12 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694611 - Coronet
TP 400-4207-00-CO-SM

PART NO. DESCRIPTIONREF NO QTY.
Engine & Electric Clutch Group - 16HP Kohler Models
Footnotes
1 1960720 5 SCREW, Thread Forming, #10-16 x 1/2
2 1919326 4 WASHER, .34
3 1917356 2 LOCKWASHER, 5/16
4 1917372 2 NUT, Hex, 5/16-18
5 1924856 3 CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2
6 1726418A 1 DUCT, R.H., Top
8 1709055 1 SEAL, Air Inlet
10 1708405 1 VALVE, Shut-Off
11 1933263 2 WASHER, Plain
15 1927187 2 CAPSCREW, Taptite, 3/8-16 x 1
17 1933689 1 CAPSCREW, Hex, Whizlock, Flange, 5/16-18 x 1-1/2
20 1708537 1 SLEEVE, Clutch Anchor
21 1708536 1 CLUTCH, Electric, Kit
22 1960370 1 CAPSCREW, Hex Head, 7/16-20 x 2-1/2
23 1918199 1 LOCKWASHER, 7/16
24 1928635 2 CAPSCREW, Taptite, 3/8-16 x 1-1/4
26 1713502 1 PIPE, Exhaust
28 1960483 1 CARRIAGE BOLT, 5/16-18 x 3-1/4
29 1676183A 1 CLAMP, Muffler
31 1713557A 1 SUPPORT, Muffler
32 1935255 1 SPEED NUT, 5/16-18
33 1708416 1 MUFFLER ASSEMBLY
34 1722621A 1 DUCT, Bottom
35 1722955 1 THROTTLE CONTROL, Single
39 * 1 ENGINE, Kohler, 16HP, Model CV460S, Type PA-26522
Note* See your local Briggs & Stratton distributor for parts & service.
The above parts group applies to the following Mfg. Nos.:
2005 13 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694611 - Coronet
TP 400-4207-00-CO-SM

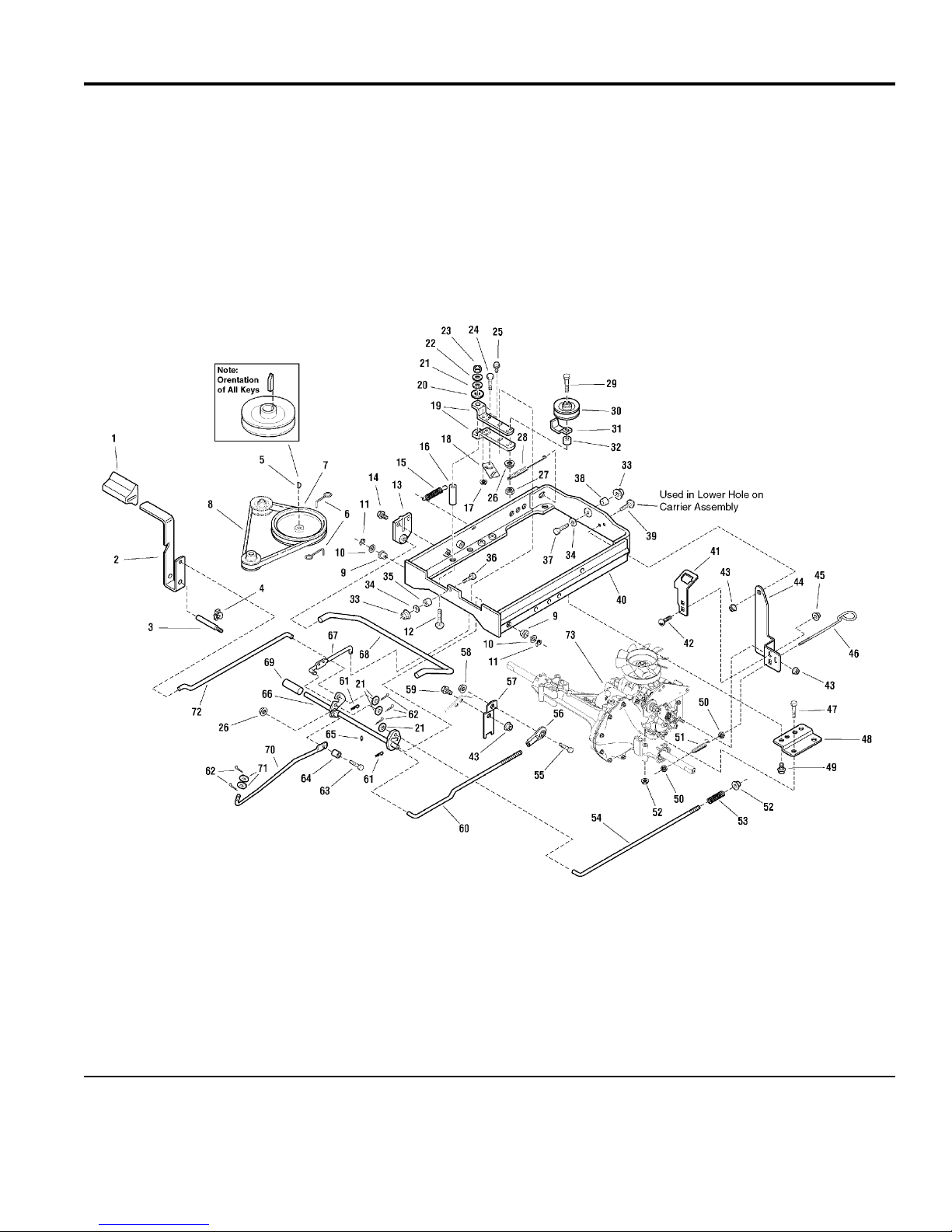

Transmission Group - Hydro-Gear 340-0510
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986402
The above parts group applies to the following Mfg. Nos.:
2005 14 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694611 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM

PART NO. DESCRIPTIONREF NO QTY.
Transmission Group - Hydro-Gear 340-0510
Footnotes
1 1704849 1 PAD, Brake
2 1723348A 1 LEVER, Clutch
3 1708409 1 PIVOT, Brake
4 1708554 1 RING, Klipring Extension
5 171241 1 KEY, Hi-Pro
6 1704419 2 STOP, Belt
7 1723497 1 PULLEY & HUB ASSEMBLY, Engine
8 1707346 1 V - BELT
9 1715025 2 BUSHING
10 1924361 2 WASHER, 1/2
11 1703805 2 RING, Klipring Extension
12 1931342 1 CARRIAGE BOLT, 5/16 - 18 x 2-1/4 G5
13 1708367 2 BRACKET, Torsion Bar
14 1924856 4 SCREW, Hex, Washer Head, Taptite, 5/16 - 18 x 1/2
15 159106 1 SPRING, Extension
16 1709345 1 SPACER
17 1930641 1 NUT, Hex, Flange, 1/4 - 20, Whiz Lock LG
18 1725839A 1 PLATE, Idler 10GA
19 1709221 2 CLEVIS HALF
20 1924366 1 WASHER, 5/8
21 1919326 5 WASHER, 5/16
22 1917356 1 LOCKWASHER, Spring 5/16
23 1917372 1 NUT, Hex 5/16 - 18
24 1923341 1 CAPSCREW, Hex Head, 1/4 - 20 x 3/4 G5
25 1927429 1 SCREW, Hex, Washer Head, Taptite, 1/4 - 20 x 5/8
26 1928352 2 NUT, Hex Flange,, 3/8 - 16 Whiz Lock LG
27 1928731 1 NUT, Hex, Toplock, Jam, 3/8 - 16
28 1725250 1 SPRING, Extension
29 1922918 1 CAPSCREW, Hex Head, 3/8 - 16 x 3-1/4 G5
30 1668827 1 PULLEY
31 1708352A 1 GUARD, Spring
32 1725838 1 SPACER
33 1930644 1 NUT, Hex Flange,, 1/2 - 13, Two-Way Lock
34 1924361 1 WASHER, 1/2
35 1719683 1 SPACER
36 1719682 1 CAPSCREW, Hex Head, 1/2 - 20 x 1-3/4 G8
37 1923114 1 CAPSCREW, Hex Head, 1/2 - 13 x 1 G5
38 1719725 1 SPACER
39 1931332 1 CARRIAGE BOLT, 5/16 - 18 x 5/8 G5
40 1726591A 1 CARRIER ASSEMBLY
41 1726554A 1 BRACKET, Switch Mounting (No-Mow Models Only)
42 1960252 2 CARRIAGE BOLT, 1/4 - 20 x 5/8 G5 (No-Mow Models Only)
43 1931277 3 NUT, Hex Flange, 5/16 - 18, Whiz Lock Small
44 1726555A 1 STRAP, Torque (No-Mow Models Only)
The above parts group applies to the following Mfg. Nos.:
2005 15 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694611 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM

Transmission Group - Hydro-Gear 340-0510
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986402
The above parts group applies to the following Mfg. Nos.:
2005 16 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694611 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM

PART NO. DESCRIPTIONREF NO QTY.
Transmission Group - Hydro-Gear 340-0510
Footnotes
44 1725750 1 STRAP, Torque
45 1960694 2 NUT, Hex Flange, 1/4 - 20 ESNA (No-Mow Models Only)
46 1725183 1 ROD
47 1921719 4 CAPSCREW, Hex Head, 5/16 - 18 x 2-1/2 G5
48 1725706A 2 BRACKET, Mounting
49 1664847 4 SCREW, Hex, Washer Head, Taptite, 5/16 - 18 x 3/4
50 1916621 2 NUT, Hex Machine Screw
51 1726327 1 SPRING, Extension
52 1935048 5 NUT, Hex Flange, 5/16 - 18, Two-Way Lock
53 1708360 1 SPRING
54 1725166 1 ROD, Brake
55 1921210 1 CAPSCREW, Hex Head, 3/8 - 16 x 1 G5
56 1726559 1 JOINT, Ball
57 1725736A 1 LEVER, Control
58 1930645 1 NUT, Hex Flange, 3/8 - 16, Two-Way Lock
59 1925205 1 CAPSCREW, Hex Head, 5/16 - 18 x 5/8 G5
60 1725167 1 ROD, Control
61 1722460 2 PIN, Quick
62 1918447 6 PIN, Cotter
63 960709 1 SCREW, Hex, Whiz Lock, Flange, 3/8 - 16 x 1-3/4
64 1666804 1 SPACER
65 921133 1 FITTING, Lube, 1/4 Drive
66 1725768 1 SHAFT & ARMS ASSEMBLY, Pivot
67 1709220 1 CLUTCH, Rear
68 1708366 1 BAR, Torsion
69 1709850 1 TUBE
70 1725767 1 ROD, Shift, Front
71 1924359 2 WASHER, 1/2
72 1706260 1 ROD, Clutch, Front
73 1725620 1 TRANSMISSION ASSEMBLY, Hydro Gear
The above parts group applies to the following Mfg. Nos.:
2005 17 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694611 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM

Transmission SERVICE PARTS - Hydro-Gear 340-0510
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1725620
The above parts group applies to the following Mfg. Nos.:
2005 18 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694611 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM

PART NO. DESCRIPTIONREF NO QTY.
Transmission SERVICE PARTS - Hydro-Gear 340-0510
Footnotes
1 * 1 MAIN HOUSING, ASSEMBLY
2 * 1 SIDE HOUSING, ASSEMBLY
3 * 1 CENTER SECTION, ASSEMBLY
4 * 1 SWASHPLATE, TRUNNION MACHINED
5 * 2 BLOCK - ASSEMBLY
6 * 10.5 SEALANT (Not Shown)
7 1730269 14 HEX FLANGE SCREW 1/4-20 X 1.25
8 1730270 1 STUD, 5/16-24 HEX DOUBLE END
9 1730271 1 SHAFT, INPUT
10 1715270 1 RING - RETAINING
11 1730272 1 SPACER
12 1730273 1 RING - RETAINING
13 ** 1 SEAL, LIP .67 X 1.58 X .276
14 1730274 1 BALL BRG 17MM ID X 40MM OD X 12MM
16 1730275 1 HEX FLANGE HEAD SCREW 5/16-24 X 0.75
17 ** 1 LIP SEAL 18 X 32 X 7
18 1730276 1 ARM, CONTROL
19 * 1 BEARING, 30X52X13 THRUST
24 * 1 SHAFT, MOTOR
27 * 1 GEAR - PINNION, 13T
28 * 1 10T/48T GEAR
29 * 1 GEAR, 10T JACKSHAFT
30 * 1 60T BULL GEAR
31 * 2 SLEEVE BEARING .75 X 1.750 X .625
32 1730277 2 SLEEVE BEARING (OUTBOARD) .75 X 1.575 X .625
33 * 2 WASHER, 3/4 ID X 1-1/2 OD X .13 THK
34 ** 2 LIP SEAL AXLE SEAL
35 1730278 1 SHAFT, AXLE .75 x 11.39 (KEY, R.H.)
36 1730279 1 SHAFT, AXLE .75 X 16.99 (KEY, L.H.)
37 * 2 MITER GEAR (SPLINED)
38 * 2 MITER GEAR 15T (0.5 ID)
39 * 1 SHAFT
40 * 2 RING, SPIRAL RETAINING
41 * 1 PIN, JACKSHAFT
42 * 1 MAGNET, RING
43 * 1 SPRING, BYPASS
44 * 2 BOLT, HEX FLANGE 3/8-24 X 2.5
45 * 1 BOTTOM, FILTER
46 * 1 BASE, FILTER W/POPPET
47 * 1 ACTUATOR, BYPASS
48 * 1 ROD, BYPASS ACTUATOR
49 1730280 1 ARM, BYPASS
50 1730281 1 RETAINING RING .250 EXTERNAL
51 ** 1 SEAL, LIP .741 X .250 x .250 TC
Note* Not serviced seperately, order complete transmission.
Note** Not serviced seperately, order seal kit reference # 126, 127.
The above parts group applies to the following Mfg. Nos.:
2005 19 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694611 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM

Transmission SERVICE PARTS - Hydro-Gear 340-0510
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1725620
The above parts group applies to the following Mfg. Nos.:
2005 20 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694610 - Coronet
1694611 - Coronet
1694612 - Coronet
1694613 - 2413H
1694614 - 2413H
TP 400-4207-00-CO-SM
