Simplicity Champion 2690449 User manual

Not for
Reproduction
Parts Manual
Rev. 3/2009
Champion
Series Zero-Turn Riders & Mower Decks
TP 400-7276-N-CH-S
Mf
g
. No. Descri
p
tion
20HP Product
2690449 Champion, 20HP Kohler Rider w/44" Mower
2690451 Champion, 20HP B&S Rider w/50" Mower
2690452 Champion, 20HP B&S Rider w/50" Mower (CE/Export)
2690483 Champion, 20HP Kohler Rider w/44" Mower (CE/Export)
2690484 Champion, 20HP B&S Rider w/50" Mower (CE/Export)
Mf
g
. No. Descri
p
tion
26HP Product
5900705 Champion, 26HP B&S Rider w/50" Mower
5100482
Part No.:

Not for
Reproduction

Not for
Reproduction
Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Main Frame & Front Suspension Group .............................................................................................................. 4
Bumper Group ...................................................................................................................................................... 6
Engine & PTO Group - 20 HP Briggs & Stratton ................................................................................................. 8
Engine & PTO Group - 26 HP Briggs & Stratton ................................................................................................. 10
Engine & PTO Group - Kohler .............................................................................................................................. 12
Drive Group .......................................................................................................................................................... 14
Hydraulic Group ................................................................................................................................................... 16
Hydraulic Pump SERVICE PARTS - BDP/PG Series .......................................................................................... 18
Control Group Panel ............................................................................................................................................ 20
Control Group Upper ............................................................................................................................................ 22
Control Group Lower ............................................................................................................................................ 24
Electrical Group .................................................................................................................................................... 26
Seat & Kickplate Group - 20 HP Models .............................................................................................................. 28
Seat & Kickplate Group - 26 HP Models .............................................................................................................. 30
Fuel Supply Hose & Tank Replacement Parts Group ......................................................................................... 32
Fuel Tank Group .................................................................................................................................................. 34
Brake Group ......................................................................................................................................................... 36
Rear Suspension Group ....................................................................................................................................... 38
Lift Group .............................................................................................................................................................. 40
Wheel & Tire Group .............................................................................................................................................. 44
Decals Group - Brand & Model ............................................................................................................................ 46
Decals Group - Safety & Common ....................................................................................................................... 48
Export Decals Group - Safety & Common ........................................................................................................... 50
44" & 50" Mower Deck - Belt & Idler Group ......................................................................................................... 52
44" & 50" Mower Deck - Belt & Idler Group (20 HP Models) ............................................................................... 54
44" & 50" Mower Deck - Housing, Arbors & Blades Group (20 HP Models) ....................................................... 56
44" & 50" Mower Deck - Housing, Arbors, & Blades Group ................................................................................ 58
44" Mower Deck Roller Group (20 HP Models) ................................................................................................... 60
50" Mower Deck - Rollers Group ......................................................................................................................... 62
50" Mower Deck Roller Group (20HP Models) .................................................................................................... 66

Not for
Reproduction

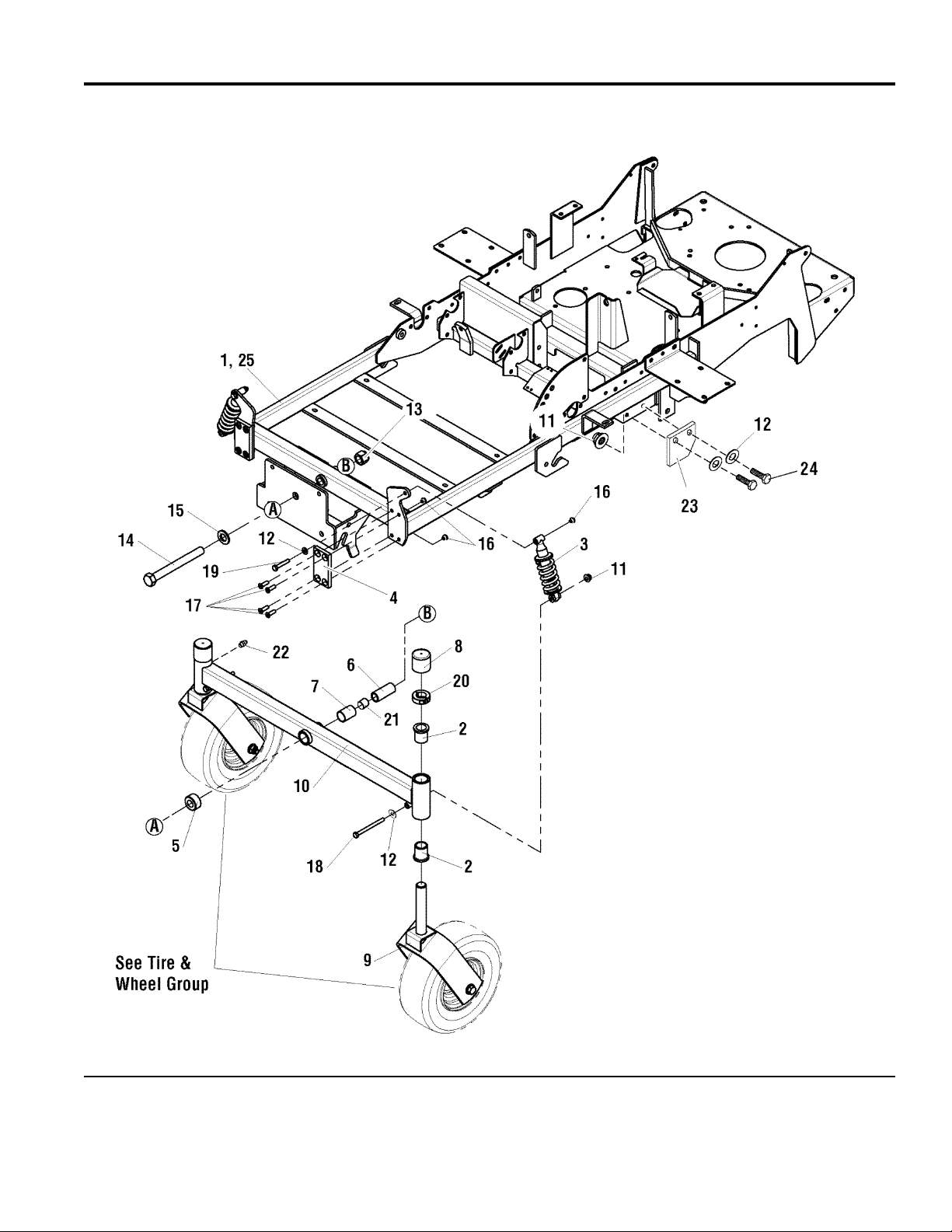

Main Frame & Front Suspension Group (276frm0)
NOTE: Unless noted otherwise, use
the standard hardware torque
specification chart.
276FRM0
The above parts group applies to the following Mfg. Nos.:
4
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690449 - Cham
p
ion
2690451 - Champion
2690452 - Cham
p
ion
2690483 - Cham
p
ion
2690484 - Cham
p
ion
5900705 - Cham
p
ion
TP 400-7276-N-CH-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO. QTY.
Main Frame & Front Suspension Group (276frm0)
Footnotes
WELD, MAIN FRAME, SMI (20 HP Models Only)1 5401035CSM 1
BUSHING, FLANGE2 5021541SM 4
SHOCK, SPRING ASSEMBLY3 5023213SM 2
DECK FRICTION REDUCER PLATE4 5045990SM 2
SPACER, .76X 1.50 X .795 5400756SM 1
SPACER, .75 X 1.00 X 2.386 5047489SM 1
PIVOT BEARING, 1.00" X 1.125" OD X 1.50"7 5022852SM 1
CAP, VINYL 1.687 X 1-1/28 5023214SM 2
WELD,CASTER YOKE9 5048775CSM 2
WELD, PIVOTING FRONT END - ORG10 5400962CSM 1
NUT, 5/16-18 HEX NYLOCK FLANGE11 5025392SM 8
WASHER, 5/16" SAE12 5025155SM 8
NUT, 3/4-16 HEX NYLON LOCK13 5025284SM 1
BOLT, 3/4-16 X 7.00" YZ GD514 5025265X56SM 1
WASHER, 3/4" SAE15 5025160SM 1
NUT, 5/16-18 HEX NYLON LOCK16 5025057SM 8
SCREW, 5/16-18 X 1 FLAT HD SC17 5025303SM 8
BOLT, 5/16-18 X 3-3/4 GD518 5025011X30 2
BOLT, 5/16-18 X 1-3/4" GD5 YZ19 5025011X14SM 2
COLLAR, 1" SPLIT20 5020602SM 2
PIVOT BEARING, 1.00" X 1.125" OD X .50"21 5100358SM 1
GREASE FITTING, 1/4-28 STRAIGHT22 5020095SM 2
PLATE, DECK STOP23 5401053CSM 2
BOLT, 5/16-18 X 3/4" GD524 5025011X6SM 4
WELD, MAIN FRAME, SMI (24 & 26 HP Models Only)25 5403440CSM 1
The above parts group applies to the following Mfg. Nos.:
5
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690449 - Cham
p
ion
2690451 - Champion
2690452 - Cham
p
ion
2690483 - Cham
p
ion
2690484 - Cham
p
ion
5900705 - Cham
p
ion
TP 400-7276-N-CH-S

Not for
Reproduction
Bumper Group (276BMP0)
NOTE: Unless noted otherwise, use
the standard hardware torque
specification chart.
276BMP0
The above parts group applies to the following Mfg. Nos.:
6
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690449 - Cham
p
ion
2690451 - Champion
2690452 - Cham
p
ion
2690483 - Cham
p
ion
2690484 - Cham
p
ion
5900705 - Cham
p
ion
TP 400-7276-N-CH-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO. QTY.
Bumper Group (276BMP0)
Footnotes
NUT, 3/8-16 HEX NYLOCK FLANGE1 5025394SM 6
WASHER, 3/8" GD.9 FLAT2 5025293SM 6
BOLT, 3/8-16 X 1" GD5 YZ3 5025013X8SM 6
WELD, BUMPER, CONSUMER Z, KOHLER4 5400356CSM 1
WELD, BUMPER, CONSUMER Z, BRIGGS & STRATTON (20HP Briggs & Stratton
Models Only)
5 5401074CSM 1
PLUG, PANEL, 1.25 - BLACK6 5023484SM 6
WELD, BUMPER, CHAMPION, 26HP (26HP Models Only)7 5403489CSM 1
The above parts group applies to the following Mfg. Nos.:
7
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690449 - Cham
p
ion
2690451 - Champion
2690452 - Cham
p
ion
2690483 - Cham
p
ion
2690484 - Cham
p
ion
5900705 - Cham
p
ion
TP 400-7276-N-CH-S

Not for
Reproduction

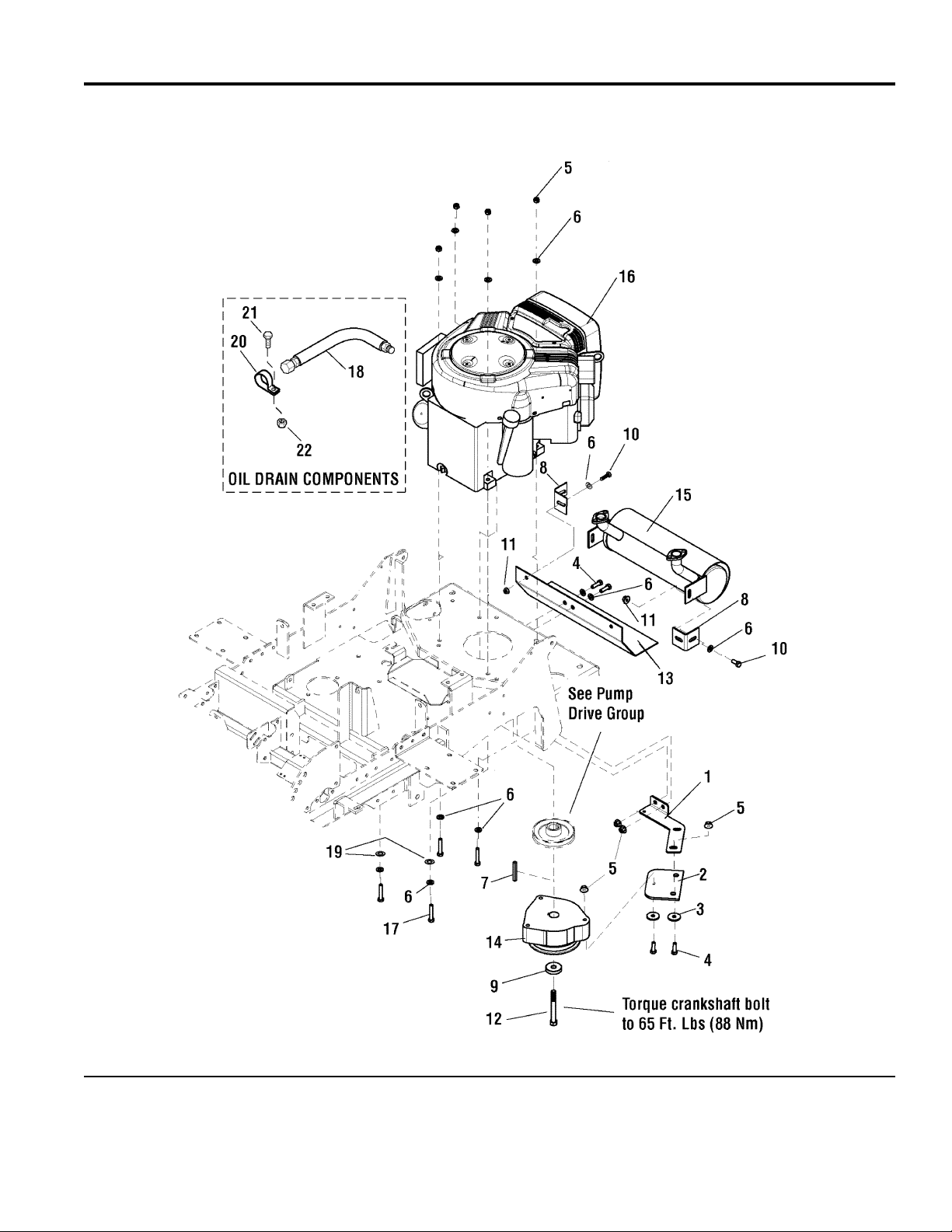

Engine & PTO Group - 20 HP Briggs & Stratton (276engb0)
NOTE: Unless noted otherwise, use
the standard hardware torque
specification chart.
276ENGB0
The above parts group applies to the following Mfg. Nos.:
8
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690451 - Cham
p
ion
2690452 - Champion
2690484 - Cham
p
ion
TP 400-7276-N-CH-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO. QTY.
Engine & PTO Group - 20 HP Briggs & Stratton (276engb0)
Footnotes
PLATE, CLUTCH ANCHOR1 5061857CSM 1
CLUTCH ANCHOR PAD2 5043636SM 1
WASHER, .34 X 1.25 X 10 GA3 5044617SM 3
BOLT, 5/16-18 X 1" GD5 YZ4 5025011X8SM 5
NUT, 5/16-18 HEX NYLOCK FLANGE5 5025392SM 9
WASHER, 5/16" SAE6 5025155SM 14
KEY, 1/4" SQ. X 2 1/47 5050407X18 1
BRACKET,SUPPORT,MUFFLER8 5048262CSM 2
SPACER, .45 X 1.62 X .379 5042132SM 1
BOLT, 5/16-18 X 3/4" GRD510 5025011X6SM 4
NUT, 5/16-18 HEX LG SERR FLG.11 5025139SM 4
BOLT, CRANKSHAFT, 7/16-20 X 3-1/4"12 5023253SM 1
PLATE, HEAT SHIELD - ORG13 5401071CSM 1
CLUTCH, # 51110100,ELECTRIC, 1" SHAFT14 5023100SM 1
MUFFLER, ACS - 20HP BRIGGS15 5023187SM 1
ENGINE, 20 HP BRIGGS VANGUARD16 * 1
BOLT, 5/16-18 X 2-1/4" GD5 YZ17 5025011X18SM 4
HOSE, OIL DRAIN18 5048681SM 1
WASHER, 5/16" INT. TOOTH LOCK19 5025188SM 2
CLAMP, VINYL INSULATED20 5021500SM 1
BOLT, 1/4-20 X 3/4" GD5 YZ21 5025010X6SM 1
NUT, 1/4-20 HEX SERR. FLANGE22 5025126SM 1
Note * See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
9
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690451 - Cham
p
ion
2690452 - Champion
2690484 - Cham
p
ion
TP 400-7276-N-CH-S

Not for
Reproduction
Engine & PTO Group - 26 HP Briggs & Stratton (276engb1)
NOTE: Unless noted otherwise, use
the standard hardware torque
specification chart.
276ENGB1
The above parts group applies to the following Mfg. Nos.:
10
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
5900705 - Cham
p
ion
TP 400-7276-N-CH-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO. QTY.
Engine & PTO Group - 26 HP Briggs & Stratton (276engb1)
Footnotes
PLATE, CLUTCH ANCHOR1 5061857CSM 1
CLUTCH ANCHOR PAD2 5043636SM 1
WASHER, .34 X 1.25 X 10 GA3 5044617SM 3
BOLT, 5/16-18 X 1" GD5 YZ4 5025011X8SM 5
NUT, 5/16-18 HEX NYLOCK FLANGE5 5025392SM 9
WASHER, 5/16" SAE6 5025155SM 14
KEY, 1/4" SQ. X 2 1/47 5050407X18 1
NUT, 1/4-20 HEX SERR. FLANGE8 5025126SM 1
SPACER, .45 X 1.62 X .379 5042132SM 1
BOLT, 5/16-18 X 3/4" GRD510 5025011X6SM 4
NUT, 5/16-18 HEX LG SERR FLG.11 5025139SM 4
BOLT, CRANKSHAFT, 7/16-20 X 3-1/4"12 5023253SM 1
PLATE, HEAT SHIELD - ORG13 5401071CSM 1
CLUTCH, # 51110100,ELECTRIC, 1" SHAFT14 5023100SM 1
MUFFLER, B&S-ELS, 22-26HP15 5100907SM 1
ENGINE, 26 HP BRIGGS & STRATTON, ELS16 - 1
BOLT, 5/16-18 X 2-1/4" GD5 YZ17 5025011X18SM 4
HOSE, OIL DRAIN18 5048681SM 1
WASHER, 5/16" INT. TOOTH LOCK19 5025188SM 2
CLAMP, VINYL INSULATED20 5021500SM 1
BOLT, 1/4-20 X 3/4" GD5 YZ21 5025010X6SM 1
EXTENSION, TAILPIPE, 3"22 5100969SM 1
SCREW23 5021808X8SM 2
GASKET, EXHAUST24 273485 2
SCREW, SEM HEX HEAD25 94480 4
PRE CLEANER (SV)26 792303 1
AIR CLEANER W/ PRE CLEANER (SV) (INCLUDES REF NO 26)27 792105 1
OIL FILTER (SV) (NOT ILLUSTRATED)28 696854 1
The above parts group applies to the following Mfg. Nos.:
11
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
5900705 - Cham
p
ion
TP 400-7276-N-CH-S

Not for
Reproduction
Engine & PTO Group - Kohler (276engk0)
NOTE: Unless noted otherwise, use
the standard hardware torque
specification chart.
276ENGK0
The above parts group applies to the following Mfg. Nos.:
12
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690449 - Cham
p
ion
2690483 - Champion
TP 400-7276-N-CH-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO. QTY.
Engine & PTO Group - Kohler (276engk0)
Footnotes
PLATE, CLUTCH ANCHOR1 5061857CSM 1
CLUTCH ANCHOR PAD2 5043636SM 1
WASHER, .34 X 1.25 X 10 GA3 5044617SM 3
BOLT, 5/16-18 X 1" GD5 YZ4 5025011X8SM 5
NUT, 5/16-18 HEX NYLOCK FLANGE5 5025392SM 6
WASHER, 5/16" SAE6 5025155SM 3
KEY, 1/4" SQ. X 2 1/47 5050407X18 1
SPACER, .45 X 1.62 X .378 5042132SM 1
BOLT, CRANKSHAFT, 7/16-20 X 3-1/4"9 5023253SM 1
CLUTCH, # 51110100,ELECTRIC, 1" SHAFT10 5023100SM 1
BOLT, 5/16-18 X 2-1/4" GD5 YZ11 5025011X18 1
HOSE, OIL DRAIN12 5048681SM 1
ENGINE, 20HP KOHLER COURAGE13 * 1
BOLT, 3/8-16 X 1", SELF-TAPPING14 5100399SM 3
CLAMP, VINYL INSULATED15 5021500SM 1
BOLT, 1/4-20 X 3/4" GD5 YZ16 5025010X6SM 1
NUT, 1/4-20 HEX SERR. FLANGE17 5025126SM 1
WASHER, 5/16" INT. TOOTH LOCK18 5025188SM 1
Note * See your local Kohler distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
13
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690449 - Cham
p
ion
2690483 - Champion
TP 400-7276-N-CH-S

Not for
Reproduction

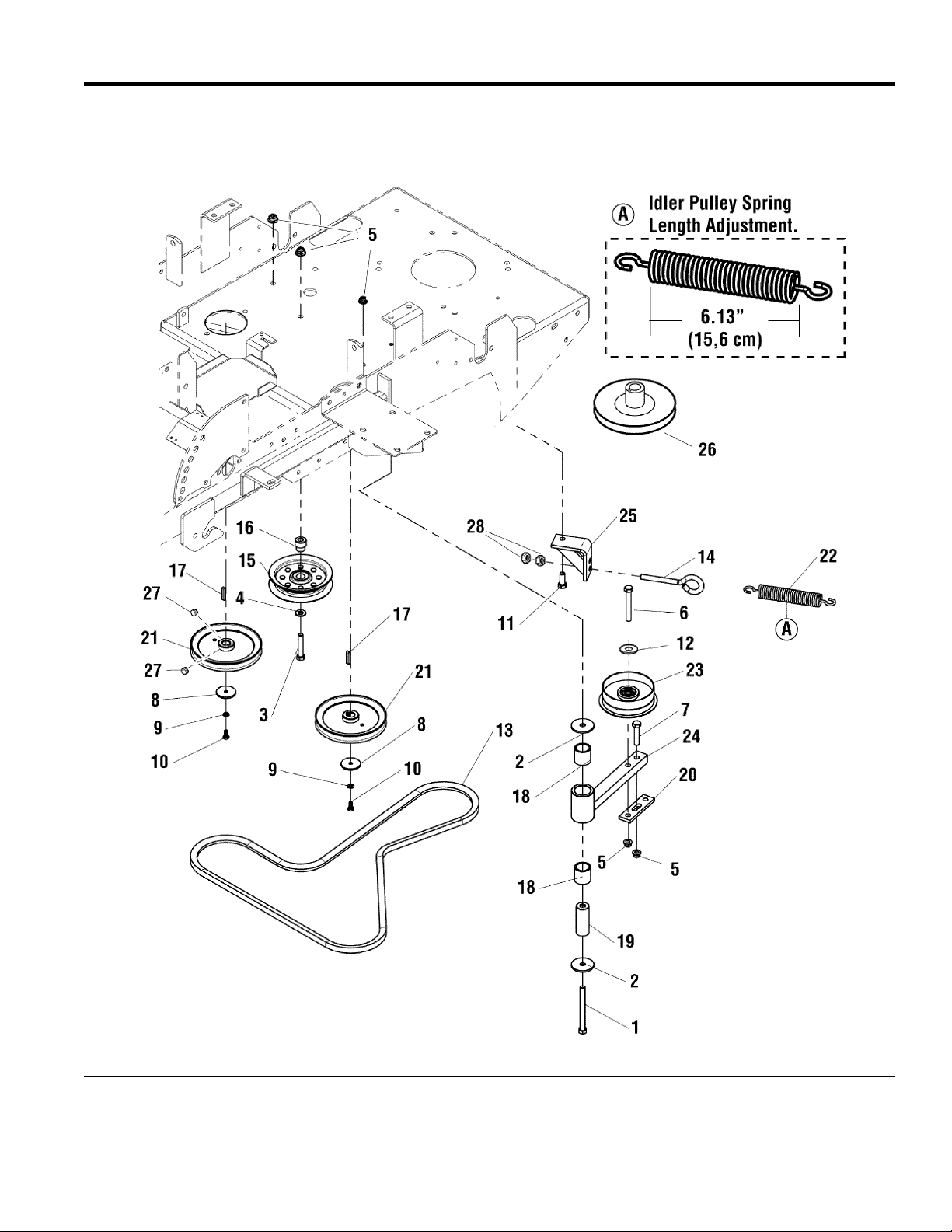

Drive Group (276GDR0)
NOTE: Unless noted otherwise, use
the standard hardware torque
specification chart.
276GDR0
The above parts group applies to the following Mfg. Nos.:
14
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690449 - Cham
p
ion
2690451 - Champion
2690452 - Cham
p
ion
2690483 - Cham
p
ion
2690484 - Cham
p
ion
5900705 - Cham
p
ion
TP 400-7276-N-CH-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO. QTY.
Drive Group (276GDR0)
Footnotes
BOLT, 3/8-16 X 3-1/2" GD5 YZ1 5025013X28SM 1
WASHER, .41 X 1.75 X .142 5025305SM 2
BOLT, 3/8-16 X 1-3/4" GD5 YZ3 5025013X14SM 1
WASHER, 3/8" SAE4 5025156SM 1
NUT, 3/8-16 HEX NYLOCK FLANGE5 5025394SM 5
BOLT, 3/8-16 X 2-1/2" GD5 YZ6 5025013X20SM 1
BOLT, 3/8-16 X 1-3/4" GD57 5025013X14SM 1
WASHER, .265 X 1.50 X .109, YZ8 5044577SM 2
WASHER, 1/4" LOCK9 5025169SM 2
CAPSCREW,HEX HEAD M6-1.0X 14MM10 5023215SM 2
BOLT, 3/8-16 X 1" GD5 YZ11 5025013X8SM 1
WASHER, 3/8" GD.9 FLAT12 5025293SM 1
BELT, #7-716813 5022931SM 1
EYE BOLT, 3/8-16 X 4", 1" EYE14 5025429 1
PULLEY, IDLER15 5021002SM 1
SPACER, HYDRO PULLEY16 5049184SM 1
KEY, 5MM SQ. W/ RADIUS17 5023254SM 2
BUSHING, BRASS, 1.25X1X1.2518 5022157SM 2
SPACER, .39 X 1.00 X 2.5519 5045135SM 1
PLATE,ANCHOR,SPRING20 5048219CSM 1
PULLEY, PUMP DRIVE21 5023251SM 2
SPRING, EXTENSION, 1.0022 1715435SM 1
PULLEY, IDLER, SINGLE FLANGE23 5022621SM 1
WELD, ARM, PUMP DRIVE IDLER - ORG24 5046430CSM 1
WELD, ANCHOR EYEBOLT25 5045200CSM 1
PULLEY, CRANKSHAFT26 5023252SM 1
SET SCREW, 5/16-18 X 3/8"27 5025061SM 4
NUT, 3/8-16 HEX28 1916950SM 2
The above parts group applies to the following Mfg. Nos.:
15
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690449 - Cham
p
ion
2690451 - Champion
2690452 - Cham
p
ion
2690483 - Cham
p
ion
2690484 - Cham
p
ion
5900705 - Cham
p
ion
TP 400-7276-N-CH-S

Not for
Reproduction
Hydraulic Group (276HYD0)
NOTE: Unless noted otherwise, use
the standard hardware torque
specification chart.
276HYD0
The above parts group applies to the following Mfg. Nos.:
16
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690449 - Cham
p
ion
2690451 - Champion
2690452 - Cham
p
ion
2690483 - Cham
p
ion
2690484 - Cham
p
ion
5900705 - Cham
p
ion
TP 400-7276-N-CH-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO. QTY.
Hydraulic Group (276HYD0)
Footnotes
CAP, HYDRAULIC RESERVOIR1 5023191SM 1
TANK, 2 QT HYDRAULIC2 5023345SM 1
CLAMP, HOSE, 7/83 5061549SM 1
HOSE, 3/8" PUSH-LOCK, 8.50"4 5050860X8P5SM 1
FITTING, TEE, 1/2" HOSE5 5022920SM 1
HOSE, 3/8 PUSH-LOCK, 276 5050860X27SM 1
HOSE ASSEMBLY (19")7 5100165SM 4
ADAPTER, HYD.8 5022634SM 4
MOTOR, WHEEL9 5023091SM 2
ADAPTER, 90 DEG, 9/16-3/8 BARB10 5023267SM 4
CLAMP, HOSE11 5023268SM 10
PE, 10CC HYDRAULIC PUMP - LH12 5101404 1
ADAPTER, HYD.13 5022633SM 4
FILTER, OIL14 1719168SM 1
FILTER HEAD, HYDRAULIC15 5023096SM 1
HOSE, 5/8 PUSH-ON, 12.50" LONG16 5400707SM 1
ADAPTER, TEE, 9/16-3/8 BARB17 5023266SM 1
HOSE, 3/8" PUSH-LOCK, 7.50"18 5050860X7P5SM 3
PE, 10CC HYDRAULIC PUMP - RH19 5101403 1
KEY20 5023091X1SM 2
NUT, CASTLE21 5023091X2SM 2
PIN, COTTER, 1/8" X 1-1/422 5025203X10SM 2
ADAPTER, 90 DEG, 9/16-5/8 BARB23 5023346SM 1
CLAMP, #10 HOSE, STAINLESS24 5021164SM 1
BOLT, 1/4-20 X 3/4" GD5 YZ25 5025010X6SM 2
WASHER, 1/4" LOCK26 5025169SM 2
WASHER, 1/4" SAE27 5025154SM 2
BOLT, 3/8-16 X 1-1/4" GD528 5025013X10SM 4
NUT, 3/8-16 HEX SERRATED FLANGE29 5025128SM 4
KIT, Castle Nut & Cotter Pin30 5600199SM --
The above parts group applies to the following Mfg. Nos.:
17
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690449 - Cham
p
ion
2690451 - Champion
2690452 - Cham
p
ion
2690483 - Cham
p
ion
2690484 - Cham
p
ion
5900705 - Cham
p
ion
TP 400-7276-N-CH-S

Not for
Reproduction
Hydraulic Pump SERVICE PARTS - BDP/PG Series (276PMP0)
NOTE: Unless noted otherwise, use
the standard hardware torque
specification chart.
276PMP0
The above parts group applies to the following Mfg. Nos.:
18
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690449 - Cham
p
ion
2690451 - Champion
2690452 - Cham
p
ion
2690483 - Cham
p
ion
2690484 - Cham
p
ion
5900705 - Cham
p
ion
TP 400-7276-N-CH-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO. QTY.
Hydraulic Pump SERVICE PARTS - BDP/PG Series (276PMP0)
Footnotes
Housing Kit1 5023405SM 1
End Cap Kit (W/ Poppets, Standard Charge) (Includes Ref. No. 66)2 5023406SM 1
Straight Headless Pin3 5023407SM 1
Hex Flange Bolt M8-1.25 X 60mm LG4 5023408SM 4
Housing O-Ring5 5023409SM 1
Charge Pump Kit (STD) (Includes Ref. Nos. 7 & 8)6 5023410SM 1
STD Gerotor Assy (11 cu. In/rev D-Drive)7* 1
O-Ring8* 1
Socket Head Screw M6 x 1.0-20mm Lg (STD Charge)10 5023411SM 2
Bypass Valve Kit (Blank)15 5023412SM 1
Pump Shaft Kit (Blind 15mm Keyway W/ Std Charge) (Includes Ref. No. 19)18 5023413SM 1
Ball Bearing 17 x 40 x 1219 * 1
Lip Seal 17 x 40 x 7 PTC20 5023414SM 1
Spacer21 5023415SM 1
Retaining Ring22 5023416SM 1
Cylinder Block Kit25 5023417SM 1
Block Spring29 5023418SM 1
Block Thrust Washer30 5023419SM 1
Valve Plate (Steel N-Tec:Black)31 5023420SM 1
Swashplate32 5023421SM 1
Ball Thrust Bearing34 5023422SM 1
Trunnion Arm, Tapered Square37 5023423SM 1
Slot Guide38 5023424SM 1
Check Valve Kit (0.031"Orifice)42 5023425SM 2
Charge Relief Valve Kit (1/4" Plastic Ball & Spring)44 5023426SM 1
Trunnion Seal / Retainer Kit49 5023427SM 1
Straight Thread Plug56 5023428SM 1
5/16" SAE Plug66 * 1
Arm,Control94 * 1
Spacer RTN101 * 1
Washer .34 x .88 x .06104 * 2
Nut, Hex Lock 5/16-24 UNF106 * 1
Kit, RTN, STD (Includes Ref. Nos. 94, 98, 100, 101, 102, 103, 104, 104, 105, 106 &
107)
110 5023430SM 1
Overhaul Seal Kit (Not Shown)111 5023429SM 1
Note * Not a serviceable part.
The above parts group applies to the following Mfg. Nos.:
19
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690449 - Cham
p
ion
2690451 - Champion
2690452 - Cham
p
ion
2690483 - Cham
p
ion
2690484 - Cham
p
ion
5900705 - Cham
p
ion
TP 400-7276-N-CH-S

Not for
Reproduction
Control Group Panel (276INS0)
NOTE: Unless noted otherwise, use
the standard hardware torque
specification chart.
276INS0
The above parts group applies to the following Mfg. Nos.:
20
2009Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690449 - Cham
p
ion
2690451 - Champion
2690452 - Cham
p
ion
2690483 - Cham
p
ion
2690484 - Cham
p
ion
5900705 - Cham
p
ion
TP 400-7276-N-CH-S
