Simplicity 1694847 User manual

Parts Manual
Rev. 11/2005
Large Frame
Walk-Behind Snowthrowers
TP 400-4250-00-LW-S
Mf
g
. No. Descri
p
tion
9
.
5
HP
S
nowthrowers
1694867 9560E, 9.5HP Snowthrower
1694914 9560EX, 9.5HP Snowthrower (CE)
Mf
g
. No. Descri
p
tion
10.5HP Snowthrowers
1694847 10560E, 10.5HP Snowthrower
1694848 10560EX, 10.5HP Snowthrower (CE)
Mf
g
. No. Descri
p
tion
11.5HP Snowthrowers
1694849 11570E, 11.5HP Snowthrower
1694850 E11570, 11.5HP Snowthrower (CE)
Mf
g
. No. Descri
p
tion
1
3
HP
S
nowthrowers
1694851 1380E, 13HP Snowthrower
1694852 E1380, 13HP Snowthrower (CE)
1694872 1390E, 13HP SnowThrower
1694915 1390EX, 13HP SnowThrower (CE)
1732356
Part No.:

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Handles and Controls Group - Channel .............................................................................................................. 4
Handles and Controls Group ............................................................................................................................... 8
Engine and Frame Group .................................................................................................................................... 12
Engine and Frame Group with Power Boost ....................................................................................................... 16
Auger and Impeller Group .................................................................................................................................... 20
Auger Housing and Chute Group - 24, 28 & 32 inch ........................................................................................... 24
Auger Housing and Chute Group - 38" Models ................................................................................................... 28
Traction Drive Group ............................................................................................................................................ 32
Wheels & Tires Group .......................................................................................................................................... 36
Decal Group ......................................................................................................................................................... 38
Headlight Group ................................................................................................................................................... 40

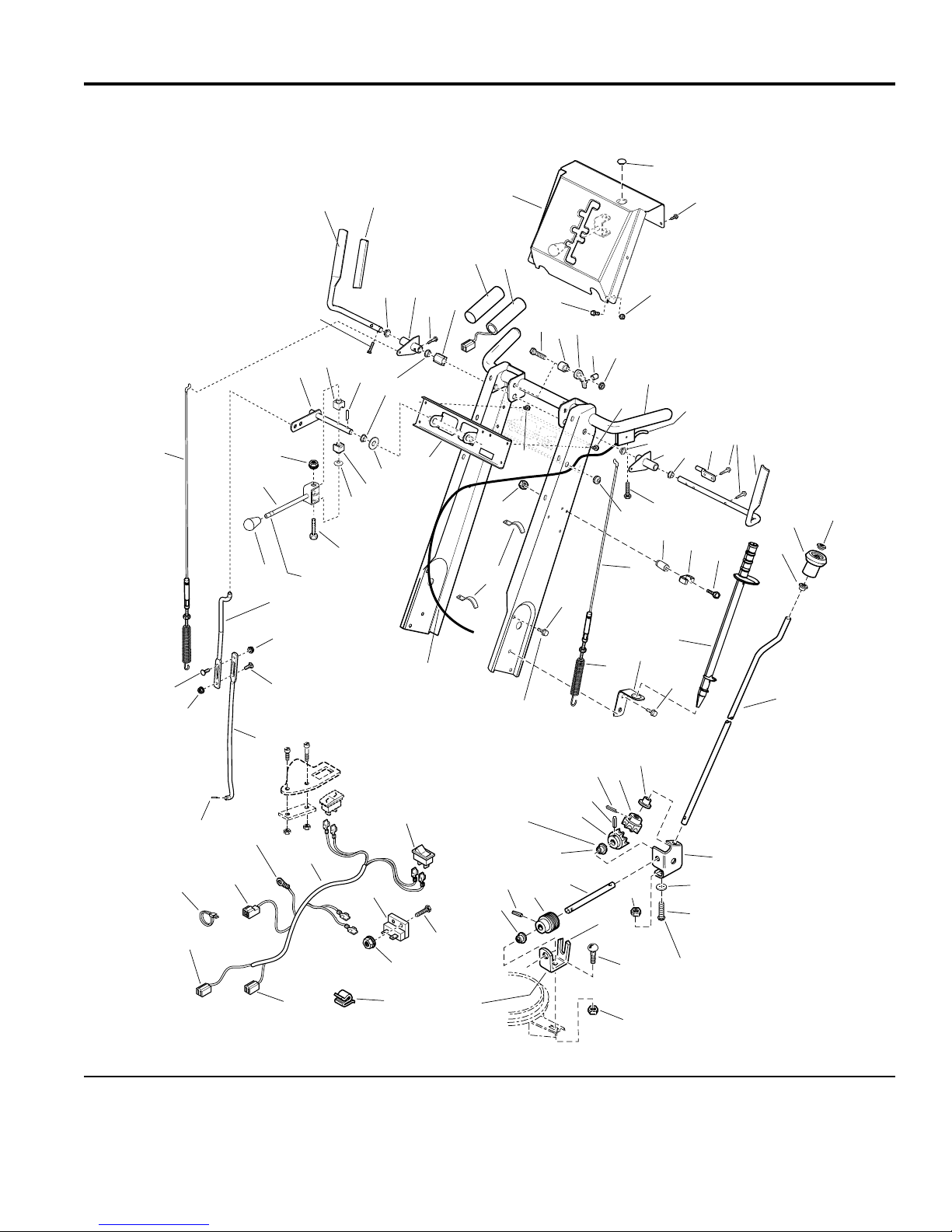

Handles and Controls Group - Channel
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Linkage adjustment for traction and
auger drive with power boost: with
drive levers engaged, the bottom end of
lower rods (Ref. 40 & 66) should be flush
with bottom of springs (Ref. 39 & 68).
To engine
ground
Shift rod assembly
(Ref. 71) must pivot
freely on pivot blocks
(Ref. 21).
Torque to
19 - 29 ft-lbs.
Mount clutch cable
to cable support, see
Engine & Frame.
To engine
plug
To spout
motor
To headlight
See Auger Housing and
Chute Group - 38"
The holes in the frame for Ref. 51 are
slotted so the gear support (Ref. 45) can
be positioned to ensure the inside surface
of the gear support is tight against the
hub of the front gear (Ref. 50).
Mount bushings (Ref. 78)
with flange on inside of
brackets, 3 places.
Slot towards
rear of unit.
10
14 13
12
45
6
3
7
12
21
12
9
15 16 17
18 19
25
54
8
20
23 24
35
36
26
34
60
64
69
70
69
56
71
96
4
4
45
72
4
65
66
67
56
62 62
56
63
61
22
68
53
55
58
2727
57
56
11
34
33
29
30
31
32
45
38 37
40
41
39
42
50
49 48
44 47
42
46
43
39
39
52
51
44
39
28
12
59
987044
The above parts group applies to the following Mfg. Nos.:
2005 4 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694847 - 10560E
1694848 - 10560EX
1694849 - 11570E
1694850 - E11570
1694851 - 1380E
1694852 - E1380
1694872 - 1390E
1694915 - 1390EX
TP 400-4250-00-LW-S

PART NO. DESCRIPTIONREF NO QTY.
Handles and Controls Group - Channel
Footnotes
1 1727128 1 HANDLE, Clutch R.H.
2 1668608 2 GRIP, Handle Clutch, Black
3 1928732 1 CAPSCREW, Hex Washer Head Taptite #10-24 x 1
4 1729104 5 BUSHING, 1/2 ID x 3/4 OD x 1/4, Plastic
5 1725205A 2 LEVER & TUBE ASSEMBLY, Clutch
6 1960471 4 CAPSCREW, Hex Washer Head Taptite #12-24 x 1
7 1705899 1 GUIDE, Control
8 1726317 2 GRIP, Black Soft 1 in. (24 in. & 28 in. Models Only)
9 1723965 2 HAND GRIP, Heated 1 in. (32 & 38 in. Models Only)
10 1667800C 1 DASHBOARD
11 1724489 1 PLUG, Button (38 in. Models Only)
12 1925592 6 CAPSCREW, Hex Washer Head Taptite 1/4-20 x 3/4
13 1930641 4 NUT, Hex Flange Whiz Lock 1/4-20
14 1935450 4 CAPSCREW, Hex Washer Head, 1/4-20 x 3/4 G5
15 1933689 1 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 1-1/2
16 1678579 1 SPACER, 21/64 ID x 13/16 OD x 15/16
17 1705898 1 LATCH, Control
18 1701342 1 SPRING, Compression
19 1960686 1 NUT, Hex Flange 5/16-18 ESNA
20 1729855C 1 HANDLE ASSEMBLY, Channel
21 1723935A 1 BRACKET, Shift Control
22 1718791 1 CABLE & HANDLE ASSEMBLY, Clutch L.H.
23 1677453 1 ROD, Control 2 in. Flat
24 1727127 1 HANDLE, Clutch L.H.
25 1725702 1 SCREW, Pan Head Torx #10 x 1/2 Thick Cut
26 1664022 1 GROMMET, 1/2
27 2834683 1 CLIP, Wire
28 1933896 1 NUT, Hex Lock 10-24 with Nylon Insert NC3B (Quantity 3 used no 32 in. models)
29 1678392 1 SPACER, 17/64 ID x 3/8 OD x 21/64
30 1726728 1 CLIP, Clean Out Tool
31 1960589 1 SCREW, Phillips #10-24 x 3/4
32 7075909 1 TOOL, Clean Out
33 1726727A 1 BRACKET, Clean Out Tool
34 1960729 6 CAPSCREW, Hex Serrated Flange Tap, 5/16-18 x 1
35 1728115 1 CABLE ASSEMBLY, LH (Includes Ref. No. 36)
36 1707452 1 SPRING, Extension 3-11/32 Long
37 1960093 1 NUT, Push Pal (Used on all models Except 38 in. Models)
38 1714084 1 KNOB, Spinner, Soft (Used on all modles Except 38 in. Models)
39 1667588 4 BUSHING, 3/8 ID x 7/16 OD x 13/64, Nylon (Used on all models Except 38 in. Models)
40 1715658 1 ROD, Chute Control, 27 in. Long (Used on all models Except 38 in. Models)
41 1718793 1 SUPPORT, Gear (Used on all models Except 38 in. Models)
42 1718593 2 GEAR, Powered Metal (Used on all models Except 38 in. Models)
43 1918452 1 PIN, Cotter 1/8 x 1 (Used on all models Except 38 in. Models)
44 2816168 2 PIN, Spring 1/8 x 3/4 (Used on all models Except 38 in. Models)
The above parts group applies to the following Mfg. Nos.:
2005 5 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694847 - 10560E
1694848 - 10560EX
1694849 - 11570E
1694850 - E11570
1694851 - 1380E
1694852 - E1380
1694872 - 1390E
1694915 - 1390EX
TP 400-4250-00-LW-S

Handles and Controls Group - Channel
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Linkage adjustment for traction and
auger drive with power boost: with
drive levers engaged, the bottom end of
lower rods (Ref. 40 & 66) should be flush
with bottom of springs (Ref. 39 & 68).
To engine
ground
Shift rod assembly
(Ref. 71) must pivot
freely on pivot blocks
(Ref. 21).
Torque to
19 - 29 ft-lbs.
Mount clutch cable
to cable support, see
Engine & Frame.
To engine
plug
To spout
motor
To headlight
See Auger Housing and
Chute Group - 38"
The holes in the frame for Ref. 51 are
slotted so the gear support (Ref. 45) can
be positioned to ensure the inside surface
of the gear support is tight against the
hub of the front gear (Ref. 50).
Mount bushings (Ref. 78)
with flange on inside of
brackets, 3 places.
Slot towards
rear of unit.
10
14 13
12
45
6
3
7
12
21
12
9
15 16 17
18 19
25
54
8
20
23 24
35
36
26
34
60
64
69
70
69
56
71
96
4
4
45
72
4
65
66
67
56
62 62
56
63
61
22
68
53
55
58
2727
57
56
11
34
33
29
30
31
32
45
38 37
40
41
39
42
50
49 48
44 47
42
46
43
39
39
52
51
44
39
28
12
59
987044
The above parts group applies to the following Mfg. Nos.:
2005 6 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694847 - 10560E
1694848 - 10560EX
1694849 - 11570E
1694850 - E11570
1694851 - 1380E
1694852 - E1380
1694872 - 1390E
1694915 - 1390EX
TP 400-4250-00-LW-S

PART NO. DESCRIPTIONREF NO QTY.
Handles and Controls Group - Channel
Footnotes
45 1960518 2 NUT, Push for 1/4 Diameter Thread
46 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8 G5 (Used on all models Except 38 in. Models)
47 1960294 2 NUT, Hex Flange Whiz Lock, 1/4-20 Small (Used on all models Except 38 in. Models)
48 1725283 1 ROD, Chute Worm, 18 Long (Used on all models Except 38 in. Models)
49 1668186 1 WORM, Chute, L.H. (Used on all models Except 38 in. Models)
50 1611911 1 SUPPORT, Worm (Used on all models Except 38 in. Models)
51 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4 G5 (Used on all models Except 38 in. Models)
52 1960684 1 NUT, Hex KEPS Conical Washer, 5/16-18 (Used on all models Except 38 in. Models)
53 1723967 1 SWITCH, Hand Warmer (32 & 38 in. Models Only)
54 1923341 1 CAPSCREW, Hex Head, 1/4-20 x 3/4 G5 (32 & 38 in. Models Only)
55 1724037 1 RESISTOR BLOCK, Male Terminal (32 & 38 in. Models Only)
56 1960685 4 NUT, Hex KEPS, 1/4-20 Conical Washer
57 2172434 1 CLIP, Wire (Spout Rotator Models Only)
58 1725439 1 HARNESS, Wiring (Handwarmer Models Only)
58 1728968 1 HARNESS, Wiring (Handwarmer & Spout Rotator Models Only)
59 2825094 3 TIE, Self Locking 7-5/16 (32 & 38 in. Models Only)
60 1722460 1 PIN, Quick
61 1666255 1 ROD, Lower Shift 15-21/64 Long
62 1931317 2 CARRIAGE BOLT, 1/4-20 x 3/4 G5
63 1726304 1 ROD, Upper Shift 11-3/8 Long
64 1728114 1 CABLE ASSEMBLY, RH
65 1713844 1 KNOB, Hole
66 1714120 1 ROD & CLEVIS ASSEMBLY, Shift
67 1960705 1 CAPSCREW, Hex Flange Whiz Lock 1/4-20 x 2-1/4
68 1668681 1 WASHER, Curved
69 1668524 2 BLOCK, Pivot, Powdered Metal
70 1924361 1 WASHER, 1/2
71 1674567 1 ROD & ARM ASSEMBLY, Pivot
72 1960074 1 CLIP, Hair Pin
The above parts group applies to the following Mfg. Nos.:
2005 7 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694847 - 10560E
1694848 - 10560EX
1694849 - 11570E
1694850 - E11570
1694851 - 1380E
1694852 - E1380
1694872 - 1390E
1694915 - 1390EX
TP 400-4250-00-LW-S

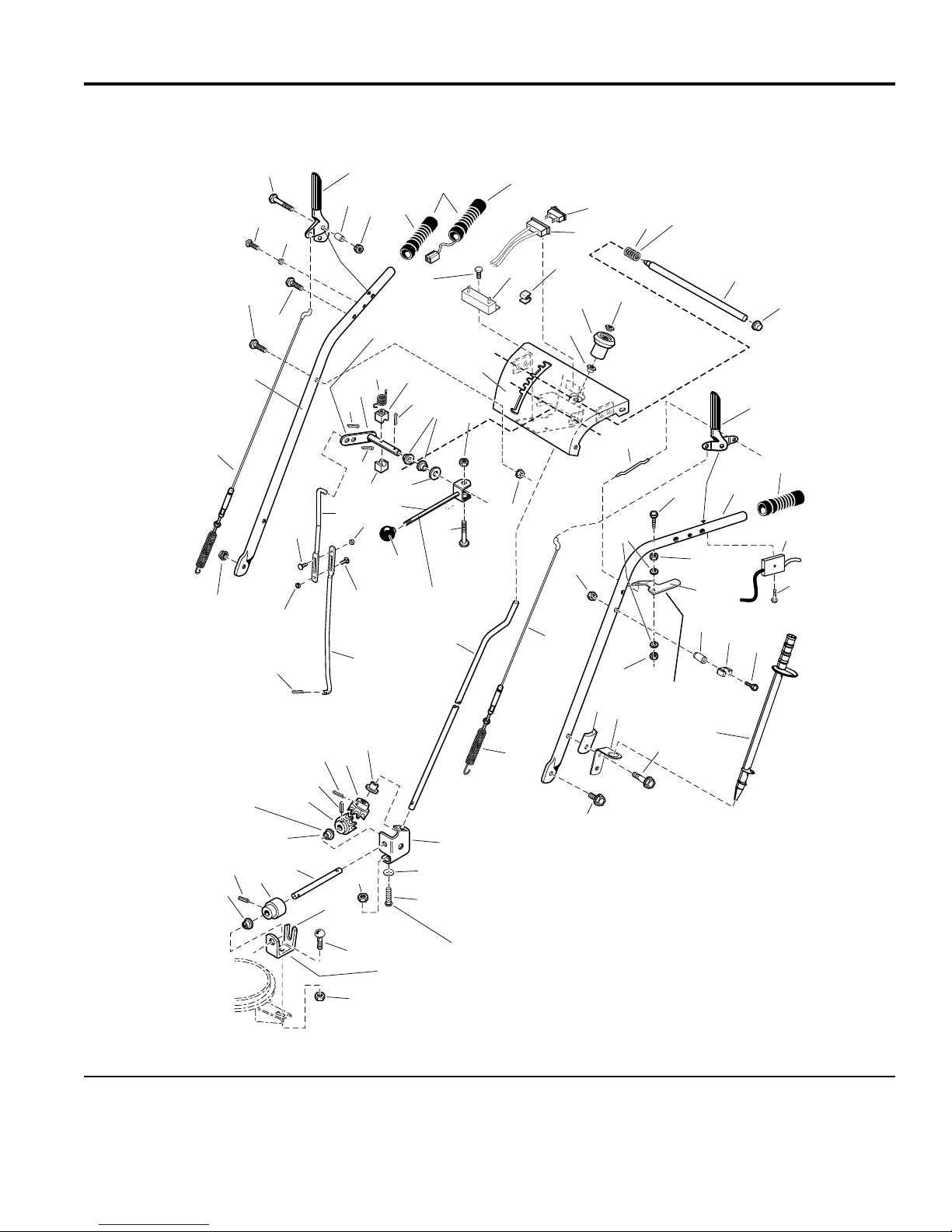

Handles and Controls Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The holes in the frame for Ref. 48 are
slotted so the gear support (Ref. 46) can
be positioned to ensure the inside surface
of the gear support is tight against the
hub of the front gear (Ref. 56).
Mount bushings (Ref. 19)
with flange on inside of
brackets, 3 places.
Slot towards
rear of unit.
Shift rod assembly (Ref. 66)
must pivot freely on
pivot blocks, (Ref. 67).
Apply adhesive to
secure grips.
Insert shift rod (Ref. 65)
into outter hole of Ref. 68.
Must pivot freely
on capscrew (Ref 32).
Apply lubricant as required.
Must slide freely in
dash assembly (Ref 18).
Apply lubricant as required.
47
1
2
8
11
18
20 21
17
26
10
27
6
11
43
3
4
39
41
42
44
58 59
61
60
60
62
68
69 67
70
66
35
58
61
67
60
72
65
64
63
45
46
19
56
50
54 55
53 49
56
48
57
19
19
9
5
52
51
7
61
71
53
23
22
24
28
25
29
29
1630
32
19
33
34
40
13
14
15
16
35
36
37
31
38
12
52
987161
The above parts group applies to the following Mfg. Nos.:
2005 8 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694867 - 9560E
1694914 - 9560EX
TP 400-4250-00-LW-S

PART NO. DESCRIPTIONREF NO QTY.
Handles and Controls Group
Footnotes
1 1726833 1 CABLE AND SPRING ASSEMBLY, R.H. Auger
2 1731334A 1 HANDLE, Tube, R.H.
3 1922127 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4 G5
4 1921221 3 CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5
5 1960671 2 SCREW, Pan Head Torx, 1/4-20 x 3/4, Thread Cutting
6 1715654 2 SPACER, 1/4ID x 25/64OD x 11/64LG
7 1922837 2 CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5
8 1722638 1 HANDLE, Clutch R.H.
9 1715655 2 SPACER
10 1923358 2 NUT, Hex Centerlock, 1/4-20
11 1726317 2 GRIP
12 1723965 2 HAND GRIP, Heated 1" Diameter
13 1923341 3 CAPSCREW, Hex Head 1/4-20 x 3/4 G5
14 1724037 1 RESISTOR BLOCK, 2 Male Terminal
15 1723967 1 SWITCH, Hand Warmer
16 1728968 1 HARNESS, Wiring
17 1715956 1 CLIP, Wire
18 1726983A 1 DASH AND SUPPORT ASSEMBLY, Tubular
19 1667588 4 BUSHING, 47/125ID x 437/1000OD x 1/5LG
20 1714084 1 KNOB, Spinner
21 1960093 1 NUT, Push Pal, 3/8" Diameter Stud Capped
22 1722690 1 SPRING, Complete
23 1722633 1 ROD AND SPRING ASSEMBLY, w/Pin (Includes Ref. No. 24)
24 1960519 1 PUSH NUT, Stud Cap, 1/2
25 1722630 1 ROD, 4/25" Diameter, E-Coat
26 1722667 1 HANDLE, Clutch L.H.
27 1731333A 1 HANDLE, Tube, L.H.
28 1960662 1 CAPSCREW, Hex Head, 1/4-20 x 2 G5
29 1920397 2 NUT, Hex Lock ESNA Light, 1/4-20NC-3B
30 1921319 2 WASHER, 1/4
31 1933896 1 NUT, Hex Lock, 10-24
32 1722631A 1 LEVER, Pivot
33 1718791 1 CABLE AND HANDLE ASSEMBLY, Clutch
34 1725702 1 SCREW, Pan Head Torx, #10 x 1/2 Thread Cut
35 1726995 1 SPACER, 1-1/4 LG Beveled End
36 1726728 1 CLIP, Snow Stick
37 1960727 1 SCREW, Hex Flange Slot, #10-24 x 2-1/2
38 7075909 1 STICK, Snow Removal
39 1720452 2 CLAMP, Saddle Snow Handle E-Coat
40 1726727A 1 BRACKET, Clean Out Tool
41 1960730 2 CAPSCREW, Hex Head Serrated Flange Taptite, 5/16-18 x 2 G5
42 1960729 1 CAPSCREW, Hex Whiz Lock Flange, 5/16-18 x 1
43 1726832 1 CABLE AND SPRING ASSEMBLY, L.H. Traction (Includes Ref. No. 44)
44 1707452 1 SPRING, Extension
The above parts group applies to the following Mfg. Nos.:
2005 9 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694867 - 9560E
1694914 - 9560EX
TP 400-4250-00-LW-S

Handles and Controls Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The holes in the frame for Ref. 48 are
slotted so the gear support (Ref. 46) can
be positioned to ensure the inside surface
of the gear support is tight against the
hub of the front gear (Ref. 56).
Mount bushings (Ref. 19)
with flange on inside of
brackets, 3 places.
Slot towards
rear of unit.
Shift rod assembly (Ref. 66)
must pivot freely on
pivot blocks, (Ref. 67).
Apply adhesive to
secure grips.
Insert shift rod (Ref. 65)
into outter hole of Ref. 68.
Must pivot freely
on capscrew (Ref 32).
Apply lubricant as required.
Must slide freely in
dash assembly (Ref 18).
Apply lubricant as required.
47
1
2
8
11
18
20 21
17
26
10
27
6
11
43
3
4
39
41
42
44
58 59
61
60
60
62
68
69 67
70
66
35
58
61
67
60
72
65
64
63
45
46
19
56
50
54 55
53 49
56
48
57
19
19
9
5
52
51
7
61
71
53
23
22
24
28
25
29
29
1630
32
19
33
34
40
13
14
15
16
35
36
37
31
38
12
52
987161
The above parts group applies to the following Mfg. Nos.:
2005 10 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694867 - 9560E
1694914 - 9560EX
TP 400-4250-00-LW-S

PART NO. DESCRIPTIONREF NO QTY.
Handles and Controls Group
Footnotes
45 1727088 1 ROD, 3/8" Diameter, 26"LG, E-Coat
46 1718793 1 SUPPORT, Gear
47 1960518 2 NUT, Push for 1/4 Diameter Thread
48 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8 G5
49 1960294 2 NUT, Hex Flange, 1/4-20, Whiz Lock Small
50 1611911 1 SUPPORT, Worm
51 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4 G5
52 1960684 2 NUT, Hex Keps, 5/16-18, Conical Washer
53 2816168 2 PIN, Spring 1/8 x 3/4
54 1668186 1 WORM, Chute, L.H.
55 1725283 1 ROD, 3/8" Diameter, Chute Worm E-Coat
56 1718593 2 GEAR, Powdered Metal, Metafusion
57 1918452 1 PIN, Cotter 1/4 x 1
58 1722460 1 PIN, Quick
59 1666255 1 ROD, 3/4" Diameter
60 1960685 3 NUT, Hex KEPS, 1/4-20, Conical Washer
61 1931317 2 CARRIAGE BOLT, 1/4-20 x 3/4 G5
62 1726304 1 ROD, 3/4" Diameter, Shift Upper E-Coat, 11-19/50LG
63 1726734 1 KNOB, Intermediate Thread, 3/8-16
64 1960705 1 SCREW, Hex Whiz Lock Flange, 1/4-20 x 2-1/4
65 1668523 1 ROD AND CLEVIS ASSEMBLY, Shift, Threaded
66 1924361 1 WASHER, 1/2
67 1668524 2 BLOCK, Pivot, 3/4 x 3/4, Powdered Metal
68 1720240 1 ROD AND ARM ASSEMBLY, Pivot
69 1715123 1 SPRING, Torsion
70 1960074 1 CLIP, Hair Pin
71 1668185 2 BUSHING, 1/2ID x 3/4OD x 1/4LG
72 1960686 4 NUT, Hex Flange, 5/16-18 ESNA
The above parts group applies to the following Mfg. Nos.:
2005 11 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694867 - 9560E
1694914 - 9560EX
TP 400-4250-00-LW-S

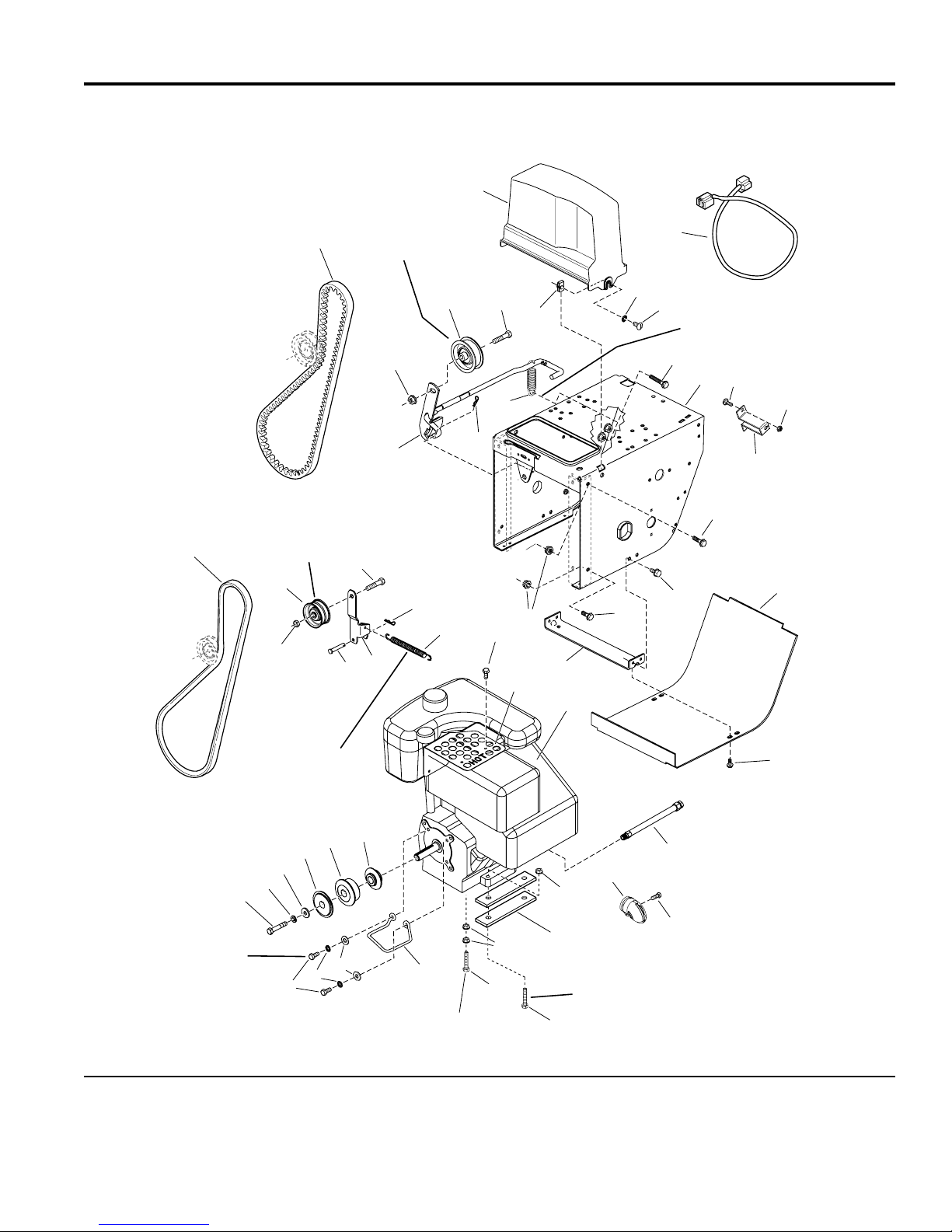

Engine and Frame Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Hook one end of spring (Ref. 7)
into top hole of roller arm (Ref. 6)
and other end into top hole of the idler
arm assembly in the Traction Drive Group.
Long hub of idler
pulley (Ref. 3) to
be toward idler
arm (Ref. 6).
Position idler pulley (Ref. 12)
at center of slot in clutch arm
(Ref. 10).
Hook one end of spring (Ref. 14)
over clutch rod assembly (Ref. 10)
between tabs and other end onto
the tube handle capscrew (Ref. 20).
Torque (4) Engine
Bolts to 17 - 21 ft. lbs.
or 23 - 29 N m
Torque to
10-14 ft. lbs. or
14-20 N m
Right rear bolt.
1
9
15
16
17
18
21
20
25
26
27
28
29
1430
7
6
5
2
3
4
8
8
10
11
12 13
14
39
29
48 49 50
25
37
19
22
24
23
38
40
37
41
45
46
47
3542
3543
3544
31
32
34
36
35
33
987035
The above parts group applies to the following Mfg. Nos.:
2005 12 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694867 - 9560E
1694914 - 9560EX
TP 400-4250-00-LW-S

PART NO. DESCRIPTIONREF NO QTY.
Engine and Frame Group
Footnotes
1 1700415 1 MV-BELT, 3L
2 1928731 1 NUT, Hex, Toplock, Jam, 3/8-16
3 1668477 4 PULLEY, Idler
4 1960647 1 SCREW, Hex Head, 3/8-16 x 1-1/2
5 1665994 1 PIN, Flat Head Drilled
6 1703046A 1 ARM, Idler, 5-3/4 LG
7 1727149 1 SPRING, Extension
8 1722460 2 PIN, Quick
9 1701257 1 V-BELT, HA
10 1729646A 1 ROD AND ARM ASSEMBLY, Clutch, Brake
11 1928352 1 NUT, Hex Flange, 3/8-16 Whiz Lock Large
12 1726348 1 PULLEY, Idler
13 2860709 1 CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 1-3/4
14 2159106 1 SPRING, Extension, 4-1/4 Long
15 1725287 1 COVER, Belt
16 1935255 2 NUT, Speed, 5/16-18, Lug Type
17 2820426 2 LOCKWASHER, External Tooth, 5/16
18 1918249 2 SCREW, Truss head Slotted, 5/16-18 x 3/4
19 1724064 1 CORD, Electric Extension
20 1921221 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5
21 1726568C 1 FRAME ASSEMBLY, Chain/Tube Handles
22 1931317 2 CARRIAGE BOLT, 1/4-20 x 3/4 G5
23 1960685 2 NUT, Hex KEPS, 1/4-20, Conical Washer
24 1720404A 1 SUPPORT, Clutch Cable, 16GA
25 1930591 4 SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
26 1664847 4 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
27 1726870C 1 COVER, Bottom Frame, 20GA
28 1925003 2 SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
29 1727004A 1 SUPPORT, Tie Bar
30 1927557 4 NUT, Hex Flange, 5/16-18, Whiz Lock Large
31 1929477 3 SCREW, Hex Washer Head Taptite, #10-24 x 1/2
32 1725664A 1 GUARD, Muffler, 18GA
33 * 1 ENGINE, 9.5HP B&S Electric Start Engine Model: 20A414 Engine Type: 0111E1
33 * 1 ENGINE, 9.5HP B&S Electric Start Engine (CE Models) Model: 20A414 Engine Type:
0113E1
34 1726942 1 HOSE, Oil Drain, w/Fittings
35 1727033 1 SCREW, Muffler Deflector
36 1727032 1 DEFLECTOR, Rain Guard, B&S Snow Muffler
37 2831277 4 NUT, Hex Flange, 5/16-18, Whiz Lock Small
38 1725326A 4 SUPPORT, Engine Riser, 3/8" Thick, 1-1/4 x 4-31/50
39 1935159 3 CAPSCREW, Hex Whiz Lock Flange, 5/16-18 x 2-1/4
40 2821719 1 CAPSCREW, Hex Head, 5/16-18 x 2-1/2 G5
41 1727785 1 STOP, Belt
42 1919326 2 WASHER, 5/16
43 1917356 2 LOCKWASHER, Spring, 5/16
* See your local Briggs & Stratton distributor for Parts & Service.
The above parts group applies to the following Mfg. Nos.:
2005 13 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694867 - 9560E
1694914 - 9560EX
TP 400-4250-00-LW-S

Engine and Frame Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Hook one end of spring (Ref. 7)
into top hole of roller arm (Ref. 6)
and other end into top hole of the idler
arm assembly in the Traction Drive Group.
Long hub of idler
pulley (Ref. 3) to
be toward idler
arm (Ref. 6).
Position idler pulley (Ref. 12)
at center of slot in clutch arm
(Ref. 10).
Hook one end of spring (Ref. 14)
over clutch rod assembly (Ref. 10)
between tabs and other end onto
the tube handle capscrew (Ref. 20).
Torque (4) Engine
Bolts to 17 - 21 ft. lbs.
or 23 - 29 N m
Torque to
10-14 ft. lbs. or
14-20 N m
Right rear bolt.
1
9
15
16
17
18
21
20
25
26
27
28
29
1430
7
6
5
2
3
4
8
8
10
11
12 13
14
39
29
48 49 50
25
37
19
22
24
23
38
40
37
41
45
46
47
3542
3543
3544
31
32
34
36
35
33
987035
The above parts group applies to the following Mfg. Nos.:
2005 14 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694867 - 9560E
1694914 - 9560EX
TP 400-4250-00-LW-S

PART NO. DESCRIPTIONREF NO QTY.
Engine and Frame Group
Footnotes
44 1921515 2 CAPSCREW, Hex Head, 5/16-24 x 3/4 G5
45 1922128 1 CAPSCREW, Hex Head, 3/8-24 x 1-1/2 G8
46 1916965 1 LOCKWASHER, Spring, 3/8
47 1922755 1 WASHER, 3/8
48 1726867 1 PULLEY, Engine Outside, Powdered Metal
49 1726866 1 PULLEY, Engine Middle, Powdered Metal
50 1726865 1 PULLEY, Half Powdered Metal
* See your local Briggs & Stratton distributor for Parts & Service.
The above parts group applies to the following Mfg. Nos.:
2005 15 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694867 - 9560E
1694914 - 9560EX
TP 400-4250-00-LW-S

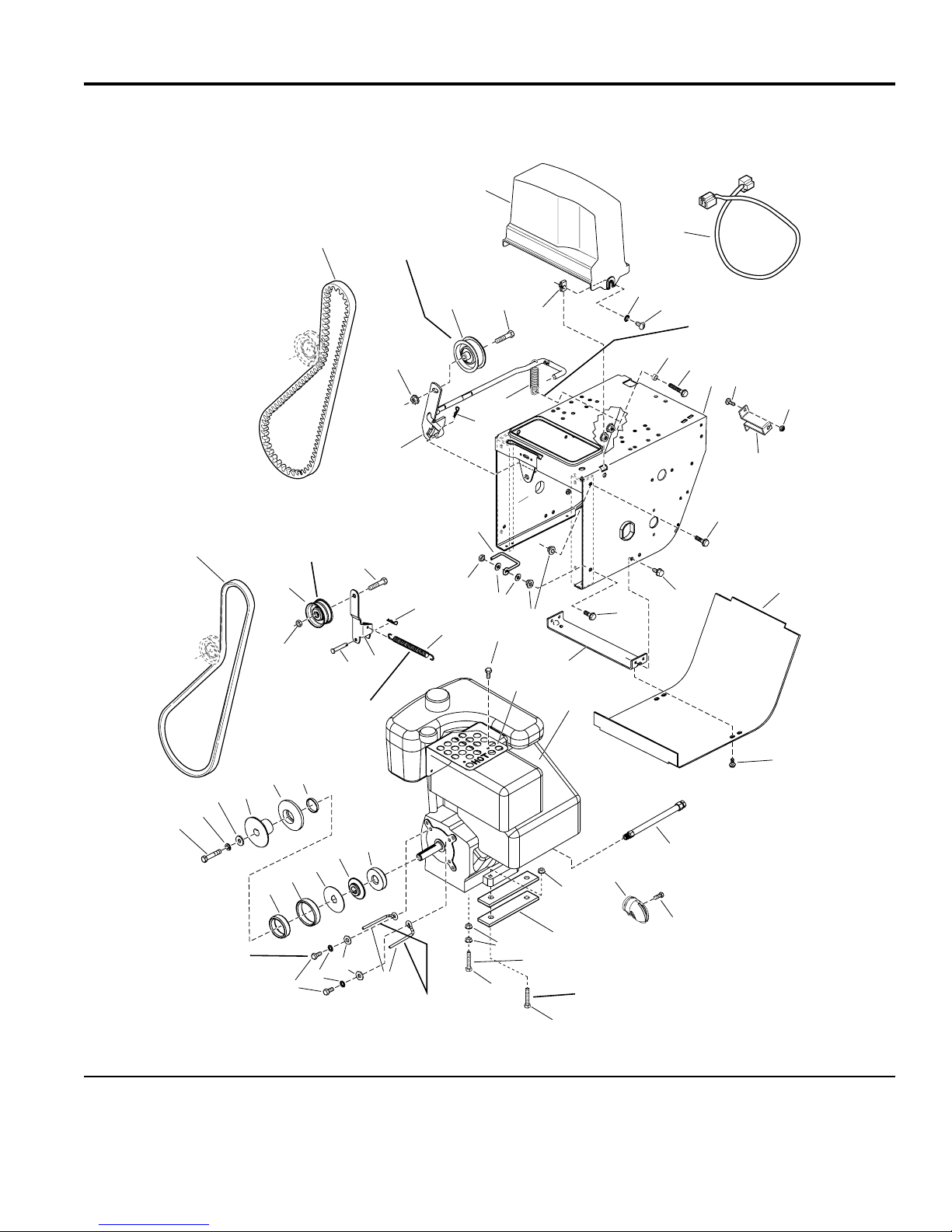

Engine and Frame Group with Power Boost
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Hook one end of spring (Ref. 7)
into top hole of roller arm (Ref. 6)
and other end into top hole of
the idler arm assembly in the
Traction Drive Group.
Long hub of idler
pulley (Ref. 3) to
be toward idler
arm (Ref. 6).
Position idler pulley (Ref. 12)
at center of slot in clutch arm
(Ref. 10).
Hook one end of spring (Ref. 14)
over clutch rod assembly (Ref. 10)
between tabs and other end into
slot in frame.
Torque (4) Engine
Bolts to 17 - 21 ft. lbs.
or 23 - 29 N m
Torque to
10-14 ft. lbs. or
14-20 N m Right rear bolt.
Position belt stops 1/16 - 1/8
from belt when auger clutch is engaged.
1
9
15
16
17
18
22
21
26
28
29
30
1431
7
6
5
2
3
4
8
8
10
11
12 13
14
43
29
51
52 53
27
41
19
21
20
23
25
24
42
44
41
45
54
55
56
3546
3547
3548
35
36
38
40
39
37
45
50
49
1432
34
33
59
58
57
987038
The above parts group applies to the following Mfg. Nos.:
2005 16 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694847 - 10560E
1694848 - 10560EX
1694849 - 11570E
1694850 - E11570
1694851 - 1380E
1694852 - E1380
1694872 - 1390E
1694915 - 1390EX
TP 400-4250-00-LW-S

PART NO. DESCRIPTIONREF NO QTY.
Engine and Frame Group with Power Boost
Footnotes
1 1700415 1 V-BELT, 3L
1 1672732 1 V-BELT, 3L (Used Only on 38 in. Models)
2 1928731 1 NUT, Hex, Toplock, Jam, 3/8-16
3 1668477 1 PULLEY, Idler
4 1960647 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/2
5 1665994 1 PIN, Flat Head Drilled
6 1703046A 2 ARM, Idler, 5-3/4 LG
7 1727149 1 SPRING, Extension
8 1722460 1 PIN, Quick
9 1676460 1 V-BELT, HA
9 1666655 1 V-BELT, HA (Used Only on 38 in. Models)
10 1729646A 1 ROD AND ARM ASSEMBLY, Clutch Brake
11 1928352 1 NUT, Hex Flange, 3/8-16 Whiz Lock Large
12 1726348 1 PULLEY, Idler
13 2860709 1 CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 1-3/4
14 2159106 1 SPRING, Extension
15 1725287 1 COVER, Belt
16 1935255 2 NUT, Speed, 5/16-18, Lug Type
17 2820426 2 LOCKWASHER, External Tooth, 5/16
18 1918249 2 SCREW, Truss head Slotted, 5/16-18 x 3/4
19 1724064 1 CORD, Electric Extension
20 1666697 1 SPACER
21 1930591 4 CAPSCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
22 1726568C 1 FRAME ASSEMBLY, Chain/Tube Handles
23 1931317 2 CARRIAGE BOLT, 1/4-20 x 3/4 G5
24 1960685 2 NUT, Hex KEPS, 1/4-20, Conical Washer
25 1720404A 1 SUPPORT, Clutch Cable, 16GA
26 1664847 4 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
27 1930595 4 CAPSCREW, Hex Whiz, 31/100-18 x 1-1/4
28 1726870C 1 COVER, Bottom Frame, 20GA
29 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
30 1727004A 1 SUPPORT, Tie Bar
31 1927557 4 NUT, Hex Flange, 5/16-18, Whiz Lock Large
32 1919326 1 WASHER, Flat, 11/32 x 3/4 x 1/16
33 1923362 1 NUT, Hex Centerlock, 5/16-18
34 1702969 1 BELT STOP
35 1929477 3 CAPSCREW, Hex Washer Head Taptite, #10-24 x 1/2
36 1725664A 1 GUARD, Muffler, 18GA
37 * 1 ENGINE, 10.5HP B&S Electric Start Model: 20E214 Type: 0110E1
37 * 1 ENGINE, 10.5HP B&S Electric Start (CE) Model: 20E214 Type: 0359E1
37 * 1 ENGINE, 11.5HP B&S Electric Start Model: 21C214 Type: 0110E1
37 * 1 ENGINE, 11.5HP B&S Electric Start (CE) Model: 21C216 Type: 0131E1
37 * 1 ENGINE, 13HP B&S Electric Start Model: 21A414 Type: 0112E1
37 * 1 ENGINE, 13HP B&S Electric Start (CE) Model: 21A414 Type: 0215E1
* See your local Briggs & Stratton distributor for Parts & Service.
The above parts group applies to the following Mfg. Nos.:
2005 17 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694847 - 10560E
1694848 - 10560EX
1694849 - 11570E
1694850 - E11570
1694851 - 1380E
1694852 - E1380
1694872 - 1390E
1694915 - 1390EX
TP 400-4250-00-LW-S

Engine and Frame Group with Power Boost
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Hook one end of spring (Ref. 7)
into top hole of roller arm (Ref. 6)
and other end into top hole of
the idler arm assembly in the
Traction Drive Group.
Long hub of idler
pulley (Ref. 3) to
be toward idler
arm (Ref. 6).
Position idler pulley (Ref. 12)
at center of slot in clutch arm
(Ref. 10).
Hook one end of spring (Ref. 14)
over clutch rod assembly (Ref. 10)
between tabs and other end into
slot in frame.
Torque (4) Engine
Bolts to 17 - 21 ft. lbs.
or 23 - 29 N m
Torque to
10-14 ft. lbs. or
14-20 N m Right rear bolt.
Position belt stops 1/16 - 1/8
from belt when auger clutch is engaged.
1
9
15
16
17
18
22
21
26
28
29
30
1431
7
6
5
2
3
4
8
8
10
11
12 13
14
43
29
51
52 53
27
41
19
21
20
23
25
24
42
44
41
45
54
55
56
3546
3547
3548
35
36
38
40
39
37
45
50
49
1432
34
33
59
58
57
987038
The above parts group applies to the following Mfg. Nos.:
2005 18 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694847 - 10560E
1694848 - 10560EX
1694849 - 11570E
1694850 - E11570
1694851 - 1380E
1694852 - E1380
1694872 - 1390E
1694915 - 1390EX
TP 400-4250-00-LW-S

PART NO. DESCRIPTIONREF NO QTY.
Engine and Frame Group with Power Boost
Footnotes
38 1726942 1 HOSE, Oil Drain, w/Fittings
39 1727033 1 CAPSCREW, Muffler Deflector
40 1727032 1 DEFLECTOR, Rain Guard, B&S Snow Muffler
41 2831277 4 NUT, Hex Flange, 5/16-18, Whiz Lock Small
42 1725326A 4 SUPPORT, Engine Riser (Used on all models Except 38 in. Models)
43 1935159 3 CAPSCREW, Hex Whiz Lock Flange, 5/16-18 x 2-1/4 (Used on all models Except 38
in. Models)
43 1921221 3 CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5 (Used Only on 38 in. Models)
44 2821719 1 CAPSCREW, Hex Head, 5/16-18 x 2-1/2 G5 (Used on all models Except 38 in.
Models)
44 2822127 1 CAPSCREW, Hex Head 5/16-18 x 1-3/4 G5 (Used Only on 38 in. Models)
45 1731178 1 STOP, Belt
46 1919326 2 WASHER, 5/16
47 1917356 2 LOCKWASHER, Spring, 5/16
48 1921515 2 CAPSCREW, Hex Head, 5/16-24 x 3/4 G5
49 1701849 1 SPRING, Compression
50 1702425 1 SPRING, Compression
51 1701818 1 WASHER, Thrust
52 1726869 1 PULLEY HALF, Middle
53 1726868 1 PULLEY HALF, Inside
54 1922128 1 CAPSCREW, Hex Head, 3/8-24 x 1-1/2 G8
55 1916965 1 LOCKWASHER, Spring, 3/8
56 1922755 1 WASHER, 3/8
57 1726864 1 PULLEY HALF, Outside
58 1726863 1 PULLEY HALF, Middle
59 1701825 1 WICK, Felt, Oil
* See your local Briggs & Stratton distributor for Parts & Service.
The above parts group applies to the following Mfg. Nos.:
2005 19 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694847 - 10560E
1694848 - 10560EX
1694849 - 11570E
1694850 - E11570
1694851 - 1380E
1694852 - E1380
1694872 - 1390E
1694915 - 1390EX
TP 400-4250-00-LW-S

Auger and Impeller Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
37
End of hub to be flush
with end of rolled down
shaft (Ref. 9).
Torque to 30 -34 ft-lbs.
40 - 46 Nm.
Impeller to be positioned
against bearing before
tightening set screw.
Marked side of worm
gear must contact against
left thrust washer to assure
proper gear mesh.
Auger assembly
stamped "R".
Auger assembly
stamped "L".
Torque to
18-21 ft-lbs.
24 - 28 Nm.
Apply grease until
it appears at ends
of auger assembly
(2 places).
Torque to 9 - 11 ft-lbs.
12- 15 Nm.
38" Models only.
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20 21 22
30
24
25
28
27
2
10
10
6
26
14
18
11
2929
33
32
31
34
36
35
15
23
985466R1
The above parts group applies to the following Mfg. Nos.:
2005 20 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694847 - 10560E
1694848 - 10560EX
1694849 - 11570E
1694850 - E11570
1694851 - 1380E
1694852 - E1380
1694867 - 9560E
1694872 - 1390E
1694914 - 9560EX
1694915 - 1390EX
TP 400-4250-00-LW-S
