Simpson 13SIE-170 User manual

ON OFF
INSTRUCTION
MANUAL
MANUAL DE
INSTRUCCIONES
Part No. XXXXXXX Rev. 0 NOV 2012
If your pressure washer is not working properly or if there are parts missing or broken,
please DO NOT RETURN IT TO THE PLACE OF PURCHASE. Contact our customer service
department at 1-877-362-4271 (8:00 am to 5:00 pm CST, Mon-Fri, excluding Holidays)
www.simpsoncleaning.com.
Si su lavadora a presión no trabaja correctamente ó encuentra par-
tes rotas ófaltantes, por favor NO LA REGRECE AL LUGAR DONDE LA COMPRO.
Contáctese con nuestro Departamento de Servicio al Cliente llamando al
1-877-362-4271 (8:00 am to 5:00 pm CST Lunes-Viernes, excepto festivos)
www.simpsoncleaning.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE
1700 PSI
1.3 GPM
IMPORTANT: Please make certain that the person who is to use this equipment
carefully reads and understands these instructions before operating.
IMPORTANTE: Aségurese por favor de que la persona que vaya a utilizar este
equipo lea con cuidado y comprenda estas instrucciones antes de operar.
VEA EL ESPAÑOL EN LA CONTRAPORTADA. INSTRUCTIVO DE OPERACIÓN,
CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. ADVERTENCIA:
LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.
ELECTRIC PRESSURE WASHER
MODELS
MODELO
13SIE-170
ITM/ART 708276

EASY INSTALLATION
WARNING: CAREFULLY READ THE OPERATORS INSTRUCTIONS BEFORE USING
THE PRESSURE WASHER FOR THE FIRST TIME.
ALWAYS STORE YOUR PRESSURE WASHER IN A LOCATION WHERE THE
TEMPERATURE WILL NOT FALL BELOW 40 °F (4 °C) . FREEZE DAMAGE IS NOT
COVERED BY THE WARRANTY.
INSTALACIÓN FÁCIL
AVERTENCIA: LEA ATENTAMENTE EL MANUAL DE INSTRUCCIONES ANTES DE
PONER EL EQUIPO POR PRIMERA VEZ EN FUNCIONAMIENTO.
TIENE QUE PONER SIEMPRE LA MÁQUINA DE LAVAR A PRESIÓN EN UN SITIO
DONDE LA TEMPERATURA NO DIMINUE BAJO 4°C (40°F). LOS DAÑOS QUEL EL
HIELO PROVOCA NO SON REMBOLSDADO DE LA GARANTIA.

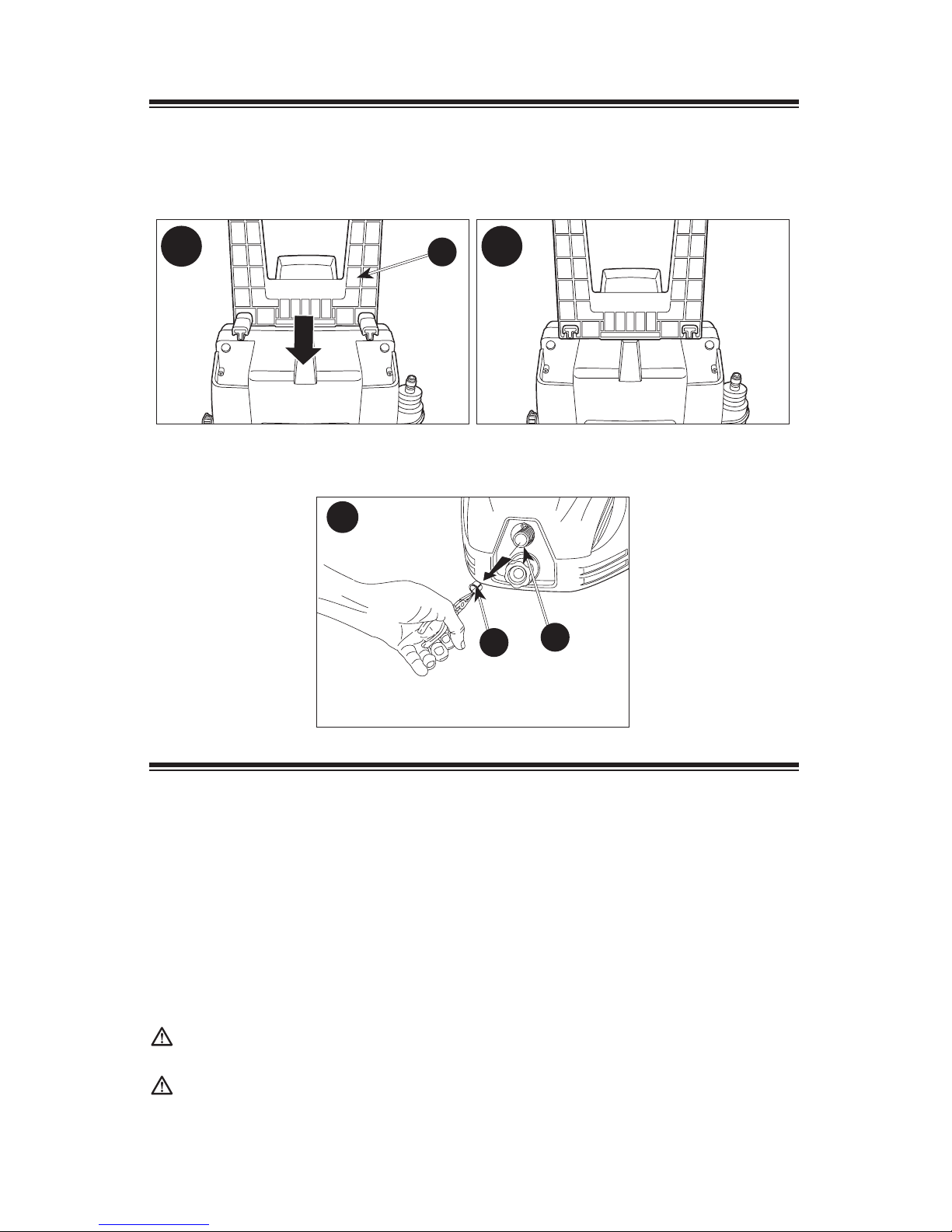

WITH HANDLE ORIENTED AS
SHOWN, ALIGN GROOVES IN CARRY
HANDLE (P) WITH RAILS ON TOP
OF PRESSURE WASHER AND SLIDE
INTO PLACE. PUSH AS SHOWN TO FURTHER
LOCK CARRY HANDLE INTO PLACE.
CON LA MANIJA ORIENTADA COMO SE
MUESTRA, ALINEE LOS SURCOS ADENTRO
EL AGARADOR DE LA MAQUINA (P) CON
LOS CARRILES ENCIMA DE LA MAQUINA DE
PRESIÓN Y RESBALAN DENTRO DE LUGAR.
EMPUJE COMO SE MUESTRA A CONECTAR
EL AGARADOR DE LA MAQUINA.
1
P
ON OFF
L
K

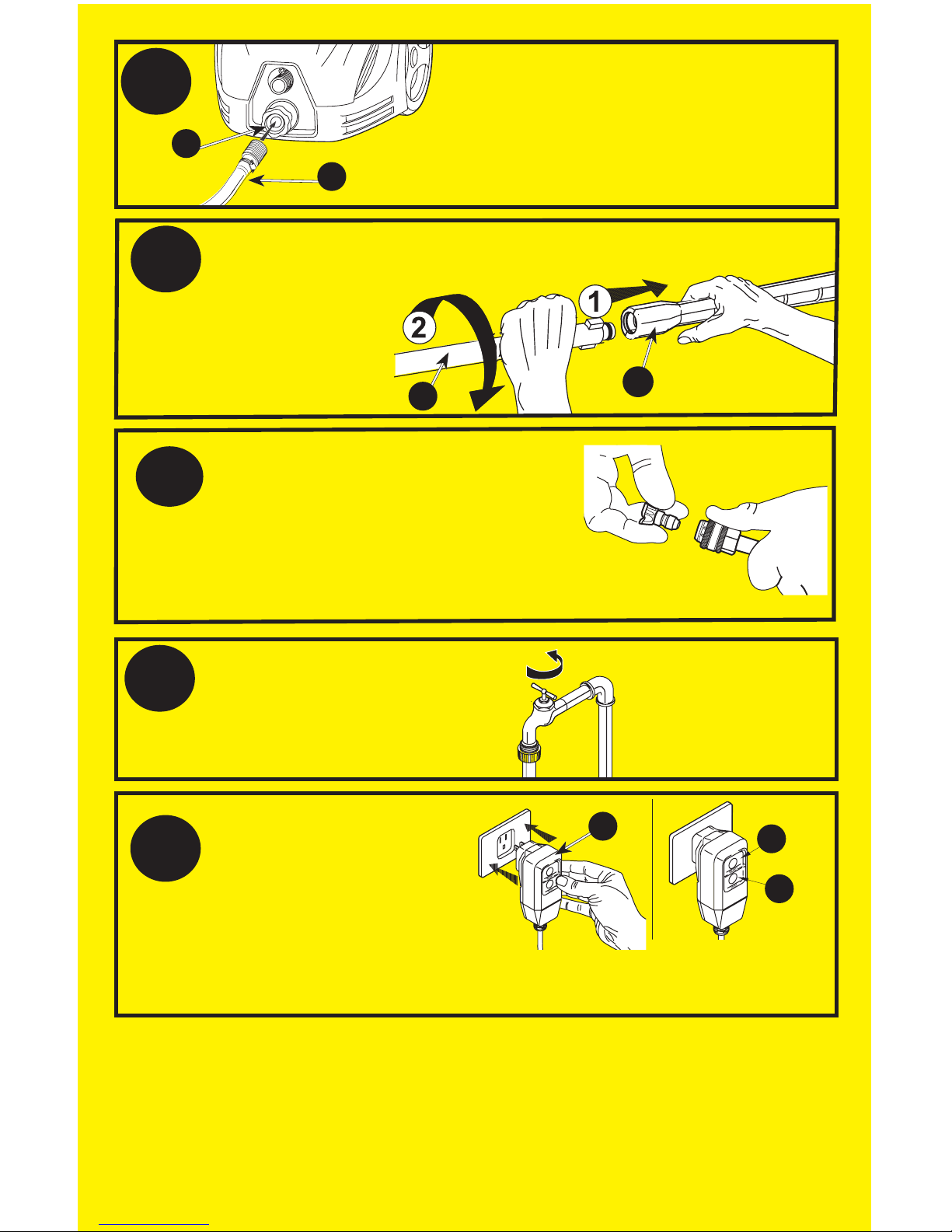

2REMOVE AND DISCARD THE SHIPPING
PLUG (L) FROM THE OUTLET (K) ON
THE FRONT OF THE MACHINE.
EXTRAER EL TAPÓNES (L) DE
TRANSPORTE DEL EMPALME DE LA
MÁQUINA (K) Y ELIMINARLO.
3
ON OFF
E
K
CONNECT THE HIGH PRESSURE
HOSE (E) TO THE MACHINE
OUTLET (K).
CONNECT EL TUBO DE ALTO
PRESIÓN (E) A LA SALIDA DE LA
MÁQUINA (K).

ON OFF
D
CONNECT THE GARDEN HOSE (Y) TO THE
CONNECTOR (D) ON THE FRONT OF THE
MACHINE.
CONECTE LA MANGUERA DEL JARDÍN (Y)
AL CONECTOR (D) CORRESPONDIENTE
ACOPLADO A LA ENTRADA DE LA
MÁQUINA.
4
Y
INSERT THE SPRAY WAND (B) INTO THE GUN (A). TWIST SPRAY WAND 90°
TO SECURELY LOCK IN PLACE.
A
B
5
PARA INSERTAR LA VARA
ROCIADORA (B) EN LA
PISTOLA (A). TUERZA LA
VARA ROCIADORA 90° DEL
AEROSOL A CON SEGURIDAD
SE TRABAN EN LUGAR.
PULL QUICK-CONNECT COUPLER BACK AND
INSERT NOZZLE.
RELEASE QUICK-CONNECT COUPLER AND
TWIST NOZZLE TO MAKE SURE IT IS SECURE
IN COUPLER.
TIRE EL ACOPLE DE CONEXIÓN RÁPIDA HACIA ATRÁS
E INSERTE LA BOQUILLA. LIBERE EL ACOPLE Y GIRE
LA BOQUILLA PARA ASEGURARSE DE QUE ESTÁ
ASEGURADA DENTRO DEL ACOPLE.
6
FULLY OPEN
ABRA COMPLETAMENTE
7TURN INCOMING WATER ON.
NOTE: USE COLD WATER ONLY.
GIRE EL AGUA ENTRANTE.
NOTA: UTILIZAR SÓLO AGUA FRÍA
PLUG GFCI (C) INTO POWER
RECEPTACLE. FIRMLY PRESS
AND RELEASE THE TEST
BUTTON (X), THEN PRESS AND
RELEASE THE RESET BUTTON
(W). THE LIGHT ON THE GFCI SHOULD
BE ILLUMINATED.
W
X
C
8
ENCHUFE EL GFCI (C) A UN TOMACORRIENTE. PRESIONE CON FIRMEZA Y SUELTE
EL BOTÓN DE PRUEBA (TEST) (X), Y LUEGO PRESIONE Y SUELTE EL BOTÓN DE
REINICIO (RESET) (W). SE DEBE ENCENDER LA LUZ DEL GFCI.

SQUEEZE AND HOLD TRIGGER
UNTIL WATER FLOW IS STEADY.
RELEASE THE TRIGGER.
MANTENGA PULSADO EL
ACCIONADOR HASTA QUE EL CAUDAL DE
AGUA SE VUELVA CONSTANTE. SUELTE EL
ACCIONADOR.
9
ON OFF
TURN SWITCH TO ON POSITION(I) AND
SQUEEZE TRIGGER TO START MOTOR AND
WATER FLOW. NOTE: motor only runs when
trigger is depressed and water is spraying.
SITUAR EL INTERRUPTOR EN LA POSICIÓN DE ON (I)
Y APRETAR EL GATILLO PARA PONER EN MARCHA EL
MOTOR Y EL FLUJO DE AGUA. NOTA: el motor funciona
solamente cuando se presiona el disparador y el agua está
rociando.
I
10

5- ENG
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and understand.
This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT
PROBLEMS. To help you recognize this information, we use the symbols below.
Please read the manual and pay attention to these symbols.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided,
may result in property damage.
CONSUMER SAFETY INFORMATION
WARNING: This product contains chemicals known to the State of California
to cause cancer, and birth defects or other reproductive harm. In addition, some
cleaning products and dust contain chemicals know to the State of California to
cause cancer, and birth defects or other reproductive harm. Wash hands after
handling.
IMpORTANT SAFETY INSTRUCTIONS
WARNING: Please read this entire manual before attempting to assem-
ble, operate or install the product. If you have any questions regard-
ing the product, please contact our customer service department at
www.simpsoncleaning.com.
WARNING: This unit was designed for specific applications. It should not be
modified and/or used for any application other than that which it was designed.
NOTICE: Always store your pressure washer in a location where the temperature
will not fall below 40°F (4°C). freeze damage is not covered by the warranty.
read and Save theSe inStructionS
WARNING: When using this product basic precautions should always be
followed, including the following:
1. Read all the instructions before using the product.
2. To reduce the risk of injury, do not operate near children or animals.
3. Know how to stop the product and bleed pressures quickly. Be thoroughly
familiar with the controls.
4. Stay alert - watch what you are doing.
5. Do not operate the product when fatigued or under the influence of alcohol or
drugs.
6. Keep operating area clear of all persons.
7. Do not overreach or stand on unstable support. Keep good footing and
balance at all times.

6- ENG
8. Follow the maintenance instructions specified in the manual.
9. This product is provided with a Ground Fault Circuit Interrupter built into
the power cord plug. If replacement of the plug or cord is needed, use only
identical replacement parts.
10. Do not touch plug or outlet with wet hands.
11. Avoid accidental starts. Move switch on unit to OFF position before connecting
or disconnecting cord to electrical outlets.
12. Water spray must never be directed towards any electric wiring or directly
towards the pressure washer machine itself or fatal electric shock may occur.
13. Never carry your pressure washer by the cord. Do not pull on the cord to
disconnect from the outlet.
14. To prevent damage, the cord should not be crushed, placed next to sharp
objects or near a heat source.
15. Check power cords before using. Damaged cords can reduce performance of
pressure washer or cause a fatal electrical shock.
16. The narrow pin point stream is very powerful. It is not recommended for use on
painted surfaces, wood surfaces or items attached with an adhesive backing.
17. Keep operating area clear of all persons and animals.
18. Always use both hands when operating pressure washer to maintain complete
control of the wand.
19. Do not touch nozzle or water spray while operating. Never place hands in front
of nozzle.
20. Wear safety goggles while operating. Wear protective clothing and footwear to
protect against accidental spraying.
21. Disconnect power plug from the outlet when not in use and prior to the
detaching of the high pressure hose.
22. Never tie knots or kink the high pressure hose as damage could result.
Inspect the high-pressure hose regularly. Replace the hose immediately if it
is damaged, worn or shows any signs of cracks, bubbles, pinholes, or other
leakage. Never grasp a high-pressure hose that is leaking or damaged.
23. Do not operate or store this product in temperatures below 40°F (4°C). Freeze
damage is not covered by the warranty.
24. Carefully observe all chemical instructions and warnings before using. Use
only approved pressure washer cleaners. Do not use bleach, chlorine, or any
cleaners containing acids. Always follow manufacturer’s label recommendations
for proper use of cleaners. Always protect eyes, skin and respiratory system
from cleaners.
25. The pressure washer should not be used in areas where gas vapors may be
present. An electric spark could cause an explosion or fire.
26. To minimize the amount of water getting into the pressure washer, the unit
should be placed as far as possible from the cleaning site during operation.
27. To prevent accidental discharge, the spray gun should be secured by locking
the trigger when not in use.
28. To allow free air circulation, the pressure washer should NOT be covered
during operation.
29. Never touch, grasp or attempt to cover a pinhole or similar water leak on the
high-pressure hose. The stream of water IS under high pressure and WILL
penetrate skin.

7- ENG
30. Use only hoses and accessories rated for pressure higher than your pressure
washer's psi. Never use with any other manufacturer’s accessories or
components.
31. Never defeat the safety features of this product.
32. Do not operate machine with missing, broken or unauthorized parts.
33. Never spray flammable liquids or use pressure washer in areas containing
combustible dust, liquid, or vapors.
WARNING: Risk of injection or injury. Do not direct discharge stream at persons.
Save theSe inStructionS
SAFETY FEATURES
AUTOMATIC TOTAL STOp®
The pressure washer is equipped with a stop device which will sense when the
trigger on the gun is released. It will open the power circuit to the motor and cause
the pressure washer to stop.
WARNING: If Automatic Total Stop fails to operate, DO NOT USE THE
MACHINE. Contact our customer service department. Further use will damage the
machine and/or cause personal injury.
WARNING: The pressure washer is also equipped with a main power ON/OFF
switch located on the unit. It should always be moved to the OFF position when the
pressure washer is not being used to prevent possible injury or damage.
MOTOR OVERLOAD
The electric motor in this pressure washer is equipped with an overload protection
device which will automatically shut off the motor in the event the motor draws
excessive current or overheats. The device will automatically reset itself and
resume normal operation after a short period of time.
GROUND-FAULT CIRCUIT INTERRUpTER pROTECTION
This pressure washer is provided with a Ground-Fault Circuit-Interrupter (GFCI) built
into the plug of the power supply cord. This device provides additional protection
from the risk of electric shock. Should replacement of the plug or cord become
necessary, use only identical replacement parts that include GFCI protection.
SERVICING A DOUBLE INSULATED AppLIANCE
In a double-insulated product, two systems of insulation are provided
instead of grounding.
No grounding means is provided on a double-insulated product, nor
should a means for grounding be added to the pressure washer.
Servicing a double-insulated product requires extreme care and knowledge of the
system, and should be done only by qualified service personnel.
Replacement parts for a double-insulated product must be identical to the parts
they replace.
A double-insulated product is marked with the words “DOUBLE-INSULATION” or
“DOUBLE-INSULATED”. The symbol above may also be marked on the product.
pOWER SUppLY AND ELECTRICAL INFO
GROUND-FAULT CIRCUIT INTERRUpTER pROTECTION
The pressure washer is factory-equipped with an electrical cord and a Ground Fault
Circuit Interrupter (GFCI) power plug. This cord should only be connected to an
electrical outlet installed in accordance with local safety regulations.

8- ENG
NOTE: The power supply must be 120V, 60 Hz and a minimum 15 amp dedicated
circuit.
A. Inspect cord before using. Do not use if cord is damaged.
B. Keep all connections dry and off the ground.
C. Do not touch plug with wet hands.
D. The pressure washer is provided with a ground fault circuit interrupter built into
the power plug.
If replacement of the plug or cord is needed, use only identical replacement parts.
Contact customer service for proper replacement parts.
WARNING: Test GFCI before each use. DO NOT use pressure washer if test
below fails.
GFCI Test Procedures:
1. Plug GFCI into power receptacle. WX
1
Indicator light should illuminate.
2. Press test button (X). Light should
turn off.
3. Press reset button (W) for use.
Indicator light should illuminate.
Do not use if above test fails.
NOTE: The GFCI must be reset each
time the pressure washer is connected to an electrical outlet. Reset by simply
pushing the reset button on the GFCI power plug.
EXTENSION CORDS
Use only extension cords that are intended for outdoor use. These extension cords
are identified by a marking “Acceptable for use with outdoor appliances: store
indoors while not in use”. Use only extension cords having an electrical rating not
less than the rating of the product. Do not use damaged extension cords. Examine
extension cord before using and replace if damaged. Do not abuse extension cord
and do not yank on any cord to disconnect.
Keep cord away from heat and sharp edges. Always disconnect the extension cord
from the receptacle before disconnecting the product from the extension cord.
When using an extension cord, observe the specification below:
Cable Length Wire Gauge
Up to 25 ft.
(7.5 m) 12 AWG Outdoor
WARNING: To reduce the risk of electrocution, keep all connections dry and off
the ground. Do not touch plug with wet hands.
Save theSe inStructionS

9- ENG
GET TO KNOW THE pRESSURE WASHER
NOTE: Photographs and line drawings used in this manual are for reference
only and do not represent a specific model.
Compare the illustrations with your unit to familiarize yourself with the location of
various controls and adjustments. Save this manual for future reference.
A. Spray Gun
B. Pro-Style Spray Wand
C. GFCI
D. Garden Hose Connector
(factory installed)
E. High-Pressure Hose
F. Safety Lock
G. Motor and Pump in Case
H. Power Supply Cord with GFCI
I. ON/OFF Switch
J. On-board Detergent Tank
K. High Pressure Outlet (metal)
L. Shipping Plug
M. Water Inlet (plastic)
N. On-Board Accessory
Storage Holsters
O. Water Inlet Filter Screen [factory
installed inside water inlet (M)]
P. Carry Handle
Q. Cord Storage Location
R. Turbo Spray Nozzle
S. Quick Connect Spray Nozzles
T. Turbo Nozzle Storage Holster
U. Quick Connect Nozzle Storage
V. Hose Storage Location
ON OFF
P
H
K
L
J
G
2
M
Q
I
N
D
CO
E
F
A
R
S
B
T
U
V

10- ENG
ASSEMBLY INSTRUCTIONS (FIG. 3)
1. Locate and remove all loose partsfrom the carton.
2. With handle oriented as shown, align grooves in carry handle (P) with rails on
top of pressure washer and slide into place.
3. Push as shown to further lock carry handle into place.
3A P3B
4. Remove and discard the shipping plug (L) from the outlet (K) on the front of
the machine.
ON OFF
LK
3C
OpERATING INSTRUCTIONS
pRESSURE WASHER TERMINOLOGY
PSI: Pounds per Square Inch. The unit of measure for water pressure. Also used
for air pressure, hydraulic pressure, etc.
GPM: Gallons Per Minute. The unit of measure for the flow rate of water.
CU: Cleaning Units. GPM multiplied by PSI. GPM x PSI = CU
Detergent Injection System: Mixes cleaners or cleaning solvents with the water
to improve cleaning effectiveness.
Water Supply: All pressure washers must have a source of water. The minimum
requirements for a water supply are 20 psi and 5 gallons per minute. If your water
source is a well, the garden hose length can only be 30ft. (9 m) max.
WARNING: To reduce the possibility of contamination always protect
against backflow when connected to a potable water system.
DANGER: Risk of fluid injection and laceration. When using the high-
pressure setting, DO NOT allow the high-pressure spray to come in contact
with unprotected skin, eyes, or with any pets or animals. Serious injury will
occur.

11- ENG
• Your washer operates at fluid pressures and velocities high enough to
penetrate human and animal flesh, which could result in amputation or other
serious injury. Leaks caused by loose fittings or worn or damaged hoses can
result in injection injuries. DO NOT TREAT FLUID INJECTION AS A SIMPLE
CUT! See a physician immediately!
pRESSURE WASHER OpERATING FEATURES
HOW TO USE SpRAY WAND

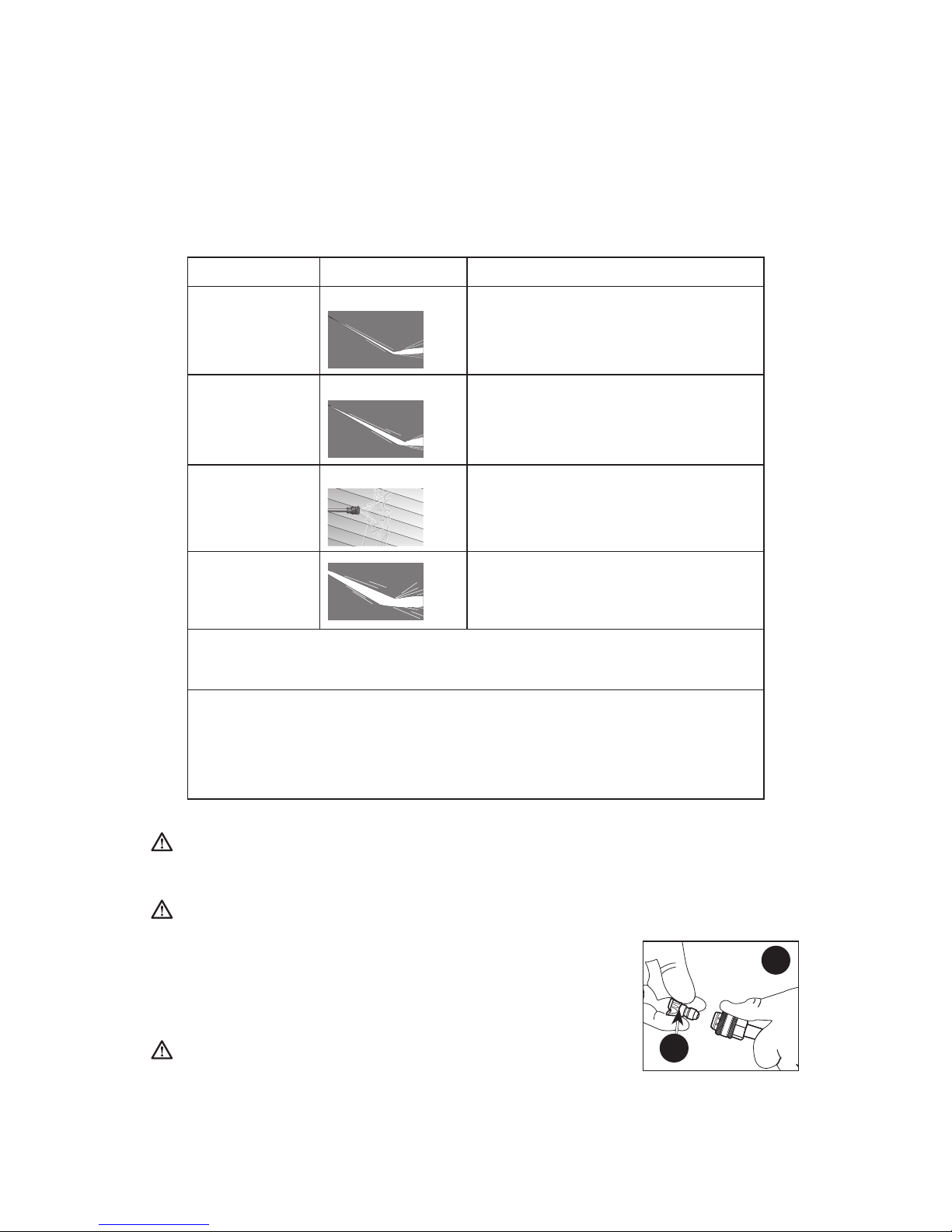

Refer to the following chart to choose the correct nozzle for the job to be performed.
NOzzLE COLOR SpRAY pATTERN USES
Yellow
15˚ intense cleaning of small areas
Green
25˚ intense cleaning of larger areas
Black
low pressure applies cleaning solutions
Turbo Spray
Nozzle
delivers the optimal cleaning effect
for the toughest cleaning tasks
NOTE: The pressure of the spray on the surface you are cleaning
increases as you move the wand closer to the surface.
*NOTICE: The high pressure spray from your pressure washer is capable
of causing damage to surfaces such as wood, glass, automobile paint,
auto striping and trim, and delicate objects such as flowers and shrubs.
Before spraying, check the item to be cleaned to assure yourself that it
is strong enough to resist damage from the force of the spray.
CHANGING NOzzLES ON SpRAY WAND (FIG. 4)
DANGER: Risk of fluid injection. Do not direct discharge stream toward
persons, unprotected skin, eyes or any pets or animals. Serious injury will
occur.
WARNING: Flying objects could cause risk of serious injury. Do not attempt
to change nozzles while pressure washer is running. Turn pressure washer off
before changing nozzles.
1. Pull quick-connect coupler back and insert nozzle (S). 4
S
2. Release quick-connect coupler and twist nozzle to make
sure it is secure in coupler.
WARNING: Flying object could cause risk of serious
injury. Ensure nozzle is completely inserted in quick-
connect socket and quick-connect snap ring is fully engaged (forward) before
squeezing gun trigger.

12- ENG
TURBO SpRAY NOzzLE (FIG. 5)
CAUTION: Do not attempt to move the nozzle to 5
R
adjust pressure. The turbo nozzle is NOT adjustable.
The high pressure turbo nozzle (R) is intended for
maximum cleaning effect. Keep the spray wand a
minimum of 6–8in (15–20 cm) away from the cleaning
surface at all times.
USING DETERGENT (FIG. 6–7)
NOTICE: Use only approved pressure washer cleaners. Do not use bleach,
chlorine, or any cleaners containing acids.
NOTICE : Fill and flush the detergent tank with clear water after use.
1. Insert the spray wand (B) into the gun (A) by pushing firmly and simultaneously
twisting a 1/4 of a turn until locked into place.
2. Remove the tank cap (Z) present on the back of the machine.
3. Fill the tank (J) with suitable cleaning solution.
6
A
B
7
Z
J
4. Install low pressure (black) nozzle into quick connect fitting of spray wand, see
How To Use Spray Wand paragraph in this section.
NOTE: Detergent will not siphon when the spray wand is equipped with the Yellow,
Green, or Turbo Nozzles. The Low Pressure BLACK Nozzle must be used to
dispense detergent
5. Squeeze the trigger and the detergent will automatically be mixed with the
water and dispensed from the nozzle.
6. When you have completed the use of detergent, Fill and flush the detergent
tank with clear water after use. See Storage for correct procedure.
7. See Storage section in this manual for proper shutdown and storage
procedures
CLEANING TECHNIqUES
When cleaning with the pressure washer, some cleaning tasks can be solved with
water alone, but for most tasks it is advantageous to use a detergent. A detergent
ensures a quick soaking of the dirt allowing the high pressure water to penetrate
and remove the dirt more effectively.
AppLICATION OF DETERGENT
CAUTION: Avoid working on hot surfaces or in direct sunlight to minimize the
chance of the soap damaging painted surfaces.
CAUTION: Damage may occur to painted surface if soap is allowed to dry on
the surface. Wash and rinse a small section at a time.

13- ENG
1. Apply the solution to a DRY work surface.
NOTE: WETTING THE SURFACE FIRST IS NOT RECOMMENDED, AS IT
DILUTES THE DETERGENT AND REDUCES ITS CLEANING ABILITY.
On a vertical surface, apply soap horizontally from side to side starting from
the bottom to avoid streaking.
2. Allow detergent to remain on the surface for a short time before rinsing.
3. Rinse with clean water under high pressure. On a vertical surface, first rinse
from the bottom up, then rinse from the top down. Hold nozzle 6–8 in. (15–20
cm) from the work surface at a 45° angle using the flat spray as a peeling tool
rather than a scrub brush.
NOTE: Ensure that the detergent injection system is completely clean prior to
switching from one detergent to another.
STARTING (FIG. 8–14)
DANGER: Risk of injury from spray. Always engage the trigger lock when gun is
not in use. Failure to do so could cause accidental spraying.
WARNING: Risk of Injury. Do not direct discharge stream at self or others.
WARNING: Risk of unsafe operation. Stand on a stable surface and grip gun/
spray wand firmly with both hands.
1. Connect the high pressure hose (E) to the machine outlet (K). Ensure the
threads are aligned properly and the connection is secure.
ON OFF
8
E
K
ON OFF
9
D
Y
2. Connect the garden hose (Y) to the connector (D) on the front of the machine.
Before connecting, run water through the garden hose (not supplied) to flush
out any foreign matter.
NOTE: If your water source is a well, the garden hose length can only be 30 ft.
(9m) maximum.
3. Insert the spray wand (B) into the gun (A) by pushing firmly and simultaneously
twisting a 1/4 of a turn until locked into place.
WARNING: If the wand is not securely locked into place, it could be ejected
under high pressure during operation, possibly causing injury or damage.
4. Turn incoming water on and fully open valve to insure maximum water flow to
machine.
10
A
B
11

14- ENG
5. Plug GFCI (C) into power receptacle. Firmly press and release the TEST button
(X), then press and release the RESET button (W). The light on the GFCI should
be illuminated.
W
X
C
12
6. Ensure the gun safety is unlocked and squeeze the trigger until the air has
escaped and a steady flow of low pressure water is coming from the nozzle.
NOTE: The power supply must be 120 V, 60 Hz and a minimum 15 amp
dedicated circuit.
7. Turn switch to ON position(I). Note that the motor will momentarily start then
stop.
8. Squeeze the trigger to start motor and begin pressure washing.
NOTE: The motor only runs when the gun trigger is depressed and water is
spraying.
13
ON OFF
14
I
SHUTTING DOWN
See Storage section in this manual for proper shutdown and storage procedures.
MAINTENANCE
Risk of burn hazard. When perfrming maintenance, you may be exposed
to hot surfaces, water pressure or moving parts that can cause serious injury
or death.
To ensure efficient operation and longer life of your pressure washer, a routine
maintenance schedule should be prepared and followed. If the pressure washer is
used in unusual conditions, such as high-temperatures or dusty conditions, more
frequent maintenance checks will be required.
CONNECTIONS
Connections on pressure washer hoses, gun and spray wand should be cleaned
regularly and lubricated with light oil or lithium grease to prevent leakage and
damage to the o-rings.
NOzzLE
The nozzles should be cleaned regularly.
Clogging of the nozzle causes diminished performance and the pump pressure to
be too high and cleaning is immediately required.

15- ENG
1. Remove the wand from the gun.
2. Clear the nozzle by forcing a stiff wire or straightened out paper clip (small size)
through the center hole of each nozzle.
3. Backflush the nozzle with water from both ends.
4. Reconnect the wand to the gun.
Restart the pressure washer and depress the trigger on the spray gun.
LUBRICATION
The pressure washer is designed with a permanent lubrication system. Conventional
oil checks and changes are not necessary.
NOTE: In case of oil leakage, contact our customer service department at
www.simpsoncleaning.com. A SMALL AMOUNT OF OIL LEAKAGE IS NORMAL.
WATER SCREEN FILTER
The pressure washer is equipped with a water inlet screen filter to protect the
pump. Never operate the pressure washer without the screen filter in place.
CAUTION: If the screen filter is not kept clean, the flow of water to the pressure
washer will be restricted and the pump may be damaged.
• To clean the inlet water screen filter, remove garden hose connector (D) and
remove the screen filter from the inlet.
• Flush screen filter with warm water to clean.
• Replace screen filter, and garden hose connector immediately to prevent any
foreign matter from entering the pump.
CAUTION: Do not damage the screen filter, while removing or cleaning. Any
foreign particles entering the pump may damage the pump.
COOLING SYSTEM
The air vents, located in and around the pressure washer, must be kept clean and
free of any obstructions to ensure proper air cooling of the motor during operation.
WARNING: Prevent water from penetrating the vents of the pressure washer
to minimize the risk of damage to the machine and to reduce the risk of shock to
the operator.
STORAGE
CAUTION: Prior to moving the unit, always disconnect the garden hose via the
garden hose connector.
CAUTION: Always store your pressure washer in a location where the tem-
perature will not fall below 40°F (4°C). The pump in this machine is susceptible
to permanent damage if frozen. FREEZE DAMAGE IS NOT COVERED BY THE
WARRANTY.
END OF USE AND WINTER STORAGE INSTRUCTIONS
1. When finished using the pressure washer, you must first drain and rinse the
detergent tank.
2. Run the pressure washer in low pressure until all of the soap is drained from
the detergent tank.
3. Pour clear water into the tank and run it through on low pressure as though it
were detergent.
NOTICE: Failure to clean properly will cause bottle or suction tube to become
clogged and inoperable.

16- ENG
4. Turn the machine OFF and squeeze the trigger to release the trapped pressure
inside of the machine.
5. Remove both the garden hose and high pressure hose from the unit.
6. Disconnect the wand from the gun.
7. Turn ON the machine and allow it to 15
run for 5 seconds. (This will clear
out most of the water trapped in the
pump).
8. Unplug machine .
9. Wrap high pressure hose and power
supply cord onto storage rack and
snap power supply cord into place
as shown.
10. Store the machine and accessories
in a dry, climate controlled
environment. Do not store the
machine or accessories in a place
where the temperature could drop
below 40°F (4°C).
ACCESSORIES
DANGER: Risk of fluid injection. When using replacement wands or guns
with this pressure washer, DO NOT use a wand and/or wand/gun combi-
nation that is shorter in length than what was provided with this pressure
washer as measured from the nozzle end of the wand to the gun trigger.
NOTICE: The use of any other accessory not recommended for use with this
tool could be hazardous. Use only accessories rated equal to or greater than
the rating of the pressure washer.
SpECIFICATIONS
Model 13SIE-170
Rated Pressure* 1700 psi
Rated Water Flow* 1.3 gpm
Electrical Requirements 120V,
13 A, 60 Hz
Electrical Cord 35 ft. (10.67m)
High Pressure Hose 23 ft. (7.0 m)
Minimum Amp Source 15 A
Presure of Inlet Water 20–100 psi
Inlet Water cold tap
Soap Consumption Rate 10% max
* Rated Pressure and Rated Water Flow is within manufacturing tolerance of
(+/- 10%).
In a continued commitment to improve quality, the manufacturer reserves the right
to make component changes, design changes, or specification changes when
necessary and without notice.

17- ENG
SERVICE INFORMATION
Do not return this product to your retailer. Please contact our customer service
department at www.simpsoncleaning.com.
LIMITED WARRANTY
LIMITED WARRANTY
This product is warranted against defects in material and workmanship for a
period of one year on all components excluding the spray gun, high pressure hose,
wands, nozzles, and ground fault circuit interrupter (GFCI) which are only covered
for 90 days; effective from the date of retail purchase and is not transferable.
This warranty excludes incidental/consequential damages and failures due to
misuse, abuse or normal wear and tear. This warranty applies only to products
used in consumer (home) applications.
This warranty does not apply to commercial or rental applications.
This warranty gives you specific rights, and you may also have other rights, which
vary from state to state.
Please complete and return the enclosed Customer Information Card. Return of
this card is not required to validate this warranty. A store issued receipt or credit
card statement showing the purchase date is an acceptable warranty validation.
Please retain one of these documents in your records.
If you have any questions, please contact our customer service department at
www.simpsoncleaning.com.
What is covered: Replacement parts and labor. Please note that we reserve the
right to repair or replace the product as we deem appropriate.
What is not covered: This warranty does not include such parts as nozzles
which must be replaced as part of normal maintenance of the equipment, rather
than as the result of a defect. Transportation charges to warranty center for
defective products.Transportation charges to consumer for repaired products.
Damages caused by abuse, accident, improper repair, or failure to perform normal
maintenance. Use of improper chemicals or noncompliance with the operator
manual's instructions. Sales outside of the United States or Canada. Any other
expense including consequential damages, incidental damages, or incidental
expenses, including damage to property. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you. This warranty does not cover damage resulting
from failure to observe any of the following conditions:
1) The inlet water pressure must be between 20 and 100 psi.
2) The inlet water temperature must not exceed 90°F (32°C).
3) The unit should not be stored in areas where temperatures may drop below
40°F (4°C).
Implied Warranties
Any implied warranties, including the implied warranties of merchantability
and fitness for a particular purpose, are limited in duration to one year on all
components excluding the spray gun, high pressure hose, wand, and ground fault
circuit interrupter (GFCI) which are only covered for 90 days; effective from the

18- ENG
date of retail purchase and is not transferable. This warranty excludes incidental/
consequential damages and failures due to misuse, abuse or normal wear and tear.
This warranty applies only to products used in consumer (home) applications. This
warranty does not apply to commercial or rental applications. This warranty gives
you specific rights, and you may also have other rights, which vary from state to
state.
TROUBLE SHOOTING GUIDE
OPERATIONAL
ISSUE POSSIBLE CAUSE
SOLUTION
Detergent is
not dispensing Detergent is not pressure
washer
approved
Use only detergents, degreasers, waxes
and other cleaning solutions, that are
designed specifically for pressure washers.
Cleaners in this category will clearly state
on the label that they are meant for use in
pressure washers. Do NOT use any other
type of cleaning solution in your pressure
washer. Never use bleach, ammonia, any
type of acid, or hot water in your machine!
Incorrect noz-
zle installed See How to Use Spray Wand paragraph in the Operation Section.
NOTE: Chemicals and soaps will not
siphon if the black soap nozzle is
not installed on the spray wand.
Detergent
tank is filling
up with water
Detergent suction assembly is malfunctioning,
contact our customer service department.
Contact our customer service department at
www.simpsoncleaning.com.
Detergent to
Water ratio The pressure washer draws detergent at a maximum 10:1 water to detergent
ratio. Most pressure washer detergents
are concentrated within this range. If you
feel you are using more detergent than is
required for the application, you can dilute
the detergent with regular tap water.
Circuit breaker
trips or fuse
blown in
fuse box
Circuit
overload Verify that the circuit is rated at 15 amps or greater. Ensure no other appliance is drawing
power from the same circuit (dedicated circuit).
Extension
cord too long
or wire gauge
too small
We do not recommend the use of extension
cords with your pressure washer. If you must
use an extension cord, verify that it meets
the minimum requirements listed in the
Extension Cord paragraph under the Power
Supply & Electrical Info in this manual.
Nozzle
partially
blocked
Clean the nozzle according to the instructions
provided in the Nozzle paragraph under
the Maintenance section of this manual.

19- ENG
OPERATIONAL
ISSUE POSSIBLE CAUSE
SOLUTION
GFCI Plug
Malfunction For GFCI reset procedure see Ground-fault Circuit Interrupter Protection paragraph under
Power Supply & Electrical Info in this manual.
To order a replacement GFCI or for GFCI
installation instructions, please contact our
customer service department at
www.simpsoncleaning.com.
Spray gun,
wand or high
pressure hose
leaking water
Improperly
connected
accessory
Verify all components (gun, wand, high pressure
hose) are properly connected according
to instructions provided in this manual.
Leaking oil/
water from
pump
NOTE: A small amount of leakage is normal.
If oil/ water leakage from pump is excessive,
please locate the specific source of the leak
and contact our customer service department.
Contact our customer service department at
www.simpsoncleaning.com.
NOTE: Have the pressure washer
present when calling with this issue.
Low / surging
pressure or
motor does not
stop when spray
gun trigger
is released
NOTE: The
Pressure washer
is NOT receiving
a full volume of
incoming water
The machine
requires a
pressurized
water source
capable of
sustaining a
minimum of
20psi at 5 gpm.
Faucet is not
fully open Verify incoming water supply faucet is open at the maximum setting.
Garden hose
is too long or
it is kinked
/ restricted
Use a maximum garden hose length of
50ft.(15.2m) (city water) or 25 ft. (7.5 m)
(well water). Ensure the garden hose is laid
out flat and does not have any kinks or leaks.
Unwrap garden hose from reel or hook (if
applicable). Replace garden hose if necessary.
Water inlet
filter screen
is clogged
Remove the filter screen (O) from the
water inlet (M) and clean it thoroughly.
Replace the filter screen.
Extension
cord is too
long or wire
gauge is
too small
We do not recommend the use of extension
cords with your pressure washer. If you must
use an extension cord, verify that it meets
the minimum requirements listed in the
Extension Cord paragraph under the Power
Supply & Electrical Info in this manual.

20- ENG
OPERATIONAL
ISSUE POSSIBLE CAUSE
SOLUTION
No water
coming out
of nozzle
Nozzle is
clogged Clean the nozzle according to the instructions provided in the Nozzle paragraph under
Maintenance section of this manual.
Water inlet
filter screen
is clogged
Remove the filter screen (O) from the
water inlet (M) and clean it thoroughly.
Replace the filter screen.
Kink in the
garden hose
or hose is
wrapped on a
storage wheel
Use a maximum garden hose length of
50ft.(15.2m) (city water) or 25 ft. (7.5 m)
(well water). Ensure the garden hose is laid
out flat and does not have any kinks or leaks.
Unwrap garden hose from reel or hook (if
applicable). Replace garden hose if necessary.
Nozzle is
not installed
correctly
See How to Use Spray Wand
paragraph in the Operation Section.
No water
coming out
of nozzle
Detergent
Suction
Assembly
(the part
which the
High Pressure
Hose con-
nects to) is
malfunc-
tioning
Remove the Gun and Hose assembly from
the front of the unit. Aim water stream away
from electric source. Turn the faucet on. Water
should start to come out of the front of the unit.
If no water comes out, the Detergent Suction
Assembly will have to be cleaned or replaced.
Contact our customer service department at
www.simpsoncleaning.com.
Spray Gun
Trigger will
NOT Move
Gun safety
lock is
engaged
Release safety lock according to instructions
provided in the Starting paragraph
under Operation in this manual.
Unit will
NOT start
NOTE: Unit will
only start and
run when trigger
is depressed
and water is
spraying!
Unit is not
turned ON Verify that the On/Off Switch (I) is fully engaged in the ON position.
GFCI Plug
is not reset Confirm the GFCI plug is reset and functioning according to instructions
provided in Ground-Fault Circuit Interrupter
Protection paragraph under Power
Supply & Electrical info in this manual.
