Simpson Super Brute 3500 User manual

IMPORTANT: Please make certain that the person who is to use this equipment carefully reads
and understands these instructions before operating.
SAVE THIS MANUAL FOR FUTURE REFERENCE
INSTRUCTION MANUAL

SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and understand.
This information relates to protecting YOUR SAFETY and PREVENTING
EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to thesesymbols.
DANGER: Indicates an imminently hazardous situation which, if not avoided,
will result in death or seriousinjury.
WARNING: Indicates a potentially hazardous situation which, if not avoided,
could result in death or seriousinjury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderateinjury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided,
may result in propertydamage.
IMPORTANT SAFETY INSTRUCTIONS: GASOLINE OR DIESEL DRIVEN
If you loan, rent, or sell this machine, be sure to include all instructional materials
with the unit!
DANGER: Carbon Monoxide. Using an engine indoors can kill you in
minutes. Engine/burner exhaust contains high levels of carbon monoxide
(CO), a poisonous gas you cannot see or smell. You may be breathing CO
even if you do not smell engine exhaust.
•NEVER use an engine or oil burner inside homes, garages, crawlspaces or other
partly enclosed areas. Deadly levels of carbon monoxide can build up in these
areas. Using a fan or opening windows and doors does NOT supply enough
freshair.
•ONLY use outdoors and far away from open windows, doors and vents. These
openings can pull in engine exhaust. Never operate the pressure washer in or near
a location occupied by humans oranimals.
• Even when the engine is used correctly, CO may leak into your home. ALWAYS
use a battery-powered or battery backup CO alarm in your house. Read and
follow all directions for CO alarm before using. If you feel sick, dizzy or weak
at anytime, move to fresh air immediately. See a doctor. You could have carbon
monoxidepoisoning.
WARNING: Do not operate this unit until you read this instruction manual and
the engine instruction manual for safety, operation and maintenance instructions.
DANGER: Risk of injection or severe injury. Keep clear of nozzle. Do not
direct discharge stream at persons or live animals. This product is to be used
only by trainedoperators.
WARNING: This product and its exhaust can expose you to chemicals including
lead and lead compounds, and carbon monoxide, which are known to the State of
California to cause cancer and birth defects or other reproductive harm.

WARNING: This product may not be equipped with a spark-arresting muffler.
If the product is not equipped and will be used around flammable materials or
on land covered with materials such as agricultural crops, forest, brush, grass or
other similar items, then an approved spark arrester must be installed and is legally
required in the state of California. It is a violation of California statutes section
130050 and/or sections 4442 and 4443 of the California Public Resources Code,
unless the engine is equipped with a spark arrester, as defined in section 4442, and
maintained in effective working order. Spark arresters are also required on some
U.S. Forest Service land and may also be legally required under other statutes
andordinances.
SAVE THESE INSTRUCTIONS
DANGER: RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Spilled gasoline (diesel, kerosene,
approved alternate fuel) and it’s vapors
can become ignited from cigarette
sparks, electrical arcing, exhaust gas-
es and hot engine components such
as themuffler.
• Shut off engine and allow it to cool before
adding fuel to thetank.
• During refueling all ignition sources and
switches should be in the OFFposition.
• Use care in filling tank to avoid spilling fuel.
Move pressure washer away from fueling
area before startingengine.
• Heat will expand fuel in the tank which
could result in spillage and possible
fireexplosion.
• Keep maximum fuel level 1/2" (12.7mm)
below bottom of filler neck to allow
forexpansion.
• Operating the pressure washer in an
explosive environment could result in
afire.
• Operate and fuel equipment in well-
ventilated areas free from obstructions.
Equip areas with fire extinguisher suitable
for gasolinefires.
• Materials placed against or near the
pressure washer can interfere with
its proper ventilation features causing
overheating and possible ignition of
thematerials.
• Never operate pressure washer in an area
containing dry brush orweeds.
• Improperly stored fuel could lead to
accidental ignition. Fuel improperly
secured could get into the hands of
children or other unqualifiedpersons.
• Store engine and burner fuel in a clean
OSHA approved container, in a secure
location away from work area. Do not
allow debris or moisture to entercontainer.
• Spraying of gasoline, kerosene or any
kind of flammable solvent with this
product could result in serious injury
ordeath.
• Do not spray flammableliquids.
• Flammable liquids can create fumes
which can ignite, causing property
damage or seriousinjury.
• Operate only where open flame or torch
ispermitted.

DANGER: RISK TO BREATHING (ASPHYXIATION)
WHAT CAN HAPPEN HOW TO PREVENT IT
• Breathing exhaust fumes will cause
serious injury or death! Engine
exhaust contains carbon monoxide,
an odorless and deadlygas.
• Operate pressure washer in a well-
ventilated area. Avoid enclosed areas
such as garages, basements,etc.
• Never operate unit in or near a location
occupied by humans oranimals.
• Never connect pressure washer to a
TYPE B gasvent.
• Some cleaning fluids contain
substances which could cause injury
to skin, eyes orlungs.
• Use only cleaning fluids specifically rec-
ommended for high pressure washers.
Follow manufacturers recommendations.
Do not use chlorine bleach or any other
corrosive compound.
DANGER: RISK OF FLUID INJECTION AND LACERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
• Your pressure washer operates at fluid
pressures and velocities high enough
to penetrate human and animal flesh
which could result in amputation or
other serious injury. Leaks caused
by loose fittings or worn or damaged
hoses can result in injection injuries.
DO NOT TREAT FLUID INJECTION
AS A SIMPLE CUT! See a physician
immediately!
• Inspect the high pressure hose regularly.
Replace the hose immediately if it is
damaged, worn, has melted from
contacting the engine, or shows any signs
of cracks, bubbles, pinholes, or other
leakage. Never grasp a high pressure
hose that is leaking ordamaged.
• Never touch, grasp or attempt to cover
a pinhole or similar water leak on the
high pressure hose. The stream of
water IS under high pressure and WILL
penetrateskin.
• Never place hands in front ofnozzle.
• Direct spray away from self andothers.
• Make sure hose and fittings are tightened
and in good condition. Never hold onto
the hose or fittings duringoperation.
• Do not allow hose to contactmuffler.
• Never attach or remove wand or hose
fittings while system ispressurized.
• When using replacement lances or guns
with this pressure washer, DO NOT use
a lance and/or lance/gun combination
that is shorter in length than what was
provided with this pressure washer as
measured from the nozzle end of the
lance to the guntrigger.
•Use only accessories rated equal
to or higher than the rating of the
pressurewasher.

• Injuries can result if system pressure
is not reduced before attempting
maintenance ordisassembly.
• To relieve system pressure, shut off
engine, turn off water supply and pull gun
trigger until water stopsflowing.
DANGER: RISK OF INJURY FROM SPRAY
WHAT CAN HAPPEN HOW TO PREVENT IT
• High-velocity fluid spray can cause
objects to break, projecting particles
at highspeed.
• Always wear safety glasses. Wear
protective clothing to protect against
accidentalspraying.
• Never point wand at or spray people
oranimals.
• Light or unsecured objects can
become hazardousprojectiles.
• Always secure trigger lock when
wand is not in service to prevent
accidentaloperation.
• Never permanently secure trigger in pull-
back (open)position.
DANGER: RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
• Unsafe operation of your pressure
washer could lead to serious injury or
death to you orothers.
• Do not use chlorine bleach or any other
corrosivecompound.
• Become familiar with the operation and
controls of the pressurewasher.
• Keep operating area clear of all persons,
pets andobstacles.
• Do not operate the product when fatigued
or under the influence of alcohol or drugs.
Stay alert at alltimes.
• Never compromise the safety features of
thisproduct.
• Do not operate machine with missing,
broken or unauthorizedparts.
• Never leave wand unattended while unit
isrunning.
• Do not obstruct the burnerexhaust.
• Do not tamper with the safety pressure
relief valve.
• Do not tamper with the unloader valve.
• Do not modify the pressurewasher.
• If proper starting procedure is not
followed, engine can kickback causing
serious hand and arminjury.
• If engine does not start after two pulls,
squeeze trigger of gun to relieve pump
pressure. Pull starter cord slowly until
resistance is felt. Then pull cord rapidly
to avoid kickback and prevent hand or
arminjury.
• The spray gun/wand is a powerful
cleaning tool that could look like a toy
to achild.
• Keep children away from the pressure
washer at alltimes.

• Reactive force of spray will cause
gun/wand to kickback, and could
cause the operator to slip or fall or
misdirect the spray. Improper control
of gun/wand can result in injuries to
self and others.
• Do not overreach or stand on an unstable
support.
• Do not use pressure washer while
standing on a ladder.
• Grip gun/wand firmly with both
hands. Expect the gun to kickback
whentriggered.
DANGER: RISK OF INJURY OR PROPERTY DAMAGE WHEN
TRANSPORTING OR STORING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Fuel or oil can leak or spill and could
result in fire or breathing hazard.
Serious injury or death can result.
Fuel or oil leaks will damage carpet,
paint or other surfaces in vehicles
ortrailers.
• Oil could fill the cylinder and damage
the engine if the unit is not stored or
transported in an upright position.
• If pressure washer is equipped with a fuel
shut-off valve, turn the valve to the OFF
position before transporting to avoid fuel
leaks. If pressure washer is not equipped
with a fuel shut-off valve, drain the fuel
from tank before transporting.
Only transport fuel in an OSHA-approved
container.
Always place pressure washer on
a protective mat when transporting
to protect against damage to vehicle
fromleaks.
Always transport and store unit in an
upright position. Remove pressure
washer from vehicle immediately upon
arrival at yourdestination.
DANGER: RISK OF ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
• Spray directed at electrical outlets or
switches, or objects connected to an
electrical circuit, could result in a fatal
electricalshock.
• Unplug any electrically operated product
before attempting to clean it. Direct spray
away from electric outlets andswitches.
DANGER: RISK OF CHEMICAL BURN
WHAT CAN HAPPEN HOW TO PREVENT IT
• Use of acids, toxic or corrosive
chemicals, poisons, insecticides, or
any kind of flammable solvent with this
product could result in serious injury
ordeath.
• Do not spray acids, gasoline, kerosene,
or any other flammable materials with this
product. Use only household detergents,
cleaners and degreasers recommended
for use with pressurewashers.
• Wear protective clothing to protect
eyes and skin from contact with
sprayedmaterials.

WARNING: RISK OF BURSTING
WHAT CAN HAPPEN HOW TO PREVENT IT
• High-velocity fluid spray directed at
pneumatic tire sidewalls (such as
found on automobiles, trailers and
the like) could damage the sidewall
resulting in serious injury.
• On pressure washers rated above
1600 psi (11032 kPa) use the widest
fan spray (40º nozzle) and keep the
spray a minimum of 8" (20 cm) from the
pneumatic tire sidewall. Do not aim spray
directly at the joint between the tire and
rim.
WARNING: RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
• Contact with hot surfaces, such as
engine exhaust components, could
result in seriousburn.
• During operation, touch only the control
surfaces of the pressure washer. Keep
children away from the pressure washer
at all times. They may not be able to
recognize the hazards of thisproduct.
• Contact with spray will result in
seriousburn.
• DO NOT touch spray, ALWAYS direct
spray away from self andothers.
WARNING: RISK OF INJURY FROM LIFTING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Serious injury can result from
attempting to lift too heavy anobject.
• The pressure washer is too heavy to be
lifted by one person. Obtain assistance
from others beforelifting.
NOTICE: RISK OF PROPERTY DAMAGE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Muffler and burner exhaust heat can
damage painted surfaces, melt any
material sensitive to heat (such as
siding, plastic, rubber, vinyl or the
pressure hose, itself), and damage
liveplants.
• Always keep pressure washer a mini-
mum of 4' (1.2 m) away from surfaces
(such as houses, automobiles or live
plants) that could be damaged from
muffler exhaustheat.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE

IMPORTANT SAFETY INSTRUCTIONS: ELECTRIC DRIVEN
If you loan, rent, or sell this machine, be sure to include all instructional materials
with the unit!
WARNING: Please read this entire manual before attempting to assemble,
operate or install theproduct.
WARNING: This unit was designed for specific applications. It should not be
modified and/or used for any application other than that which it was designed.
NOTICE: Always store your pressure washer in a location where the temperature
will not fall below 40°F (4°C). freeze damage is not covered by thewarranty.
WARNING: This product and its exhaust can expose you to chemicals including
lead and lead compounds, and carbon monoxide, which are known to the State of
California to cause cancer and birth defects or other reproductive harm.
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using this product basic precautions should always
be followed, including the following:
1. Read all the instructions before using the product.
2. To reduce the risk of injury, do not operate near children oranimals.
3. Know how to stop the product and bleed pressures quickly. Be thoroughly familiar
with thecontrols.
4. Stay alert - watch what you aredoing.
5. Do not operate the product when fatigued or under the influence of alcohol
ordrugs.
6. Keep operating area clear of allpersons.
7. Do not overreach or stand on unstable support. Keep good footing and balance at
all times.
8. Follow the maintenance instructions specified in the manual.
9. Do not touch plug or outlet with wet hands.
10. Avoid accidental starts. Move switch on unit to OFF position before connecting or
disconnecting cord to electrical outlets.
11. Water spray must never be directed towards any electric wiring or directly towards
the pressure washer machine itself or fatal electric shock may occur.
12. Never carry your pressure washer by the cord. Do not pull on the cord to
disconnect from the outlet.
13. To prevent damage, the cord should not be crushed, placed next to sharp objects
or near a heat source.
14. Check power cords before using. Damaged cords can reduce performance of
pressure washer or cause a fatal electricalshock.
15. The narrow pin point stream is very powerful. It is not recommended for use on
painted surfaces, wood surfaces or items attached with an adhesive backing.
16. Keep operating area clear of all persons andanimals.
17. Always use both hands when operating pressure washer to maintain complete
control of thewand.
18. Do not touch nozzle or water spray while operating. Never place hands in front
ofnozzle.
19. Wear safety goggles while operating. Wear protective clothing and footwear to
protect against accidentalspraying.

20. Disconnect power plug from the outlet when not in use and prior to the detaching
of the high pressurehose.
21. Never tie knots or kink the high pressure hose as damage could result. Inspect the
high-pressure hose regularly. Replace the hose immediately if it is damaged, worn
or shows any signs of cracks, bubbles, pinholes, or other leakage. Never grasp a
high-pressure hose that is leaking ordamaged.
22. Do not operate or store this product in temperatures below 40°F (4°C). Freeze
damage is not covered by thewarranty.
23. Carefully observe all chemical instructions and warnings before using. Use only
approved pressure washer cleaners. Do not use bleach, chlorine, or any cleaners
containing acids. Always follow manufacturer’s label recommendations for proper
use of cleaners. Always protect eyes, skin and respiratory system fromcleaners.
24. The pressure washer should not be used in areas where gas vapors may be
present. An electric spark could cause an explosion or fire.
25. To minimize the amount of water getting into the pressure washer, the unit should
be placed as far as possible from the cleaning site duringoperation.
26. To prevent accidental discharge, the spray gun should be secured by locking the
trigger when not in use.
27. To allow free air circulation, the pressure washer should NOT be covered during
operation.
28. Never touch, grasp or attempt to cover a pinhole or similar water leak on the
high-pressure hose. The stream of water IS under high pressure and WILL
penetrateskin.
29. Use only hoses and accessories rated for pressure higher than your pressure
washer's psi. Never use with any other manufacturer’s accessories orcomponents.
30. Never defeat the safety features of thisproduct.
31. Do not operate machine with missing, broken or unauthorizedparts.
32. Never spray flammable liquids or use pressure washer in areas containing
combustible dust, liquid, orvapors.
WARNING: Risk of injection or injury. Do not direct discharge stream atpersons.
SAVE THESE INSTRUCTIONS FOR FUTURE USE
MOTOR OVERLOAD
This pressure washer is equipped with an overload protection device which will
automatically shut off the motor in the event the motor draws excessive current
or overheats.
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric
shock. This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes
andordinances.
WARNING: Improper connection of the equipment-grounding conductor can
result in a risk of electrocution. Check with a qualified electrician or service person
if you are in doubt as to whether the outlet is properly grounded. Do not modify
the plug provided with the product if it will not fit the outlet installed by a qualified
electrician. Do not use any type of adaptor with thisproduct.

GROUND-FAULT CIRCUIT INTERRUPTER PROTECTION (IF EQUIPPED)
This pressure washer is provided with a Ground-Fault Circuit-Interrupter (GFCI) built
into the plug of the power supply cord. This device provides additional protection
from the risk of electric shock. Should replacement of the plug or cord become
necessary, use only identical replacement parts that include GFCIprotection.
POWER SUPPLY AND ELECTRICAL INFO
This cord should only be connected to an electrical outlet installed in accordance
with local safety regulations.
A. Inspect cord before using. Do not use if cord isdamaged.
B. Keep all connections dry and off theground.
C. Do not touch plug with wethands.
D. For a product rated 250 volts or less, single phase: This product is provided
with a ground fault circuit interrupter built into the power plug. If replacement
of the plug or cord is needed, use only identical replacementparts.
E. For a product rated more then a single phase, or more then 250 volts: This
product shall only be connected to a power supply receptacle protected by a
ground fault circuit interrupter.
F. Read instruction manual before using.
Contact customer service for proper replacementparts.
WARNING: To reduce the risk of electrocution, keep all connections dry and off
the ground. Do not touch plug with wethands.
SAVE THESE INSTRUCTIONS FOR FUTURE USE
GET TO KNOW THE PRESSURE WASHER
NOTE: Photographs and line drawings used in this manual are for reference
only and do not represent a specific model. Save this manual for future reference.
NOTICE: The engine is shipped without oil. Before starting engine, add the oil
provided. Damage to the engine will occur if the engine is run without oil, this
damage will not be covered underwarranty.
PRESSURE WASHER TERMINOLOGY
PSI: Pounds per Square Inch. The unit of measure for water pressure. Also used
for air pressure, hydraulic pressure, etc. Operating at pressures exceeding the
maximum rating could result in damage to the unit and/or severe personalinjury.
GPM: Gallons per Minute. The unit of measure for the flow rate of water.
CU: Cleaning Units. GPM multiplied by PSI equalsCU.
Pressure Wand Assembly: This refers to the gun, wand andnozzle.
Pump: The pump moves the water through the system and delivers it to the
pressure wand assembly. The nozzle creates thepressure.
Bypass Mode: Allows water to re-circulate within the pump when the gun trigger is
not pulled. This feature allows the operator to release the trigger gun and reposition
themselves without having to turn the engine off in between cleaningactions.
NOTICE: Allowing the unit to run for more than two minutes without the gun trigger
being pulled could cause overheating and damage to the pump. Do not let the
pressure washer run for more than two minutes in Bypass Mode. Turn off the engine
and relieve the pressure in the gun during these extendedsituations.

Thermal Relief Valve: When the temperature inside the pump rises too high, this
valve will open and release a gush of water in an effort to lower the temperature
inside the pump. The valve will thenclose.
Pressure Relief Valve: The water heater coils are designed to operate safely
at normal working pressure. The safety pressure relief valve prevents over
pressurization of the high pressure system. Do not modify the pressure relief valve
inanyway.
High Pressure Pump Oil: The preferred oil is SIMPSON®Premium Pump
Crankcase Oil. If this oil is not available, an SAE 15W-40 oil may be used. Change
the pump oil after the first 50hours of operation and every 100 hours thereafter, or
every 3months.
Gasoline Engine Oil (if equipped):
Check engine oil level before each use. Refer to
the
Engine Owner's Manual for correctprocedure.
12V DC Battery (if equipped): The 12V DC battery operates the engine's electrical
start system, after the engine is started the system will charge the battery and operate
the burner. The 12V battery will need to be replaced regularly to ensure consistent
performance.
Recommended battery size: Colbalt, Streamliner use Group 24 battery
/Patriot use U 1battery.
Burner Assembly: A device used to change fuel to heat energy. It is used to heat
the water in the coil assembly and is designed to use a NO. #2 dieselfuel.
BTU (British Thermal Unit): The amount of work or energy it takes to raise the
temperature of one pound of water by one degreeFahrenheit.
Temperature Control: The burner system is equipped with an adjustable
temperature control. Do not set thermostat above 195°F. The burner will shut off
if insufficient water flow through the burner's heater coil causes the outlet water
temperature to be excessive.
Back Flow Preventer: Prevents backflow into a potable watersystem.
WARNING: To reduce the possibility of contamination always protect
against backflow when connected to a potable water system
Pressure Switch: A switch which uses a pressure activated plunger to activate a
microswitch, used to control the fuel solenoid in the burnersystem.
Flow Switch: A switch which responds to changes in water flow, water flow
moves a magnet which ativates a reed or microswitch to control voltage to the fuel
solenoid in the burnersystem.
Chemical Injection System: Mixes cleaners or cleaning solvents with the water to
improve cleaning effectiveness.
High Pressure Hose: Only use a wire braid hose rated for the output pressure and
temperature of the high pressure pump. Additional hose lengths can be added with
quick twist couplers with a minimal loss in pressure of about .5 PSI per foot. Always
inspect hoses for wear and replace if necessary. Avoid kinking or running over the
hose to extend the hoselife.
Hour meter (if equipped): The analog hour meter operates whenever the engine is
running and keeps track of how many hours the unit has beenused.
Water Supply: The minimum requirements for a water supply are 20 psi at twice
the stated water volume for the machine. If your water source is a well, the garden
hose length can only be 30ft. (9m)maximum.
EVAP canister (if equipped): Collects fuel vapors and later purges them so they
burn in the combustionprocess.

Water column (if equipped): Is a measurement using a water column manometer
to measure the NG or LP gas operating pressure in units of water column inches.
GET TO KNOW THE PRESSURE WASHER OPERATING FEATURES
IMPORTANT: Become familiar with these features before operating this
pressurewasher.
PRESSURE ADJUSTMENTS
The pressure setting is preset at the factory to achieve optimum pressure and
cleaning. If you need to lower the pressure, it can be accomplished by these
methods.
1.
Back away from the surface to be cleaned. The further away you are, the less
the pressure will be on the surface to becleaned.
2. This pressure washer is equipped with an additional feature that allows the
pressure setting to be adjusted.
a. To lower the pressure, turn the unloader control knob (located under the hot
water tank) counterclockwise to the desired pressure.
b. To return the pump pressure to the factory setting, turn the unloader control
knob (located under the hot water tank) clockwise until itstops.
NOTICE: DO NOT overtighten the pressure control knob, if overtightened the knob
COULD break and result in immediate loss of water pressure and costly repairs to
theunit.
HOW TO USE SPRAY WAND
The nozzles for the spray wand are stored in the nozzle holder on the panel assembly.
Colors on the panel identify nozzle location and spray pattern. Refer to the following
chart to choose the correct nozzle for the job to beperformed.

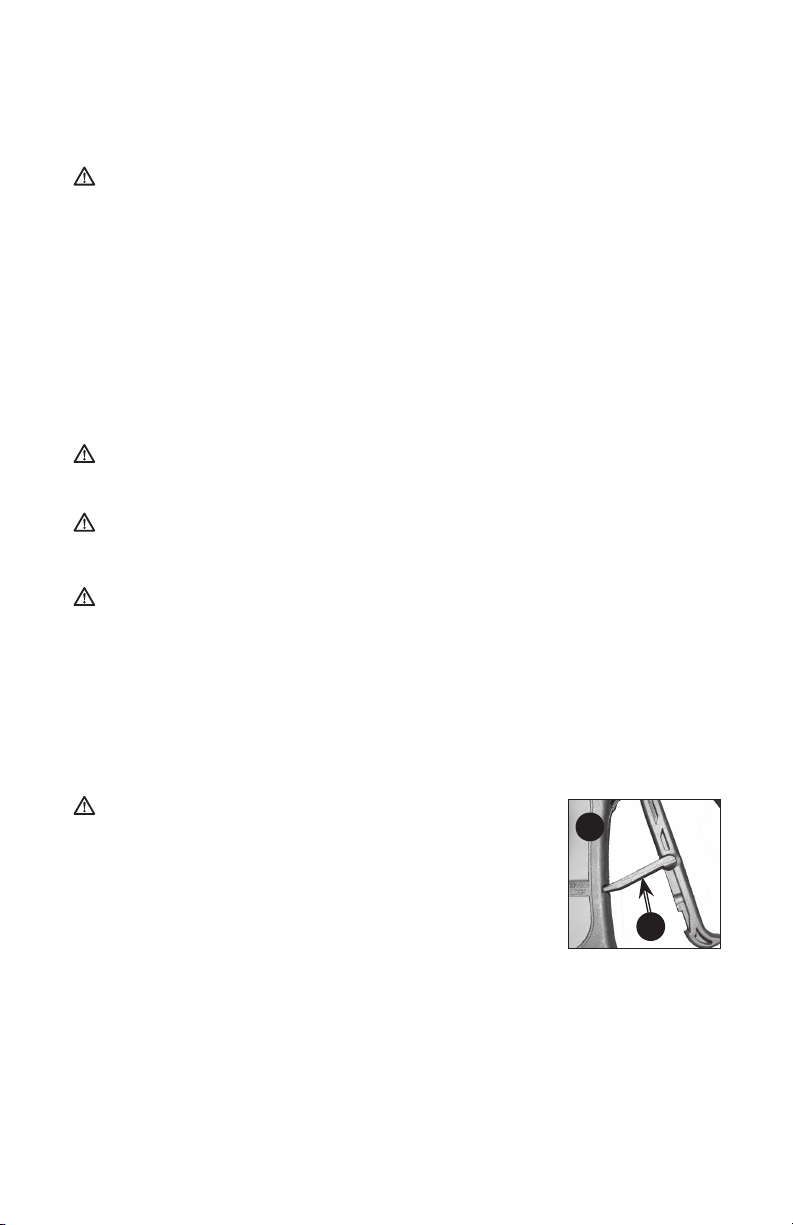

CHANGING NOZZLES ON SPRAY WAND (FIG. 1)
DANGER: Risk of fluid injection. Do not direct discharge stream toward
persons, unprotected skin, eyes or any pets or animals. Serious injury
willoccur.
WARNING: Flying objects could cause risk of serious injury. Do not
attempt to change nozzles while pressure washer is running. Turn engine off
before changingnozzles.
1. Pull quick-connect coupler (AA) back and insert nozzle (M). 1
MAA
2. Release quick-connect coupler and twist nozzle to make
sure it is secure incoupler.
WARNING: Flying object could cause risk of serious
injury. Ensure nozzle is completely inserted in quick-
connect socket and quick-connect collar is fully engaged
(forward) before squeezing guntrigger.
NOZZLE COLOR SPRAY PATTERN USES SURFACES*
Red
0˚ powerful
pinpoint for
spot cleaning of
hard, unpainted
surfaces or for
high reach areas
unpainted metal or concrete;
DO NOT use on wood

NOZZLE COLOR SPRAY PATTERN USES SURFACES*
Yellow
15˚ intense cleaning
of unpainted
hard surfaces
grills, driveways, concrete
or brick walkways,
unpainted brick or stucco
Green
25˚ standard cleaning
nozzle for most
applications
yard tools, sidewalks, lawn
furniture, unpainted siding,
stucco, gutters and eaves,
concrete, brick surfaces
White
40˚ cleaning of
painted or
delicate surfaces
auto/RV, marine, wood,
painted brick and stucco,
vinyl, painted siding
Black
low pressure applies cleaning
solutions
Low pressure spray is safe
on all surfaces. Always verify
compatibility of cleaning
solution prior touse.
*NOTICE: The high pressure spray from your pressure washer is capable of
causing damage to surfaces such as wood, glass, automobile paint, auto striping
and trim, and delicate objects such as flowers and shrubs. Before spraying,
check the item to be cleaned to assure yourself that it is strong enough to resist
damage from the force of the spray.
HOW TO APPLY CHEMICALS/CLEANING SOLVENTS (FIG. 2)
Applying chemicals or cleaning solvents is a low pressure operation. NOTE: Use
only soaps and chemicals designed for pressure washer use. Do not use bleach.
To Apply Chemicals:
1.
Ensure chemical siphon hose (R, Figure 2) is attached to
2
R
barbed fitting location near high pressure hose connection
of pump as shown.
2.
Place the end of chemical siphon hose with filter on it into
container holding chemical/cleaningsolution.
3. Install low pressure (black) nozzle into quick connect fitting
of spray wand, see How To Use Spray Wand paragraph
in t hissection.
4. If equipped: Some units have a soap control valve. Turn the valve counterclockwise
to increase the soap output and clockwise to decrease the soapoutput.
NOTE: Soap needs to be rinsed from cleaning surface with water after
application.
5. After use of chemicals, place chemical siphon hose into container of clean water
and draw clean water through chemical injection system to rinse system thoroughly.
If chemicals remain in the pump, it could be damaged. Pumps damaged due to
chemical residue will not be covered underwarranty.

OPERATION
STARTING
WARNING: Do not operate this unit until you read this instruction manual
and the engine (if equipped) instruction manual for safety, operation and
maintenanceinstructions.
DANGER: Risk of fluid injection and laceration. When using the high
pressure setting, DO NOT allow the high pressure spray to come in contact
with unprotected skin, eyes, or with any pets or animals. Serious injury
willoccur.
• Your washer operates at fluid pressures and velocities high enough to penetrate
human and animal flesh, which could result in amputation or other serious injury.
Leaks caused by loose fittings or worn or damaged hoses can result in injection
injuries. DO NOT TREAT FLUID INJECTION AS A SIMPLE CUT! See a physician
immediately!
DANGER: Gasoline or Diesel Driven only: Carbon Monoxide. Using an
engine indoors can kill you in minutes. Engine exhaust contains high levels of
carbon monoxide (CO), a poisonous gas you cannot see or smell. You may be
breathing CO even if you do not smell engine exhaust.
• Breathing exhaust fumes will cause serious injury or death! Engine exhaust
contains carbon monoxide, an odorless and deadlygas.
• Operate pressure washer in a well-ventilated area. Avoid enclosed areas
such as garages, basements,etc.
• Never operate unit in or near a location occupied by humans oranimals.
WARNING: For your safety, if you smell gas: (A) turn off gas at line valve or
meter, (B) open windows, (C) do not touch electrical switches, (D) extinguish
all open flames, (E) immediately call your gassupplier.
WARNING: Gasoline or Diesel Driven only: Risk of Fire, Asphyxiation and
Burn. Never fill fuel tank when engine is running or hot. Do not smoke when
filling fueltank.
• Never fill fuel tank completely. Fill tank to 1/2" (12.7 mm) below bottom of filler
neck to provide space for fuel expansion. Wipe any fuel spillage from engine and
equipment before startingengine.
• DO NOT let hoses come in contact with very hot engine muffler during or
immediately after use of your pressure washer. Damage to hoses from contact with
hot engine surfaces will NOT be covered bywarranty.
NOTICE: Risk of property damage. Never pull water supply hose to move pressure
washer. This could damage hose and/or pumpinlet.
• DO NOT use hot water, use cold wateronly.
• Never turn water supply off while pressure washer engine is running or damage to
pump willresult.
• DO NOT stop spraying water for more than two minutes at a time. Pump operates in
bypass mode when spray gun trigger is not pressed. If pump is left in bypass mode
for more than two minutes internal components of the pump can bedamaged.

Before Each Start Up (FIG. 3, 4)
1. Gasoline or Diesel Driven: In a well-ventilated outdoor area, add fresh, high-
quality, unleaded gasoline with a pump octane rating of 86 or higher. Do not overfill.
Wipe up spilled fuel before starting the engine. Refer to
Engine Owner's Manual
for correctprocedure.
NOTICE: Gasoline only: Use of fuels with greater than
10% ethanol are not approved for use in this product
per EPA regulations and will damage the unit and void
thewarranty.
Natural Gas/Propane Units: Make sure the pressure washer has been
properly installed as outlined in Prepare the Eliminator for Operation insert.
DO NOT operate this pressure washer until it is properly installed and all
Installation Checkout (found in insert) steps have been preformed.
2. Gasoline or Diesel Driven:
Check engine oil level. Refer to the Engine Owner's
Manual
for correctprocedure.
3. Check pump oil level. The oil level should come to the dot in the middle of the sight
glass (Z, Fig 1).
4. Diesel Burner:
In a well-ventilated outdoor area, add fresh, high-quality #2 diesel
fuel to the burner fuel tankfill
.
5.
Visually inspect all electrical components, hoses, nozzles and guns to assure
they are in good condition. If replacements are necessary they must be rated to
withstand the machines operating pressure andtemperatures.
6. Connect the water hose to the cold water source. Turn the water source on to
remove all air from the hose. When a steady stream of water is present, turn
the water source off.
NOTE: Use a 5/8" (15.9 mm) or 3/4" (19.0 mm) good
quality water hose of minimal length. NOTE: Water source pressure must be
20–60psi to ensure properoperation.
WARNING: To reduce the possibility of contamination always protect against
backflow when connected to a potable watersystem.
7.
Verify the filter screen (BB) is in the water inlet on the machine.
BB
3
NOTE: Convex side faces out. Connect the cold water
source to pump inlet.
NOTE: Failure to use machine without
inlet screen filter installed may voidwarranty.
8. Connect high pressure spray wand to gun. Tighten
securely.
Refer to Spray Wand Nozzles to select the
correct quick connect nozzle for the task beingperformed.
9. Attach high pressure hose to high pressure spray gun.
Connect the other end of the high-pressure hose to high-pressure hot water outlet
on themachine.
10. If applying a chemical or cleaning solution, refer to Chemicals and
CleaningSolvents.
11.
Turn the water source on. Remove all air from the pump and high pressure hose
by depressing trigger until a steady stream of water ispresent.
NOTICE: Risk of property damage. Failure to do so could cause damage to
thepump.
12.
Make sure ALL controls are in the OFFposition.

13. Start engine/motor.
Gasoline or Diesel Driven: Refer to the engine instruction manual for
correct procedure. IMPORTANT: Prior to starting, refer to your engine
manual for proper startingprocedure.
WARNING: Gasoline or Diesel Driven only: Risk of unsafe operation. If engine
does not start after two pulls, squeeze trigger of gun to relieve pump pressure. Pull
starter cord slowly until resistance is felt. Then pull cord rapidly to avoid kickback
and prevent hand or arminjury.
NOTE: If the oil level in the engine is low, the engine will not start. If the engine does
not start, check the oil level and add oil asneeded.
Natural Gas/Propane Units:
Verify the control knob on the gas valve to the
ONposition.
14. If hot water cleaning is desired
a. Release the trigger on the gun and place the burner On/Off switch in the
ONposition.
b. (if equipped) Turn the temperature control to the desired watertemperature.
WARNING: Risk of burns. The surfaces around the burner exhaust and the
discharged exhaust are very hot. Keep away from this area. DO NOT allow hoses
to come in contact with the very hot burner exhaustarea.
WARNING: Burner will shut off when the trigger is released. DO NOT use the
pressure washer if the burner fails to shut off when the trigger isreleased.
15.
Depress trigger on gun to start water flow and theburner.
WARNING: Risk of unsafe operation. Stand on a stable surface and grip gun/
wand firmly with both hands. Expect the gun to kickback whentriggered.
NOTICE: Allowing the unit to run for more than two minutes without the gun
trigger being pulled could cause overheating and damage to the pump. Do not let
the pressure washer run for more than two minutes in Bypass Mode. Turn off the
engine and relieve the pressure in the gun during these extendedsituations.
16.
Release trigger to stop water flow and turn the burneroff.
17. Adjust the pressure if needed. Refer to Pressure Adjustments paragraph for the
correctprocedures.
DANGER: Risk of injury from spray. Engage the trigger lock
4
CC
(CC) when gun is not in use to prevent accidentalspraying.
SHUTTING DOWN (FIG. 1)
1. Place the burner on/off switch in the OFFposition.
2. Depress trigger on gun and allow water to run until the
spray wand is no longer hot to thetouch.
3. If chemicals were applied, place the chemical siphon hose
into a container of clean water and draw clean water through chemical injection
system to rinse system thoroughly.
NOTICE: Risk of property damage. Failure to rinse the chemical system can cause
damage to the high-pressure pump or the high-pressure watersystem.
4.
Turn engine/motor off.
Gasoline or Diesel Driven: Refer to the engine instruction manual for
correctprocedure.

NOTICE: Risk of property damage. NEVER turn water supply off while pressure
washer engine is running or damage to pump willresult.
5.
Turn water sourceoff.
6. Pull trigger on spray gun to relieve any water pressure in hose or spray gun.
7. Refer to Storage for proper storageprocedures.
MAINTENANCE
Your pressure washer has been produced with the highest quality materials and
craftsmanship, as the owner you have certain responsibilities for the correct care
of the equipment. Attention to regular preventative maintenance procedures will
assist in preserving the performance of yourequipment.
Contact your local service provider for maintenance. A small investment in
preventative maintenance will add many hours to the life of your pressure washer.
Perform maintenance more often under severe conditions. Do not spray high-
pressure water onto the machine. Not all maintenance items apply to allmachines.
MAINTENANCE SCHEDULE**
Engine Oil Inspect Daily
Change After first 10 hours then every 50 hours especially in
high ambient temperatures
Filter Every 100 hours
Air Cleaner Inspect Every 25 hours
Clean Every 3 months
Diesel Engine Coolant Check daily (maximum 50% antifreeze)
Battery Level Check monthly 12V DC Burner Systems: Replace battery every 2
years
Engine Fuel Filter 500 hours or 6 months
Spark Plug Maintenance 500 hours or 6 months
Clean Fuel Tank(s) Annually
Replace Fuel Lines Annually
Pump Oil Inspect Daily
Change After first 25 hours, then every 3 months or 150 hours
Axial pumps come filled with synthetic oil, which does not require changing
Replace Burner Fuel Filter Every 6 months (More often if fuel quality is poor)
Remove Burner Soot Annually
Burner Adjustment/Cleaning Annually
De-scale Coil Annually (More often if required)
Replace Spray Nozzle Every 6 months
Replace Quick Connects Annually (More often if required)
Clean Water Screen/Filter Weekly
Clean Float/Supply Tank Every 6 months
Replace HP Hose Annually (More often if required)
Belts Tighten Every 6 months
Inspect/Replace Annually
Trailer Tires/Bearings Monthly (Check tires for condition, tighten lug nuts, grease & check bearings)

MAINTENANCE INFORMATION
DESCRIPTION OIL TYPE CAPACITY
Gas Engine SAE 10W 30 motor oil ** .63 to 3qt.
Diesel Engine SAE 15W 40 OR ISO 100 ** 1.7- 3.3qt.
Pump, Cat SAE 15W 40 OR ISO 100 11 – 42oz.
Pump, Comet SAE 15W 40 OR ISO 100 11 – 42oz.
Pump, General SAE 15W 40 OR ISO 100 11 – 42oz.
** Check the engine manufacturer’s service guide for additional maintenance items and specific high ambient temperature
oilselection.
STORAGE
ENGINE
Consult the Engine Owner's Manual for manufacturer’s recommendations
forstorage.
MOTOR
Consult the Motor Owner's Manual for manufacturer’s recommendations for
storage
PRESSURE WASHER
1. Drain all water from high-pressurehose.
2. With nozzle pointed down and the spray gun and wand in a
vertical position, squeeze trigger to drain all water from spray gun and wand.
3. Store chemical siphon hose so it is protected fromdamage.
CAUTION: Risk of personal injury. Avoid placing hands between handle and
frame when assembling to preventpinching.
NOTICE: Risk of property damage. Always store and transport unit in an
uprightposition.
ACCESSORIES
DANGER: Risk of fluid injection. When using replacement spray wands
or guns with this pressure washer, DO NOT use a spray wand and/or spray
gun/wand combination that is shorter in length than what was provided with
this pressure washer as measured from the nozzle end of the wand to the
gun trigger.
NOTICE: The use of any other accessory not recommended for use with this tool
could be hazardous. Use only accessories rated equal to or greater than the rating
of the pressurewasher.

TROUBLESHOOTING GUIDE
NOTE: Probable causes are listed with most likely cause first Repairs should be made by
qualified techniciansonly.
POWER SYSTEM: GASOLINE OR DIESEL DRIVEN
Problem Probable Cause Remedy
Engine will not start or
crank over (see Engine
Owner's Manual for further
engine troubleshooting)
Battery dead Where
applicable
Charge or replace battery,
add electrolyte if battery is
new
Dirty Battery Contacts Clean connections
Battery cables disconnected Connect or replace damaged
cables
Engine, pump, or gearbox is
seized
Identify, Replace or repair
seized part
Key switch, solenoid or
starter on engine defective
Repair or replace faulty
component
Pump is seized Replace pump or bearing
Engine will not start but
will crank over (see Engine
Owner's Manual for further
engine troubleshooting)
Engine power switch is off or
defective
Check engine power switch
Low oil shut down is
activated
Add oil to engine, check
more frequently
Low on fuel Fill with the appropriate
fuel, bleed injector pump on
diesel engines
Fuel filter is clogged Replace or clean fuel filter,
bleed injector pump on
diesel engines
Engine flooded or starved Choke only as required (not
applicable to diesels)
Old or dirty fuel Drain and replace with new
fuel
Engine bogs down under
load, whenever spray gun
is triggered (see Engine
Owner's Manual for further
engine troubleshooting)
Engine needs to be repaired
or replaced
See engine manual or engine
dealer
Operating in high elevation Lower the pressure on the
unit and check for correct
engine speed (RPM)
Incorrect nozzle in lance Replace with correct nozzle
size
Unloader valve improperly
adjusted
Adjust unloader valve
Carbon deposits on cylinder
head
Remove head and clean off
deposits

POWER SYSTEM: ELECTRIC DRIVEN
Problem Probable Cause Remedy
Electric motor does not
start
No electric power Check cord, plug, socket,
and breaker
Thermal overload in the
motor/or starter has been
tripped (If equipped)
Reset manual overload
by depressing the thermal
switch on the outside of the
motor or starter after the
motor has cooled.
CAUTION: Automatic
overload will restart the
motor automatically when it
has cooled.(If equipped)
Power switch inoperative Check power switch
Electric motor or wiring
failure
Replace or repair motor and/
or wiring
No water pressure at inlet Connect to appropriate water
supply
Machine will not auto-start
(if equipped)
Must have adequate water
supply
Check for correct pressure
and gallonage
Coil scale build up Descale coil for better water
flow
Check filter screen and inlet
pressure
Pull trigger gun to check
auto-start function
Pressure switch on unloader
is faulty
Replace
Timer is faulty Remove leads from timer at
control end, see if machine
shuts off after time out,
replace if defective
PUMPING SYSTEM
Problem Probable Cause Remedy
Trigger gun leaks or will
not shut off
Debris in gun valve assembly Clean valve assembly or
replace gun
Pump runs but there is no
spray pressure
Water turned off Turn water on
Nozzle is plugged Clean or replace with proper
size
Inlet chemical injection valve
is open, without the end of
the pickup tube inserted
into detergent. (upstream
injection systems only)
Close soap valve or
submerge detergent pickup
tube into solution
Coil on hot water machines
is obstructed
Clean obstruction or scale
deposits from coil with coil
cleaner
Pump dry, needs to be
primed
Crack open fitting on the
high pressure outlet of the
pump until water flows out
