Clemas & Co STORM User manual

STORM
PRESSURE WASHER
OPERATOR MANUAL
Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury,
Gloucestershire, GL20 8NB.
Tel: [phone] Fax: [phone]
Email:[email protected] Web:www.clemas.co.uk

DemonStormManual—Issue10/07 Page18

DemonStormManual—Issue10/07 Page19
PosCodeNoDescriptionQtyPosCodeNoDescriptionQty
1AR1322730Screw640AR1320020PumpHead1
2AR620301Plug141AR180101ORing1
7AR1260162Plug642AR820361Plug1
8AR960160ORing643AR1260200Crankshaft1
9AR1269050CompleteValve643AR1320260Crankshaft1
10AR880830ORing644AR1380520Key1
11AR1320340SupportRing345AR1320370Bearing1
12AR1260220Gasket346AR1260750Seal1
13AR1320351PistonGuide347AR1260470Screw4
14AR1260420ORing348AR1263890Base2
15AR1260450Gasket383AR1260790Circlip1
16AR1260460Seal385AR1381550Washer6
19AR1260790Circlip188AR1269222PumpHeadpreͲass1
20AR1320370Bearing189AR1266740Cap1
21AR1320330Bushing1    
22AR1320010PumpHousing1    
23AR880130OilPlug1    
24AR1260110Nut3    
25AR1260100Washer3    
26AR1260210Piston3    
27AR480480ORing3    
28AR1260091Spacer3    
29AR1260070GuidingPiston3    
30AR1260080PistonPin3    
31AR1260760Screw6    
32AR1269101CompleteCover1    
32AR1320910CompleteCover1    
36AR1260060ConRoad3    
36AR1320140ConRoad3    
37AR1260040Gasket1    
38AR740290ORing2    
39AR1980740Plug2    

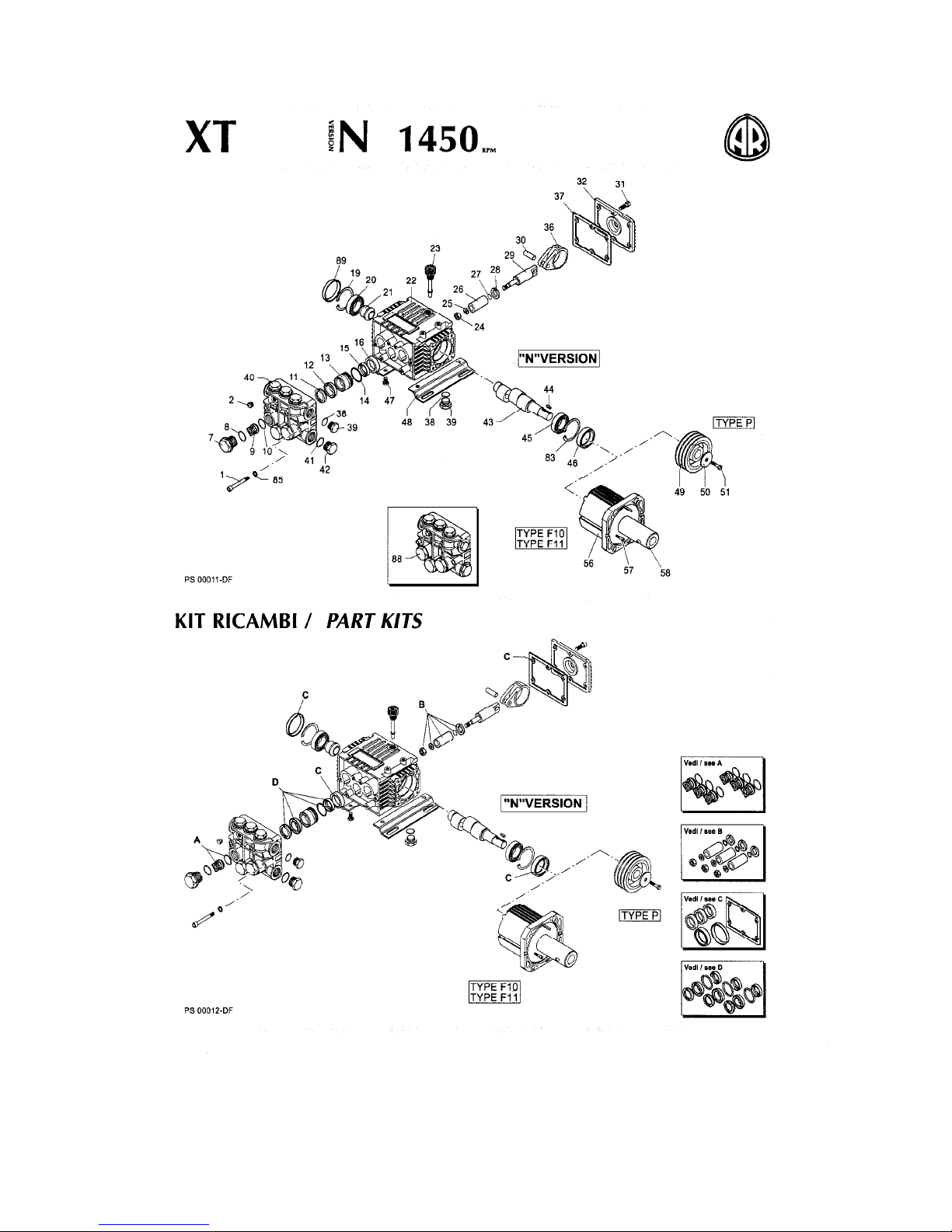

XT1450
ARKIT1864 ARKIT2629ARKIT1872
ValveKitPistonKitOilSealKit
PosQtyPosQtyPosQty
96243163
106253371
  263461
  273891
  283  
ARKIT1874
WaterSeals
113
123
143
153

DemonStormManual—Issue10/07 Page20
Pump for Storm Wallmounted 4 & Free Standing 4 RK 13-17 / RK 15-20H / RK21-15

DemonStormManual—Issue10/07 Page21
PosPartNoDescriptionQtyPosPartNoDescriptionQty
1AR960160ORing636AR1343510Screw6
2AR960090Plug640AR13801200.10mmshim1÷3
2AR1380740Plug640AR13801300.20mmshim1÷3
3AR1389051CompleteValve640AR13805300.25mmshim1÷3
4AR880830ORing640AR13828100.05mmshim1÷3
5AR880581Plug242AR740290Oring3
6AR820510ORing243AR19807403/8Gplug2
11AR960110SupportRing344AR1260470Screw4
12AR880320Gasket345AR1380141Base2
13AR1380090PistonGuide346AR19807403/8GPlug1
14AR961240ORing346AR19811803/
8GPlug1
15AR880330Gasket347AR180101ORing1
16AR138130Seal348AR820361Plug1
17AR850370Screw848AR960870Plug1
18AR1380050ClosedBearingsup149AR1381070Pumphead1
19AR640030ORing150AR820150Screw8
20AR2280240Bearing160AR1380320Bearing1
21AR1382770PumpHousing161AR621170Seal1
22AR880130OilCap162AR1380220ORing1
23AR962010Nut363AR1380210Shaftcover1
24AR962000Washer366AR2280180HollowShaft28mm1
24AR1380940CeramicPiston366AR2280170HollowShaft028mm1
26AR1380950Spacer366AR2280160HollowShaft028mm1
27AR600180Oring366AR2280150HollowShaft028mm1
28AR1380920GuidingPiston367AR1380370ElMotorflange1
29AR1380060PistonPin376AR620610Screw4
30AR1383050AluminiumconͲrod378AR1389272PumpheadAss1
31AR1080401Ring386AR1260250OilIndicator1
32AR1381850Washer887AR1260430SnapRing1
34AR1780510ORing188AR1780690Disc1
35AR1789010Completecover189AR1140450ORing1
RKMODEL:RK13Ͳ17/RK15Ͳ20H/RK21Ͳ15
ValveKitPistonKitOilSealKit
ARKIT1828ARKIT2757ARKIT1856
PosQtyPosQtyPosQty
36253163
46   191
    341
    611
    621
WaterSeal SupportRing
ARKIT1857
PosQtyPosQty
123113
143  
153  
ARKIT1829

DemonStormManual—Issue10/07 Page22
Storm1&2

DemonStormManual—Issue10/07 Page23

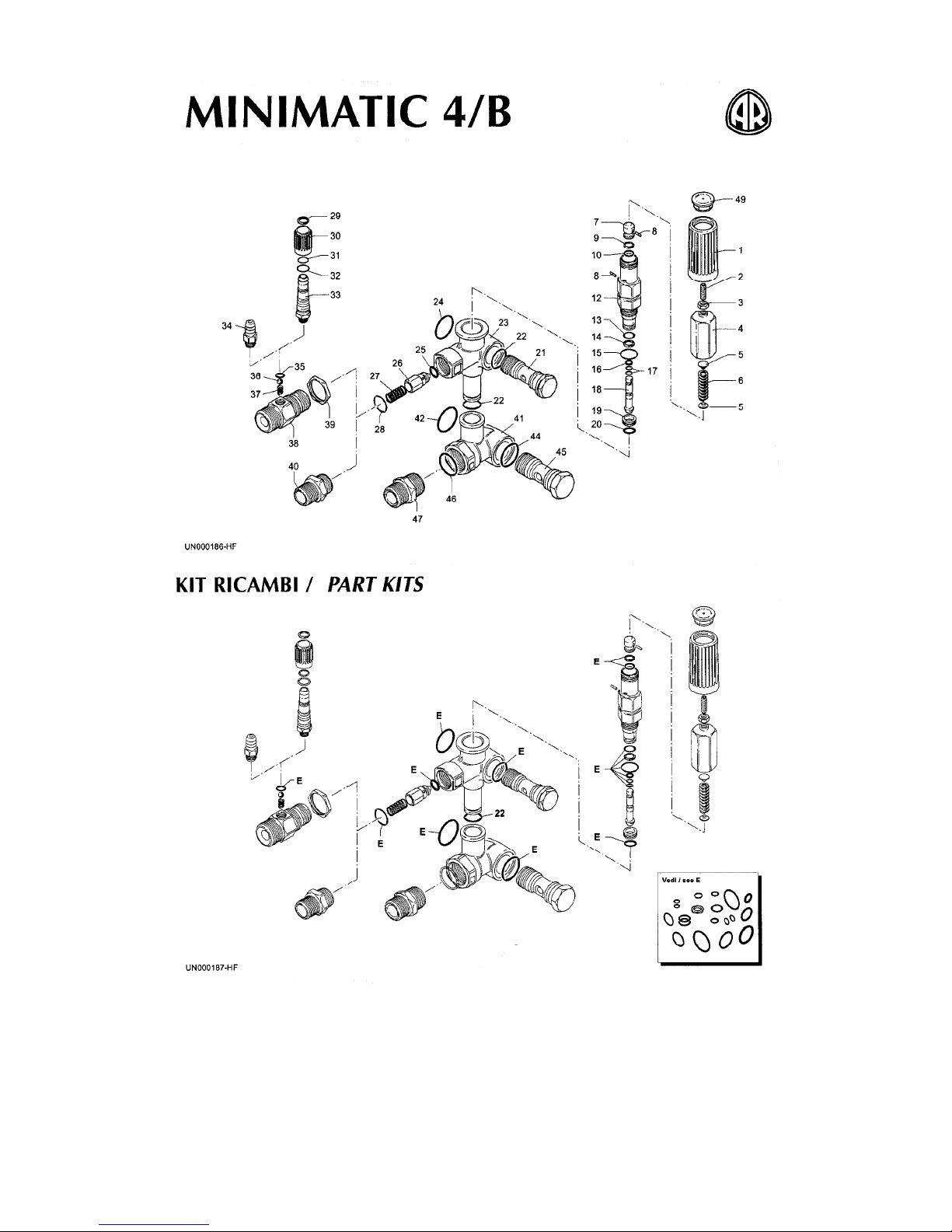

MINIMATIC4/B
PosPartNoDescriptionQtyPosPartNoDescriptionQty
1AR1981780Handle140AR1540180Adaptor3/8G1
2AR1540560Grub140AR1540500Adaptor3/8NPT1
3AR1980300Nut141AR1540280Bypasshousing1
4AR1980390KnobInsert141AR1540480Bypasshousing1
5AR1980220SpringPlate242AR1540630ORing1
6AR1271070Spring144AR880270ORing1
7AR1080041UpperPiston145AR1540260ThreadScrew1
8AR1080070Pin246AR480440ORing1
9AR1080401BackupPin147AR1540050Fitting1
10AR1080250Oring149AR1981770KnobPlug1
12AR1980210PistonGuide1    
13AR740290ORing1    
14AR800560ORing1    
15AR880830ORing1    
16AR1271170BackupRing1    
17AR1080190ORing2    
18AR1271160LowerPiston1    
19AR1980200ValveSeat1    
20AR1470210ORing1    
21AR1540270ThreadScrew1    
21AR1540430ThreadScrew1    
22AR390080ORing2    
23AR1540510Valvehousing1    
24AR1140450ORing1    
25AR1460430ORing1    
26AR1540170Jet1    
27AR1080091Spring1    
28AR394280ORing1    
29AR1560660Ring1    
30AR1560680DetergentRegKnob1    
31AR480560ORing1    
32AR800560ORing1    
33AR1560650Hosetail1    
34AR1560490Hosetail1    
35AR480480ORing1    
36AR1250280Ball1    
37AR1560520Spring1    
38AR1540570Fitting3/
8G1    
38AR1540580Fitting3/8/G1    
38AR1540610Fitting3/8NPT1    
38AR1540620Fitting3/8NPT1    
39AR1540300Nut1    
PosQtyPosQtyPosQty
91172351
101201421
131222441
141241  
151251  
161281  
     
ARKIT2812

DemonStormManual—Issue10/07 Page24

DemonStormManual—Issue10/07 Page25

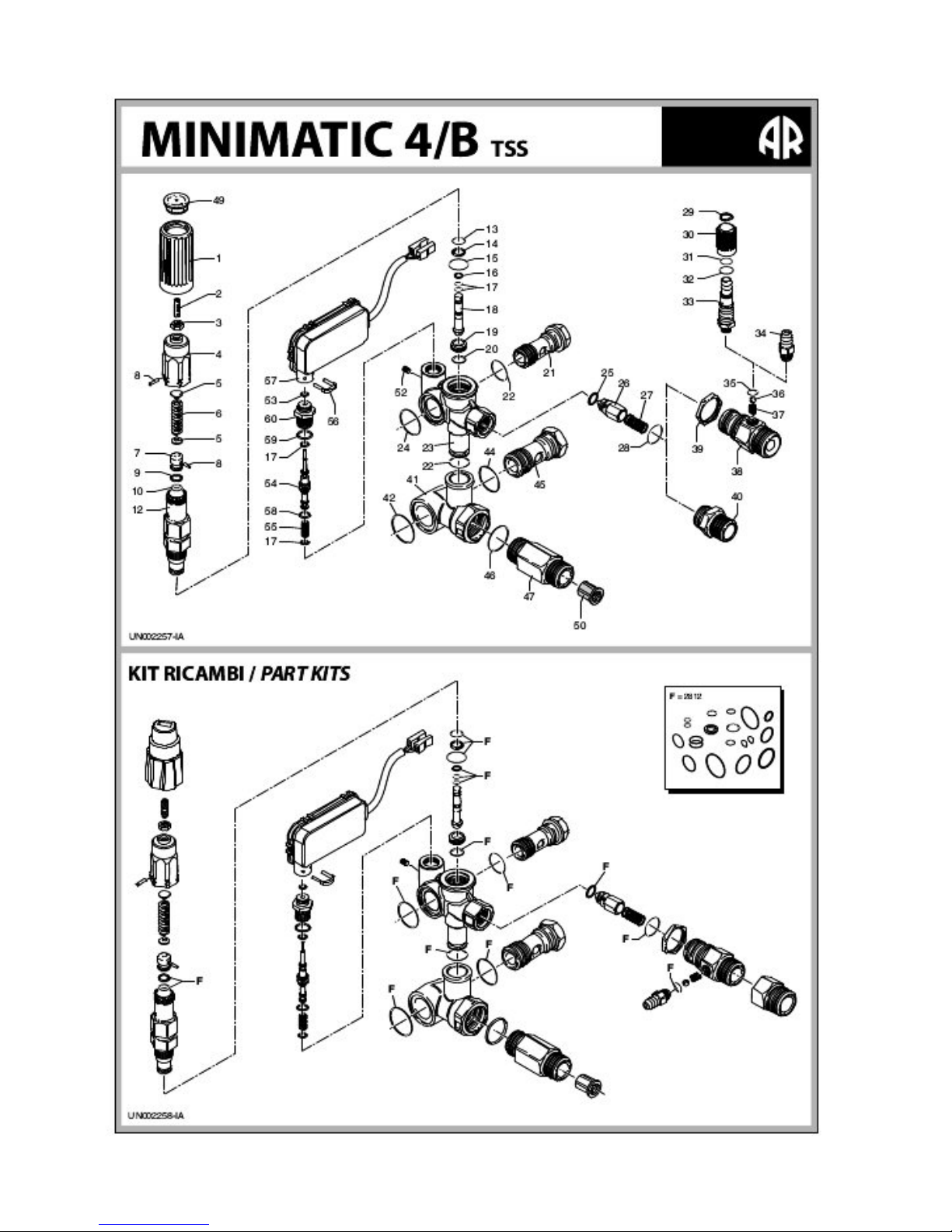

MINIMATIC4/BTSS
PosPartNoDescriptionQtyPosPartNoDescriptionQty
1AR1981780Knobextension140AR1540180Adaptor3/
8G1
2AR392840Grubscrew140AR1540500Adaptor3/8NPT1
3AR1980300Nut141AR1540280Bypasshousing1
5AR1980220Springplate244AR880270ORING1
6AR1271070Spring 145AR1540260Screw1
7AR1080041Upperpiston146AR480440Oring1
8AR1080070Pin247AR1560600Suctionfitting1
9AR1080401BackUpRing149AR1981770Knobplug1
10AR1080250ORing150AR1340260Watersuctionfilter1
12AR1980210PistonGuide152AR1981190Grubscrew1
13AR740290Oring153AR1260820Oring1
14AR800560Oring154AR1540880TSSpiston1
15AR880830Oring155AR1981320Spring1
16AR1271170Backupring156AR2022200Clip1
17AR1080190Oring257AR2029753TSSassembly1
18AR1271160Lowerpiston158AR660190Oring1
19AR1980200Valveseat159AR880840Oring1
20AR1470210Oring160AR1540870TSSfitting1
21AR1540270Threadscrew1    
22AR390080Oring2    
23AR1540660Valvehousing1    
24AR1140450Oring1    
25AR1460430Oring1    
26AR1540170Jet1    
27AR1080091BallSpring1    
28AR394280Oring1    
29AR1560660Ring1    
30AR1560680Detergentregknob1    
31AR480560Oring1    
32AR800560Oring1    
33AR1560650Hosetail1    
34AR1560490Hosetail1    
35AR480480Oring1    
36AR1250280Ball1    
37AR1560520Spring1    
38AR1540570Fitting3/8G1    
38AR1540580Fitting3/8G1    
38AR1540610Fitting3/8G1    
38AR1540620Fitting3/8G1    
39AR1540180Nut1    
4AR2500400Knobinsert142AR1540630ORING1
ARKIT2812
ORings
PosQtyPosQty
91172
101201
131222
141241
151251
161281
Pos
35
42
44



Qty
1
1
1




DemonStormManual—Issue10/07 Page26

DemonStormManual—Issue10/07 Page27

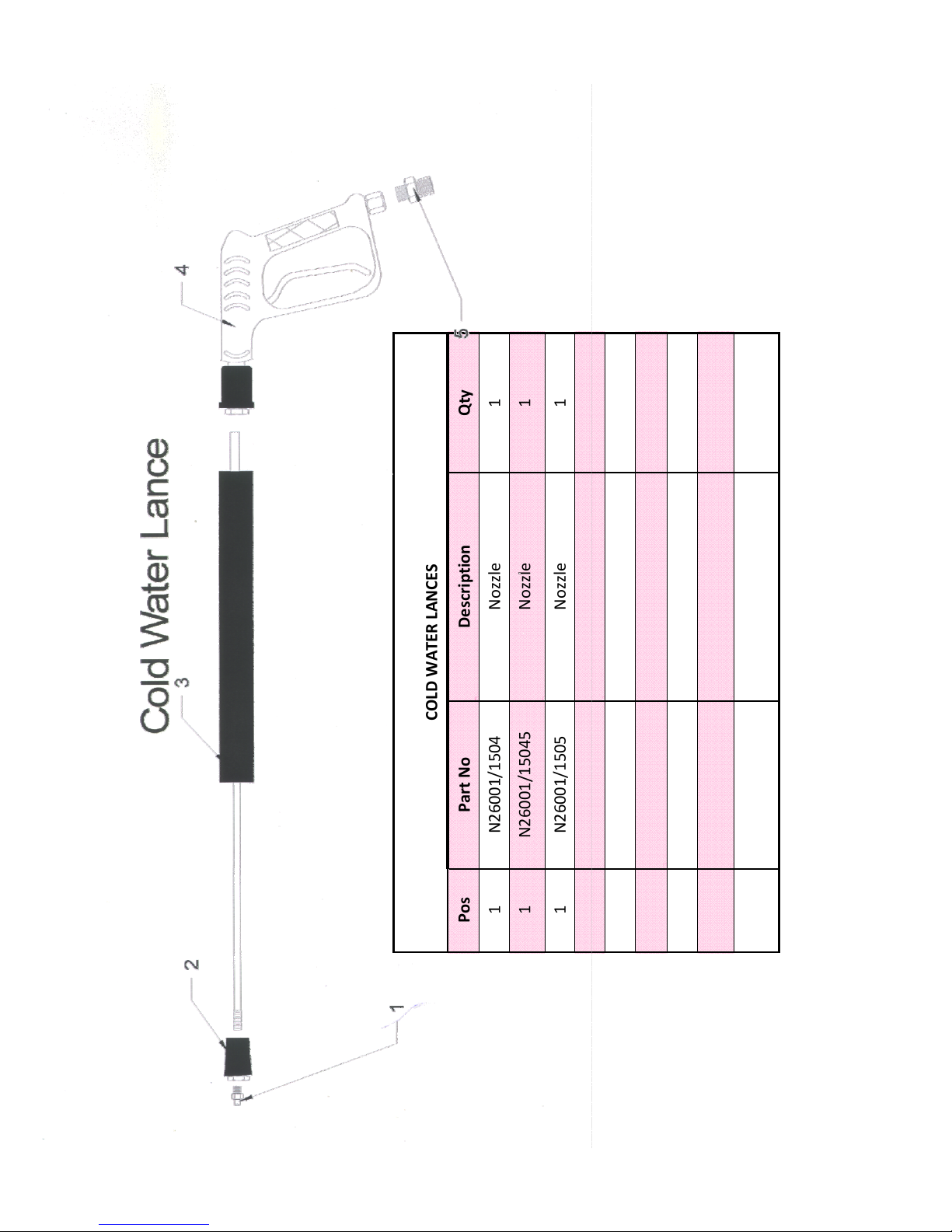

PosPartNoDescriptionQty
1N26001/1504Nozzle1 1N26001/15045Nozzle1 1N26001/1505Nozzle1 2MTM90040AdjustableNozzle1 3DEM10031BStorm1&2Lance0451 3DEM10031YStormWM3041 3DEM10031RStormWM4051 4DEM10030QRTrigger1 5MTM70012MVGCoupling1

COLDWATERLANCES

DemonStormManual—Issue10/07 Page28
1.HoseInsertMV00490(items1&2) 2.Nut  3.HighPressureHoseHH00030MVG 4.HoseJoinerMV00500
15MetreHH00050MVG 30MetreHH00100MVG
AlternativeHoseLengths
High Pressure Hoses
12
3 4

DemonStormManual—Issue10/07 Page29
PositionPartNoDescriptionQty
1DEM10041100MeshSuctionFilter 
2MTM86010ChemicalFilter 
3MTM73001QRNippleFemale 
4MTM73020 QRNippleMale 
5HH0053YellowHose 
6DEM20500JubileeClip 
7DEM10042
INC(1Ͳ4Ͳ5Ͳ6)
Suctionfilterwith
Hoseandfittings

8DEM10115DetergentPipe(ChemicalPipe) 
StormRangeInletFittings
1
2
5
6
6
3
4
8

DemonStormManual—Issue10/07 Page30
3/8" R1T Hose
690mm
3/8" BSP 90° Straight
3/8" BSP 90°
Storm Wall Mounted Internal Hose Pump head to gauge and Unloader valve to outlet
KTW 25/6/09
HH0010

DemonStormManual—Issue10/07 Page31
3/8" R2T Hose
1325mm
3/8" BSP 90° Straight
3/8" BSP 90°
Storm Wall Mounted 415v Pump to pressure gauge
KTW 29/6/09
HH00101

DemonStormManual—Issue10/07 Page32
3/8" R2T Hose
710mm
3/8" BSP 90° Straight
3/8" BSP 90°
Wall Mounted 415v Storm Unloader valve to outlet
KTW 29/6/09
HH00102
